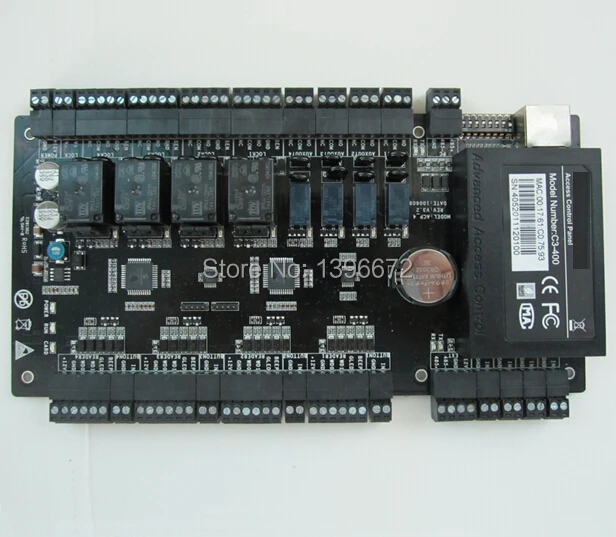

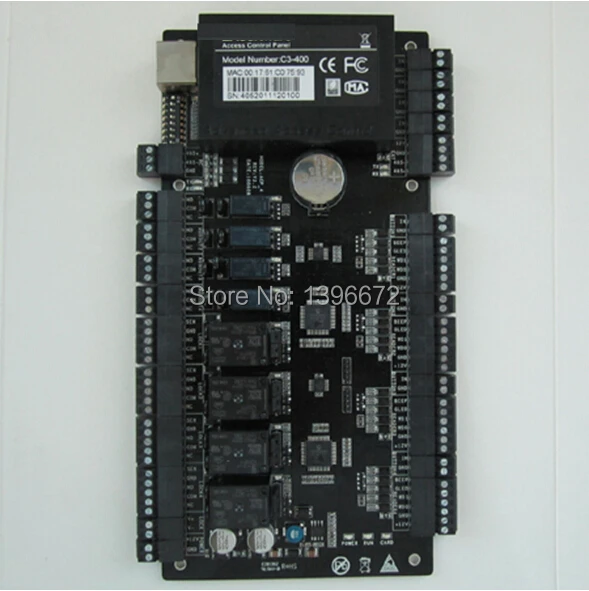

ZK Access Control Board Door Access Control systems C3-400 TCP/IP Four-door one-Way Access Control Panel with Free software

100% of buyers enjoyed this product!
29
View cart→
Product Description
Shipping & Payment
Product Details


Features:

.Integration with Other Security Systems

.Supports different wiegand reader

wiegand format, and can connect to different reader, including ID card reader

.Input/Output Ports to Control Doors

Connect with variety of sensors, alarms, exit buttons, electric lock and other devices.

.Variety of Communication Function

Using either serial or TCP/IP communication, it provides reliable network system

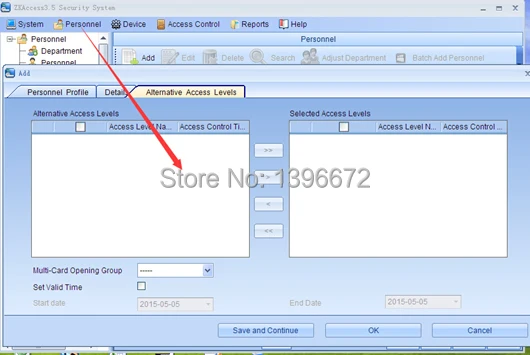

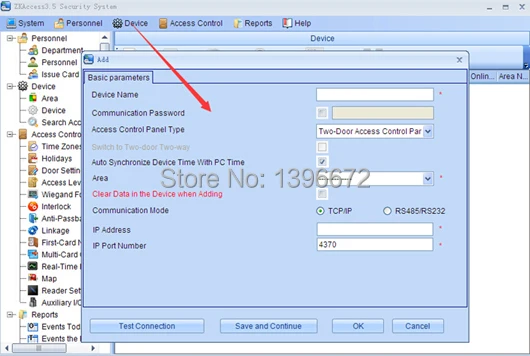

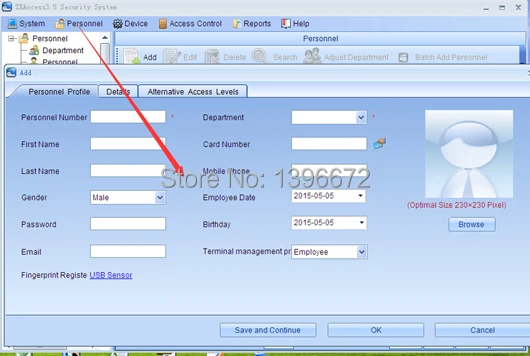

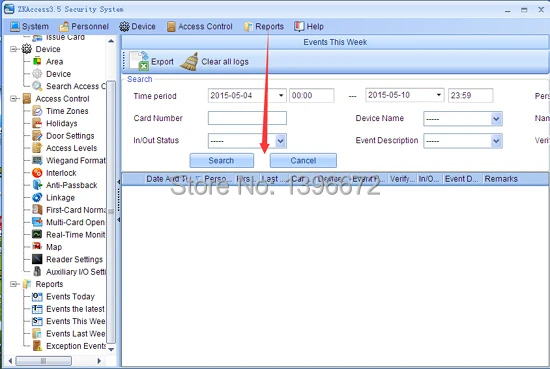

.B/S structure software

It is easy to manage the system by browser from client PC. There is no need to install software on each client.

.Normal open after first punch card can be setup

.Real-time Monitoring of Door status

Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.

.Simple Access Control System Configuration

.Interlock function

Link different doors with special logic that one door is Open, others should be closed.

.Multi-card operation

.Anti-Passback

.Duress Mode

The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.

Specifications:

CPU

32bit MIPS CPU

RAM

32M bits

Flash Memory

256M bits

User

30,000

Event Buffer

100,000

Power / Current

DC 9.6V-14.4V, Rated Max.1A

Reader Port

4ea (26bit Wiegand, 8bit Burst for PIN)

Communication

RS485, TCP/IP

Baud Rate

38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable)

Input Port

12ea (Exit Button#1, Exit Button#2, Button#3, Button#4, Door Sensor#1, Door Sensor#2, Door Sensor#3, Door Sensor#4, Aux#1, Aux#2, Aux#3, Aux#4)

Output Port

4ea (4 FORM-C Relay Output, SPDT )

4ea (4 Aux FORM-C Relay Output, SPDT 2A 30VDC)

LED Indicator

Yes, LED indication for communication, power, status and punch card

Operating Temperature

0 C to +55 C

Operating Humidity

10% to 80% relative humidity non-condensing

Dimension (L*W)mm

218(W)*106(H)(single board )

345(W)*275(H)*70(D)(with power supply and metal box)

Certification

CE, FCC, RoHS
