Model: KL-Series Wireless Alarm Sensors
Specfication: Chip Code: EV1527 with timing resistor 330K, wireless frequency 433MHZ
Please make sure your system is compatible with Chip Code EV1527 with timing resistor 330K, wireless frequency 433MHZ Sensors before order.

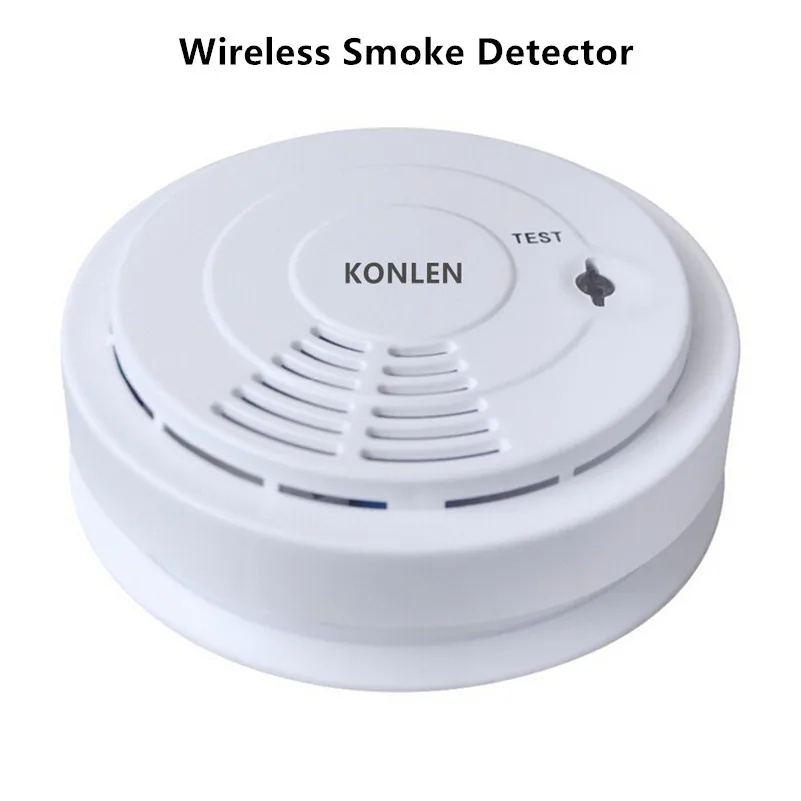

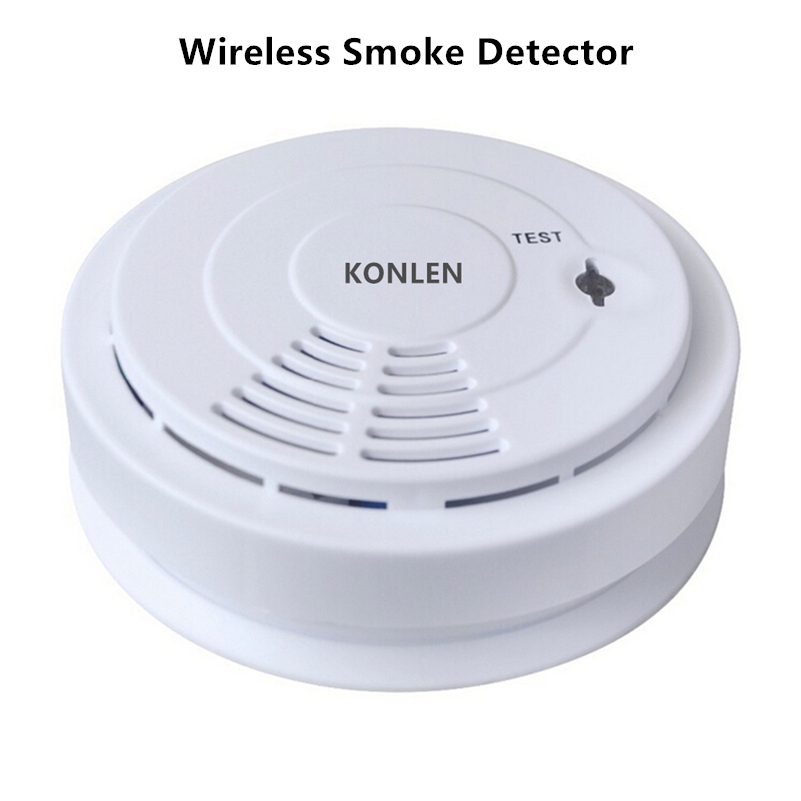

KL-WSD02 Wireless Smoke Detector
Operating Voltage: DC9V battery
Static Current: less than 10uA
Alarm Current: less than 20mA
Alarm Indication: Red LED flash
Sound Level: More than 85dB/m
Operating Temperature: -10°C ~+50°C
Operating Humidity: less than 95% RH
Detecting Area: 20 square meter
IC code: 1527
Wireless frequency:433mhz
Timing resistor:330k
About 20 to 40M indoor;100m in open area(no obstacle)
(The price include 1pcs)

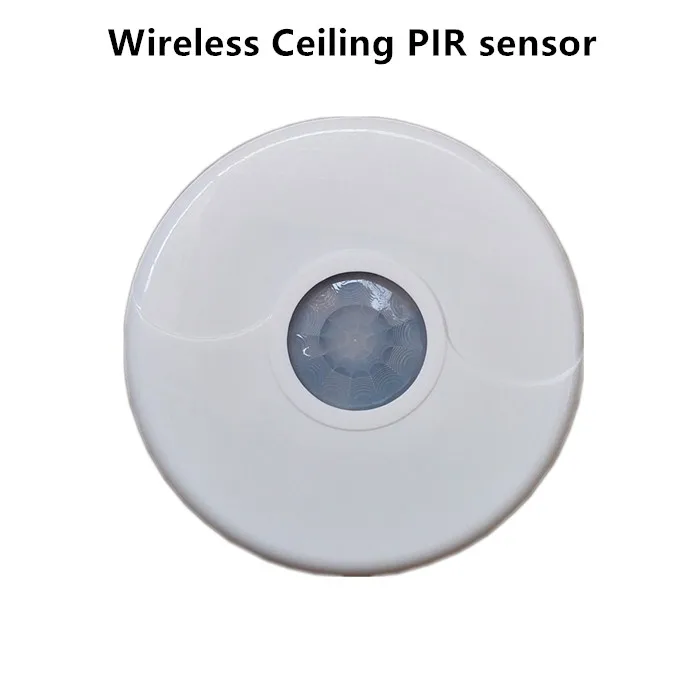

KL-W801F Wireless Ceiling PIR Motion Detector
Operation Voltage: DC3V (2 *1.5V AA battery)
Detection Angle: 360 degree
Chip Code: 1527
Wireless frequency : 433MHZ
Timing Resistor:330k
Wireless transmission distance: About 20 to 40M indoor;120m in open area(no obstacle)
Radio Frequency: 150m in open area
Low battery indicator: Yellow LED
Alarm indicator: Red LED
Detection Distance: 4 to 8m, 6 to 12m, 9 to 18m adjustable
Sensor: Dual element infrared sensor
Operating temperature: -10 centi degree to + 50 centi degree
Enviromment humidity: less than 95% RH(No congelation)
Anti RF interference: 10Mhz-1GHs 20v/m
Installation Mode: Ceiling
Installation Height: 1.8 to 2.5M (2.2M recommanded)
Dimension: Diameter 136 * 28mm
(The price include 1pcs)

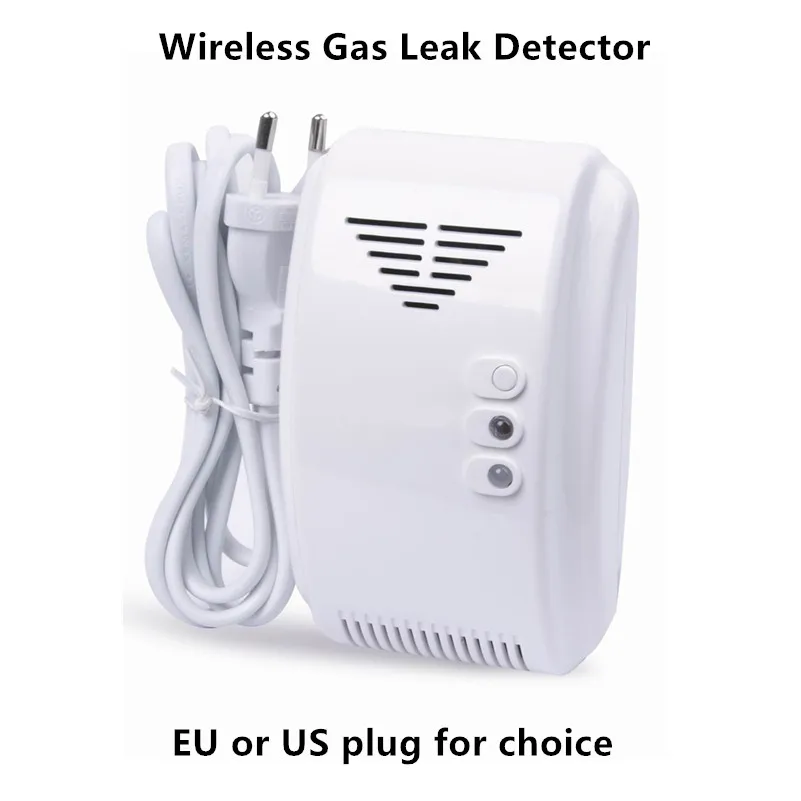

KL-WGD Wireless Gas Leak Detector
Operating Voltage AC100V to 240v
Static Current: less than 90mA
Alarm Current: less100mA
Rating Power: less than 3W
Warm-up Time: about 180S
Alarm Level: 10%LEL
Alarm indicator: red LED flash
Failure Indicator: yellow LED on & beeper long-buzz
Sound Level: more than 85dB/m
Operating Temperature: -10 +50 centi degree
Environment Humidity: less than95% RH (no congelation)
Installation Mode: wall mounted
Alarm Output: relay output/sound & flash alarm
Wireless Radio frequency: 433mhz
Chip Cod Form: EV1527 with 330K resistor
Transmission Distance: About 15 to 40M indoor;100m in open area(no obstacle)
Installation of gas detector
Installation should be according to gas weight.
a. For natural gas and mash gas etc, which are a bit lighter than air, gas detector should be installed under ceiling 0.3m to 1.2meters and within the rang of 1.5m semidiameter from gas sources.
b. For liquefied petroleum gas (LPG), which is a bit heavier than air and sink down to a lower level, the gas detector should be installed above 0.3—1.2meters from floor and within the range of 1.5m semidiameter from gas sources.
(The price include 1pcs)

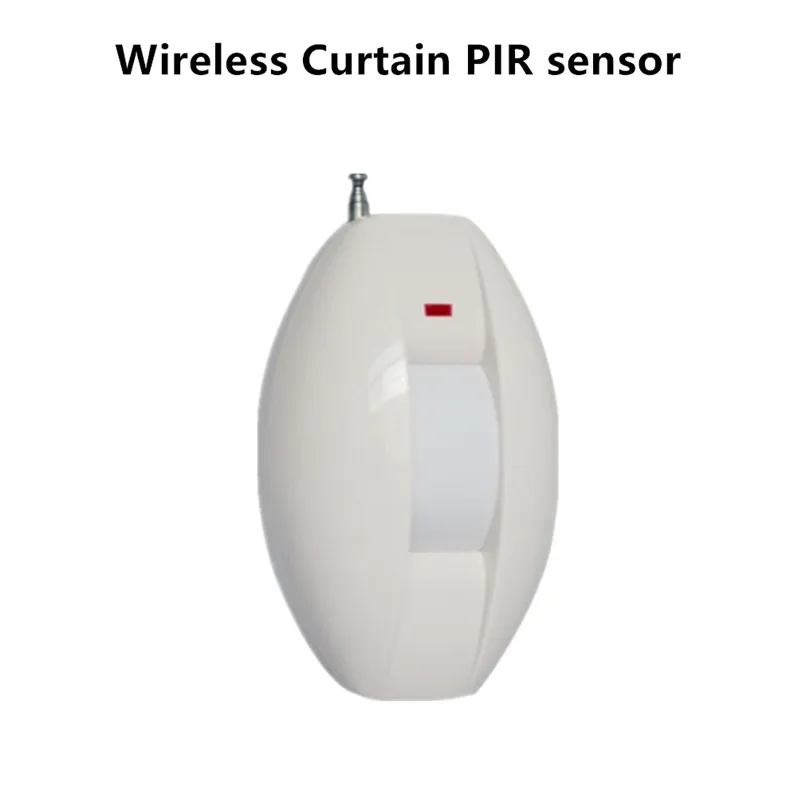

KL-CPS02 Wireless Curtain PIR Motion Detector
Operating voltage: 9V, 6F22 battery
Detecting distance: 6m to 10m
Detecting angle: Horizontal 45° to 60° , Vertical Vertical 110°
Wireless Radio frequency: 433mhz
Chip Cod Form: EV1527 with 330K resistor
Operating temperature: -10 centi-degree to 40 cent degree
Environment humidity: 95% RH (no congelation)
Installation mode: wall mounted
Transmission Distance: About 20 to 50M indoor;120m in open area(no obstacle)
(The price include 1pcs)

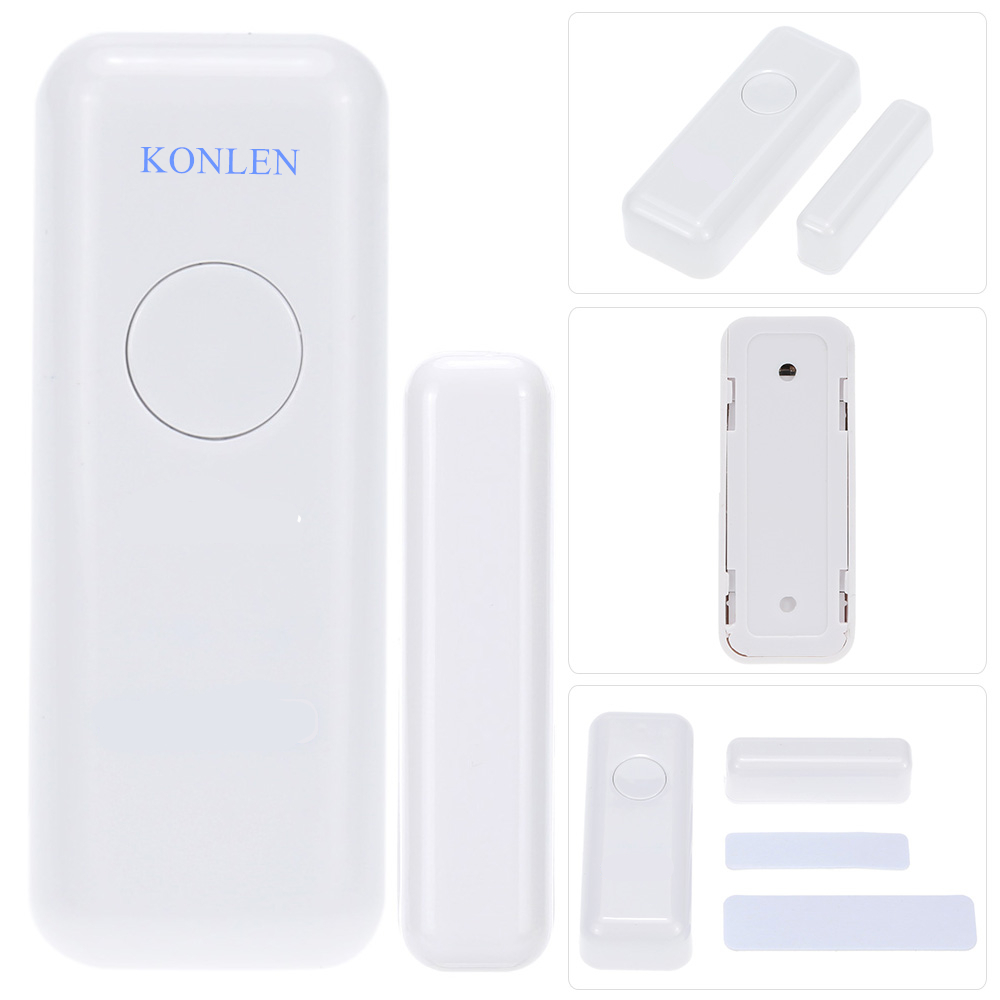

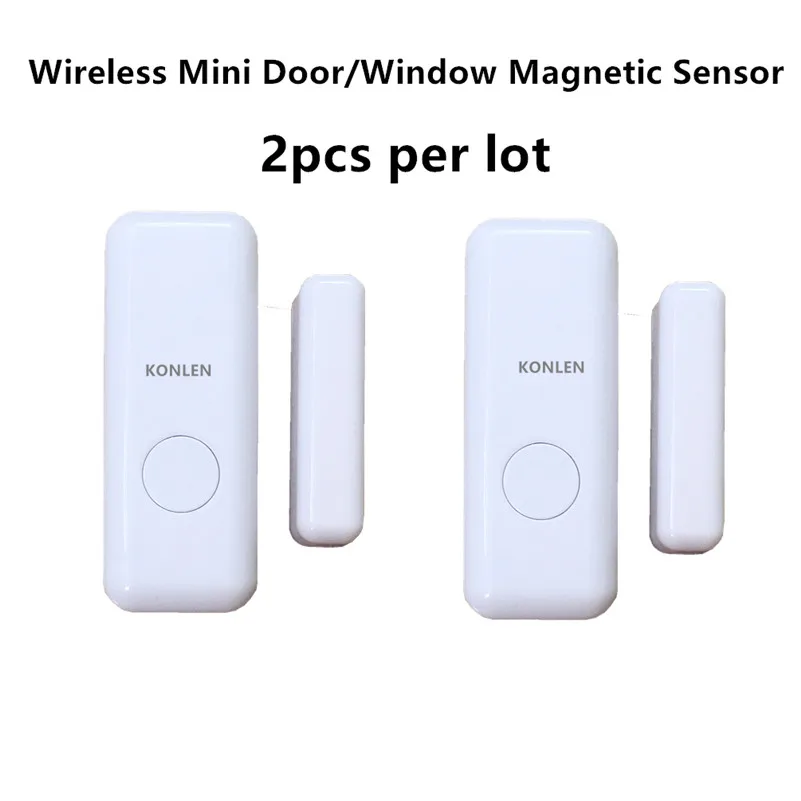

KL-D01Wireless Mini Door Window Magnetic Sensor
Size: Transmitter: L:6cm * W:2.4cm * H:1.2cm ( L:2.36 * W:0.94 * H:0.47 Inch)
Magnetic Part: L:4cm * W:1.0cm * H:1.2cm ( L:1.57 * W:0.39 * H:0.47 Inch)
Power Supply: 3V Lithium Cell battery, CR2032
Wireless Radio frequency: 433mhz
Chip Cod Form: EV1527 with 330K resistor
Transmission Distance: About 20 to 40M indoor;100m in open area(no obstacle)
The wireless magnetic contact sensor with panic button that can be also worked as a panic button for emergency help or doorbell button
a. Program it into door alarm zone, work as door sensors
b. Program it into emergency defense zone, work as panic button
c. Program it into doorbell zone, work as doorbell button. If your alarm panel no the feature, doorbell button function can’t be realized.
(The price include 2pcs)

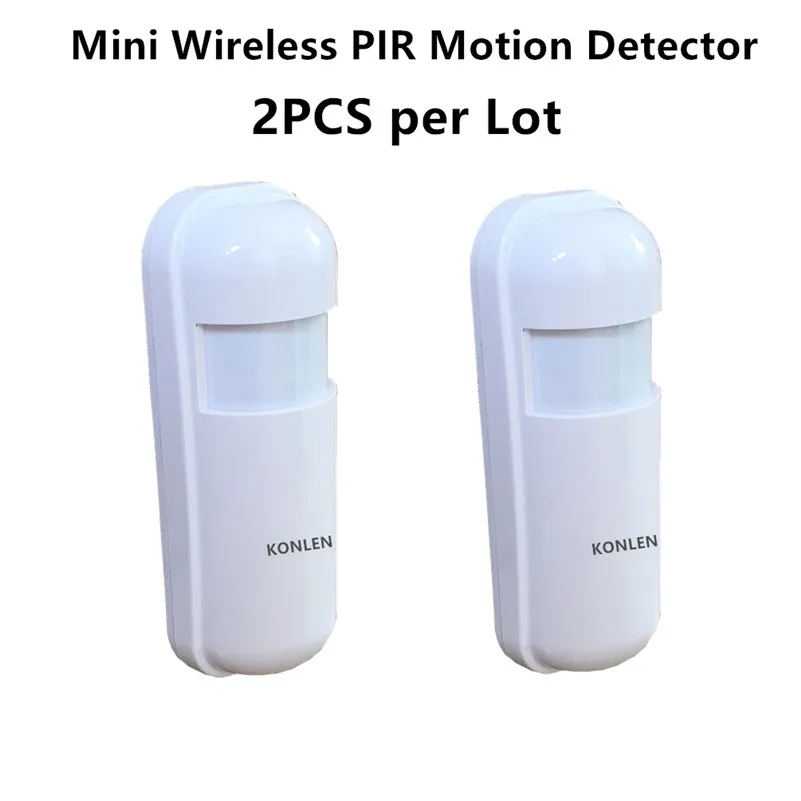

KL-P01 Wireless Mini PIR Motion Detector (The price include 2pcs)
Power Supply: AAA 7# 1.5V * 2pcs
Wireless Frequency: 433 MHZ
Chip code:1527
Timing resistor:330k
Transmission Distance: About 20 to 50M indoor;120m in open area(no obstacle)
Detective Range: Horizontal 110°, Vertical 45° to 60°
Detection Distance: About 6 to 10M
Installation Height: 1.8 to 2.5m (2.2m isrecommanded)
Working Condition Temperature -10 centi-degree to 50 cent degree
Humidity ≤ 90 rh
Size:L:10CM * W:4CM * H:2.4CM ( L:3.94 * W:1.57 * H:0.94 Inch)

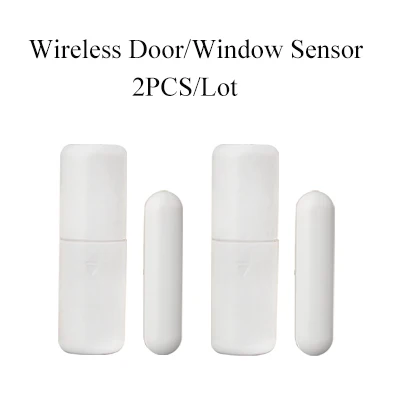

KL-H37 wireless door/window sensor
Power Supply: 12V 23A battery
Wireless Radio frequency: 433mhz
Chip Code Form: EV1527 with 330K resistor
Transmission Distance: About 20 to 40M indoor;100m in open area(no obstacle)
With two-way function and low battery alert
(The price include 2pcs)

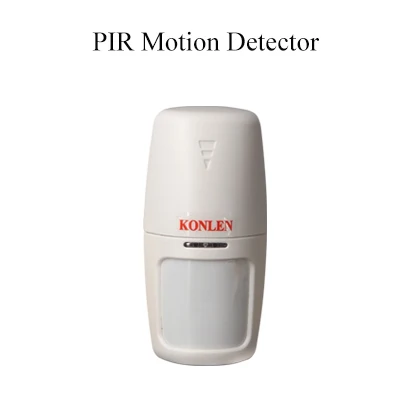

KL-H37 Wireless Infared PIR Motion Detector with low battery alert
Power Supply: AAA 7# 1.5V * 2pcs
Wireless Frequency: 433 MHZ
Chip code:1527
Timing resistor:330k
Transmission Distance: About 20 to 50M indoor;120m in open area(no obstacle)
Detective Range: Horizontal 110°, Vertical 45° to 60°
Detection Distance: About 6 to 10M
Installation Height: 1.8 to 2.5m (2.2m isrecommanded)
Working Condition Temperature -10 centi-degree to 50 cent degree
Humidity ≤ 90 rh
(The price include 1pcs)

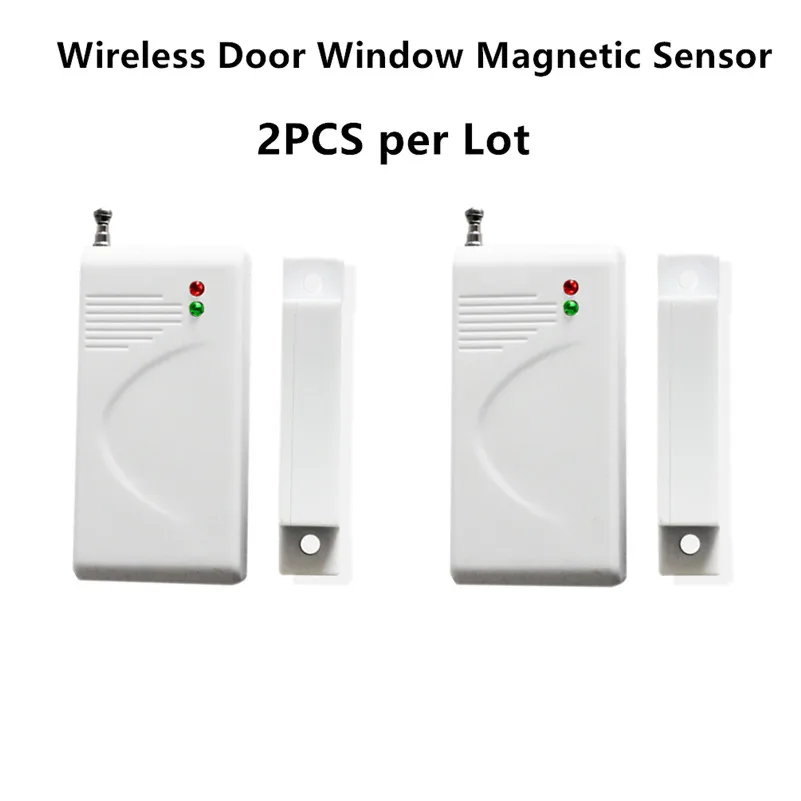

KL-DWS Wireless Door Window Magentic Sensor with external antenna
Battery: 12V, 23A dry battery
Dimension: 7.2cm x 3.7cm x1.7cm, (2.8 x 1.46 x 0.67 inch)
Magnetic Part: 6.5cm x 1.5cm x 1.4cm (2.56 x 0.59 x 0.55inch)
Wireless Radio frequency: 433mhz
Chip Cod Form: EV1527 with 330K resistor
Transmission Distance: About 20 to 40M indoor;100m in open area(no obstacle)
(The price include 2pcs)

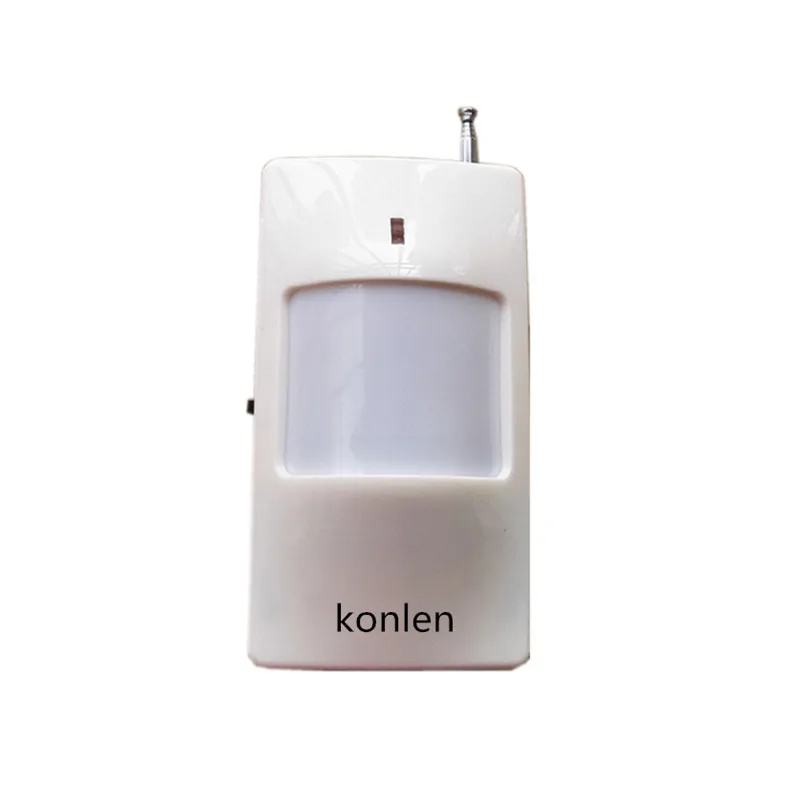

KL-PMS01 Wireless Infared PIR Motion Detector with External Antenna
Operating voltage: 9V, 6F22 battery
Detecting distance: 6m to 10m
Detecting angle: Horizontal 110°, Vertical Vertical 45° to 60°
Wireless Radio frequency: 433mhz
Chip Cod Form: EV1527 with 330K resistor
Operating temperature: -10 centi-degree to 40 cent degree
Environment humidity: 95% RH (no congelation)
Installation mode: wall mounted or hanged in corner
Installation height: 1.8 to 2.5m (2.2m isrecommanded)
Transmission Distance: About 20 to 50M indoor;120m in open area(no obstacle)
(The price include 1pcs)

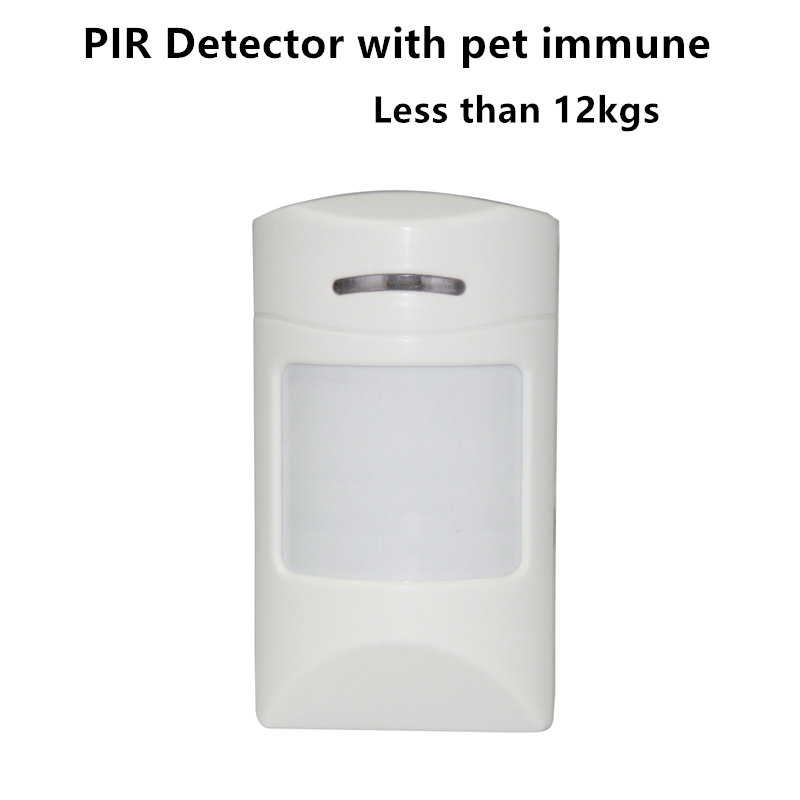

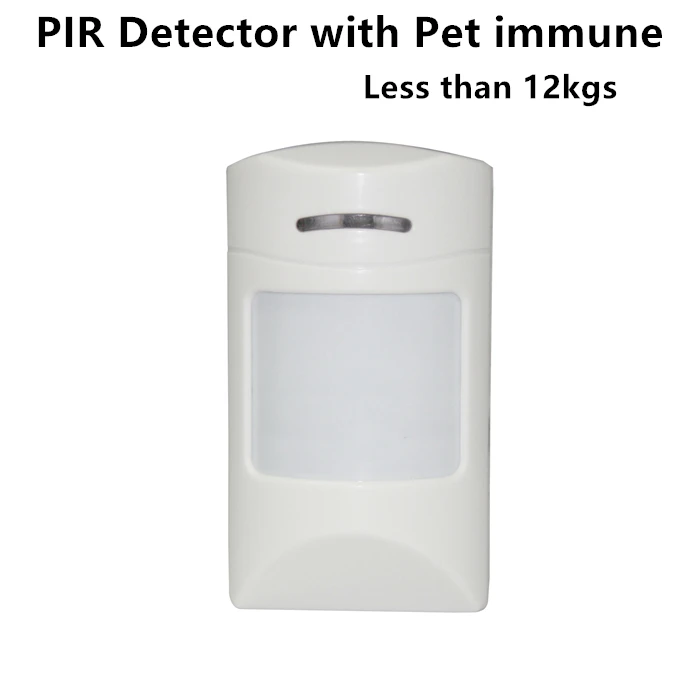

KL-P801 Wireless Pet Immune PIR Motion Detector
Voltage: 9V (6F22 Battery)
Statis current: Less than 25uA
Alarm current: Less than 15mA
Detecting distance: 6 to 12m
Detecting angle: Horizontal 110°, Vertical 45° to 60°
Wireless Radio frequency: 433mhz
Chip Cod Form: EV1527 with 330K resistor
Radio distance:About 20 to 40M indoor;120m in open area(no obstacle)
Low battery indicator: Yellow LED
Alarm indicator: red LED
Operation temperature: -10 centi-degree to 50 cent degree
Environment humidity: less than 95% RH (no congelation)
Anti RF interference: 10Mhz TO 1Ghz 20V/m
Installation height: 1.8 to 2.5m (2.2m is recommanded)
Outline Size: 106 * 62 * 46mm
Sensor: dual element infrared sensor
Pet immnue: less than 12kgs pet
(The price include 1pcs)

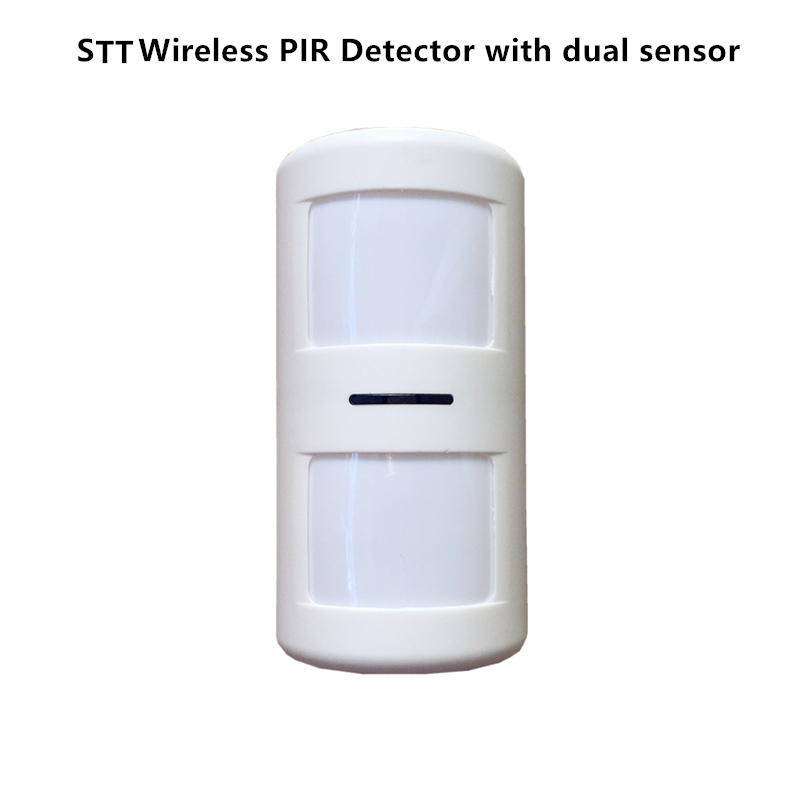

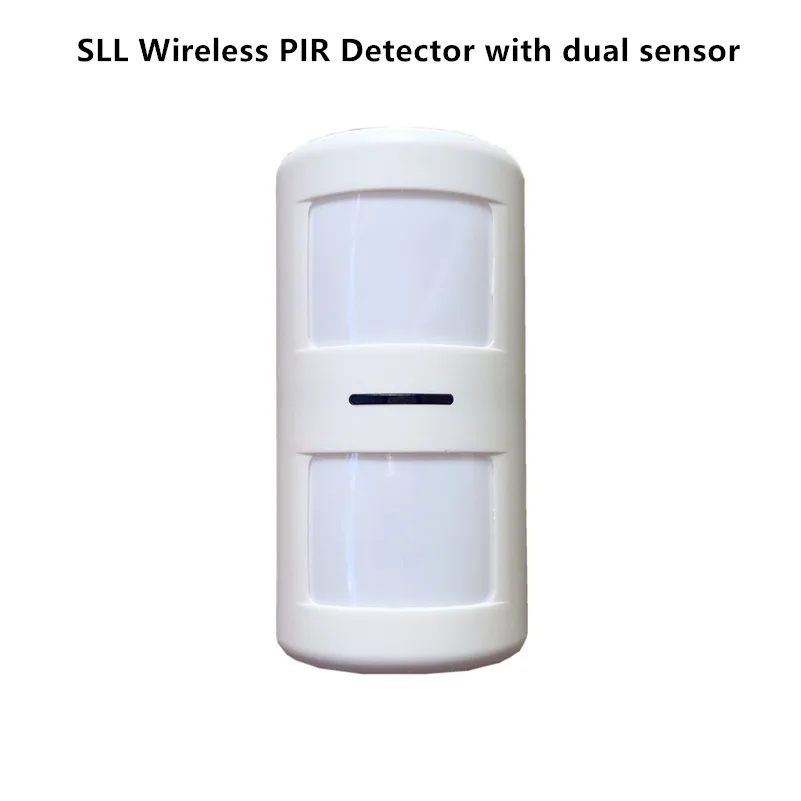

KL-STT Wireless Infared PIR Motion Detector with dual sensors
Dimensions: L:10.7CM * W:5.5CM * H:3.6CM ( L:4.2 * W:2.17 * H:1.42 Inch
Power Supply: AA 1.5V * 2pcs=3V
Wireless Frequency: 433 MHZ
Chip code:1527
Timing resistor:330k
Transmission Distance: About 20 to 50M indoor, 120m in open area(no obstacle)
Detection Range: Horizontal 110°, Vertical 45° to 60°
Detection Distance: About 6 to 12M
Installation Height: 1.8 to 2.5m (2.2m is recommanded)
Up and down dual infrared sensors that can reduce false alarm effectively
(The price include 1pcs)
Note: These wireless alarm sensors can work with all types of KONLEN burglar alarm consoles and KONLEN alarm IP cameras, and some other wireless 433MHZ Alarm Control Panels as below. If you buy it for different panels that not included in following pictures or your consoles not 433MHZ, we will not take any responsibility for the incompatible problem. Please make sure your system is compatible with Chip Code EV1527 with timing resistor 330K, wireless frequency 433MHZ Sensors.
