OS & Security |
Embedded Linux OS, Hi3518E. Support three-level account and user authority management. |
|
Lens Type |
Lens: 3.6mm, Wide angle, 3x digital zoom |
|
P2P (Plug&Play) |
Support QR code scanning to view on iOS iPhone, Android Smartphone. App: IPCView |
|
Multi-function |
Support 12 language remote surveillance, record, alarm, WiFi setting etc. |
|
TF Card Record |
Support max 128GB TF micro SD card. Support the scheduled record, snapshot, Support Intelligent record playback |
|
Video Parameters |
Brightness, Contrast, Saturation, Exposure, Sharpness, Vertical and Horizontal can be adjusted |
|
Video Sensor |
1.0 Megapixel, 1/4 CMOS. Image Compression: H.264 |
|
First Stream |
720P-(1280×720); Second Stream: VGA-(640×352) |
|
Audio In/Out |
Two-way Audio. Built-in Microphone and Speaker |
|
Night Vision |
6 Φ5 IR LEDs, Night visibility up to 10 meters. |
|
Pan/Tilt |
Support 8 preset positions. Rotation speed: Pan 5-30°/S; Tilt 5-50°/S |
|

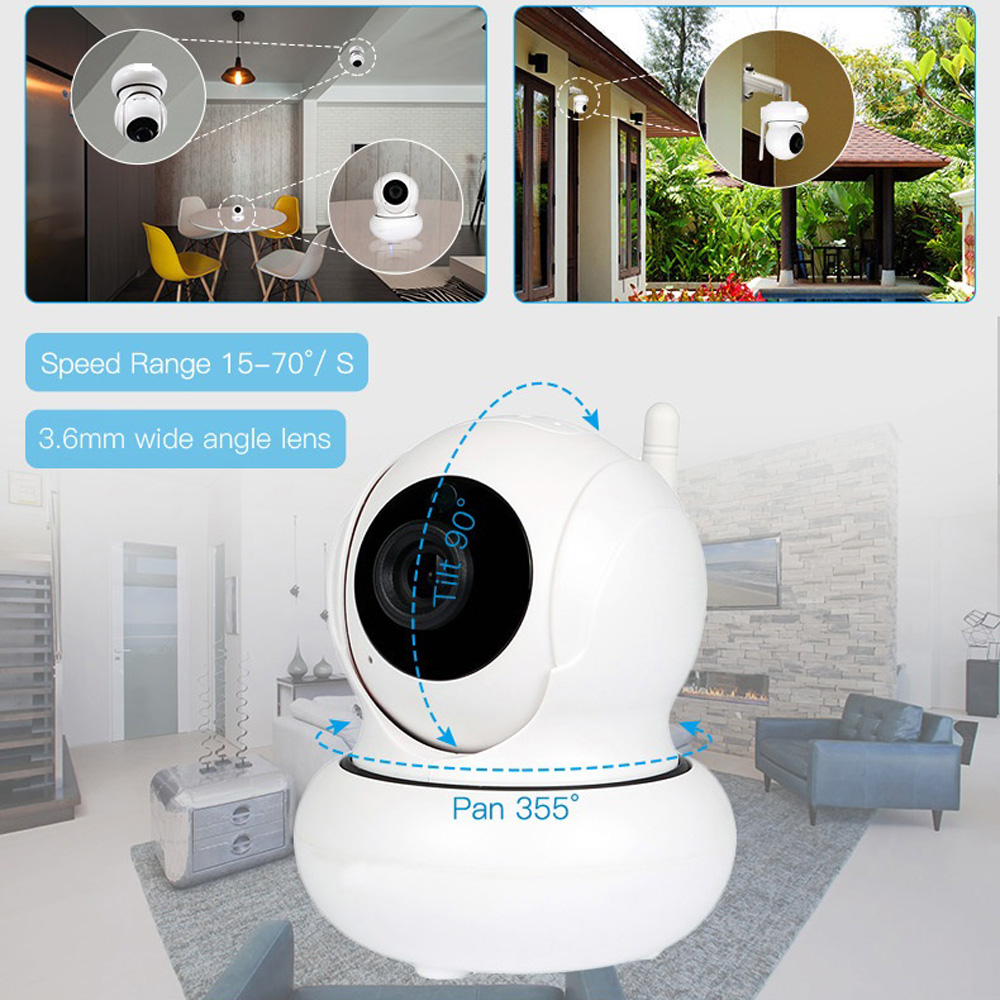

Rotation Angle |
Pan: 355° horizontally, Tilt: 90° vertically. |
|
Motion Detect |
Support 4 Independent detection areas, Sensitivity can be adjusted |
|
Alarm Action |
Support Email photo alert, Push alert notifications, Snapshot and record to FTP or TF card |
|

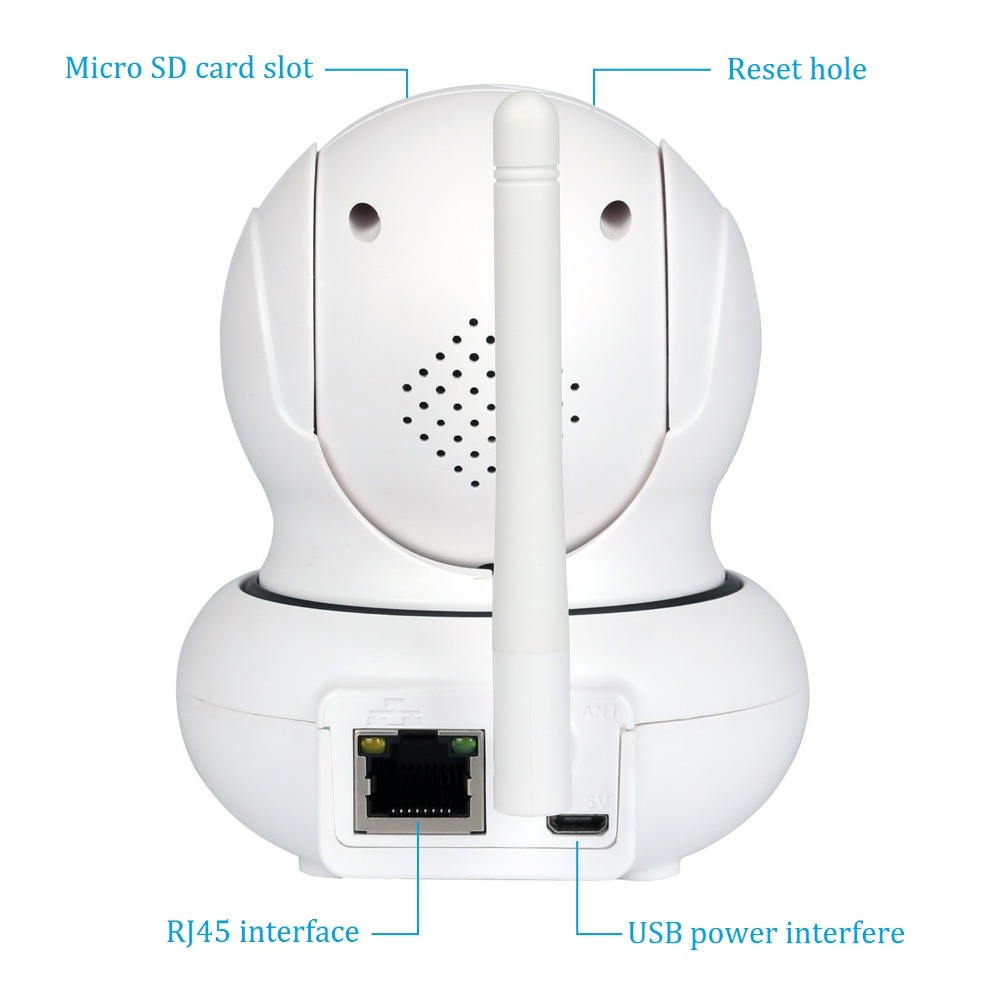

Ethernet Interface |
One 10/100Mbps RJ-45 |
|
Onvif |
Support standard Onvif 2.1 protocol |
|
Online Visitor |
Support Max 6 visitors at the same time (First Stream:3 visitors; Second Stream:3 visitors) |
|
Support OS |
Support Microsoft Windows XP /Win7 /Win8 /Win10 / Mac OS. |
|
Browser |
Full compatible with IE browser, Support Firefox, Google browser etc. |
|
Wireless |
WiFi, 2.4GHz 802.11b/g/n. Smart one key WiFi configuration |
|
Power |
DC5V 1A; micro USB power interface |
|
Working Humidity |
95% RH, working temperature: -10~50 °C |
|

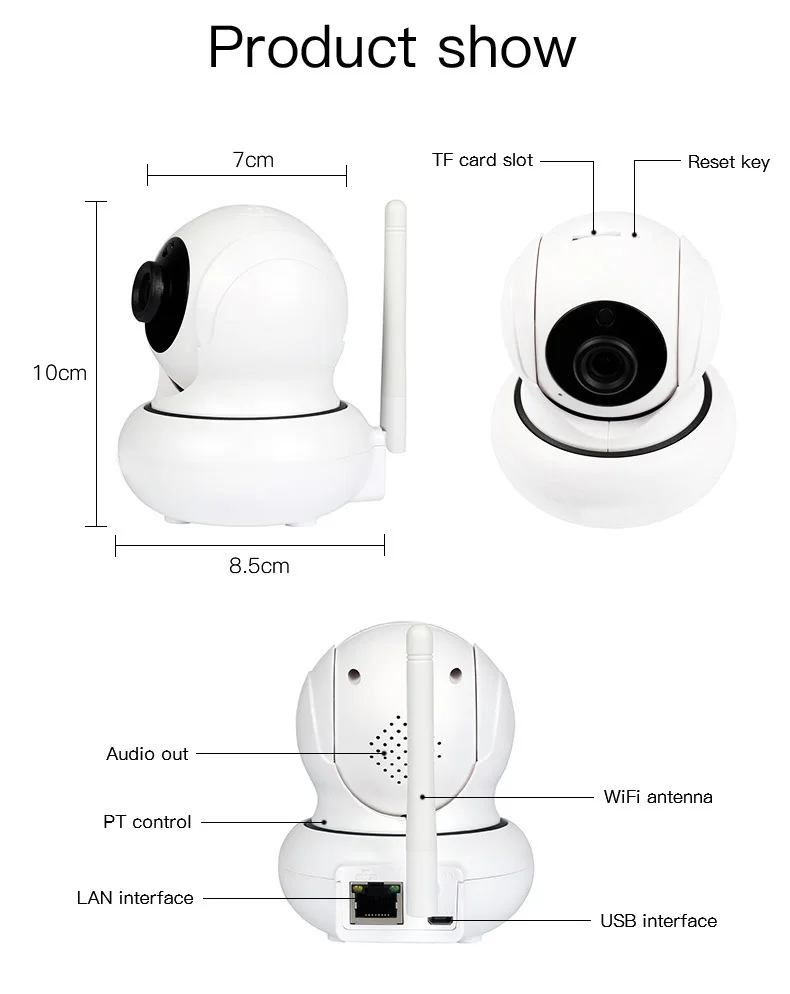

Size |
Item: 100*105*80mm; Packaging:140x125x105mm(LxWxH) |
|
Package Include |
IP Camera, Bracket, Screws, Adapter, USB Cable, Manual |
|
Certification |
CE, FCC, RoHS |
|
Warranty |
Two-year free replacement of spare parts warranty |

|

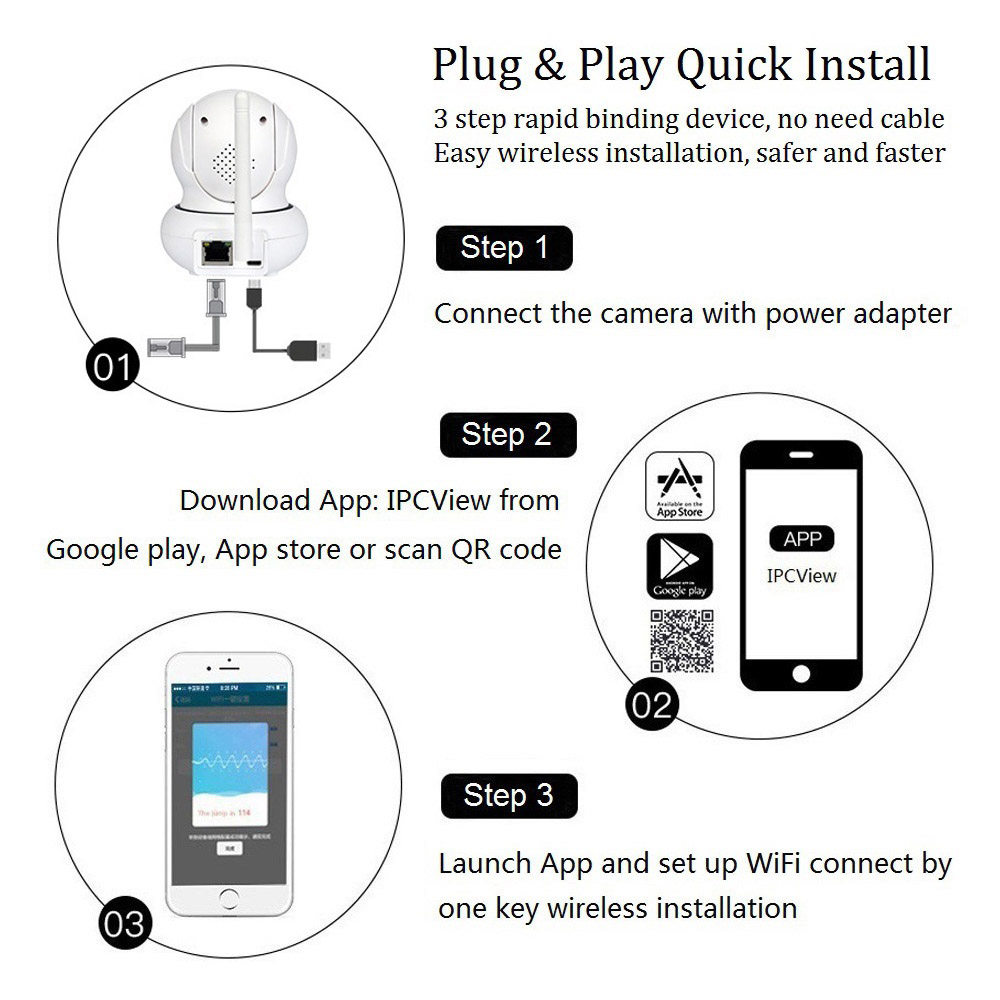

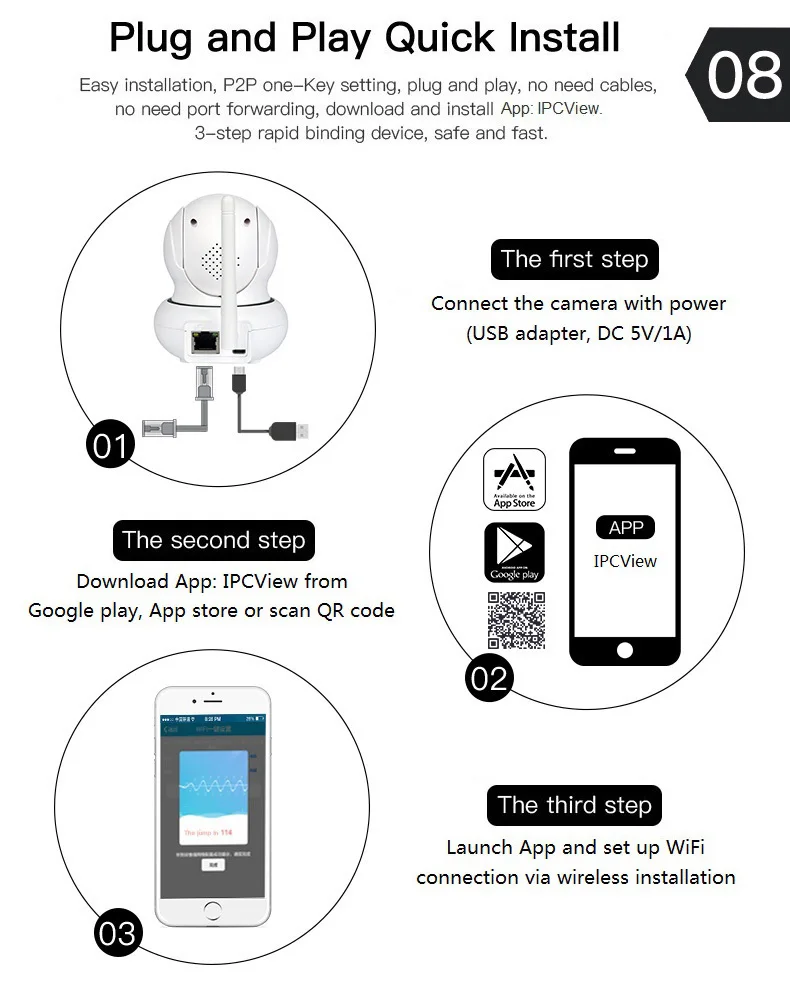

So easy to install the IP camera:
1. Download and install App: IPCView or wanscam, Search in Google Play store, App store, or scan QR code to download. 2. Launch App, click “+” to access the “Add Camera”, click “Wireless Installation”, Input your WiFi password, click “Apply”. 3. Wait for 1-2mins, then select the respective device and enter the password: admin, click done to connect WiFi, the video will be showed online, click it to view. Click View on IE browser: View on PC Client software: Important tips:
(a) WiFi name(SSID) and Password should not contain any special character, like: ~, !, @, #, $, %… password is not longer than 20 characters. (b) It support IP/Network-2.4GHz wireless only(Incompatible with 5GHz). If your router supports the both band, please close the 5GHz WiFi connection. Set WPA2-PSK(AES)/ WPA-PSK(AES) as Encryption. |
