OS & Security |
Embedded Linux OS, Hi3518E. Support one-level account and user authority management. |
|
Lens Type |

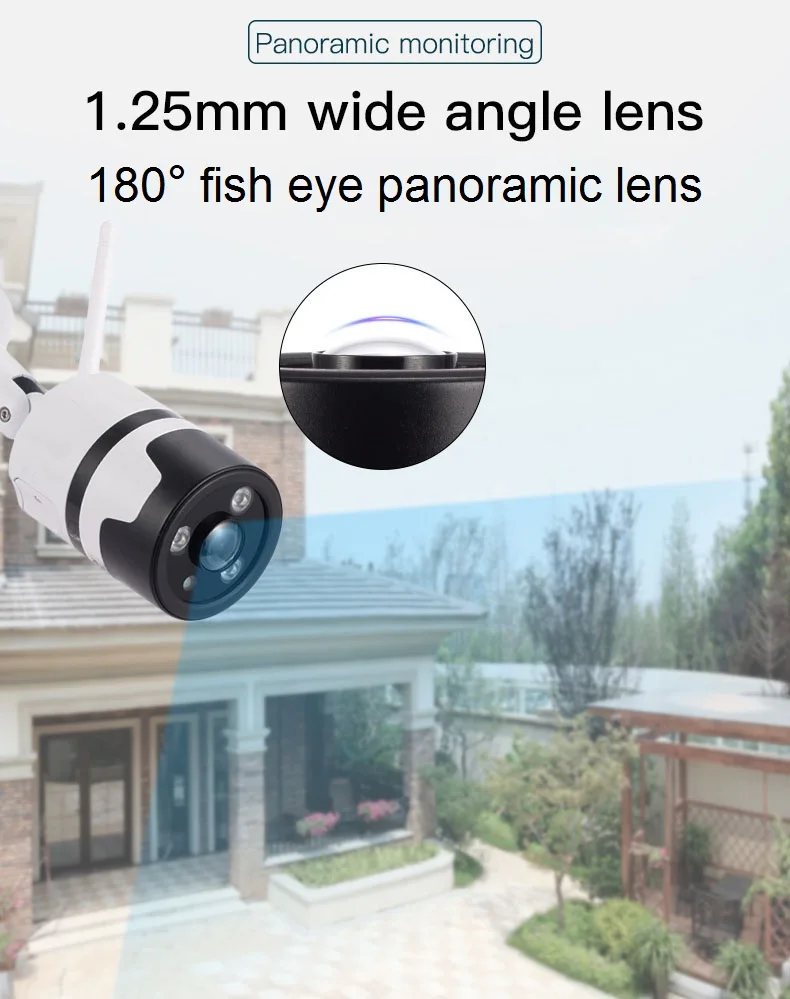

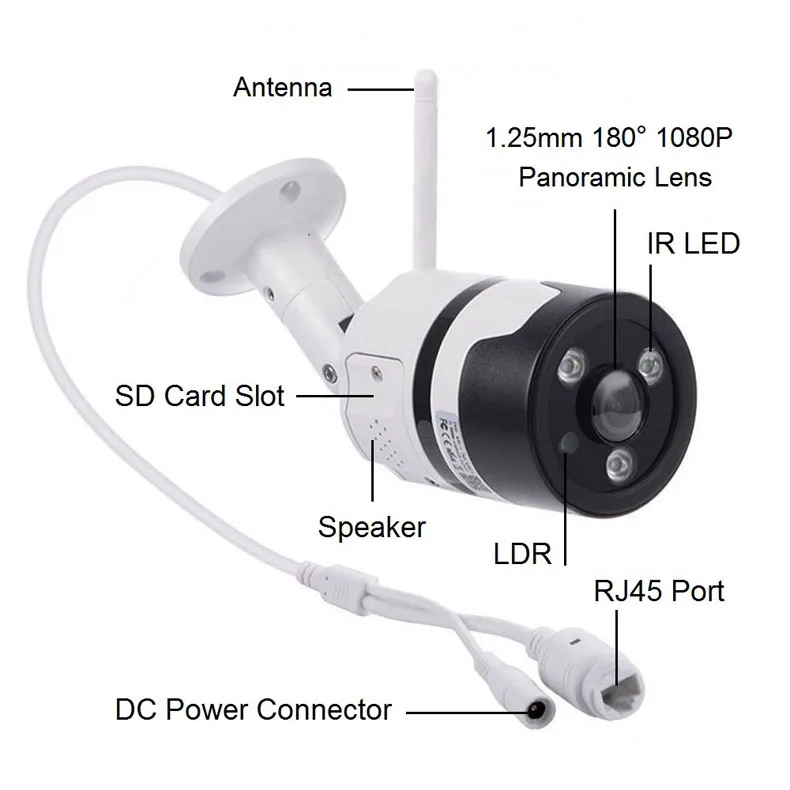

Lens: 1.25 mm, 180° Panoramic fish eye lens, 3x digital zoom |
|
P2P (Plug&Play) |
Support QR code scanning to view on iOS iPhone, Android Smartphone. App: IPCView |
|
Multi-function |
Support remote surveillance, record, alarm, WiFi setting etc. |
|
PC Client |
Support remote multi-devices monitor, record, alarm etc. Support Windows and Mac OS |
|
TF Card Record |
Support max 64G TF micro SD card(Not included). Support scheduled record, snapshot, Support Intelligent record playback remotely |
|
Video Parameters |
Brightness, Contrast, Saturation, Exposure, Sharpness, Vertical and Horizontal can be adjusted |
|
Video Sensor |
2.0 Megapixel, 1/2.7 1080P CMOS Image Sensor. Image Compression: H.264 |
|
Stream |
1080P-(1920×1080),(1280×960),(1280×720); Second Stream:(1280×960),(1280×720),VGA(640×352) |
|
Image Frame Rate |
50Hz:15fps/60HZ:15fps(1920×1080) |
|
Compression format |
G.726/G.711(G.711 Default) |
|
Audio In/Out |
Two-way Audio. Built-in Microphone and Speaker |
|
Night Vision |
3 Φ5 IR LEDs, Night visibility up to 15 meters. |
|
Motion Detect |
Support 4 Independent detection areas, Sensitivity can be adjusted |
|
Alarm Action |
Support Email photo alert, Push alert notifications, Snapshot and record to FTP or TF card |
|
Ethernet Interface |
One 10/100Mbps RJ-45 |
|
Network Protocol |
TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc. Support standard Onvif 2.4 protocol |
|
IP Mode |
Dynamic IP address, static IP address, PPPOE |
|
Online Visitor |
Support Max 6 visitors at the same time (First Stream:3 visitors; Second Stream:3 visitors) |
|
Support OS |
Support Microsoft Windows XP /Win7 /Win8 /Win10 / Mac OS. |
|
Browser |
Full compatible with IE browser, Support Firefox, Google browser etc. |
|
AP Function |
Support AP(Wireless Access Point) peer-to-peer connection, connect App without router |
|
Wireless |
WiFi, 2.4GHz 802.11b/g/n. Smart one key WiFi configuration |
|
OSD |
Support the OSD name, date and time info superposition |
|
Product Type |
Metal bullet, Outdoor, Weatherproof, Waterproof level IP66 |
|
Working Humidity |
95% RH, working temperature: -10~50°C. Power: DC12V2A |
|
Size |
Item: 18x6cm; Packaging:19x15x11cm(LxWxH) |
|
Weight |
N.W.: 350g, G.W.: 550g(Note: Actual Weight Final) |
|
Package Include |

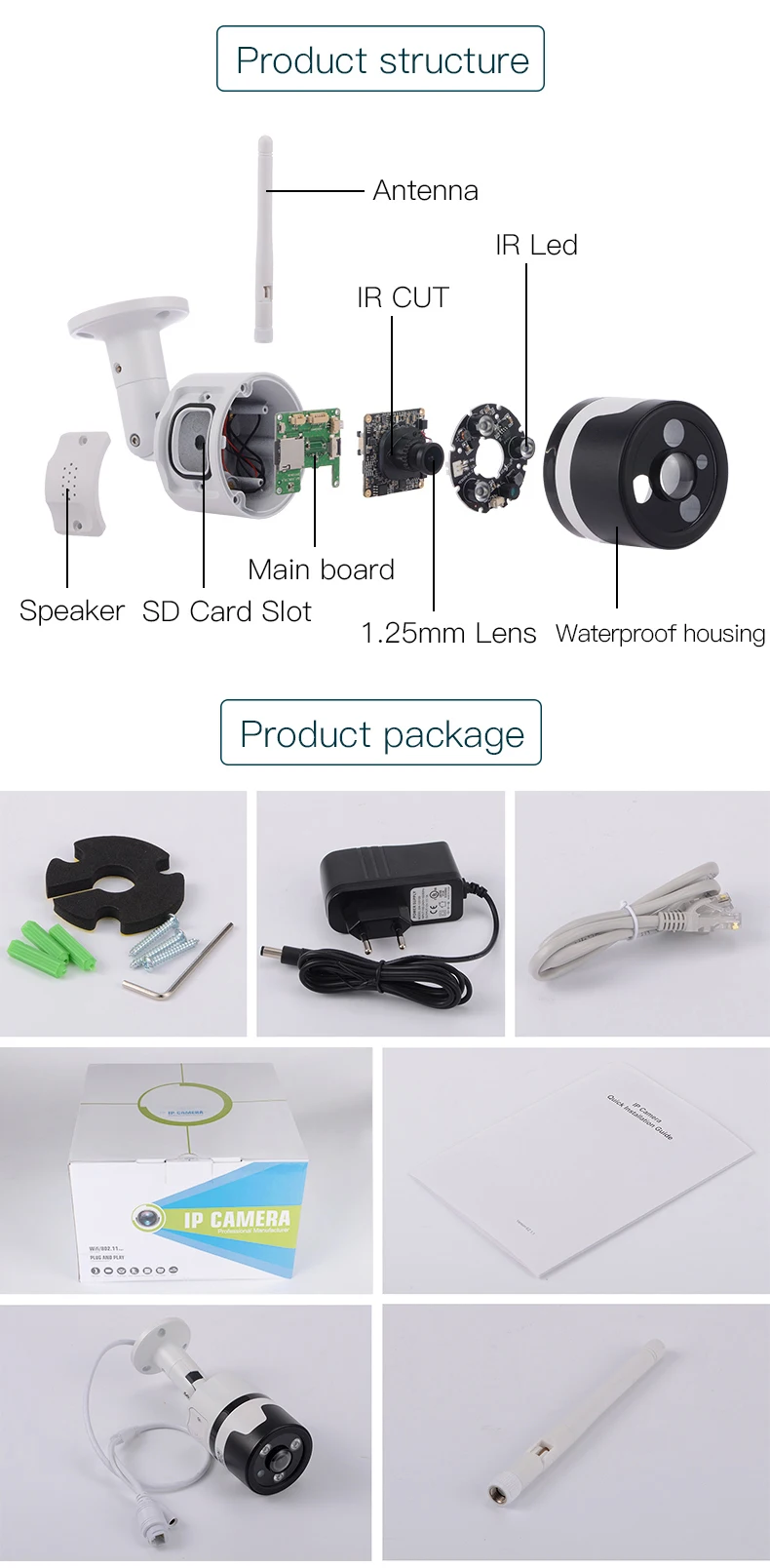

IP Camera, Power Adapter, Bracket, Screws, CD, Manual |
|
Certification |
CE, FCC, RoHS |
|
Warranty |
Two-year free replacement of spare parts warranty |

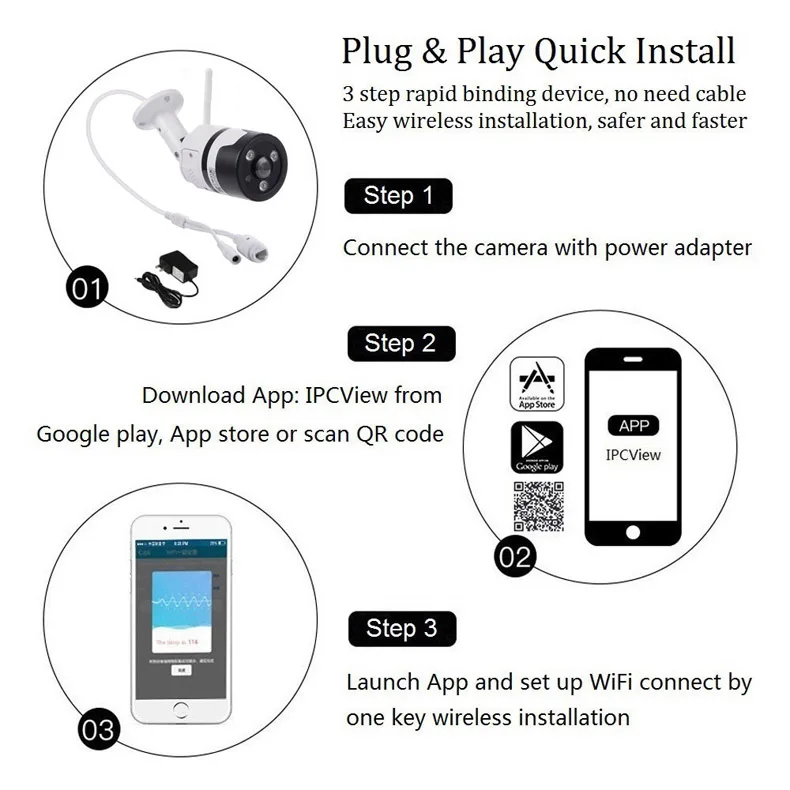

So easy to install the IP camera:
1. Download and install App: IPCView or wanscam, Search in Google Play store, App store, or scan QR code to download.

2. Launch App, click “+” to access the “Add Camera”, click “Wireless Installation”, Input your WiFi password, click “Apply”.

3. Wait for 1-2mins, then select the respective device and enter the password: admin, click done to connect WiFi,
the video will be showed online, click it to view. Click
to get camera settings.


View on IE browser:

View on PC Client software:



Important tips:
