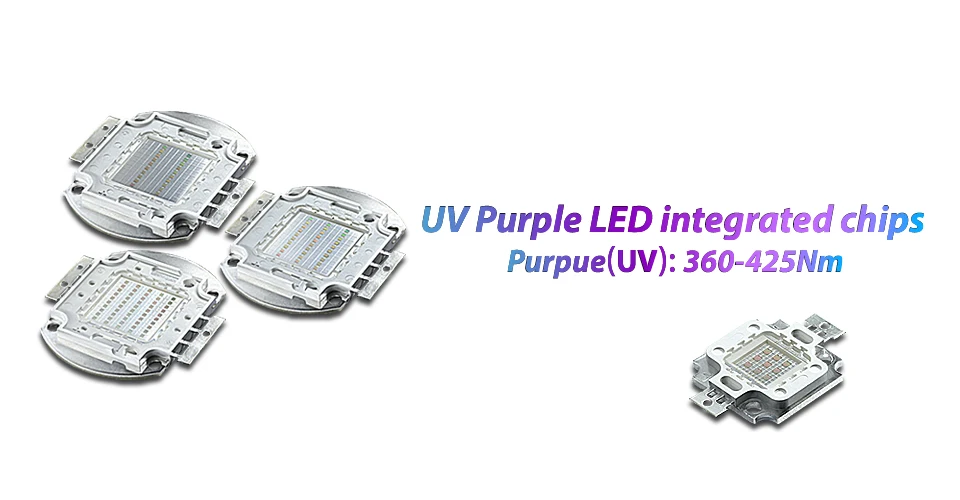

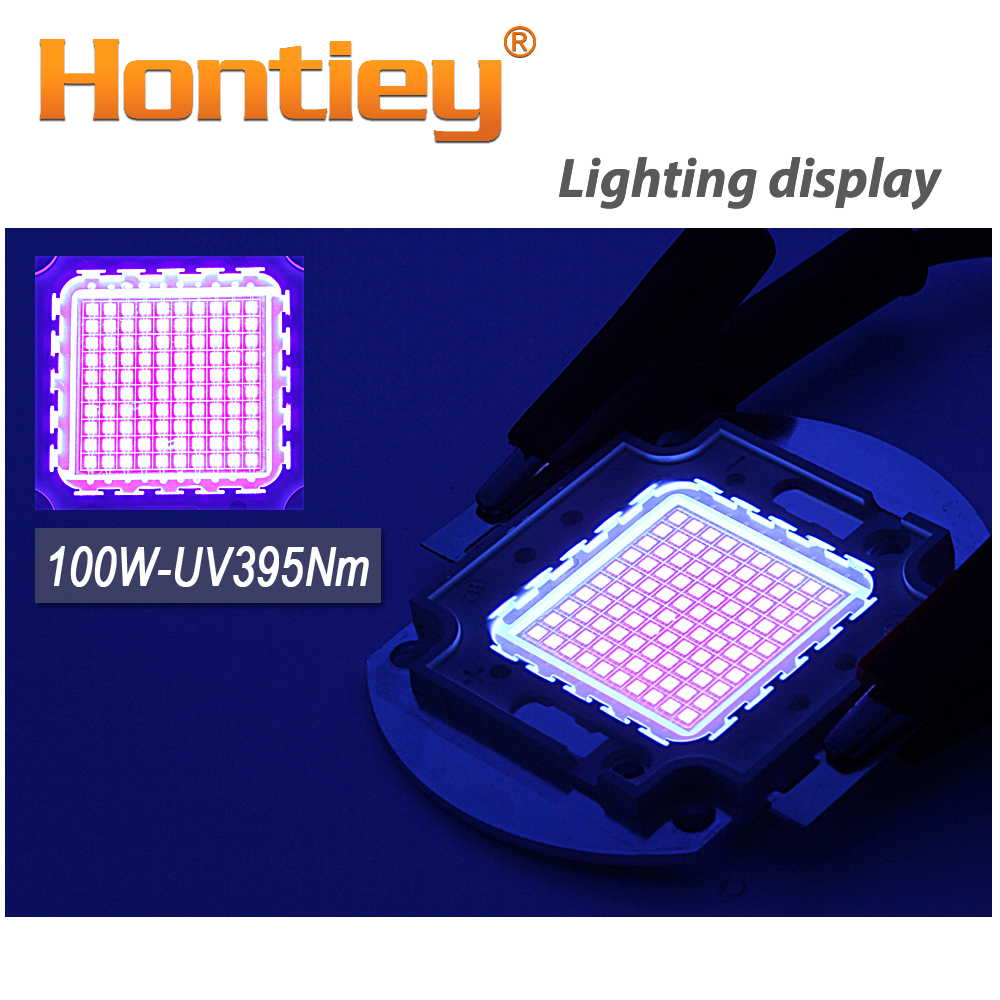

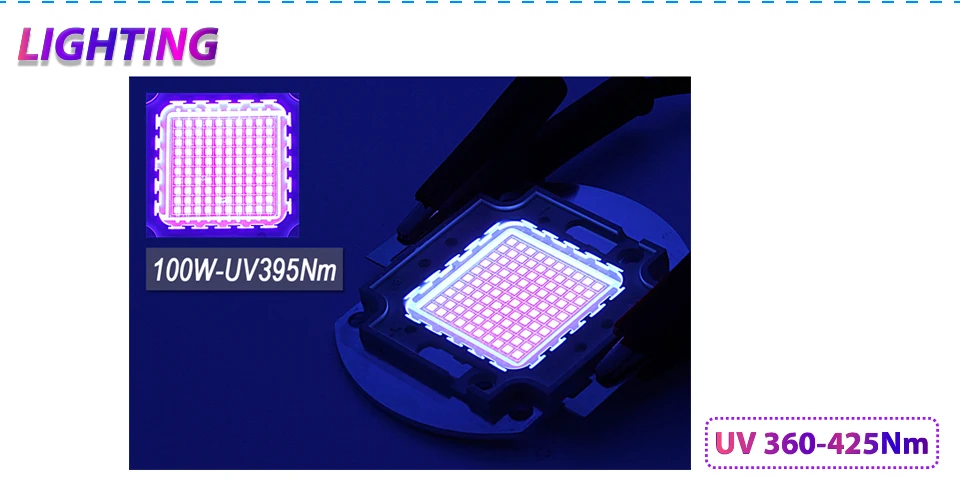

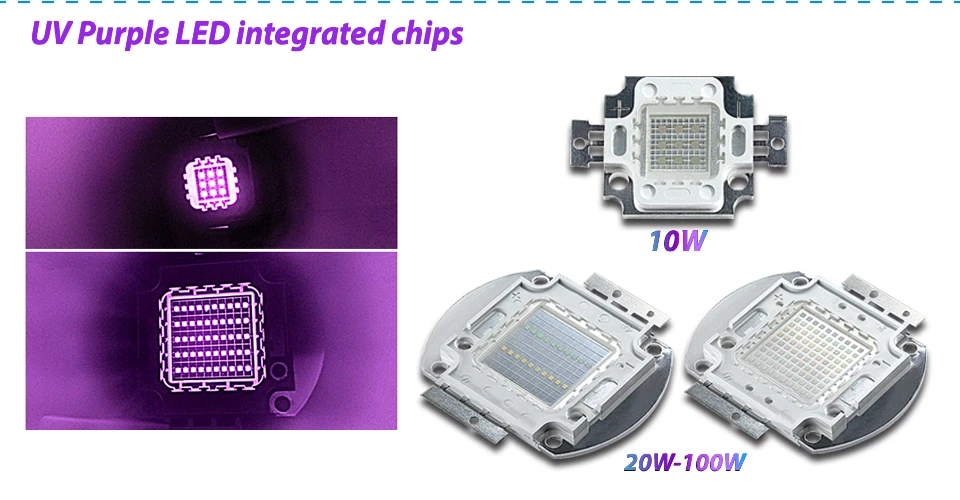

- Chip Name: Hontiey UV Purple LED integrated matrix 10w 20w 30w 50w 100w 365Nm 375Nm 385Nm 395Nm 405Nm High Power Ultraviolet Light DIY UVA Chip/Bulb/Bead
- Chip Type: High Power LED chip

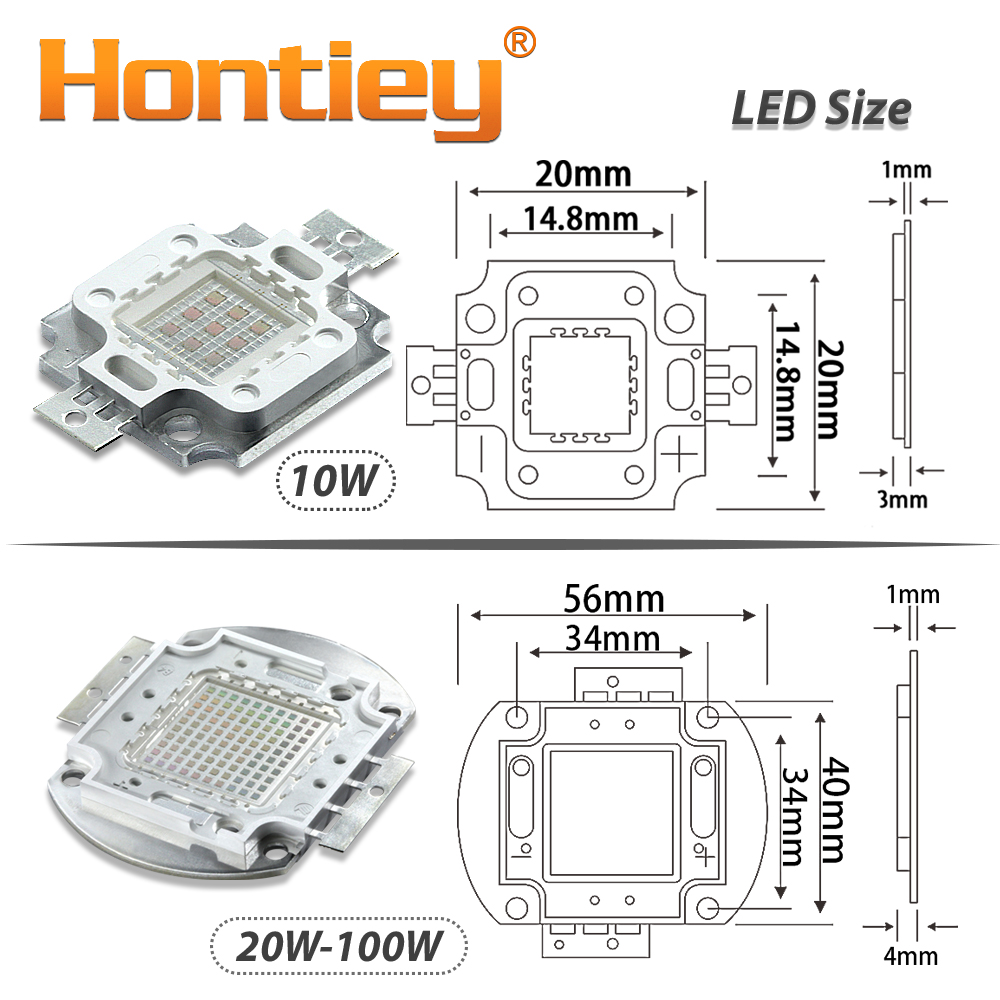

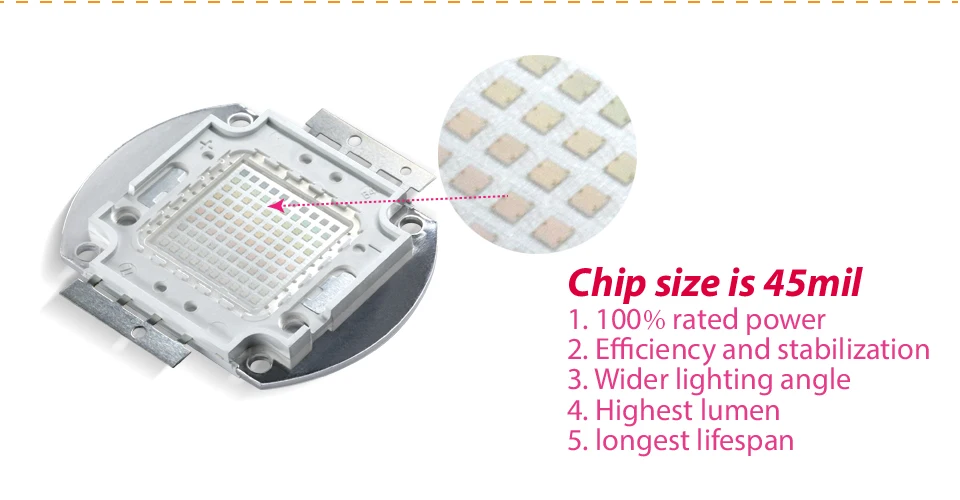

- Chip Size: 45mil
- Chip Brand:Epistar(Taiwan)
- Chip Color: UV Purple

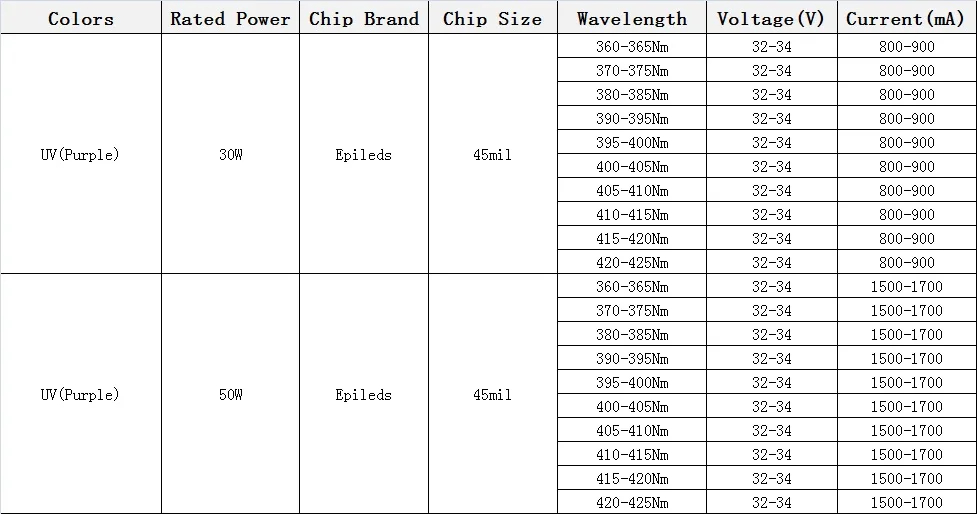

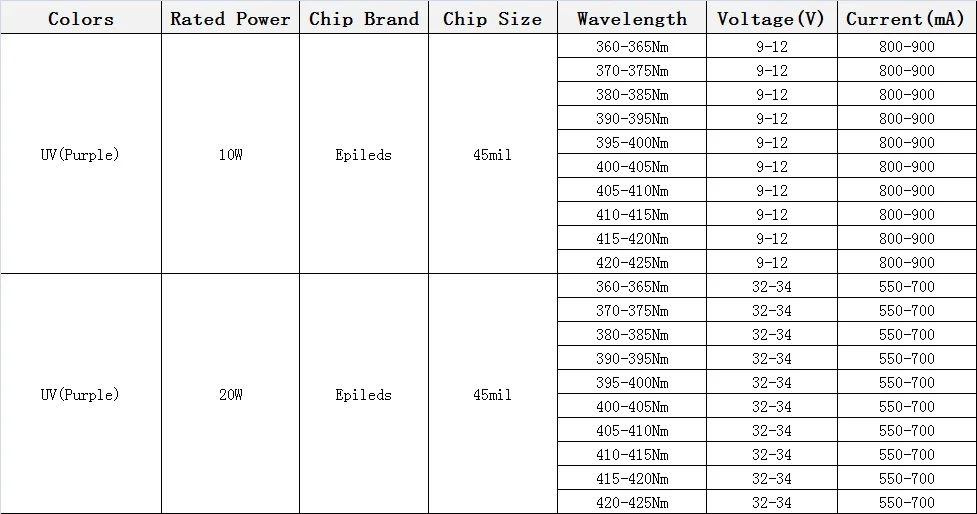

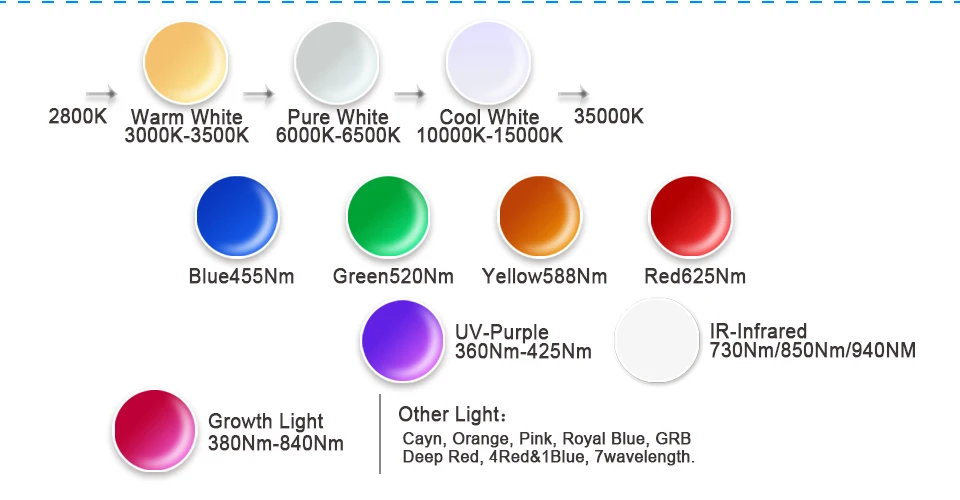

- Chip Wavelength: 365Nm/375Nm/385Nm/395Nm/405Nm/410Nm/415Nm/420Nm/425Nm
- Rated Power: 10w/20w/30w/50w/100w
- Power supply current: 800mA-3500mA
- Forward Voltage: 9V-34V
- Beam Angle: 120 degree

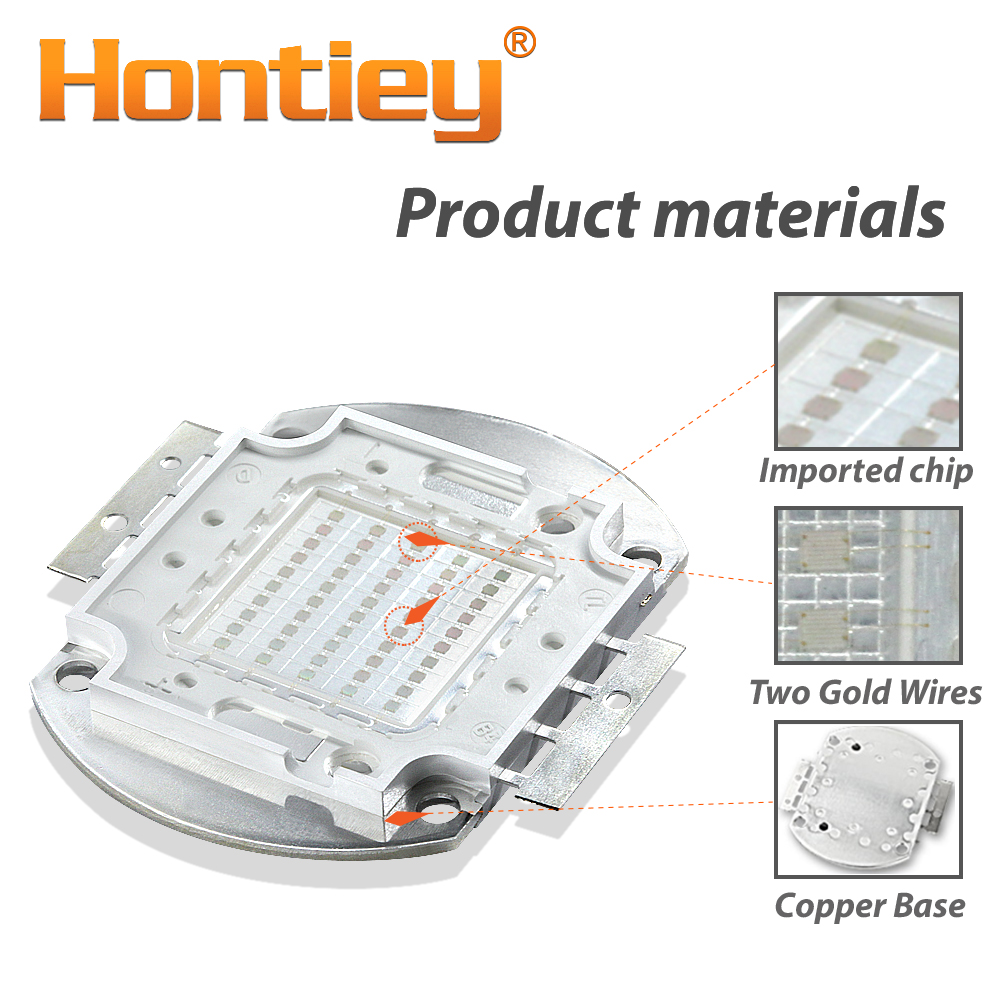

- Sealing Material: InGaN ,two golden wires and copper bracket,sillica gel
- Chip Weight: 10W(5.1g), 20W-100W(27.5g)

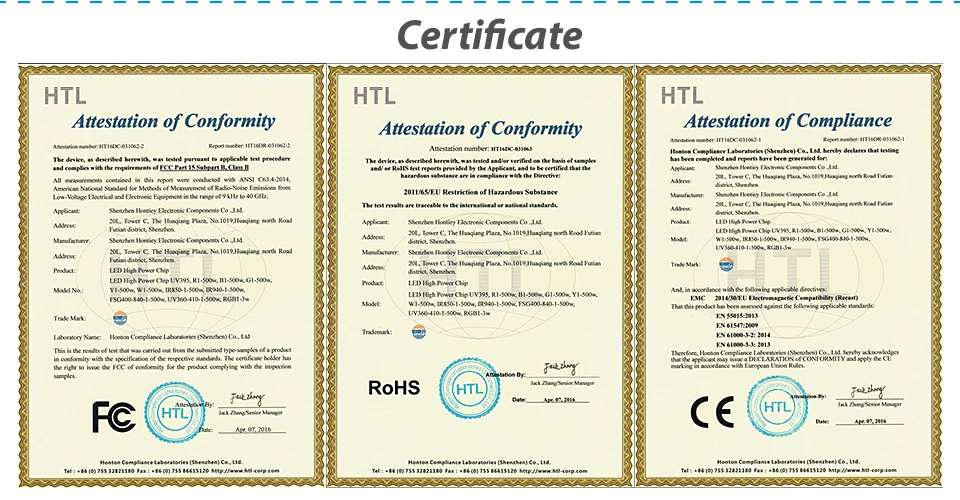

- Certification: CE/RoHS/FCC
- Working life: 50000hrs
- Operating temperature: -30 to +85 degree centigrade
- Welding temperature: 300 degree centigrade in 5 seconds
- Large enough heat-dissipation surface area to ensure that the emperature of the aluminum substrate does not over 60 degree centigrade.
- It can’t be high-temperature soldering iron burns product’s light-emmitting layer to avoid dead lights or affect the lighting while installing lamp.
- Thermal design of finished product is particularly important. Please consider the heat dissipation of the chip strictly.
