Description:

Condition:100% Brand New

Color of Light Source:Red

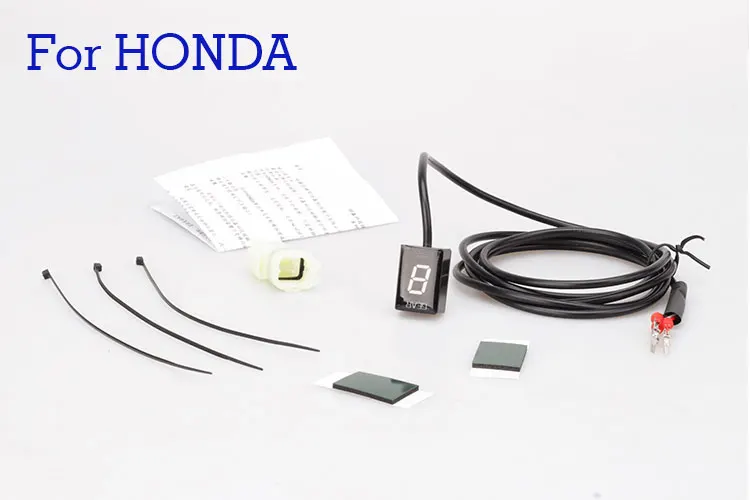

Item Name:Speed Gear Display Indicator

Size:4cm*4cm*4cm/1.57inch*1.57inch*1.57inch

Feature:

Shows current gear number

Indicates current gear from 1 to max of 6. as well as a neutral indicator.

Auto programming

Compatible with all motorbikes,four wheeler, bikes etc. will fit anything with a shift lever

Red illuminated display will automatically dim at night.

Detects the current gear faster than other gear indicators that use speedometer/tachometer signal.

Display can be mounted anywhere

Installation:

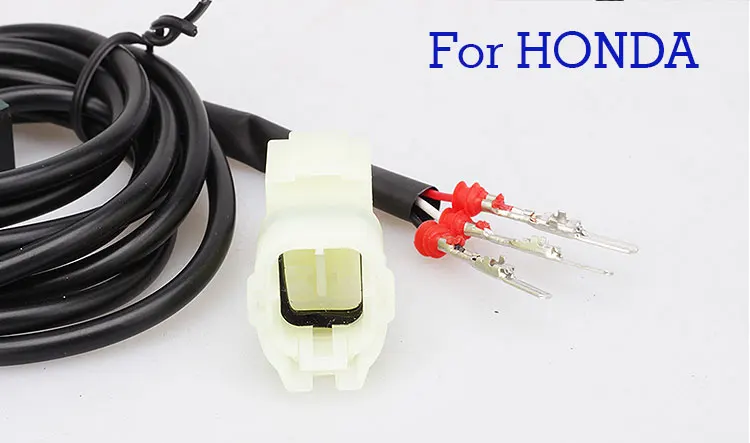

Find the RED,4-pole male diagnostic connector(DLC), usually near the ECU box,It may have a removable cap and may be partially covered by black tape.

Steps:

You need to setup this module after installation.Perform the setup only when the engine is WARM so the idle speed is normal,Find a long,straight road with light traffic.The unit does not learn the same gear twice,this makes it easy to set up on the road. You can even shift down and stop during the setup if needed.Do not stare at the display,watch the road and ride with extreme care as always! Turn the ignition On.The display counts backwards(6 to 1)indicating that the memory is clear. When “L” is flashing,stare the engine in Neutral and let the engine idle.When the display is flashing “1”,select second gear. Release the clutch and stare riding normally.The display is blinking faster while the unit is learning the gear. When the display show “n”(next),select second gear.Repeat this process until all gears are thought.In top gear,wait until “o”(over) is indicated and the display stops blinking. The unit is now programmed and should indicate all gears correctly.When ignition is turned on,the display counts forward(1 to 6) indicating that it is programmed and fully functional.

Rest:

If some gears are not indicated correctly, reset the unit and set it up again.If you change your gearing (install new front or rear sprocket),or you install a speedometer (or other speedometer calibrator),probably you will have to reset it and set it up again. Cut off the power of the unit 6 times in a row,while the display is counting up and shows3 ,4 or 5. You can power on/off the display by turning the ignition key on/off.On the next power up,the display will count backwards(6 to 1). The memory is clear now and you can perform the Setup procedure.

Fitment:

For Honda CB250F(with digital trip/odo) 2015

For Honda CB300F 2015-2018

For Honda CB400SF 2008-2017

For Honda CB400X 2013-2016

For Honda CB400F 2013-2015

For Honda CB500F 2013-2018

For Honda CB500X 2013-2018

For Honda CB600F Hornet 2007-2013

For Honda CB650F 2014-2018

For Honda CB1000R 2008-2018

For Honda CB1100 (non-ABS) 2010-2013

For Honda CB1100 (ABS) 2010-2013

For Honda CB1300 S/F 2003-2015

For Honda CBF600 2008-2012

For Honda CBF1000 F/FA 2006-2009

For Honda CBR250R 2015

For Honda CBR300R 2015-2018

For Honda CBR400R 2013-2015

For Honda CBR500R 2013-2018

For Honda CBR600F 2011-2013

For Honda CBR600RR 2003-2006

For Honda CBR650F 2014-2018

For Honda CMX300 Rebel 2017

For Honda CMX500 2017

For Honda CRF250L/M All Years

For Honda Crossrunner All Years

For Honda CTX700 (w/o DTC) 2014-2017

For Honda Fury 2010-2018

For Honda Interstate 2010-2016

For Honda NC400X 2013-2015

For Honda NC700 S/X 2012-2017

For Honda NC750 S/X 2014-2018

For Honda NT700V Deauville 2006-2015

For Honda Sabre 2010-2012

For Honda Stateline 2010-2017

For Honda VFR800 interceptor 2005-2013

For Honda VFR800X All Years

For Honda VT400 (FI model) 2009-2014

For Honda VT750C (FI model) 2007-2017

For Honda VT750S (FI model) 2007-2009

For Honda VT1300 (All) 2010-2016

For Honda VTX1800 2005-2012

For Honda XL125V Varadero 2007-2014

For Honda XL700V Transalp (non-ABS) 2008-2014

For Honda XL700V Transalp (ABS) 2008-2014

For Honda XL1000V Varadero 2003-2012

For Honda TRX ATVs (FI model) All Years
