Universal 24 inch / 535mm Highlight Dimable LED Backlight Lamps Update kit Adjustable LED Light For LCD Monitor 2 LED Strips newFree shipping
Attention:
Do not provide technical support .You must know how to use it.If not, Think twice about your order.Thanks!
All of us hope our monitors can be higher light.Now, we have this good news.LED sets can update for LCD. and the light can be
dimable as before.
LED strip: L/W/H:533mm*4mm*2mm(super thiner ,easy to fit more panels)
Can be cut by every 3 lamps as a group
Support 15\\\\\\\\\\\\\\\’\\\\\\\\\\\\\\\’ to 23\\\\\\\\\\\\\\\’\\\\\\\\\\\\\\\’:15\\\\\\\\\\\\\\\’\\\\\\\\\\\\\\\’,17\\\\\\\\\\\\\\\’\\\\\\\\\\\\\\\’,19\\\\\\\\\\\\\\\’\\\\\\\\\\\\\\\’,19\\\\\\\\\\\\\\\’\\\\\\\\\\\\\\\’wide,20\\\\\\\\\\\\\\\’\\\\\\\\\\\\\\\’,22\\\\\\\\\\\\\\\’\\\\\\\\\\\\\\\’wide 23.6\\\\\\\\\\\\\\\’\\\\\\\\\\\\\\\’

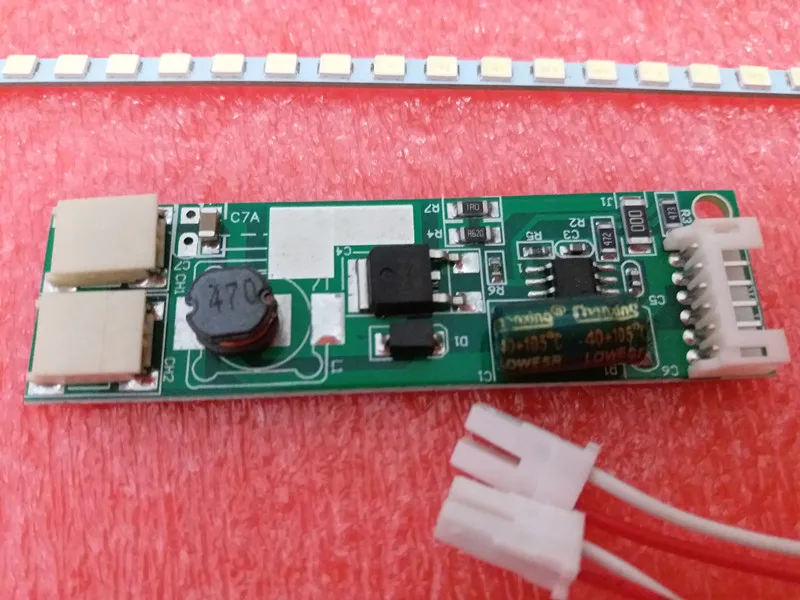

LED board: L/W:7cm*2cm
Dimable, same function as before
input:9-30V

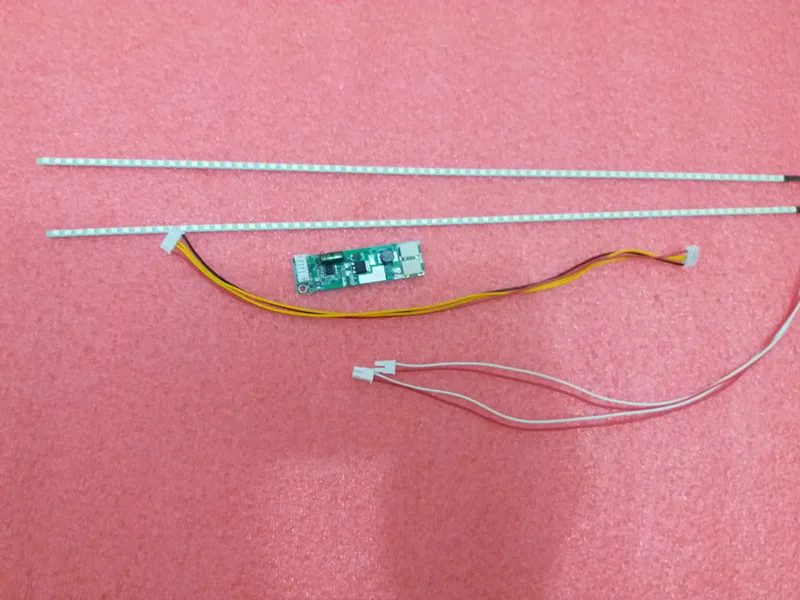

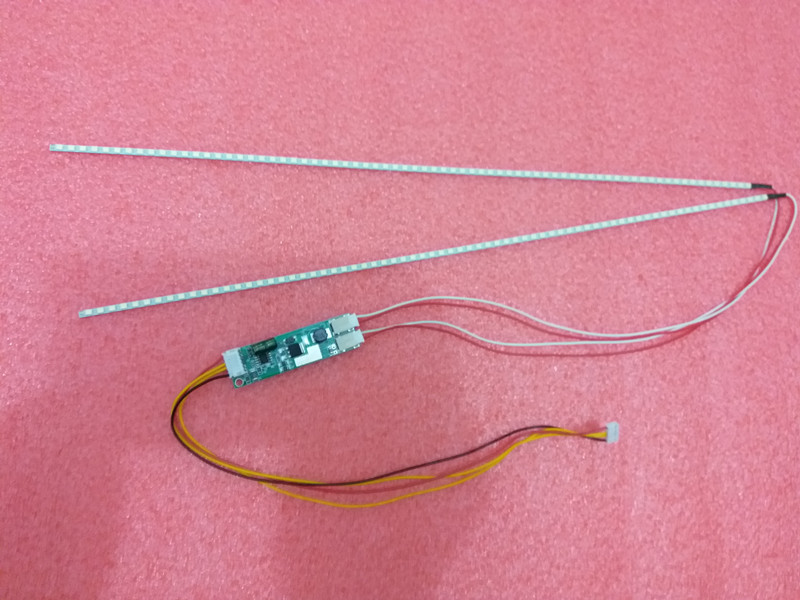

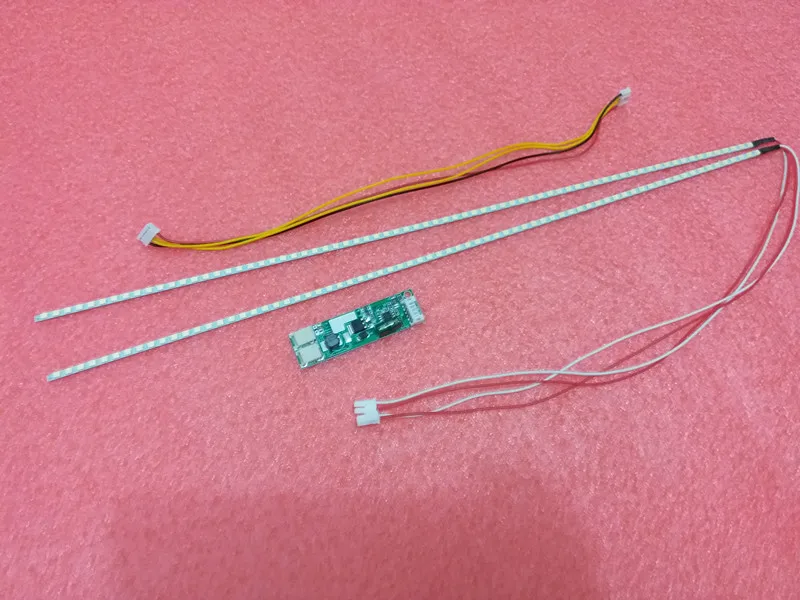

Sets including:LED board*1, LED strips*2,Cable*1
The LED Backlight Advantage:
High Brightness LED backlight up to 700 nits.
Improved Dynamic Contrast Ratio up to 1000:1.
Improved Color Gamut for more Lifelike Images.
Longer lifespan, typically lasting over 100,000 hours
High shock/Vibration resistant.
Low Heat Generation.
Environmental Benefits.
LED Backlight Lifespan:
As they are a solid state semiconductor device, LED has a longer lifespan typically lasting over 100,000 hours.
Being solid state devices, the LED will perform exactly as when they were manufactured as opposed to the CCFL which loses light output continuously over their life up to 50%.
This kit is a direct replacement for Laptop screens that were originally equipped with a single CCFL backlight lamps. By upgrading to this high brightness LED backlight, the luminance of white could reach as high as 700 nits and the luminance contrast ratio could reach as high as 1000:1. Now, you can experience lifelike images.
Pay attention please:
Connect cables by definitions ,not the color of cables.
From left to right as following picture,
Definitions:VIN,VIN,ON/OFF,ADJ(DIM),GND,GND

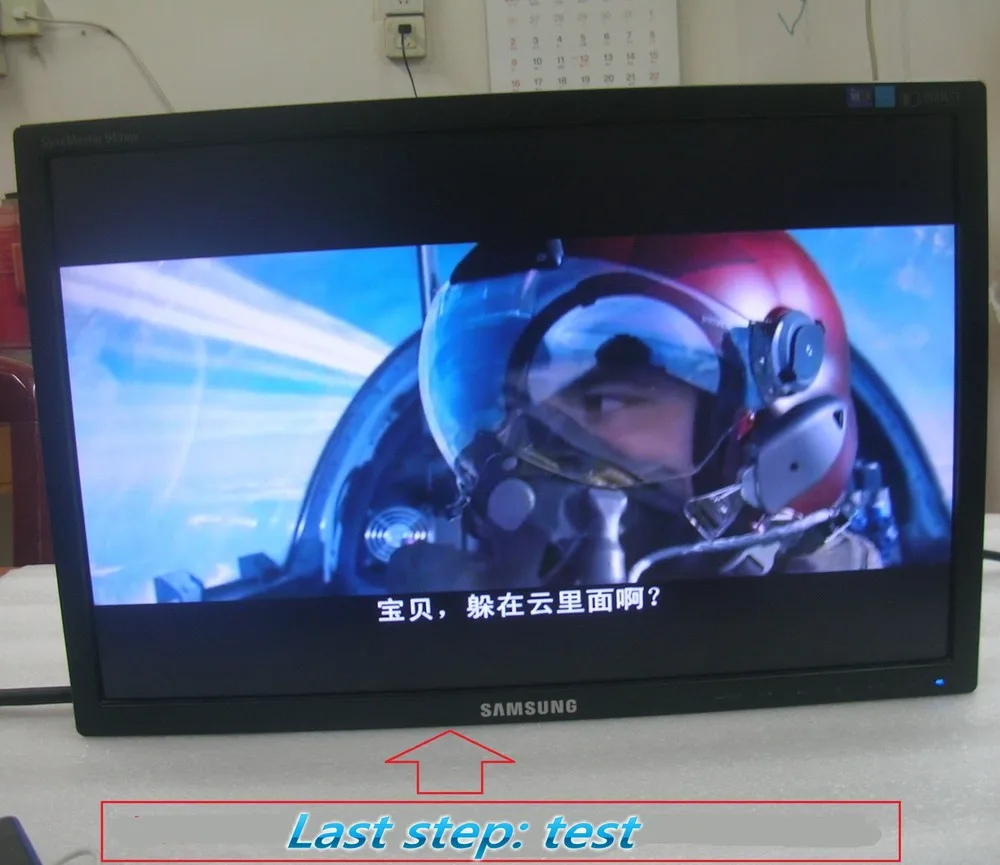

How to update:
