Technical Parameters:

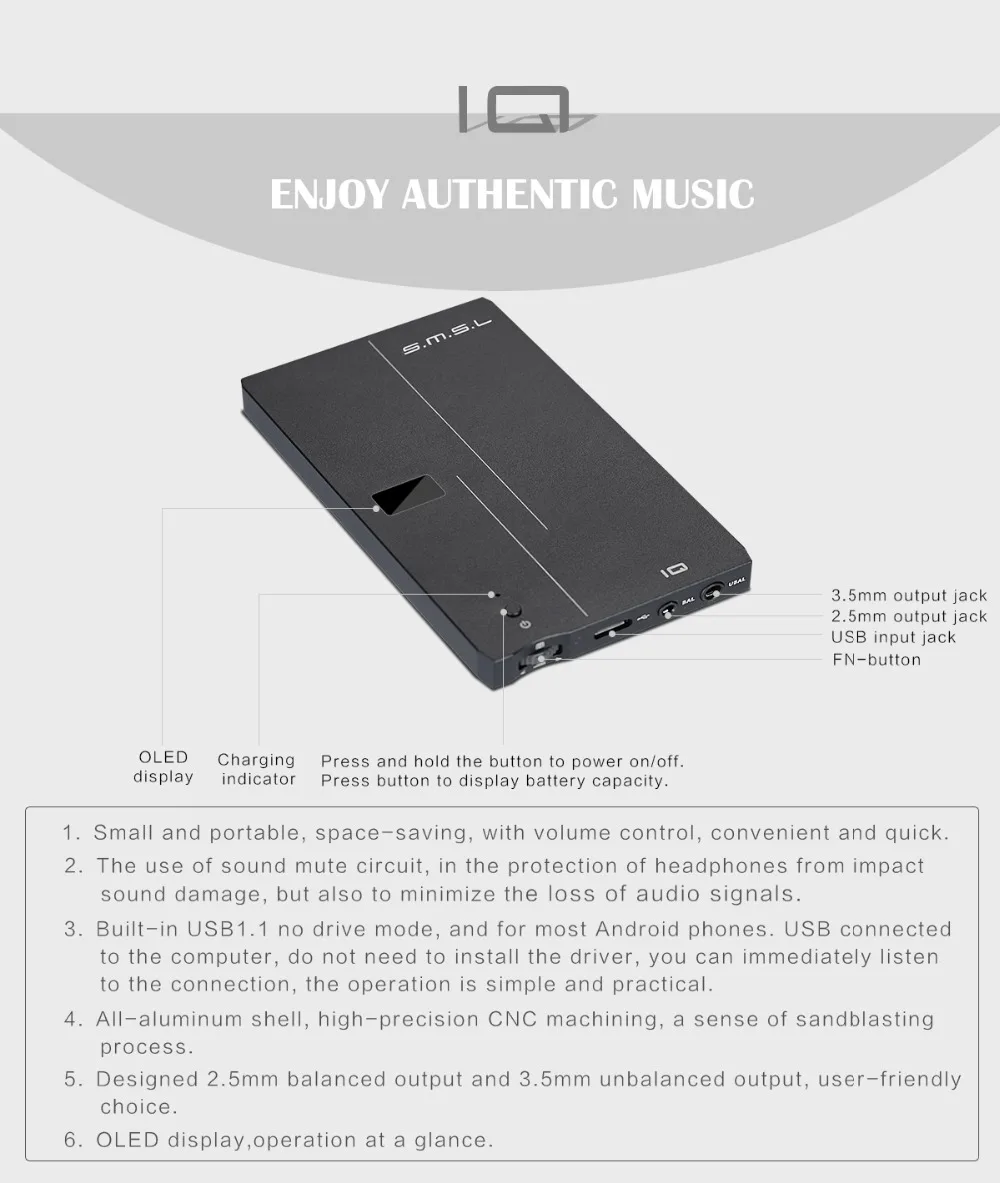

- Input jack: Micro USB
- Output jack: 2.5mm balance , 3.5mm unbalance
- USB: Windows 7/8/8.1/10 , Mac OSX 10.6

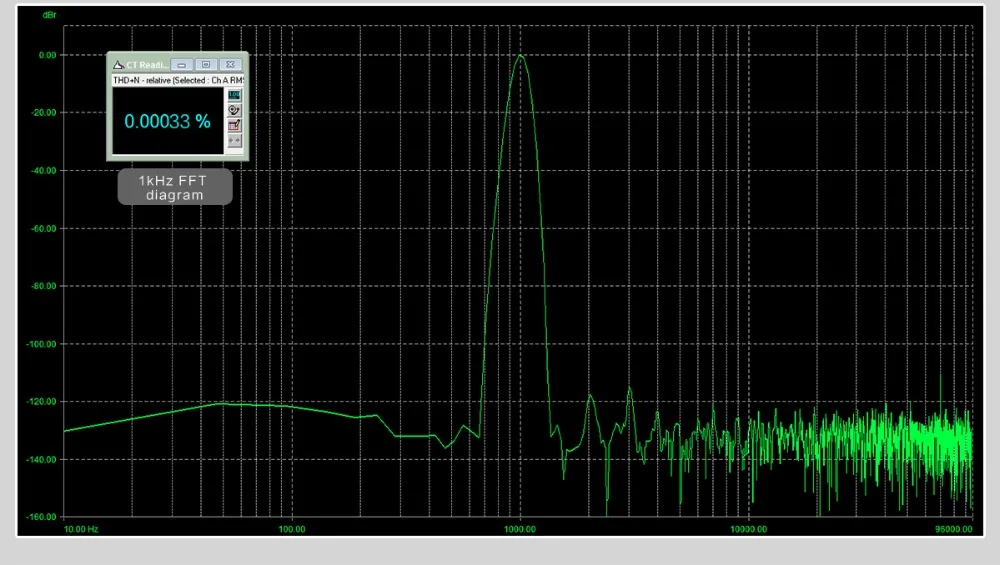

- THD+N: 0.0003%
- Bit depth: 16bit / 24bit / 32bit / 1bit

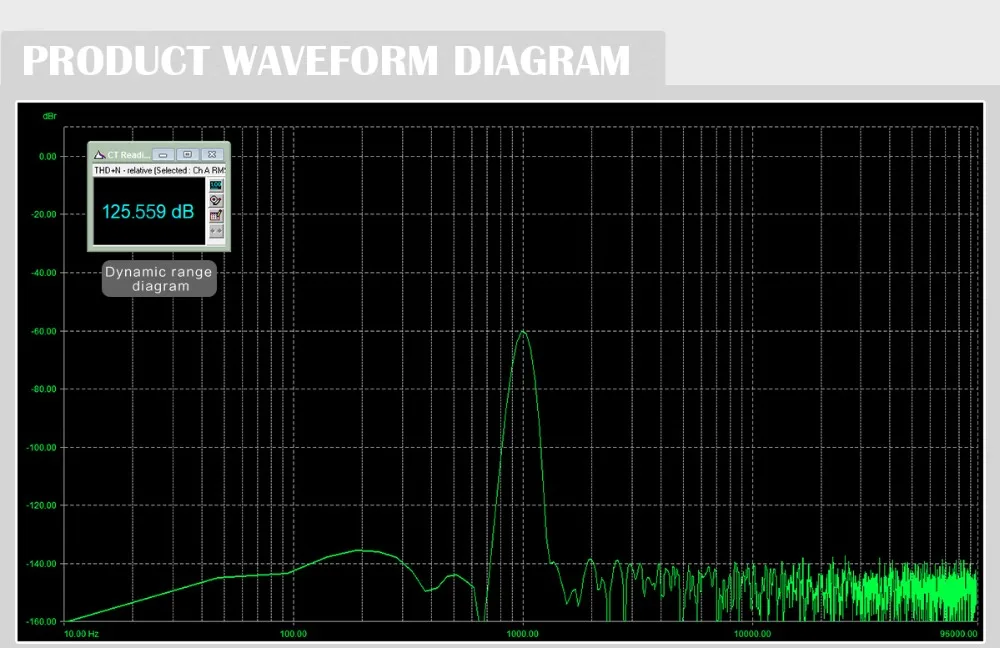

- SNR: 118dB
- Sampling rate:
- DSD64 / DSD128 / DSD256 / DSD512
- PCM (44.1 / 48 / 88.2 / 96 / 165.4 / 192 / 352.8 /384 / 705.6 / 768kHz)
- Headphone amplifier output power
Balance output:
91mW(32ohm, THD+N=0.1%
78mW(64ohm, THD+N=0.1%
53mW(150ohm, THD+N=0.1%
32mW(300ohm, THD+N=0.1%
Unbalance output
55mW(32ohm, THD+N=0.1%
33mW(64ohm, THD+N=0.1%
21mW(150ohm, THD+N=0.1%
12mW(300ohm, THD+N=0.1%) - Machine size: 95*56*9 mm
- Package weight: 200g
- Voltage: DC 5v
Features:

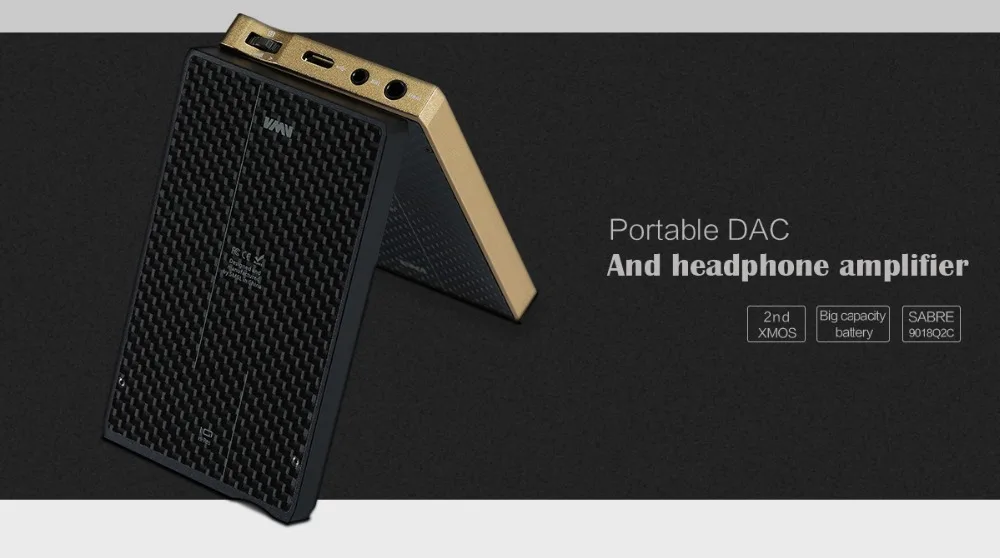

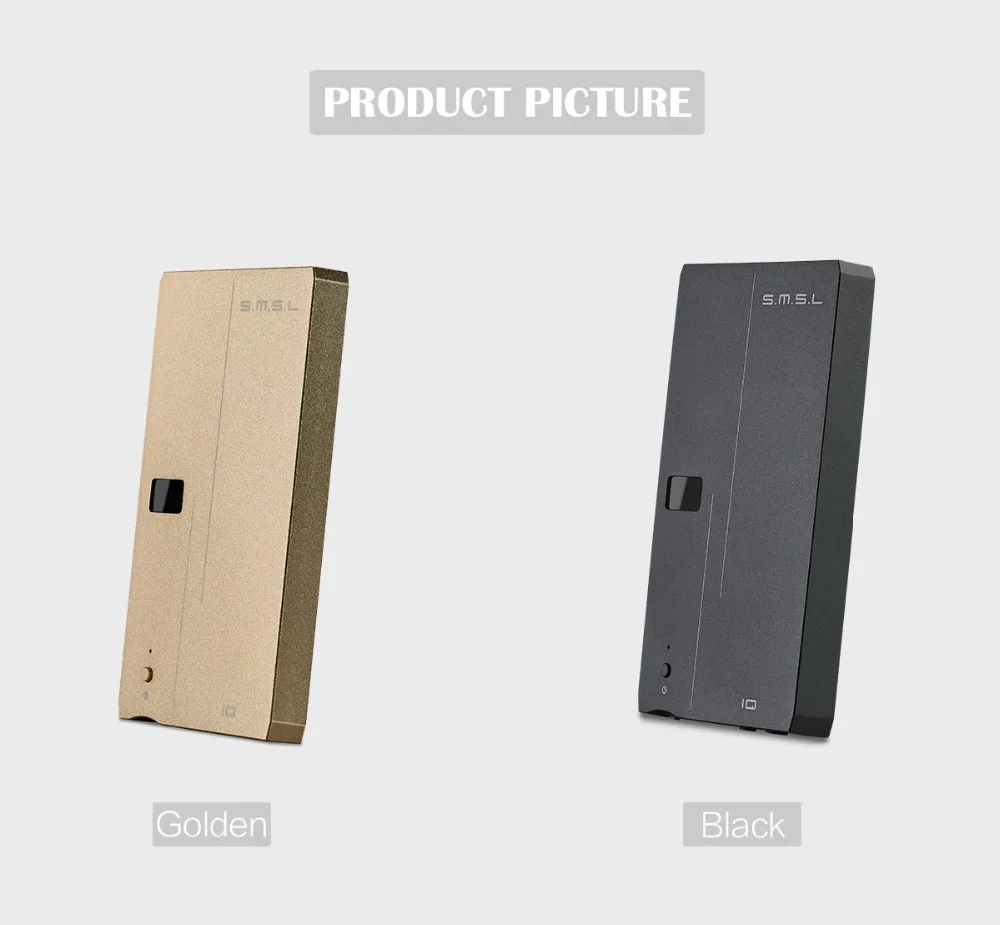

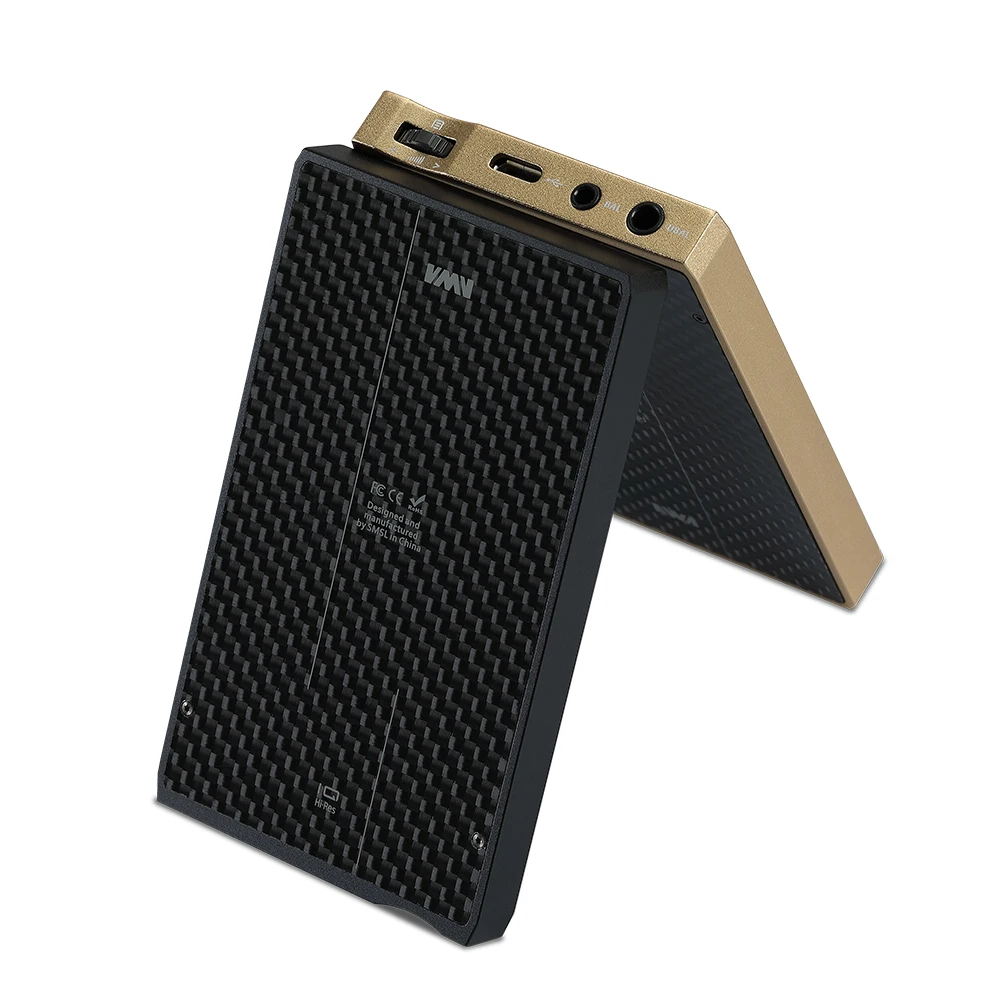

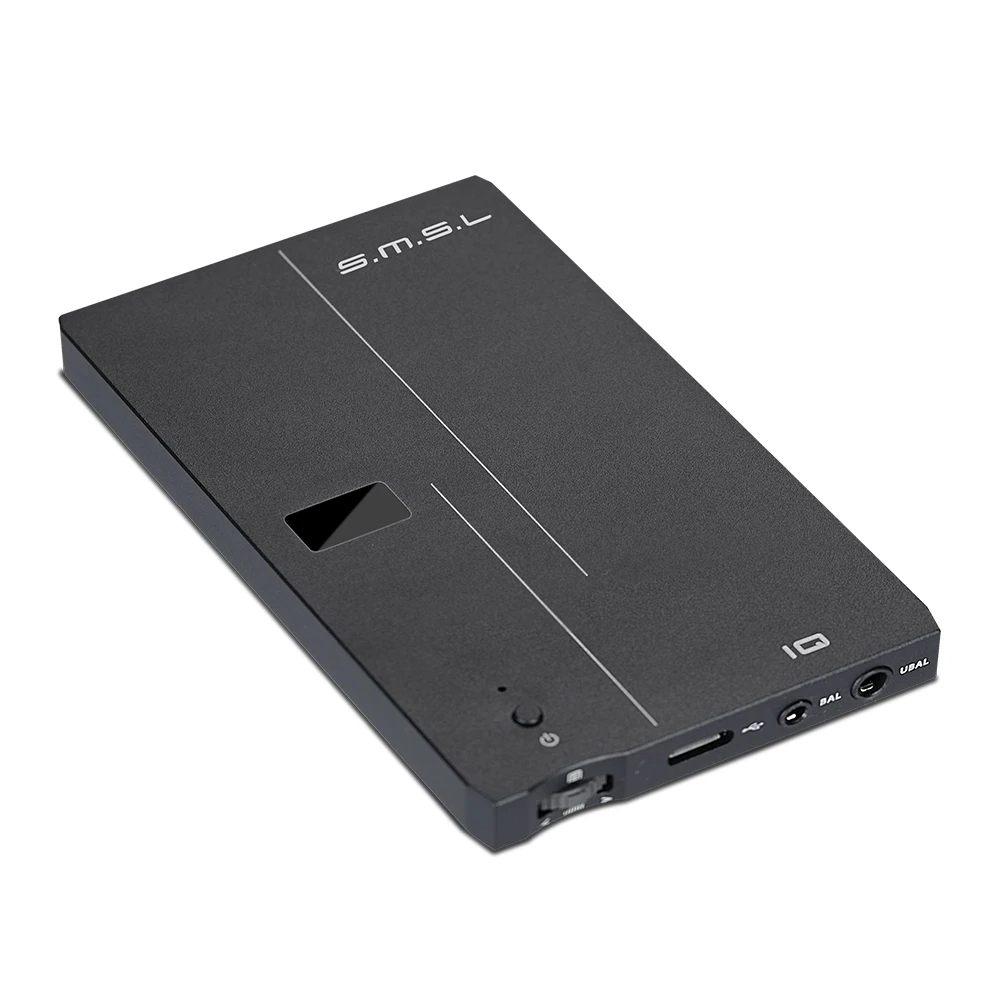

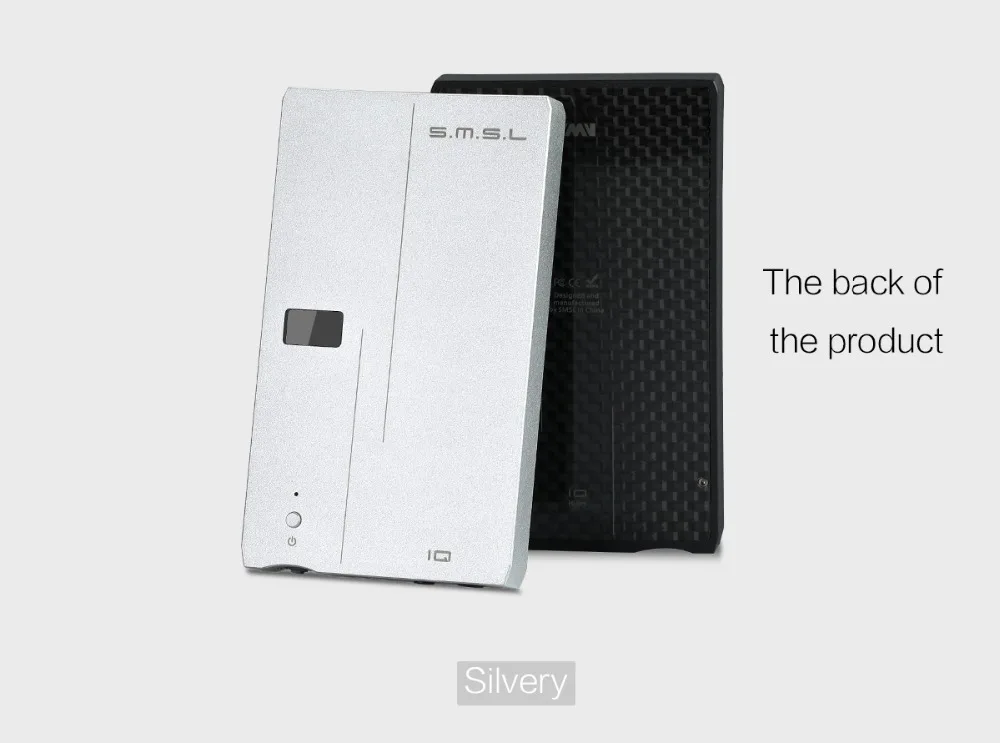

- SMSL IQ USB HI-RES Portable headphone Amplifier with DAC DSD512 built-in chargeable battery;

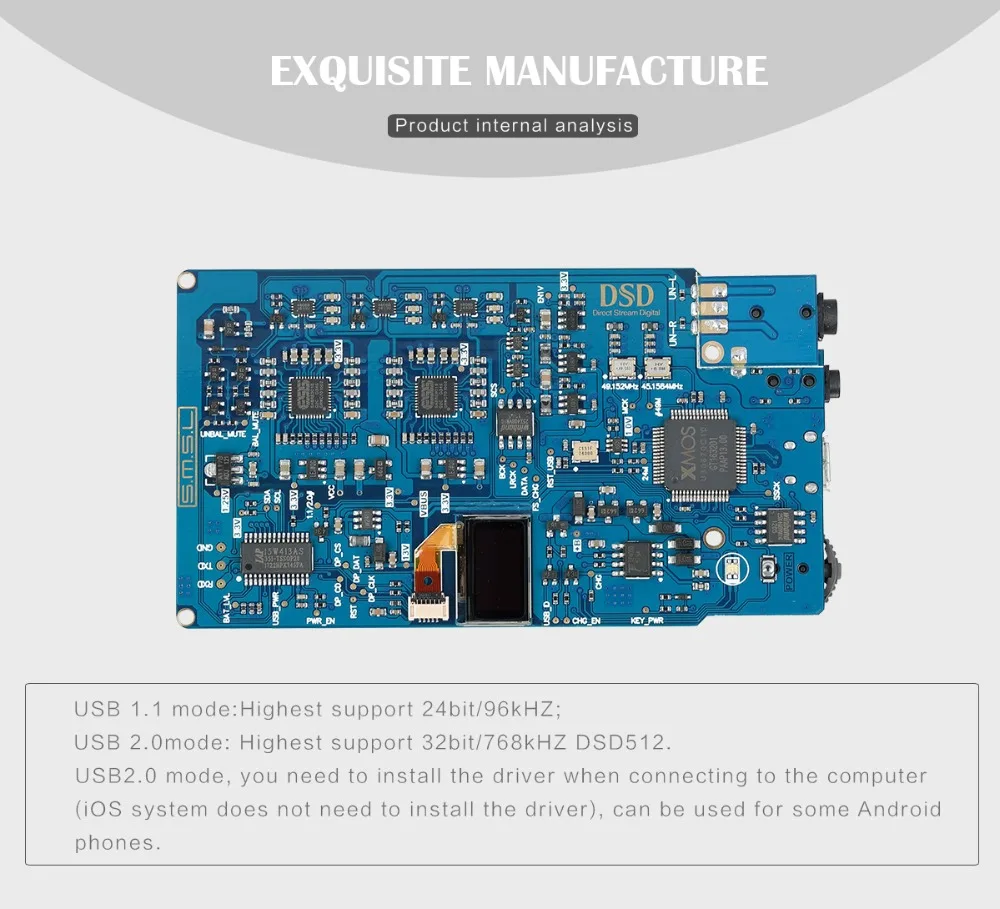

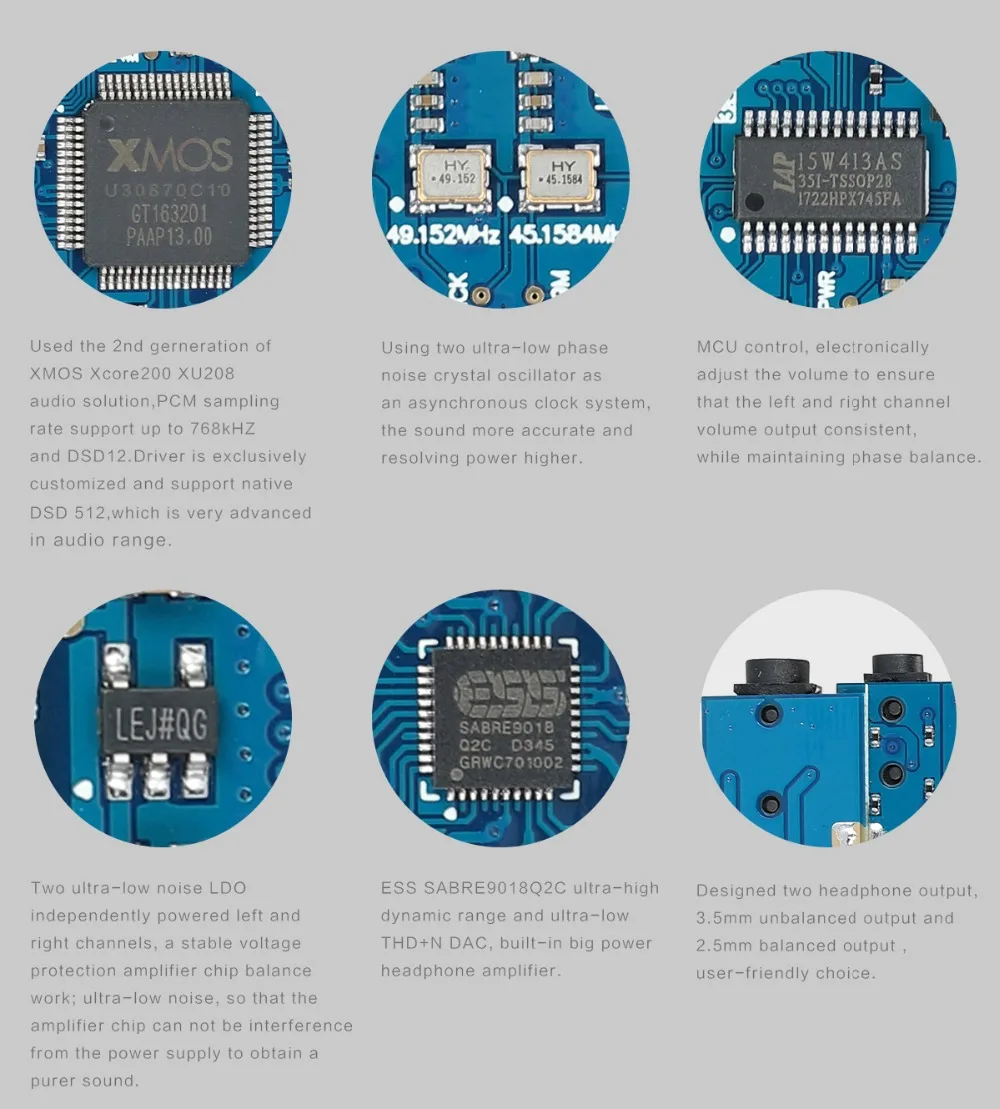

- 2nd generation of XMOS Xcore200 XU208 audio solution;
- DAC chips uses SABRE9018Q2C produced by ESS company in USA;
- Use ultra-low phase noise low clock jitter phase-loop circuit;
- Powered by ultra-low noise LDO for best performance;
- High-power balanced amplifier output.
