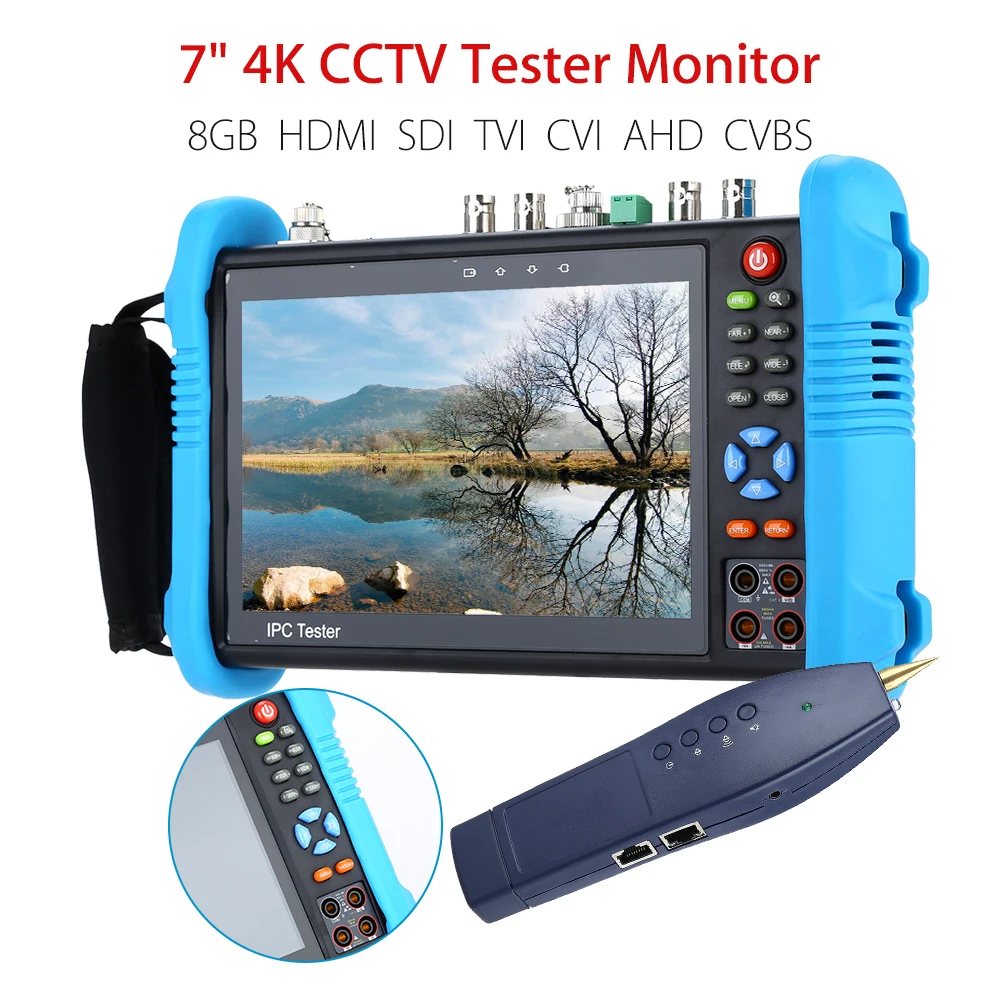

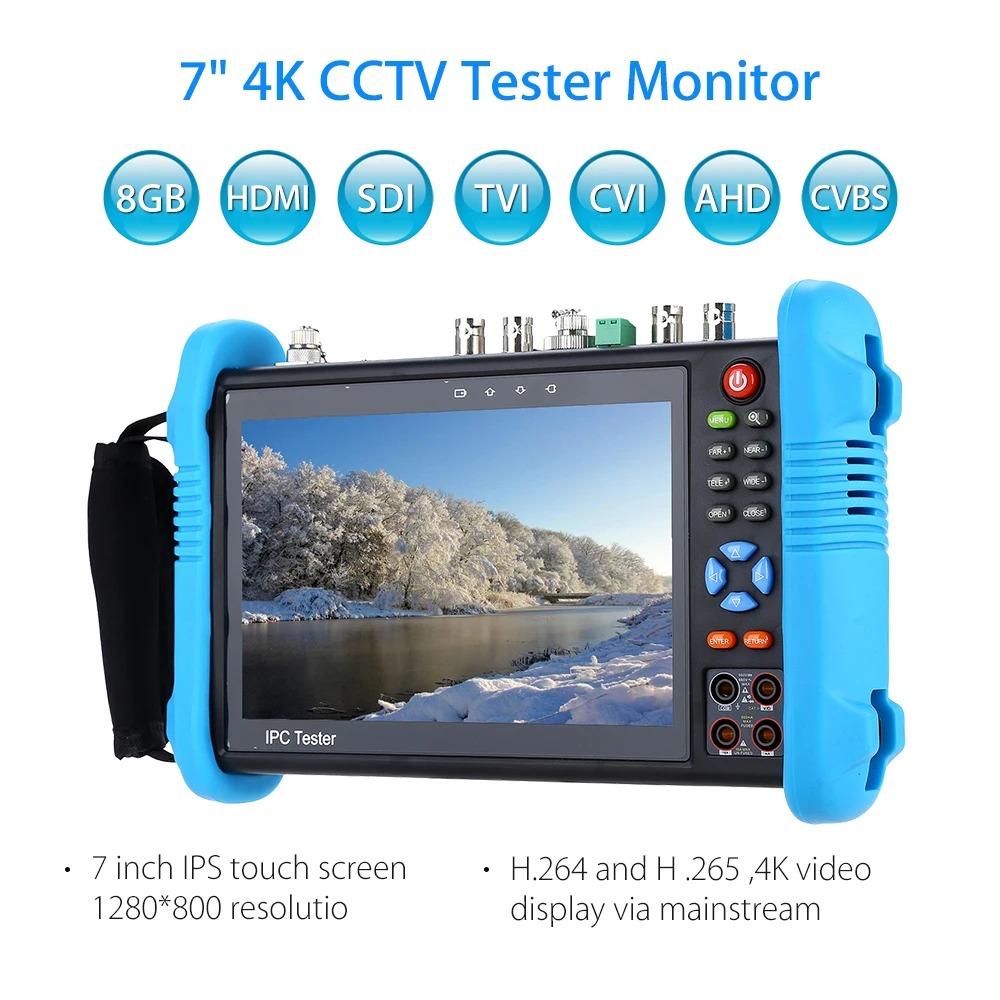

SEESII 7″ 4K CCTV IP Tester Monitor 8GB SDI TVI CVI AHD CVBS Camera Multimeter PTZ POE Test WIFI HDMl Video Onvif H.265

Features:

1.7 inch IPS touch screen,1280*800 resolution
2.H.264 and H .265,4K video display via mainstream
3.5MP TVI test,2560x1944P 12.5FPS,4xzoom ,video record and playback ,coaxial PTZ control
and call camera OSD menu
4.4MP AHD test, 2560x1440P 15F/25F/30F,4xzoom ,video record and playback ,coaxial PTZ
control and call camera OSD menu
5.4MP CVI test,2560x1440P 25F/30F, 4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu
6.HD SDI/EX-SDI camera test,support 1080P 50/60 FPS
7.IP & CVBS camera test, PTZ controller
8.Rapid video, just by one key to detect all network cameras and auto display
9.Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera,
and also can create testing report
10.IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS
11.Screen management, change function’s icons order, create new directory
12.Shortcut button, drop-down menu , can select PoE power ,IP setting, WLAN switch, HDMl
IN functions etc in any interface
13.Improvement cable tester, UTP cable, telephone cable etc order and connectivity test,
can save testing report, if special number, need customized
14.RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
15.TesterPlay(screen projection): tester, android version mobile phone and PC display
at the same time
16.Screen lock, password lock and pattern lock are optional
17.HDMl signal input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display image ,record and snapshot
18.HDMl output ,support 1080P
19.CVBS loop test , the tester send and receive color bar generator signal ,to check BNC cable
20.Traffic monitoring of the tester “LAN port”, display network port or WIFI connection real-time upload and download speeds and other network parameters
21.Customers self update software ,you can install apps with android version ,such as Skype, wechat etc
22.ONVIF camera test, support 2592*1520, Network PTZ controller (ONVIF)
23.Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot
24.4K video files and MKV/MP4 media files play
25.PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a
power bank
26.Quick office, quick office app (support excel ,word ,ppt format)doc. editable
27.8GB SD card including
28.IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’ s IP address
29.Display its genuine resolution of the IP camera images
30.Supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
31.Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
32.POE voltage measurement, PING test ,IP address scan, port flashing etc
33.Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools
34.7.4 V /5400mAh Lithium Ion Polymer Battery, after 5~6 hours charging , working time
lasts 10 hours

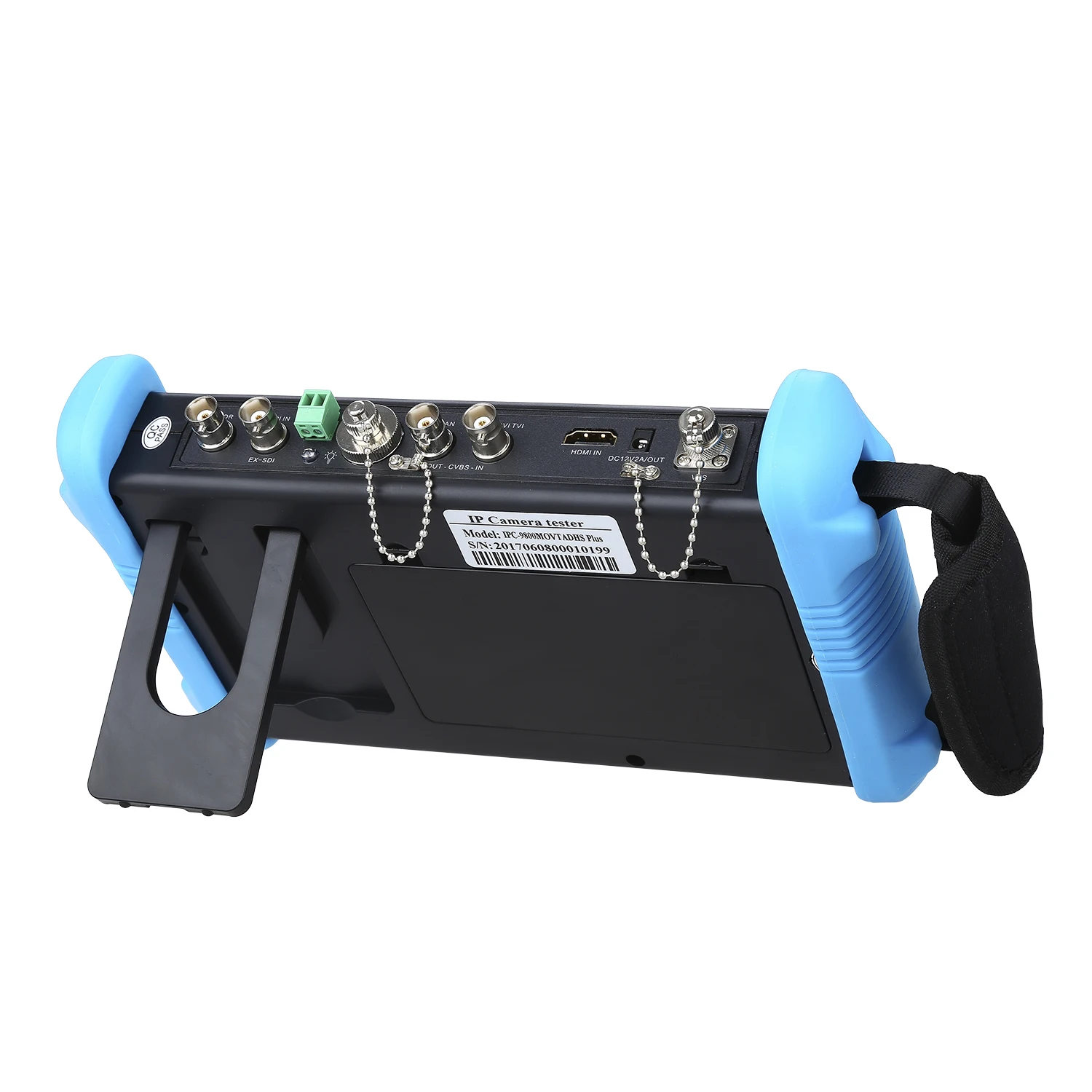

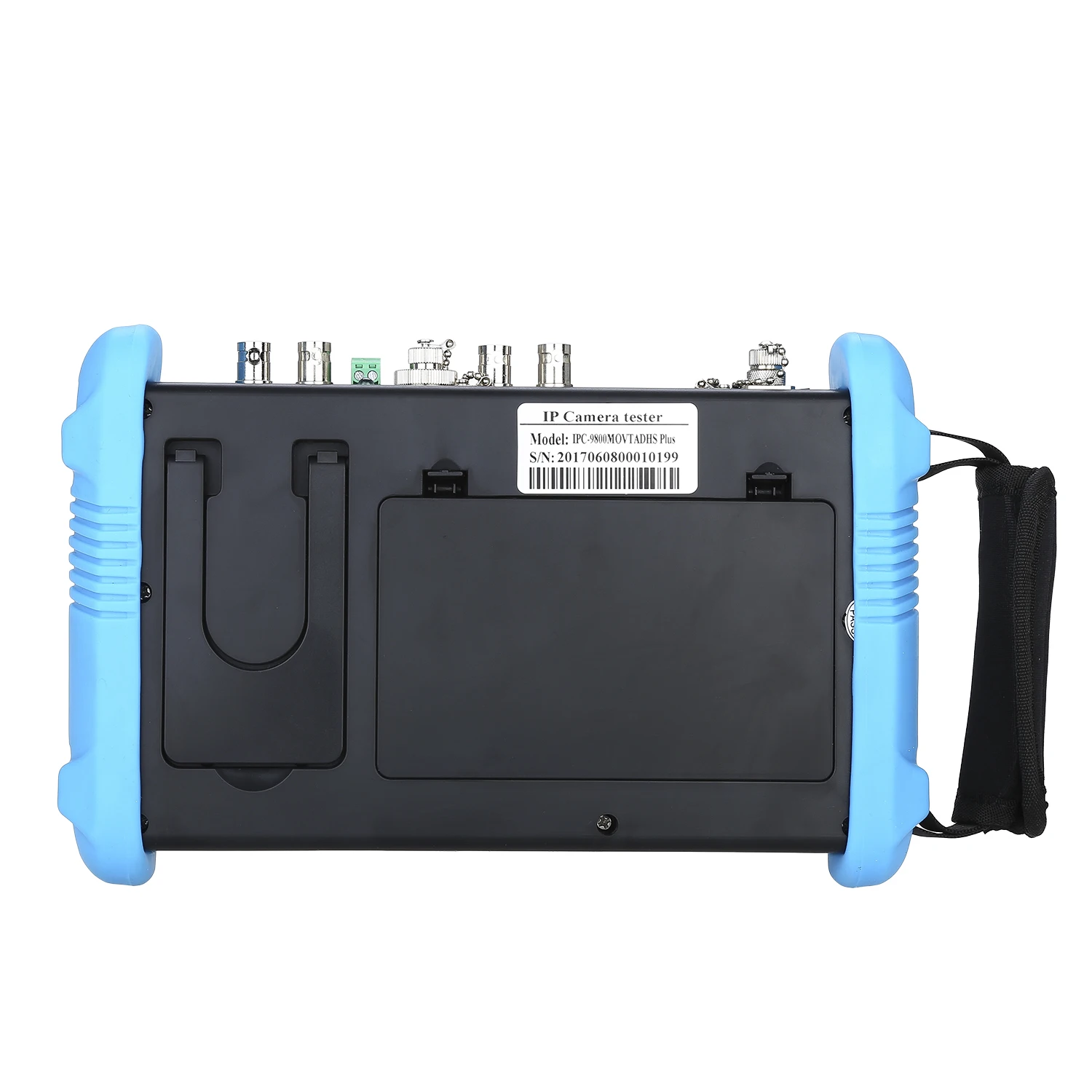

Model: IPC-9800LCMOVTADHS Plus

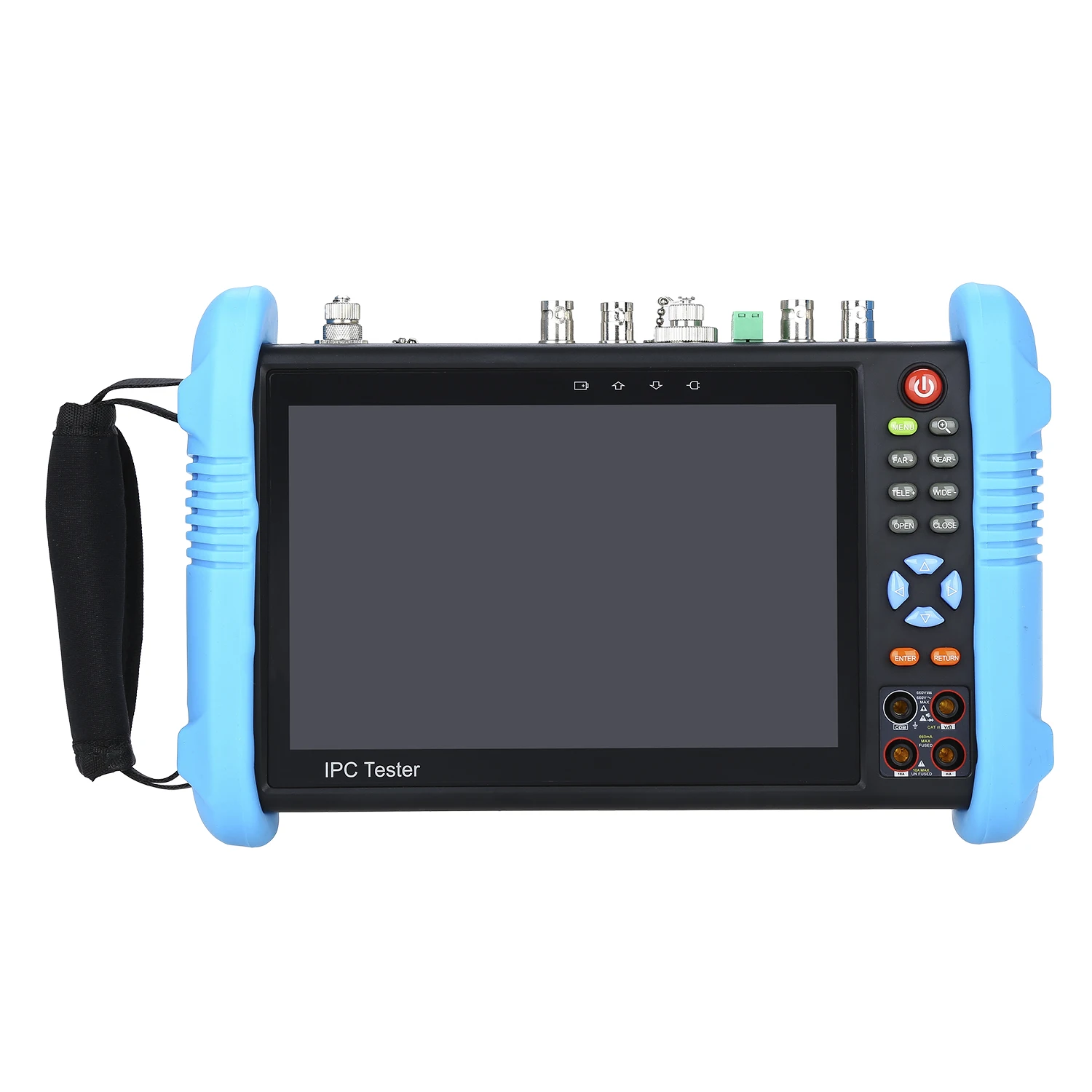

Display: 7 inch IPS Touch Screen ,1280*800 Resolution

Video Mode:

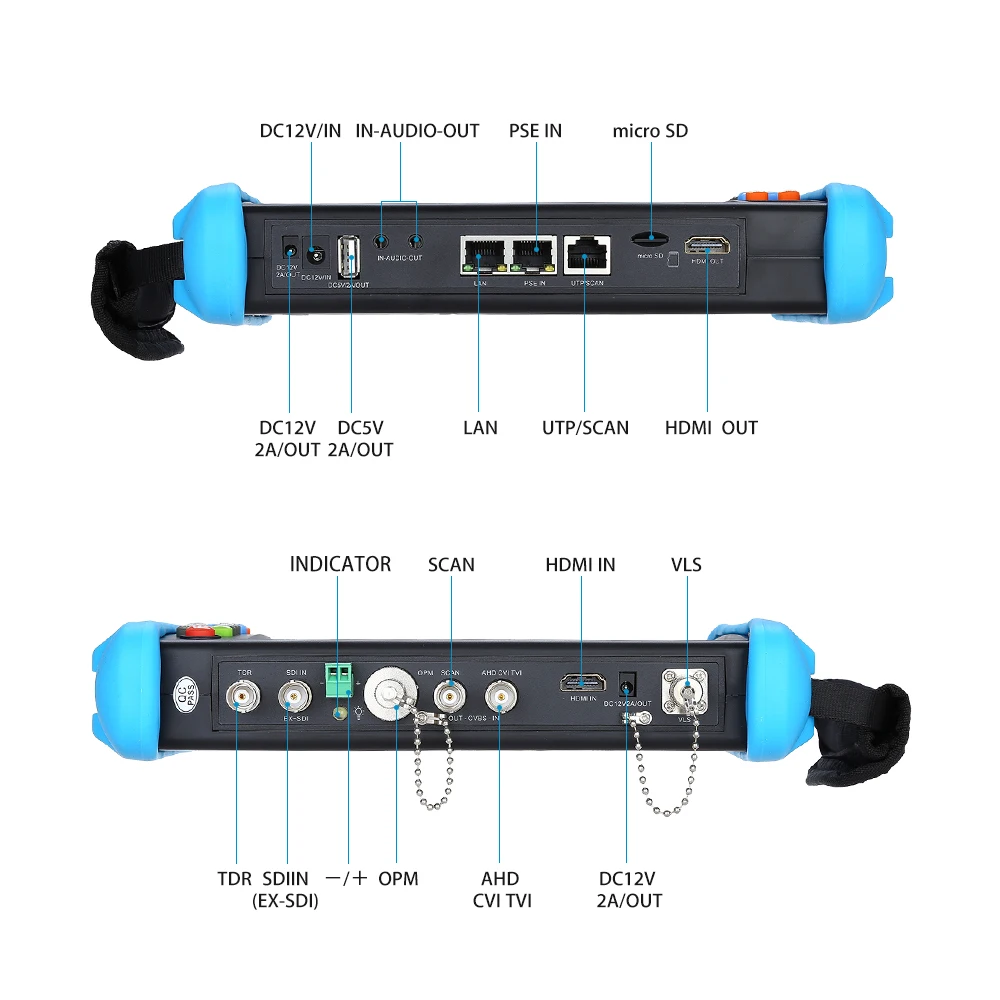

CVBS: 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma
level measurement
PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols
such as PELCO-D/P, Samsung, Panasonic etc
CVBS Loop Test: The tester send and receive color bar generator signal , check BNC cable

IP Camera Test: IPC test /IPC viewer /Rapid Video/RTSP /ONVIF
Rapid Video: Auto view the video, create testing report
Hik Test Tool: Pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
Dahua Test Tool: Dahua camera test, modify the user name, password and IP parameters
IP& CVBS Test: IP& CVBS test at the same time ,converter test from analog to digital
with dual test window

Coaxial HD test:
5MP TVI camera test,2560x1944P 12.5FPS, UTC control/ call OSD menu
4MP CVI camera test,2560x1440P 25F/30F,UTC control d call OSD menu
4MP AHD test, 2560x1440P 15F/25F/30F, UTC control d call OSD menu
HD SDI/EX-SDI camera test ,support 1080P 50/60 FPS

HDMl Input: 1 channel HDMl input, support 1080PF-F
Zoom Image: 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record
and play back

Analog Video out: Output one channel PAL/NTSC color bar video signal for testing monitor
or video cable
HDMl Output: 1 channel HDMl output, support 1920*1080P
Output DC12V/2A power out ,supply temporarily power for the camera

Power Output:
PoE Power Output: 48V PoE power output, max power 24W
5V/2A Power Output: USB 5V 2A power output, as a power bank

Cable Test:
TDR Cable Test: BNC cable, network cable, telephone cable, RVV cable and elevator cable,
cat 5/6 cable’s length and short circuit. measurement range 1.2KM

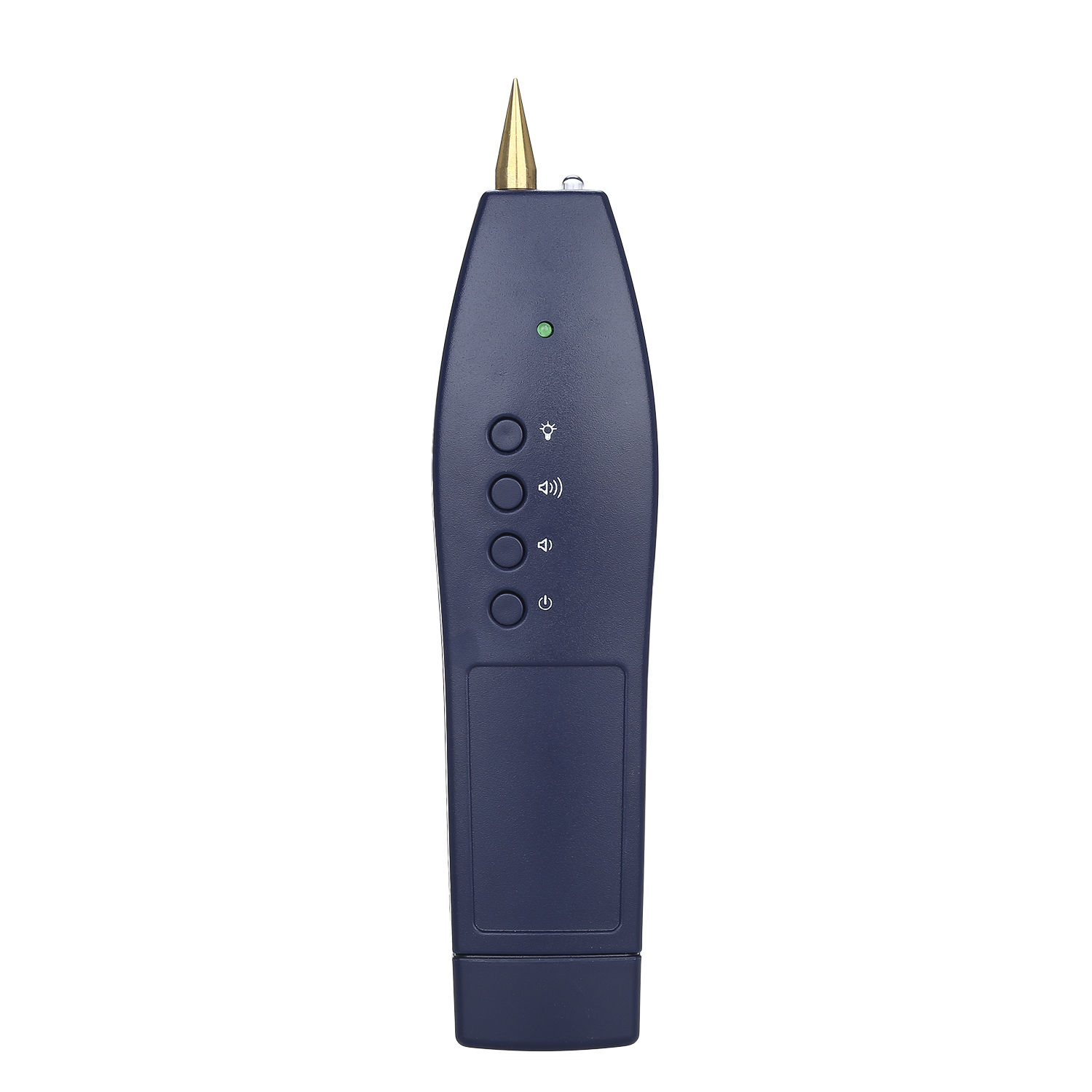

Cable Tracer: Search BNC cable, network cable and telephone cable from the mess cables
UTP Cable Test: Test UTP cable connection status and display on the screen. Read the
number on the screen
RJ45 Cable TDR Test: Test cable pair status, length, attenuation, reflectivity, impedance, skew etc

Tester Play: Screen projection:tester, mobile phone and PC display at the same time
(For android version mobile phone)
Network Test: Trace route, Link monitor, DHCP server, port flashing , Ping test
Wi-Fi: Built in WIFI,speeds150M,display wireless camera image
Audio Test: 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Data monitor: Captures and analyzes the command data from controlling device,also can
send hexadecimal
PoE Test: Measurement POE switch or PSE power supply voltage and cable connection status
Drop-down Menu: You can select PoE power switch ,IP setting, WLAN switch , HDMl IN functions etc in any interface
External Power Supply: DC 12V 2A
Battery: Built-in 7.4V Lithium polymer battery ,5400mAh
Rechargeable: After charging 5~6 hours, normal working time 10 hours
Operation Setting: OSD menu, select your desired
Language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc
Auto Off: 5-30 (mins)
Working Temperature: -10degree — +50degree
Working Humidity: 30%-90%

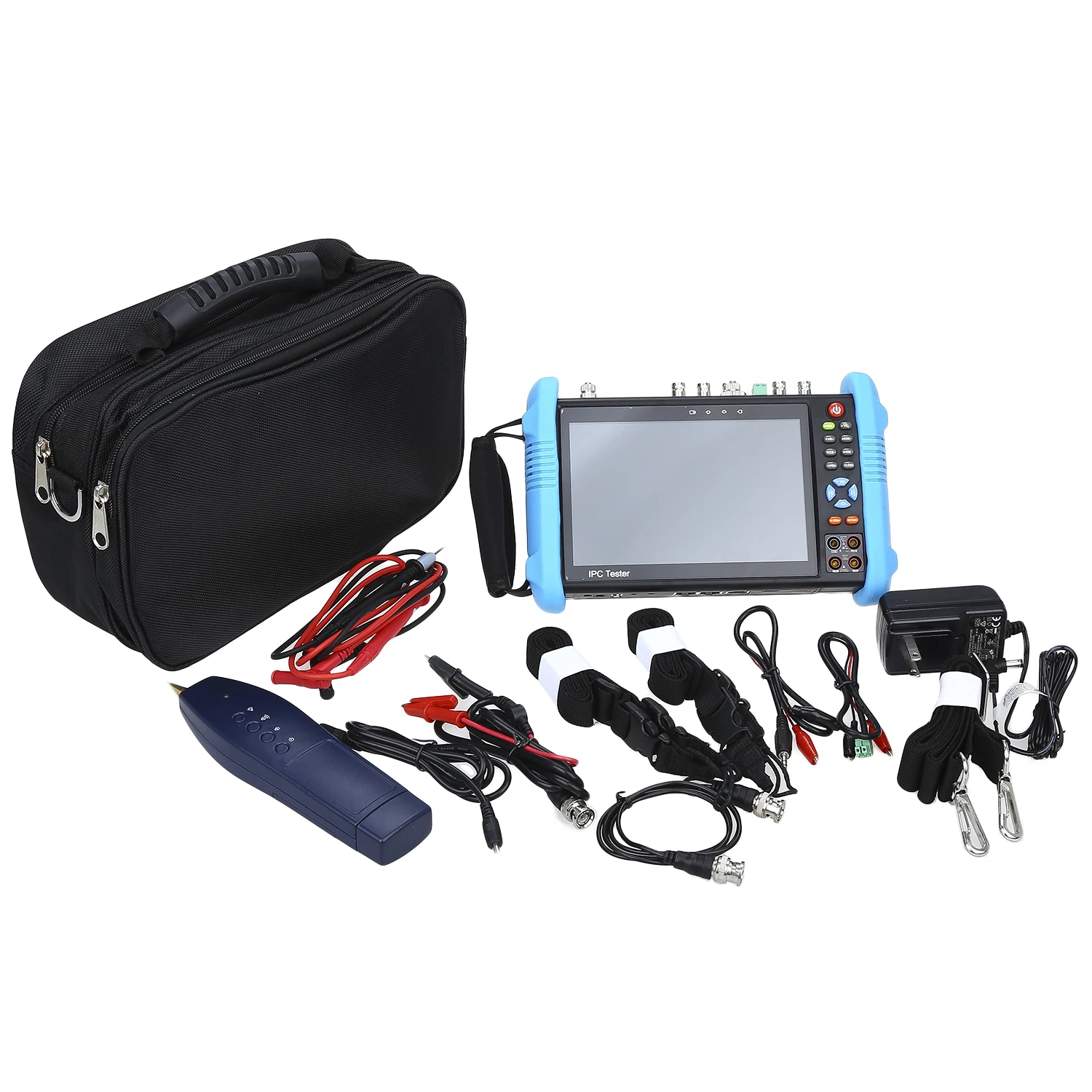

Package:
1x Tester
1x Adaptor DC 12V 2A
1x Network Cable Teaster
1x BNC Cable
1x RS485 Cable
1x Output Power Cable
1x Audio Cable
2x Band
1x Tool Bag
1x Bag Band
1x Manual
1x 8GB Card
