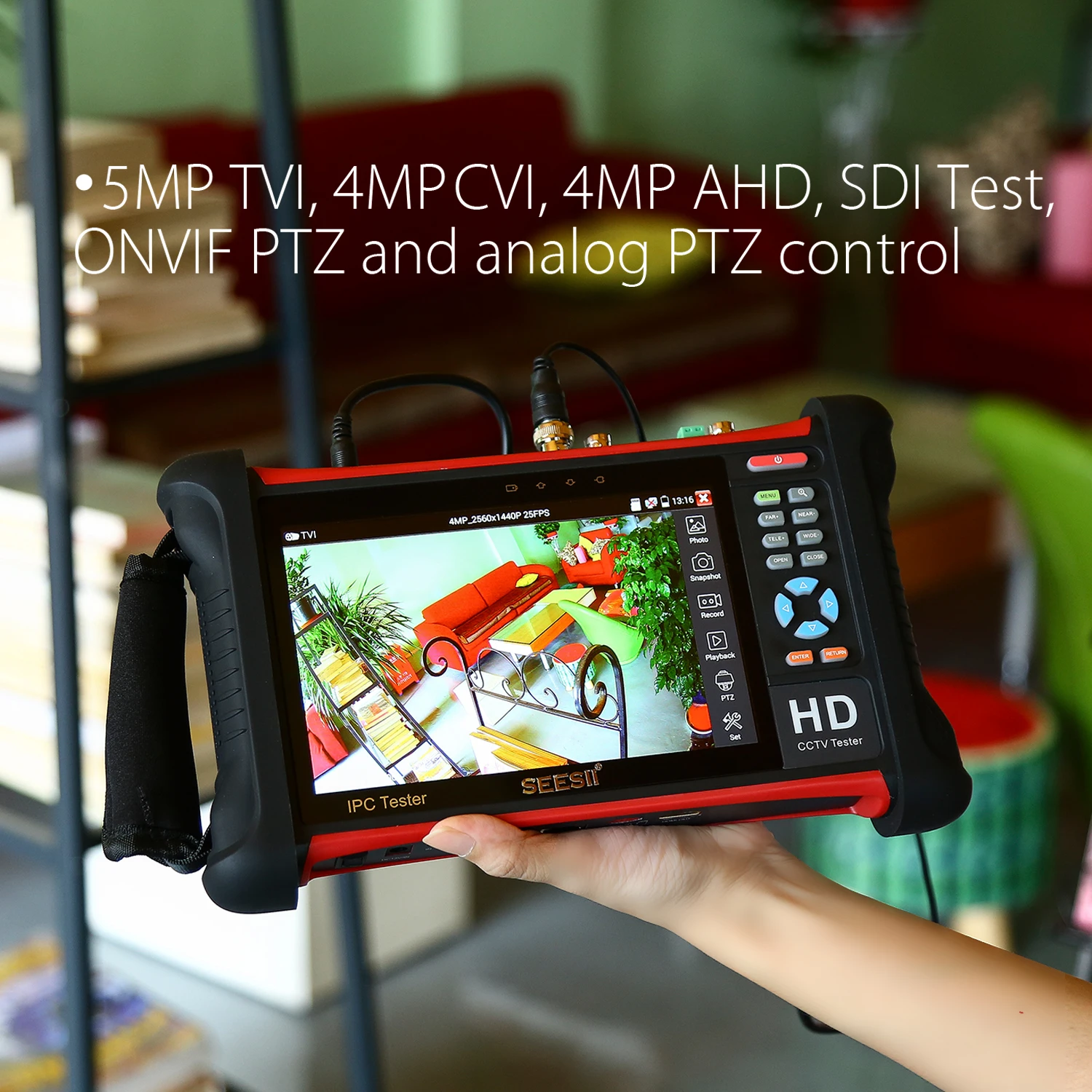

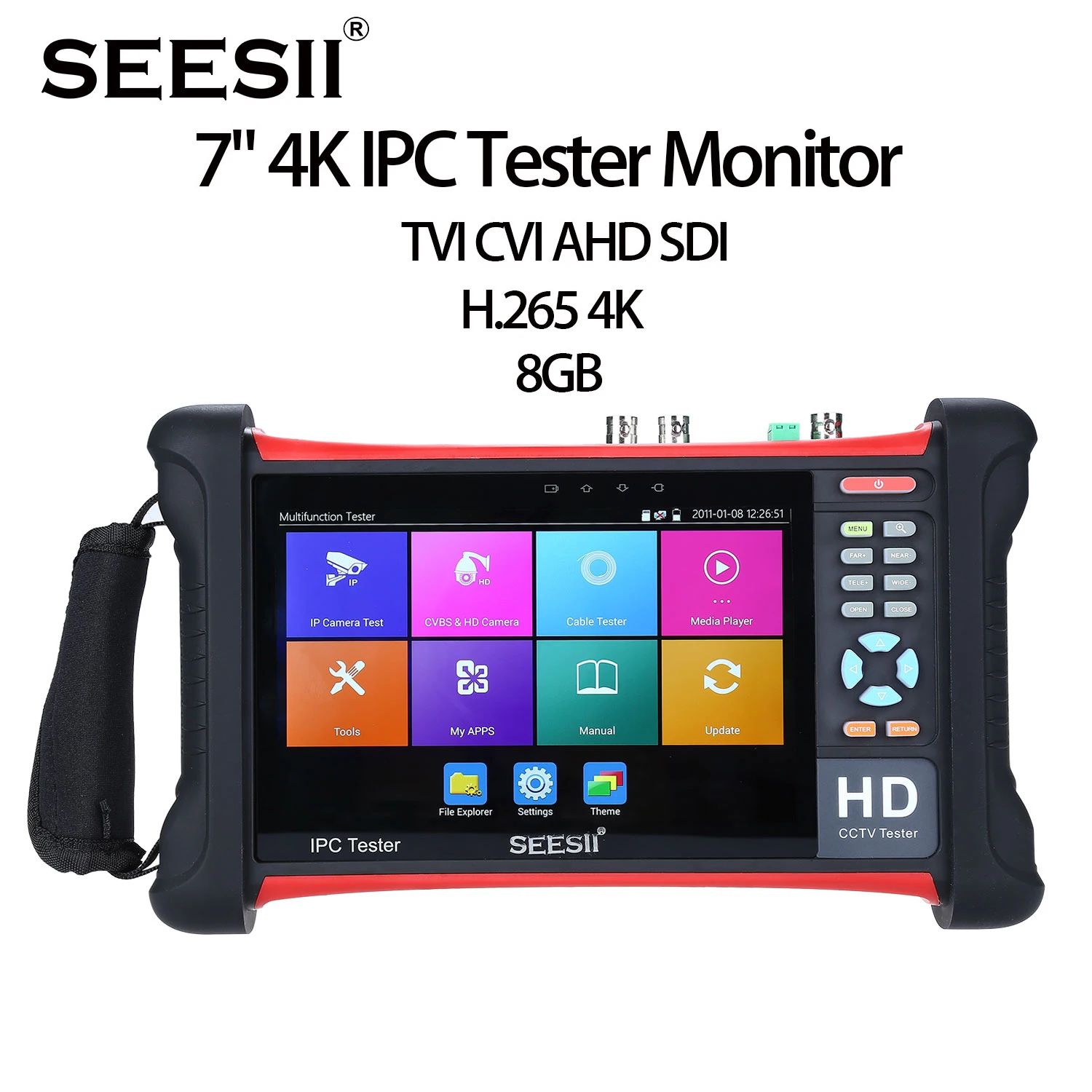

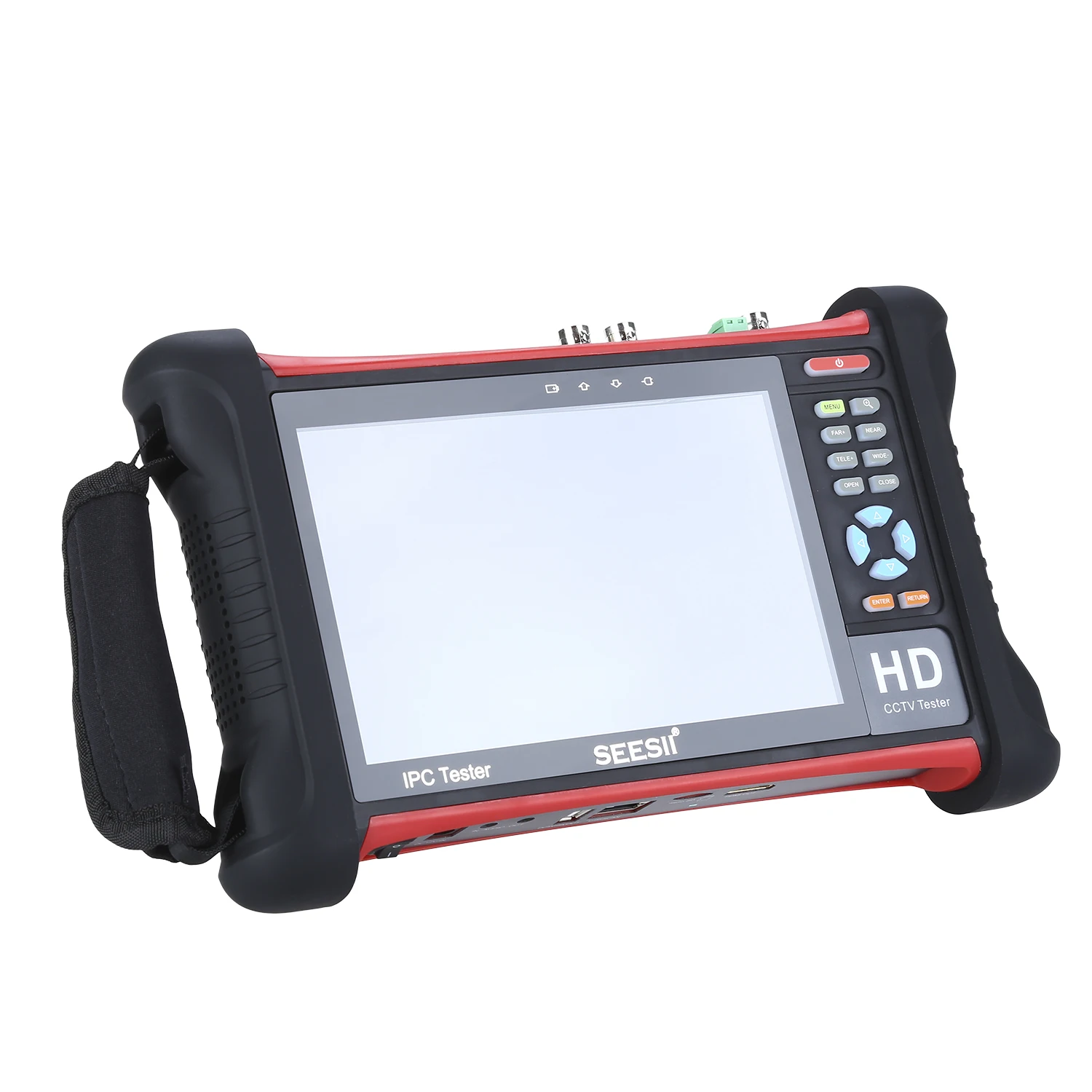

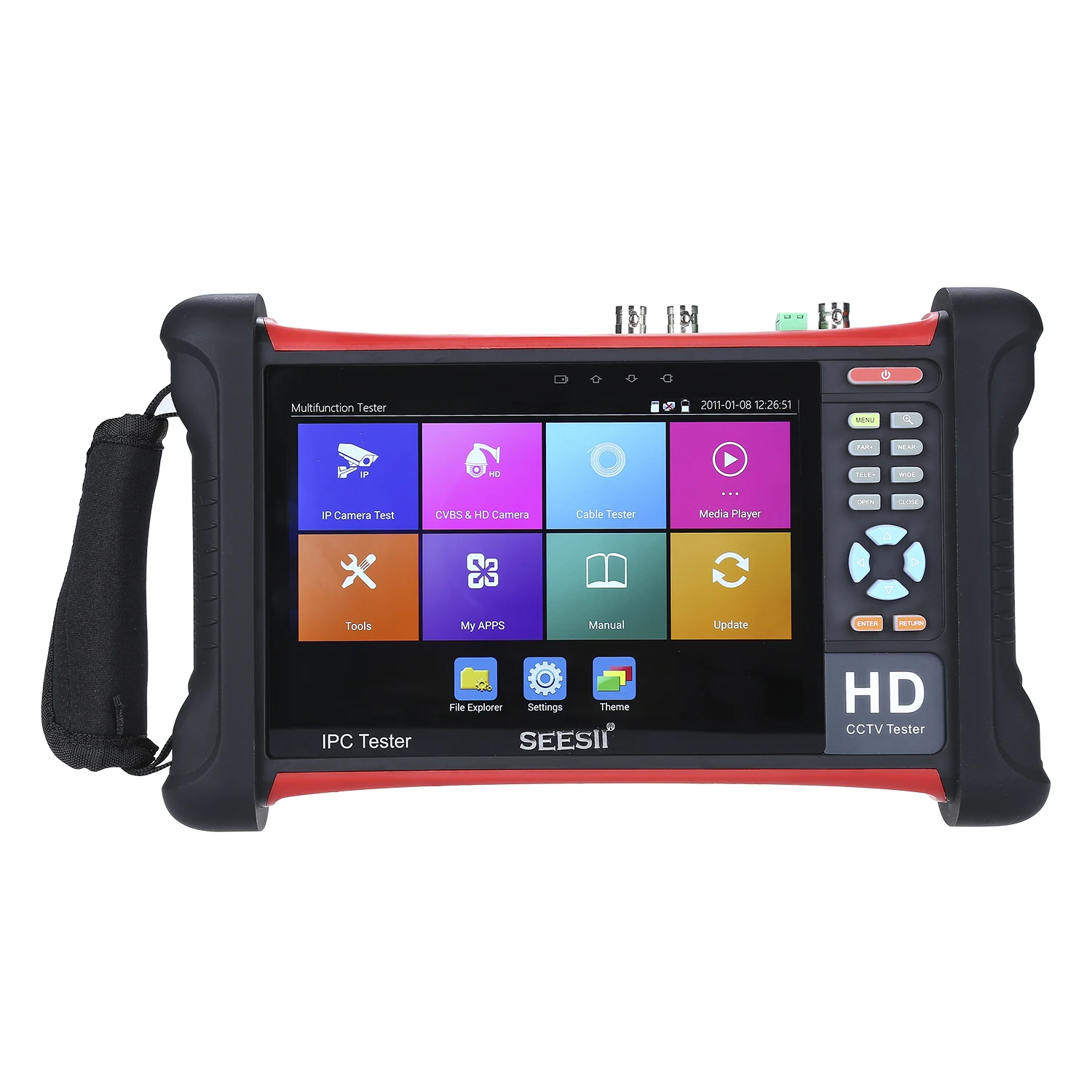

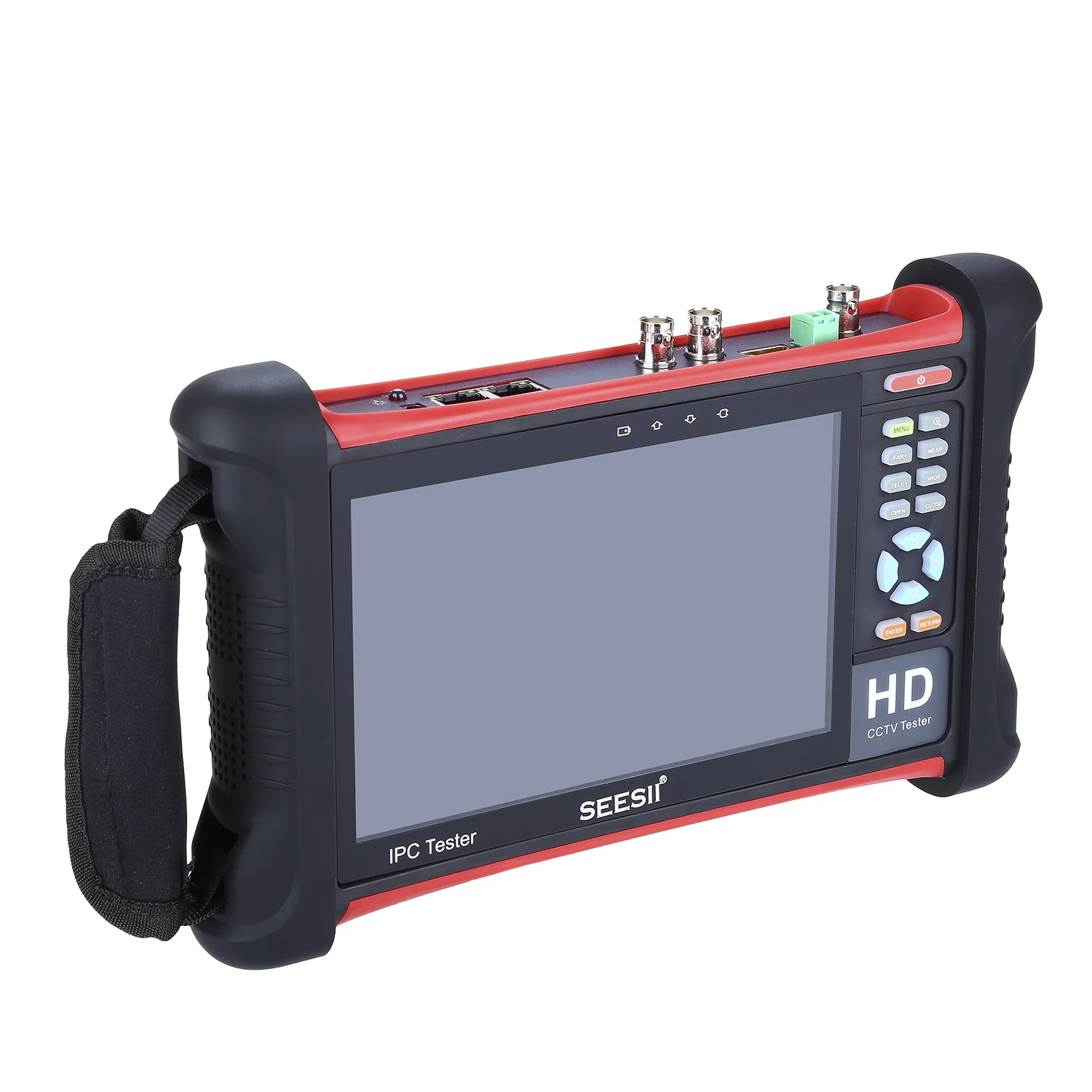

SEESII 7″ 4K 1080P IPC Camera CCTV Tester Monitor TVI CVI AHD SDI CVBS IP Discovery Analog 1920×1200 Retina Touch Screen

The 7 inch retina touch screen IP camera monitor is designed for maintenance and
installation of IP cameras, analog cameras, TVI, CVI AHD, SDI/EX-SDI cameras, as well as
testing 4K H.264 /4K H.265 camera by mainstream, The 1920×1200 resolution enables it to
display network HD cameras and analog cameras in high resolution. The unit supports many

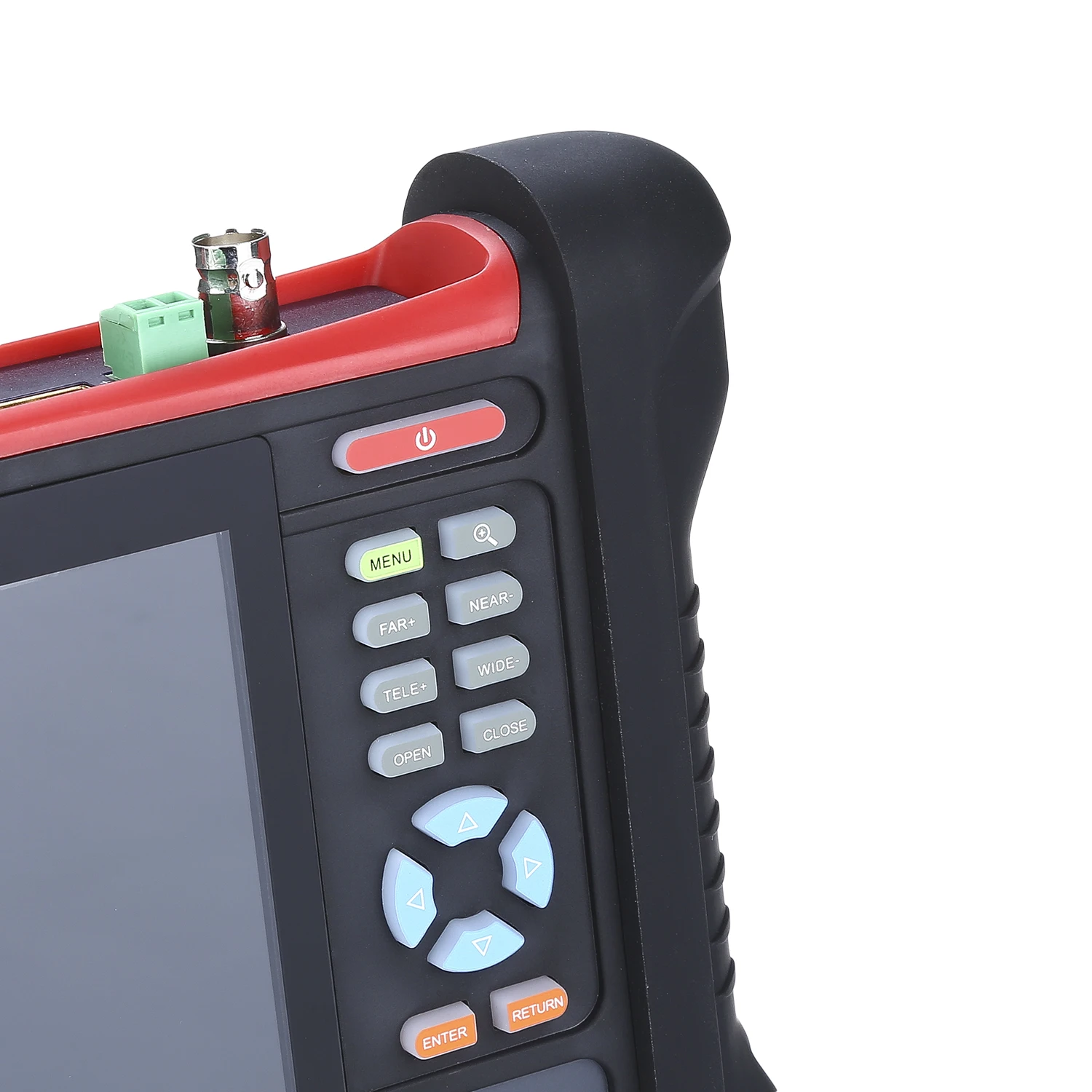

ONVIF PTZ and analog PTZ control. The combination of touch screen and key buttons make the
IP camera tester very user-friendly.
The tester is also a great tool for Ethernet network testing. It can test PoE power voltage, PING, and IP address searching. You can use the blue cable tracer to locate individual connected cables from a bundle of cables. Test LAN cable for proper connection termination. Other functions include providing 24W
PoE power to your camera, HDMI IN and OUT, CVBS loop test, testing IP and analog at the
same time, LED Flashlight, DC 12V 2A power output and much more. Its portability, user-
friendly design and many other functions make the IP tester an essential tool for all
installers or technicians.

Specifications:
Brand: SEESII
Model: IP Camera Tester

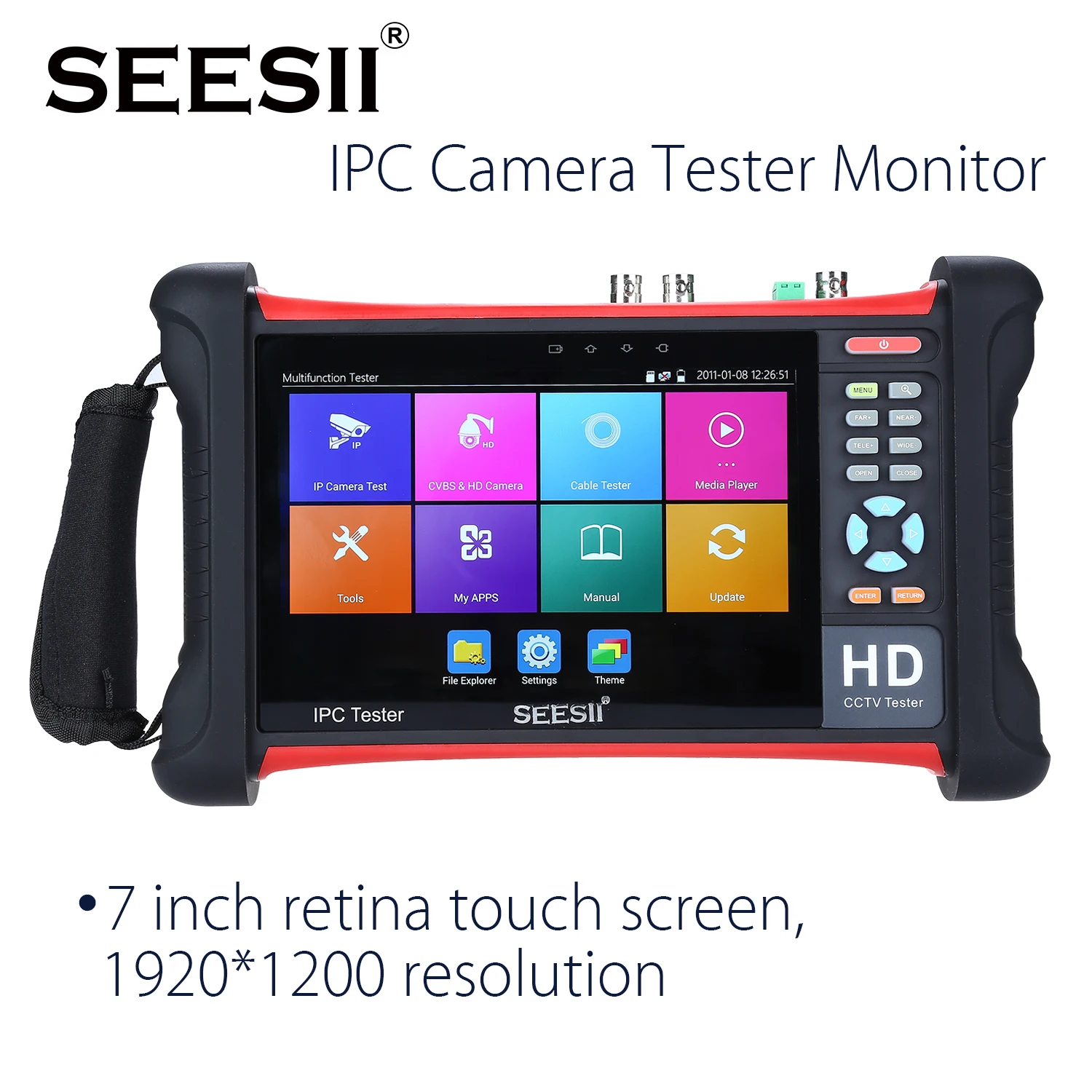

Display: New 7 inch retina touch screen cctv tester ,1920*1200 resolution
Network Port: 10/100/1000M auto adjust, RJ45

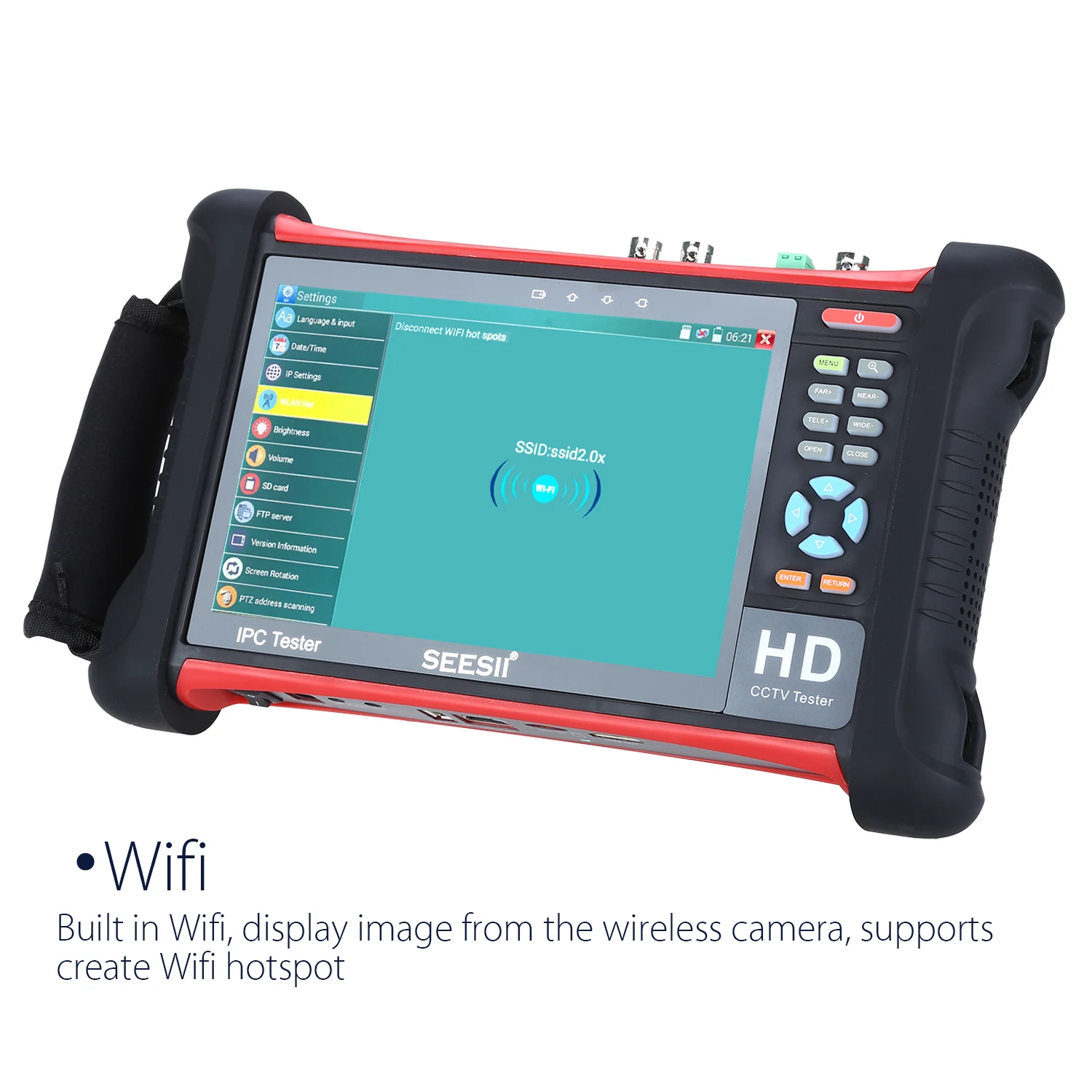

WIFI: Built in WIFI,speeds150M, allows you to connect to a wireless network and
view IP cameras

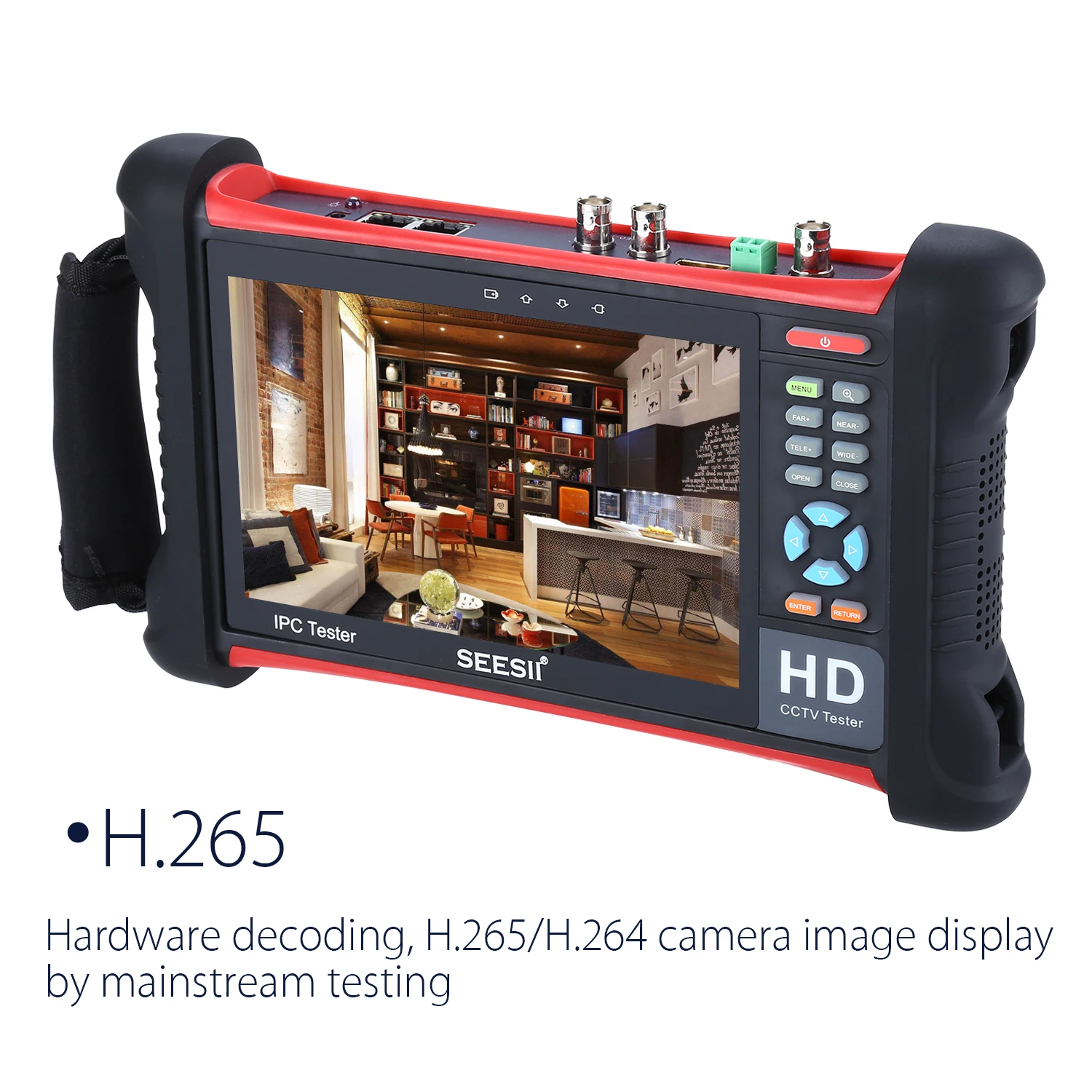

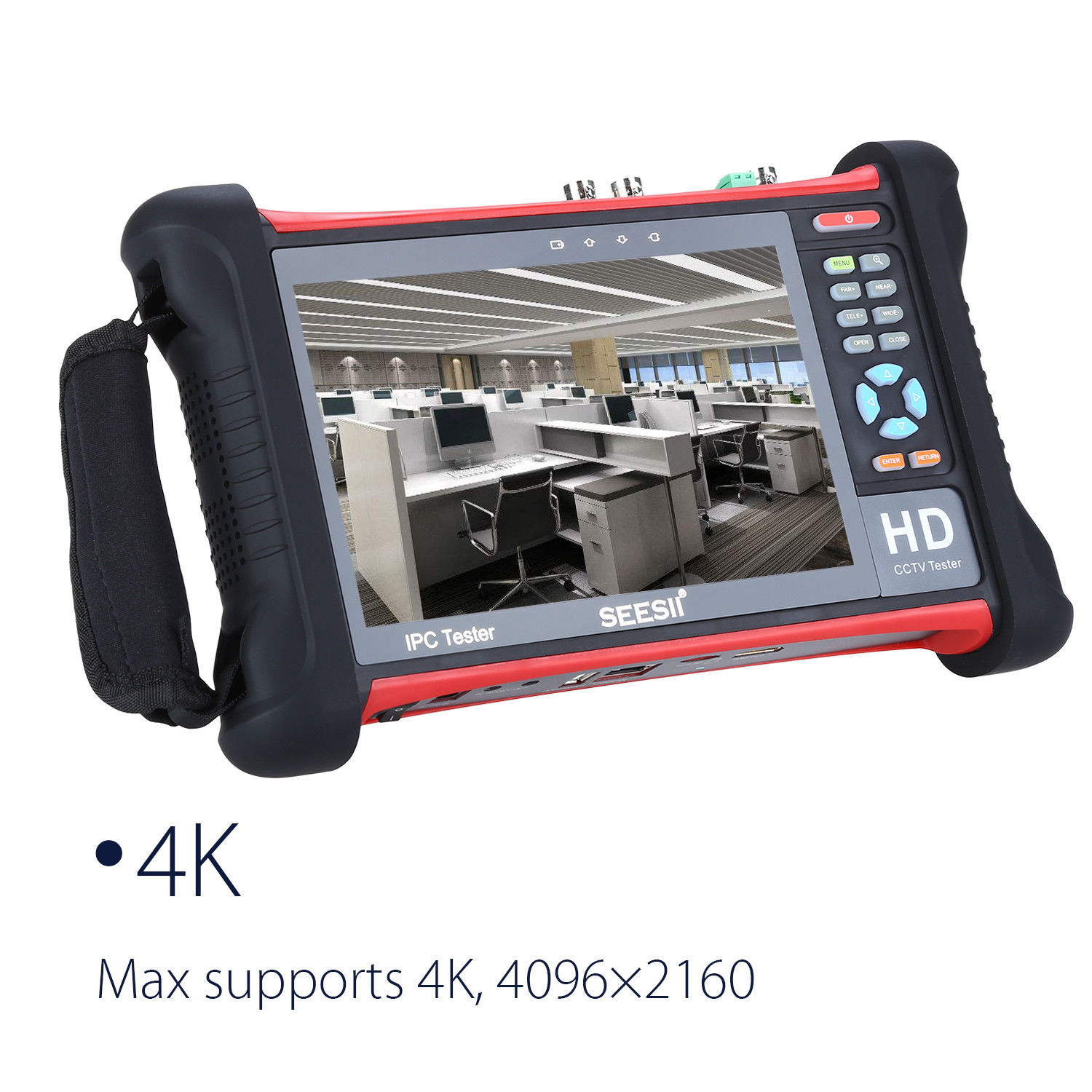

H.265 Mainstream Test: New hardware decoding,4K,H.265/H.264 camera image display by
mainstream testing
RJ45 Cable TDR Test: RJ45 cable TDR test and cable quality test, to test cable pair status,
length, attenuation reflectivity, impedance, skew and other parameters

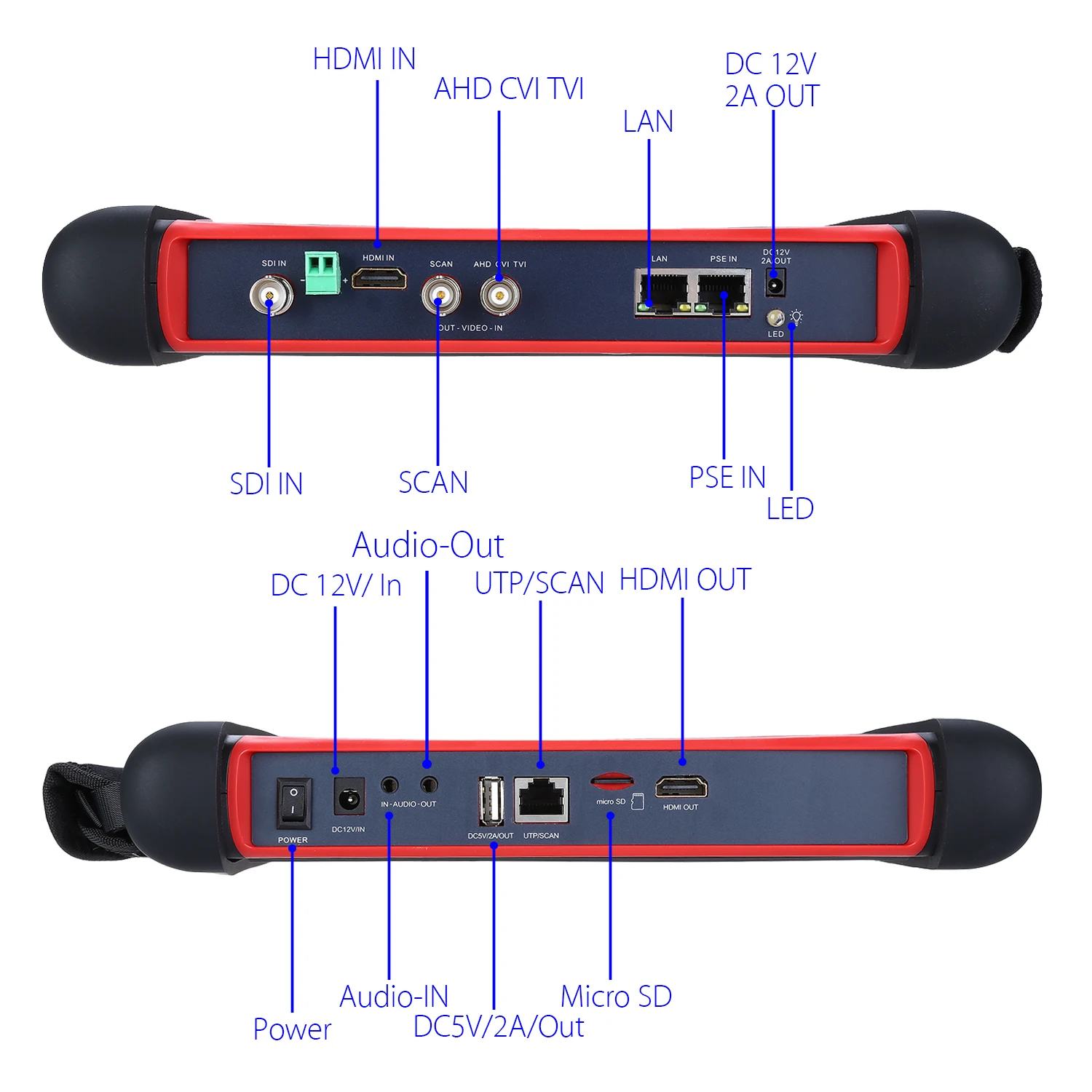

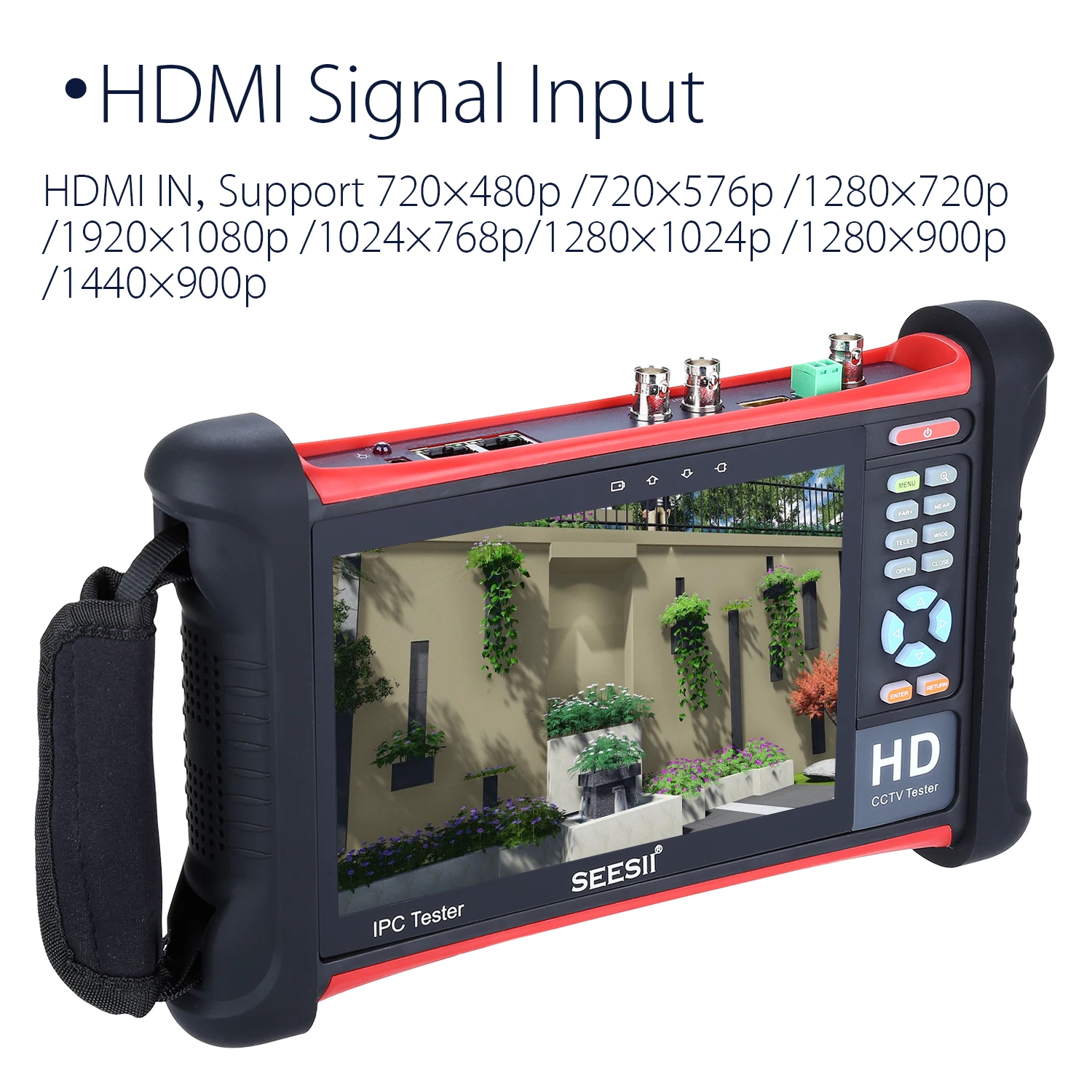

HDMI IN: HDMI IN,Support 720×480p /720×576p /1280×720p /1920×1080p
/1024×768p/1280×1024p /1280×900p /1440×900p
HDMI Output: 1 channel HDMI output, supports up to 3840*2160p
IP Discovery: Auto-scan the whole network segment camera IP
Rapid ONVIF: Search camera quickly, auto log in and display image from the camera,
activate Hikvision camera
Hik Test Tool: Activate Hikvision camera, display image from the camera, modify IP, user
name and password parameters etc
DH Test Tool: Dahua camera test, modify IP, user name and password parameters etc
IP Camera Type: ONVIF,ONVIF PTZ, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13,
Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell
HICC-2300T, RTSP Viewer
HD/EX-SDI Video Signal Test: 1 channel HD-SDI/EX-SDI input(BNC interface), resolution
support : 720p 60fps / 1080p 60fps /1080i 60fps(Notice: it can ONLY support 1080P 1080i 60fps, Not support 1080P 1080i 59.94fps)
CVI Video Signal Test: 1 channel CVI input(BNC interface, resolution support 720p
25,30,50,60fps/ 1080p 25,30fps/2560x1440p 25fps,30fps,UTC control and call OSD menu
TVI Video Signal Test: 1 channel TVI input(BNC interfce),resolution support 720p
25,30,50,60fps/ 1080p 25,30fps /2048x1536p 18,25,30fps , 2560x1440p 15,25,30fps/ 2688x1520p 15fps , 2592x1944p 12.5,20fps,UTC control and call OSD menu
AHD Video Signal Test: 1 channel AHD input(BNC interface),resolution support 720p
25,30fps / 1080p 25,30fps/2048x1536p 18,25,30fps , 2560x1440p 15,25,30fps/2592x1944p
12.5,20fps,UTC control and call OSD menu
Analog Video Test: 1 channel BNC Input & 1 channel BNC Output , NTSC/PAL (Auto adapt)
Video Level Meter: PEAK video signal level, SYNC signal level, COLOR BURST chroma
level measurement for cvbs camera.
Zoom Image: Supports Analog and IP camera image zooming & movement
Snapshot, Video Record and Playback: Capture current images and record live video as JPG
file. Media player will view photos and playback video
12V/2A Power Output: Output DC12V/2A power to cameraUSB 5V Power Output: 5V 2A power output only ,NO data
PoE Power Output: 48V PoE power output, Max power 24W
Screen Management: Lite mode and normal model available. Under normal mode, you can
change icons sequence and self-define the number of icons in each pageTheme: Self-define
icons, desktop and application interface background, modify interface sliding effect
Drop-Down Menu: PoE power switch ,IP setting, WLAN switch , HDMI IN functions etc screen
lock, password lock screen or pattern lock
Audio Test: 1 channel audio signal input and 1 channel audio signal output to connect headphones
PTZ Control: Support RS485 control, Baud 600-115200bps, Compatible with more than
30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etcColor Bar Generator:
Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red,
green ,blue, white and black color )
UTP Cable Tester: Test UTP cable connection status and display on the screen. Read the
number on the screen Data Monitor: Captures and analyzes the command data from controlling device, also can
send hexadecimal
Network Test : IP address scan, link scan, and Ping test. Quickly search the for IP camera’
s IP address on your network
Cable Tracer: Find a connected cable from a bundle of cables using audio tones
PoE /PSE Voltage Test: Measures PoE switch voltage and displays pin configuration

Power:
External Power Supply: DC 12V 2A
Battery: Built-in 7.4V Lithium polymer battery ,5000mAh
Rechargeable: After charging 5~6 hours, normal working time 10hours

Parameter :
Operation Setting: Capacitive touch screen, OSD menu, select your desired
Language: English, Chinese, Korean, Russian, Italian or Polish, ,French, Japanese etc
Auto Off: 1-30 (mins)

General:
Working Temperature: -10degree — +50degree
Working Humidity: 30%-90%

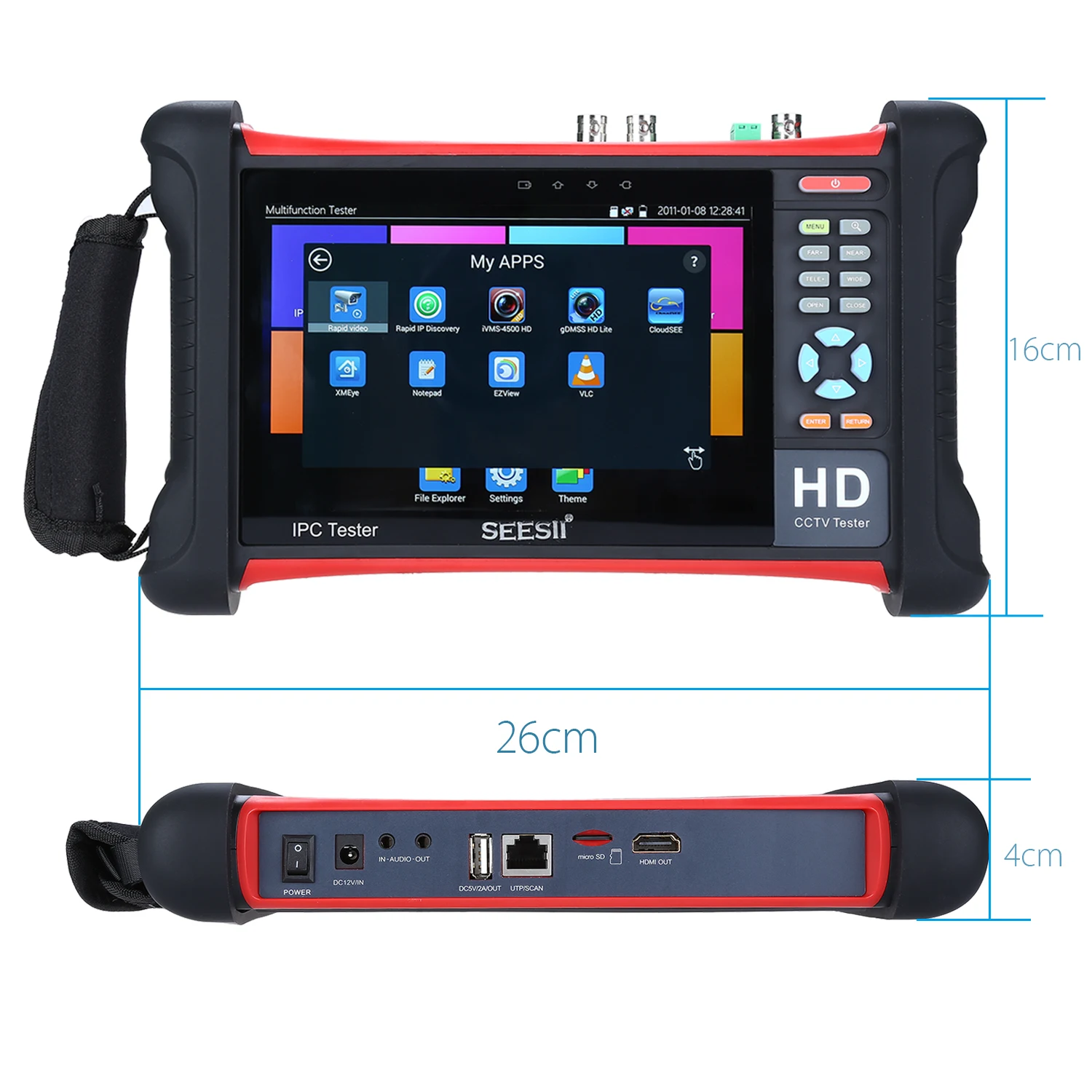

Dimension/Weight: 255mm x 160mm x 46mm / 950g

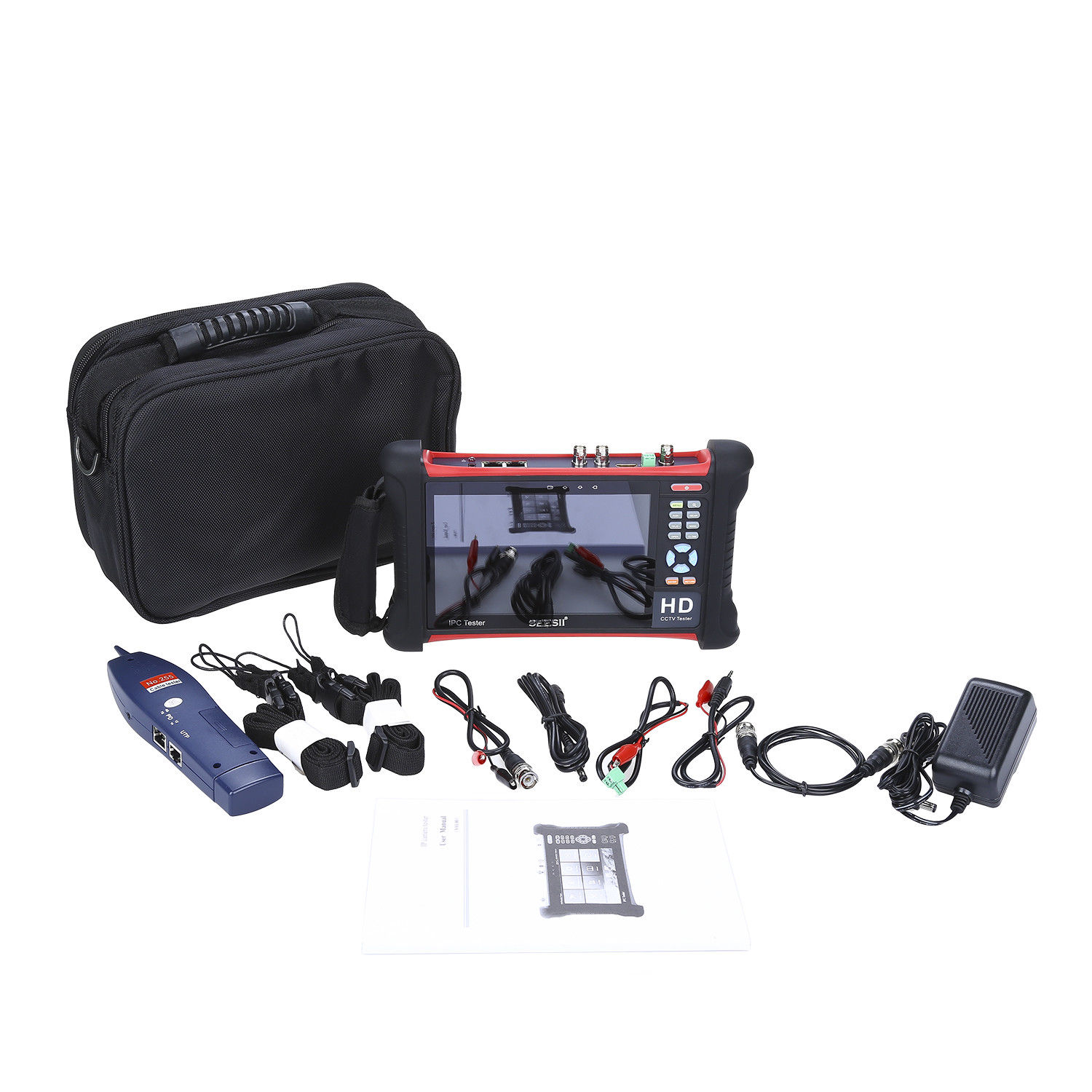

Packing list:
1x Tester
1x Adaptor DC12V 2A
1x Network Cable Tester
1x Polymer Lithium ion Battery (7.4V DC 5400mAh)
1x BNC Cable
1x RS485 Cable
1x Output Power Cable
1x Audio Cable
1x Safety Cord
1x Tool Bag
1x Manual
1x 8GB SD Card
