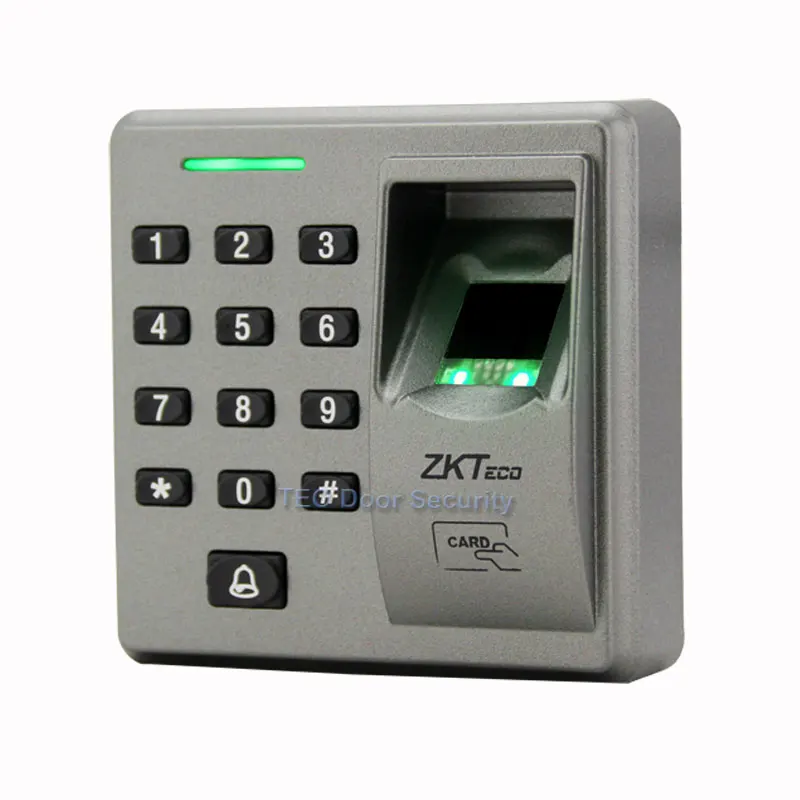

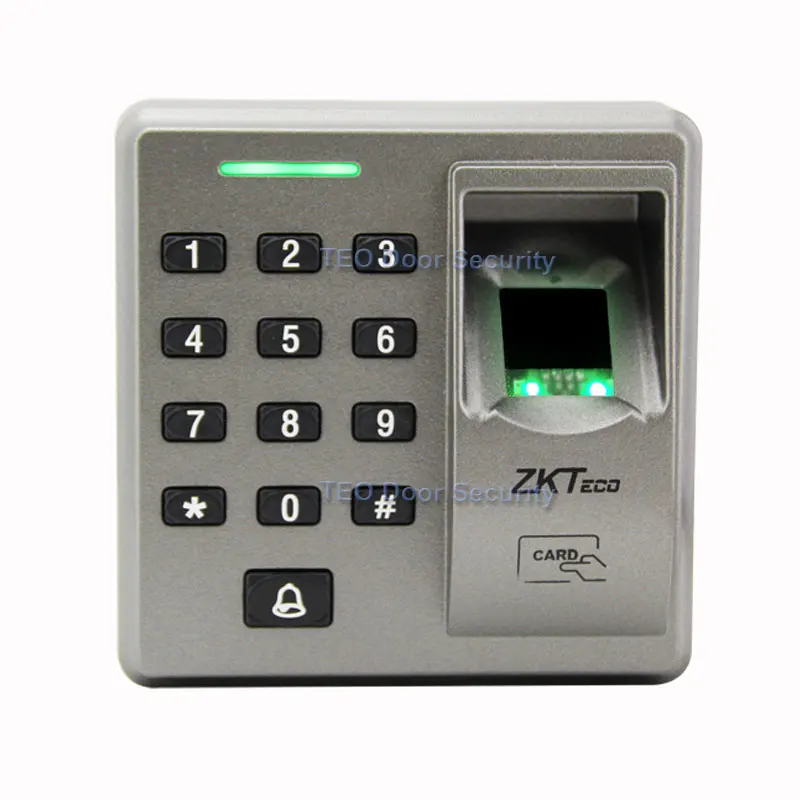

RS485 Slave Reader ZK FR1300 Support Fingerprint + RFID + Keypad Smart Finger Sensor With Doorbell 86cmx86cm Socket Installation
I. Introduction
FR1300 is an indoor slave reader with RS485 interface that works with master controllers from ZKTeco, for example, inBIO series biometric control panels. As a value-added slave reader, FR1300 provides the most secure and cost effective access control solution for small and medium enterprises.
II. Features
- Energy-saving, auto-sleep ZK infrared fingerprint sensor
- Built-in RFID card reader
- Supports password when working with inBIO series control panel
- LED and Buzzer prompt
- With doorbell function
- 86cmx86cm socket installation, easy operation
III.Specification
|
Sensor |
ZK Infrared Optical Sensor |
|
Communication |
RS485 |
|
Built-in Card Reader |
125 kHz EM card reader, Optional Mifare card reader |
|
Optional Function |
Mifare Card Module(Please contact with US) |
|
Power Supply |
DC 12V |
|
Operating Temperature |
0°C ~ 45°C |
|
Operating Humidity |
20% ~ 80% |
|
Dimension |
88mm×88mm×33.6mm |
III.Verify Mode
After the reader is powered on independently,the reader can not identify the fingerprint,password or card.in other words.
the reader can not receive data or send data without connecting with control panel or standalone access control.
There are Fifteen verify modes
- Card,Fingerprint,and Password
- Only fingerprint
- Only User ID
- Only password
- Only card
- Fingerprint or Password
- Card or Fingerprint
- Card or Password
- User ID and Fingerprint
- Password and Fingerprint
- Card and Fingerprint
- Card and Password
- Card,Fingerprint and Password
- User ID,Password and fingerprint
- Fingerprint,Card or User ID

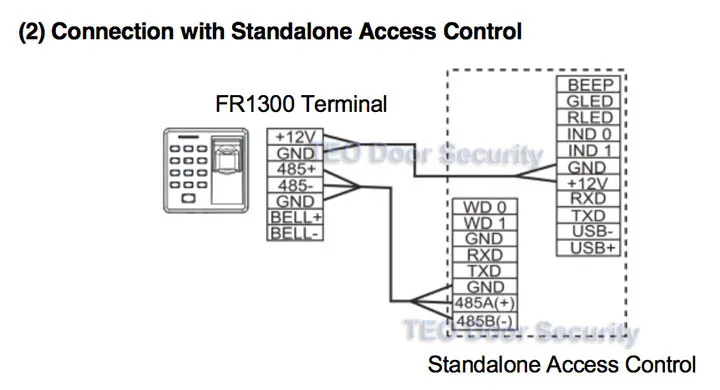

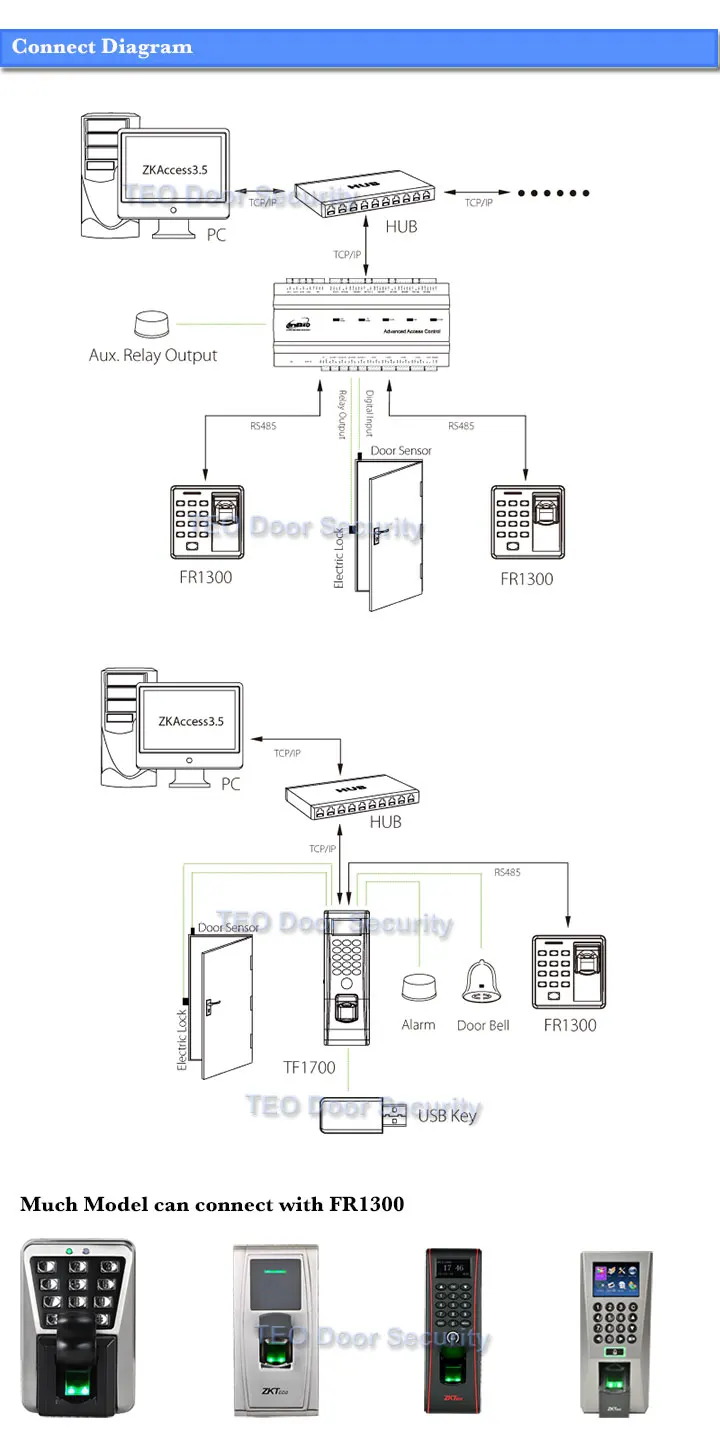

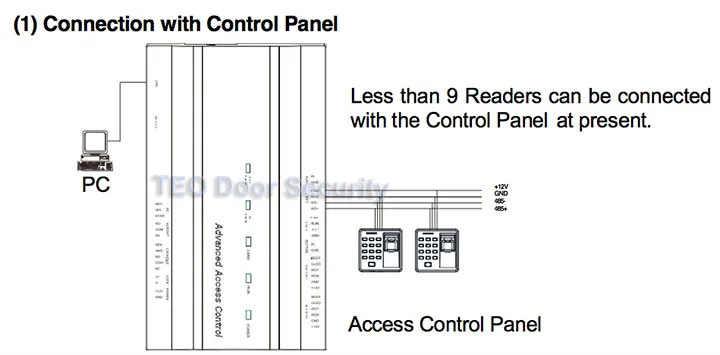

IV.Connect Diagram
