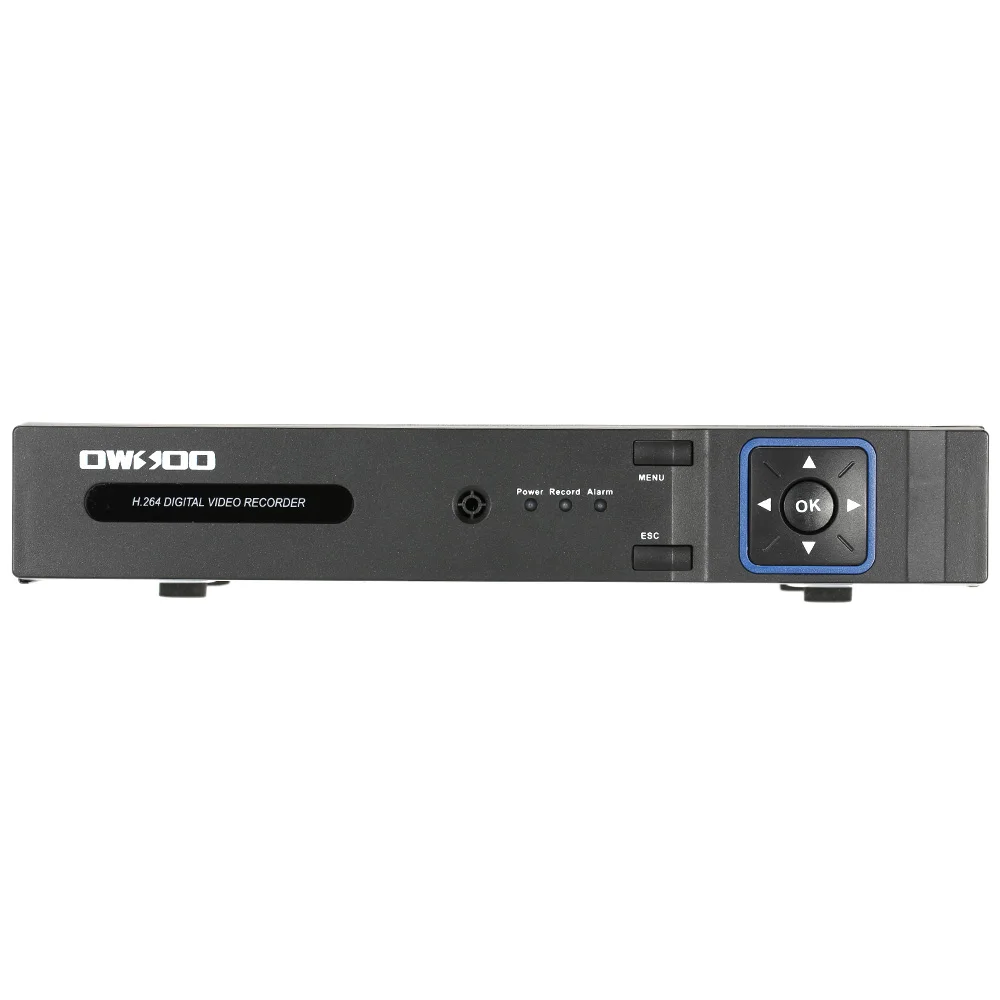

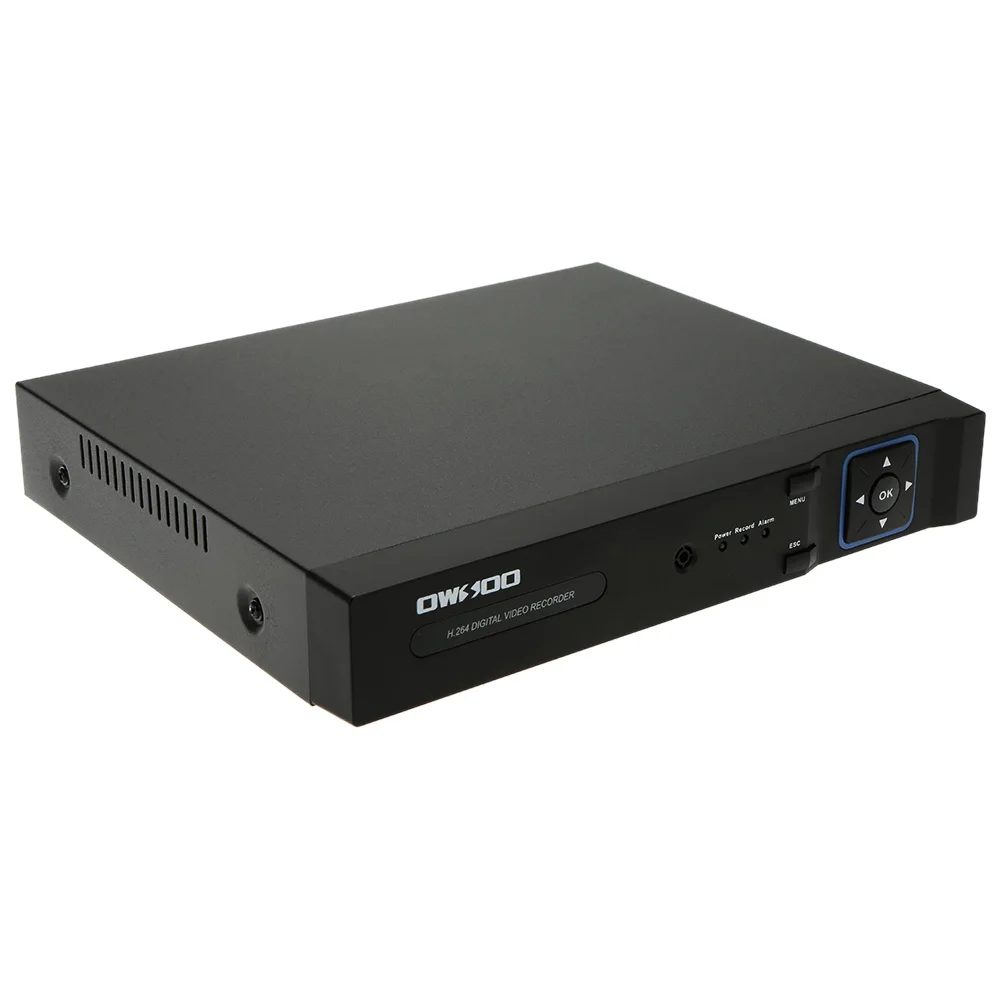

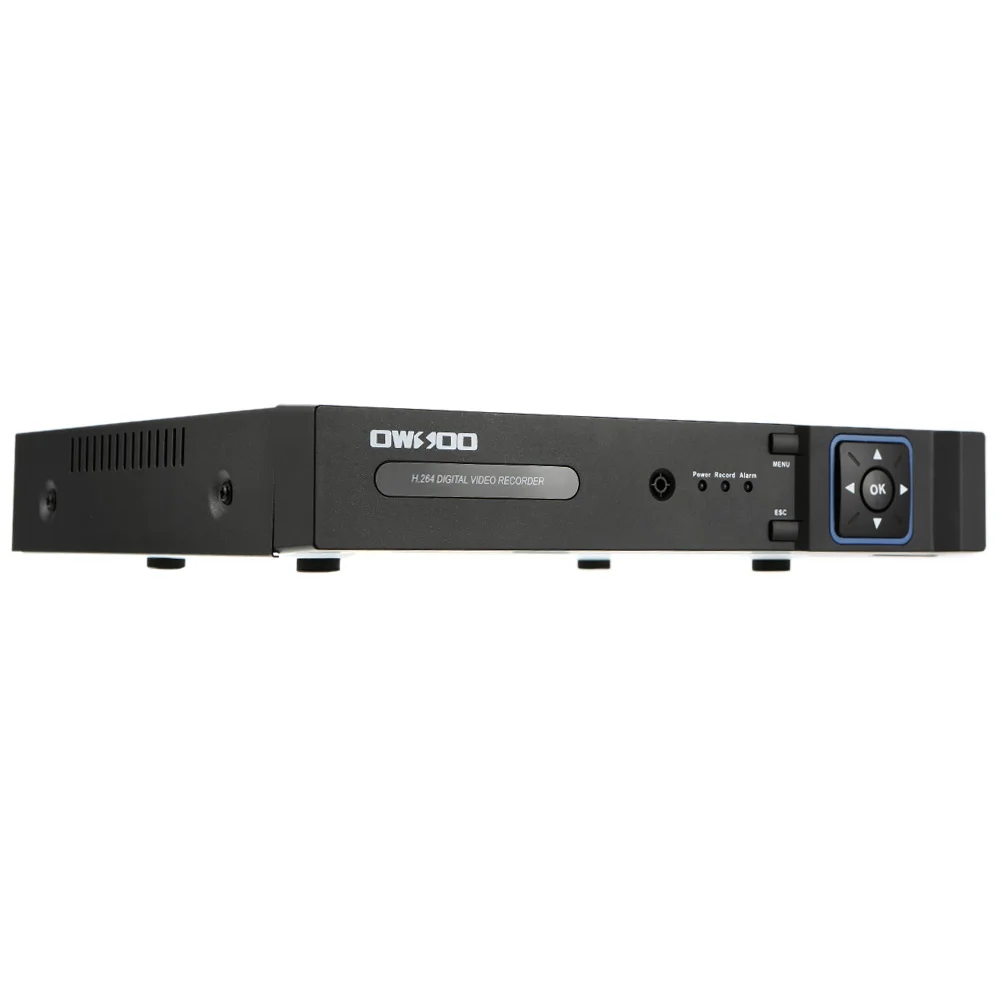

OWSOO 16CH 1080N AHD DVR Recorder CCTV Security P2P Remote Digital Video Recorder H.264 Motion Detection For Security System
Note: 3.5in SATA HDD not included
This 16ch 1080N network DVR video recorder features H.264 video compression, P2P cloud function, supporting android/iOS devices remote view anywhere anytime. It is also with functions of motion detection alarm, dual-stream encoding, which is widely used at home, shopmarket, office and other surveillance needed places.
Features:
*Support 16-ch 1080P AHD cameras input and 4-ch sync playback (960*1080)

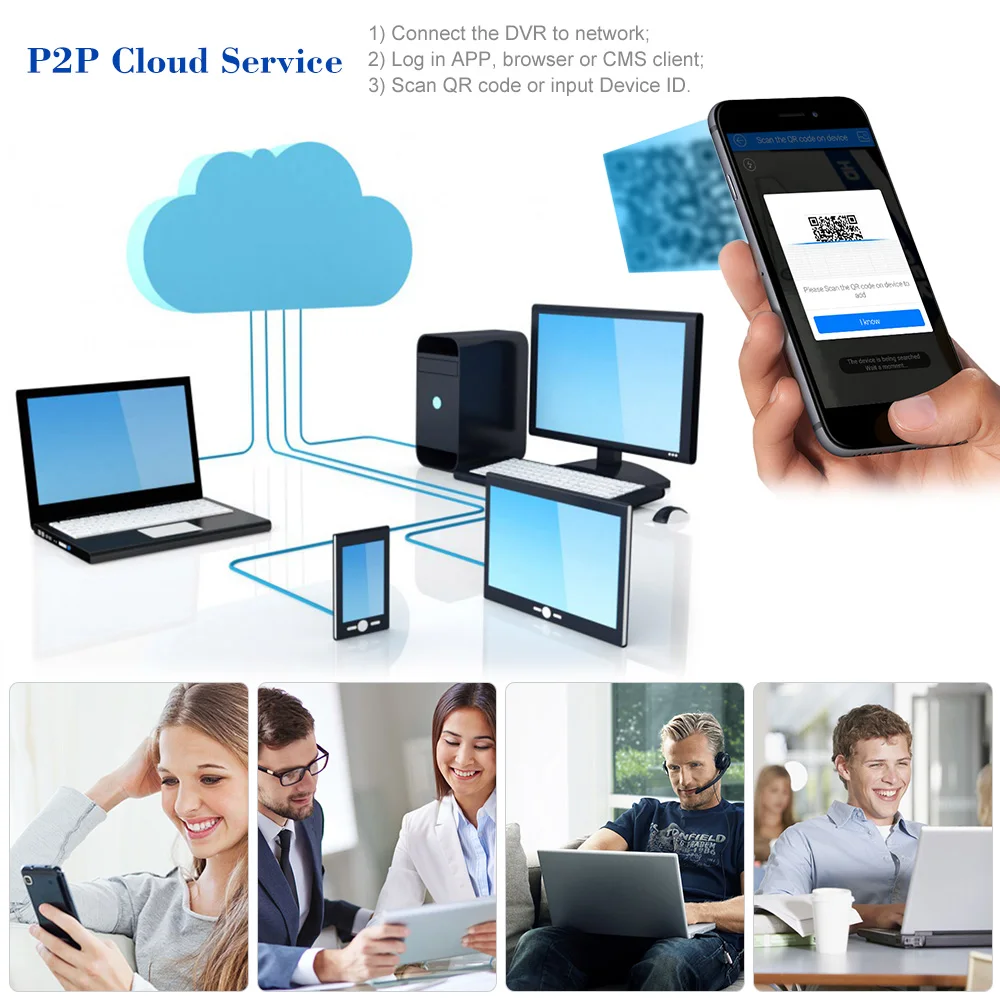

*P2P cloud service for Android/iOS mobile devices remote view anywhere anytime.
*Motion detection recording. The DVR will be triggered to record when detect something moving. NO trigger, no record, more intelligent and space-saving.
*Email alert and alarm notification. When motion detection is triggered, the DVR will automatically send out buzzer sound and alarm notifications to your email, including snapshot on the spot.
*Multiple ways to access on the PC, phone and pad, can be viewed by PC client, Phone APP and IE browser.
*Support 3.5 inch SATA port hard drive, capacity about 500G/1.5T/2T/3T, and less than 500G is not supported.
*This DVR default VGA resolution is 1280*1024, so we suggest you to use the monitor with 1280*1024 or higher resolution for normal use.
Specifications:
Operating System: Embedded Linux System
Menu Display: 1/4/8/9/16 Screen
Video Compression: H.264
Record Resolution: 1080N
VGA Resolution: 1920*1080, 1440*900, 1280*1024, 1024*768
Signal System: PAL/NTSC
Frame Rate: 1-30fps (NTSC), 1-25fps (PAL)
Max Synchronous Playback: 4-ch (960*1080)
Code Capacity: 16*1080N/960H/D1
HDD Supported: Max. 3.5in 3TB SATA HDD (not included)
Dual Stream: Support; Video Blind: Support
OSD Language: English, French, German, Spanish, Italian, Japanese, etc
Item Size: Approx.25.6*23.8*4.4cm / 10.08*9.37*1.73in
Item Weight: Approx. 1009g / 2.23lb
Package Information:
Package Size: Approx. 34.9*28.6*7.7cm / 13.74*11.26*3.03in
Package Weight: Approx. 1497g / 3.3lb

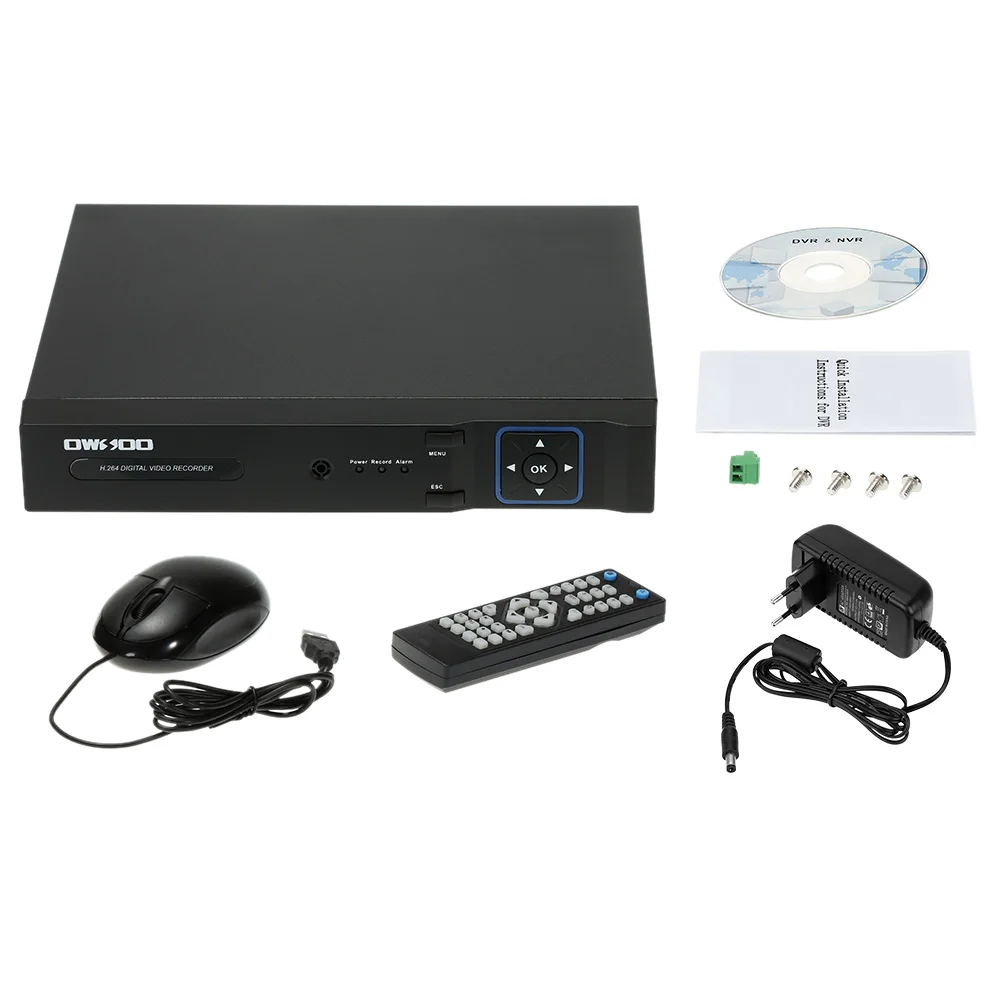

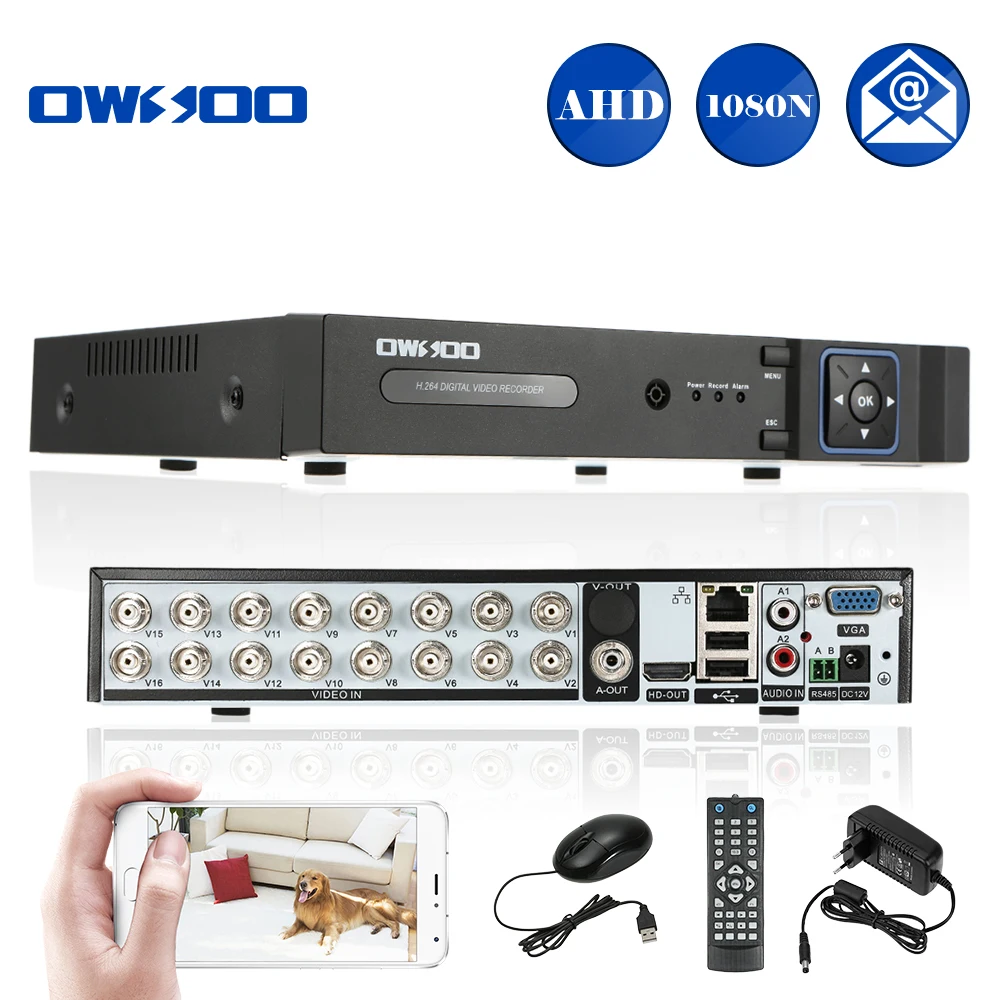

Package list:
1 * 16CH 1080N DVR Video Recorder(HDD not Included)
1 * Power Adapter
1 * USB Mouse
1 * Remote Controller (2*AAA battery not included)

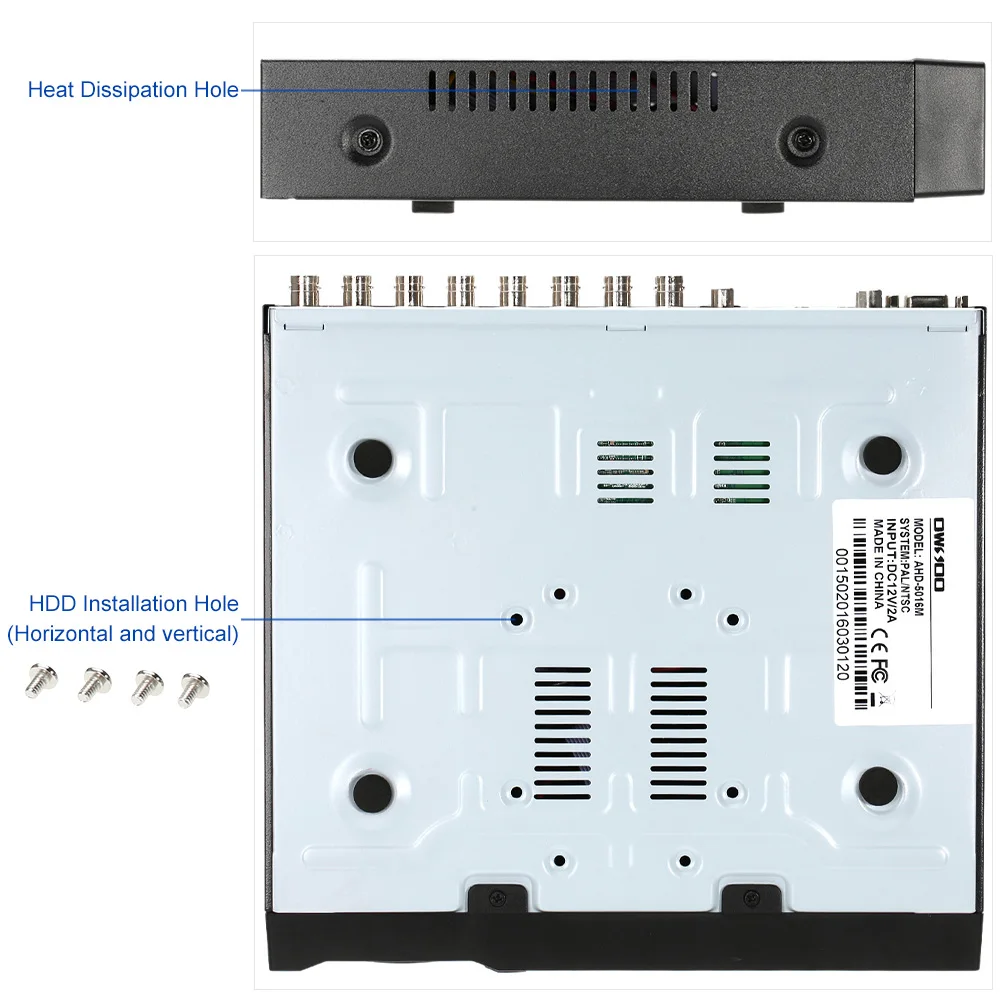

1 * Bag of Screws for HDD Installation
1 * User Manual
1 * CD software
