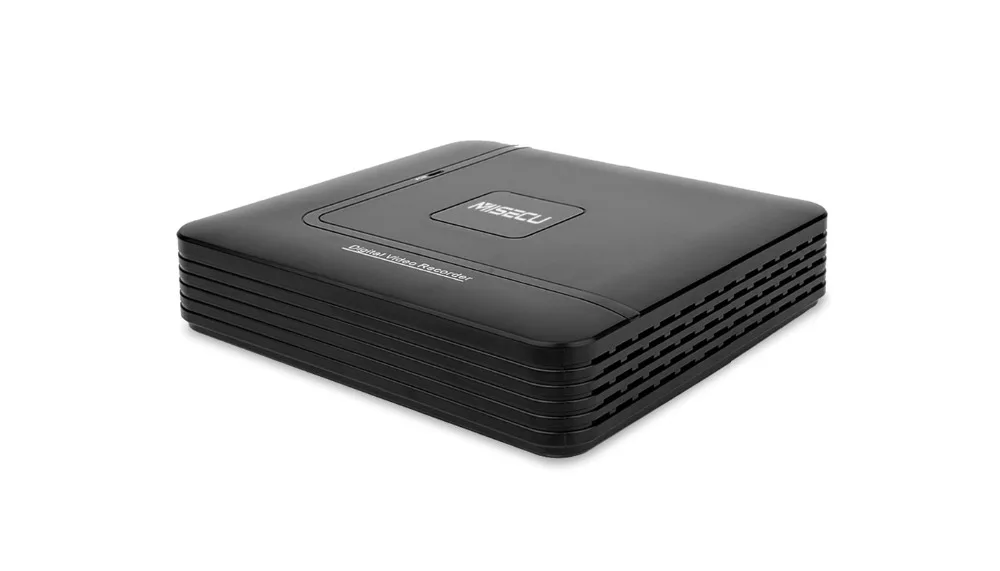

MISECU New 4Ch 8Ch Mini NVR Full HD real P2P Standalone CCTV NVR 1920*1080P ONVIF For 1080P 960P 720P IP Camera Security System

98% of buyers enjoyed this product!
1600
Ships From:
China
Build-in HDD:
1T None
Video Input:
4CH 8CH
Plug Standard:
US Plug UK Plug EU Plug AU Plug
View cart→
Product Description
Shipping & Payment
Product Details


Features :

1.H.264 High profile compression algorithm ideal for standalone NVR

2.Realtime live display up to 4/8 cameras

3.Pentaplex function:live,recording,playback,backup & remote access;

4.Support Dual-streams,to make mobile monitoring very easy,flexible for network transmission

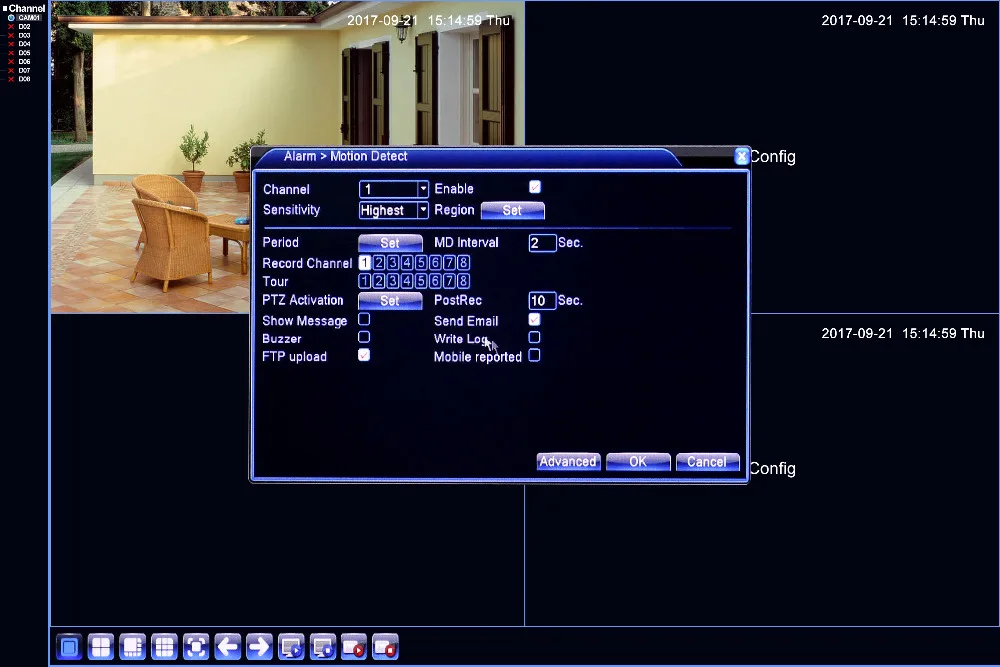

5.Smart video detection:motion detection,video blind,video loss

6.Smart camera settings:privacy masking,camera lock,color setting,and tittle display

7.Easy backup methods: USB devices,remote network and client software backup

8.Alarm triggering screen tips,buzzer,PTZ preset,e-mail &FTP upload

9.Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm,Raid function

10.Powerful network software:built-in web server,multi-DVR client &SMS Networking access for remote live viewing,recording,playback,setting,system statu,event log,e-mail & ftp function

11.Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions, support web client, standalone client and SDK.

12.With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up.

With the unique black box technology, can monitor the whole run process of the equipment, can greatly reduce the maintenance costs.

13.Enable strong multi-way synchronization with max 1/4 channel playback, realize the zero-delay between playback channels

14. Support Standard Onvif 2.0 protocal

15.Real P2P : Cloud : XMEYE.NET ; APP :XMEYE

Specification:

4 Channel NVR :

Overview

Model

MISECU-N1004F

Operating System

Embedded LINUX/ 3520D Main Processor

System Resources

Pentaplex function:live,recording,playback,backup & remote access

Operation interface

16-bit true color graphic menu operation interface, support mouse operation

Preview

1/4/8

Video

Video Standards

PAL 625 line,50 f/s;NTSC 525 line,60 f/s

Video Compression

H.264 High profile

quality supervision

Monitor: D1; VGA: high definition; HDMI: hd

Video Recording

1080P/720P/960H/D1

Vidie input(IP)

4*1080P/8*960P

Motion Detection

Supports

( Depends on Camera ,the front-end ip camera must have this function )

Audio

Audio Conpression

G.711a

Bidrectional Talk

N/A

Record &

Playback

Recording Mode

Manual>Alarm>Dynamic>Timing

Playback

1*1080P/4*960P

Search Mode

Time/Date,Alarm,Motion Detection & exact search(accurate to second)

Storage &

Playback

Space Occupation

Video: 1080p 40G/day/ch, 720p 20-30G/day/ch

D1 8-10G/day/ch

Audio:691.2M/day*channel

Video saved

Local HDD,network

Backup Mode

Network download/Flash stick/USB/SATA

Interface

Video Input(bnc)

N/A

Video Output

1CH VGA output, 1CH HDMI

Audio Input

N/A

Audio Output

N/A

Alarm Input

N/A

Relay Output

N/A

Net Interface

RJ-45 10M/100M

PTZ Control

N/A ( Operate in CMS software or Web interfact )

3G/WIFI

N/A

USB Interface

2* USB2.0 port for mouse and backup

Hard Disk

1 SATA port(Max 1 x 4T)

Environmental

Power Supply

12V/2A

Dimension

210x 200 x 40mm

ONVIF

Standard 2.0

8 Channel NVR :

Overview

Model

MISECU-N1008F

Operating System

Embedded LINUX/ 3520D Main Processor

System Resources

Pentaplex function:live,recording,playback,backup & remote access

Operation interface

16-bit true color graphic menu operation interface, support mouse operation

Preview

1/4/8/12

Video

Video Standards

PAL 625 line,50 f/s;NTSC 525 line,60 f/s

Video Compression

H.264 High profile

quality supervision

Monitor: D1; VGA: high definition; HDMI: hd

Video Recording

1080P/720P/960H/D1

Vidie input(IP)

8*1080P/12*960P

Motion Detection

Supports

( Depends on Camera ,the front-end ip camera must have this function )

Audio

Audio Conpression

G.711a

Bidrectional Talk

N/A

Record &

Playback

Recording Mode

Manual>Alarm>Dynamic>Timing

Playback

2*1080P/4*960P

Search Mode

Time/Date,Alarm,Motion Detection & exact search(accurate to second)

Storage &

Playback

Space Occupation

Video: 1080p 40G/day/ch, 720p 20-30G/day/ch

D1 8-10G/day/ch

Audio:691.2M/day*channel

Video saved

Local HDD,network

Backup Mode

Network download/Flash stick/USB/SATA

Interface

Video Input(bnc)

N/A

Video Output

1CH VGA output, 1CH HDMI

Audio Input

N/A

Audio Output

N/A

Alarm Input

N/A

Relay Output

N/A

Net Interface

RJ-45 10M/100M

PTZ Control

N/A ( Operate in CMS software or Web interfact )

3G/WIFI

N/A

USB Interface

2* USB2.0 port for mouse and backup

Hard Disk

1 SATA port(Max 1 x 4T)

Environmental

Power Supply

12V/2A

Dimension

210x 200 x 40mm

ONVIF

Standard 2.0

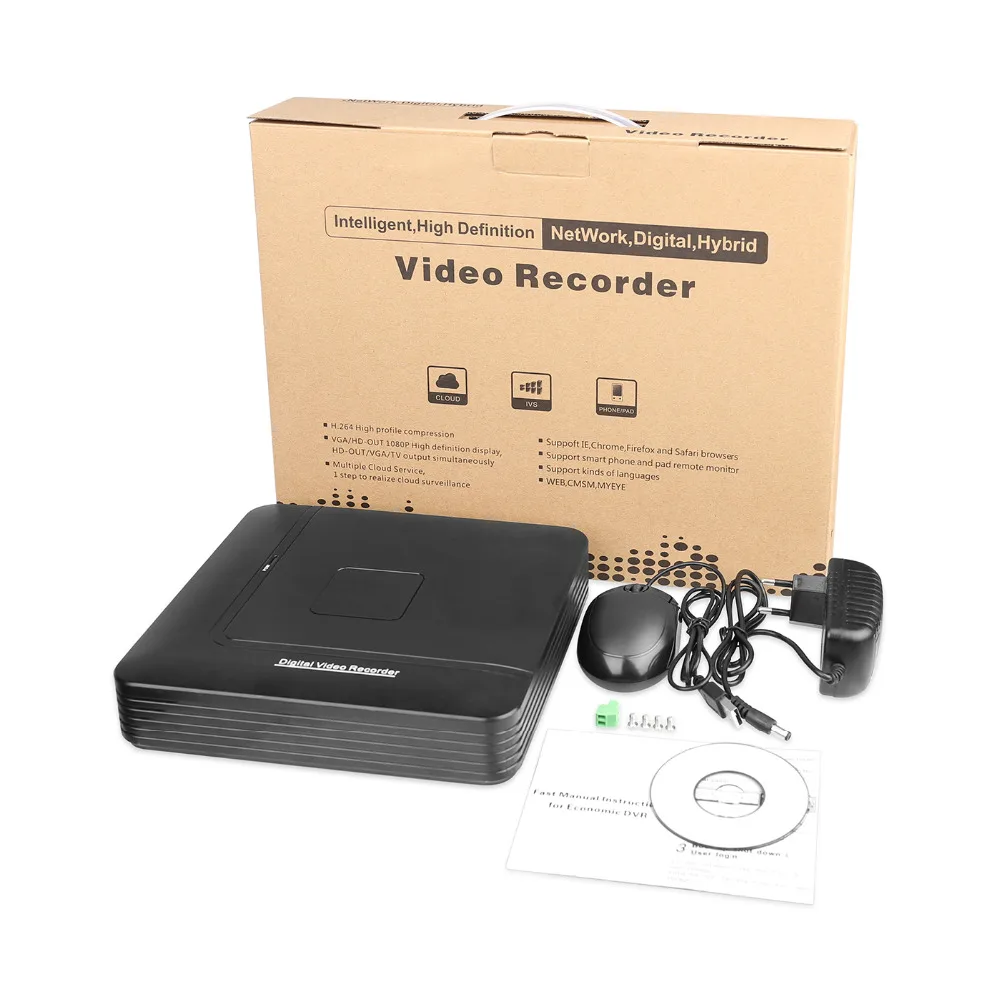

Package Included:

* (1)4CH/8CH NVR
* (1) Mouse
* (1) Power Supply for NVR
* (1) User’s Manual

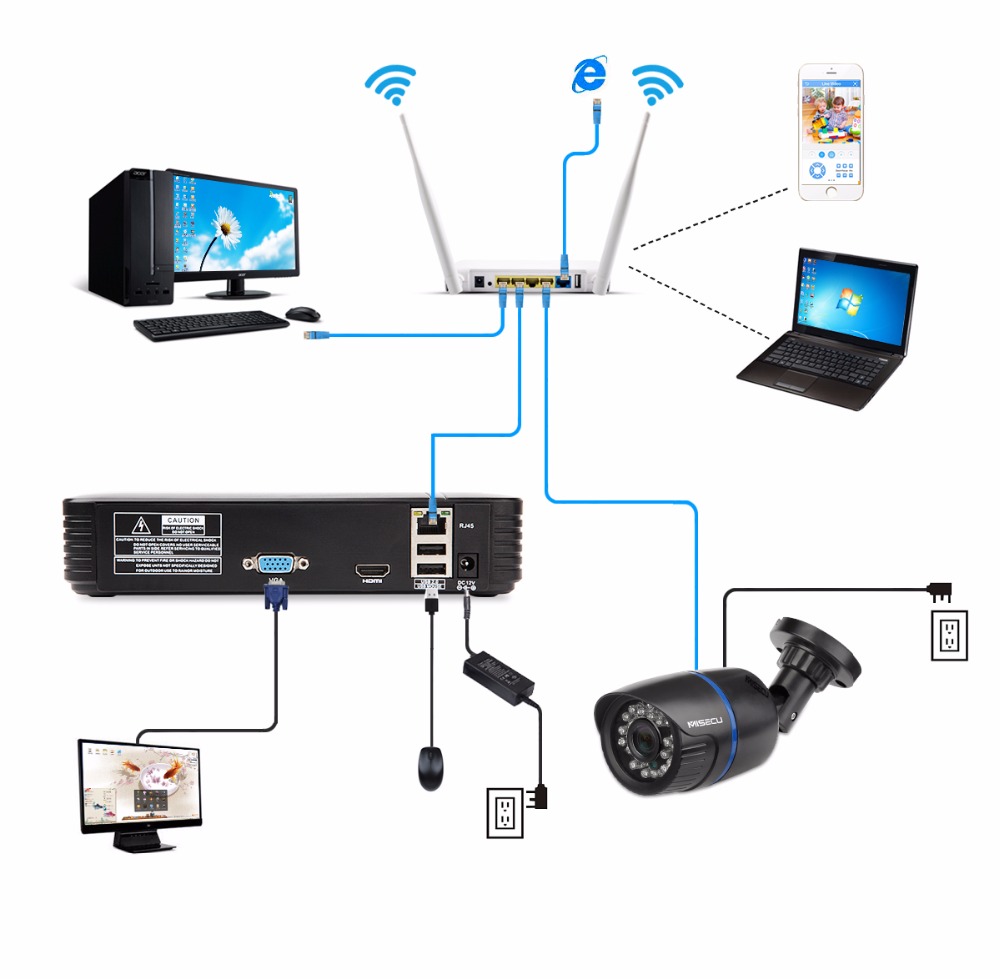

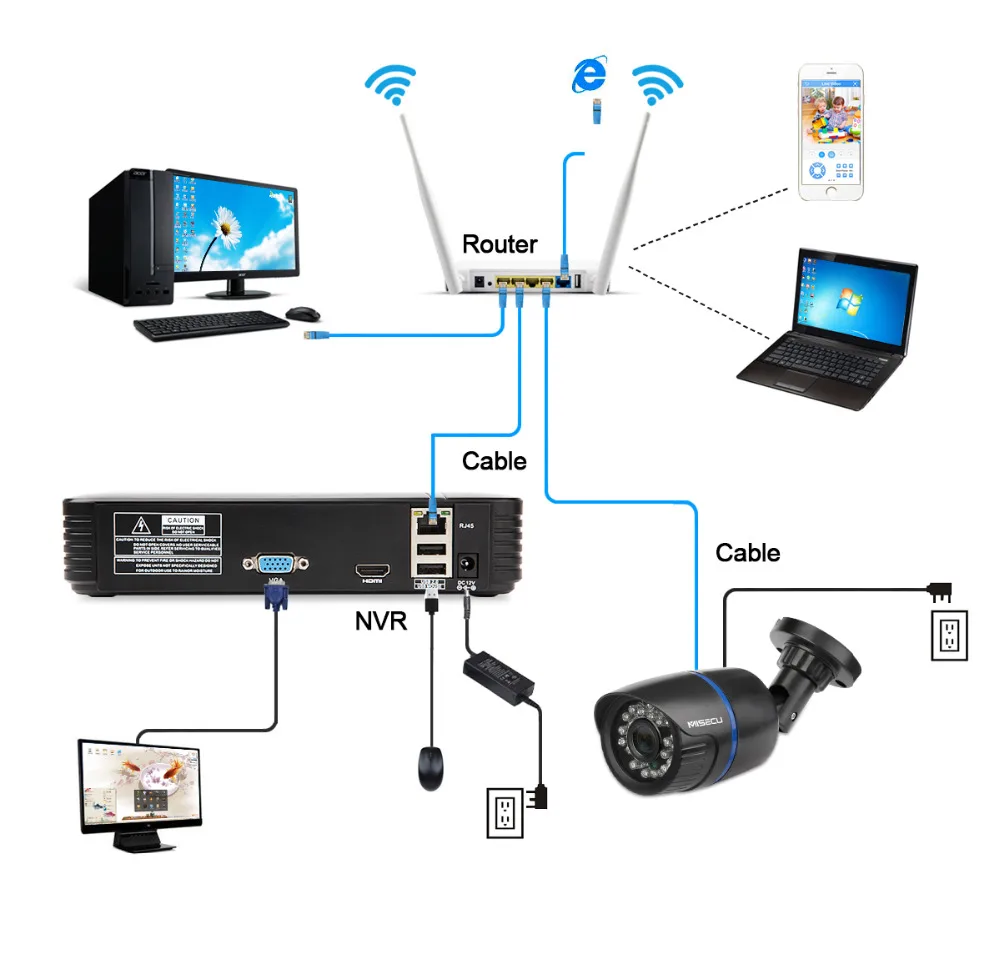

Usage ONE :

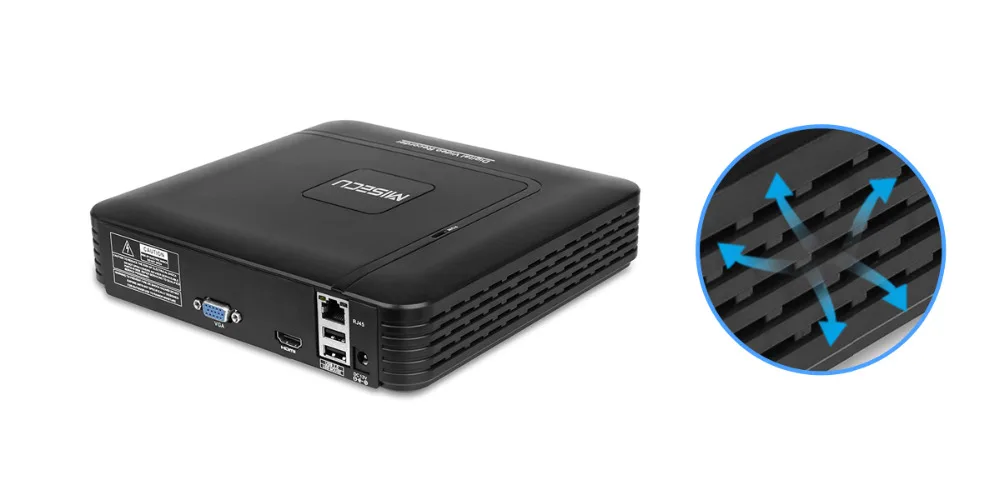

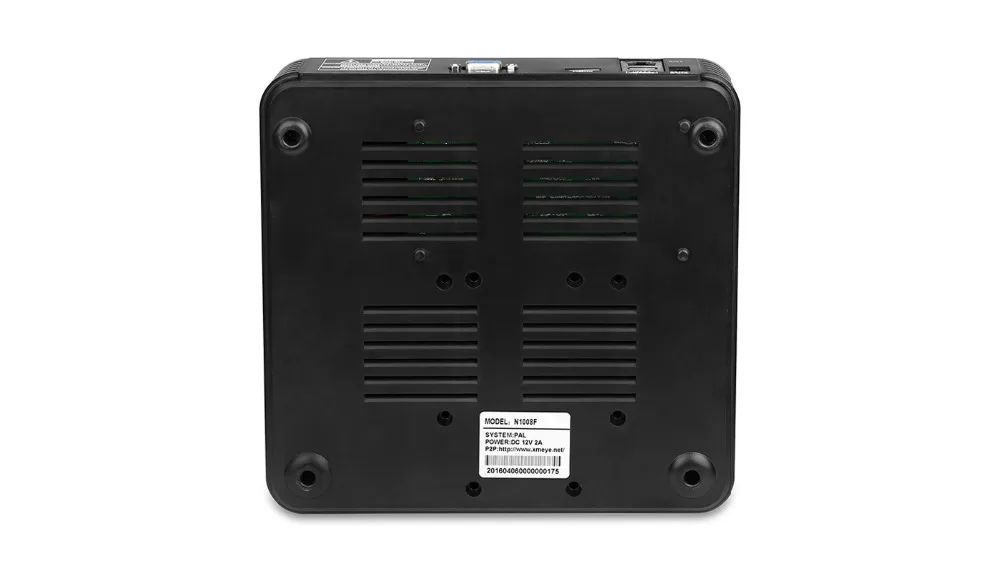

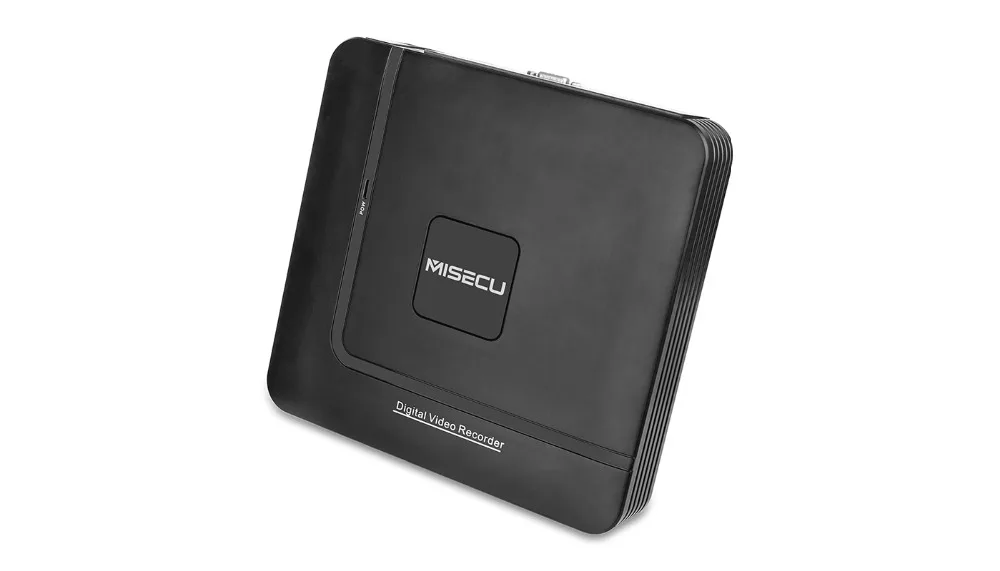

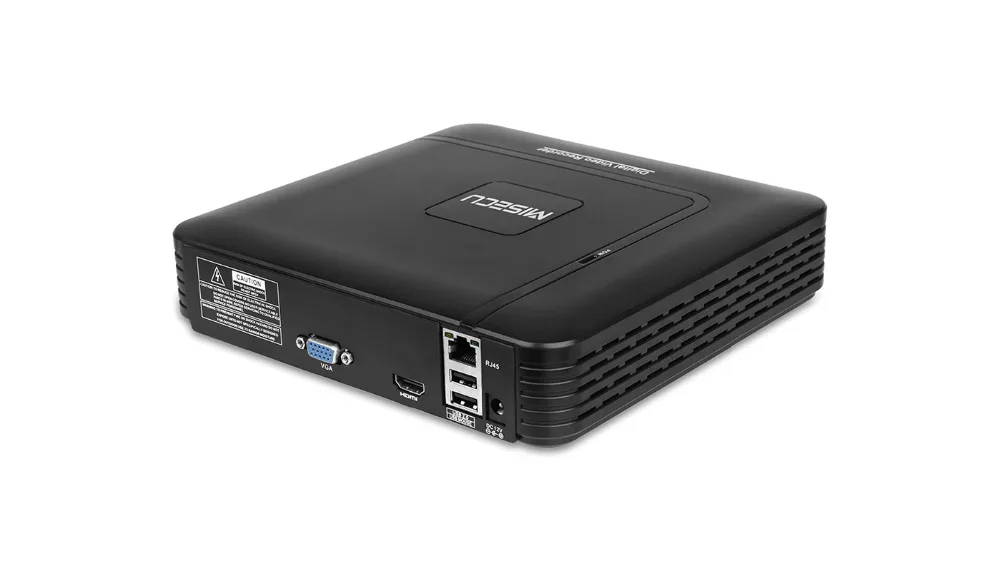

Product Display:
