MAIN FEATURES:
➤ support HDMI 4K output;
➤Support web, CMS, center platform management software MYEYE .
➤Support multiple cloud technology, network penetration, alarm information
pushed to your phone and other functions;

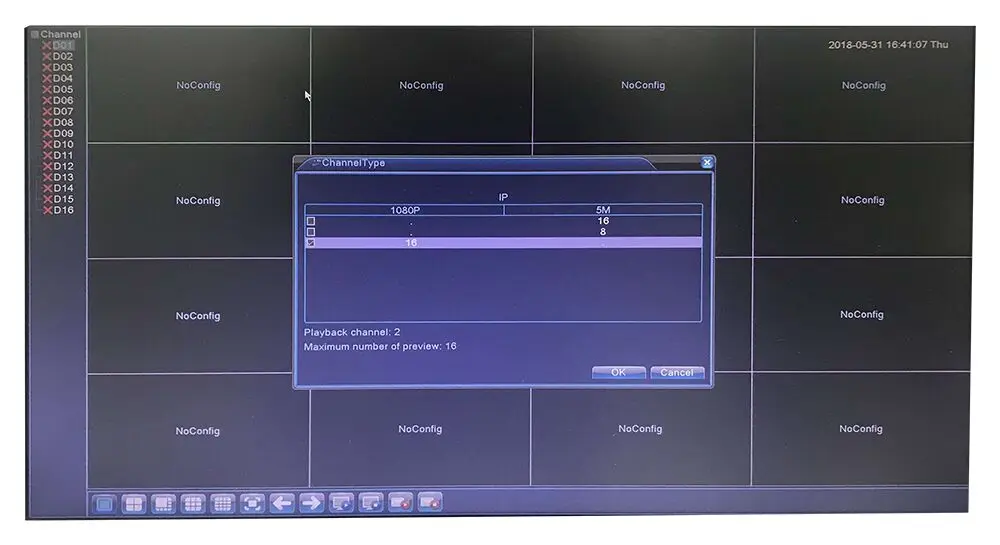

➤ Supports up to 16CH 5MP / 8CH 5MP/16CH 1080P H.265/H.264 IP Cameras

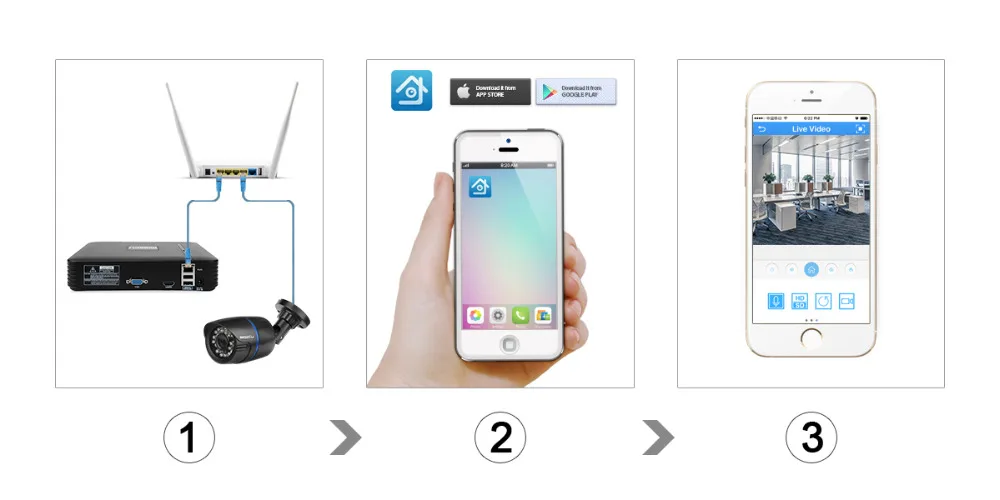

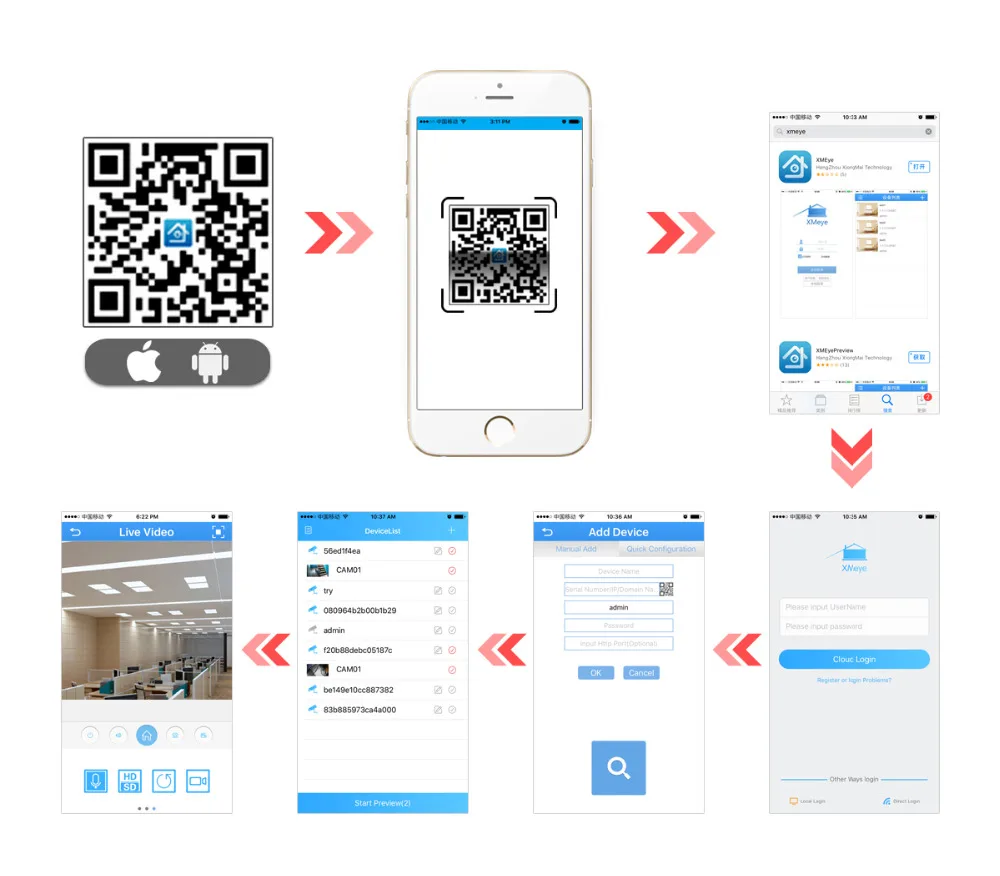

➤Visit remotely by cloud or APP XMEye
➤ Easy Setup & Connection
TECH PARAMETERS:
Main processor : Hi3536D
Operating System : Embedded Linux
System Resources : Simultaneous multi-channel real-time recording, playback, network operation, USB backup

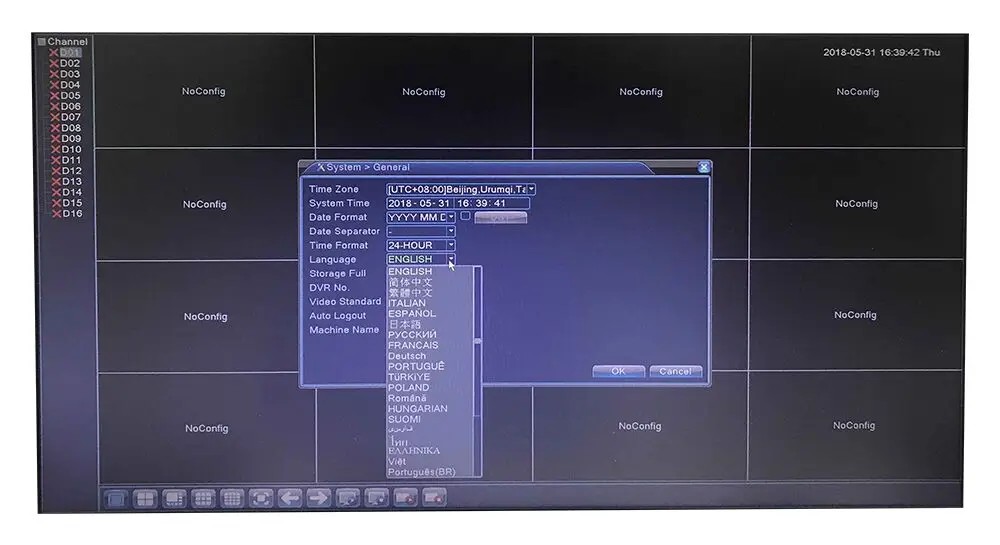

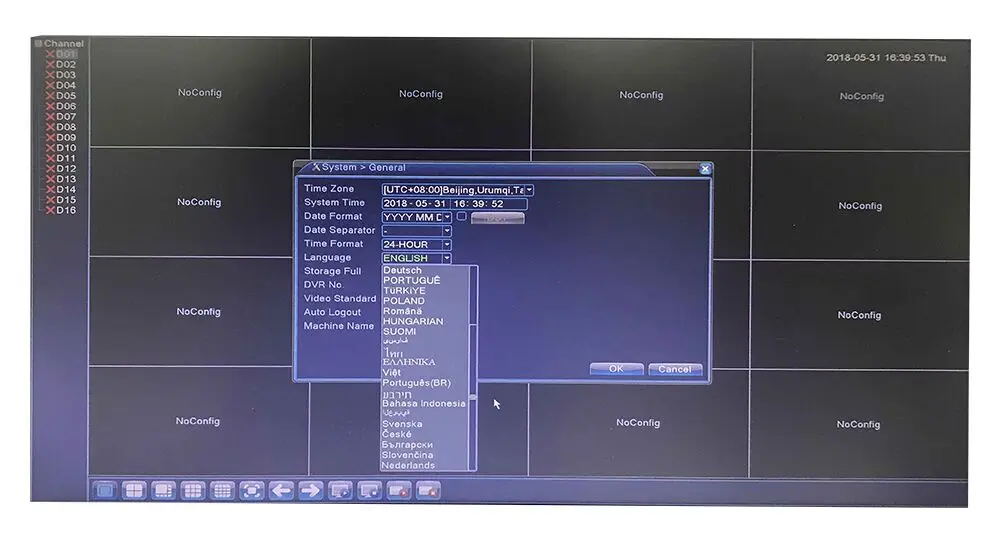

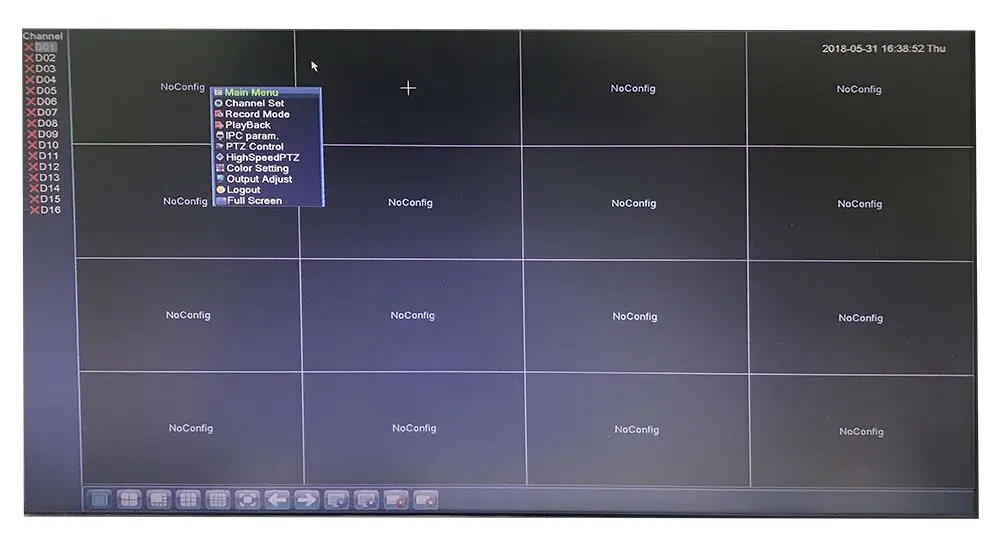

Operator interface :16-bit true color graphic menu operation interface, support mouse operation

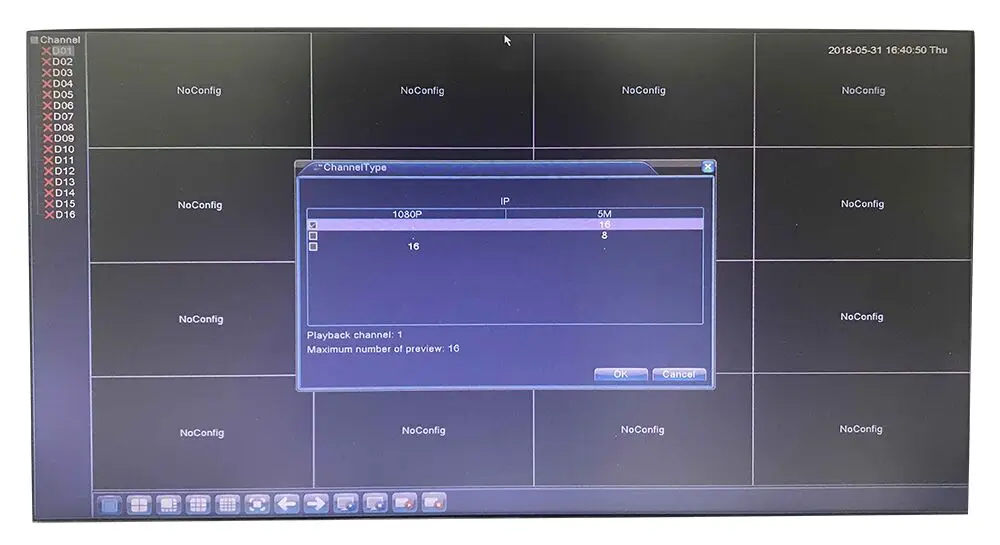

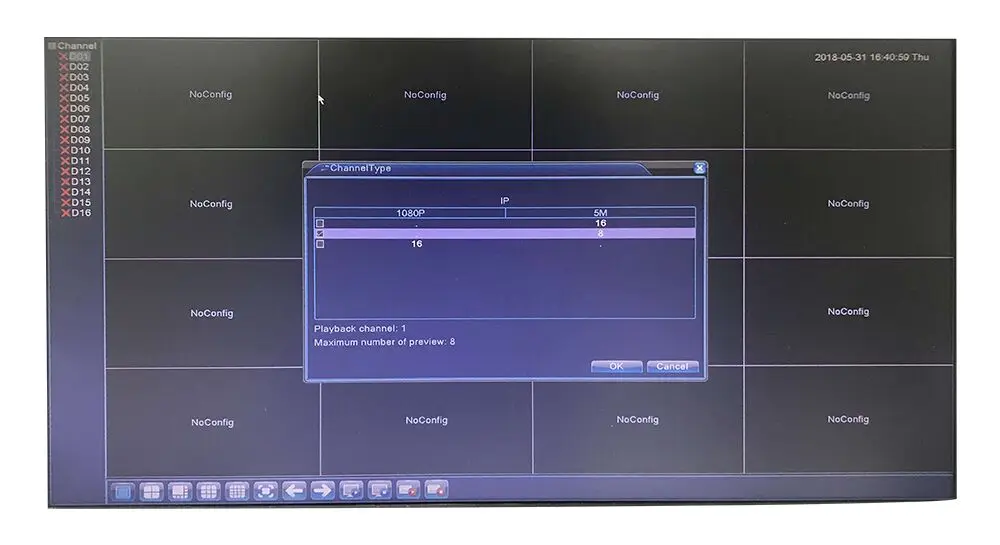

Preview : 1/4/8/16
Video input (IP) : 8CH : 8*5MP
16CH :16*5MP
16CH : 16*2MP
Video standards : PAL(625TVL,50f/s);NTSC(525TVL,60f/s)

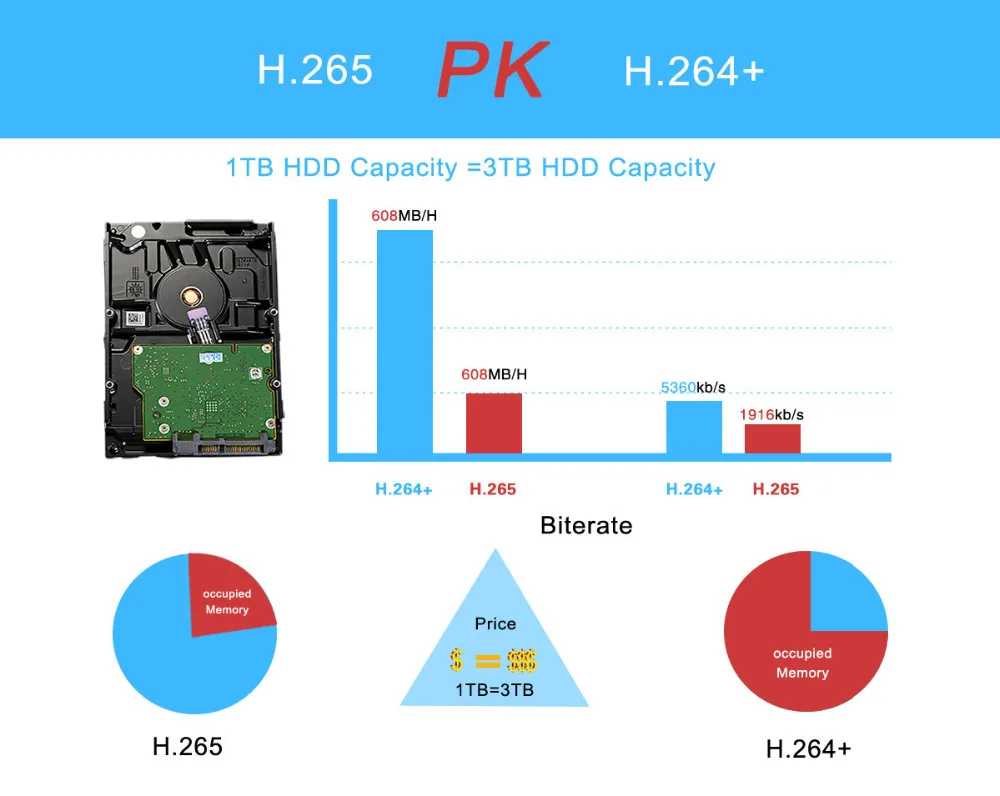

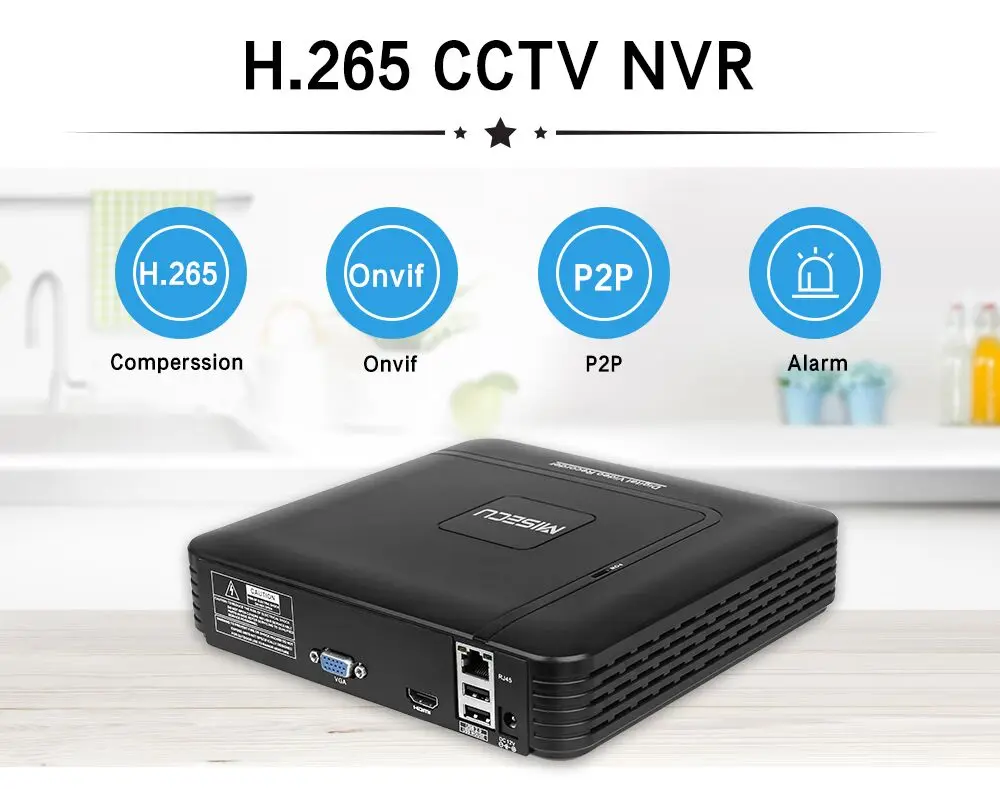

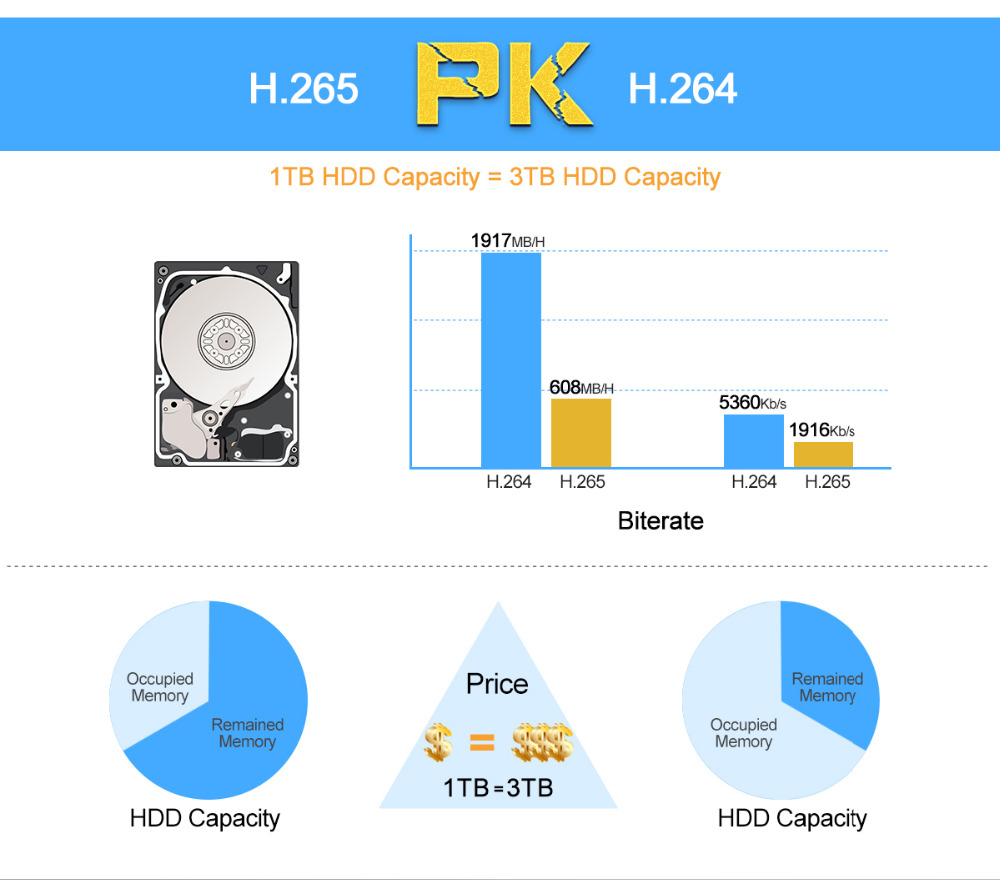

Video compression H.265/H.264
Display quality Max:4K
Playback quality : 8CH : 1*5MP
16CH : 1*5MP
16CH : 1*2MP
Motion detection : Depend on camera
Audio compression :G.711A
intercom :Unsupport
Recording mode :Manual>Alarm>Video Detection>Continuous
Search mode search by Time/calendar/event/channel
Record Storage :HDD ,network
Backup mode : Network backup, USB hard disk, USB burner, SATA burner

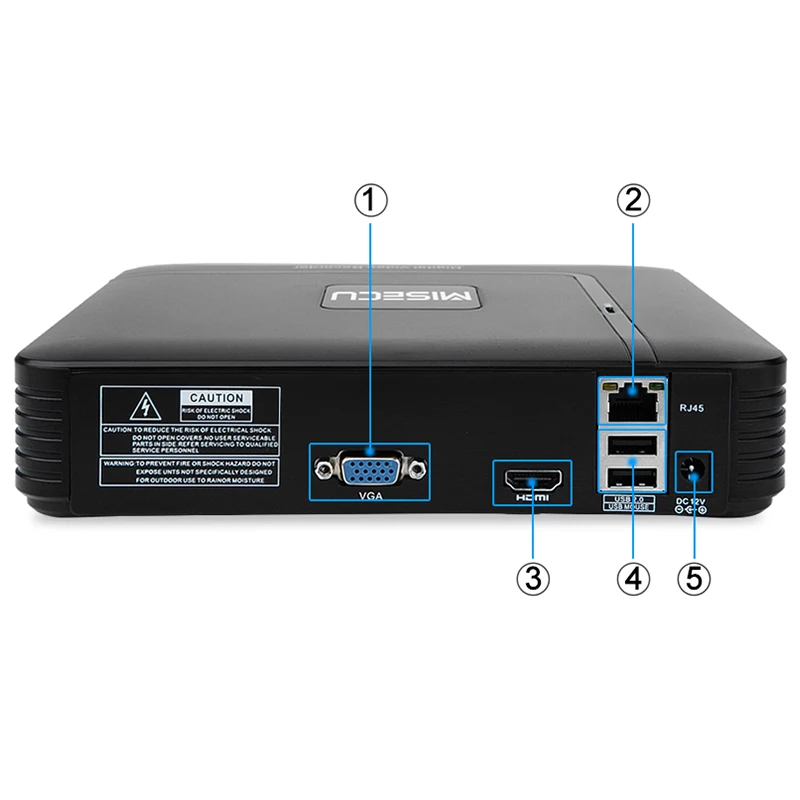

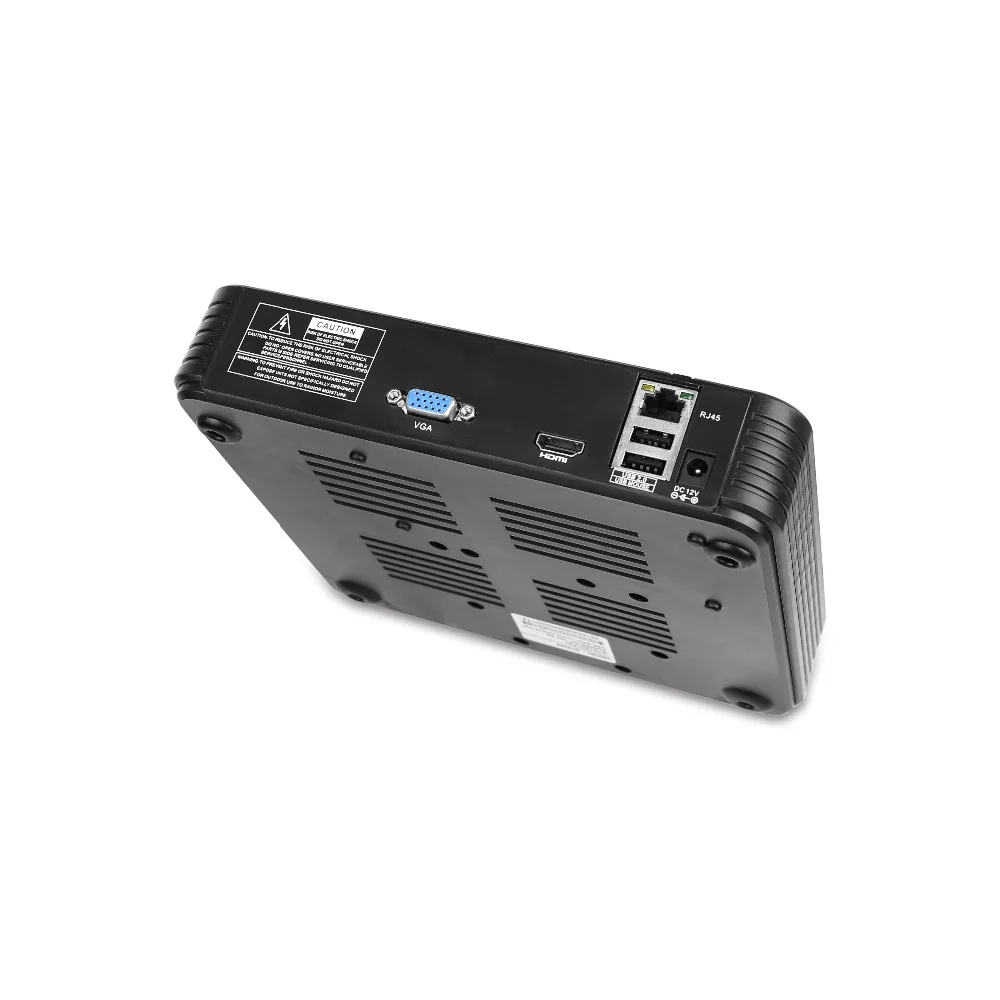

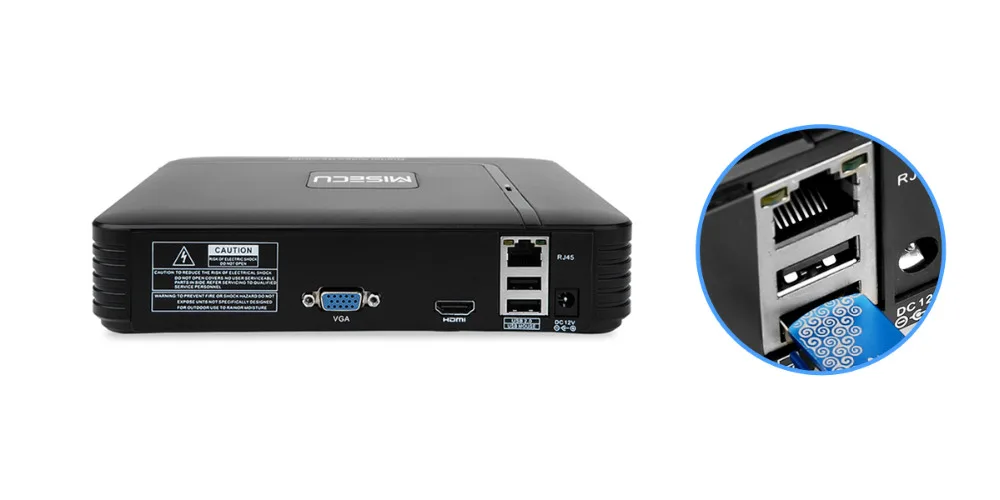

Video output : 1ch HDMI HD output(can be extended to support VGA)
Network interface : 1* 10M/100M Adaptive Ethernet port,(4)8 POE ports
USB interface :2*USB2.0 port
Hard disk Port: 1*SATA(Up to 8TB )
PTZ control :Control PTZ device by network
ONVIF : Support
Power supply : DC 12V 2A
Netweight : 0.75kg

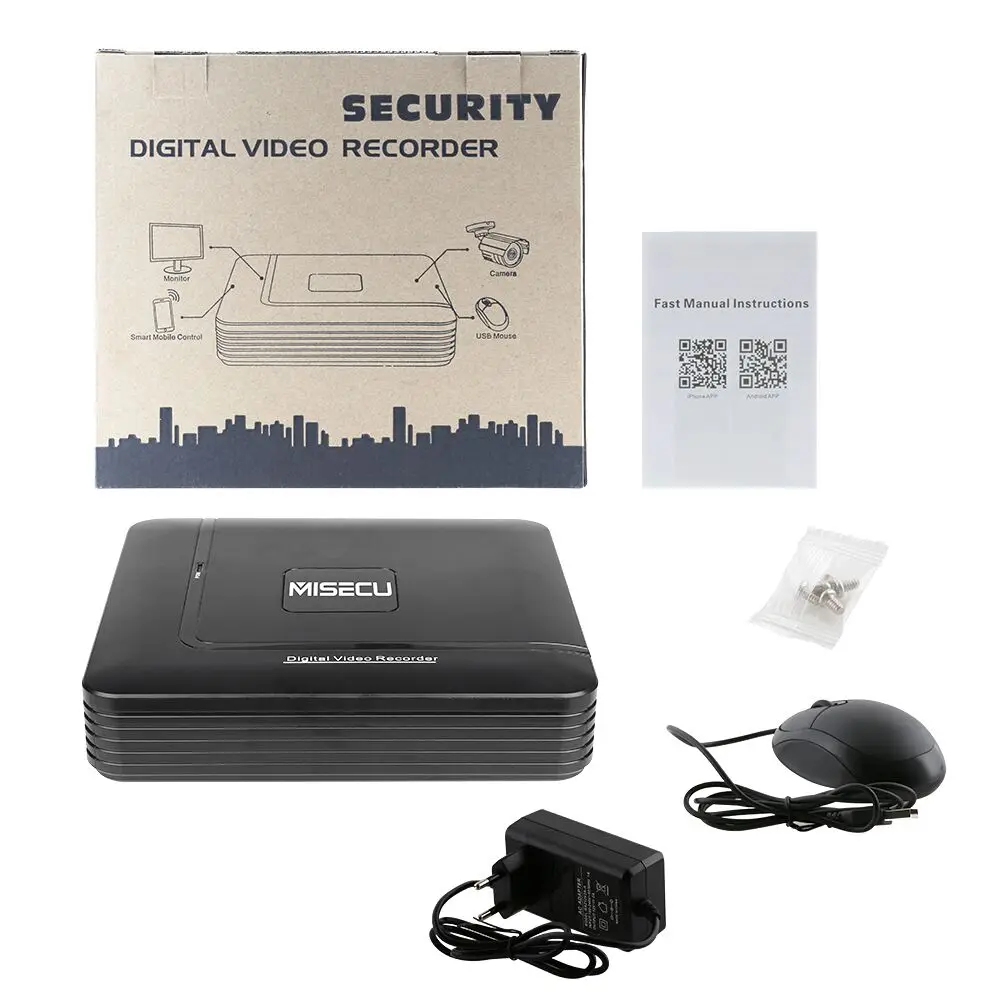

PACKAGE CONTENTS:
1* H.265 NVR
1*DC 12V Power Supply
1*USB Mouse
1* User Manual
4* Screws For HDD

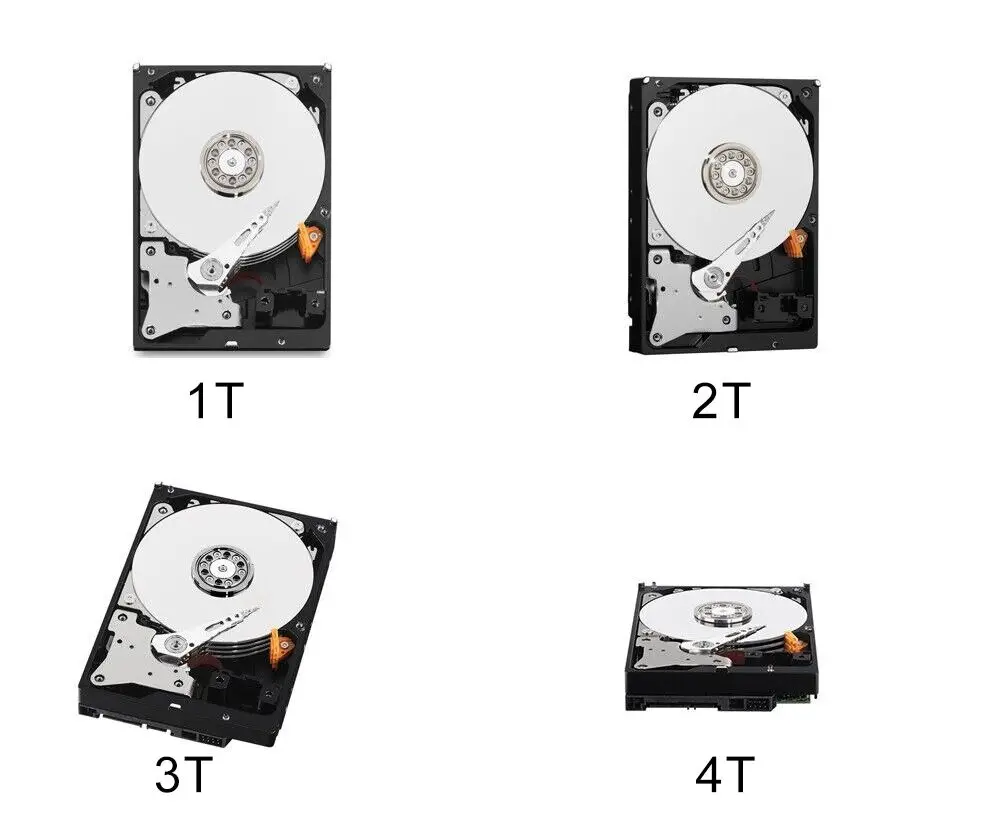

HDD is optional !
If you take the HDD from us,we will pre-install inside the NVR before shipment 🙂

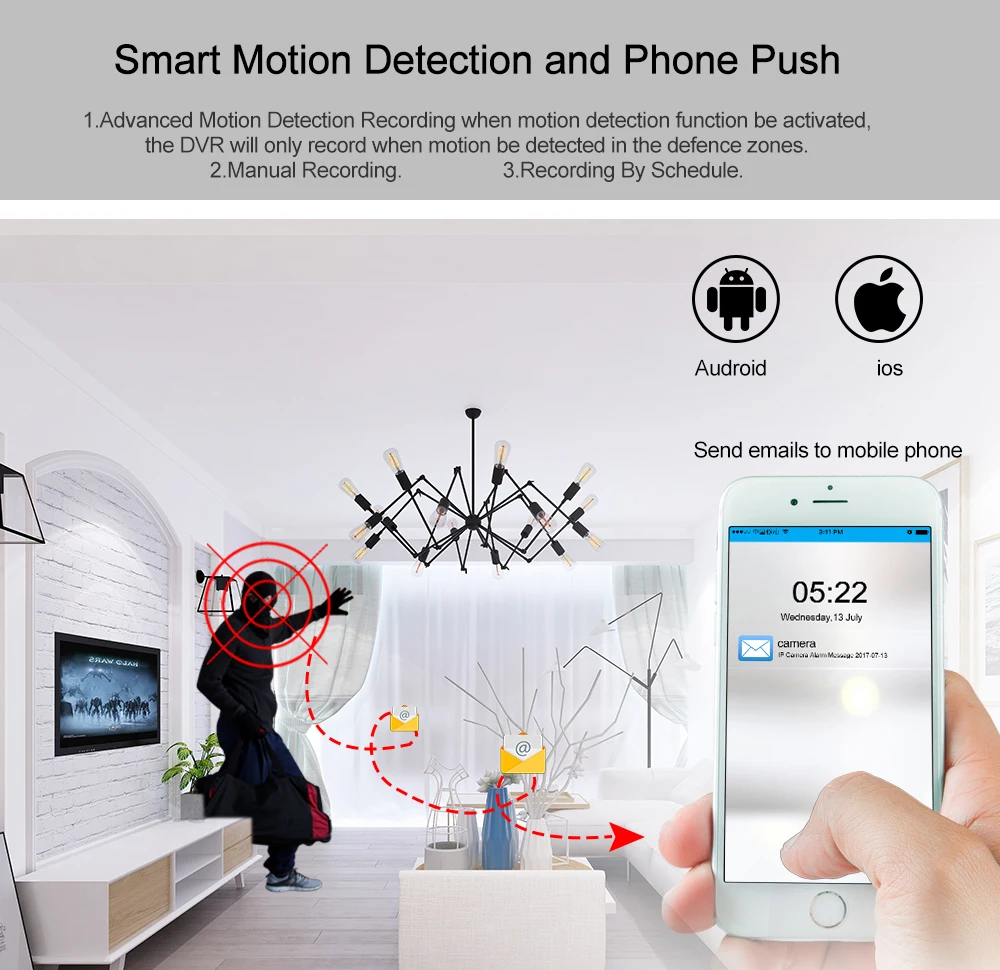

Advanced Motion Detection Recording
The motion detection recording function: when motion is detected the DVR will save the footage into hard disk without missing any important events. You can even ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.
E-mail Alerts
NVR will send you mail automatically if there is any motion detected.
Video With Smart Playback
Smart playback available with customizable searching area, playback time is greatly reduced by speeding through unimportant videos
Easy USB Backup
A builtin USB port gives you the option of backing up and transferring your video footage with a USB flash drive or external USB hard drive.
You can search video by Date, Time or Event. Simply choose the desired date and time range, and the requested video clips will appear.
Clips are also labeled by event, which makes it easy to find a particular footage.
