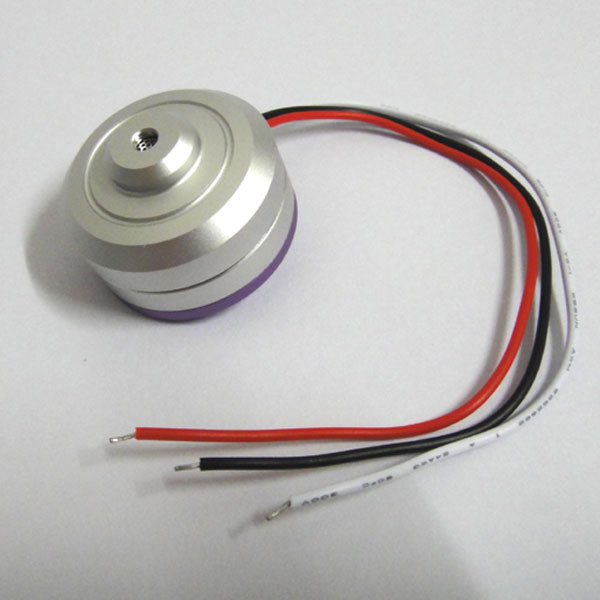

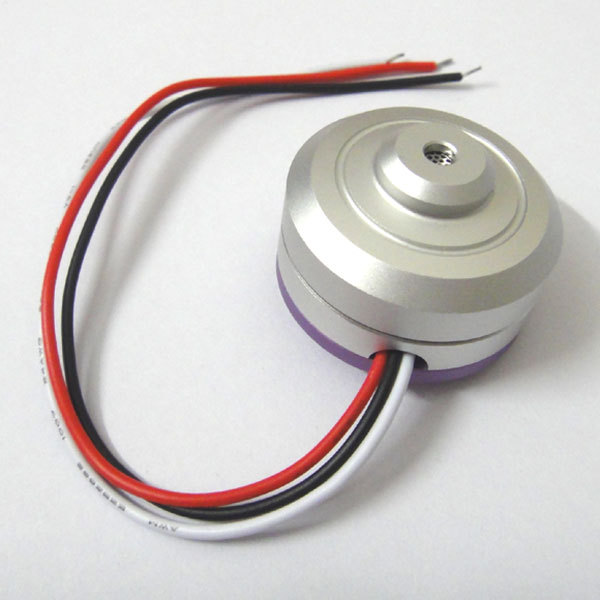

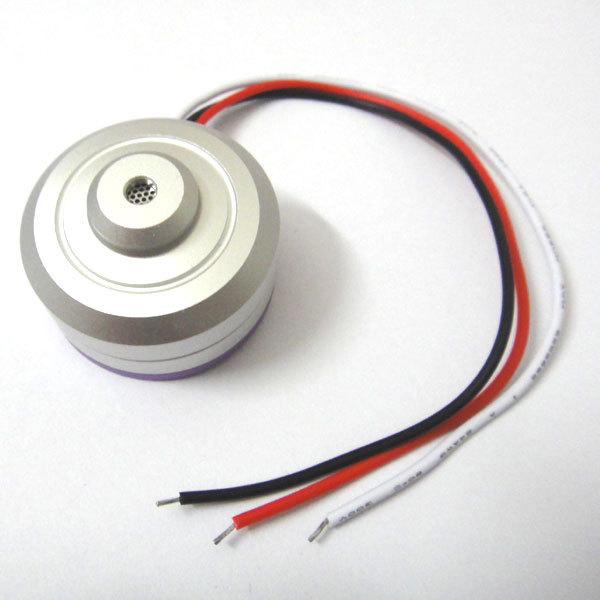

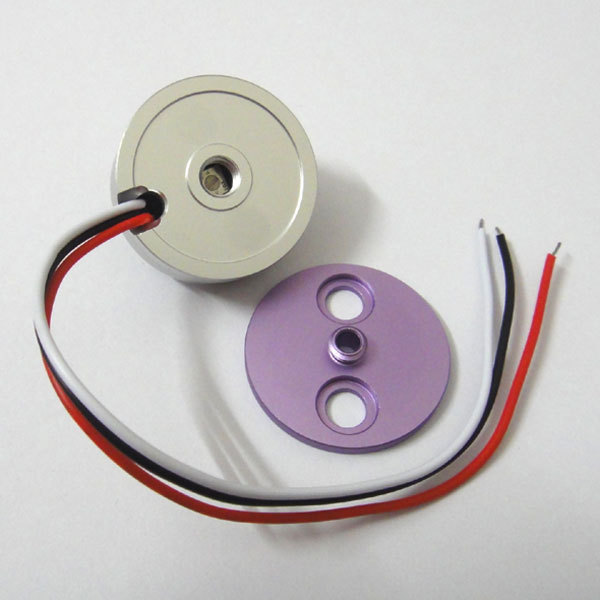

X5-AUDIO Metal high-sensitivity high-definition audio monitor head
X5-AUDIO Metal high-sensitivity high-definition audio monitor head , is the latest research and development production monitoring products. The use of advanced voice integrated circuits, dynamic noise reduction circuit, with high sensitivity, clear, natural voice, high-fidelity, the characteristics of transmission distance, listening range greater than 100 square meters. Unique noise reduction circuit design, effectively filter noise, sound and tone through the process, retain a rich treble, so that more realistic audio playback. Enhance the long-range automatic gain control circuit voice products in the domestic leading level, and national patent applications. Been widely applied to banks, prisons, public security, judicial, examination and other state organs hospital video disk recording system.
A. Features
* audio series designed for indoor spaces designed for simultaneous control recording, the original assembly of imported components.
* Korea imported silver microphone, 10 to 100 square feet within the high-fidelity, high sensitivity, high bandwidth, low noise.
* unique to the logic of full Dolby surround sound standard design, built-in high-speed voice processing units, two dynamic noise reduction.
* built-in self-gain control AGC processing circuit, effectively prevent the speech signal distortion and attenuation.
* pickup built-in lightning protection, reverse polarity power protection and power protection module.
* integrated professional audio pre-amplification processing circuit, direct-drive active speakers, hard disk recorders, headphones and so on.
* safe city for law enforcement, squares, streets, gates and other outdoor organizations synchronous monitoring recording.
* long audio signal transmission technology, using RVVP3 × 0.5 mm2 shielded cable transmission of 3,000 meters is not distorted.
B. Parameters
|
Project |
Parameters |
|
Range |
10~150 Square |
|
Sensitivity |
-43DB 1000 HZ |
|
S/N |
Max 65 the Dynamic |
|
Operating voltage |
9~12VDC 25MA (MAX) |
|
Size |
30*20 mm Metal |
|
Connection mode |
Red (power is), black (GND, signal to), white (audio signal) |
|
Sensitivity adjustment |
YES |
Packaging included:
1x Mini Metal high-sensitivity Audio CCTV microphone monitor Mic head for camera
Warranty Term: One Year Warranty
