Great camera sensor,clear picture,sturdy, compact design

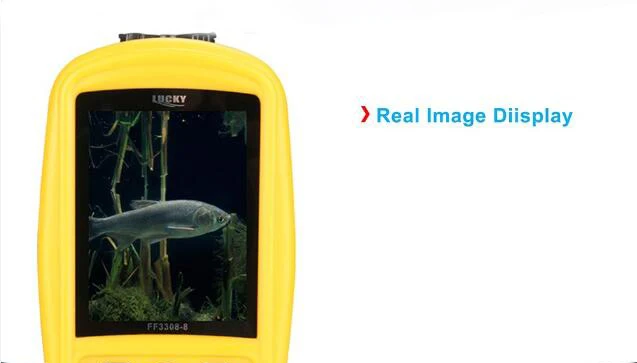

3.5 inch amazingly clear w/ full-color video LCD monitor
Image Sensor : color CMD
Pixel Resolution : 628 x 586 pixels
Electronic Shutter : 1/50 ~ 1/100000 sec

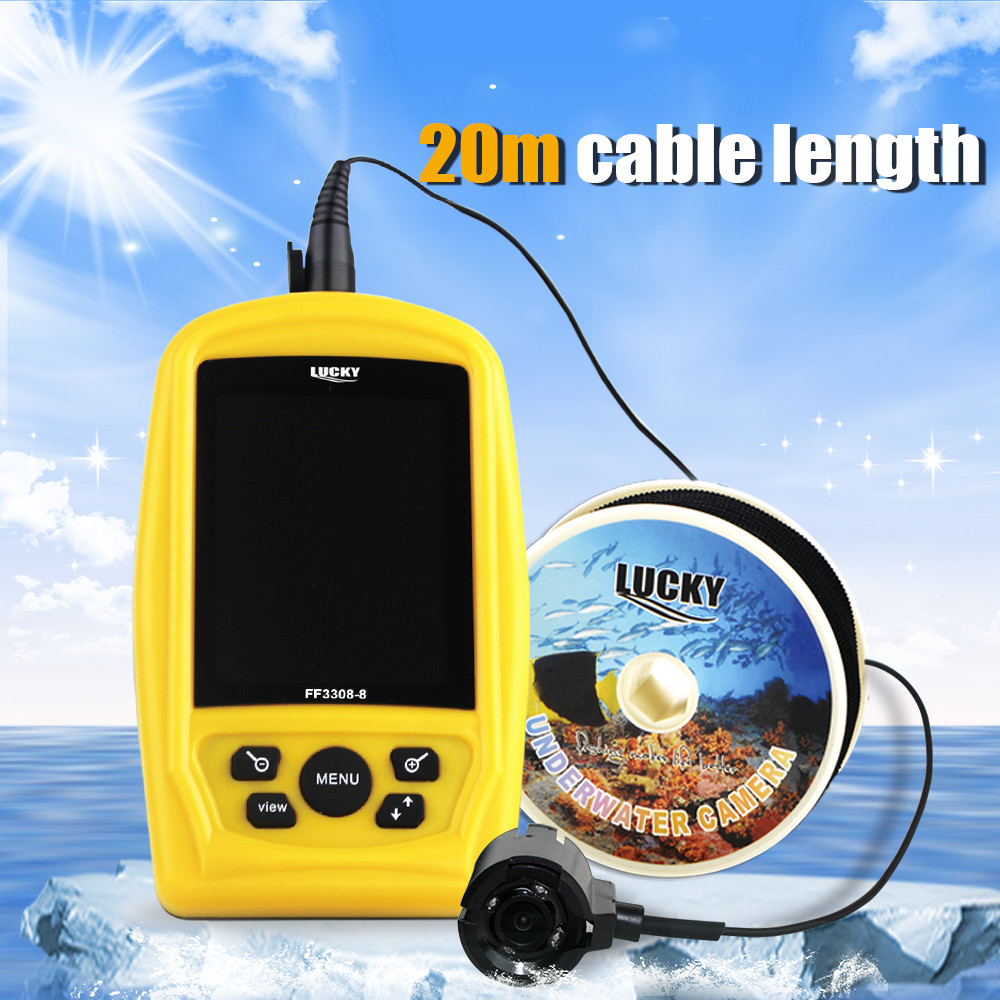

Camera Cable Length : 20m/66ft

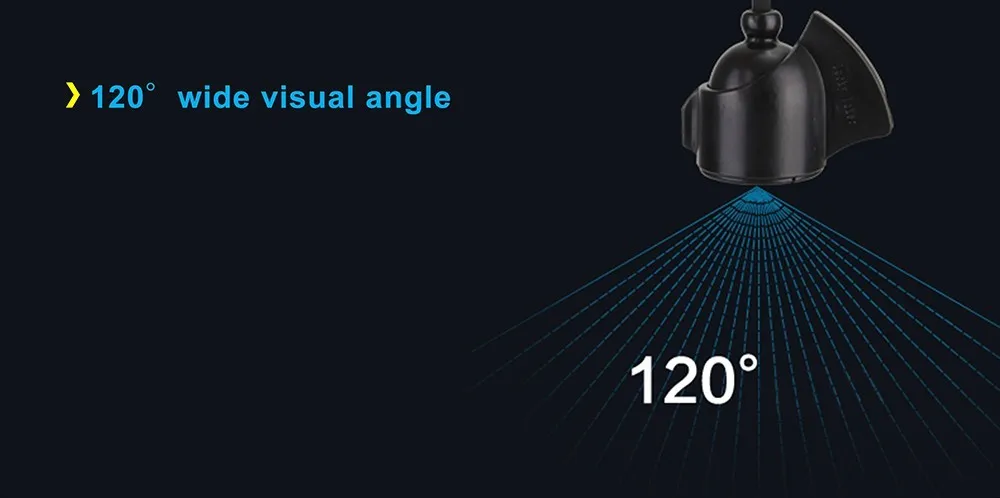

Lens Angle : 2.8mm / 120°
S/N Ration : More than 48dB
Easy to use
Camera with 4 IR LED’s to work in low light conditions
1/4″ CMD color Image sensor
Calibrated for Fresh or Salt Water Use
Video Input : 1Vp-p 75
Rechargeable Battery
Horizontal Resolution : 420TV lines
PAL/NTSC auto switch
Battery life indicator
Mirror Effect display function : flip left/right and up/down
Adjustable Brightness : adjust monitor brightness
Adjustable Contrast ratio : adjust monitor definition
Adjustable Chrominance : adjust color if screen fron black to white or vice versa
Adjustable Tone : adjust color brightness of the monitor
Reset function to change back to factory setting
Dual language : Chinese / English
Disconnected cable indicator

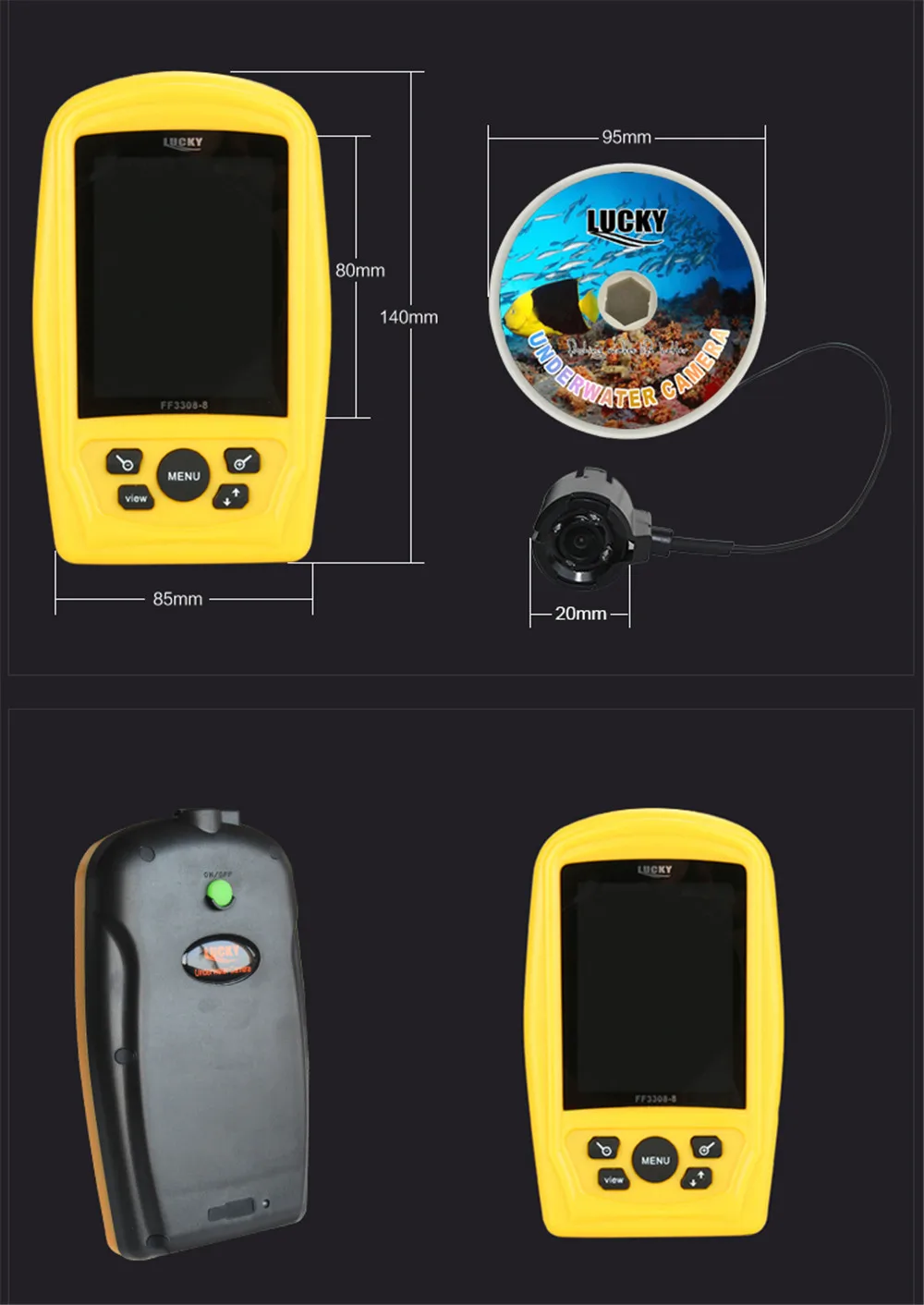

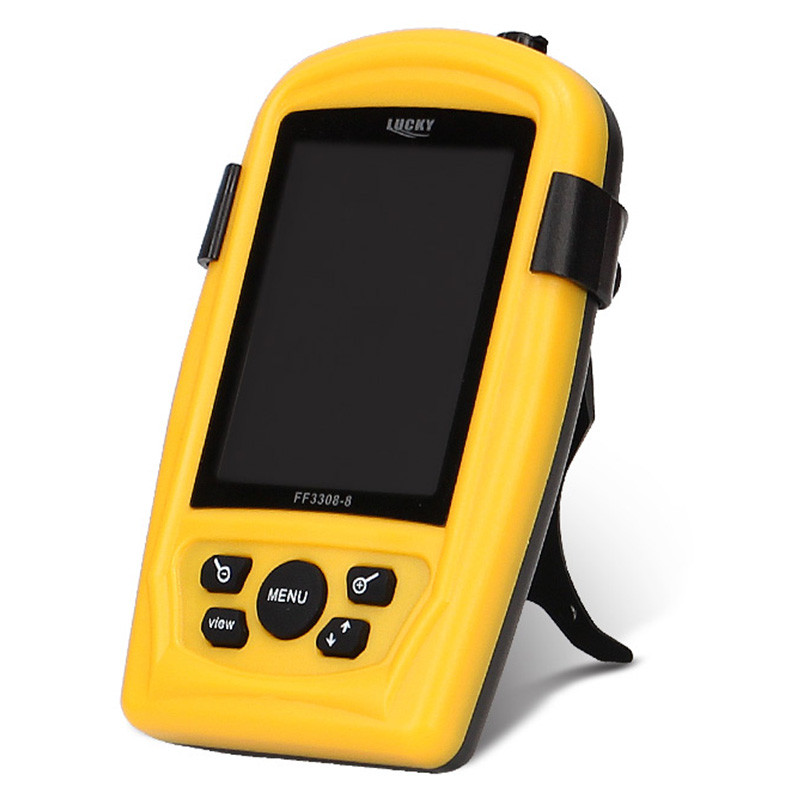

Monitor:

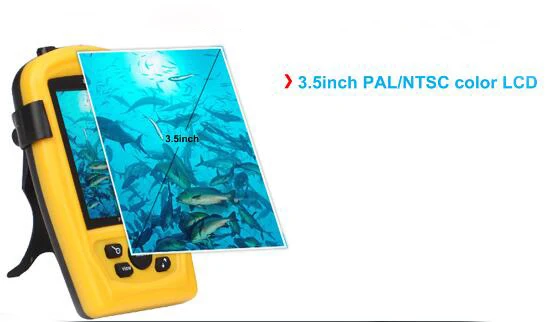

Screen Size : 3.5 inch TFT color
Display format : 320 RGB x 240 DOT
View Angle direction : 6 o’clock
Operation temperature : -20~70 °C
System PAL/NTSC auto switch
Electric power supply : 3.7V , 4000mA
Voltage : 100 – 240V
Built-in Lithium battery ( with battery life up to 6-8 hours )
Languange : can be selected in Chinese or English
Camera:
Sensor : CMD
TV System : PAL / NTSC
Cable Length : 20M (65.62 feet) (also available in 15M (49.21 feet) )
Effective : 628 x 586 pixels
Electronic shutter : 1/50-1/100000 sec
Scanning system : 2:1 interlace
Sync system : internal
Lens Angle : 2.8mm / 120
Sensor size : 5.961mm x 4.276mm
S/N ratio : More than 48dB
Power Supply : DC 3.7V ±10%
Operation Temperature range : -20°C – 60°C
Storage temperature range : -30 °C – 60 °C

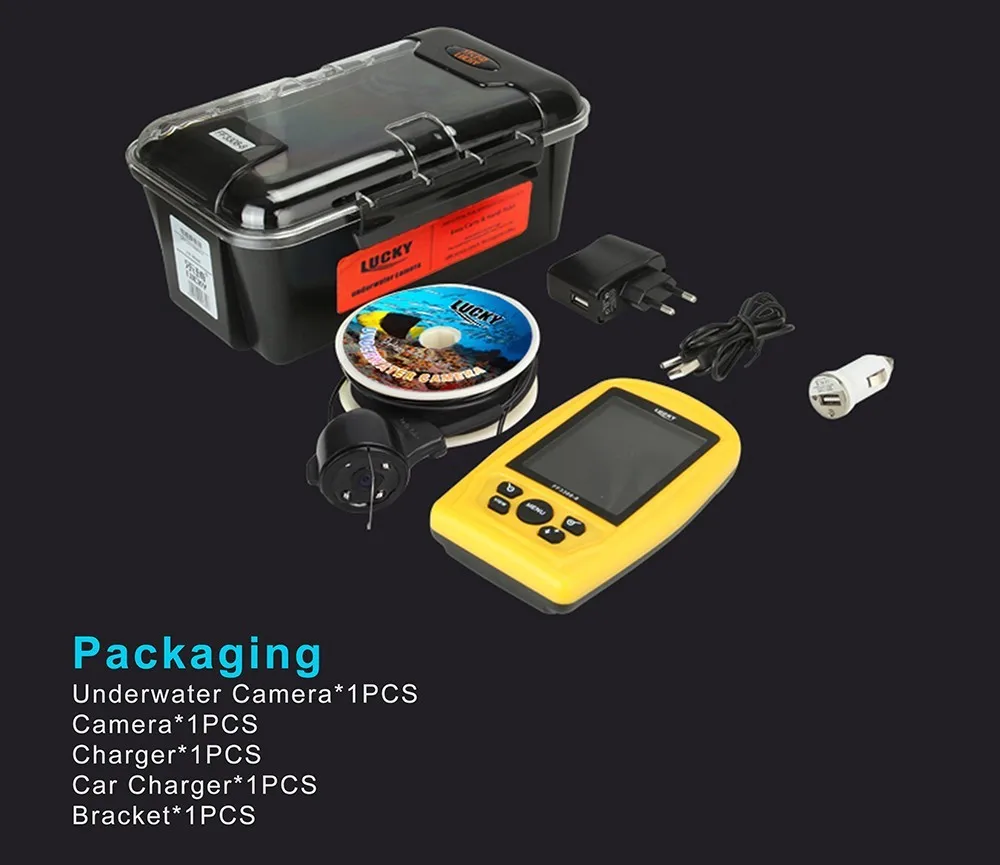

Package Included:

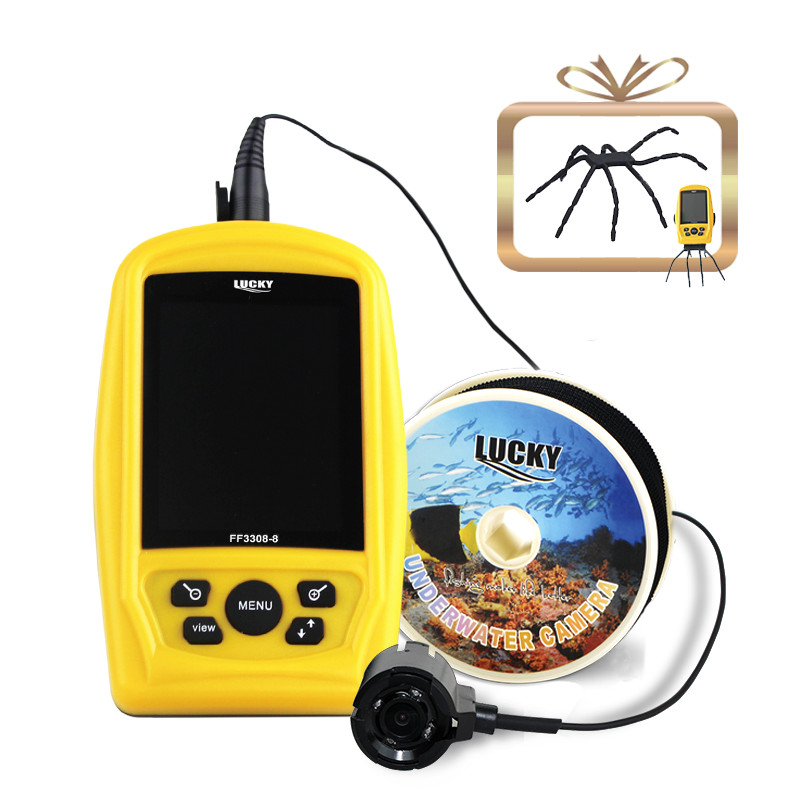

1 x Underwater Camera
1 x Camera
1 x Charger
1 x Car Charger
1 x Bracket
