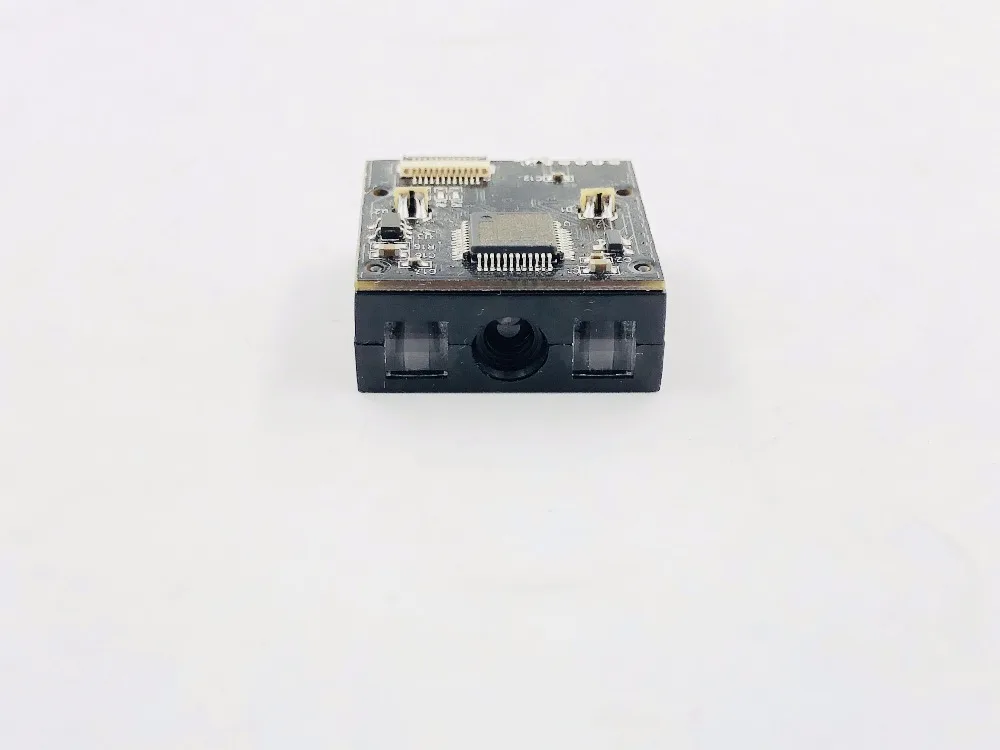

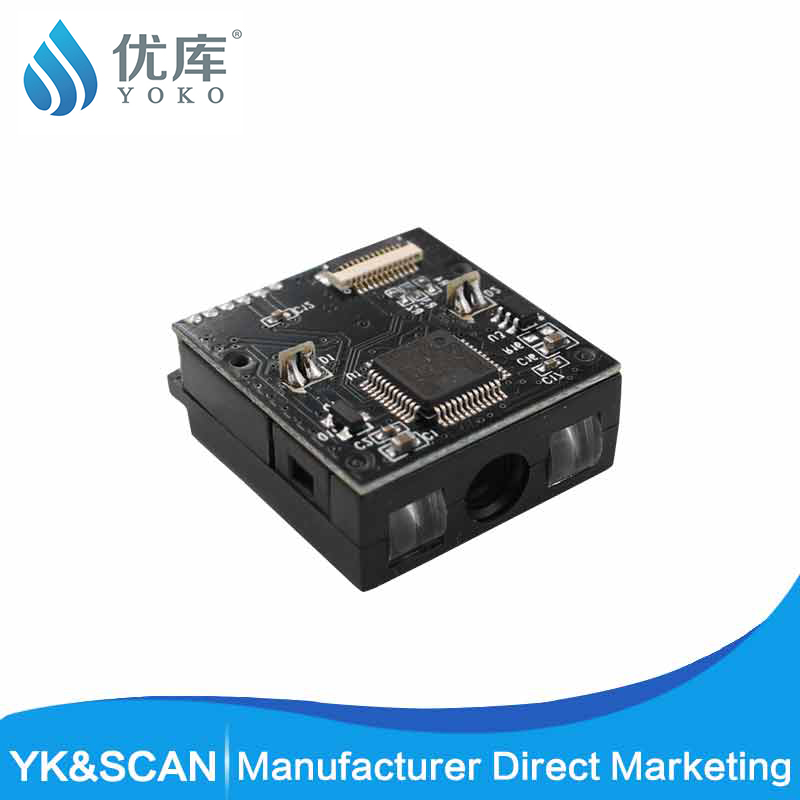

1D Barcode scanner engine module E1005 :
Introduction:
- Now kiosks, medical instruments, diagnostic equipment, lottery terminals, vending machines and countless other appliances can all equipped with leading-edge scanning technology and reliability
- Designed to provide highest scanning in smallest package possible
- For added versatility, allowing for fast, cost-effective interchangeability when upgrading or modifying your OEM device for specialized applications
- Designed with industrial standard size, mounting options and output to facilitate integration into existing applications
- Scanner module’s miniature size makes E1005 barcode scanner ideal for integration into data terminals and other small devices
- E1005 barcode scanner is supplied as an assembled module with mounting bracket or as separate components for custom mounting
- Scanner module’s unique open system architecture allows E1005 barcode scanner to accept third party and custom plug-in, giving E1005 barcode scanner virtually unlimited application flexibility
-
![]()
![]()
-
-

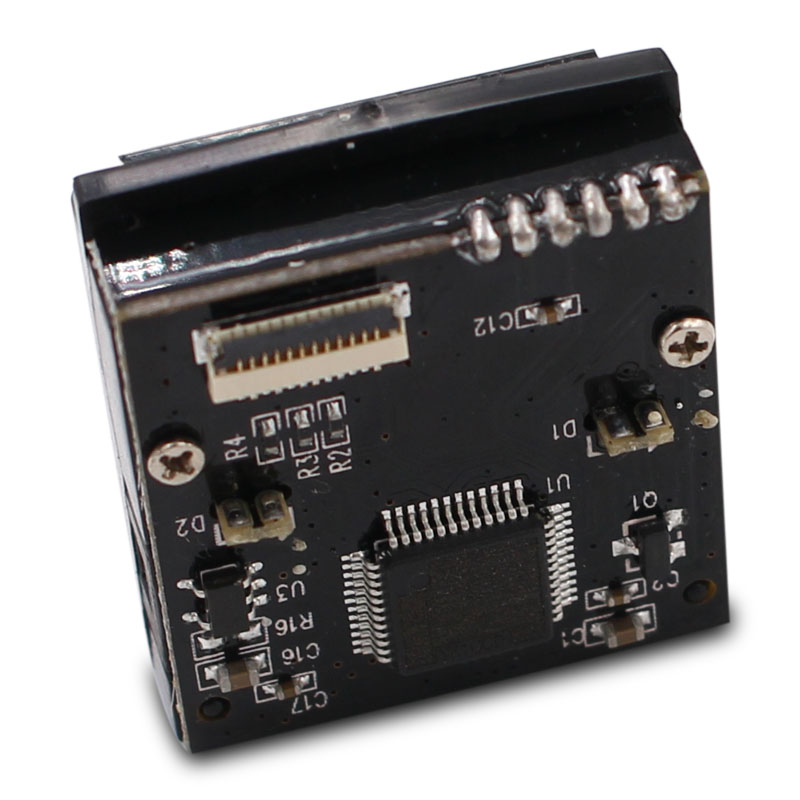

PIN#
Signal Name
I/O
Instruction 1
BOOT0
Input
Low level FLASH to startup
2
VDD
–
5V Input
3
GND
–
GND 4
RX
Input
TTL-232 Input
5
TX
Output
TTL-232 Output
6
USB_D-
Input/Output
USB_D-Singal
7
USB_D+
Input/Output
USB_D+ Singal
8
NG
–
Null
9
Buzz
Output
10
LED
Input
11
NG
–
Null
12
nTrig
Input
Trigger Input Signal , Keep low level 10ms input can trigger the scan button.
- Symbologies : 1D : EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,etc
- Operating Mode : Auto Scan / Trigger Scan/ Continuous Scan
- OS compability :Linux,Android,Mac,Windows XP,Windows 7,Windows 8,Windows 10;
- Voltage : 5V or 3.3V;

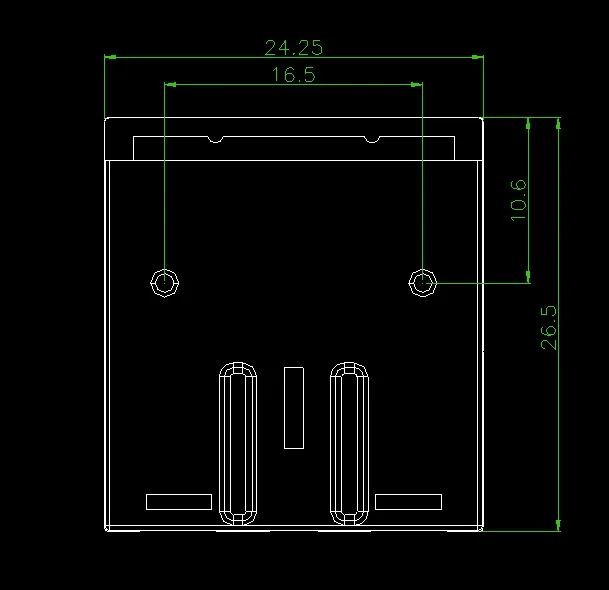

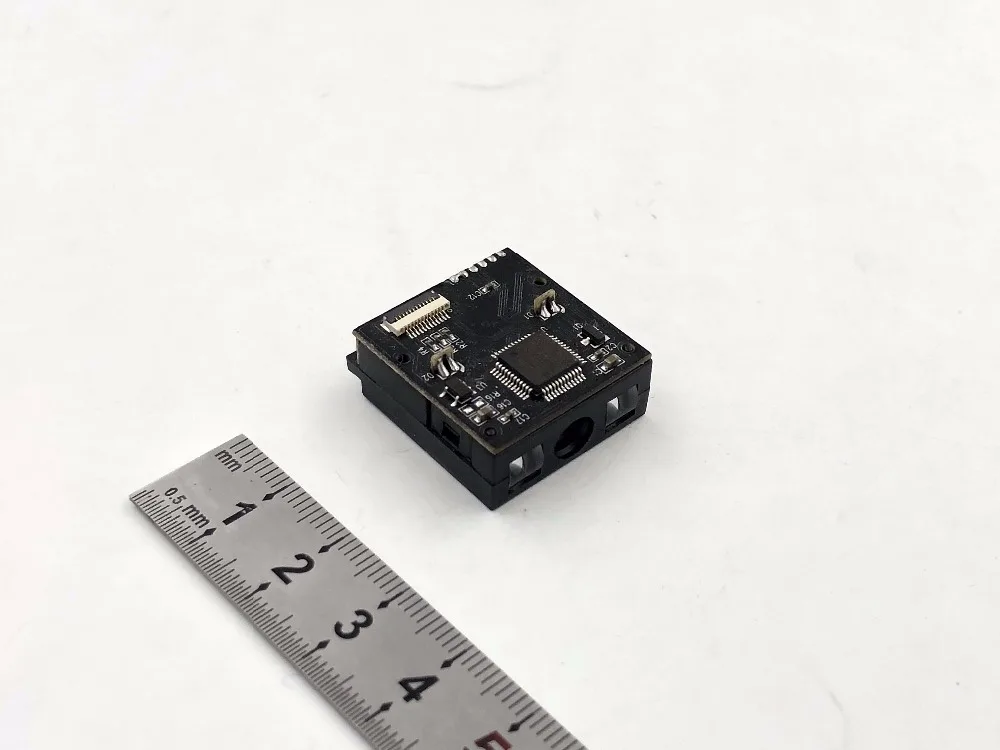

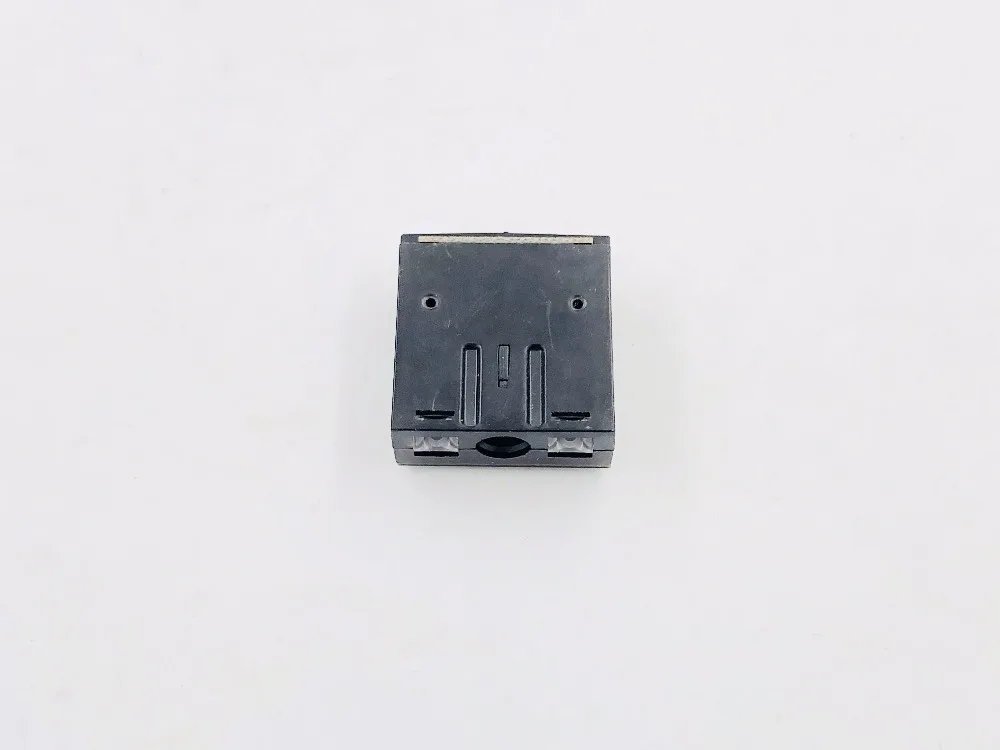

- Dimension : 26.8*24.4*11.7mm;
- Interface : USB, RS2232 ,TTL-232;
- Currect : Operating Currect : 167MA; Max Currect : 185MA ; Standby Currect : 62MA
- Language Keyboard : American English/ Franch / Germany / Turkish / Belgium / Spainish
- Net Weight :7g.

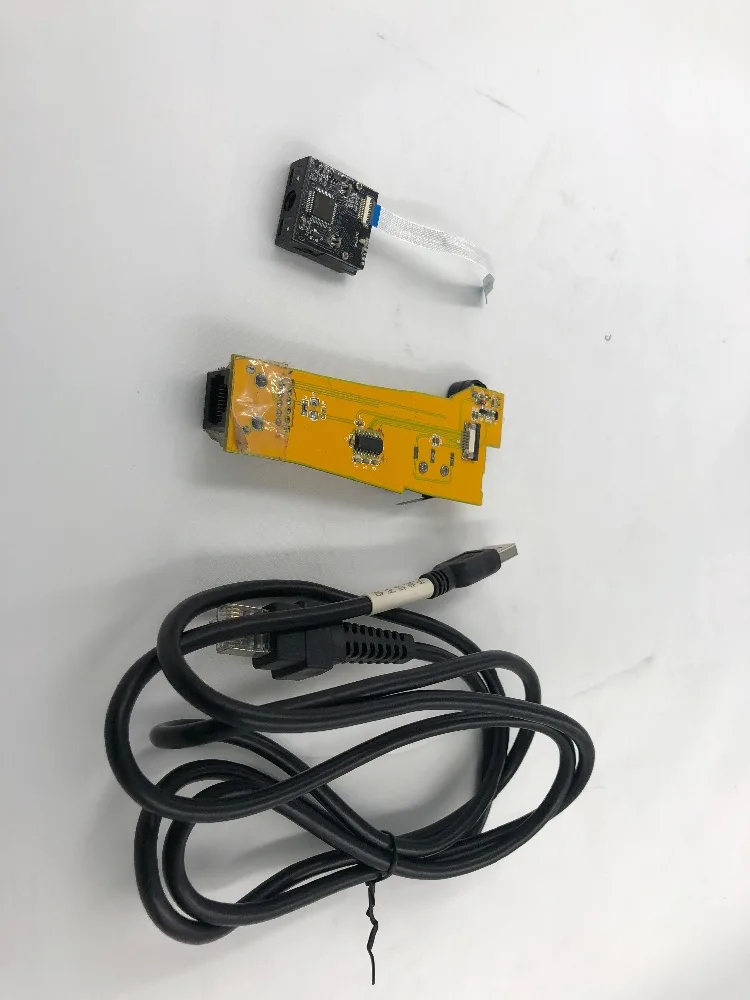

Shipping package :

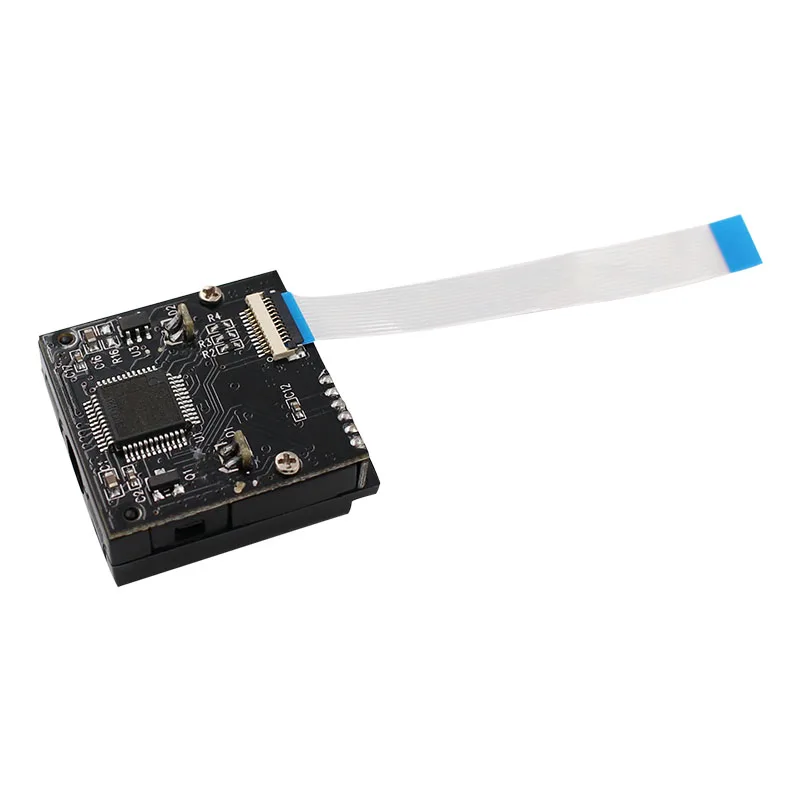

TTL 3.3V or 5V(Without interface board) :

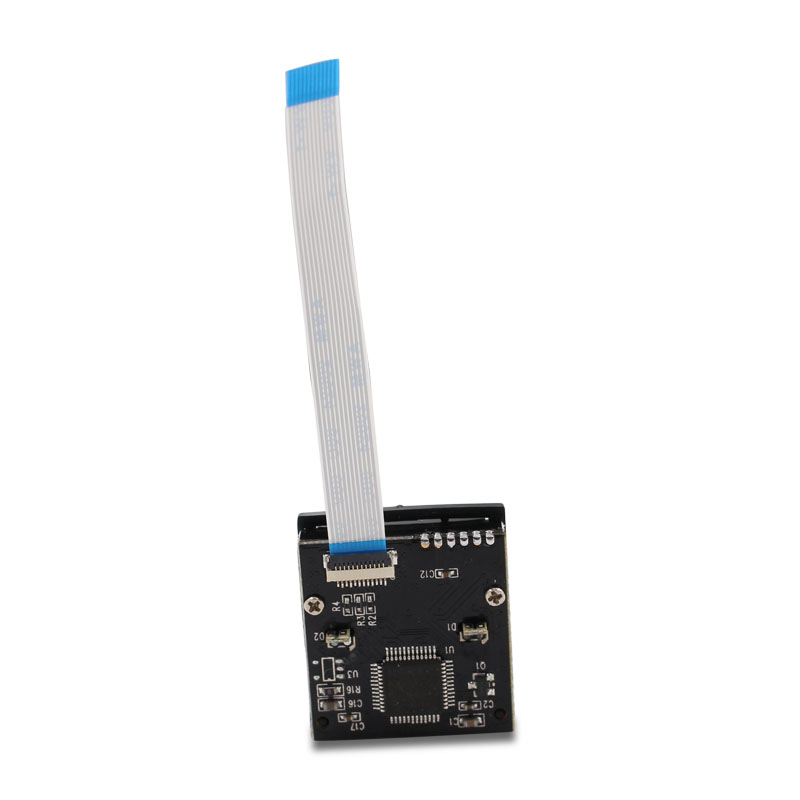

USB With Board :

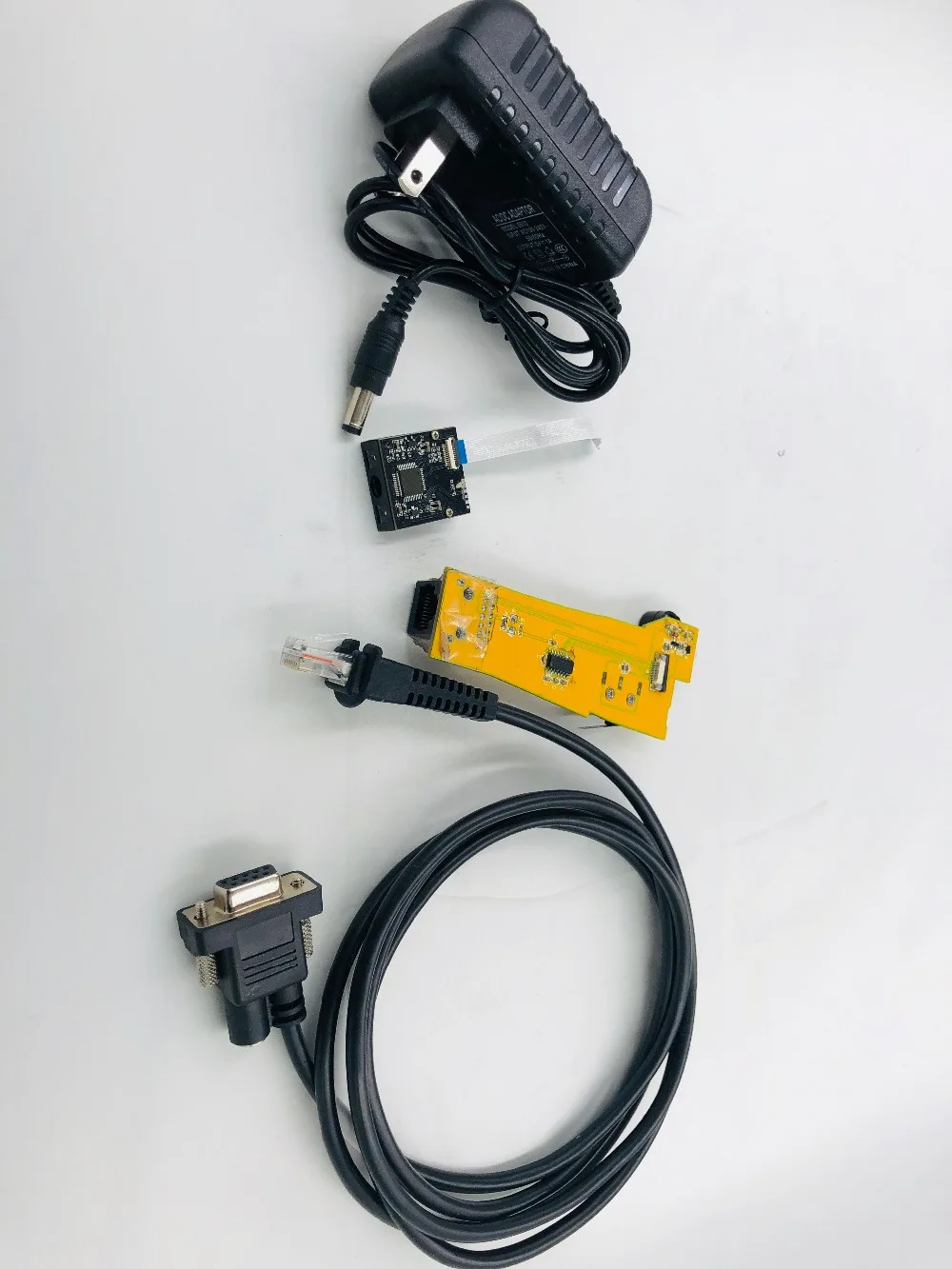

RS232 With Interface board:
