Koorinwoo CCD Wireless 5 inch Color LCD Video Monitor Rear View Backup Camera Auto Parking Assistance Waterproof Parking System

100% of buyers enjoyed this product!
39995
Color Name:
Voltage:
12V
View cart→
Product Description
Shipping & Payment
Product Details

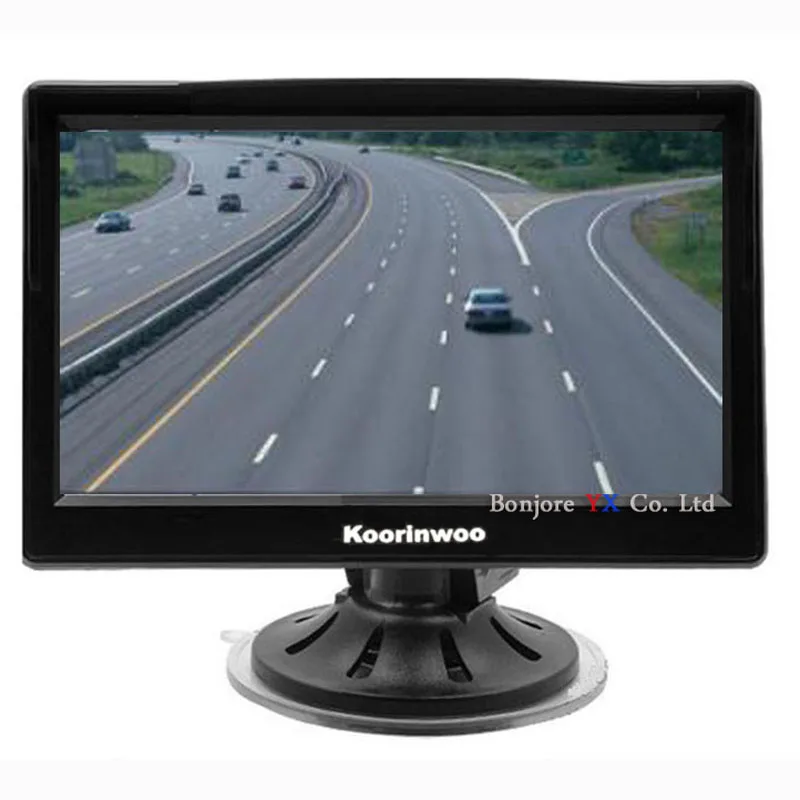

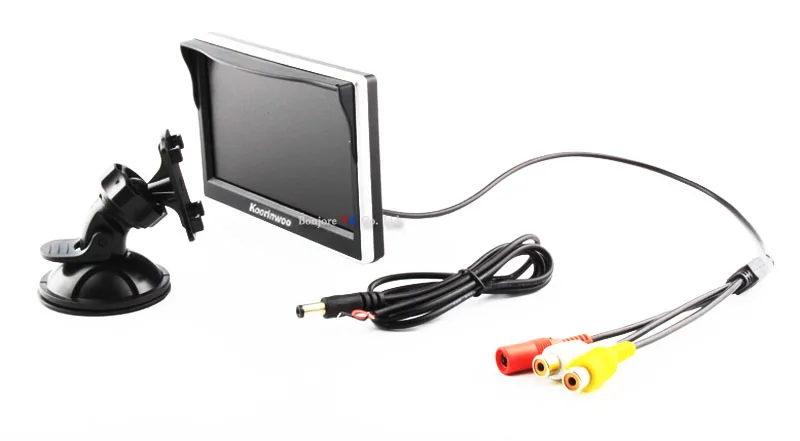

5″ Color TFT LCD Car Rearview Monitor with 2 video input, works perfectly with car rearview cameras.

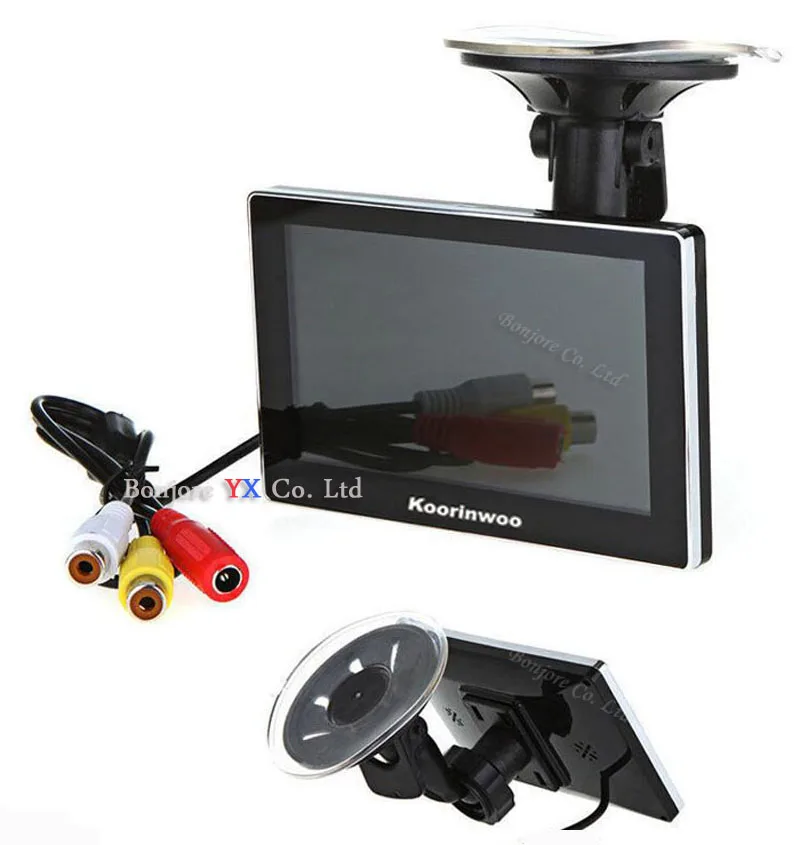

With 2 video input port, white video cable connects to car rearview camera, the yellow one connects to DVD or VCD.
When parking the car, the rearview image appears onto the screen automatically.

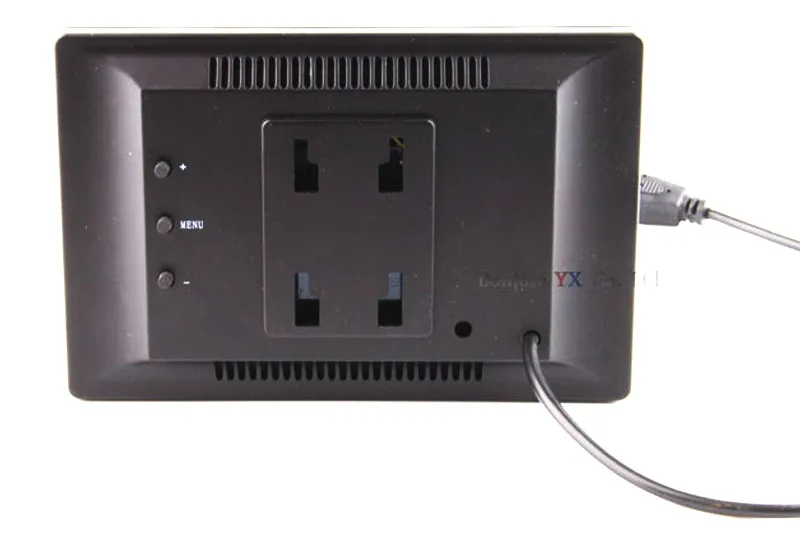

Designed ith menu buttons,the brightness/contrast/hue/language is adjustable.
Supports car DVD, VCD, camera, and other video equipment.
Easy installation without damaging any parts of the car: just clip on the original mirror.
Easy installation ,without damaging any parts of the car, clip on the original mirror
No Audio input or output.

Specifications:

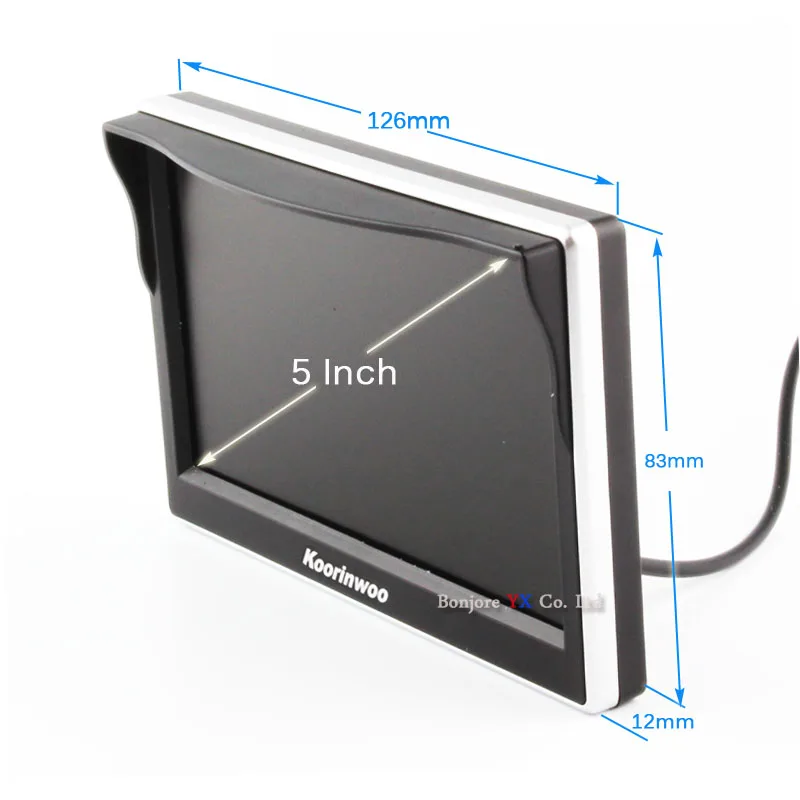

Screen Size: 5 inch TFT 16:9 screen
Display Component: Color TFT-LCD
Number of Dots: 800W * RGB * 480H
Video system: PAL/NTSC compatible
Power supply: DC 12V
Rated power consumption: 3W
Operation temperature: -30~+60°
Storage temperature: -40~+60°

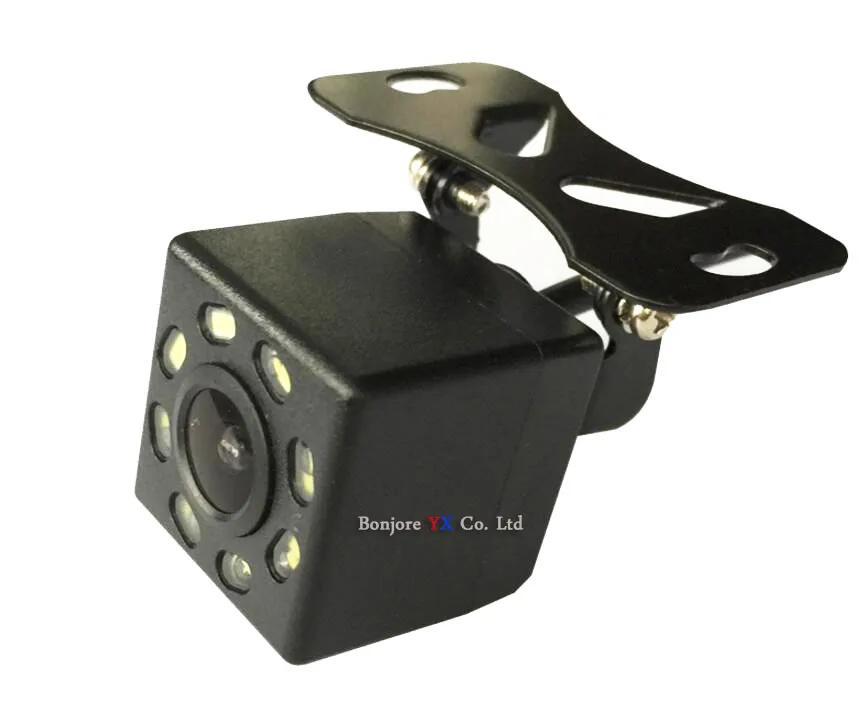

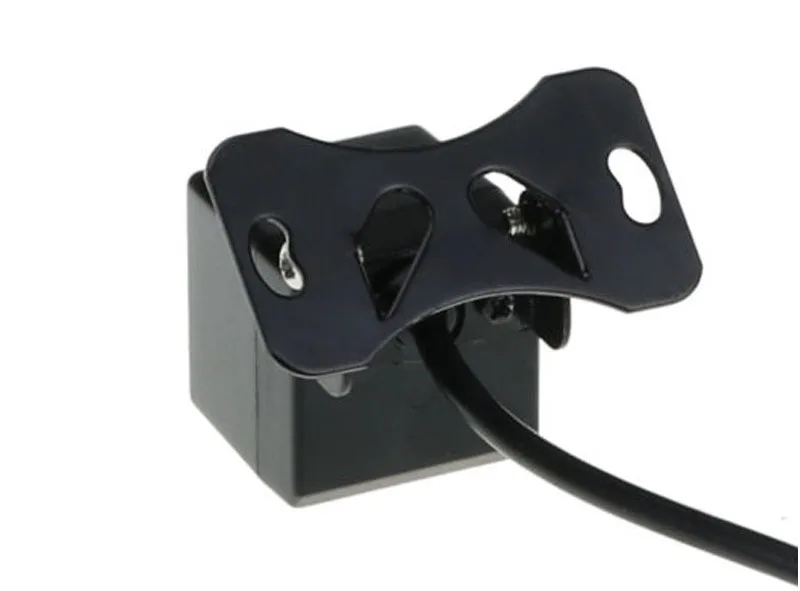

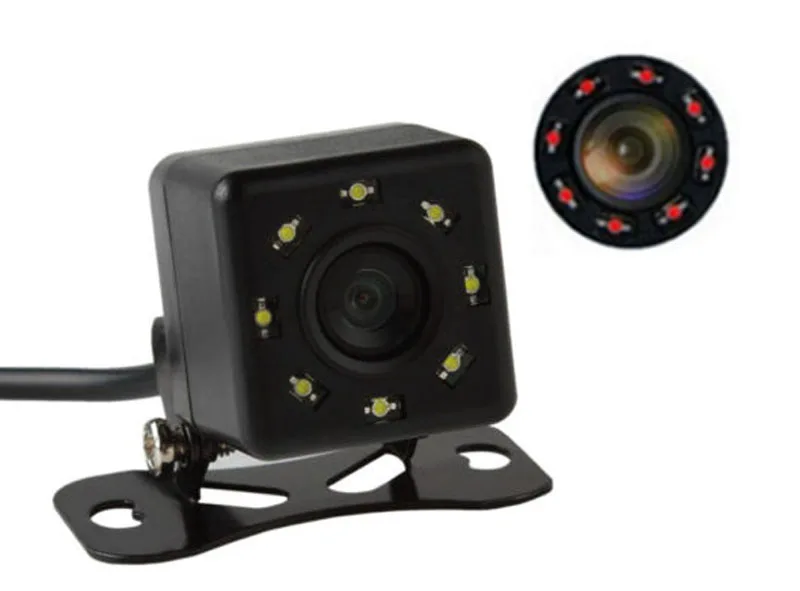

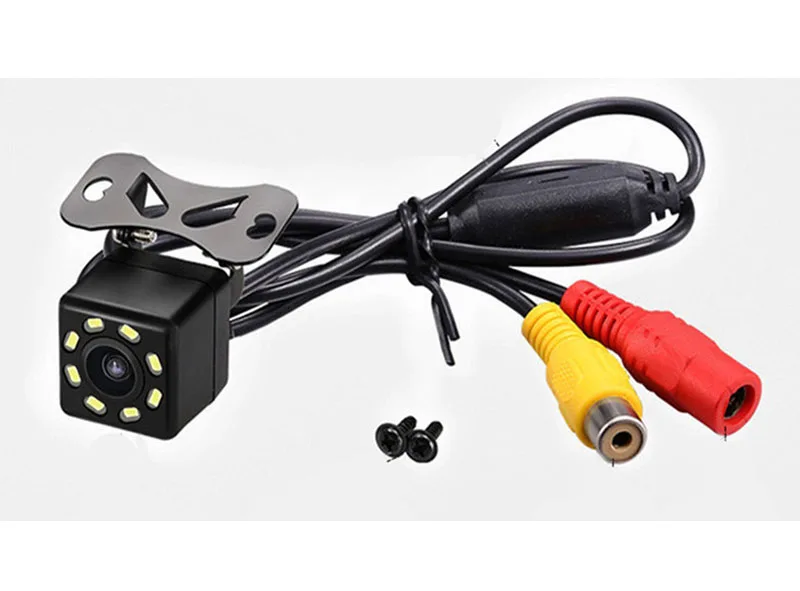

Universal Car Rear view Reversing Backup Parking Camera with 8 infrared Lights

Images Sensors: HD CCD

Color: Black/White/Silver/Plating

TV System:NTSC(Default)/PAL

Effective Pixels:NTSC:656(H)×492(V) PAL:628(H)*586(V)

Sensing Area(mm):4.9X3.7

Resolution(TV Lines):580 TV lines

Min IIIumination:0.01 Lux

Video Output:75 Ohm

S/N ratio:≥48dB

Lens F=1.7 mm waterproof lens

Lens Angle:170 degree

Operating Temperature:-30°C~+75°C(RH95% Max.)

Storage Temperature:-40°C~+85°C(RH95% Max.)

2.4G Wireless Module adapter for Car Reverse Rear View backup Camera cam

Wireless module for car reverse camera that enables normal reverse camera
This listing is for the wireless module only.only can use one camera

Take out your stock license plate light at the back of your car.

Fix the camera to where the stock license plate light was.
Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power
Connect the wireless module (transmitter) to your camera via the two cables – one plug for AV output and one plug for power
Connect the wireless module (transmitter) to the reverse light of your car to get the power – red wire for positive and black wire for negative
Connect the wireless module (receiver) to your car monitor – yellow plug for AV input.
Connect the wireless module (receiver) to your car battery or cigarette lighter to get the power – red wire for positive and black wire for negative
You will see the images when your car is in reverse shift.

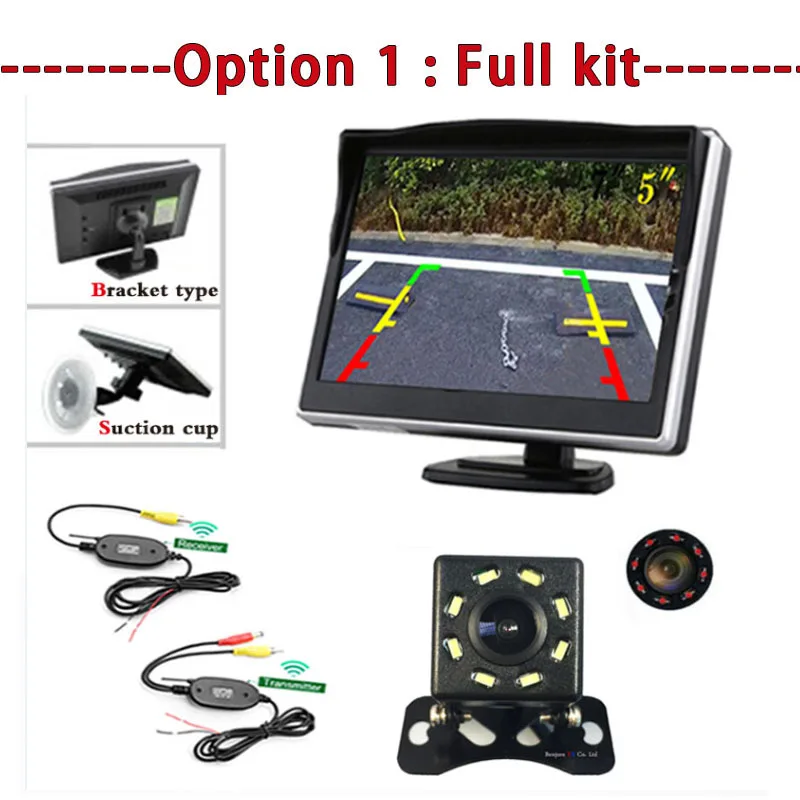

Car Monitor + Power cable + Camera + Wireless module + Screws + Box + Manual
Car Monitor + Power cable + Box and manual

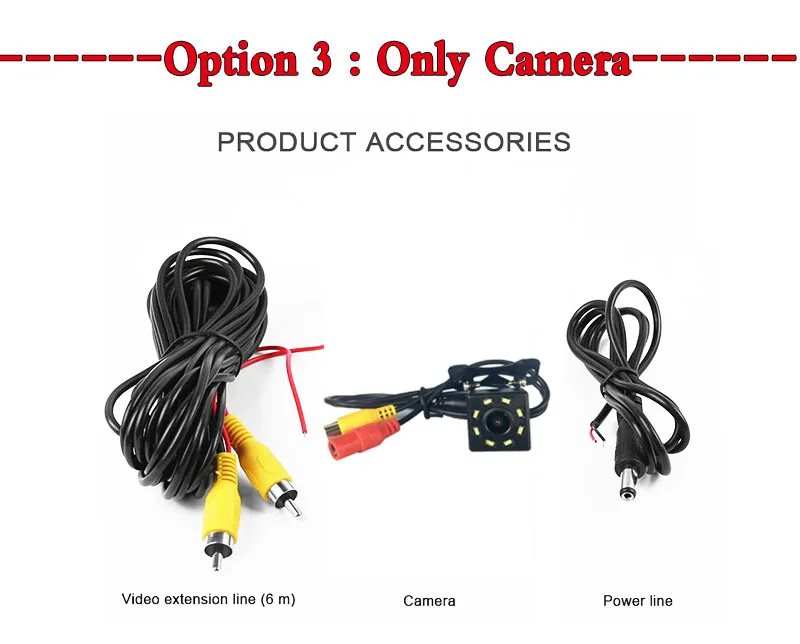

Car Camera + Screws + 6M Video cable + Power cable + Box and Manual
Transmitter and receiver
