This mini pc motherboard can install 4 types of processors:

1. Kaby Lake 14nm CPU Intel Core i3 7100U 2 cores 4 threads 2.4GHz 3MB cache TDP 15W HD Graphics 620.(only support DDR4 laptop ram)

2. Kaby Lake 14nm CPU Intel Core i5 7200U 2 cores 4 threads 2.5GHz up to 3.1GHz 3MB cache TDP 15W HD Graphics 620.(only support DDR4 laptop ram)

3. Broadwell 14nm CPU Intel Core i7 5550U 2 cores 4 threads 2.0GHz up to 3.0GHz 4MB cache TDP 15W Graphics HD 6000.(only support DDR3L 1.35V laptop ram, probably send i7 5500U by random)

4. Haswell 22nm CPU Intel Core i5 4200Y 2 cores 4 threads 1.4GHz up to 1.9GHz 3MB cache TDP 11.5W HD Graphics 4200.(only support DDR3L 1.35V laptop ram)

(If you made an order, assuming you accept this):

About customs, We are not responsible for buyer’s customs taxes or VAT. But we try our best to help buyer lower or avoid customs duties, usually write a value of USD $20-70 on package and describle item as “mini pc“.

If you have any questions or need to declare real price, don’t hesitate to contact with us in time, we will do everything we can to help you.

Free Operating System: Default installed our activated OEM cracked(not genuine) version Win7 or Win8 or Win10 in English for free experience, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install. Other systems we can install free are like Pfsense, Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need. Seller is irresponsible and makes no compensation for cracked system.

Accessories as Ram, SSD, HDD, we use famous brand:samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingston, phison etc, What brand we use depends on our test and our stock. What brand we use depends on our test and our stock. Generally we use Msata SSD installed on Mpcie port and leave the SATA port blank for you to install 2.5” SSD/HDD.

1. USB Infrared remote (can turn power off and control media center like kodi) add extra cost US$14.

2. 300M WiFi uprade to 300M WiFi&bluetooth, only add extra cost US$3.

3. Bluetooth4.0 USB Dongle add extra cost US$2 .

4. External USB DVD-ROM add extra cost $18, External USB Bluray DVD-ROM add extra cost $45.

5. USB 2.4GHz Air Keyboard& Mouse, add extra cost $20.

6. Genuine windows license add extra cost 35$.

7. 500GB 2.5” HDD add extra 50$, 1TB 2.5” HDD add extra 65$.

Uprading link: //www.aliexpress.com/store/product/Extra-Fee-For-Shipping-Cost-or-Making-Up-Product-Cost-Specail-Payment-Link-for-Extra-Order/217312_765856572.html

(how many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade USB IR remote, pay 14pcs for US$14, remember to leave message noting which one you uprade for…)

1)- Beautiful: Industrial aesthetic design and Reasonable interface layout;

2)- Noiseless: Fanless system, low consumption, 0.00dB noise;

3)- Special: Support 64 bits computing Turbo boost Hyper-Threading Virtualization technology etc, Can install 1pcs 2.5”HDD+1pcs MSSD(5CMx3CM), highest speed up to 6GPS;

4)-Stable: Newest Intel Core i5 7200U/7100U+Kaby Lake structure+ Intel HD 620 Graphics+Fanless professional passive cooling by alloy case, be able to work 24hours per day;

5)- Slim: Only 37mm body thickness, can stand on desk by free bracket we supply;

6)- Smooth: High-end Intel Graphics HD 620, fight again dedicated Graphics! Support all online games, big 3D games, large-scale mapping software, blu-ray and 4K Ultra HD streams, full 1920*1080 HD resolution, 2*HDMI dual monitor display;

7)- Strong: Work with any brand monitors; 1*Gigabit Lan Nics++1*HDMI+1*VGA+4*USB3.0+2*USB2.0 Fit for multiple application for example integrate with touch devices, industries, car repair shops, security, education, home as HTPC, business, fanancial and projects;

8)-Low-carbon green: TDP only 15W, very economical, saving a lot energy every year, low consumption but with a very amazing performance.

9)-Certification: CE, FCC & RoHS.

Buy with confidence! 3 Years long warranty for fanless system!

DDR4 version motherboard:

DDR3L version motherboard:

General
Processor	Onboard Intel Core i7 5550U 2.0GHz up to 3.0GHz Dual Core 4 thread
Operating System	Windows 10/ Windows 7/ Windows 8/ Linux
Storage	SSD: 8GB/16GB/32GB/64GB/128GB/256GB/512GB
Memory Memory Type	2GB/4GB/8GB DDR3L 1.35V Voltage DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333
Motherboard	Intel SHARKBAY(Intel Broadwell-ULT)
Processor details
CPU	Intel Core i7 5550U
Clock Speed	2.0GHz(100MHz x 20)

Processor Number	2 core/ 4 threads
Core code	Broadwell
Technique	14nm
L1 data cache	2 * 32 KB, 8-Way, 64 byte lines
L2 code cache	2 * 32 KB, 8-Way, 64 byte lines
L3 cache	3 MB, 12-Way, 64 byte lines
Characteristic	MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4, AVX2.0, SSE4.2, HTT…
BIOS	AMI BIOS, ACPI supported, support call on function automatically, Wake-On-LAN
Function	Hyper-Threading, Virtualization technology, 64 bit computing
Graphic Cards	Intel Broadwell- ULT Integrated Graphics Controller Intel HD Graphics 6000
Audio Cards	ALC892 sound chip, 6-channel Intel Panther Point HDA
Network card	RTL8168E PCI-E Gigabit Ethernet NIC
Ethernet	10/100/1000 BaseT LAN
WIFI	With dual antenna, 802.11.b/g/n(300M or optional bluetooth)
I/0 Port

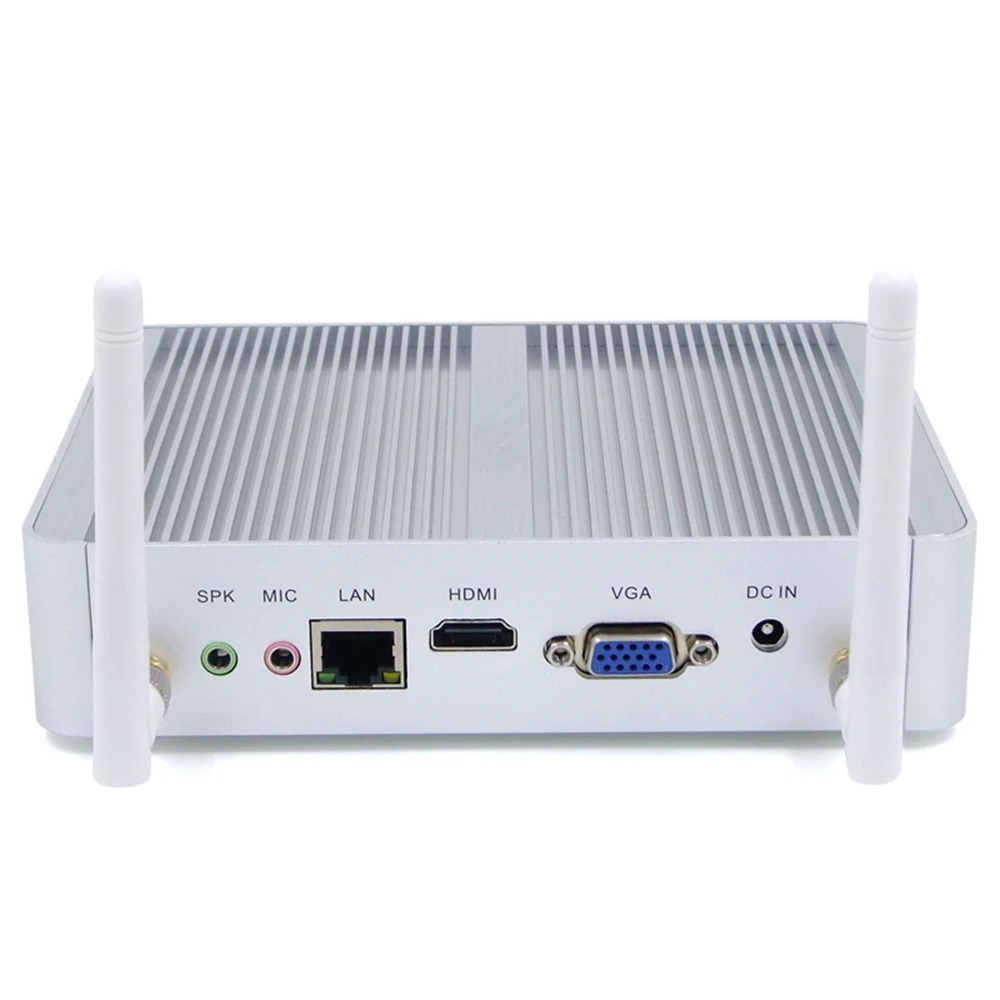

Display port	1* VGA + 1 * HDMI
USB port	4* USB 3.0, 2 * USB2.0
SATA port	1 * MSATA3.0, 6Gb/s;
MINI PCIE	1 * MSATA SSD, 1 * WiFi module
Ethernet port	RJ45 10/100/1000 Mbps Adaptive
Power input port	1 inner diameter 2.5mm,external diameter 5.5mm
Audio port	Standard 3.5 Audio input and output
Power and Working Environment
Input	DC100-240V AC/50-60Hz
Output	DC 12V/3-6A
Consumption	15W
Noise	Fanless System
Temperature	0-70 Centigrade
Humidity	10%-90%

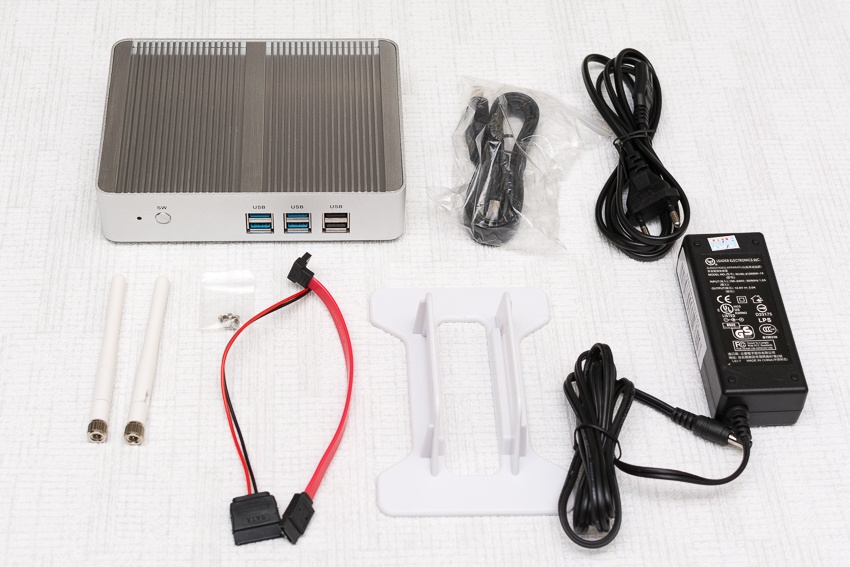

1*Mini PC

1*Power adapter

1*Set of SATA power and data cables(for 2.5” hard drive installation)

1*HDMI cable(as a gift)

1*DVD for drivers

Dual wifi antennas

1*Vesa Bracket(optional)

Welcome to click the picture of VESA Bracket to order together if you need:
