- Chip Name: Hontiey High power LED Matrix 10W 20W 30W 50W 100W Growth light Full Spectrum 380Nm-840Nm Integrated Plantt Growing lamp DIY Chip/Bulb/Bead
- Chip Type: High Power LED chip

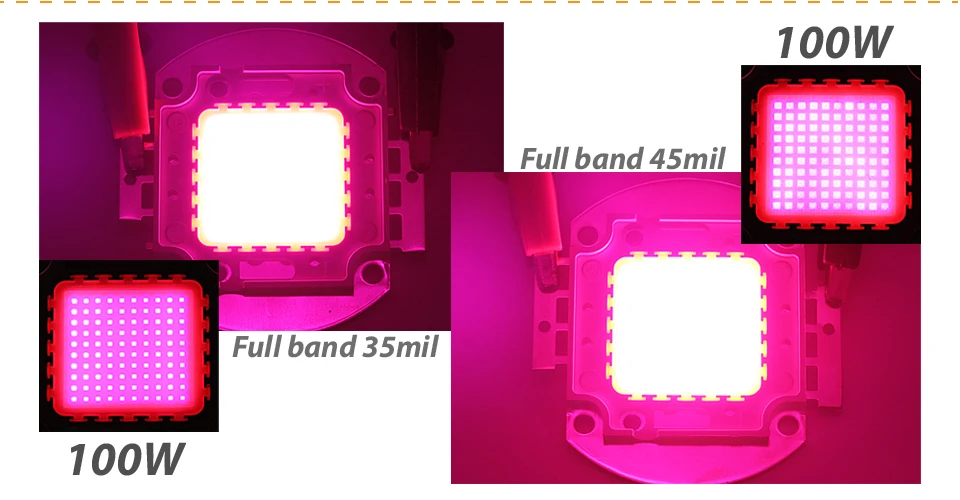

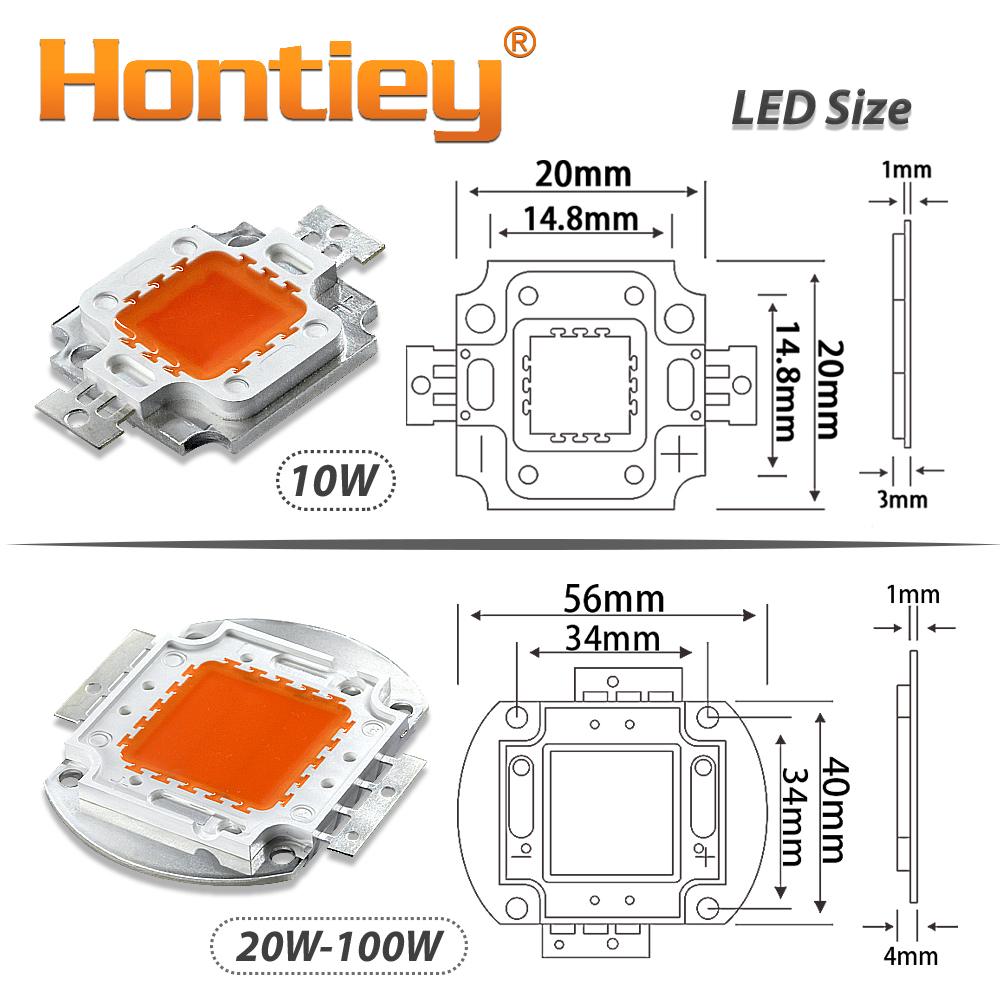

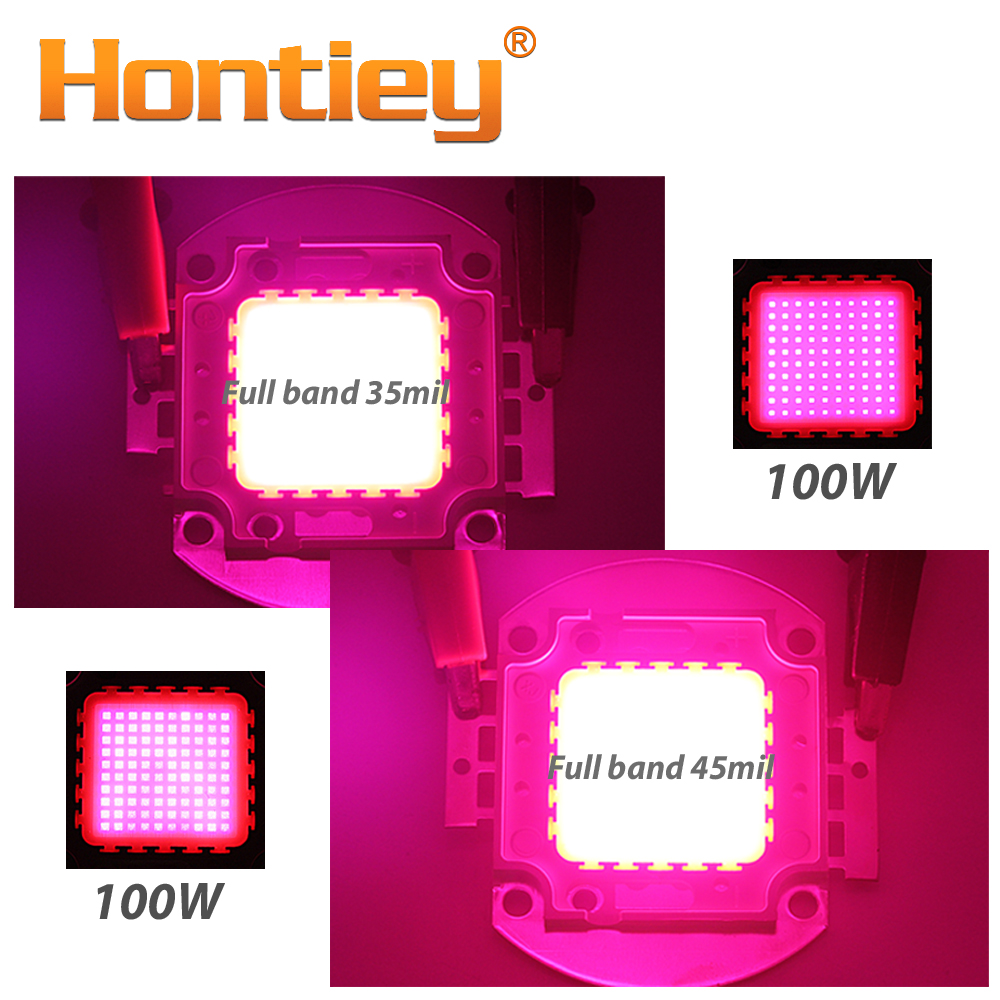

- Chip Size: 30mil/45mil
- Chip Brand:Epistar(Taiwan)
- Chip Color: Plantt Growing

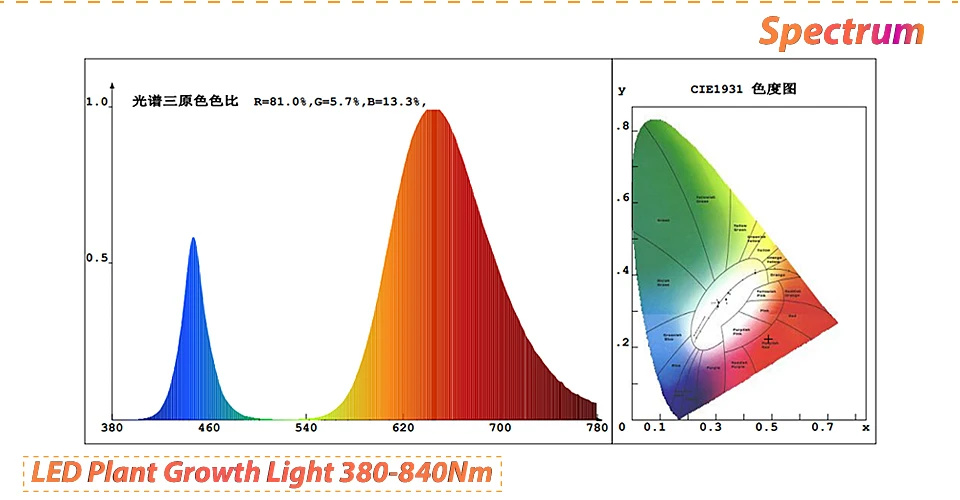

- Chip Wavelength: 380Nm-840Nm

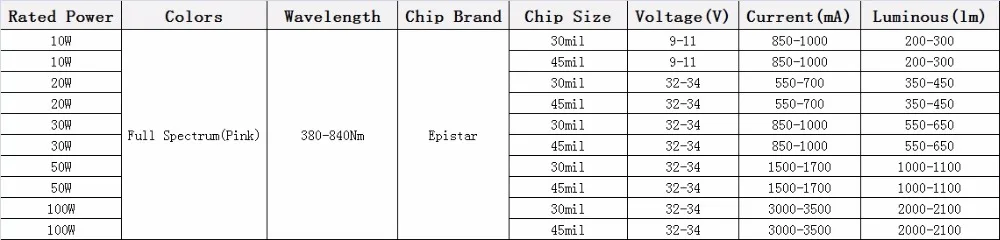

- Rated Power: 10W/20W/30W/50W/100W
- Power supply current: 850mA-3500mA
- Forward Voltage: 9V-34V
- Beam Angle: 120 degree

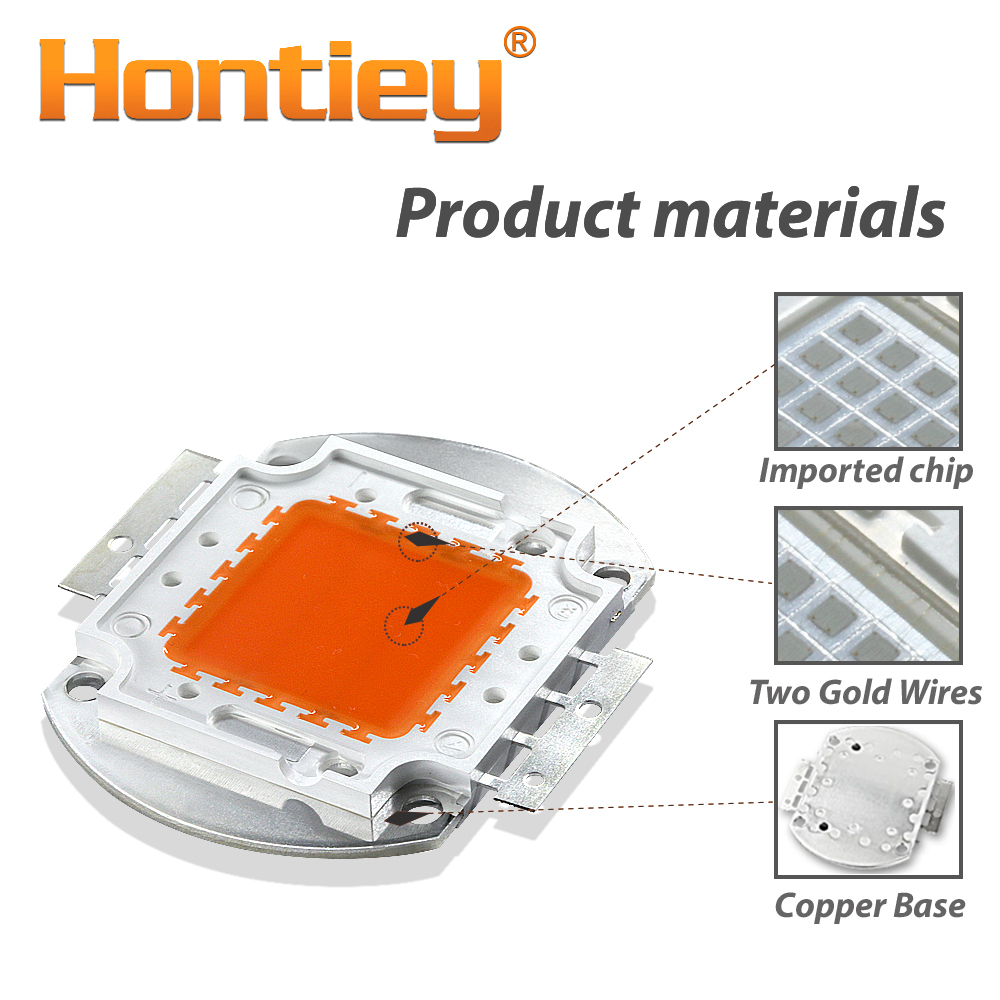

- Sealing Material: InGaN ,two golden wires and copper bracket,sillica gel

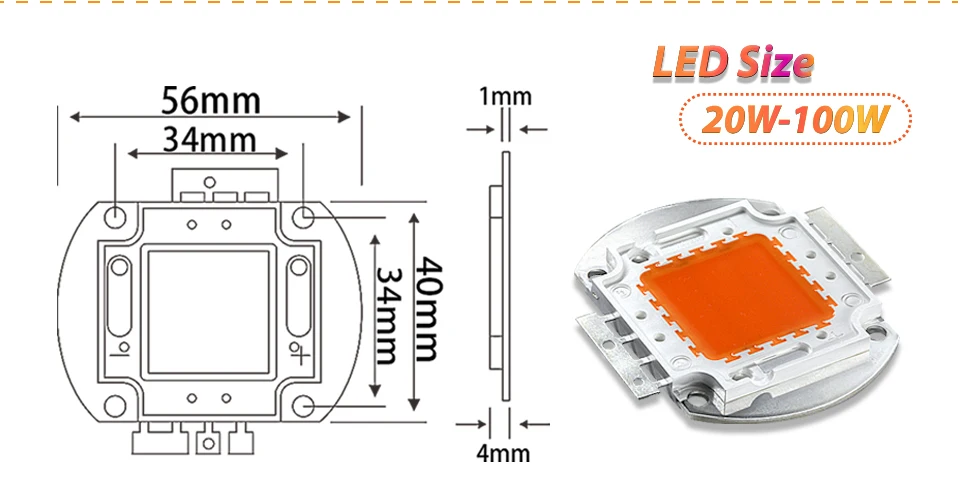

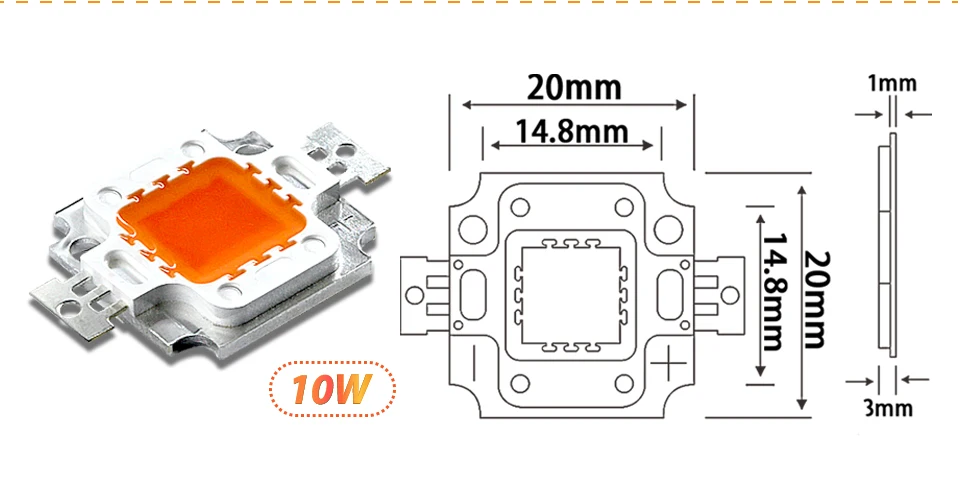

- Chip Weight: 10W(5.1g), 20W-100W(27.5g)
- Certification: CE/RoHS/FCC
- Working life: 50000hrs
- Operating temperature: -30 to +85 degree centigrade
- Welding temperature: 300 degree centigrade in 5 seconds
- Large enough heat-dissipation surface area to ensure that the emperature of the aluminum substrate does not over 60 degree centigrade.
- It can’t be high-temperature soldering iron burns product’s light-emmitting layer to avoid dead lights or affect the lighting while installing lamp.
- Thermal design of finished product is particularly important. Please consider the heat dissipation of the chip strictly.
