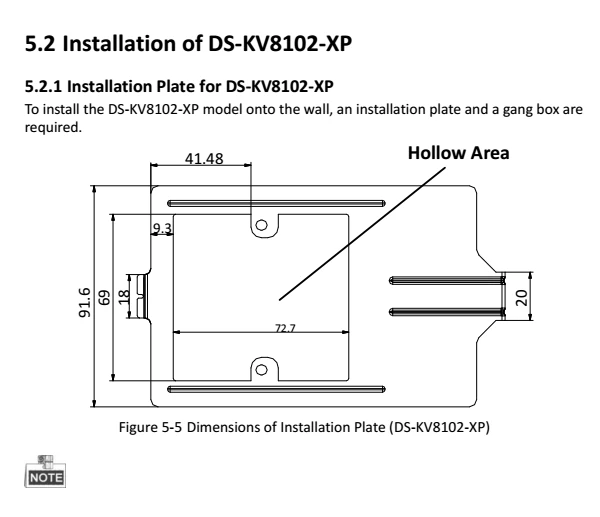

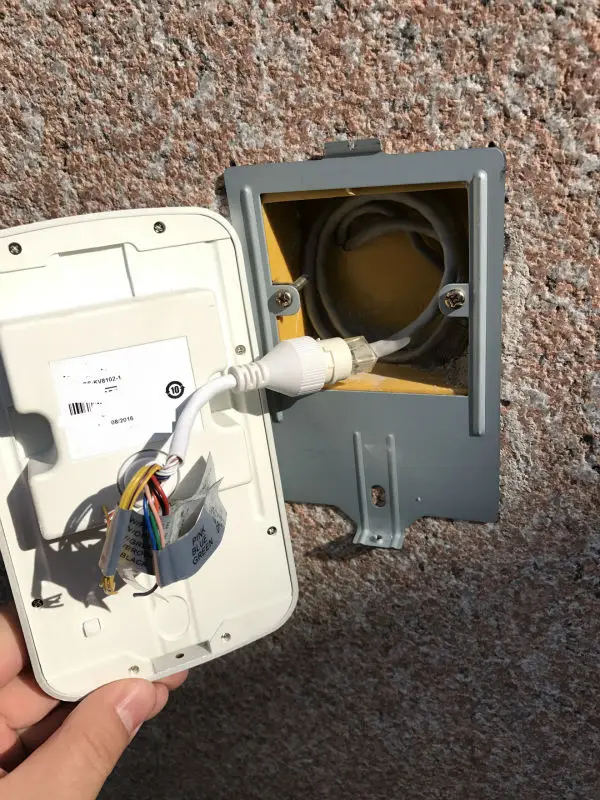

If you need a mounting box, please open this link:

//www.aliexpress.com/store/product/Hikvision-DS-KV8102-1C-DS-KV8102-IP-Include-Mounting-Box-HD-Visual-intercom-doorbell-waterproof-IC/2161019_32815438819.html?spm=2114.12010608.0.0.pYxwxC

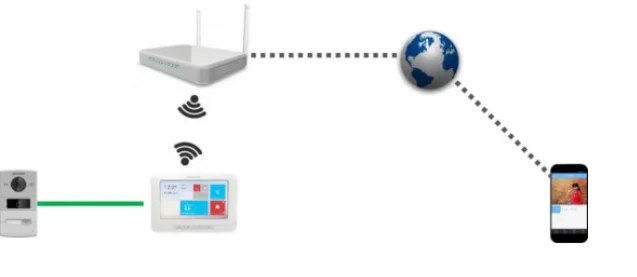

Mobile APP:Hik-connect(The WIFI of the indoor monitor must be activated)

Support multi language;

When the outdoor station access to HIKVISION NVR, and the light is relatively dark, IR light in the outdoor station will be auto opened,Provide lighting for NVR recording，and every 30 minutes to test a brightness.（The base version does not have this feature.）

When someone pushes the button of outdoor station,you can receive information on your mobile phone,you can use the phone to unlock door/Electric door closer,and answer/hang up the video;

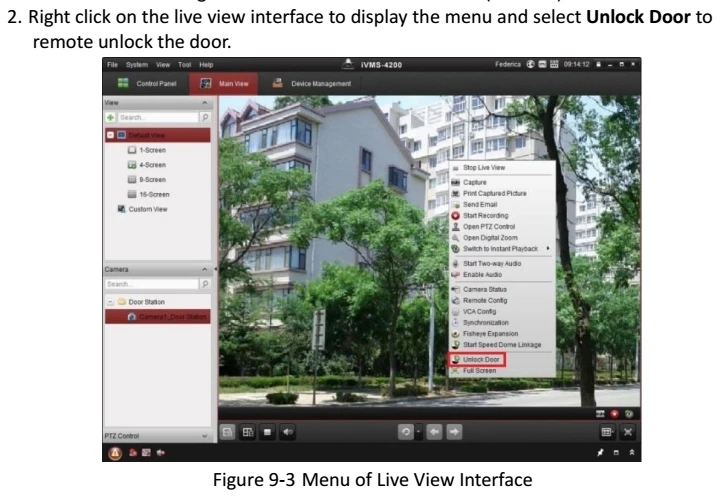

The outdoor station can access to HIKVISION NVR,and it can live view,record,playback.

You can swipe card on the outdoor station to unlock,can also swipe card to HIKVISION 485 card reader.

If you use 2/4-button outdoor station, indoor monitors support video dialogue among each room number,For example 101 call 201,101 call 301,201 call 301,and if indoor monitor has a camera,Each room can see each other’s video images.;

If you use one-button outdoor station,and you have more than one indoor monitor,Master indoor monitor and Slave indoor monitor can’t support video dialogue between them,becuse there is only one room number.

The indoor monitor can take a sub video stream from HIKVISION camera,without time limit!（The base version does not have this feature.）

DS-KH8301-WT/DS-KH8501-WT can insert TF memory card, support video recode and playback video;

The indoor monitor has the function of Alarm input and Alarm output,and it can connect to Infrared alarm detectors, smoke detectors, gas detectors, magnetometer sensor,and it can connect to Acousto-optic alarm;

When the indoor monitor alarms,it can push information to your phone.

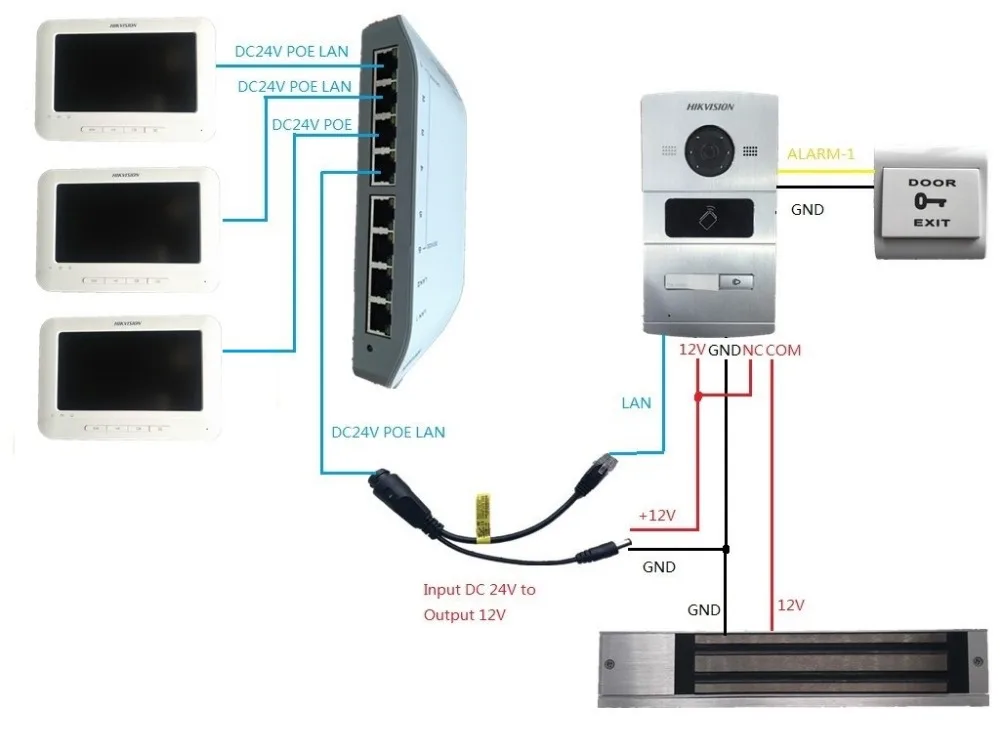

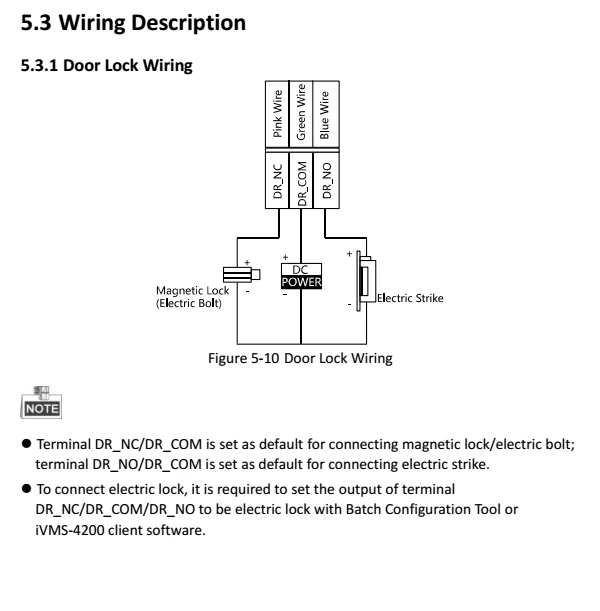

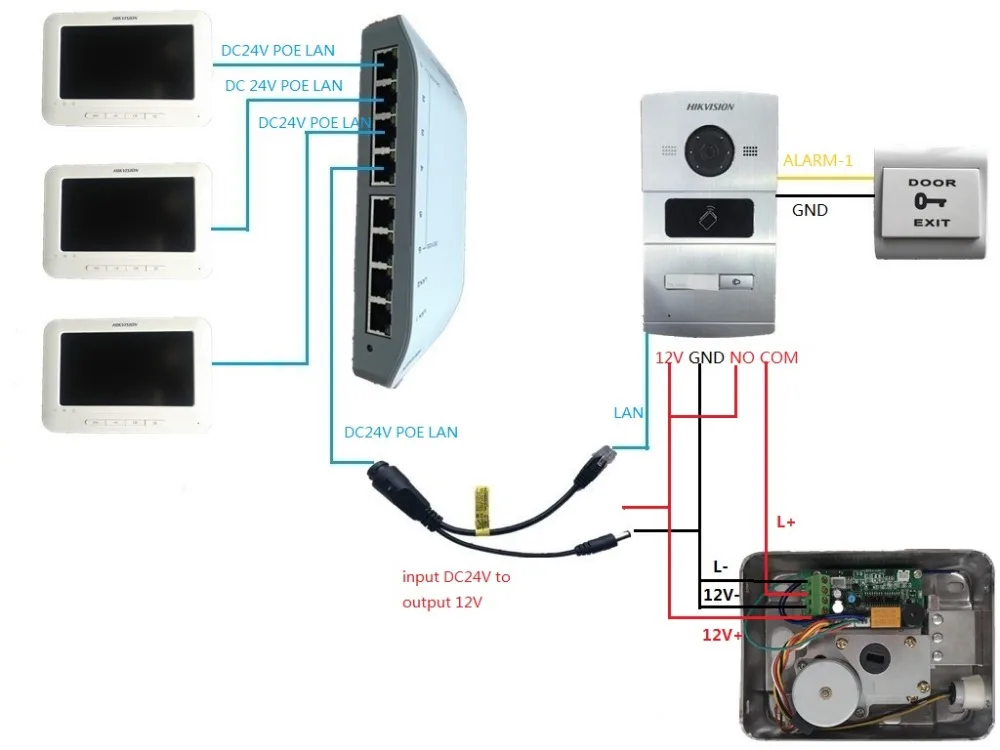

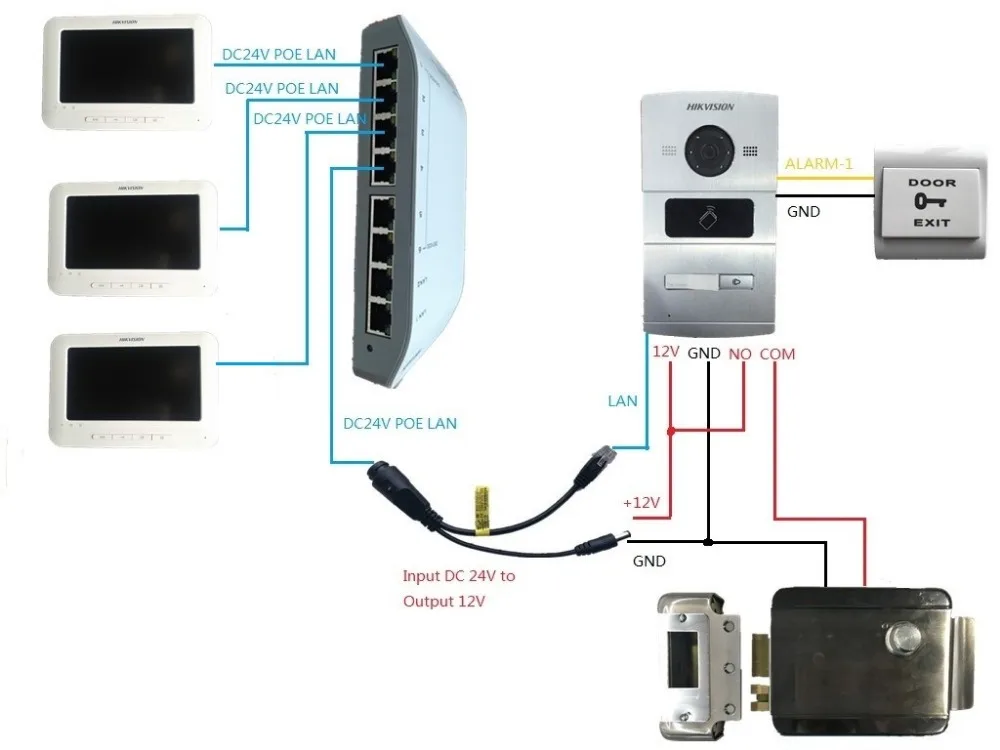

The indoor monitor can control opening Electric Lock and Hikvision fingerprint/smart lock;

Cabin bottom box, IC card entrance guard read head, 1.3 million pixels wide dynamic 120 ° wide Angle lens Single button the door machine, the machine can achieve the call more indoor machine model, or more than the door machine call many sets of indoor machine model, support the door machine directly authorized user card, call captured images, control of electric locks the door machine support. Can be added to the hik NVR video directly

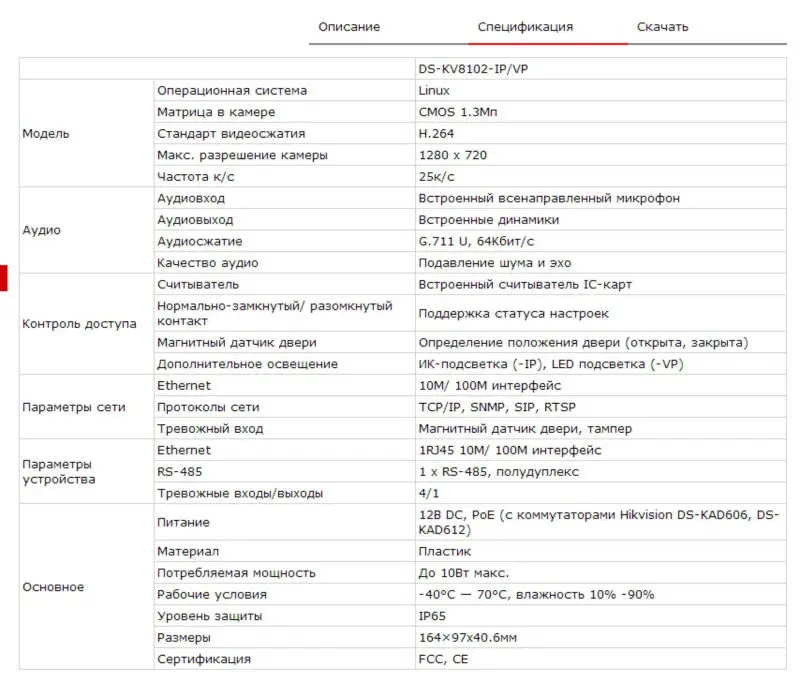

System parameters

High-performance embedded processor SOC processors

Operating system, embedded Linux operating system

Video parameters

130 w pixel cameras, CMOS low illumination high-definition color video camera

Video compression standard h. 264

1280 * 720 resolution

Video frame rate of 25 frames per second

Fill light DS – KV8102-1C: infrared light

DS – KV8102-2C: white light fill light

Audio parameters

Built-in audio input all point to the microphone

Audio output built-in speakers

The audio compression standard g. 711 u

Audio compression bit rate of 64 KBPS

Sound quality support for noise suppression and echo cancellation

Access control parameters

Built-in card reader built-in IC card reading head

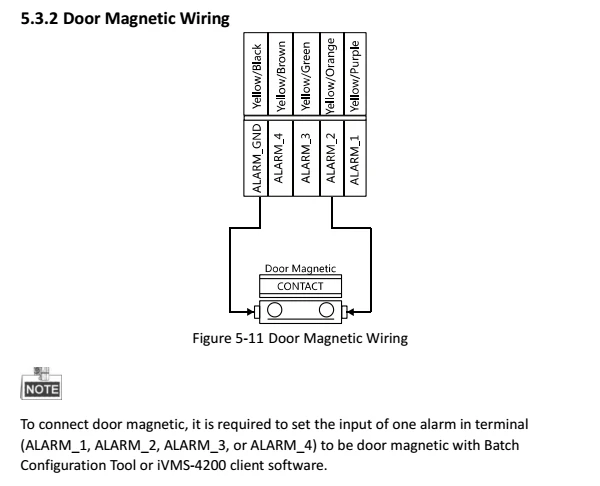

Door magnetic detection can detect door magnetic switch state

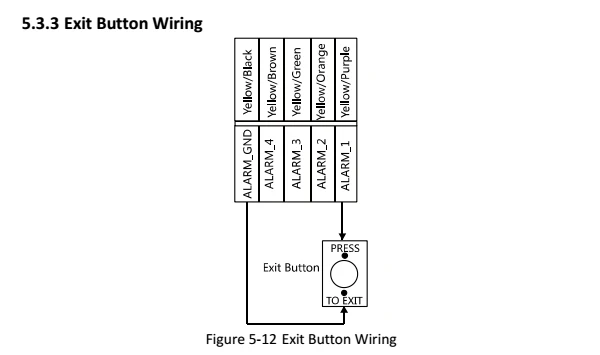

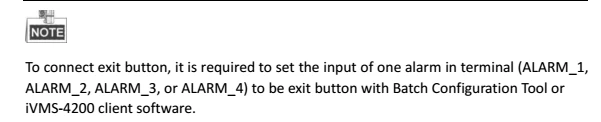

Through the open button to open the door open button

Normally open normally closed support setting normally open/closed

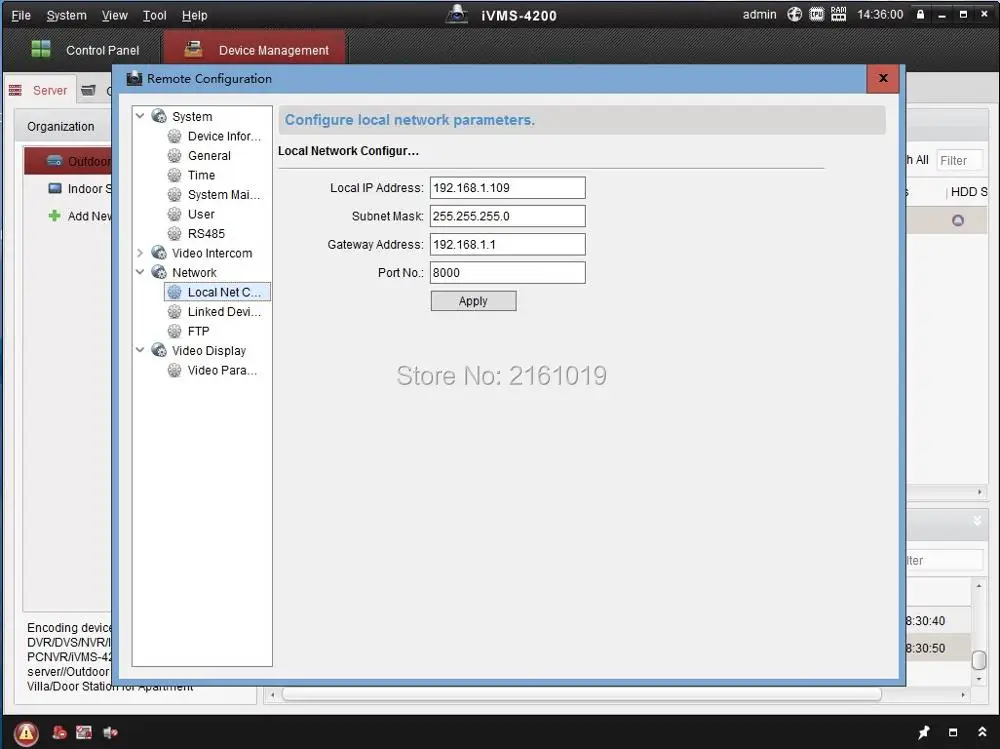

Network parameters

10 m / 100 m Ethernet adaptive

The network protocol TCP/IP, SNMP, SIP, RTSP

Alarm parameters

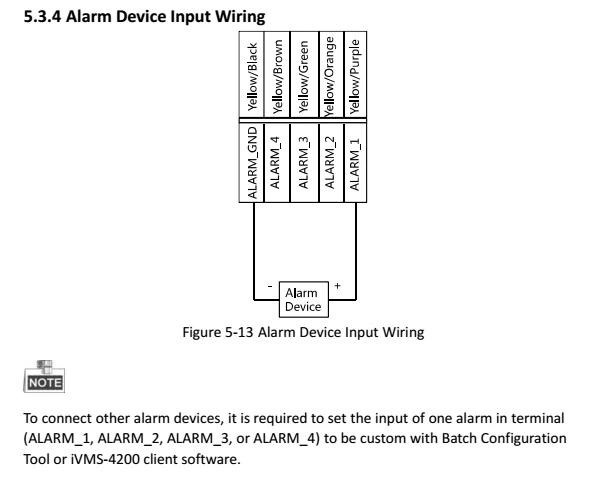

Alarm input tamper, door magnetic detection

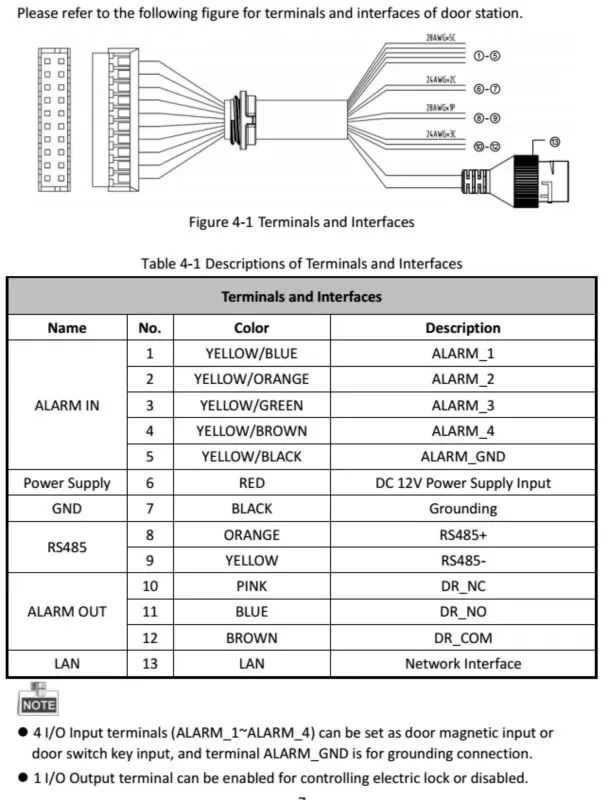

Device interface

So a RJ45 10 m / 100 m adaptive Ethernet front-end ports

1 RS485 interface RS485 full-duplex

IO input 4

IO output 1

The work environment

Working temperature and 40~ 60(degree centigrade)

Working humidity 10% to 90%

The power consumption of 10 or less w

DC12V power supply

The other parameters

Degree of protection IP65

Overall dimensions 164 mm * 97 mm * 40.6 mm
