Mobile APP:Hik-connect(The WIFI of the indoor monitor must be activated)

APP Support multi language;

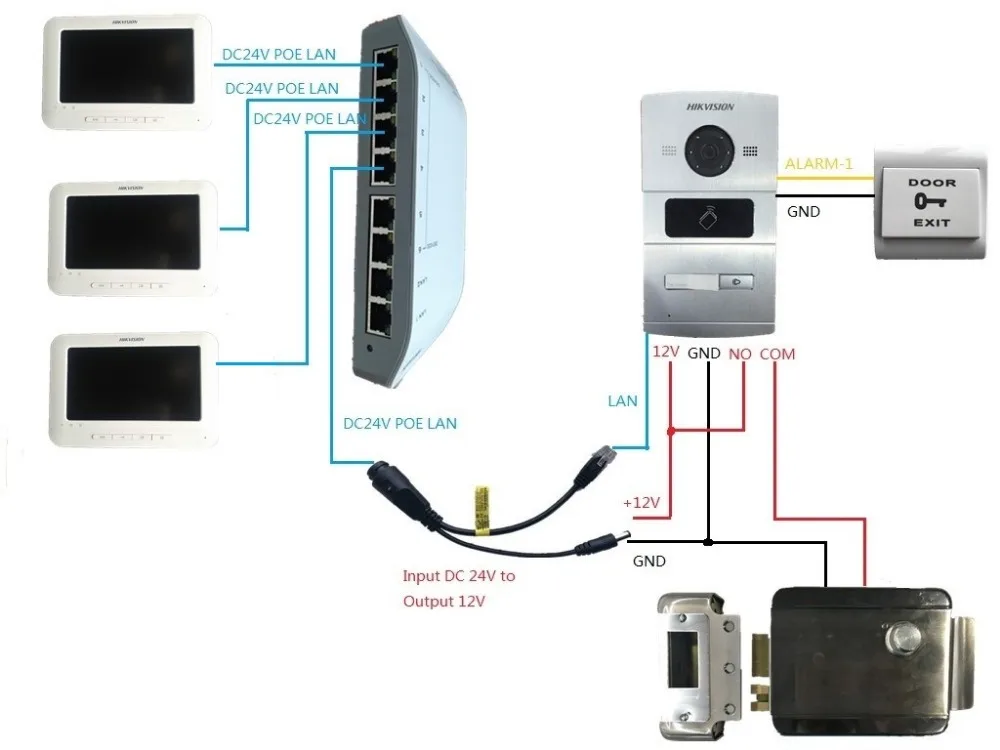

When someone pushes the button of outdoor station,you can receive information on your mobile phone,you can use the phone to unlock door/Electric door closer,and answer/hang up the video;

The outdoor station can access to HIKVISION NVR,and it can live view,record,playback.

You can swipe card on the outdoor station to unlock,can also swipe card to HIKVISION 485 card reader.

If you use 2/4-button outdoor station, indoor monitors support video dialogue among each room number,For example 101 call 201,101 call 301,201 call 301,and if indoor monitor has a camera,Each room can see each other’s video images.;

If you use one-button outdoor station,and you have more than one indoor monitor,Master indoor monitor and Slave indoor monitor can’t support video dialogue between them,becuse there is only one room number.

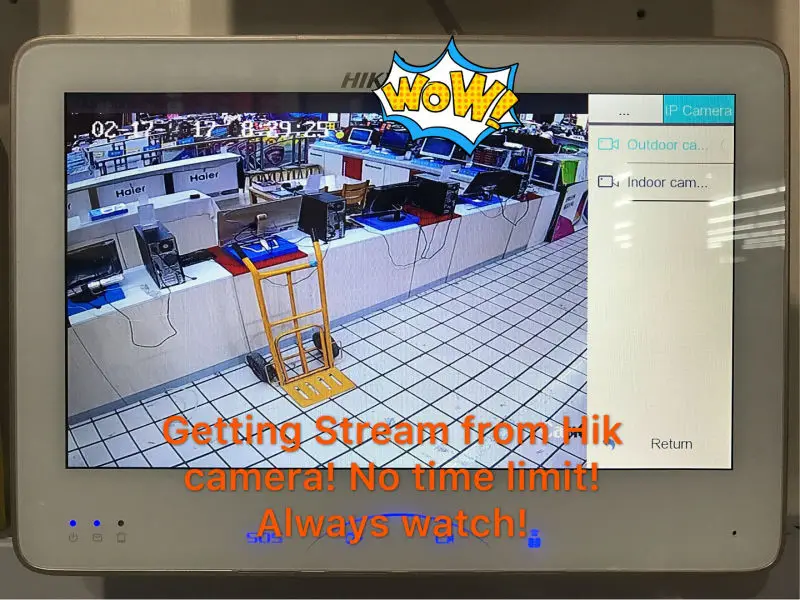

The indoor monitor can take a sub video stream from HIKVISION camera,without time limit!（The base version does not have this feature.）

DS-KH8301-WT/DS-KH8501-WT can insert TF memory card, support video recode and playback video;

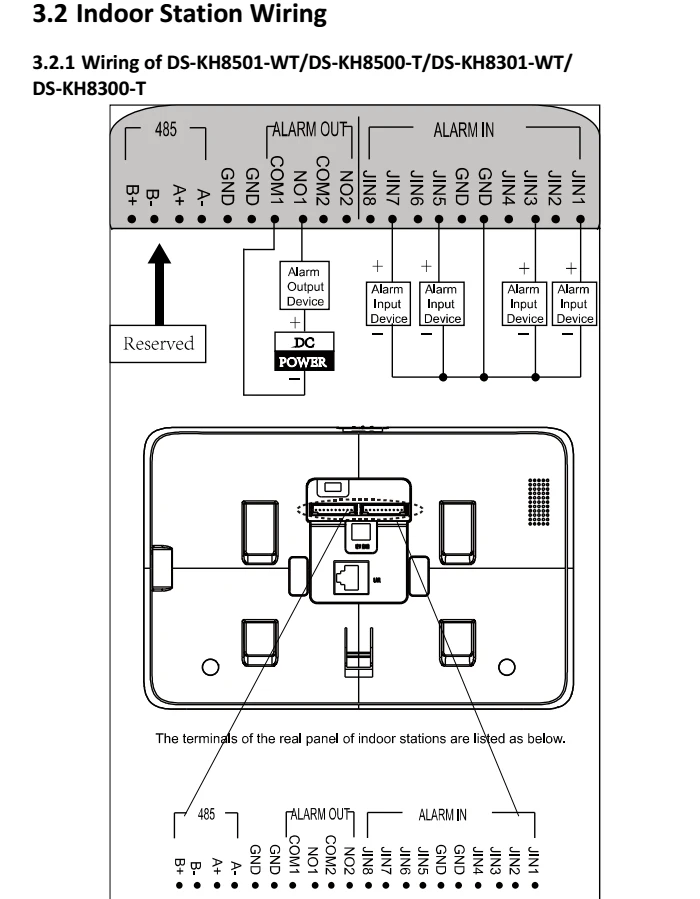

The indoor monitor has the function of Alarm input and Alarm output,and it can connect to Infrared alarm detectors, smoke detectors, gas detectors, magnetometer sensor,and it can connect to Acousto-optic alarm;

When the indoor monitor alarms,it can push information to your phone.

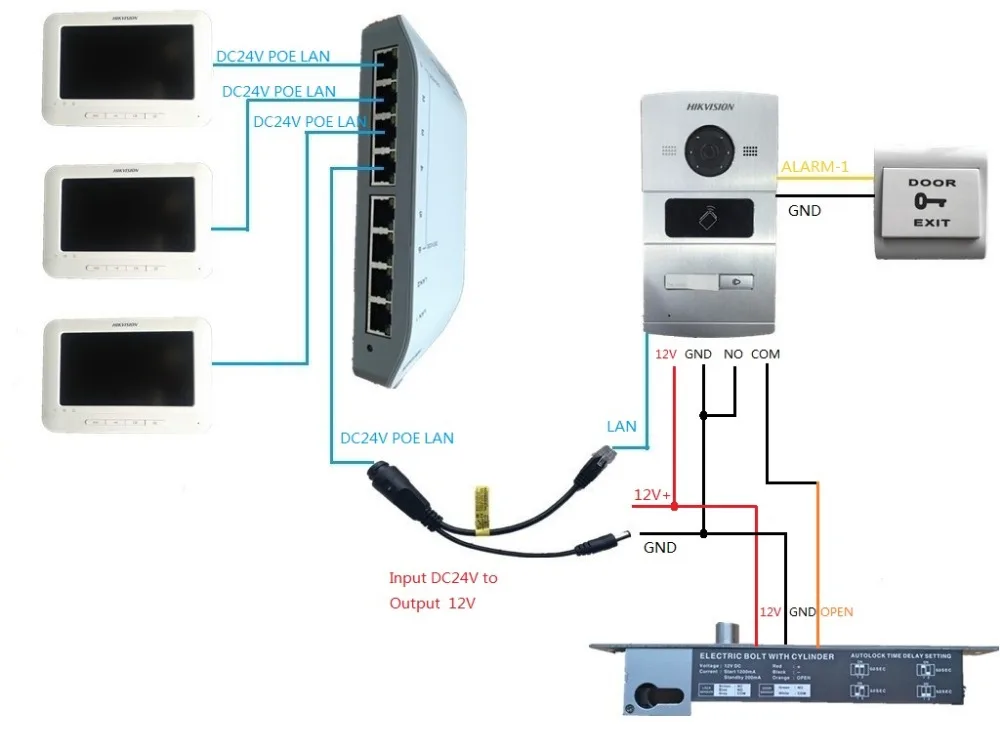

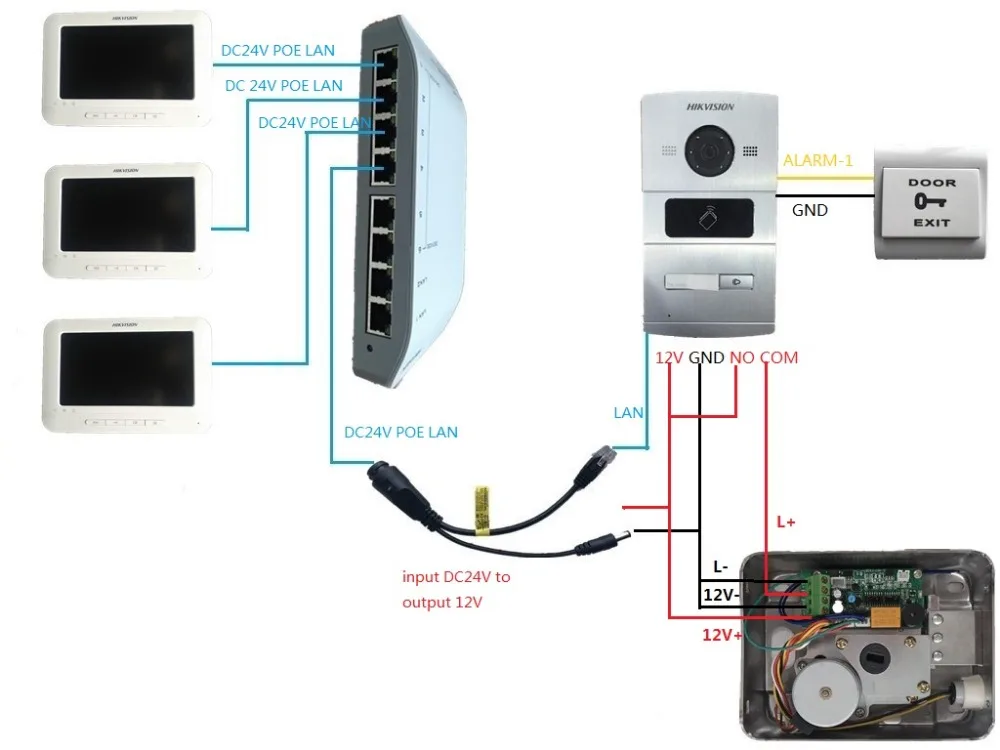

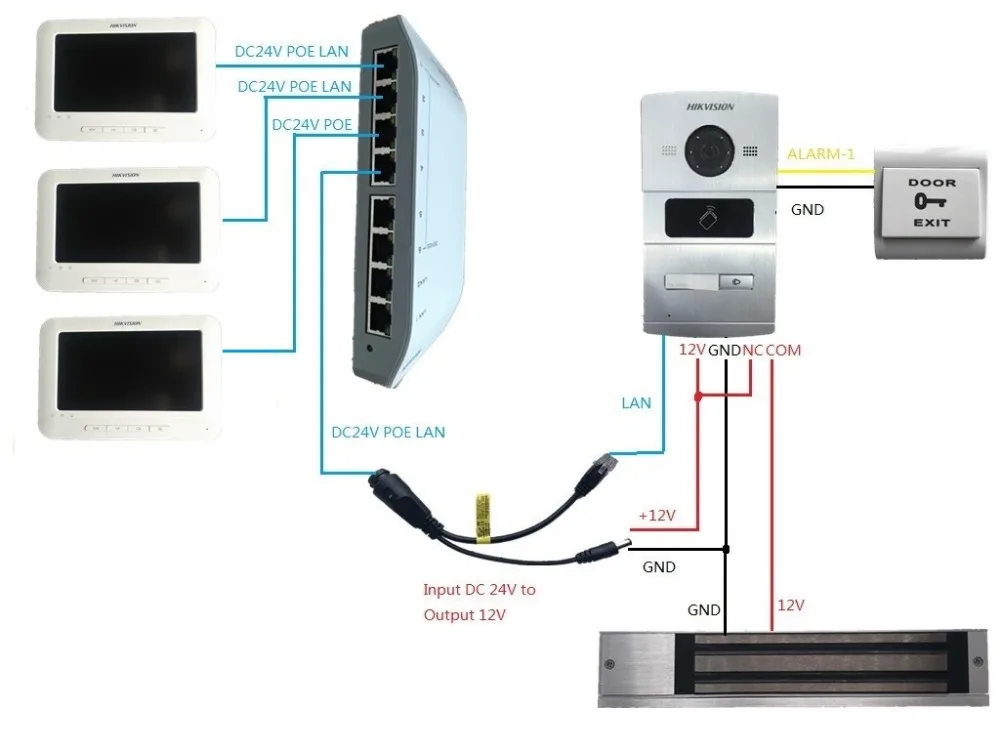

The indoor monitor can control opening Electric Lock and Hikvision fingerprint/smart lock;

DS-KH8501-A Integrated with 0.3 MP camera, many sets of indoor machine can video calls

Support and

When using multiple keys at the door of machine, also can communicate between indoor machine;

Hikvision can be connected to the same local area network cameras and video surveillance video images;

The door machine from indoor machine can be used alone, but only a credit card to open the door, when simple entrance guard controller is used, as well as access to the LAN hik in video recorder;

Indoor machine can be used alone out of the door machine, may receive alarm detector (gas detectors, smoke detectors, infrared detectors, emergency button, gate magnetism, etc.), when the alarm host, you can also preview LAN hik in the camera images.

Product synopsis:

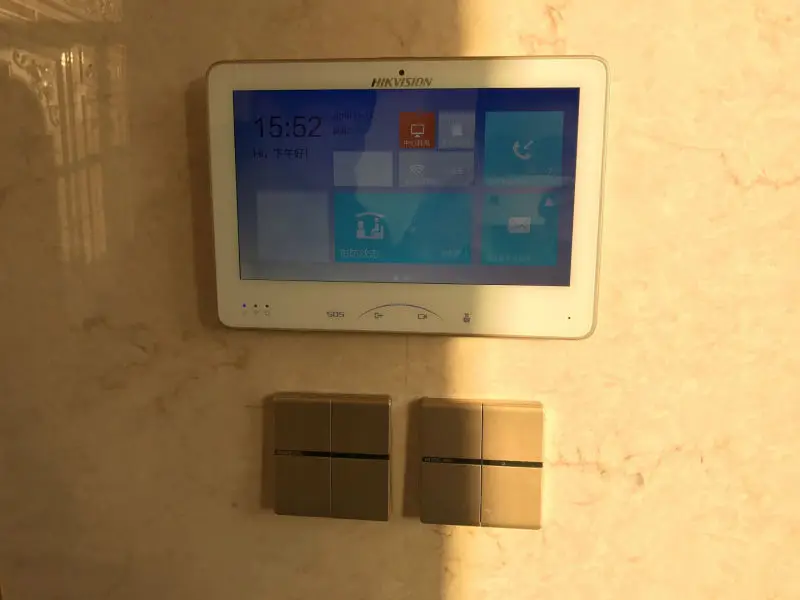

DS-KH8501-A for 10 inch touch all indoor machine, toughened glass panels, silver frame, after the dermatoglyph shell, highlight the noble qualities. A variety of color, black and silver (black gold, platinum, silver optional). Interface flattening, information visualization with capacitive touch screen and touch key, make information within reach.

Features:

support visible interphone

support family video calls

support video monitoring

take message function

automatic reply and don’t disturb function

privacy protection

hardware noise suppression and echo cancellation, ensure the quality of voice clear and bright

hall function

alarm function (8 access road protection zones, SOS emergency)

community bulletin

Wifi access wireless network

engineering installation convenience (hangs Taiwan stents, flash configuration, SD card upgrade, cable power supply)

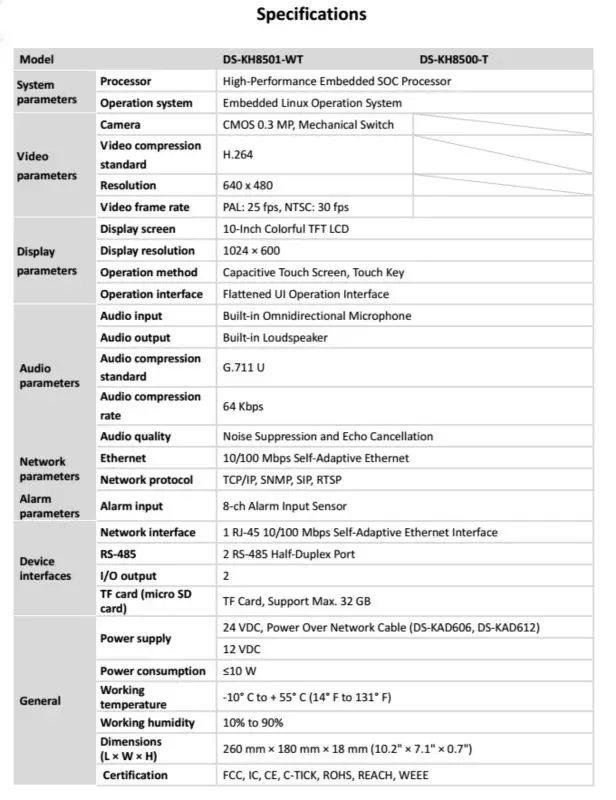

System parameters

High-performance embedded processor SOC processors

Operating system, embedded Linux operating system

Video parameters

30 w pixel cameras, CMOS, can switch

Video compression standard h. 264

1024 * 600 resolution

PAL: video frame rate of 25 frames per second, NTSC: 30 frames per second

Display parameters

7 inch TFT color LCD screen

1024 * 600 resolution

Operating mode capacitive touch screen, touch the keys

Interface flattening UI interface style, gorgeous atmosphere, easy to operate

Audio parameters

Built-in audio input all point to the microphone

Audio output built-in speakers

The audio compression standard g. 711 u

Audio compression bit rate of 64 KBPS

Sound quality support for noise suppression and echo cancellation

Network parameters

10 m / 100 m Ethernet adaptive

The network protocol TCP/IP, SNMP, SIP, RTSP

Wireless WiFi 802.11 b/g/n

Alarm parameters

Alarm input 8-way protection zones

Device interface

So a RJ45 10 m / 100 m adaptive Ethernet front-end ports

RS485 2, RS485 half-duplex

IO output 2

32 gb SD card TF card, the biggest support

The work environment

Working temperature 10 – + 55(degree centigrade)

Working humidity 10% to 90%

The power consumption of 10 or less w

The power cable or DC12V power supply

The other parameters

Overall dimensions 260 mm * 180 mm * 22mm
