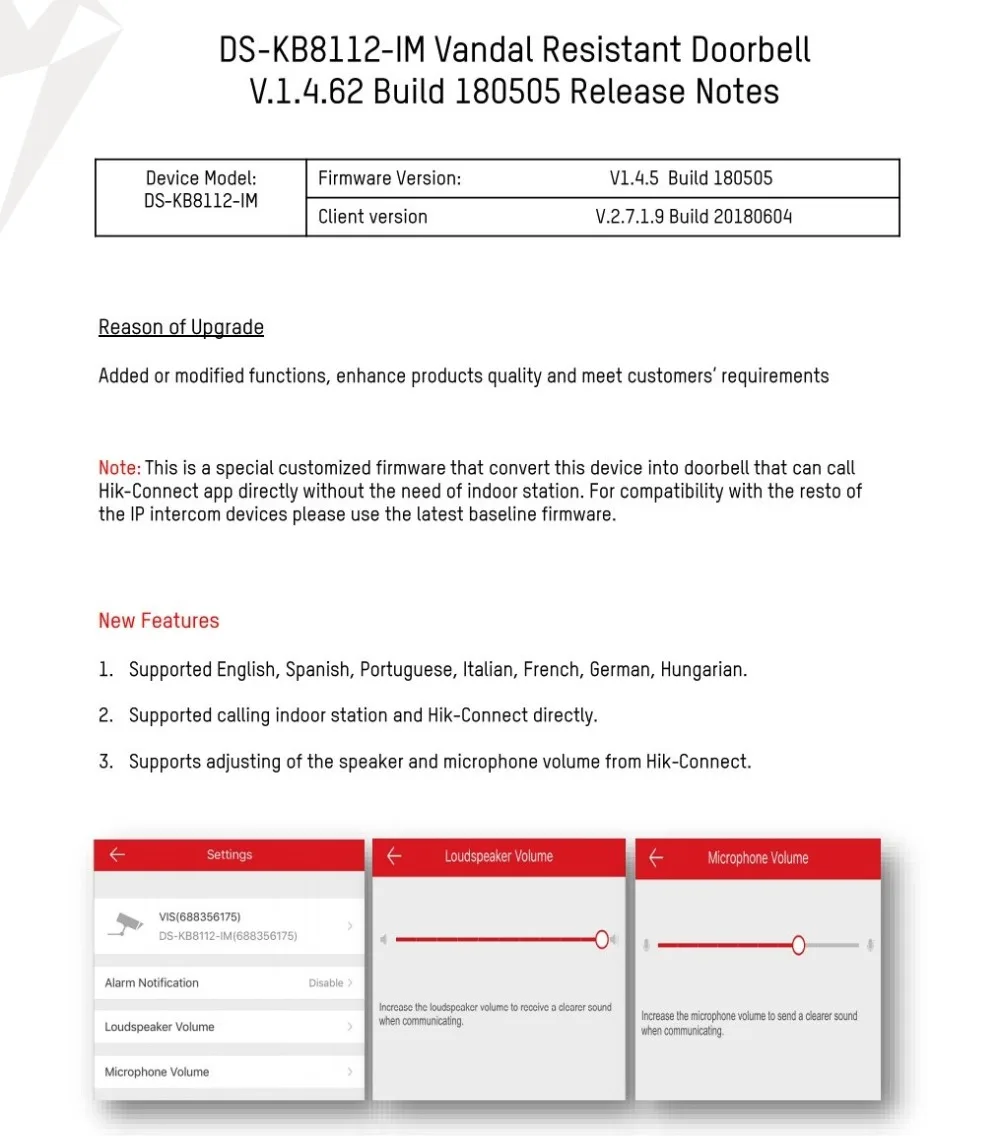

There are two ways of using DS-KB8112-IM,

1. Door phone mode, used alone, call to mobile APP:HIK-CONNECT.

2. Door station mode, cooperate with DS-KH8301-WT, and call Indoor monitor and HIK-CONNECT. at the same time.

DS-KB8112-IM есть два пути использования ,

1. дверь phone режим , использовать по отдельности, звонок на мобильный телефон APP:HIK-CONNECT

2. дверь station режим , с DS-KH8301-WT использовать одновременно call , крытый monitor и HIK-CONNECT.

Hay dos formas de DS-KB8112-IM,

1. Modo de uso individual, door Phone, llamando al teléfono HIK-CONNECT App:

2. Modo de uso de la estación de puerta con DS-KH8301-WT, también llamada Monitor y HIK-CONNECT Indoor.

System Parameters
Processor:	\|	High-Performance Embedded SOC Processor
Operation System:	\|	Embedded Linux Operation System
Camera Parameters
Image Sensor:	\|	1/3″ Progressive Scan CMOS, Color, Day/Night
Light sensitivity:	\|	Low Illumination
Lens:	\|	Pinhole, f3.47mm,F2.5
Field of view:	\|	80° (Horizontal), 44° (Vertical)
Field of view adjustment:	\|	-50° to 50°
Video Parameters
Video Compression Standard:	\|	H.264
Video streaming:	\|	Dual Stream
Resolution:	\|	Main Stream: 1280 × 720 Sub-Stream: 640 x 480
Video frame rate:	\|	PAL: 25 fps, NTSC: 30 fps
Video bit rate:	\|	Main Stream: 32 Kbps to 4096 Kbps Sub-Stream: 32 Kbps to 2048 Kbps
Anti-flicker frequency:	\|	50 Hz, 60 Hz
Wide dynamic range:	\|	Digital WDR, Auto-Switch, DAY/ON, NIGHT/OFF
Image settings:	\|	Color, Brightness, Contrast, Sharpness, Saturation, Video Standard,OSD Display
Audio Parameters
Audio streaming:	\|	Two-Way, Full Duplex
Audio Input:	\|	Built-in Omnidirectional Microphone
Audio Output:	\|	Built-in Loudspeaker
Audio Compression Standard:	\|	G.711 U
Audio Compression Rate:	\|	64 Kbps
Audio Quality:	\|	Noise Suppression and Echo Cancellation
Network Parameters
Ethernet:	\|	10/100 Mbps Self-Adaptive Ethernet
Light Supplement
Light Supplement Mode:	\|	IR Supplement, IR Distance: 5 Meters
Wavelength:	\|	940 nm
Control:	\|	Auto ON/OFF, Time ON/OFF
Alarm Parameters
Alarm Input:	\|	Door Magnetic Alarm
Device Interfaces
Network Interface:	\|	1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
I/O Input:	\|	1

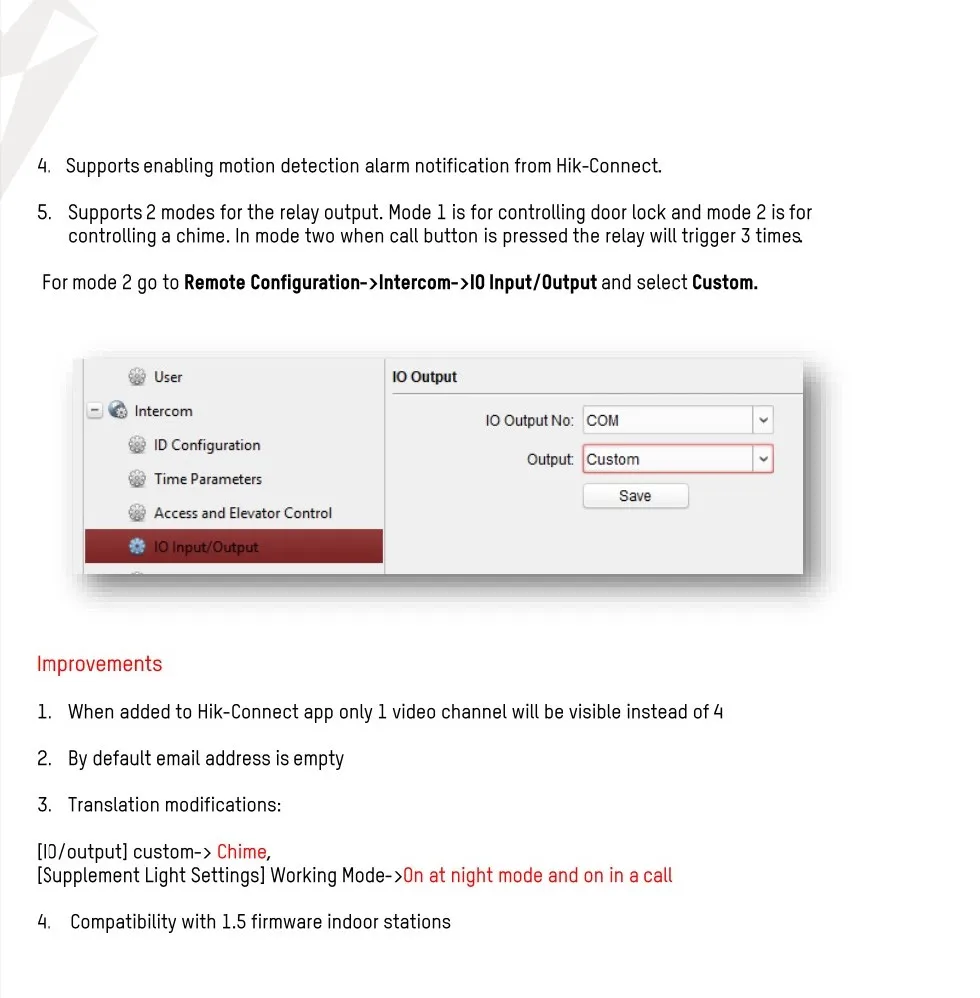

I/O Output:	\|	1 Relay Output
Event actions
Event:	\|	Motion Detection, Picture Capturing, Call Button Pressing
File uploading:	\|	FTP
Email notification:	\|	Login Succeeded via Software or Web
General
Impact protection:	\|	IK 9

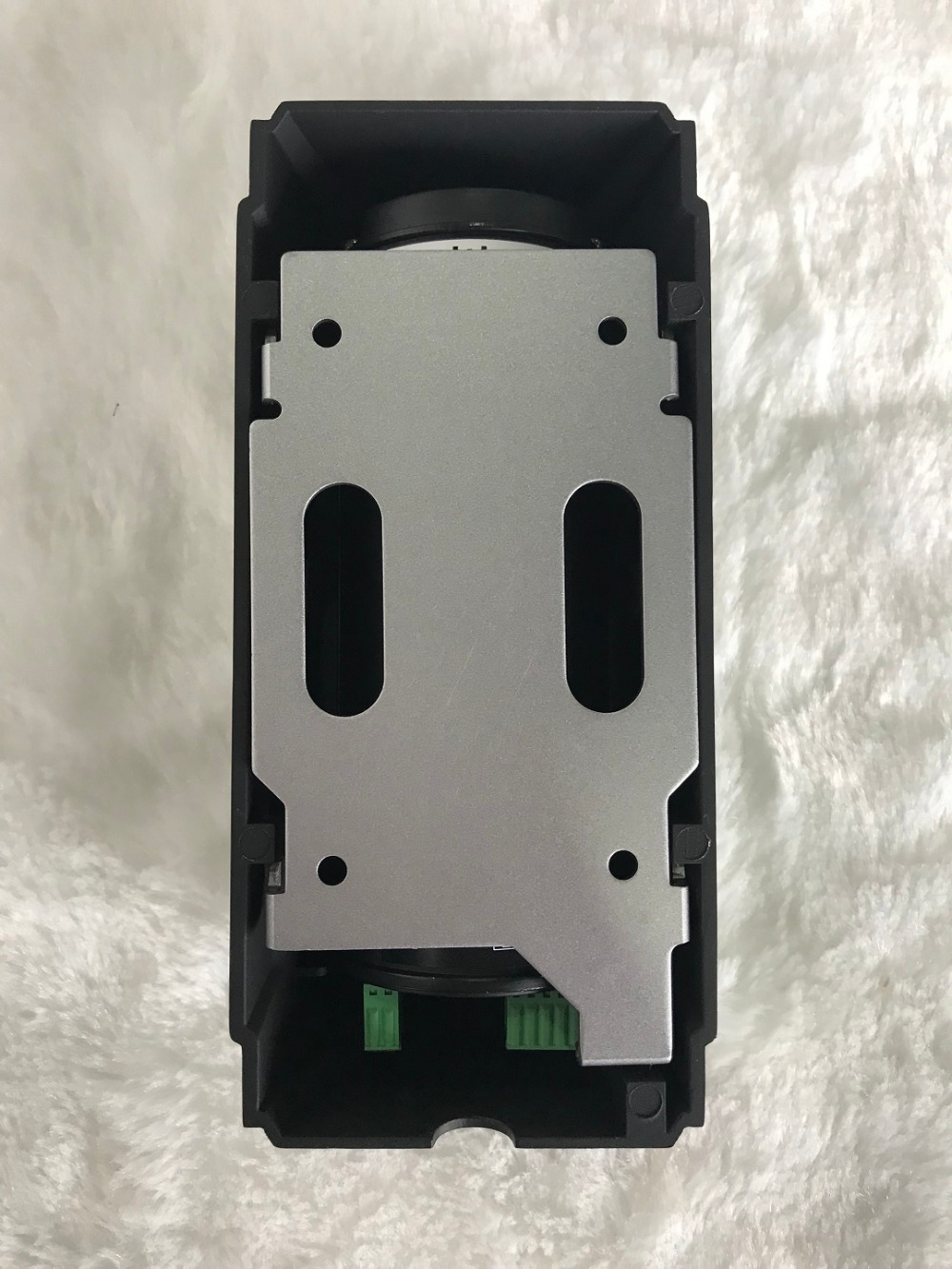

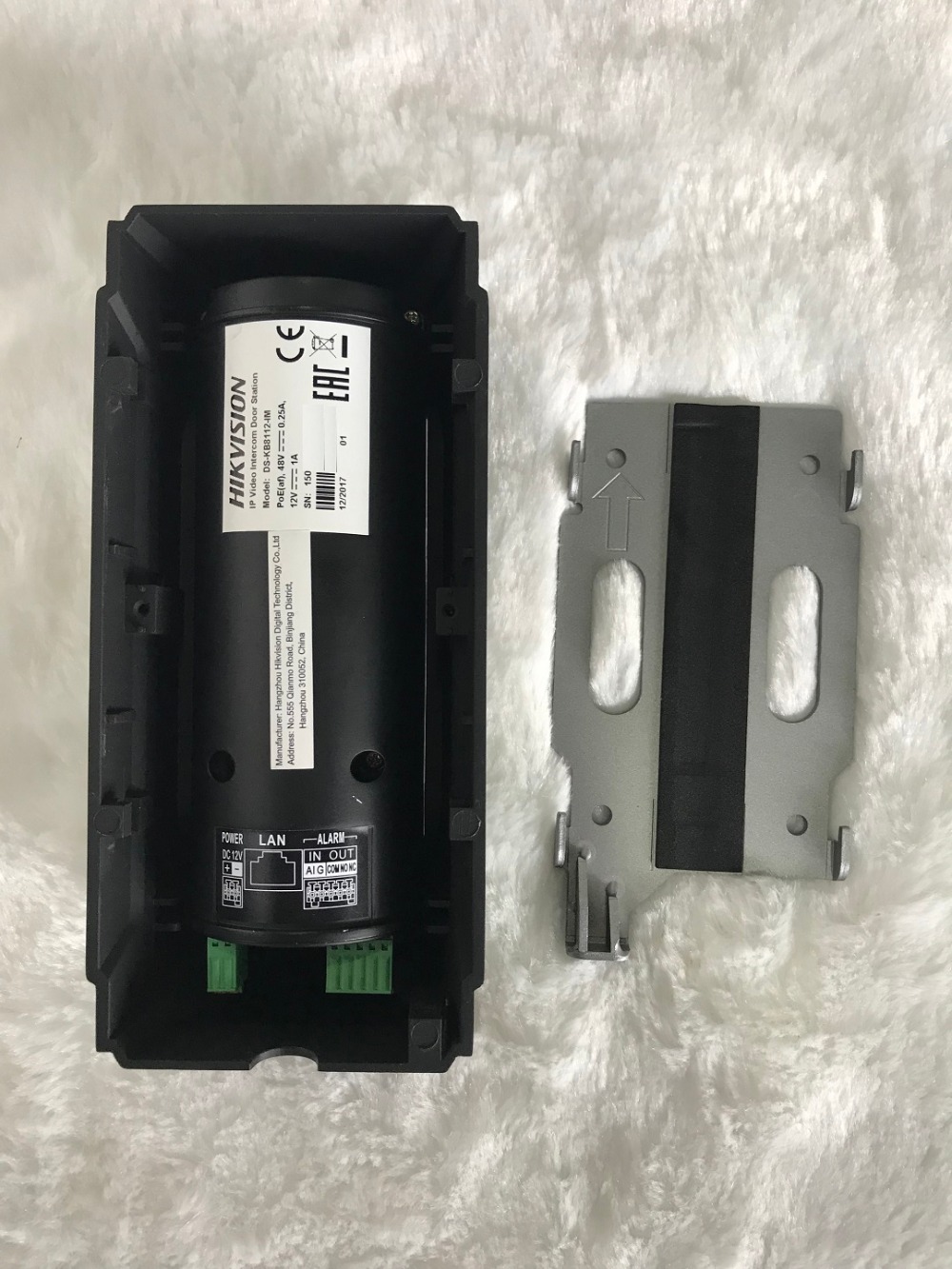

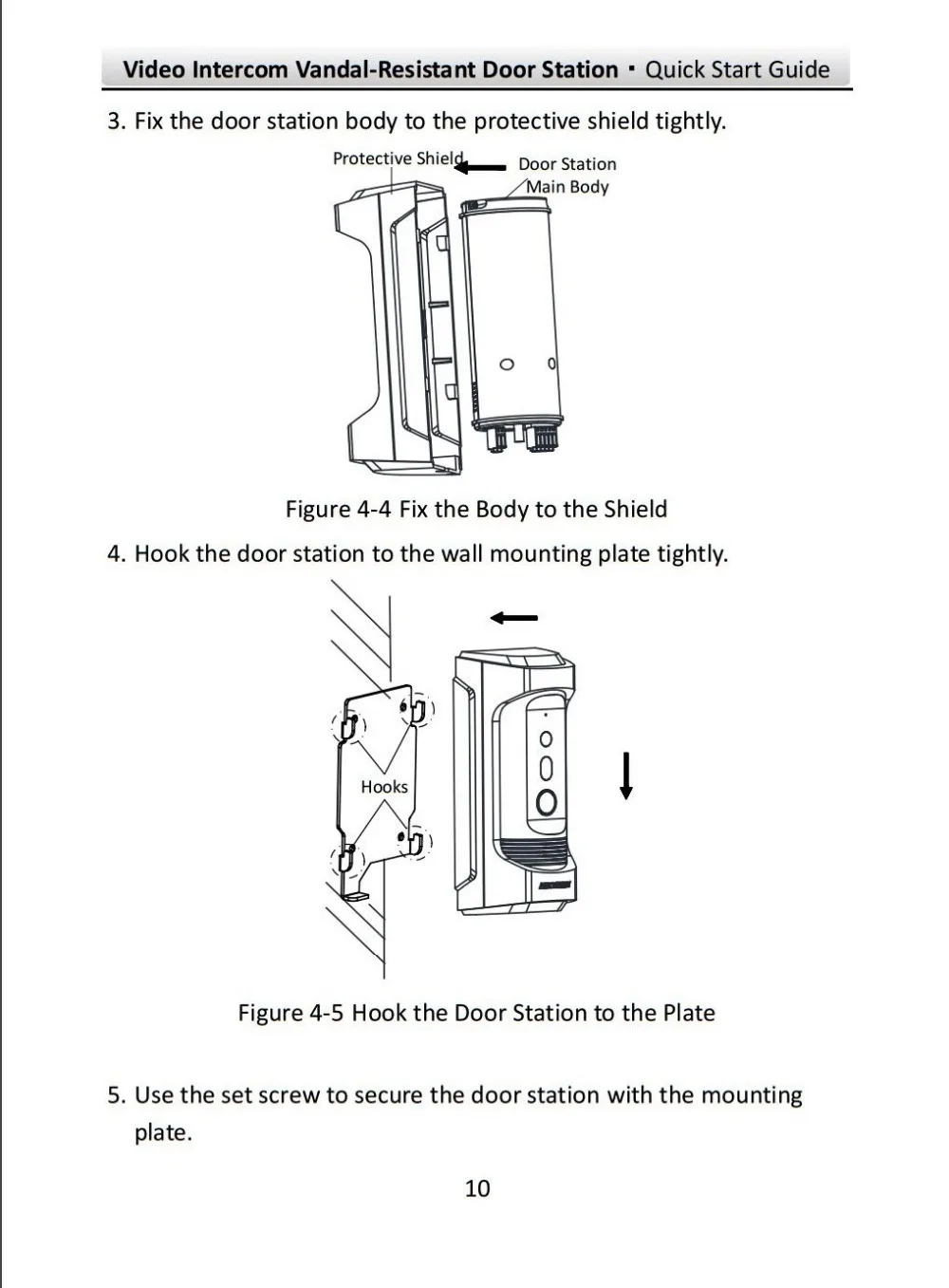

Material:	\|	Wall Mounting Shield: Zinc Alloy Front Panel: Zinc Alloy Rear Panel: Aluminum Alloy Wall Mounting Plate: Secc
Power Supply:	\|	PoE (Power over Ethernet) 12 VDC
Power Consumption:	\|	≤12 W
Working Temperature:	\|	-30° C to +50° C (-22° F to 122° F)
Working Humidity:	\|	10% to 90%
IP Protection Level:	\|	IP66
Video management software :	\|	Video management software from HIKVISOIN (included). For more information, see //www.hikvision.com/us/Tools_84.html
Dimensions(L × W × H):	\|	161.9 mm × 74.1 mm × 53.2 mm (6.37″ × 2.92″ × 2.09″)
Weight:	\|	773g (1.70lb)

SHIPPING AND DELIVERY

We are proud to offer international shipping services that currently operate in over 200 countries and islands worldwide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.

How do you ship packages?

Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.

Do you ship worldwide?

Yes. We provide free shipping to over 200 countries around the world. However, there are some locations we are unable to ship to. If you happen to be located in one of those countries we will contact you.

What about customs?

We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive in your country.

Do you provide tracking information?

Yes, you will receive an email once your order ships that contain your tracking information. If you haven’t received tracking info within 5 days, please contact us.

My tracking says “no information available at the moment”.

For some shipping companies, it takes 2-5 business days for the tracking information to update on the system. If your order was placed more than 5 business days ago and there is still no information on your tracking number, please contact us.

Will my items be sent in one package?

For logistical reasons, items in the same purchase will sometimes be sent in separate packages, even if you've specified combined shipping.

If you have any other questions, please contact us and we will do our best to help you out.

REFUNDS & RETURNS POLICY

Order cancellation

All orders can be cancelled until they are shipped. If your order has been paid and you need to make a change or cancel an order, you must contact us within 12 hours. Once the packaging and shipping process has started, it can no longer be cancelled.

Refunds

Your satisfaction is our #1 priority. Therefore, you can request a refund or reshipment for ordered products if:

If you did not receive the product within the guaranteed time( 45 days not including 2-5 day processing) you can request a refund or a reshipment.
If you received the wrong item you can request a refund or a reshipment.
If you do not want the product you’ve received you may request a refund but you must return the item at your expense and the item must be unused.

We do not issue the refund if:

Your order did not arrive due to factors within your control (i.e. providing the wrong shipping address)
Your order did not arrive due to exceptional circumstances outside the control of LionnoirBoutique (i.e. not cleared by customs, delayed by a natural disaster).
Other exceptional circumstances outside the control of https://www.lionnoirboutique.com

*You can submit refund requests within 15 days after the guaranteed period for delivery (45 days) has expired. You can do it by sending a message on Contact Us page

If you are approved for a refund, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 14 days.

Exchanges

If for any reason you would like to exchange your product, perhaps for a different size in clothing. You must contact us first and we will guide you through the steps.

Please do not send your purchase back to us unless we authorise you to do so.

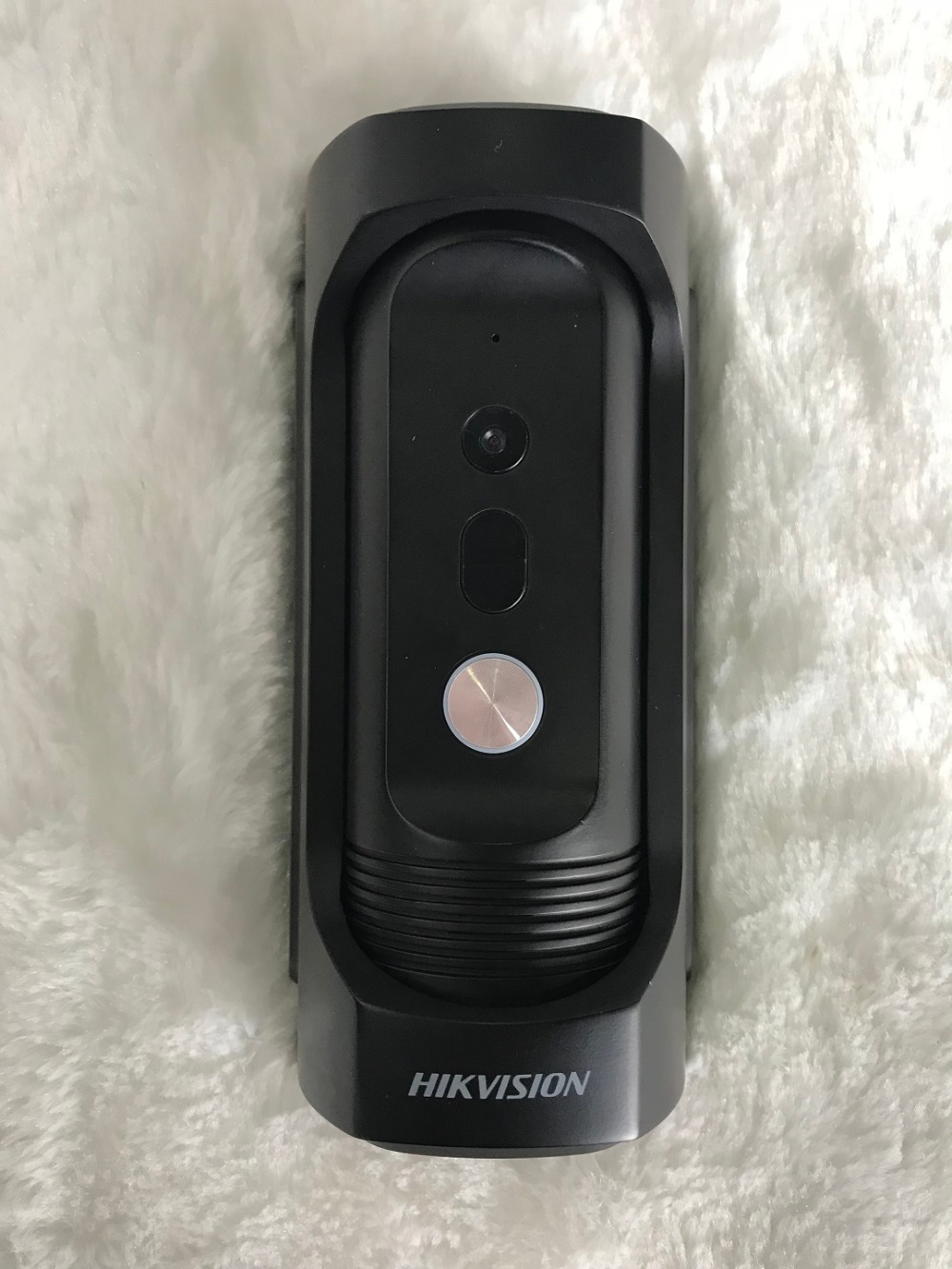

Hikvision Door phone DS-KB8112-IM IP Video Intercom Water Proof Vandal-Resistant Door Station H.264 Door Magnetic Alarm Doorbell
