Mobile APP:Hik-connect(The WIFI of the indoor monitor must be activated)

APP Support multi language;

When someone pushes the button of outdoor station,you can receive information on your mobile phone,you can use the phone to unlock door/Electric door closer,and answer/hang up the video;

The outdoor station can access to HIKVISION NVR,and it can live view,record,playback.

You can swipe card on the outdoor station to unlock,can also swipe card to HIKVISION 485 card reader.

If you use 2/4-button outdoor station, indoor monitors support video dialogue among each room number,For example 101 call 201,101 call 301,201 call 301,and if indoor monitor has a camera,Each room can see each other’s video images.;

If you use one-button outdoor station,and you have more than one indoor monitor,Master indoor monitor and Slave indoor monitor can’t support video dialogue between them,becuse there is only one room number.

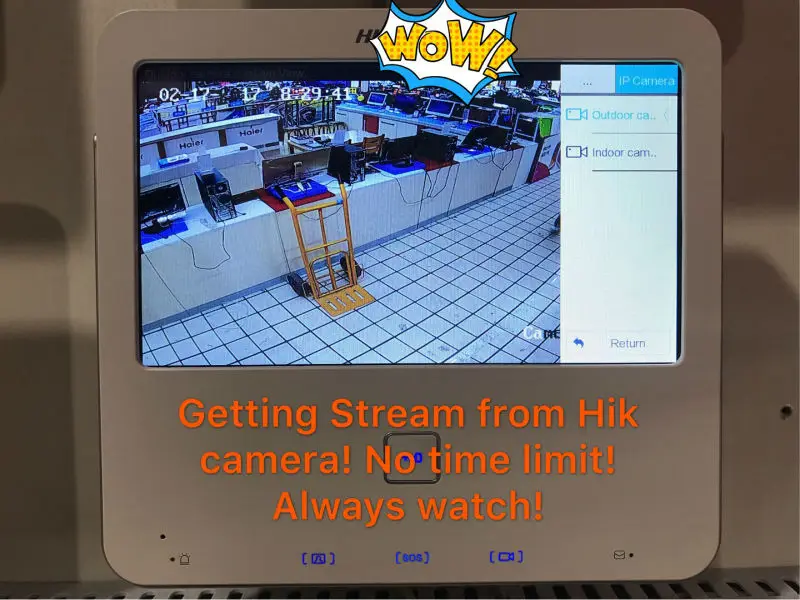

The indoor monitor can take a sub video stream from HIKVISION camera,without time limit!（The base version does not have this feature.）

DS-KH8301-WT/DS-KH8501-WT can insert TF memory card, support video recode and playback video;

The indoor monitor has the function of Alarm input and Alarm output,and it can connect to Infrared alarm detectors, smoke detectors, gas detectors, magnetometer sensor,and it can connect to Acousto-optic alarm;

When the indoor monitor alarms,it can push information to your phone.

The indoor monitor can control opening Electric Lock and Hikvision fingerprint/smart lock;

Support a door machine more than indoor machine or many sets of the door machine many sets of indoor machine; The door machine from indoor machine can be used alone, but only a credit card to open the door, when simple entrance guard controller is used, as well as access to the LAN Hik in video recorder,;

Indoor machine can be used alone out of the door machine, may receive alarm detector (gas detectors, smoke detectors, infrared detectors, emergency button, gate magnetism, etc.), when a simple alarm host use, can also video preview in LAN Hik camera;

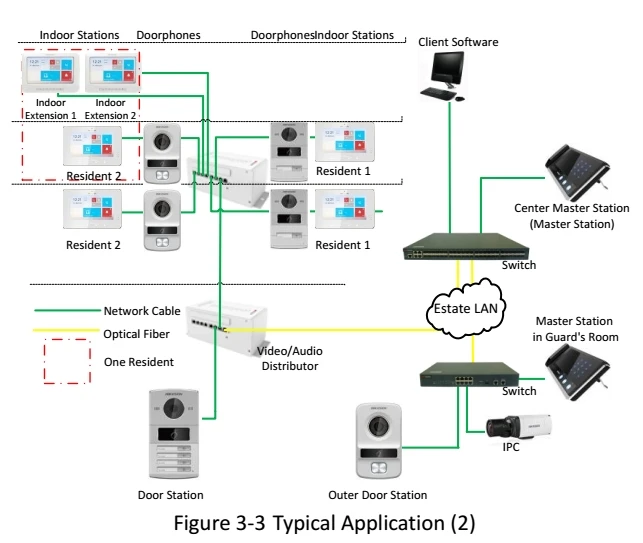

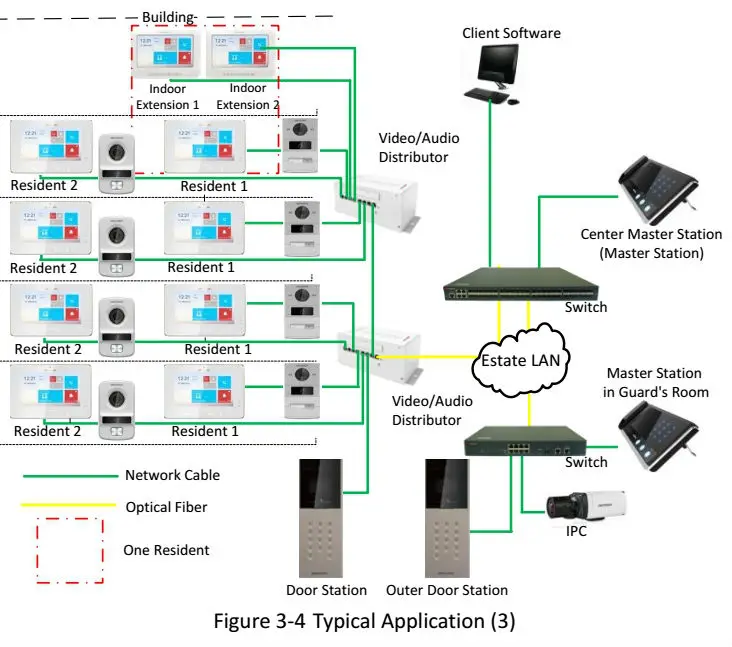

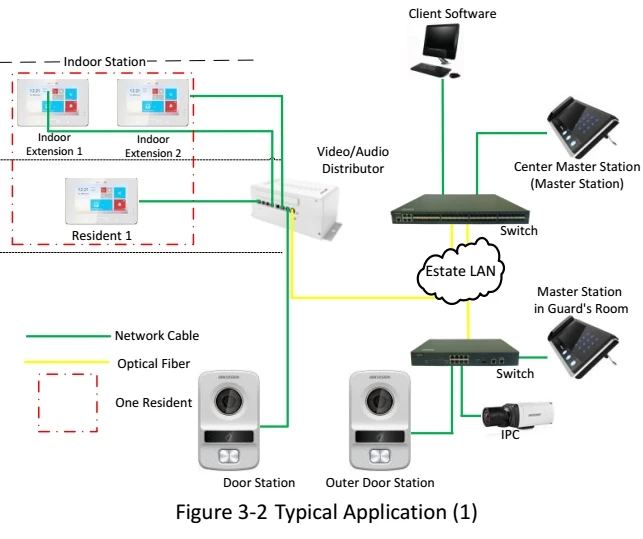

The collocation of support way:

One to One video doorphone;

One to Two video doorphone;

One to Three video doorphone;

One to Four video doorphone;

One to Five video doorphone;

One to Six video doorphone;

Two to One video doorphone;

Two to Two video doorphone;

Two to Three video doorphone;

Two to Four video doorphone;

Two to Five video doorphone;

Two to Six video doorphone;

N to N video doorphone;

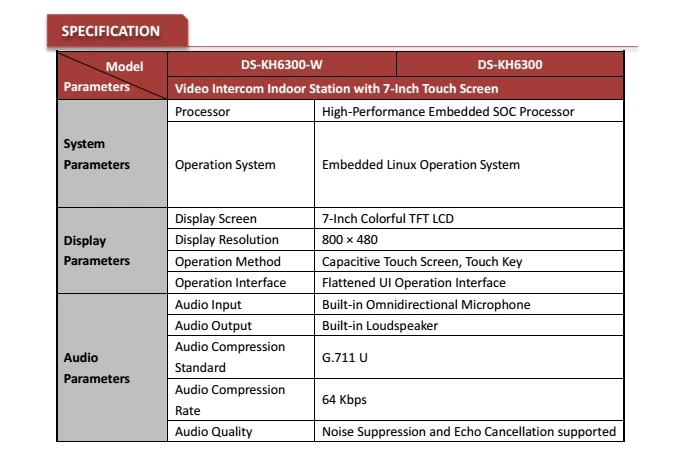

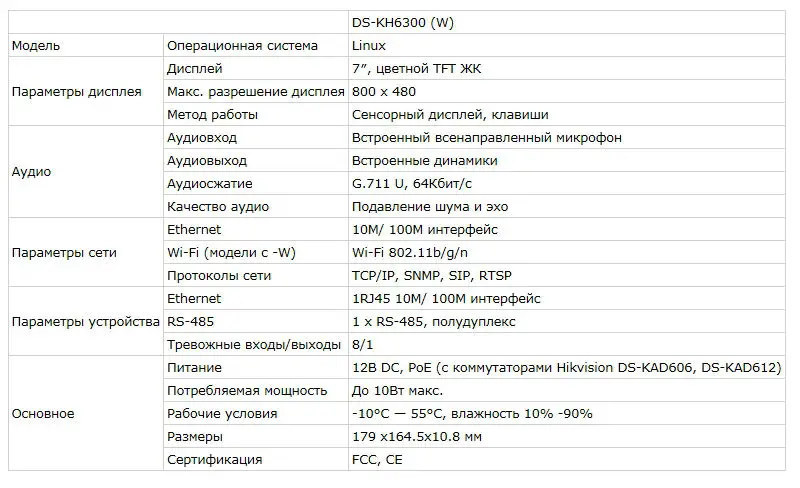

System parameters

High-performance embedded processor SOC processors

Operating system, embedded Linux operating system

Display parameters

7 inch TFT color LCD screen

Resolution 800 x 480

Operating mode capacitive touch screen, touch the keys

Interface flattening UI interface style, gorgeous atmosphere, easy to operate

Audio parameters

Built-in audio input all point to the microphone

Audio output built-in speakers

The audio compression standard g. 711 u

Audio compression bit rate of 64 KBPS

Sound quality support for noise suppression and echo cancellation

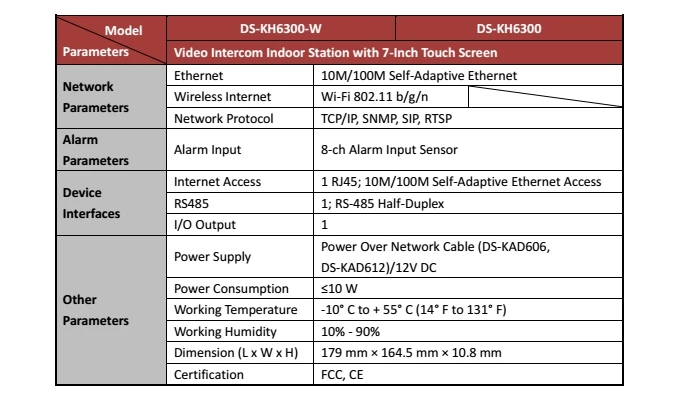

Network parameters

10 m / 100 m Ethernet adaptive

The network protocol TCP/IP, SNMP, SIP, RTSP

Wireless networks DS – KH6300 – A: WiFi 802.11 b/g/n

Alarm parameters

Alarm input 8-way protection zones

Device interface

So a RJ45 10 m / 100 m adaptive Ethernet front-end ports

1 RS485, RS485 full-duplex

IO input 8-way protection zones

IO output 1

The work environment

Working humidity 10% to 90%

The power consumption of 10 or less w

The power cable or DC12V power supply

The other parameters

Shape dimension 195.8 mm long x 132.8 mm wide x 17.5 mm high
