1.Product description

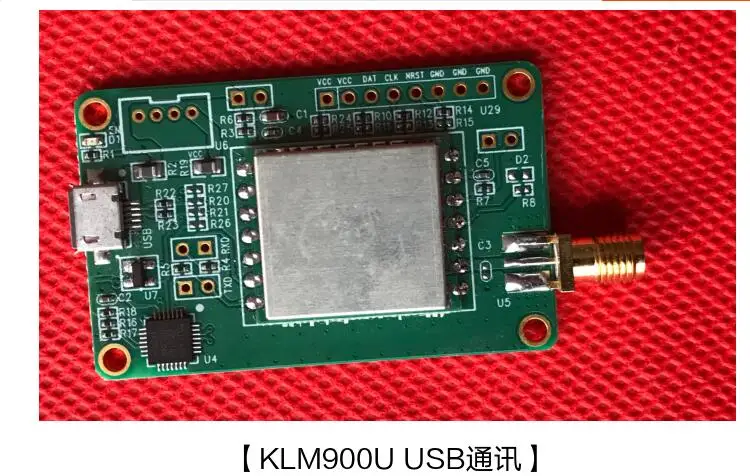

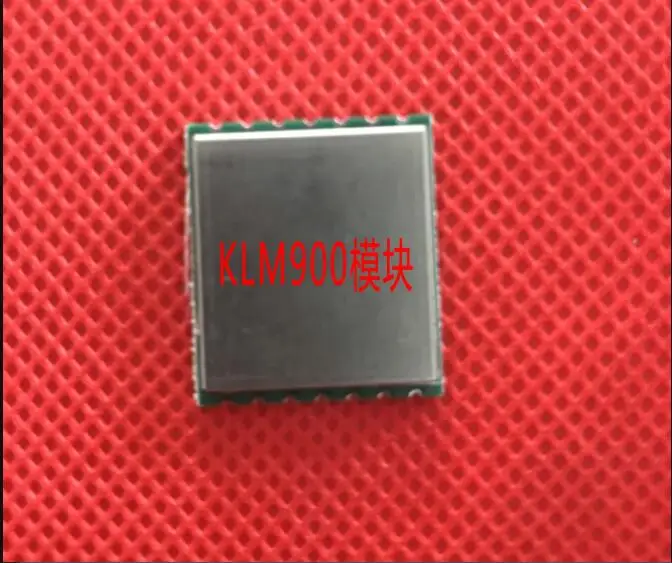

Module No.: KLM900U(USB)

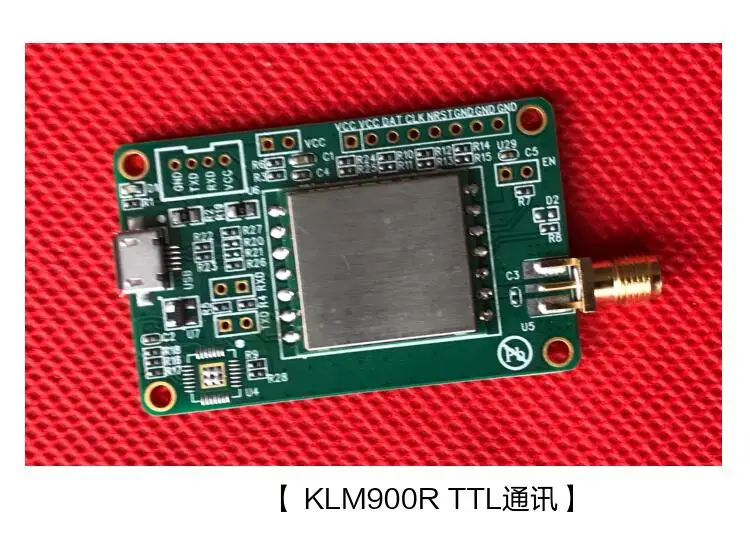

KLM900R(TTL)
The module supports the ISO18000-6C / EPC C1G2 protocol, and the user can communicate with its own device through RS232-TTL pin on its interface. Its wide supply range (DC3.6V ~ 5.5V) and configurable GPIO interface (IO1 ~ IO4, configurable as input / output) give the user more options.
Due to the low power consumption and small size of the module, it is ideal for embedding in handheld mobile devices as well as short-range applications such as short distance handsets, mobile phone accessories, card issuers and so on.

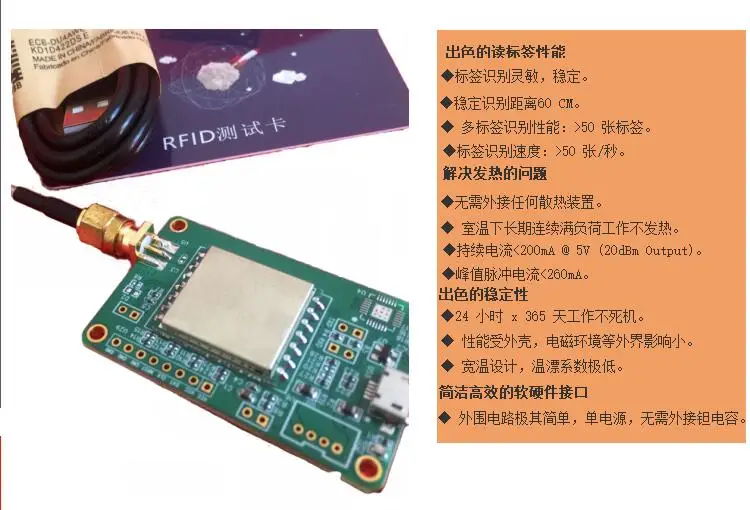

1. Product Features
2.Technical indicators

Operation Volt

DC 3.5V – 5 V

Standby Current

<80mA

Operating Current

180mA @ 5V (26 dBm Output,25°C)

100mA @ 5V (18 dBm Output,25°C)

Start time

<100mS

Operating Temperature

– 20 °C – + 70 °C

Storage Temperature

– 20 °C – + 85 °C

Operating humidity

< 95% ( + 25 °C)

Air Interface protocol

EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C

Frequency Range

902-928Mhz (US)/920-925MHz (CHN)/865-868MHz (EU)

Supported Regions

Power range

US,Canada and other regions following U.S.FCC Europe and other regions following ETSI EN 302 208

Mainland China

Japan

Korea
Malaysia
Taiwan
12.5-20 dBm

Power accuracy

+/- 1dB

Power Flatness

+/- 0.2dB

RF Output Connector

I-PEX

Receiver Sensitivity

< -70dBm

Read Tag speed

> 50 Pcs/s

TAG Buffer

200 pcs tag @ 96 bit EPC

RSSI

Support

Communication Port

TTL Uart

Communication Baud Rate

115200 bps(Default)

38400bps

Cooling method Air cooling (no external heat sink required)
Size: 19.76 x 22.76 x 1.5 (Unit: mm)
Communication distance: 1 meter (outdoor open) (30mm × 25mm ceramic antenna)

Communication interface: TTL-RS232 (baud rate: 115200bps, data bits: 8, stop bit: 1,
Parity bit: none, flow control bits: none

Support hibernation;
Provide AIP library functions and demo kits;

3. Application scope
It is used in a variety of wireless RFID applications such as:
1.Handheld mobile devices,
2.Items and logistics management,
3.Warehousing management,
4.Animal management,
5.Goods security,
6.Electronic goods surveillance
7.Manufacturing and processing,
8.Production automation and so on.

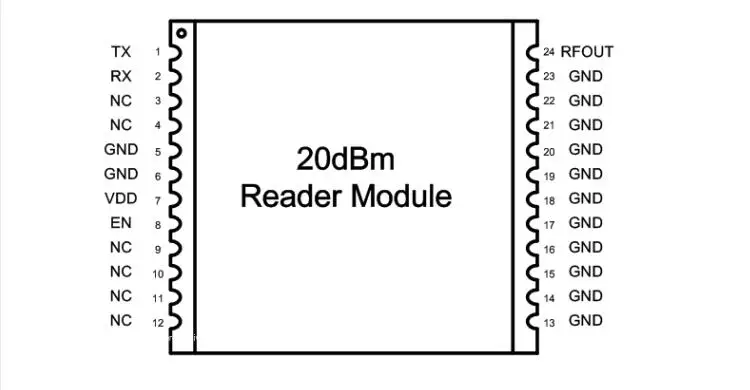

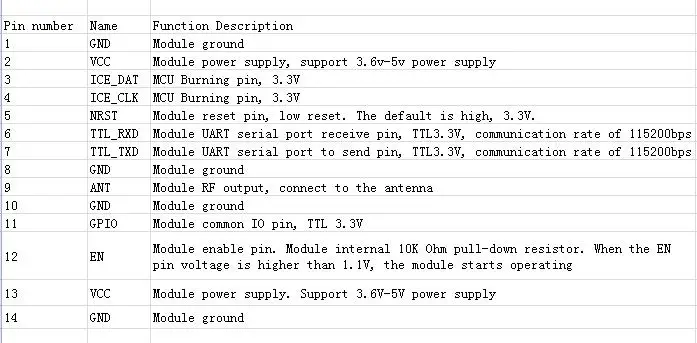

4.Interface description

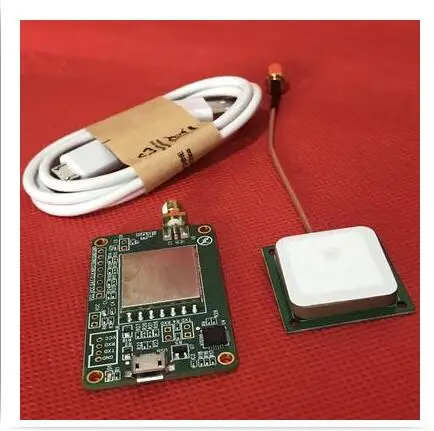

usb interface including :1. module 2. usb line 3. ceramic antenna(ceramic 25x25mm, pcb 30x30mm) 4.Test card

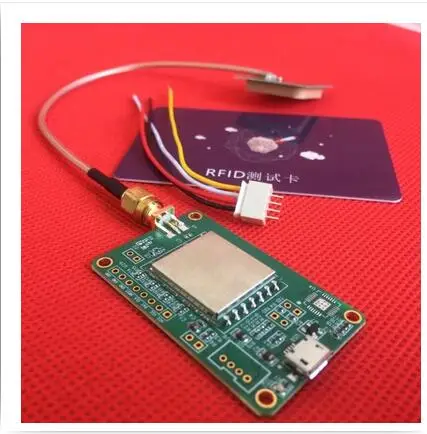

TTL interface including :1. module 2.ceramic antenna( ceramic 25x25mm, pcb 30x30mm) 3. 1XTerminal line(pitch 2.0-4P) 4.1xStandard test card
