Package List

1 2.4 inch TFT LCD Display *1

2 DC5V power input AD Board support Video input *1pc.

3 Power&Video (CVBS) Cable with Terminal *1

4 Key Board Cable with Terminal: *1

Feature

GD24TWD-GTT24P138 is 480 x (RGB) x 234 dots 2.4 inch color TFT-LCD module display with video driver board, superior display quality, super wide view angle. It can be used in any embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful video.

Specification

Part Number	GD24TWD-GTT24P138(5V)
Size	2.4”
Resolution	480*234
Brightness	300cd/m2
Working Voltage	DC5V
Viewing Angle(U/D/L/R)	50/65/65/65°
Signal input	VIDEO
Outside dimension of lcd panel	55.5(W)47.9(H)3.17(D)mm
Active Area of lcd panel	48.0(H)*35.69(V)mm
Structural dimension of PCBA	50.0(W)50.0(H)5.2(D)mm
Backlight	LED
Operating temperature	-10C~+60C
Storage temperature	-20C~+70C

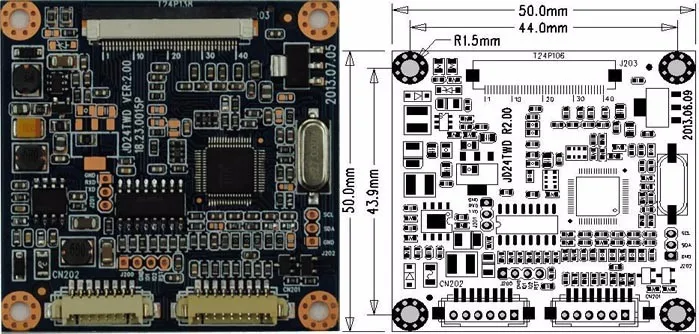

PCBA (A/D Board)
