3.5 inch 320×240 Video input TFT LCD Module
The above price includes
1)3.5” 320×240 TFT LCD Panel *1pc
2)DV12V power input AD board support Video signal input *1pc
3)Cable with Keypad terminal *1pc
4)Cable with Power input & Video input terminal *1pc
Main Parameters
| Part Number | GD40M05-GTT035KDH03 |
| Size | 3.5’’ |
| Resolution | 320*240 |
| Brightness | 300cd/m2 |
| Working Voltage | DC12V(DC9~15V,DC110mA±20mA |
| Viewing Angle(U/D/L/R) | 40/60/60/60° |
| Signal input | VIDEO |
| Outside dimension of lcd panel(mm) | 76.9(W)*63.9(H)*3.2(D) |
| Active Area of lcd panel(mm) | 70.08(W)*52.56(H) |

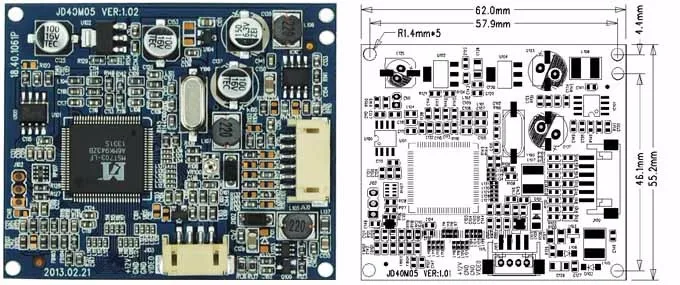

| Structural dimension of PCBA(mm) | 62.0(W)*55.2(H)*9.0(D) |
| Backlight | LED |
| Operating temperature | -10C~+60C |
| Storage temperature | -20C~+70C |
|
|
Payment / Shipment /Warranty
We accept credit cards, T/T bank transfer, Moneybookers and debit cards. All major credit cards are accepted through secure payment of processor ESCROW.
——————————————————————————————————————————————————————-
1.We cannot arrange shipments on weekend or public holidays.
2.Your orders will be shipped out within 72 hours after your payment is verified (Excludes Saturdays & Sundays) when stock is available.
Please be advised that the international delivery time highly depends on your local customs and post services policy.
We ship to aliexpress’ address only, please make sure your address in aliexpress is right. If you have special request, please inform us in advance.
3.Our price do not include taxes,VAT or other hidden charges, to insure you pay for zero or minimum tax, we will declare your goods as sample with lower item value.So please inform us in advance if you have requirements for item before shipping.
——————————————————————————————————————————————————————–
1.This product comes with one-year warranty. Buyers must contact us first for the exchange within the warranty period.
2.All the products will be 100% test before delivery.
3.Our warranty does not extend to any products that are physically damaged or are not under normal operating conditions as a result of misuse or improper installation on the buyer’s part.
4.We will provide a Returned Merchandise Authorization (RMA) Number for each item that needs returning. We do not accept the returns without a RMA number.
5.The returns should be returned with our original packages.
6.Defective products must be returned with 30 days from the RMA issuing date.
7.Customers must contact us first for the return address.
8.No refund is accepted after 30 days of receipt.
9.The returns made for non-defective merchandise will be charged a up to 30% restocking fee
10.In all cases, buyers pay for the shipping fees at their own cost to return products for exchange or refund. We will be responsible for the postage of replacements.
11.The refund will be made upon receipt of the return item. After we receive the product, we inspect it to determine the cause of any defect, then update by email with our findings. This process takes five business days.
