Standard Specifications

Free Ship iData90 Industrial Windows Mobile 6.5 Wireless PDA 1D 2D Handheld Data Collector With 13.56 MHz RFID WIFI BT IP65

The price equip with follwing Configuration

1. Windows Mobile 6.5 Operation System.

2. 512 MB ROM+256 MB RAM Memory

3. Wifi / Bluetooth2.0 / IP65

4. 3.5-inch RETINA display screen (320×480)

5. Free shipping by DHL

6. Optional : 1D Or 2D barcode Scanner ,Charger Seat ,Camera ,RFID module depends on your choose

Pls contact us before order if your have some questions . Welcome !

1. Techinican keep on aftersale service .

2. Help you write lower invocie value to avoid highly customs tax.

3.Can be delivery acording to your demand (DHL,UPS,EMS etc.).

4.Taking pictures update you before your order shipping .

 5.Product Quality And Your Buying Experience Is Our Original Intention !

System Configuration

CPU: ” 600 MHz high-performance ARM processor”

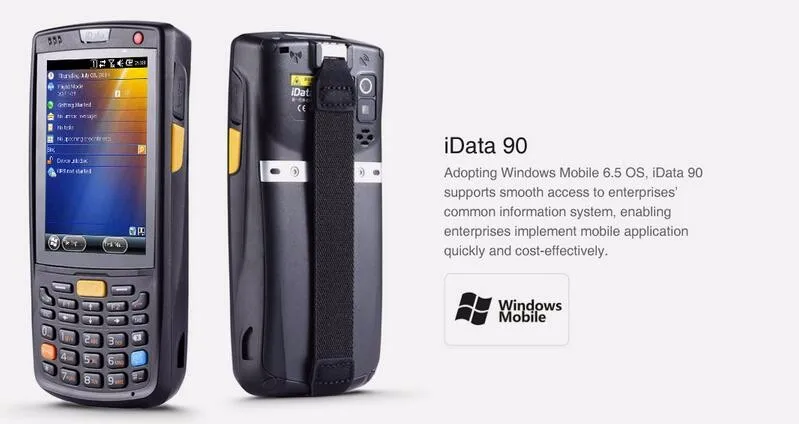

Operating System: Microsoft® Windows Mobile 6.5

Memory: 512 MB ROM+256 MB RAM

Expansion Slot: Mini SD card, up to 32 GB (PSAM card optional )

Display: 3.5-inch HVGA (320×480), high brightness TFT LCD, LED backlight

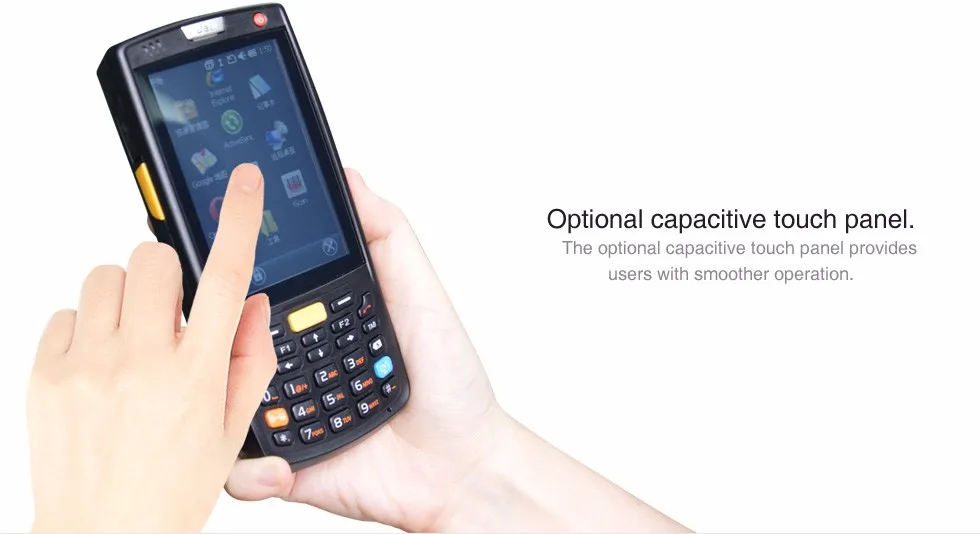

Touch Panel: Resistive touch panel (Industrial-grade capacitive touch panel optional)

Camera (Optional): 5 Mega pixel, autofocus lens, LED flash

Exit Window: Corning® Gorilla® glass

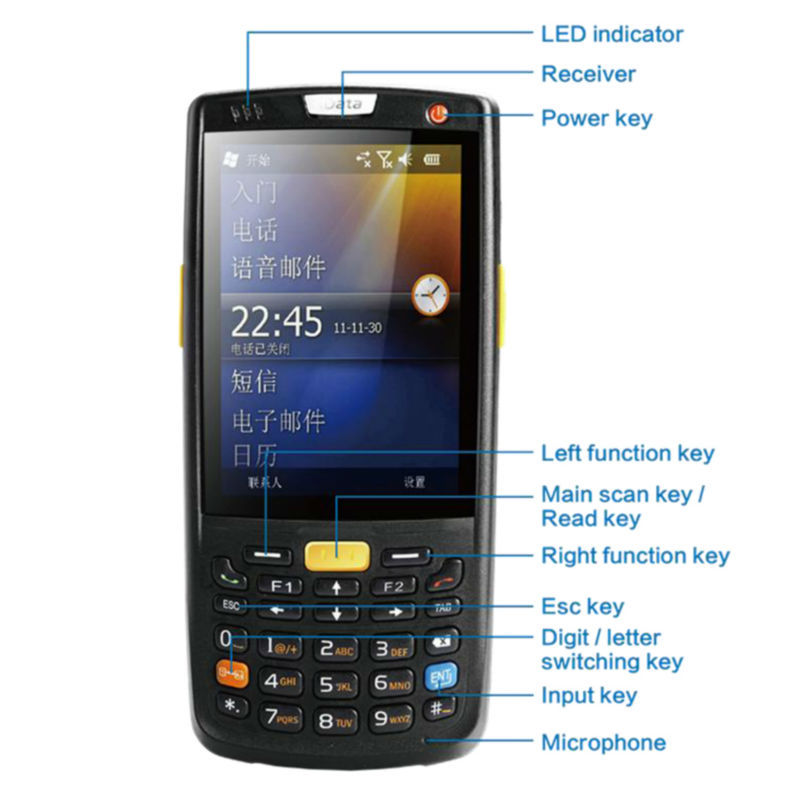

Keypad: 28-key durable industrial keypad with interior transmission light

Battery: 3.7 V 4000 mAh rechargeable lithium polymer battery (6000 mAh battery optional)

Audio: Built-in microphone

Notification: Vibrator alerts/LED/Audio notification

Vibration Motor: Built-in programmable vibration motor

Operating Environment

Development Tools: Visual Studio 2005/2008, with Software Development Kit (SDK)

Programming Language: C++, C#, .NET

Management Tools: iData Service

Operating Temp.: -10 to 50 degree

Storage Temp.: -20degree to 60 degree

Relative Humidity: 0 to 95% (non-condensing)

Drop Specification : 1.5-meter drops to concrete ground

Tumble Specification: 500 0.5-m tumbles (1000 hits)

Sealing: IP65

Electrostatic Discharge: Conforms to ± 15 kV air discharge, ± 8 kV direct discharge

Structural Parameters

Dimensions (LxWxD): 152 mm x 68 mm x 24 mm

Weight: 255 g (standard battery included)

Communication Transmission

Wireless LAN: Wi-Fi 802.11b/g

Bluetooth: Bluetooth 2.0+EDR

Input/Output Ports

USB Port: 1 ( Micro USB port)

Charger Port: 1 (DC port)

RS232 Port: 1

1D Laser Scanner

Optical Resolution: ≥4 mil

Scan Depth of Field: 3.81 cm – 60.98 cm

Scan Angle:

47°± 3° (Standard)

Scan Speed:

102 ± 12 scans/sec. (Bidirectional)

1D Linear Imager

Reading Mode: CCD

Reading Accuracy: ≥4 mil

Decoding Speed: 300 times/sec. (Max.)

2D Area Imager

Optical Resolution: ≥3 mil

Scan Angle: Omnidirectional

Scan Speed: 300 scans/sec.

RFID

Frequency: 13.56 MHz

Reading Distance: Within 50 mm

Protocol: ISO14443A/14443B/15693

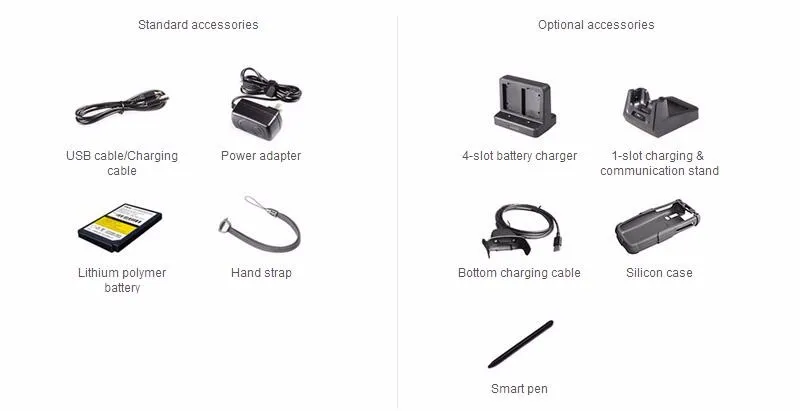

Accessories

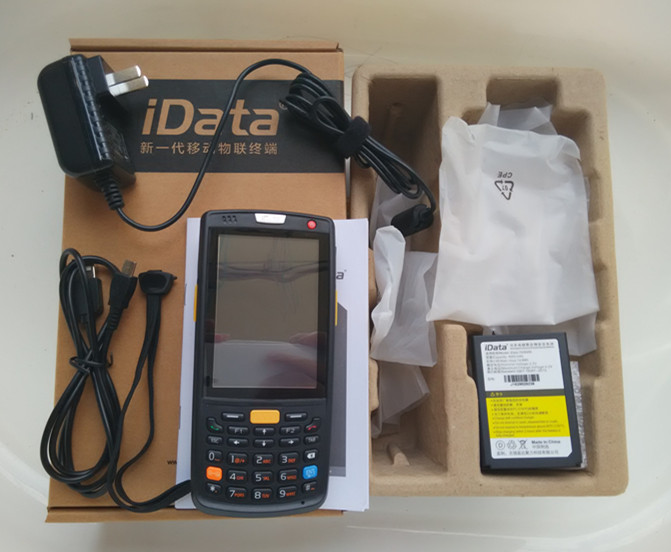

Standard: Battery, Power adapter, USB cable/Charging cable, Hand strap

Optional: 1-slot charging & communication stand, 4-slot battery charger, Silicon Case, Smart pen, Bottom charging cable

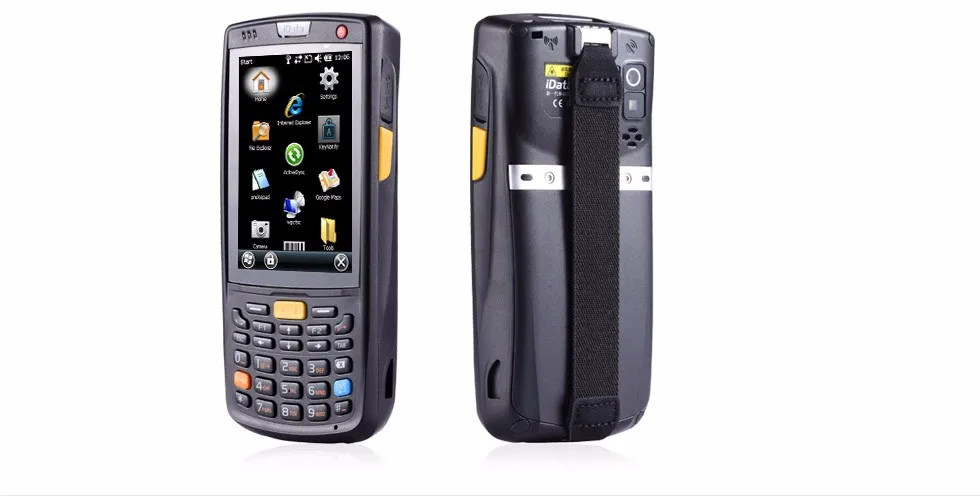

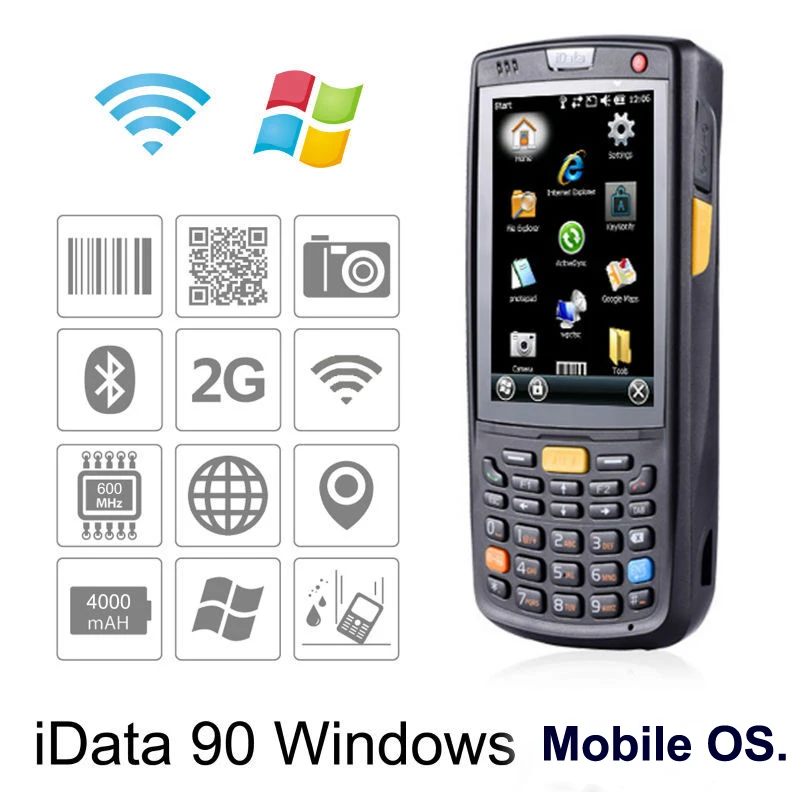

Product Pictures

Free Ship iData90 Industrial Windows Mobile 6.5 Wireless PDA 1D 2D Handheld Data Collector With 13.56 MHz RFID WIFI BT 3G IP65

Excellent data collection and transmission.

Support various data collection modes such as 1D/2D barcode scanning, DPM reading, RFID label reading,

infrared data communication module, and HD camera,

providing professional, accurate, quick and convenient collection of business data.

Support multiple wireless communication modes such as

Wi-Fi for remote and real-time transmission of mass business data.

Reliable and durable products.

Based on full understanding of enterprise mobility, each aspect of iData 90, including product design, parts selection,

production and testing, is rigorous and strict to ensure that each iData device is reliable and durable.

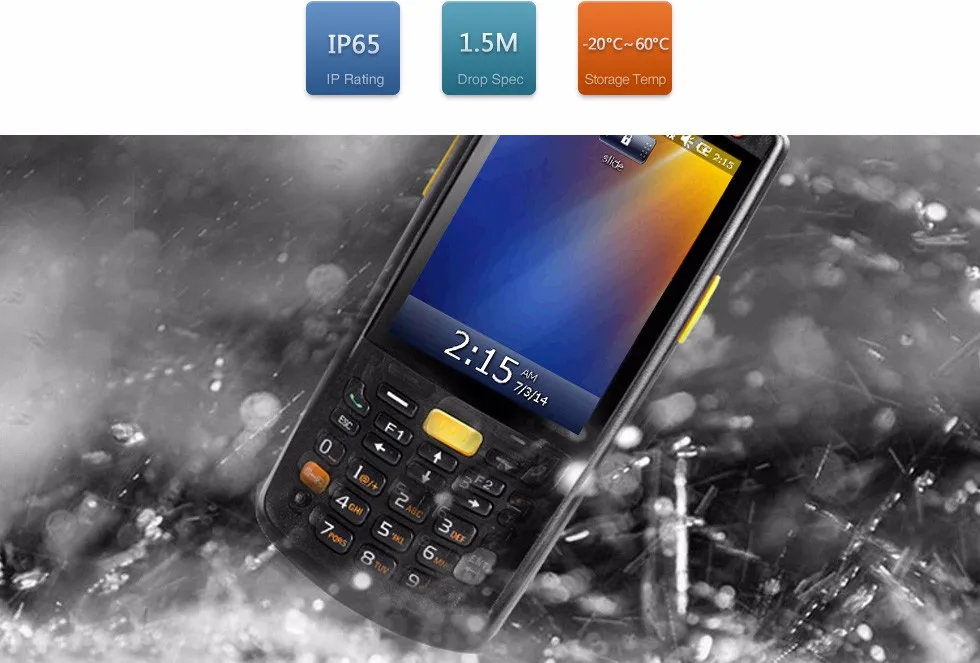

Designed for severe working environment.

Rugged and professional iData 90 can meet a protection grade of IP65, bear 1.5-meter-high drop and storage

temperature of -20°C to 60°C, and adapt to more complex and severe working environment.

More reliable and durable shell.

The shell is made of PC engineering plastics from GE, which makes iData 90 more reliable and durable.

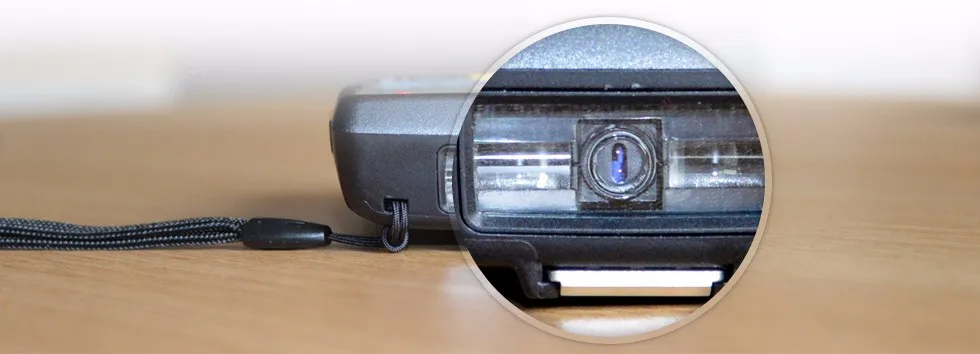

Corning glass exit window.

The exit window is made of Corning glass for better scratch-resistance, higher light transmittance,

more accurate and higher speed scanning.

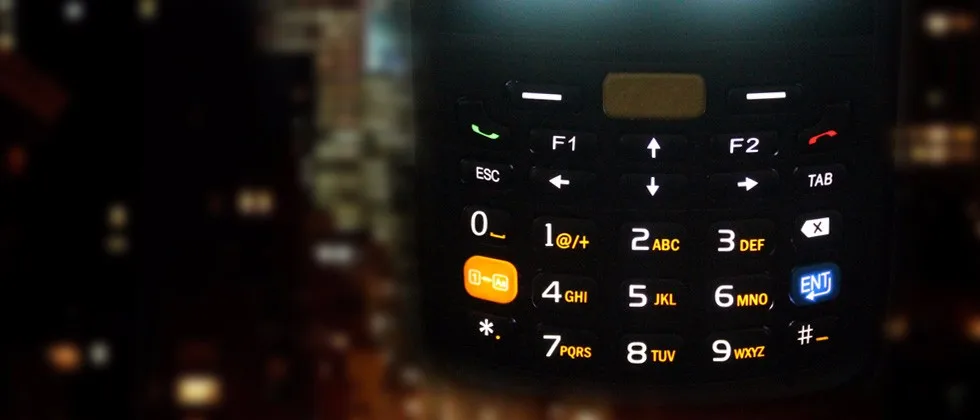

Industrial-grade keys & keypad with internal transparent light.

Industrial-grade keys (IMD) are scratch-resistant and prevent fall of paint. The lifetime of keys exceeds 500,000

times of touch. The keypad with internal transparent light is visible at weak light or at night.

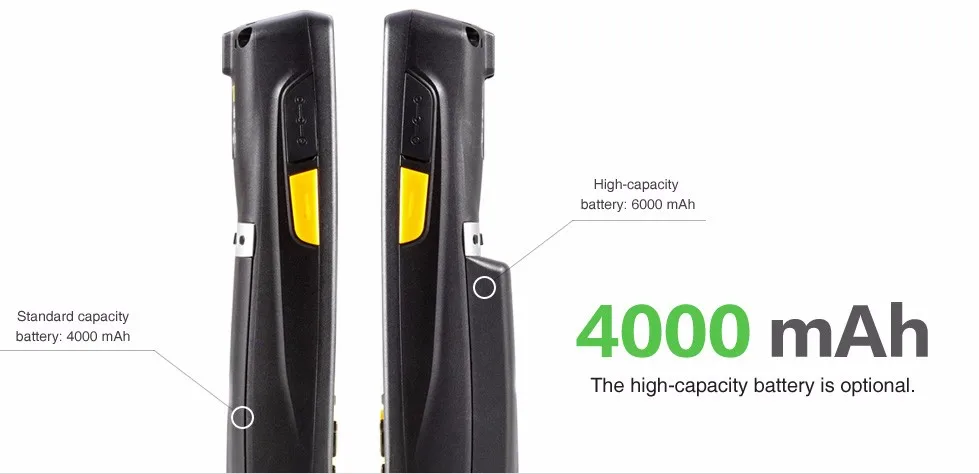

Longer battery life.

Compared with similar products, the battery life of iData devices is the longest.

The standard configuration of 4000 mAh lithium polymer rechargeable battery and optional

configuration of 6000 mAh high-capacity battery fully meet power consumption requirements in a normal shift.

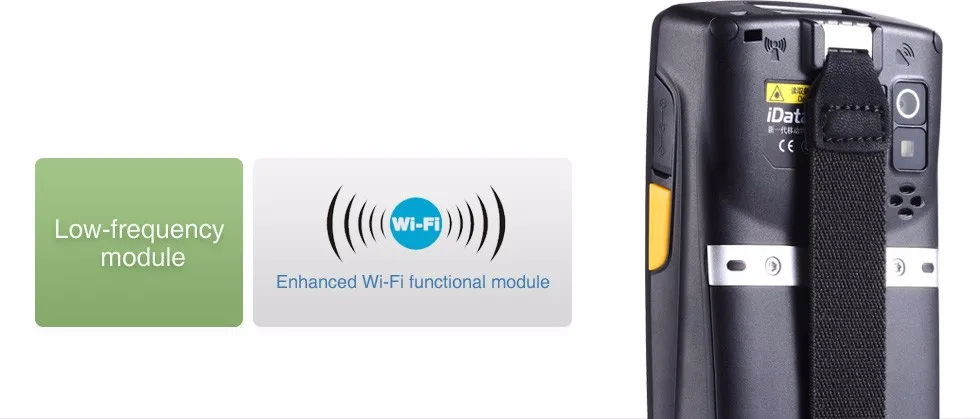

Flexible options of functional modules and accessories.

For users’ benefits, iData fully considers users’customization requirements so that they

can select or customize devices more flexibly according to their business requirements

Complete accessories.

iData provides users with both standard and optional accessories to meet users’ different requirements.

Application

Free Ship iData90 Industrial Windows Mobile 6.5 Wireless PDA 1D 2D Handheld Data Collector With 13.56 MHz RFID WIFI BT IP65

Our After-Sale Service Assurance

Free Ship iData90 Industrial Windows Mobile 6.5 Wireless PDA 1D 2D Handheld Data Collector With 13.56 MHz RFID WIFI BT IP65

Thank you for the interest about our products,we will handle the service after sale as following:
1).We offer 1 year warranty,any terminals with quality issue(Exclude human factors) can get repaired or replacement from us during this period.
2).For the product assemblement and repairment,we will send the video for your reference.If necessary,we will send technical staff to train client’s repairer for free.
4).We will provide technical assistance for the whole life.In case clients would like to extend 1 year warranty period in their market.
