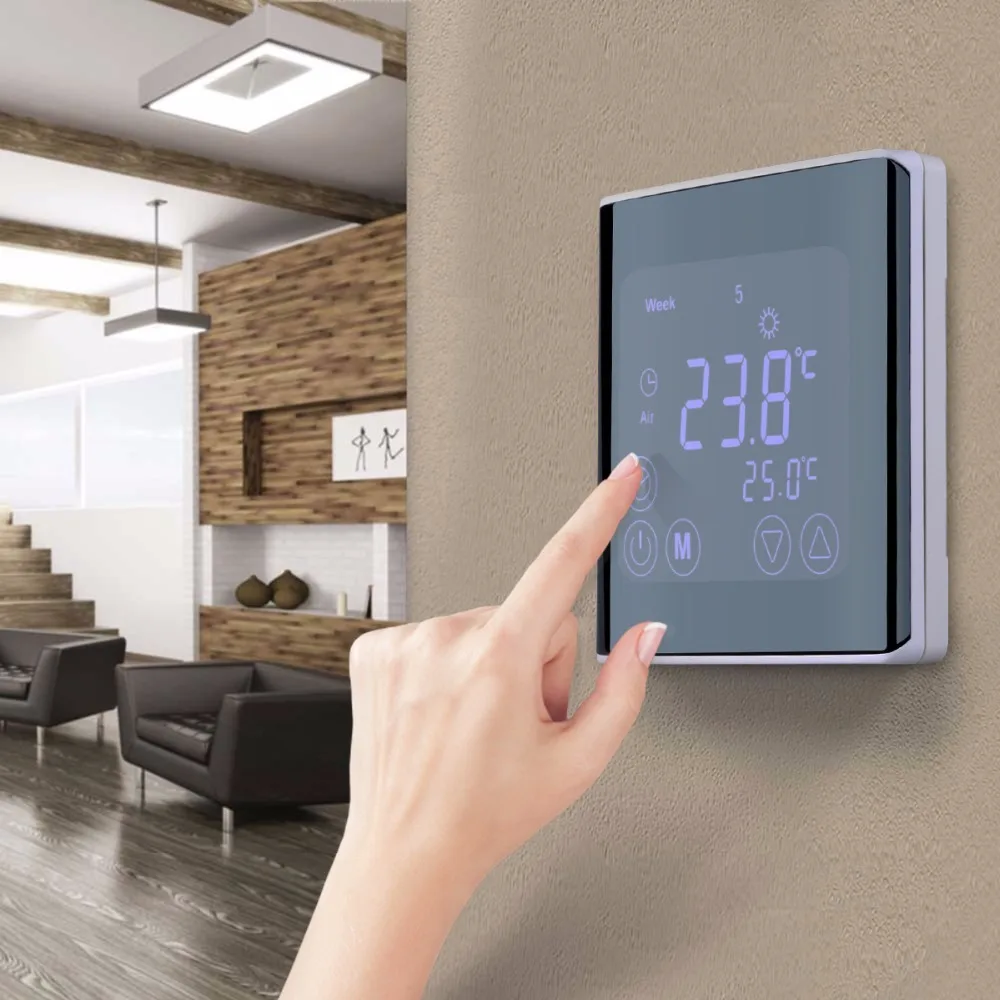

Floureon BYC17.GH3 LCD Display Thermostat

Description:

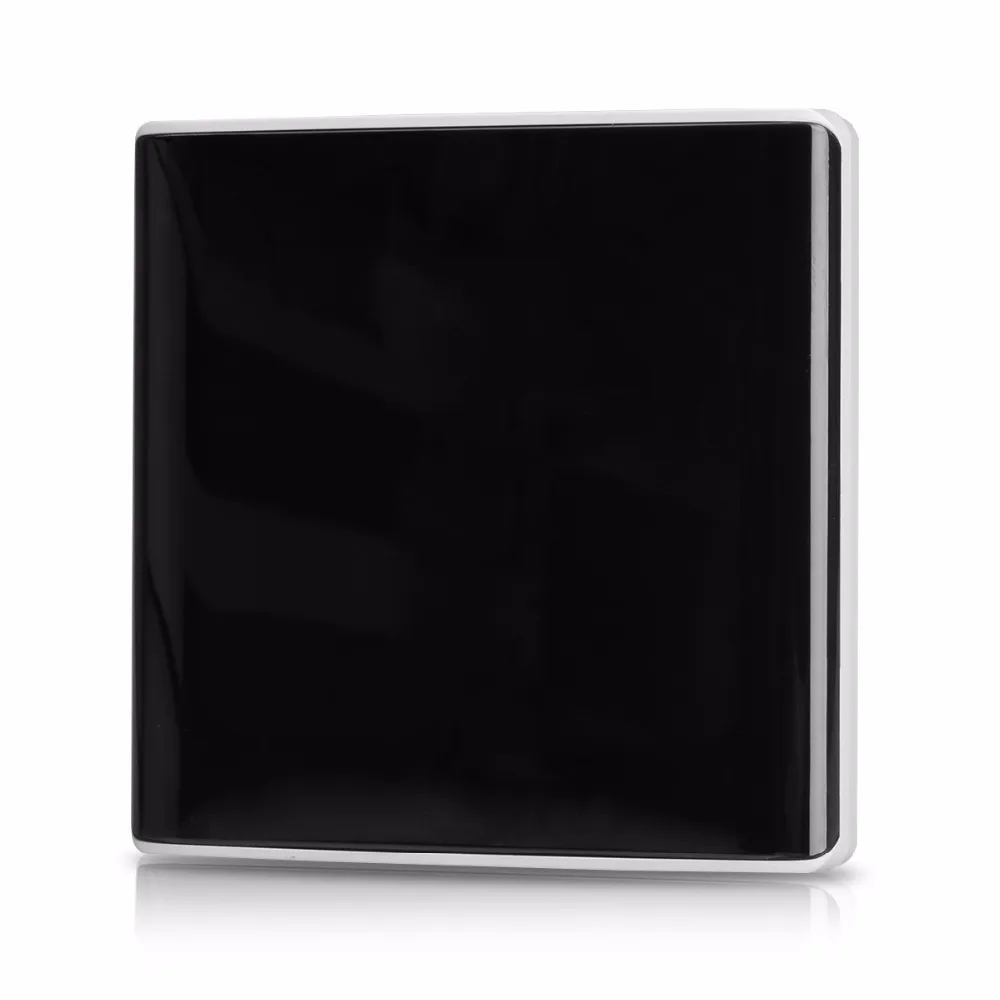

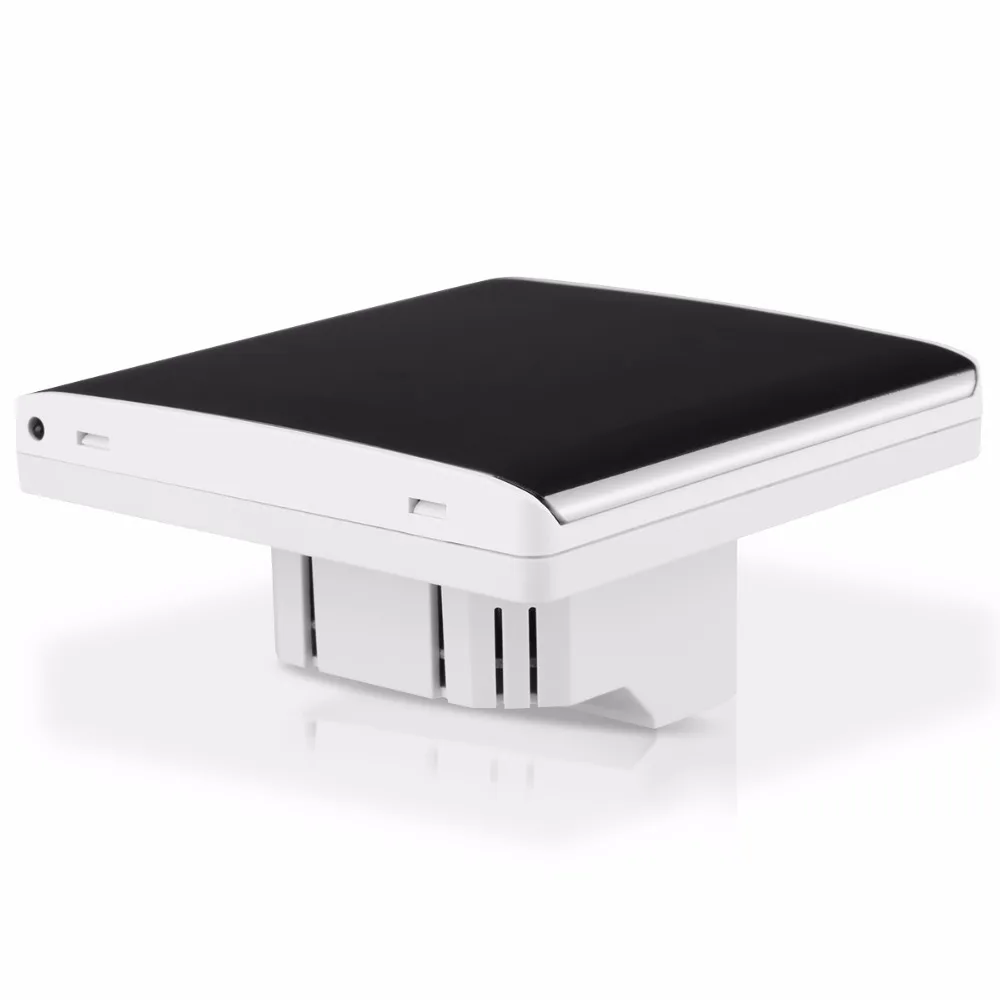

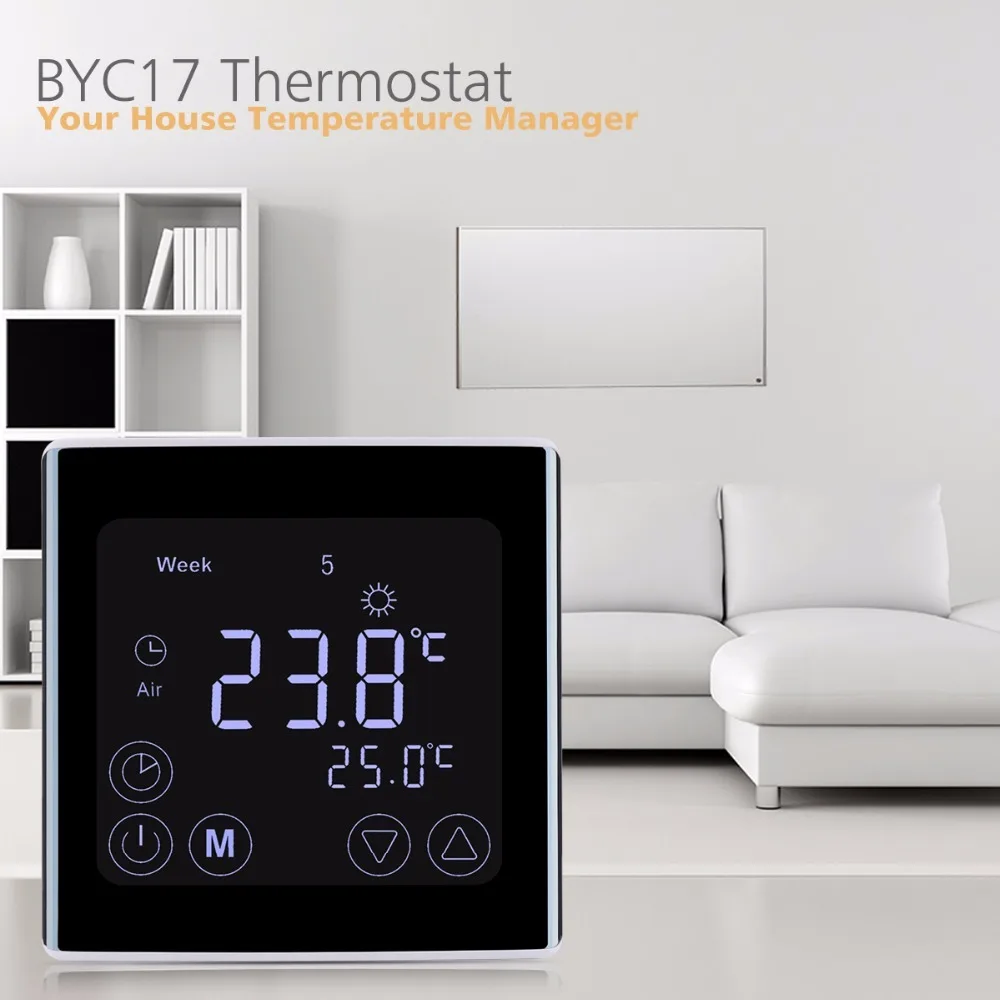

This heating thermostat with weekly programming adopts the latest single-chip computer control technology, and its application is the electric heating equipment or actuator control. According to the preset temperature, the thermostat will automatically start and stop the controlled object (Valve, Floor heating, the Heating wall, Electric heater etc). This thermostat has a thinner, sleeker design, and the large square LCD screen ensures a better user experience of temperature control.

This thermostat is designed for high voltage heating systems use a 85v to 250v power source, such as electric heating underfloor, electric baseboard heaters, motorized valve, thermal valve, solenoid valve,wall heater, electric heating film, electric heating crystal,etc.

NOT compatible with 24V low voltage heating systems, such as gas or oil powered boilers and furnaces that don’t use electricity. Not compatible with water heating system and heat pump, neither

Very important for your know:

if you want to know whether this model ( BYC17.GH3)Thermostat is suit for you or not, please lick the following link to download instruction to lean more:

User Manual in English:
//ebay.davismicro.com.cn:9888/sp_file/20160815/SP20160815008_147125937459.pdf

User Manual in Russian:

milantrend.com/eBay/Alice+Yao/C17+Russian.doc

User Manual in Germany:

milantrend.com/eBay/Alice+Yao/C17+German+manual.doc

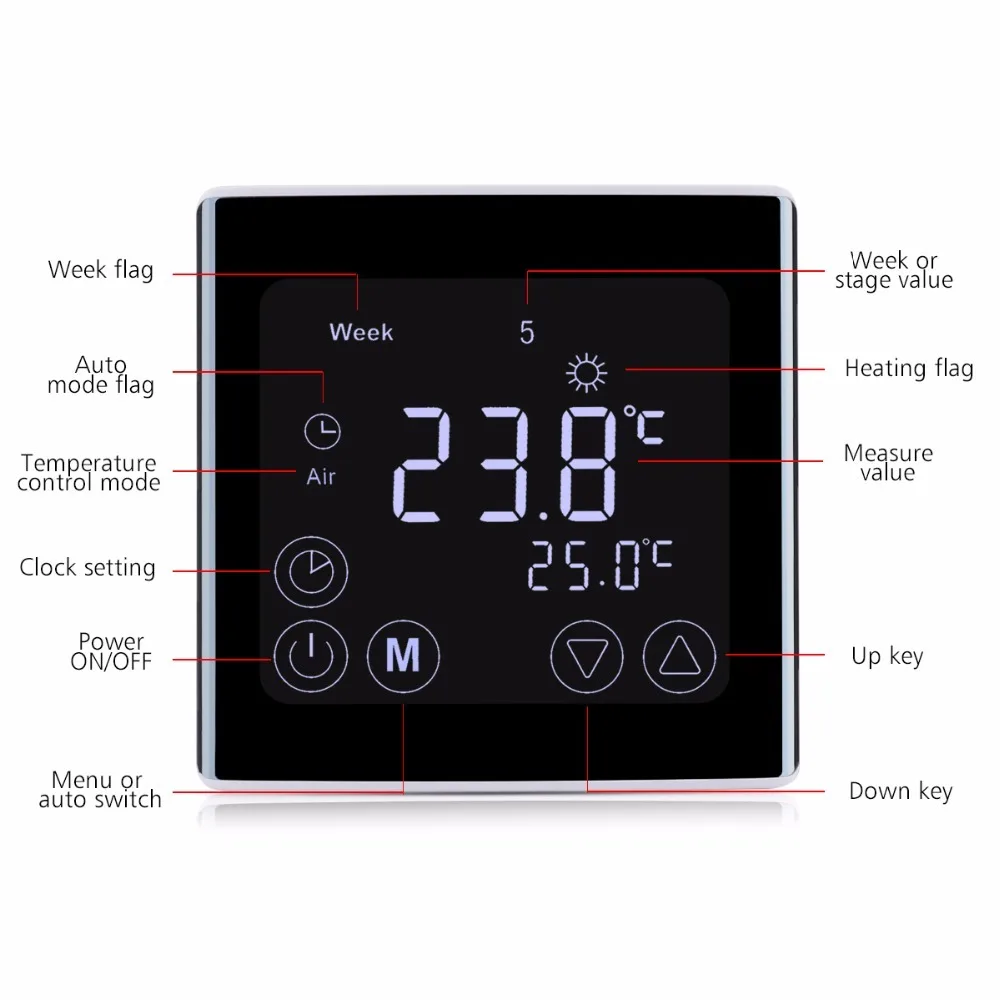

Features and functions:

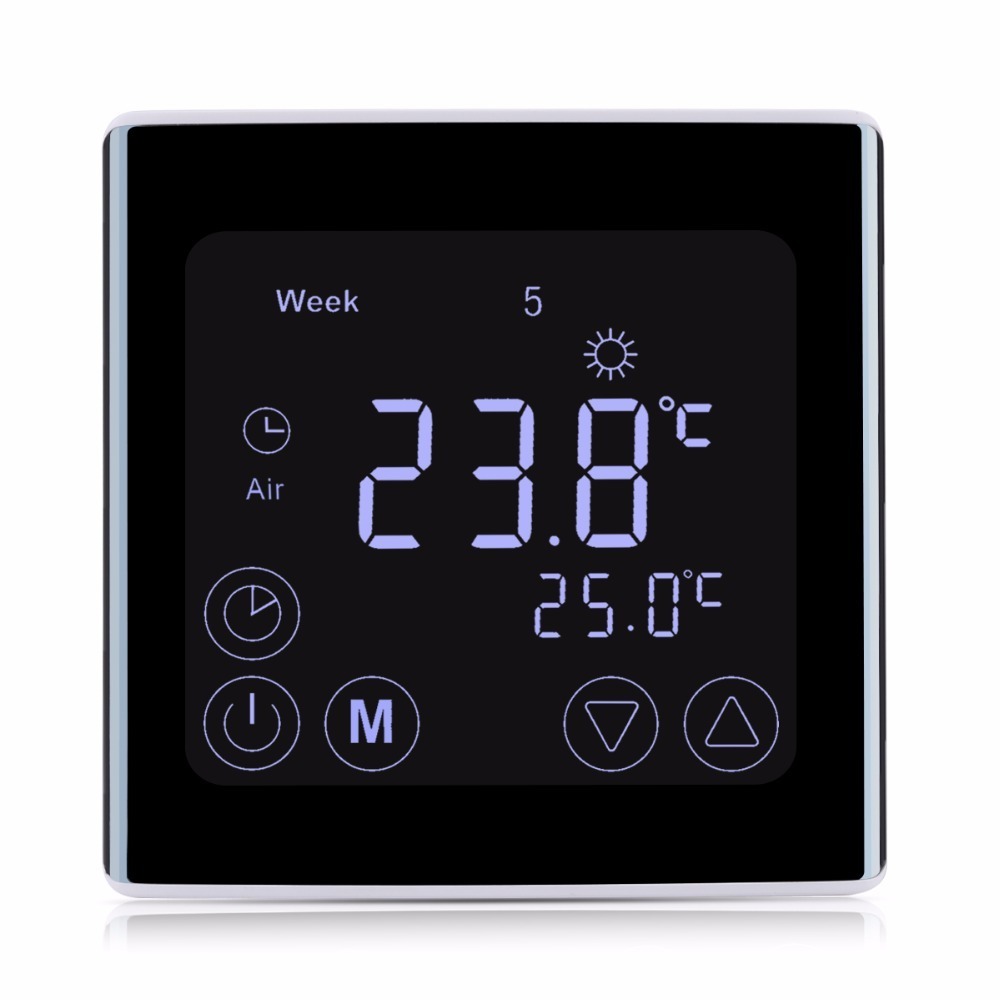

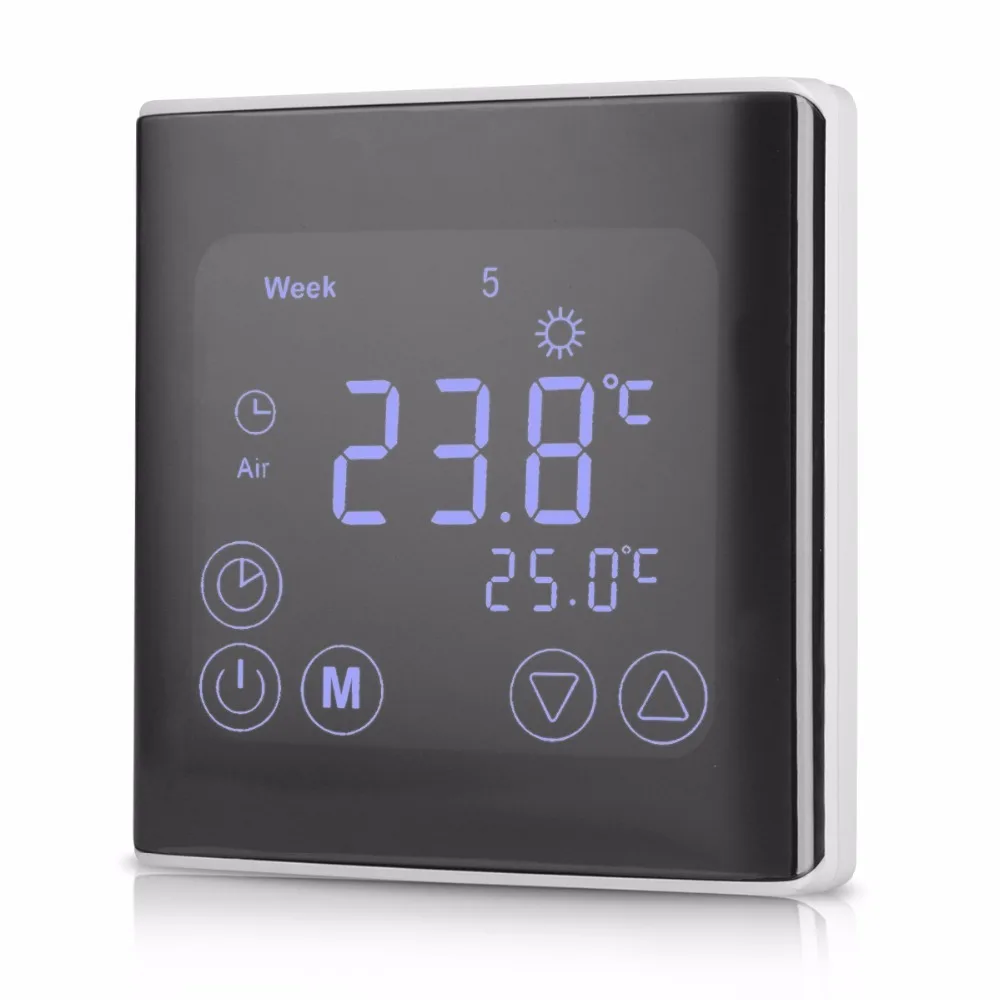

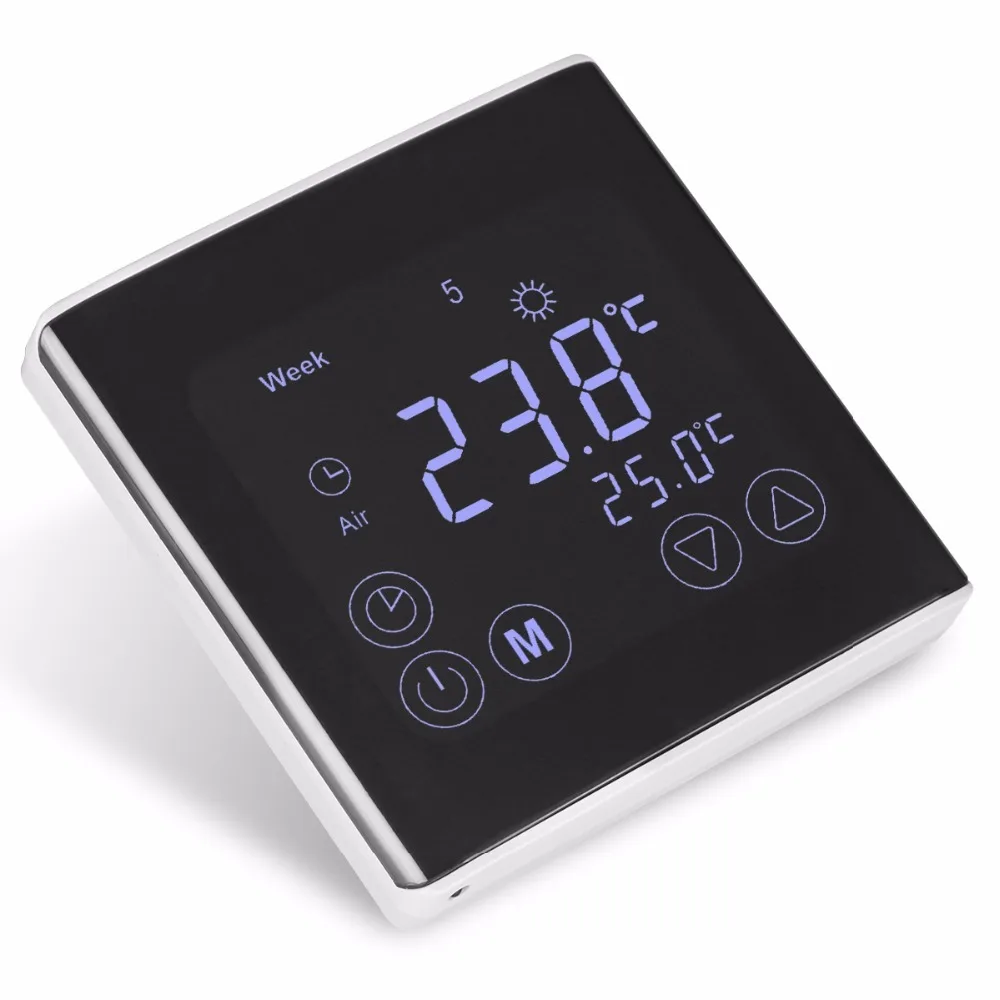

– Square LCD screen with white backlight.
– Multiple time modes: 5+2/6+1/7 days, and 6 stages daily.
– Power outage will not affect the period setting value.
– Free to choose manual mode or full automatic mode for different purposes.
– Frame resistance material, safe and reliable.

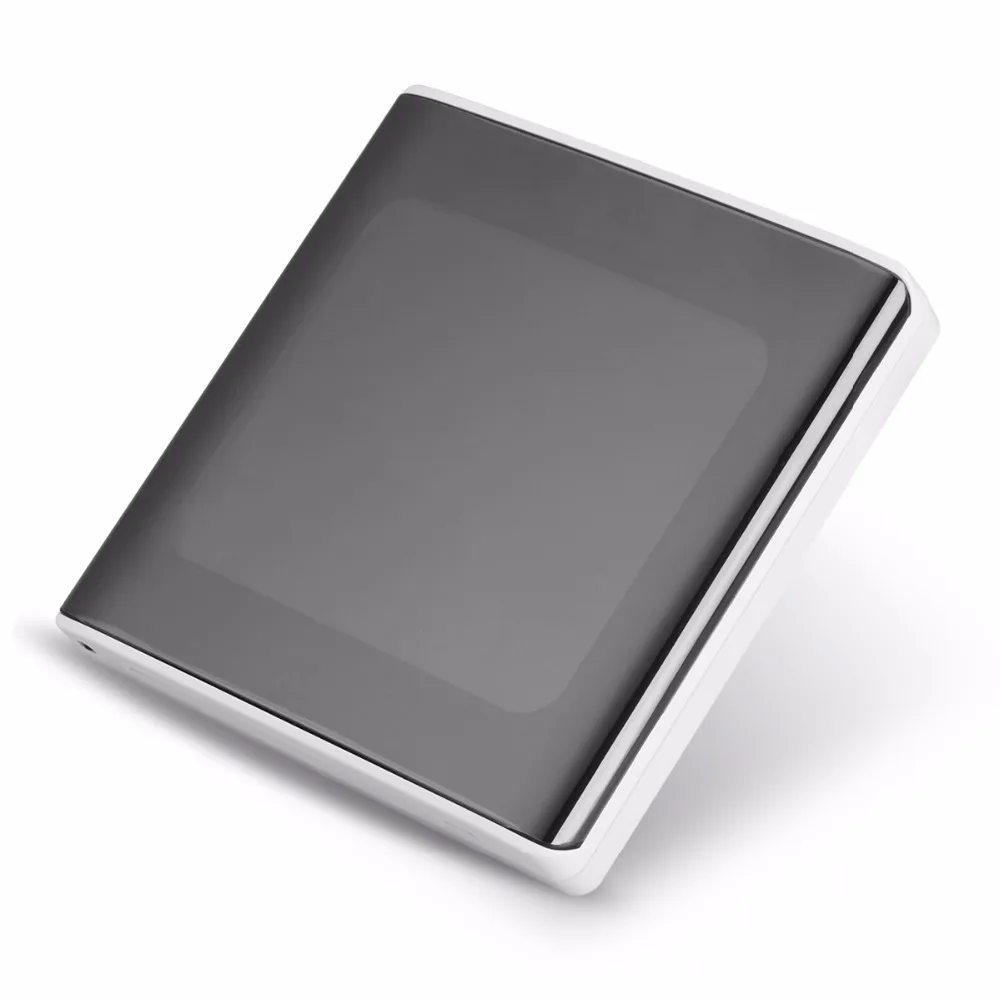

– Stylish and its mirror screen would be very easy to clean.
– Curved surface, one face design. Anti-scratch the surface.
– High reliability, energy-saving and powerful anti-jamming.
– Keypad locking function is designed to prevent the children from misusing.
– Capacity touch screen technology and iron plate installation.
– Come With 3M Extra sensor cable.

Technical parameters:

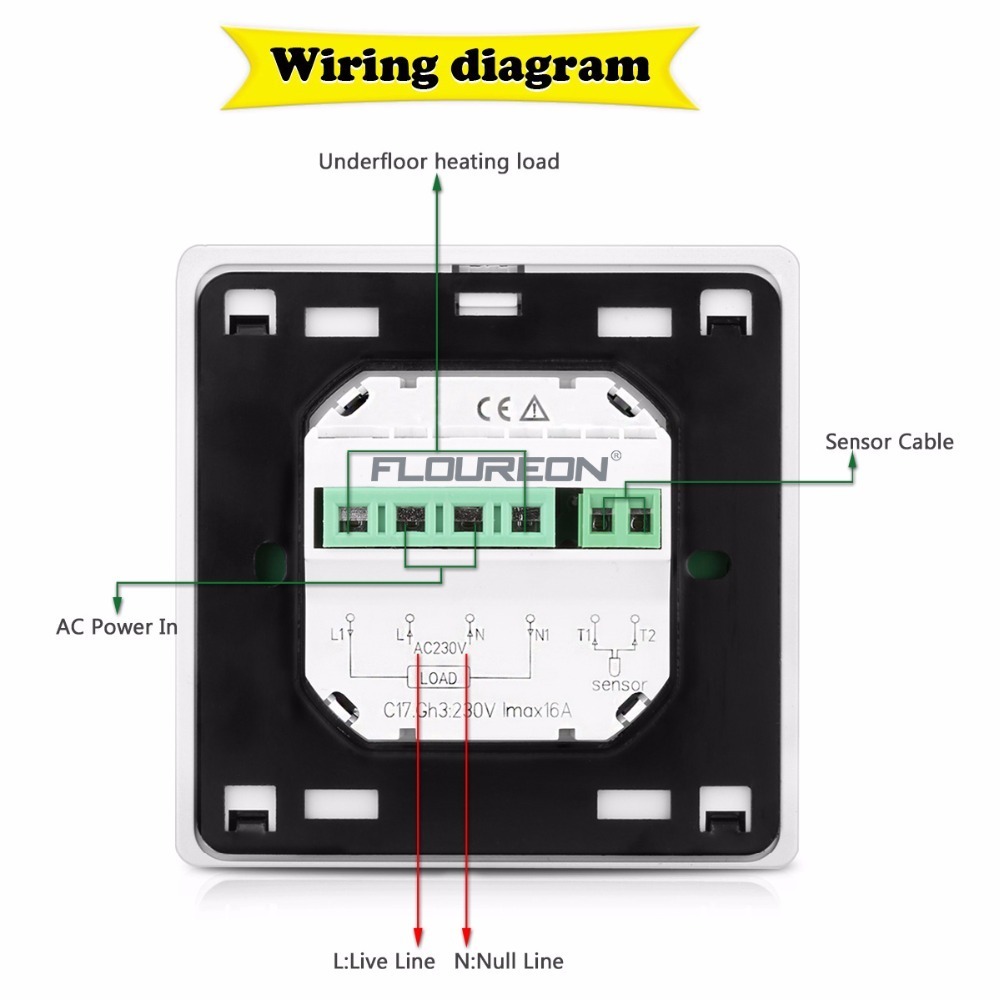

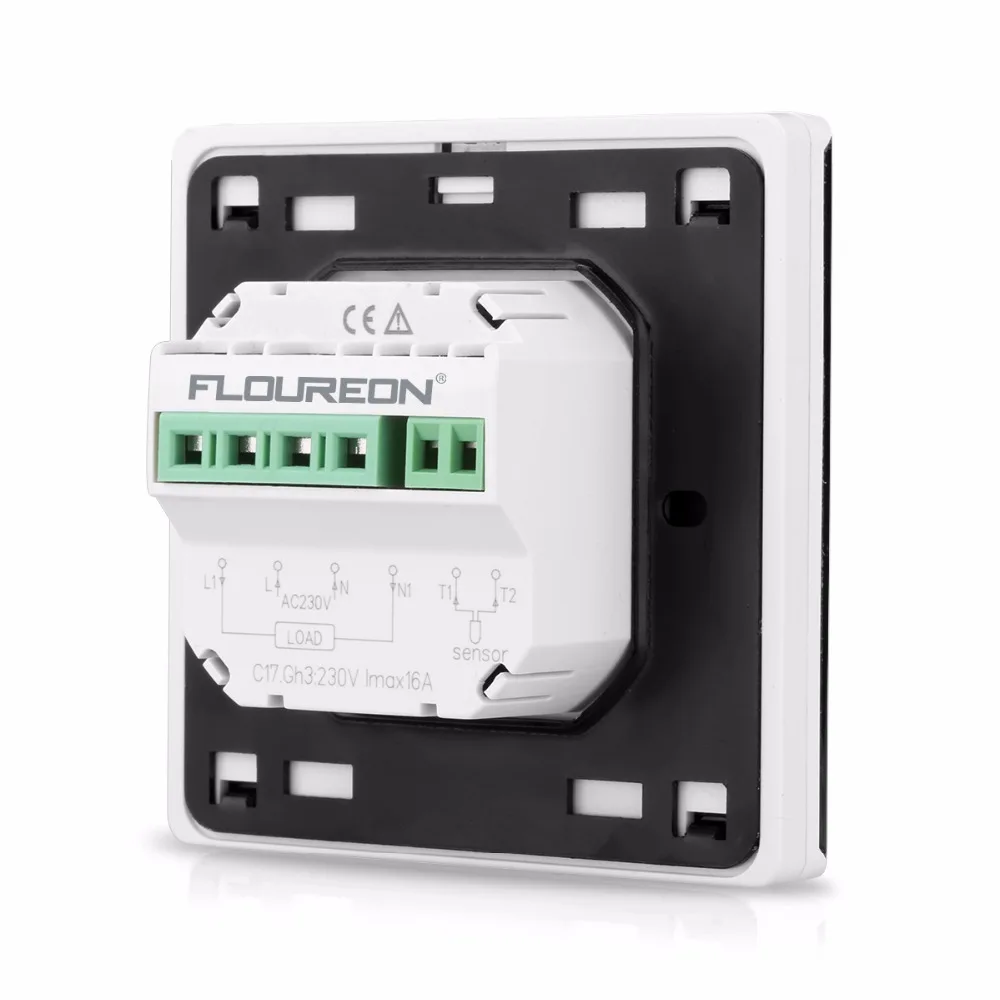

– Power Supply: 85-250VAC 50/60 Hz
– The maximum switch power:16A
– Inside sensor: NTC B=3380 10k @ 25℃
– Internal sensor measurement range: 0-40℃
Setting range: 5-35℃ (factory settings: 22℃）
– External sensor: NTC B=3380 10k @ 25℃ Length=3 meters (optional)
– External sensor measurement range: 0-99℃
Setting range: 5-90℃ (factory settings: over temperature protection 50℃)
– Display resolution: 0.1℃
– Setting Unit: 0.5℃ / step
– Back side Color: White (as picture shown)

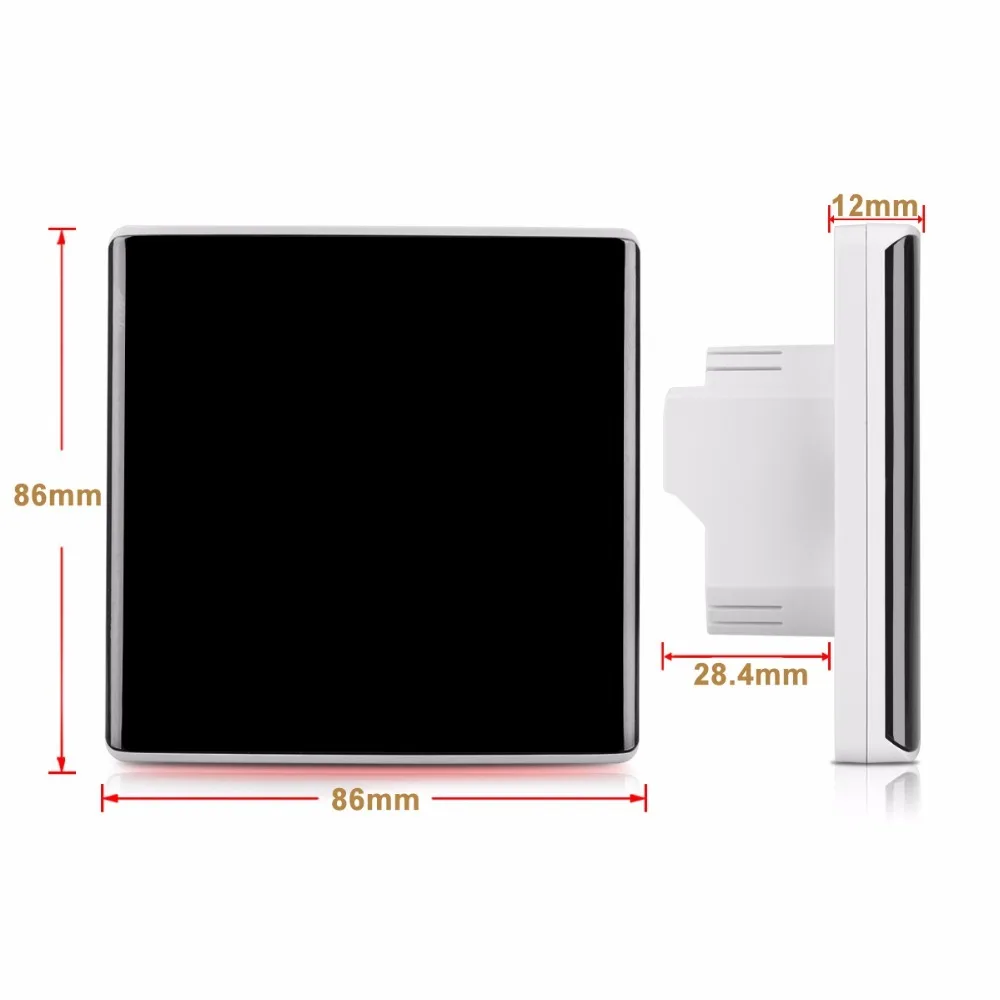

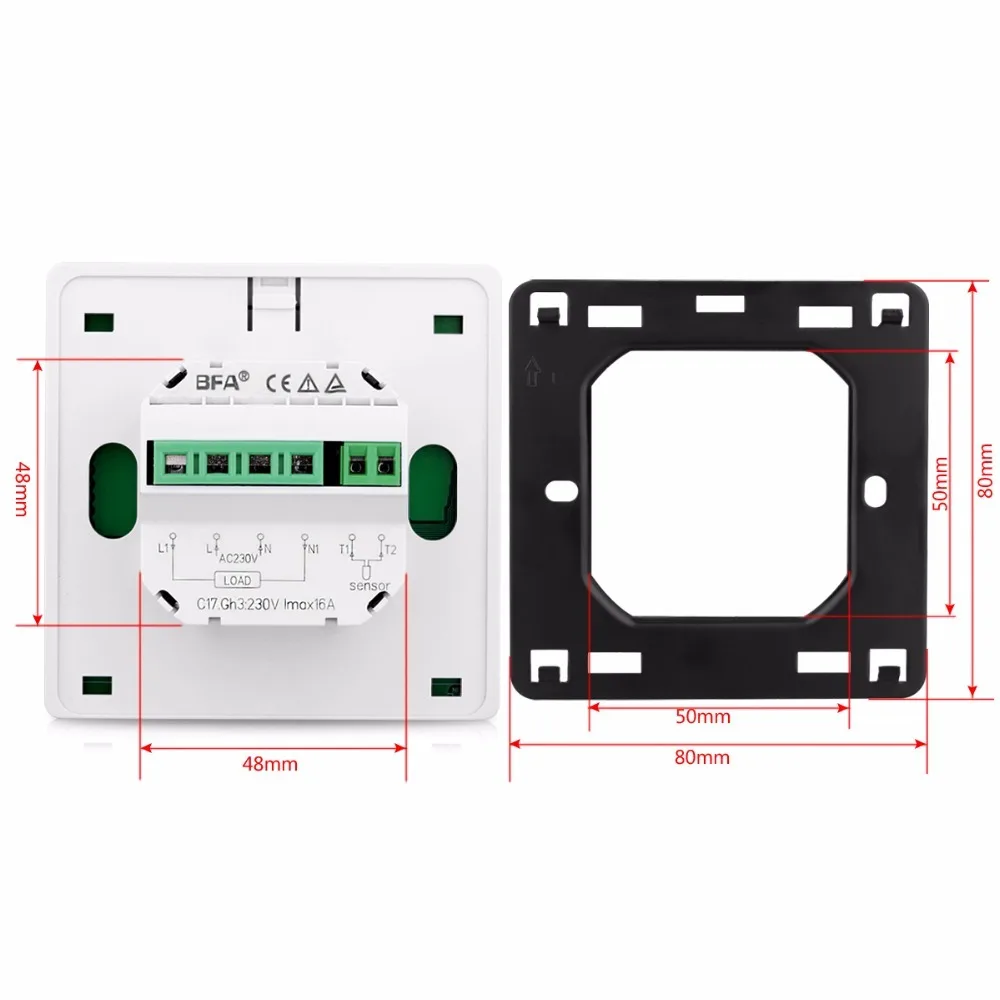

– Unite dimension: 85*85*12mm
– Size of display: 8.5cm*8.5cm
– Unite weight: 180-190g (with plate)
– Backlight color: White

Caution: Electrical hazard can cause electrical shock or equipment damage. Disconnect power before installation.

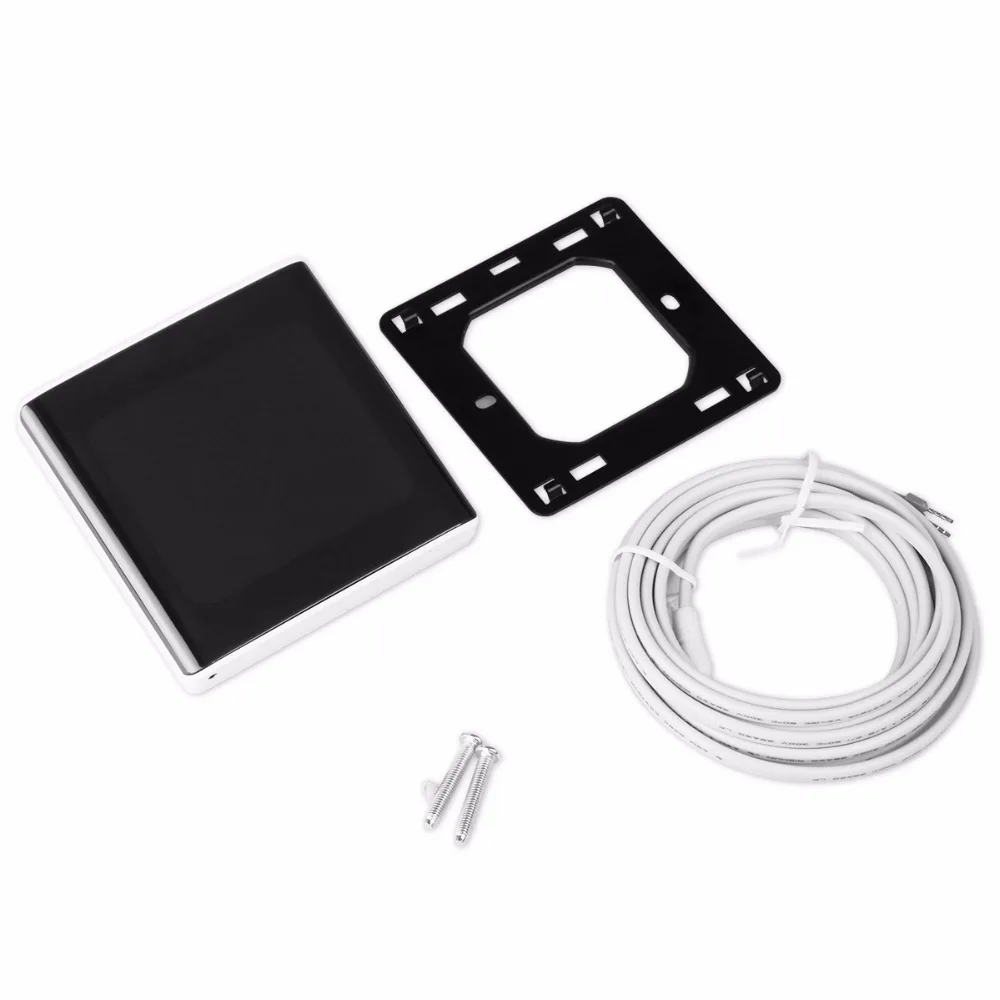

Package Included:
1 * Thermostat with backlight.
1 * 3m sensor cable.
2 * Mounting screws.
1 * User Manual.(in English)

Remarks: Current standard packaging contains English user manual only, we temporary don’t produce a brochure in Russian or other language version. if need, you can download the above instruction link and print it by yourself, thanks.
