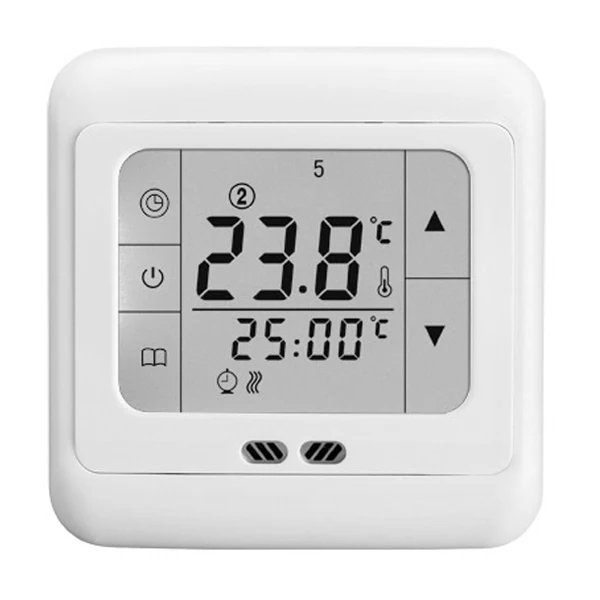

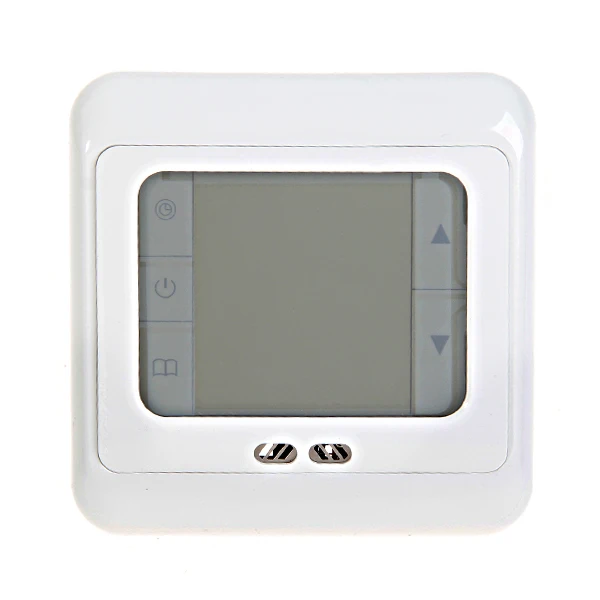

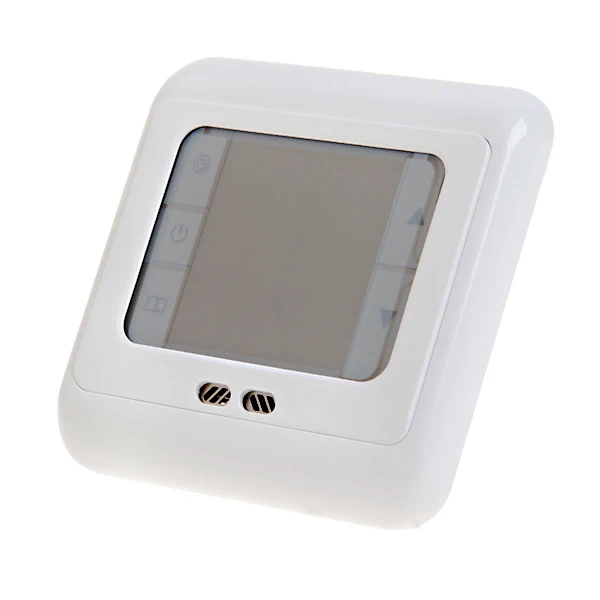

Floureon BYC07.H3 Thermoregulator Touch Screen Heating Thermostat for Warm Floor,Electric Heating System Temperature Controller

Easy to Install! Easy to Control! Easy to Life!

Application:

This Heating Thermostat with weekly programming adopts the latest single-chip computer control
technology. It has the high reliability and powerful anti-jamming. The application of the electric heating equipment or actuator control.

This thermostat is designed for high voltage heating systems use a 230v power source, such as electric heating underfloor, electric baseboard heaters, motorized valve, thermal valve, solenoid valve,wall heater, electric heating film, electric heating crystal,etc.

NOT compatible with 24V low voltage heating systems, such as gas or oil powered boilers and furnaces that don’t use electricity. Not compatible with water heating system and heat pump, neither

Q: I have more questions how to do?

A: if you want to know is this BYC07.H3 model Thermostat is suit for you or not, please click this website link to download theuser manual to get more product detail introductions:

User manual in English: //milantrend.com/BYC07.pdf

User manual in Russian: milantrend.com/eBay/Alice+Yao/C07+Russian.doc

User manual in Germany: //milantrend.com/BYC07HDE.doc

Features:

– Touch Screen,Easy operation and utility.

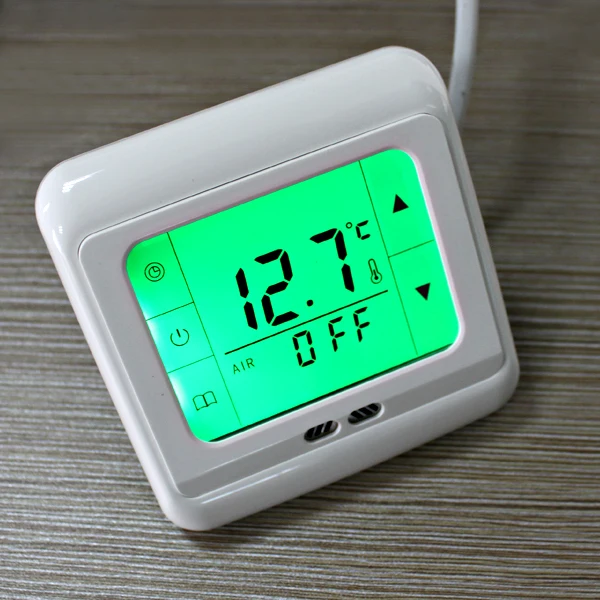

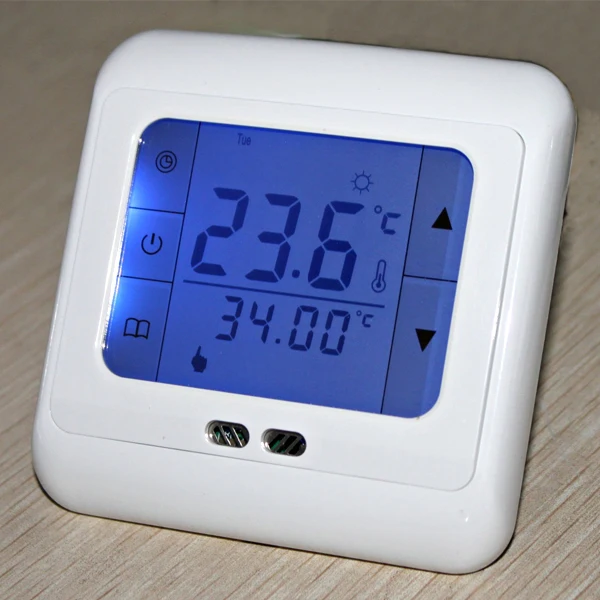

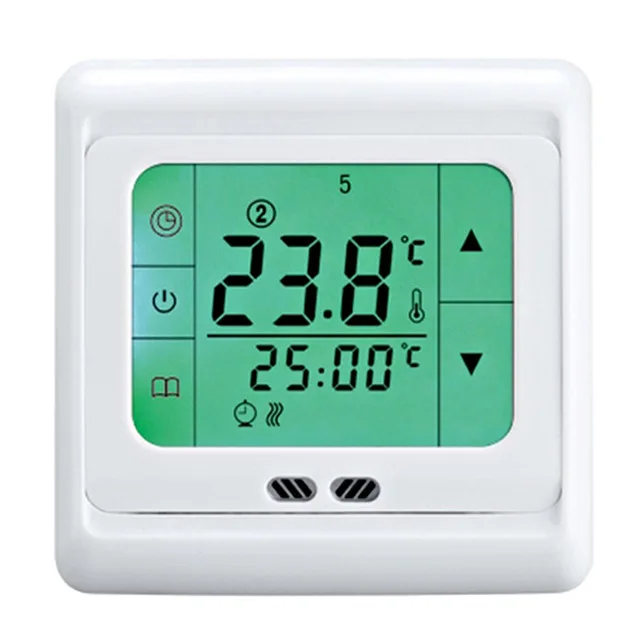

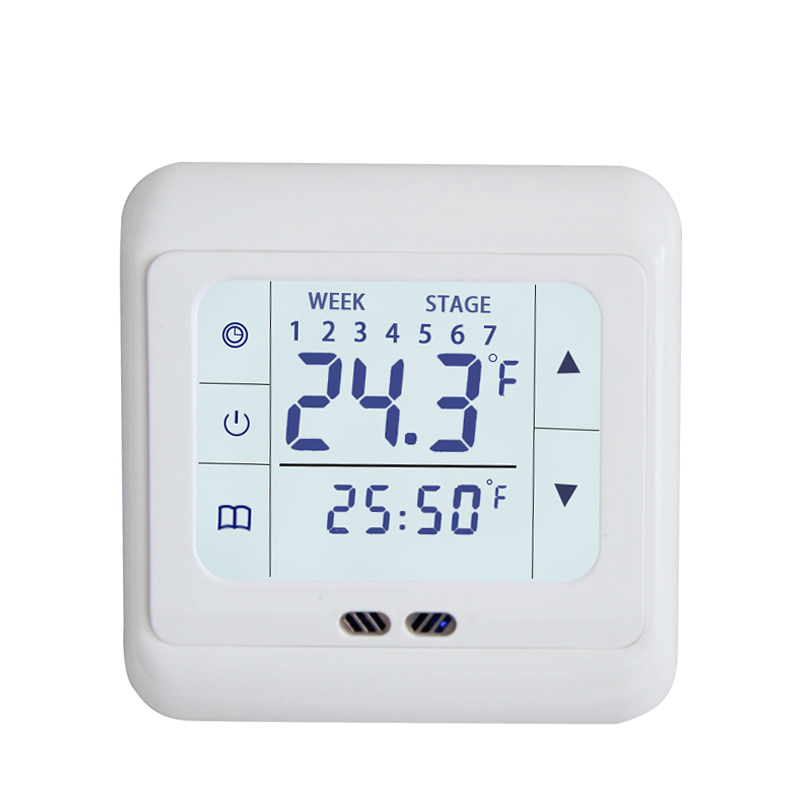

– Large LCD display with Blue/white/Green backlight.
– Kinds of periods of time modes. 5+2 / 6+1 / 7days.
– Setting daily 6 periods of time and the setting temperature.
– High reliability and powerful anti-jamming.

– The clock continues when power fail and it won’t affect the period of time settings.
– Mini size junction box and suitable for the entire world.
– Come With 3M Extra sensor label.

Technical Data:

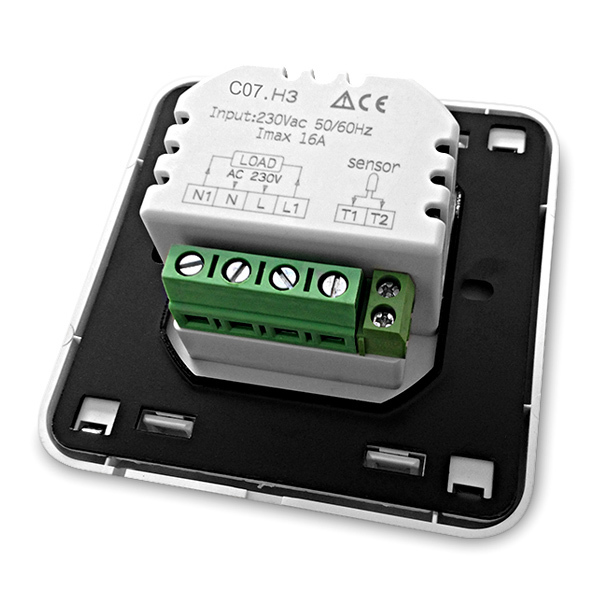

– Power Supply: 230VAC ±10% 50/60 Hz
– Maximum switch power: 3600W.
– Maximum switch rating of 16A
– Internal sensor setting range: 5 – 35°C (programmable)
– Internal sensor measurement range: 0 – 40°C
– External sensor measurement range: 0 – 90°C
– Display Type: touch LCD screen, display area size: 60 x 45 mm
– Inside Sensor: NTC B=3380 10k @25degrees Celsius

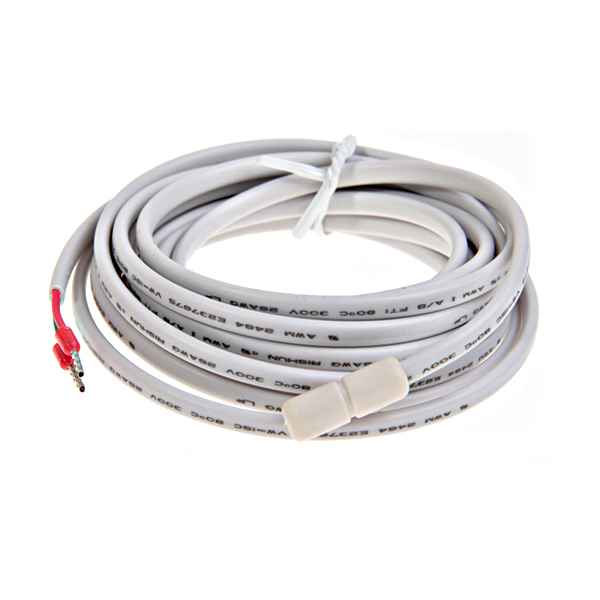

– Extra Sensor: Length=3M NTC B=3380 10k @25degrees Celsius
– Setting Unit: 0.5°C / step
– Indication Accuracy: 0.1°C
– Certification: CE
– Inner Box Size : 100 x 100 x 60 mm

Package Included:

1 X Thermostat with backlight.
1 X 3m sensor cable.
2 X Mounting screws.
1 X User Manual (in English)

Remarks: the standard package contains English user manual only, we don’t produce a brochure in Russian, or you can download the above website link to print it by yourself.
