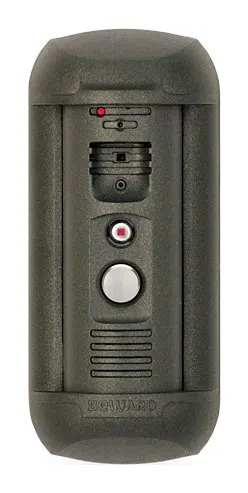

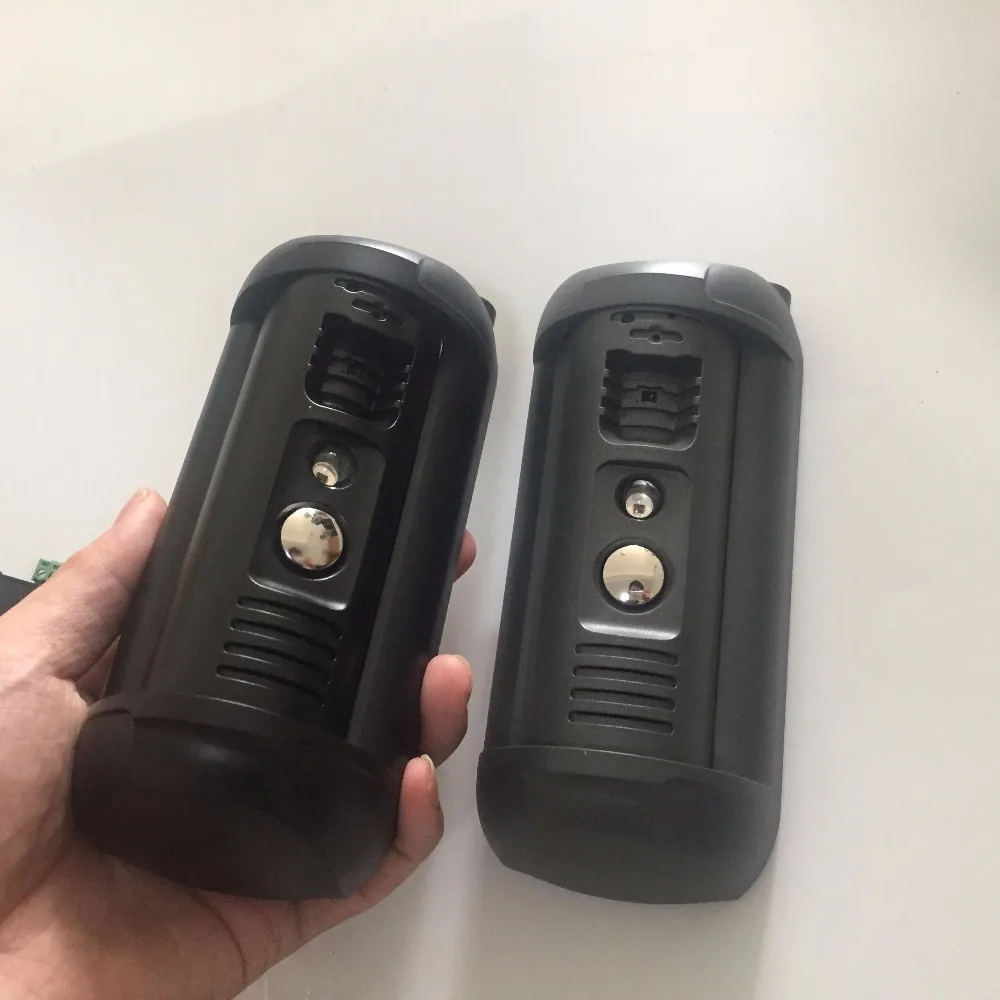

Facial recognition HD Camera POE Video Doorphone Doorbell ADJUSTABLE FIELD OF VIEW VANDAL RESISTANT IP VIDEO INTERCOMS OUTDOOR

100% of buyers enjoyed this product!
2327
Color:

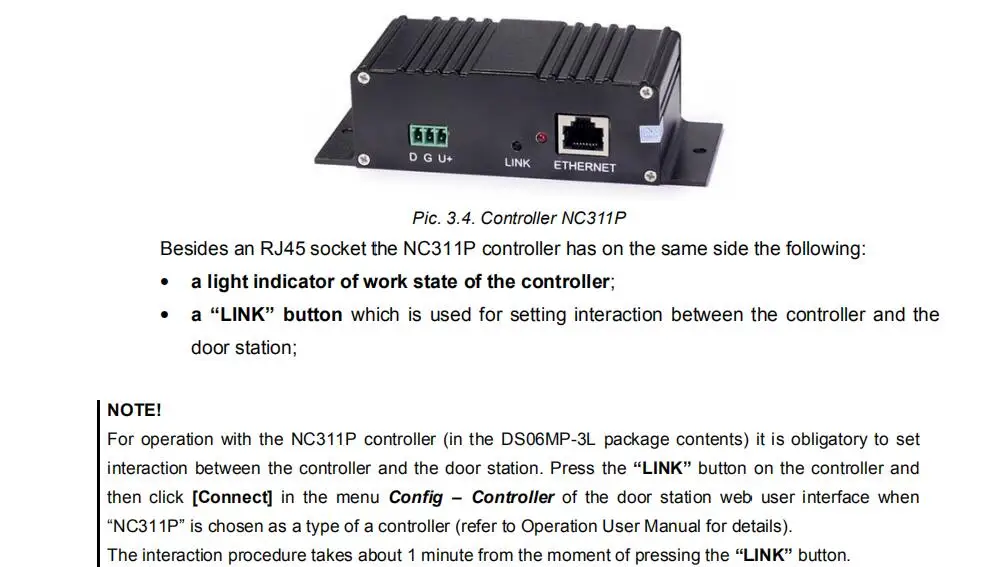

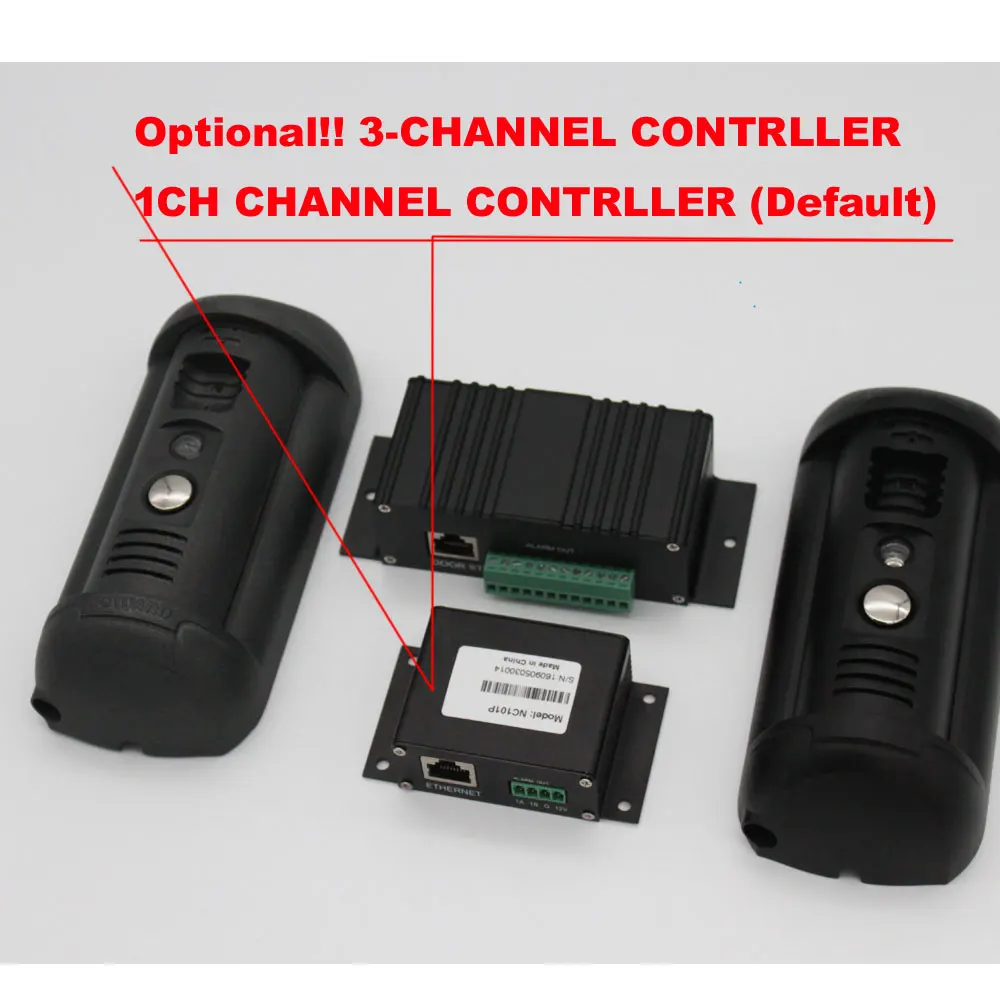

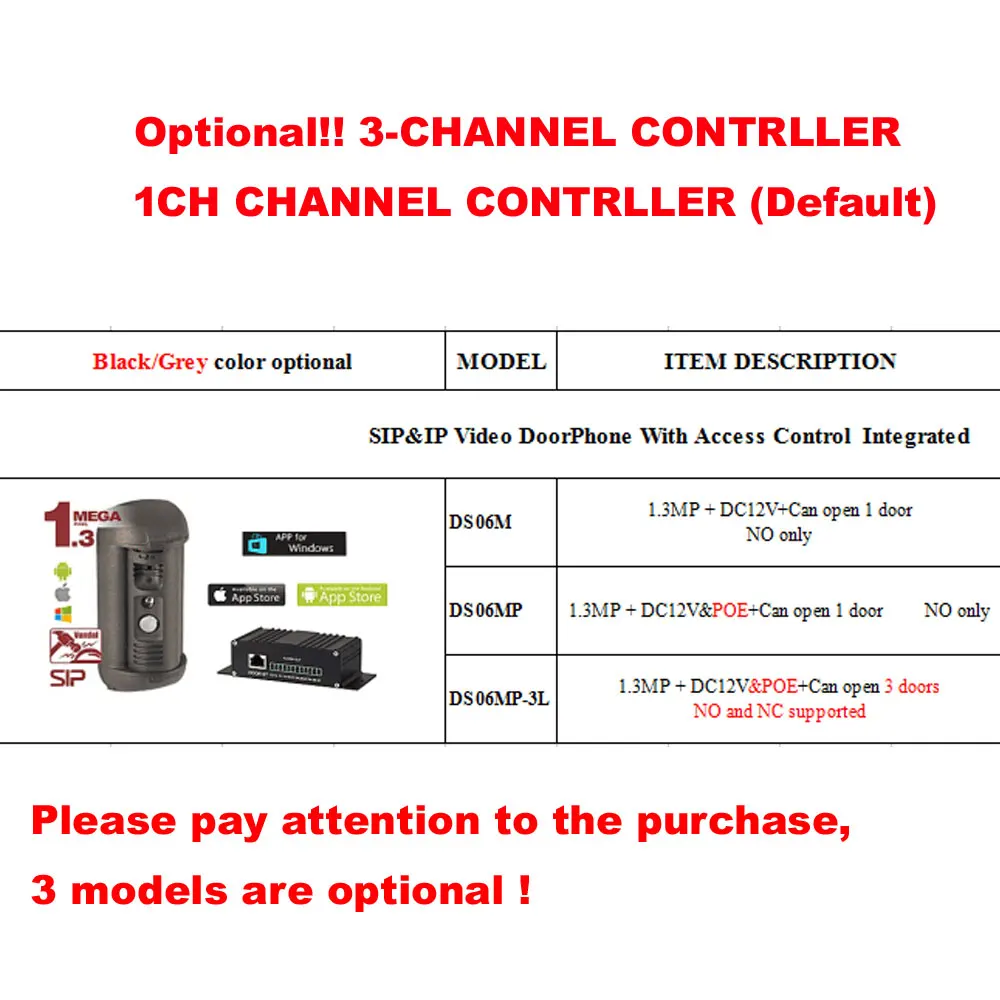

DSO6M DSO6MP DSO6MP-3L
View cart→
Product Description
Shipping & Payment
Product Details


Product upgrade:

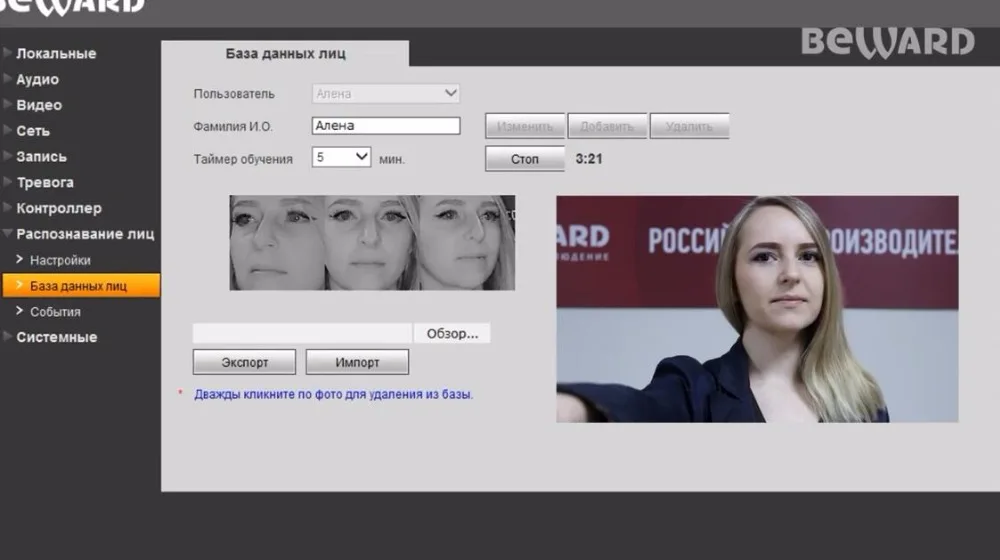

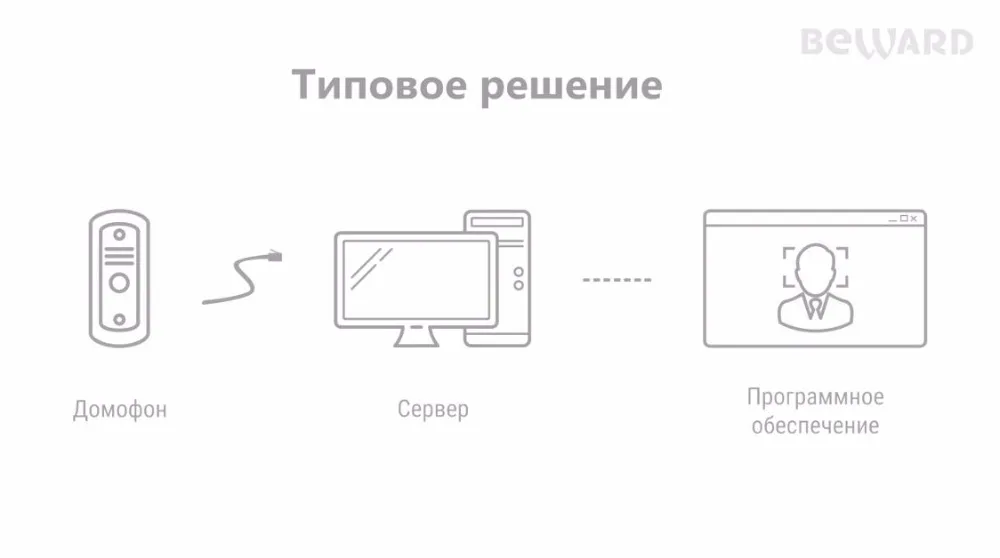

Built-in 8GB memory . Support: Facial recognition is a function of automatic access
Distribution software support: Russian + English

General
Image sensor 1,3 MP, Color, 1/3” SONY Exmor, Day/Night
Sensitivity 0.01 lux (Color) / 0.003 lux (B/W) / 0 lux (IR LEDs – ON)
Lens 3.7 mm, F2.0
Field of view 76° (horizontal), 58° (vertical),

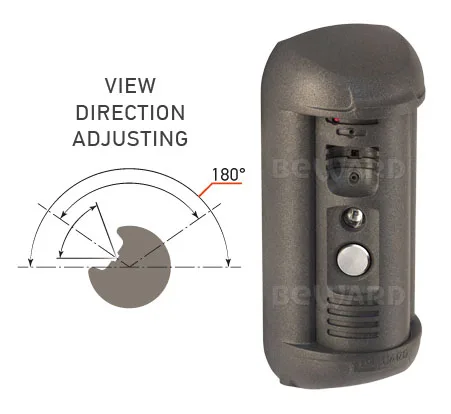

Field of view adjustment -45 ~ 45°
Minimum working distance 0.2m
Zoom Digital, via the web-interface
WDR Digital, 3 precets
Noise reduction 2D/3DNR (level adjustment), SmartNR
Shutter time 1/25 ~ 1/8000 s (Auto, maximum value setting)
S/N ratio Min. 50 dB
Antiflicker Antiflicker 50, 60 Hz
Ringing tone patterns Set by the user
Other features ICR, progressive scan
Video
Compression H.264 BP/MP, Motion JPEG
Video streaming Dual codec, individually configurable streams:
Н.264/MJPEG, H.264/H.264, MJPEG/MJPEG
Resolution Main stream: 1280×1024 (SXGA), 1280×720 (HD)
Additional stream: 720×576, 640х360, 320×184
Framerate Up to 25 fps in all resolutions
Bitrate 32 kbps ~ 16 Mbps
Image settings Brightness, contrast, sharpness, saturation, exposure,
color, hue, quality, rotation,
flip, mirror, AGC, white balance,
exposure (value setting, AGC settings)
Subtitles Text, date, time, bitrate,
fps, number of connections
Audio
Audio output Built-in speaker
Audio input Built-in microphone
Compression G.711 (a-law, u-law), G.726
Other features Duplex
Illumination
IR illumination IR LED (3rd generation, 1 pcs)
Control Auto ON/OFF
Operating mode By IR sensor, by video viewing, continuous
Wavelength 850 nm
IR distance Up to 10 m
Network & Interfaces
Network interface 10Base-T/100Base-TX Ethernet
Protocols TCP/IP, SIP v.2.0, VPN, HTTP, HTTPS, FTP, SMTP,
DDNS, DHCP, PPPoE, RTP, RTSP, UDP, NTP,
ONVIF v.2.41, Modbus TCP
Alarm output 1 channel (NO mode)
Open lock duration 0 ~ 10 s
Connection DHCP, static IP address
Users Up to 3 accounts
Other features MicroSDHC (4 GB)
SIP
The number of SIP-accounts 2
SIP-call subs Up to 5
DTMF modes RFC2833, SIP INFO, in-band
Recording & events
Events Motion detection, network failure, call button pressing
Motion detection Build-in video motion detector, up to 4 detection zones (sensitivity adjustment)
E-mail notification At events: Images
FTP, memory card At events: Images, video
Operation
Power 12 V 0.5 А (DC)
Power consumption Max. 5 W
Commutation current Up to 1 А (1А, 1V contacts)
Operating temperature -40°С ~ +50°С
Ingress protection IP54
Housing Vandal resistant
Hosing materail Metal
Dimensions 73х166х51 mm
Weight 570 g

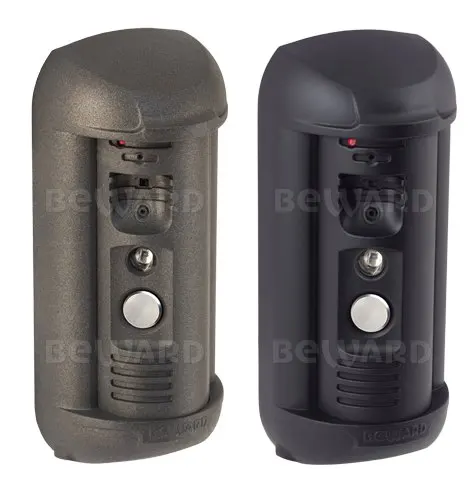

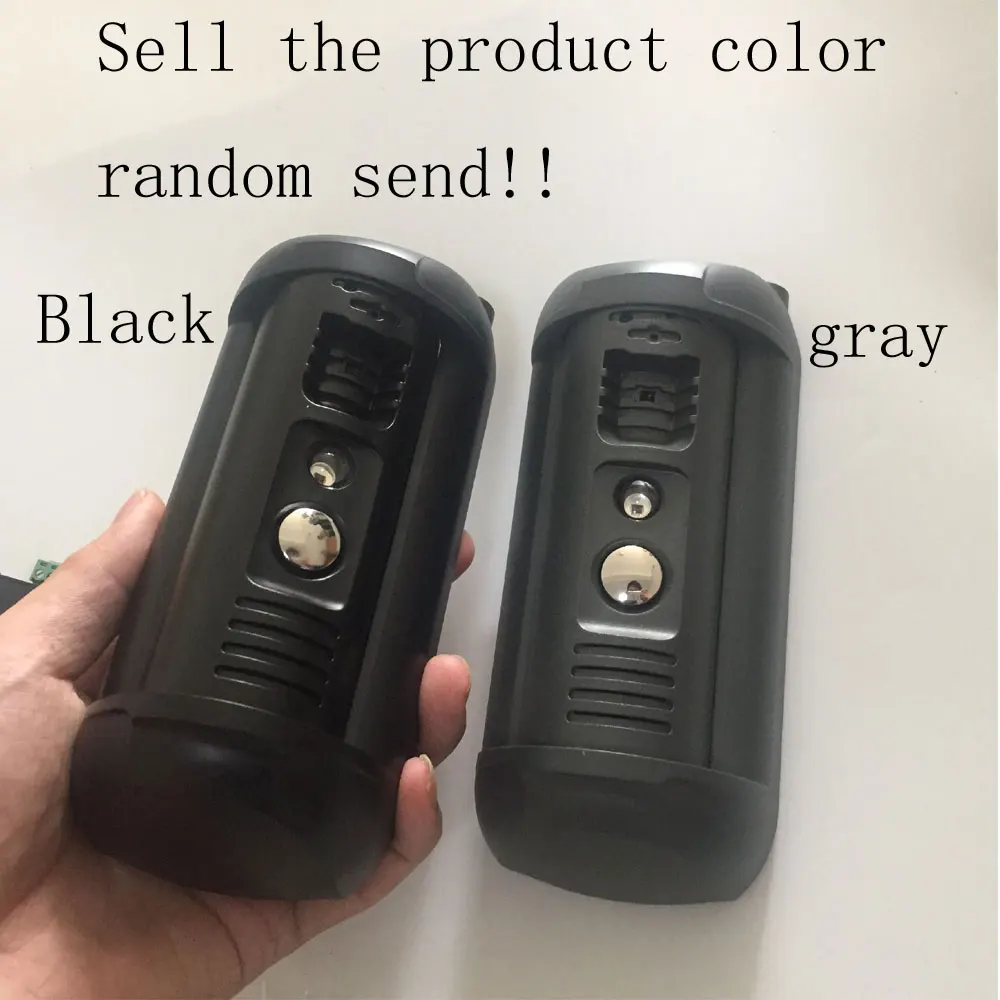

Color Black (mat), gray «Metallic» (optional)

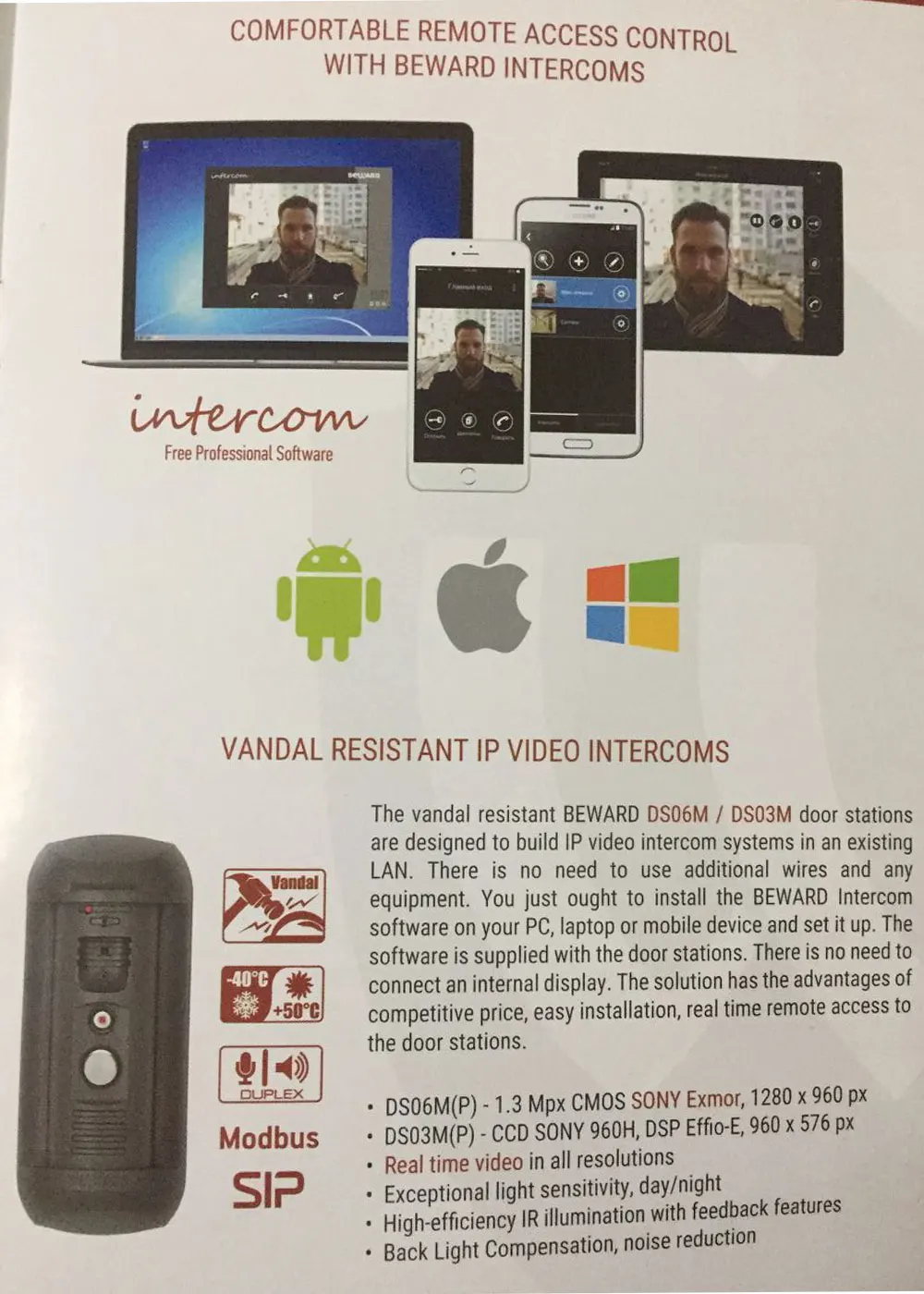

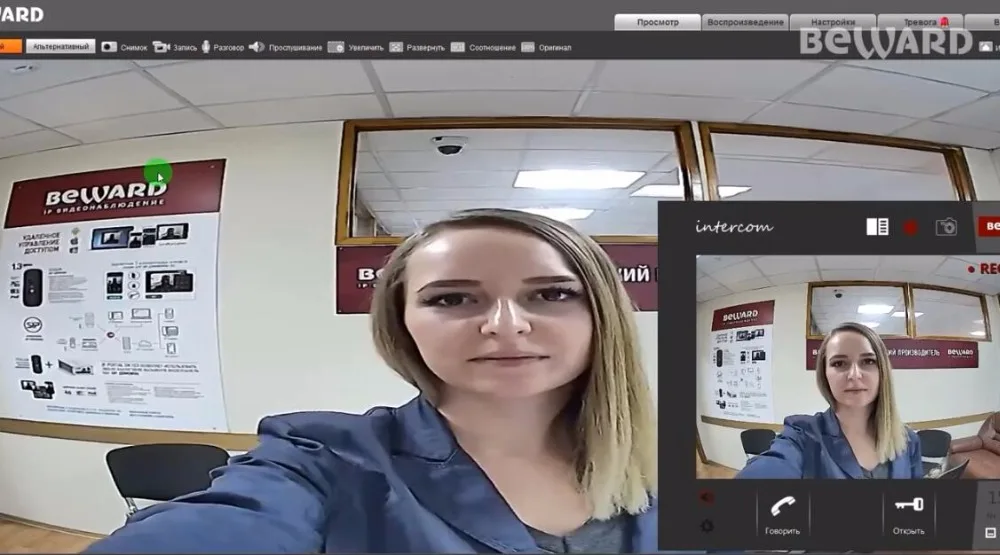

Control Beward Intercom professional software (included)
System requirements Microsoft Internet Explorer 9.0 Windows 8/7/Vista,
IOS 6.0-9, Android 4.0 later

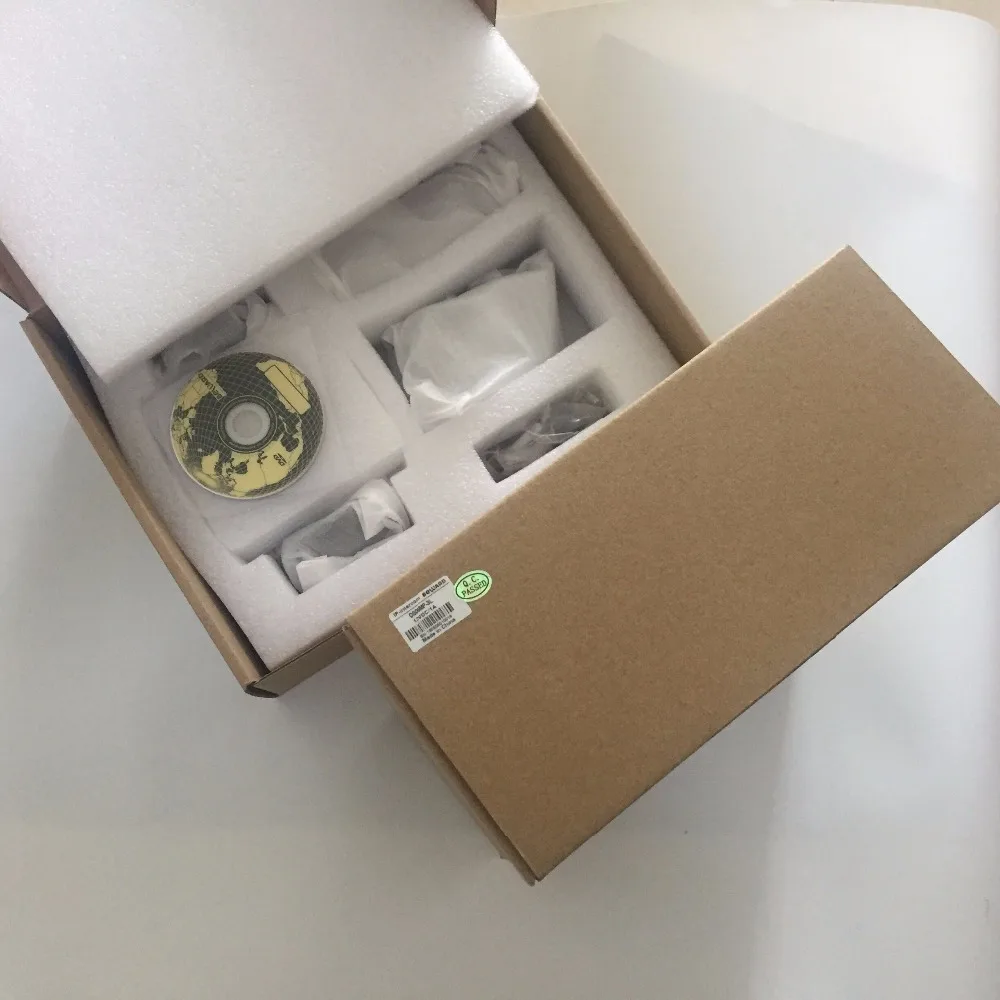

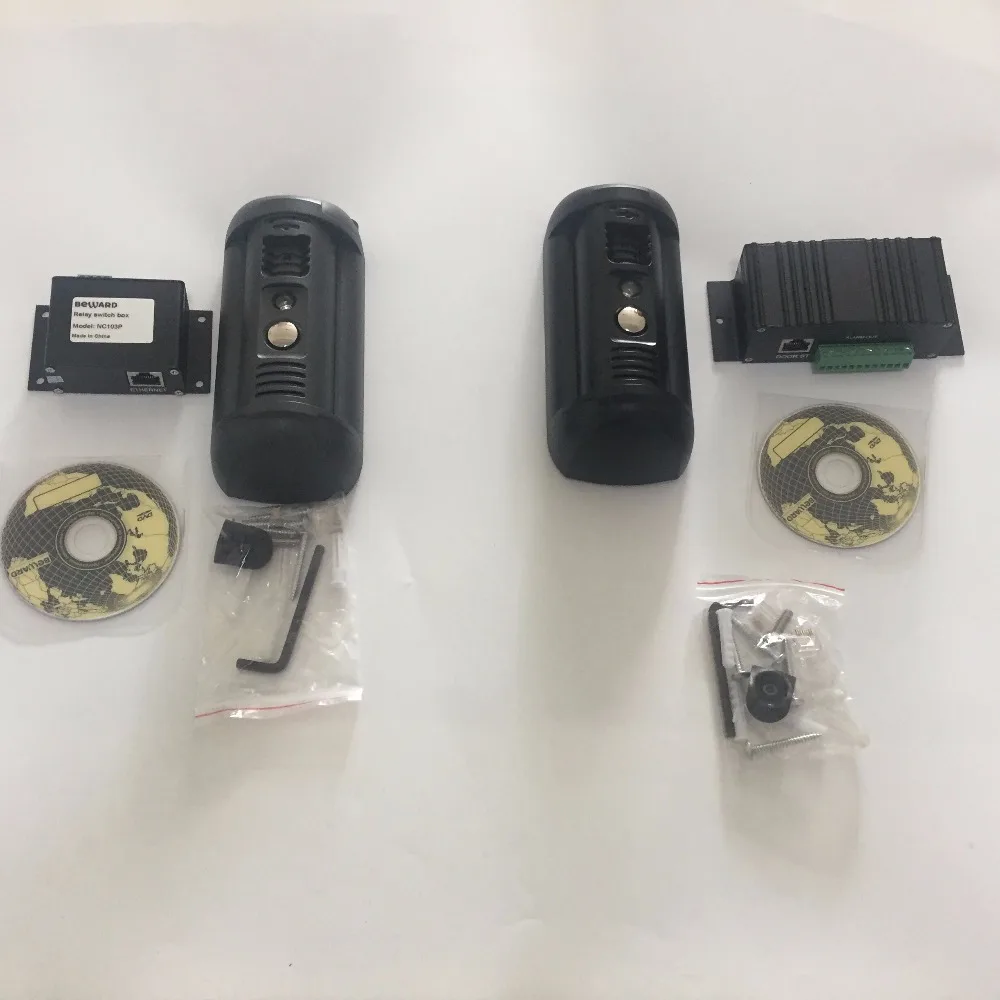

Package contents

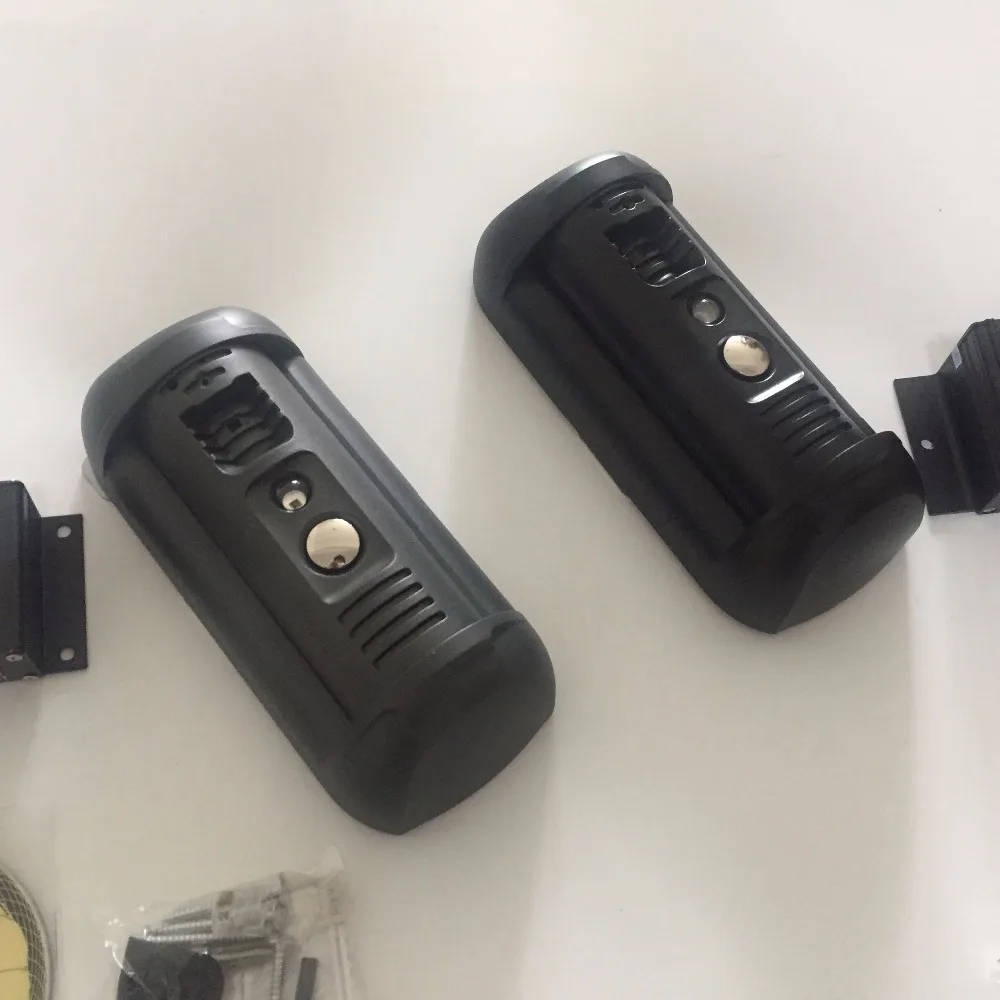

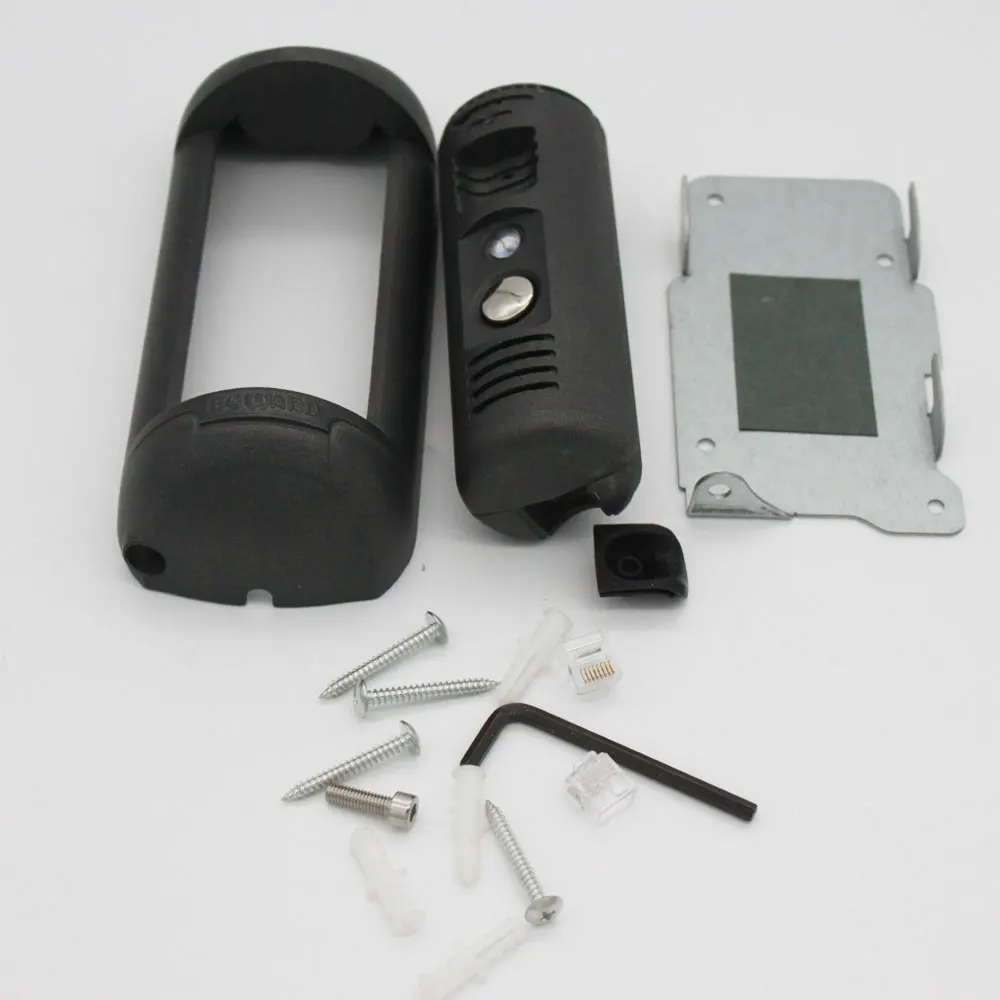

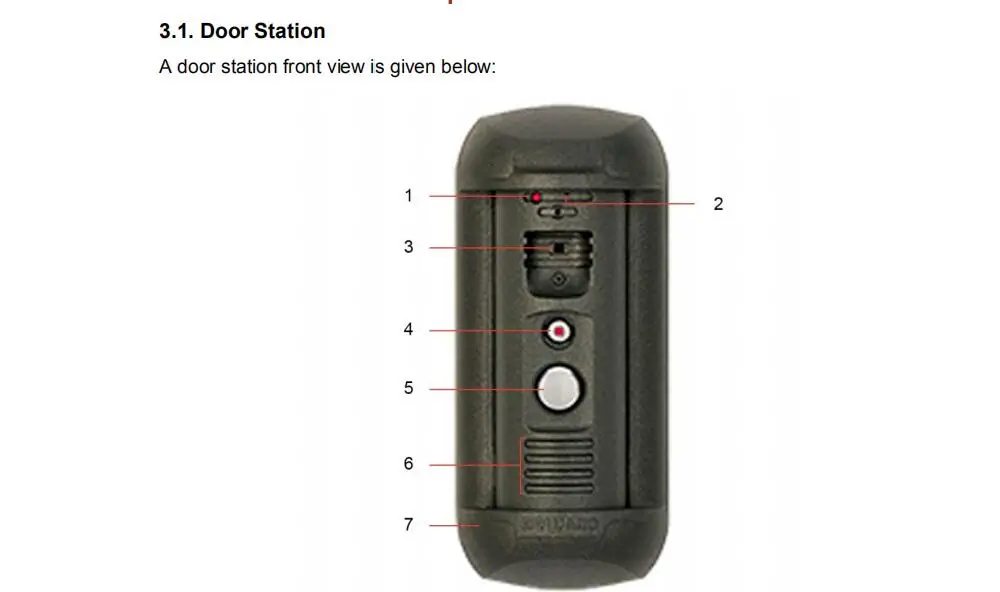

Units Panel
Mont (it consists of 2 parts)
Secret screw
RJ-45 connectors (2pcs)

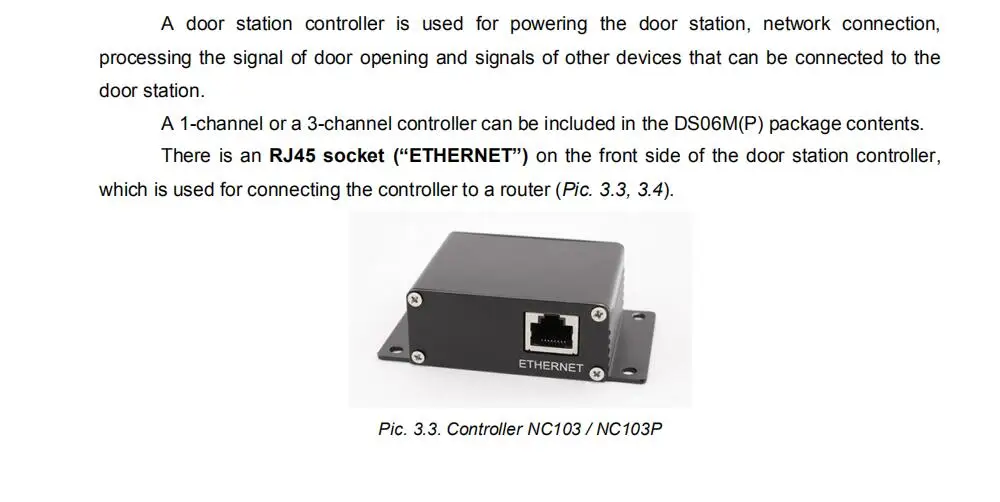

Junction box
Fixing set
Сlip connector
CD with manuals and software
Package

POE Video Doorphone Doorbell
HD Camera POE Video Doorphone Doorbell ADJUSTABLE FIELD OF VIEW VANDAL RESISTANT IP VIDEO INTERCOMS OUTDOOR IP54(-40+50 Degree C)
