Features and specifications:

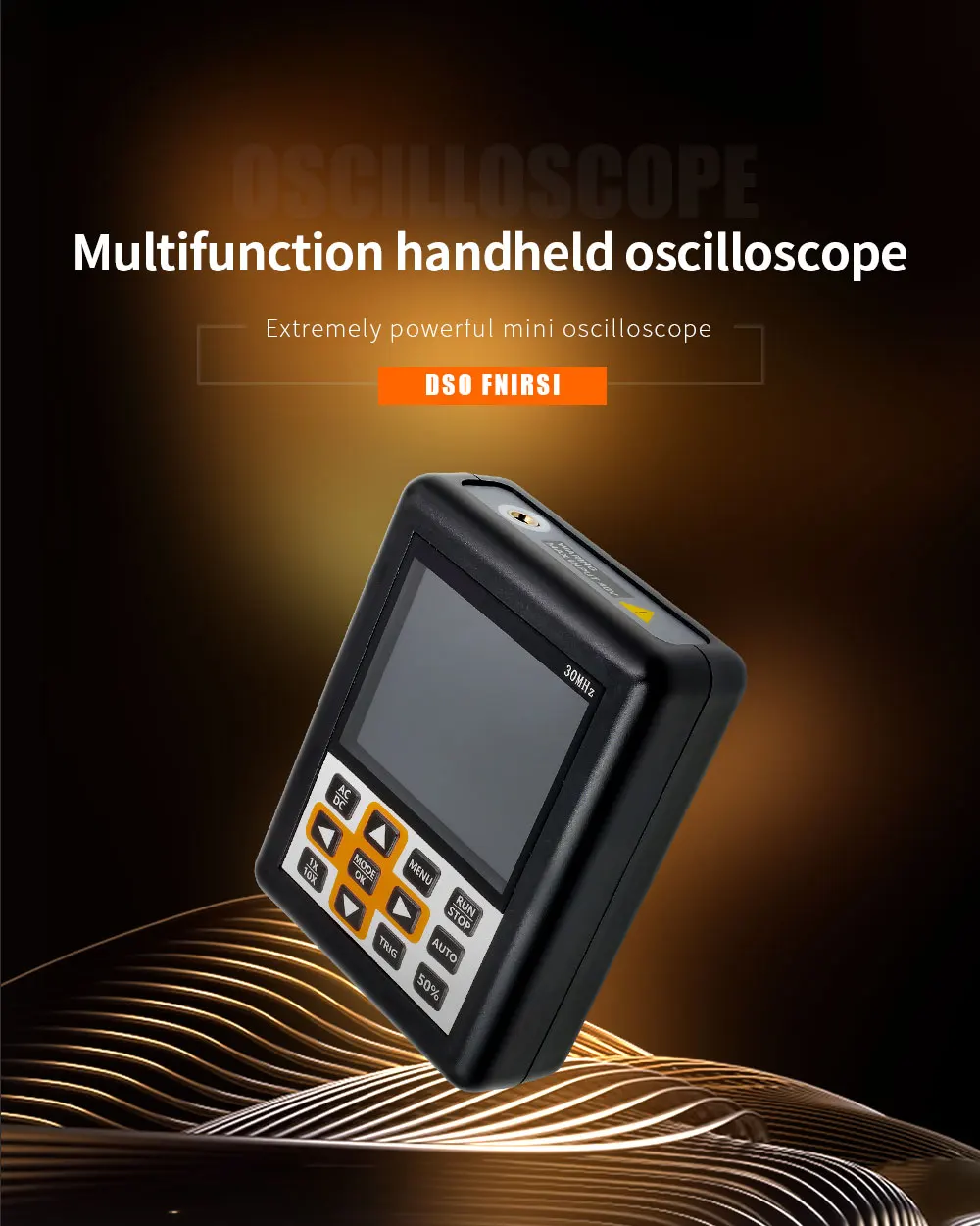

DSO-FNIRSI is a full function, high utility, high performance and cost-effective handheld oscilloscope for the maintenance industry and the R & D industry. The oscilloscope has a real-time sampling rate of up to 200MS/s and a 30MHz analog bandwidth. With complete triggering function (single, normal, automatic), both the periodic analog signal and the aperiodic digital signal can be used freely. Large time base scanning mode can monitor slow level changes. Equipped with high efficiency one button AUTO, the measured waveform can be displayed without complicated adjustment. Display the High Definition LCD screen equipped with 2.4 inch 320*240 resolution IPS full vision technology, the visual effect is very good, no eye, the oscilloscope on the market is almost used cheap TN screen, screen fan white. Extremely convenient and fast waveform storage function, built-in 64M storage space, the maximum storage of 2000 waveform pictures. Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions. Built in 3000mAh rechargeable lithium battery can be continuously charged for 10 hours at one time. Day mode and night mode can be changed according to their own preferences.

Key features:

1:Memory compression technology, waveform refresh screen does not flicker

2:Afterglow display technology

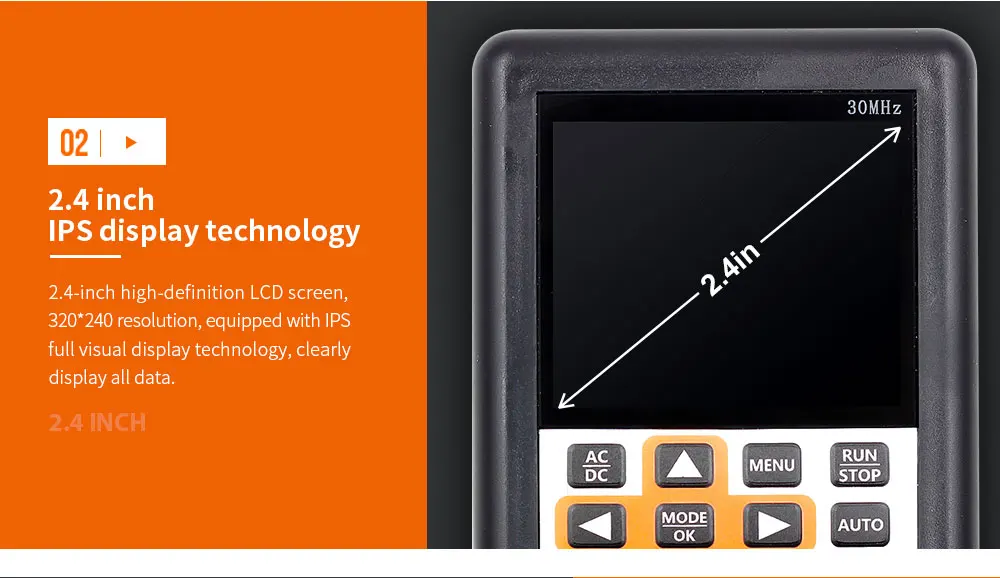

3:2.4 inch color display screen with IPS technology

4:30MHz analog bandwidth @ 200MS/s sampling rate

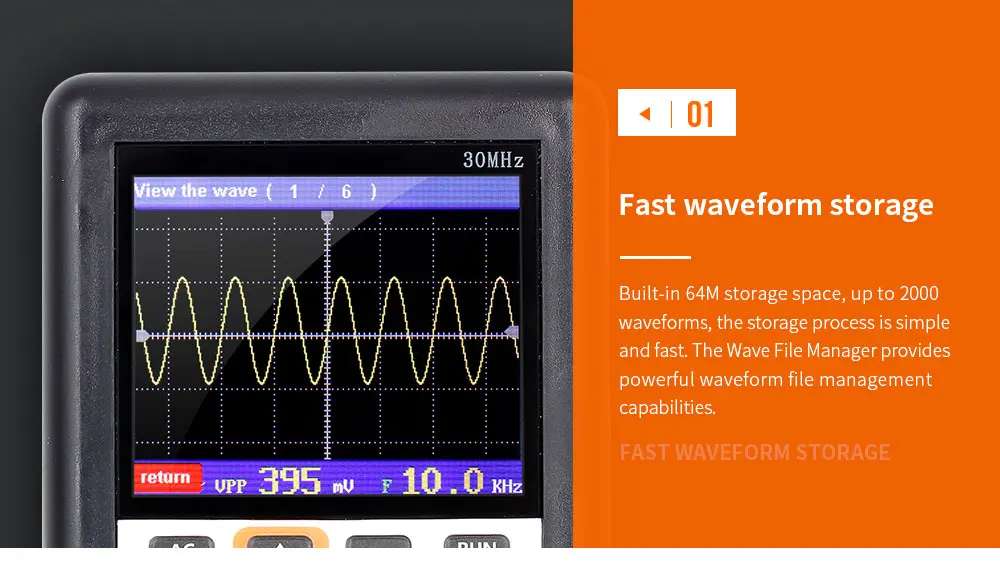

5:Fast waveform storage

6:Built-in 64M storage space, the maximum storage of 2000 waveform pictures

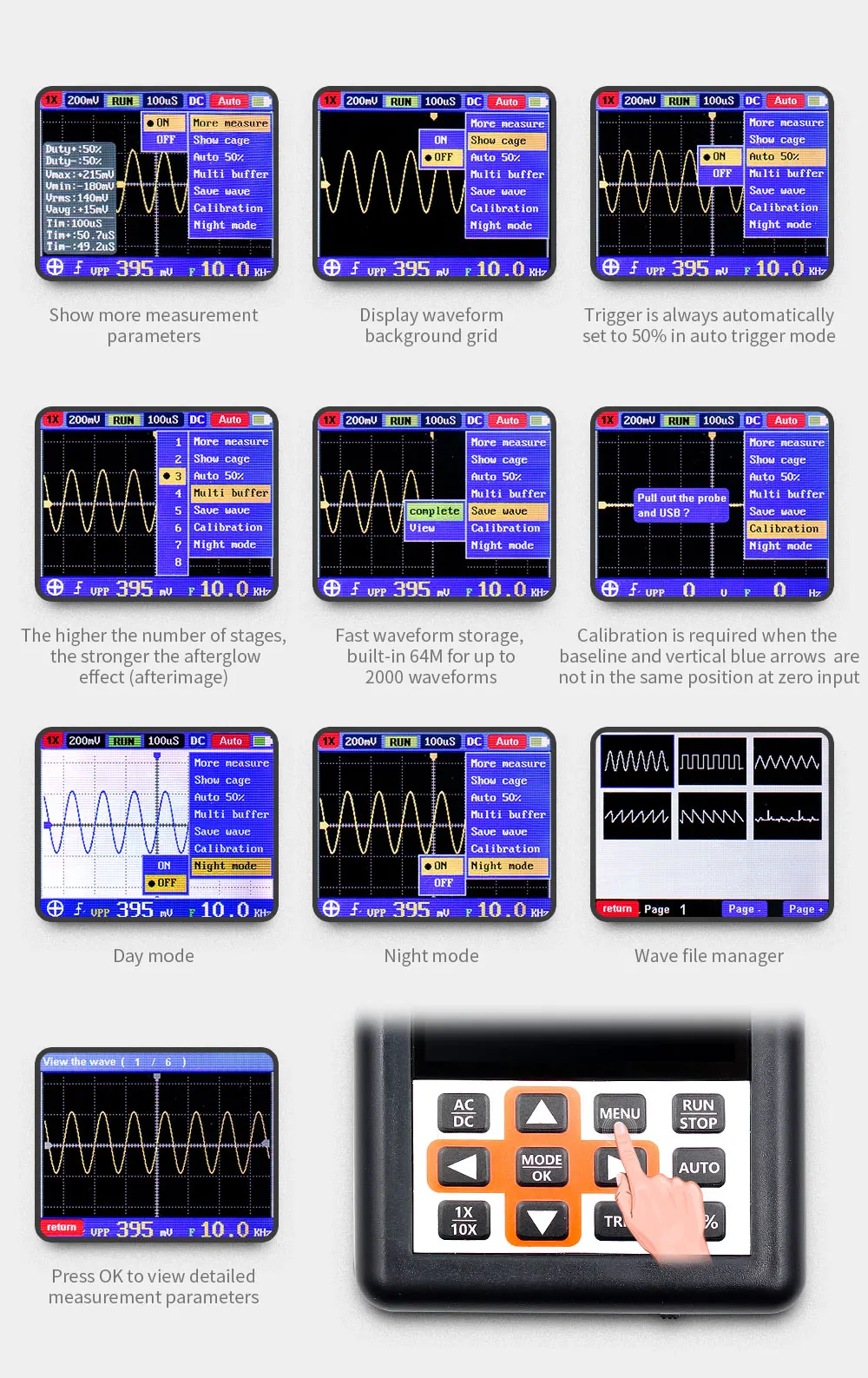

7:Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions

8:High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 40 ~ 800V

9:Up to 11 parameters measurement:VPP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Time

10:At any time, the waveform display (pause function) is frozen

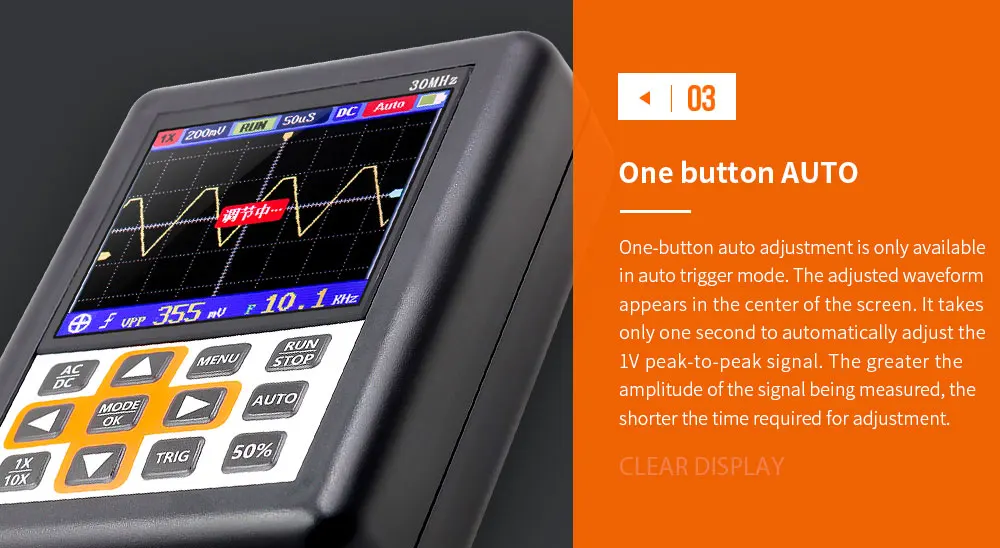

11:Equipped with high efficiency one button AUTO

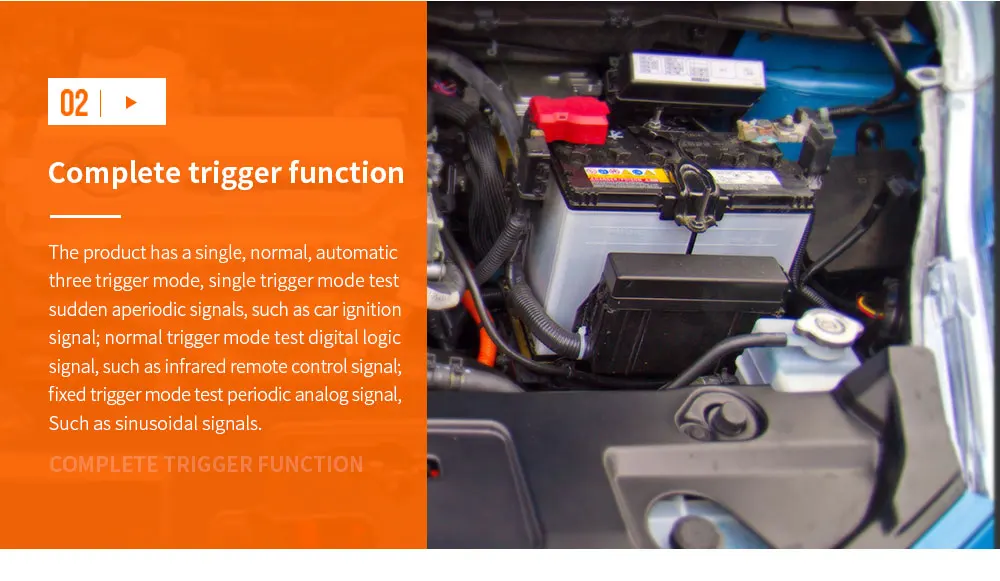

12:Complete triggering function (single, normal, automatic)

13:Built in 3000mAh rechargeable lithium battery can be continuously charged for 10 hours at one time

14:Day mode and night mode

15:Ultra small volume, easy to carry

Specifications:

1:Analog band width: 30MHz

2:Maximum real time sampling rate: 200MS/s

3:Vertical sensitivity: 50 mV/div ~ 200 V/div

4:Horizontal time base range: 100mS/div ~ 125nS/div

5:Maximum input voltage: 40 V (1X probe), 800 V (10X probe)

6:Storage depth: 128KB

7:Input resistance: 1M

8:ADC precision: 8bits

9:Coupling mode: AC/DC

10:Trigger mode: Single, Normal, Automatic

11:Trigger edge: Ascending/descending edge

12:External trigger voltage 0 – 40 V

13:Display: 2.4 inch – IPS – 320*240

14:Power supply: 3000 mAh lithium battery

15:Size: 90 x 70 x 28 mm

16:Weight: 200g

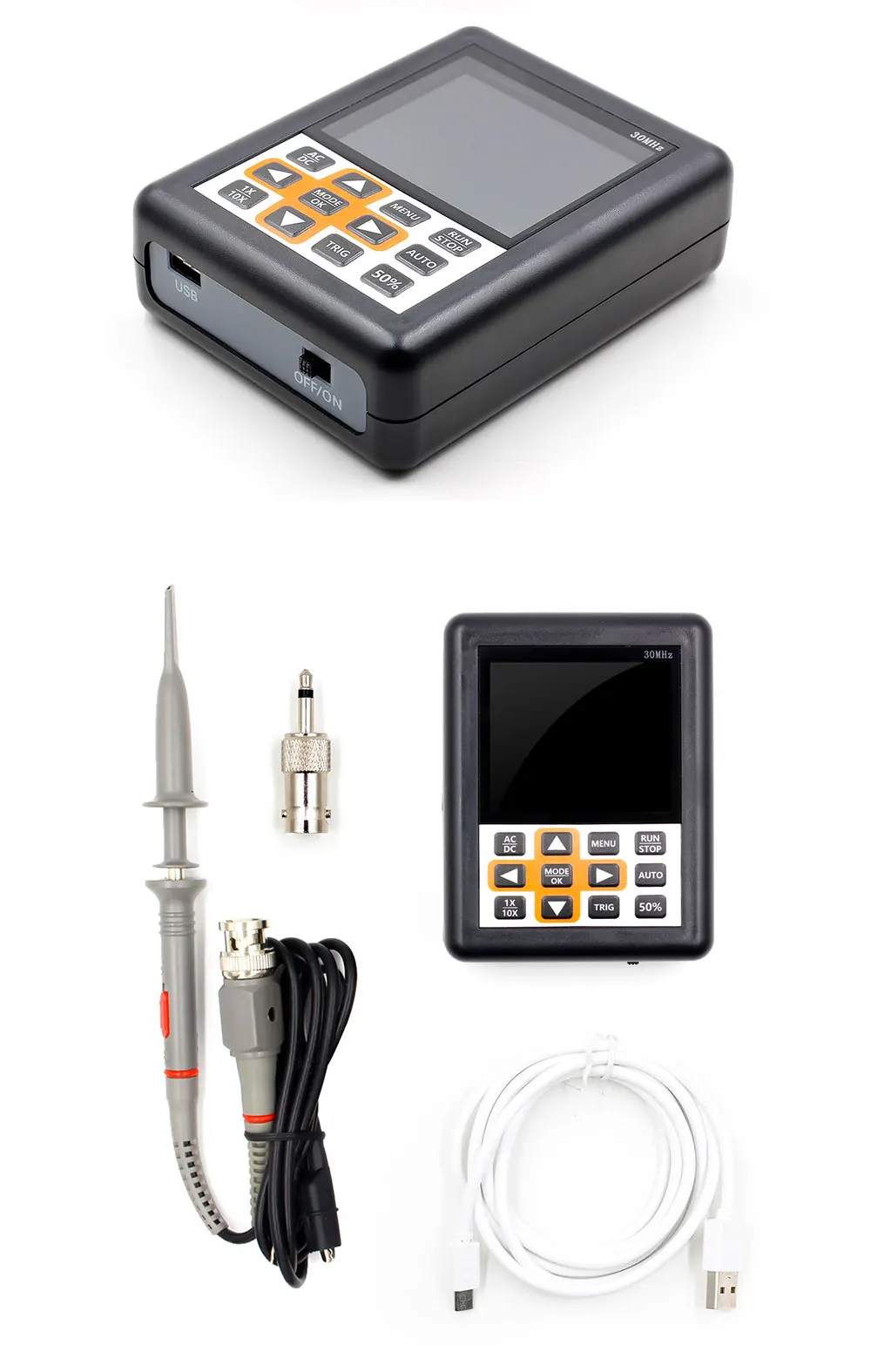

Package includes:

1 x DSO-FNIRSI oscilloscope host

1 x Matching Special probe(1X and 10X)

1 x Micro USB data line

1 x User manual (English)
