DHL Free Shipping Portable 4G Android PDA QR 1D 2D Mobile Data Collector POS Terminal With NFC Charger Cradle Wifi Bluetooth GPS
Remark : If you have any good ideal ,pls share with us by sending message !
1. Techinican keep on aftersale service .
2. Help you write lower invocie value to avoid highly customs tax.
3.Can be delivery acording to your demand (DHL,UPS,EMS etc.).
4.Taking pictures update you before your order shipping .
5.Product Quality And Your Buying Experience Is Our Original Intention !
Feture :
1.Android7.0 operation system;
2.Quad-Core ARM Cortex-A53 Quad-core 1.3G;
3.Hd 8 million pixels, with LED, automatic focusing;
4.SIM card, PSAM card, Micro SD (TF) Card Expand Port;
5.Rechargeable Li-polymer Battery 3.7V 4000mAh;
6.Color 4.0 inch QVGA imitative glass durable touch screen.
7.Sealed Environment: IP65
8.Support 1d barcode scanner
9.Support NFC(HF.13.56M rfid) or 125K RFID
Technical specifications
Physical Parameter
Size 152mm(L)X77mm(H)x25mm(W)
Weight <300g
Display Screen Color 4.0 inch QVGA imitative glass durable touch screen
TFT-LCD, 650000 colors, 480*800 (QVGA size)
The brightness of LED Backlight is adjustable
Expand Port SIM card, PSAM card(optional), Micro SD (TF) Card
Communication Interface USB2.0 Device, RS-232(Optional)
Input Mode Standard Stylus, Handwriting, touching input or keyboard input
Battery Capacity Rechargeable Li-polymer Battery 3.7V 4000mAh Optional
Frequency 8Ω 1W speaker
Key 21pcs soft silicon key
Performance Parameter
CPU Quad-Core ARM Cortex-A53 CPU1.3G
RAM 2G RAM
Flash ROM Standard 16G NAND Flash Storage
Micro SD/TF port Max up to 32G
Data Communication
WI-FI Support IEEE802.11b/g/n protocol, it need effective wireless LAN signal cover
4G All netcom Support FDD-LTE/TDD-LTE/WCDMA/TD-SCDMA/CDMA/EVDO and GSM)
Bluetooth Support Bluetooth 4.0, transmission distance is 5-10m
Operating Environment
Operating Temperature —20 to 50
Storage Temperature —25 to 70
Environment Humidity 5%RH–95%RH(no condensation)
Drop Specifications 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature
Roll Specifications 1000 times/0.5m, roll on 6 sides contact area
Sealed Environment IP65
Development Environment
Operating System Android5.1
SDK exclusive use software development kit
Supported Language JAVA
Development Tool Eclipse
A one-dimensional bar code collect
One dimensional laser scanner Honeywell N43XX
Resolution 4Mil minimum width
Ambient Light 10000ft.candles 107640 lux
Scanning Speed 104(±)12/sec (bothway)
Scanning Angle 47º±35º(Standard) / 35º±3º(narrow angle)
Support Bar Code Type UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS
Two-dimensional bar code acquisition
CMOS Scanner Honeywell 3680
The Sensor Resolution 752(level)x480(vertical)pels(gray level)
Ambient Light All dark 9000ft.candles/96900 lux
Focus element (VLD) 655nm ± 10nm
Support bar code type PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3
RFID
LF 125K/134K;ISO11784/ISO11785 protocol
HF(NFC) 13.56MHz;ISO14443A/B 15693 protocol
Camera Hd 8.0 million pixels, with LED, automatic focusing
GPS Support A-GPS

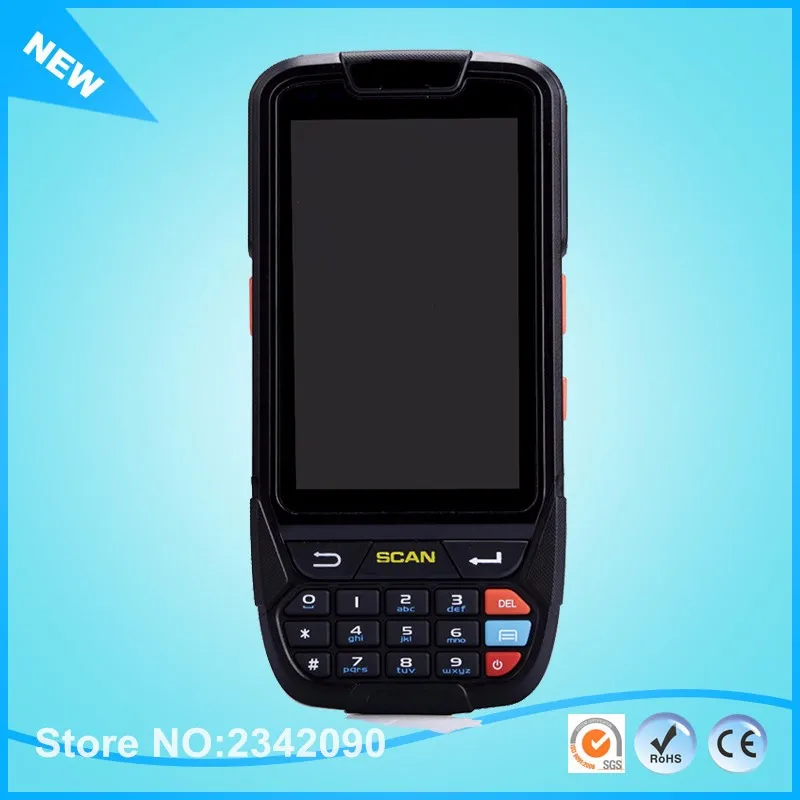

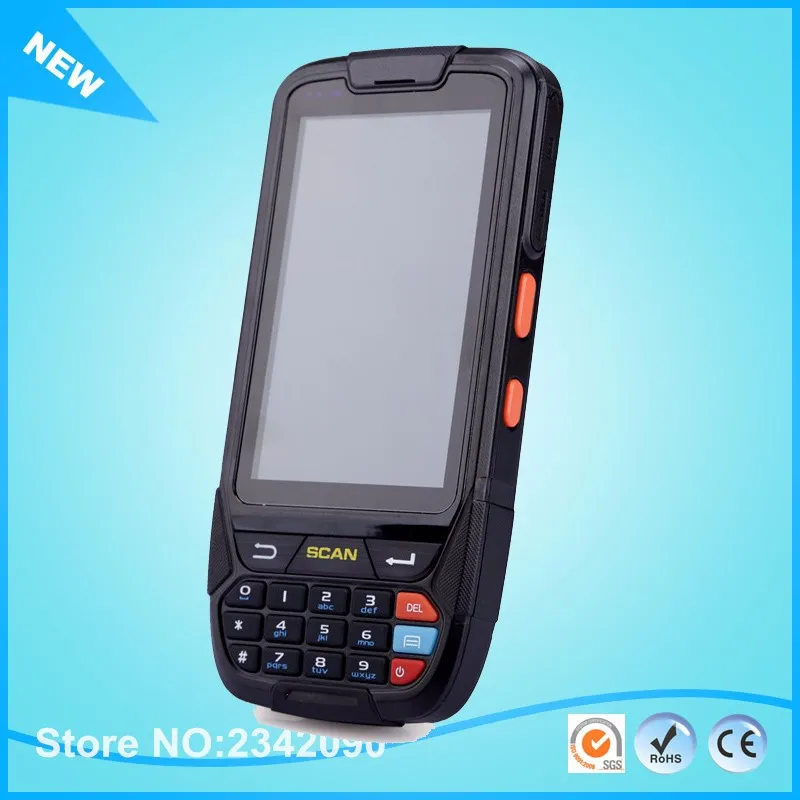

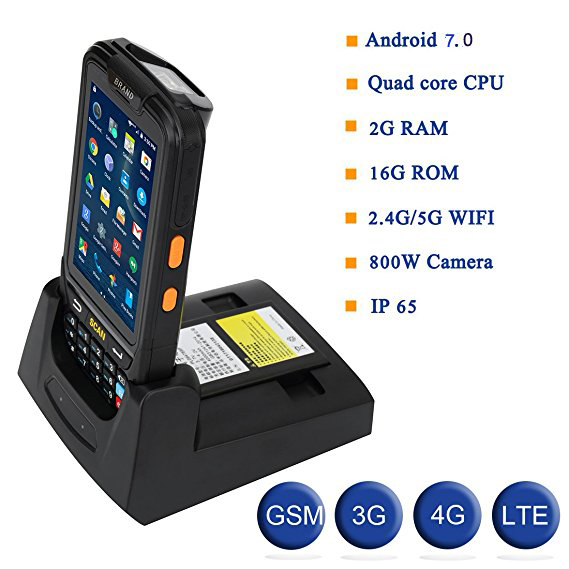

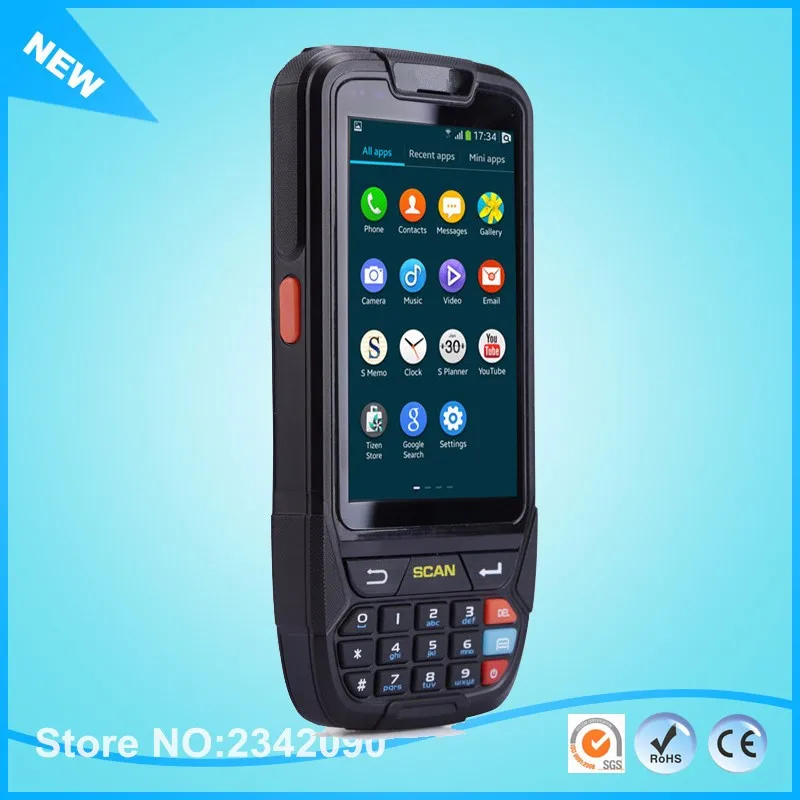

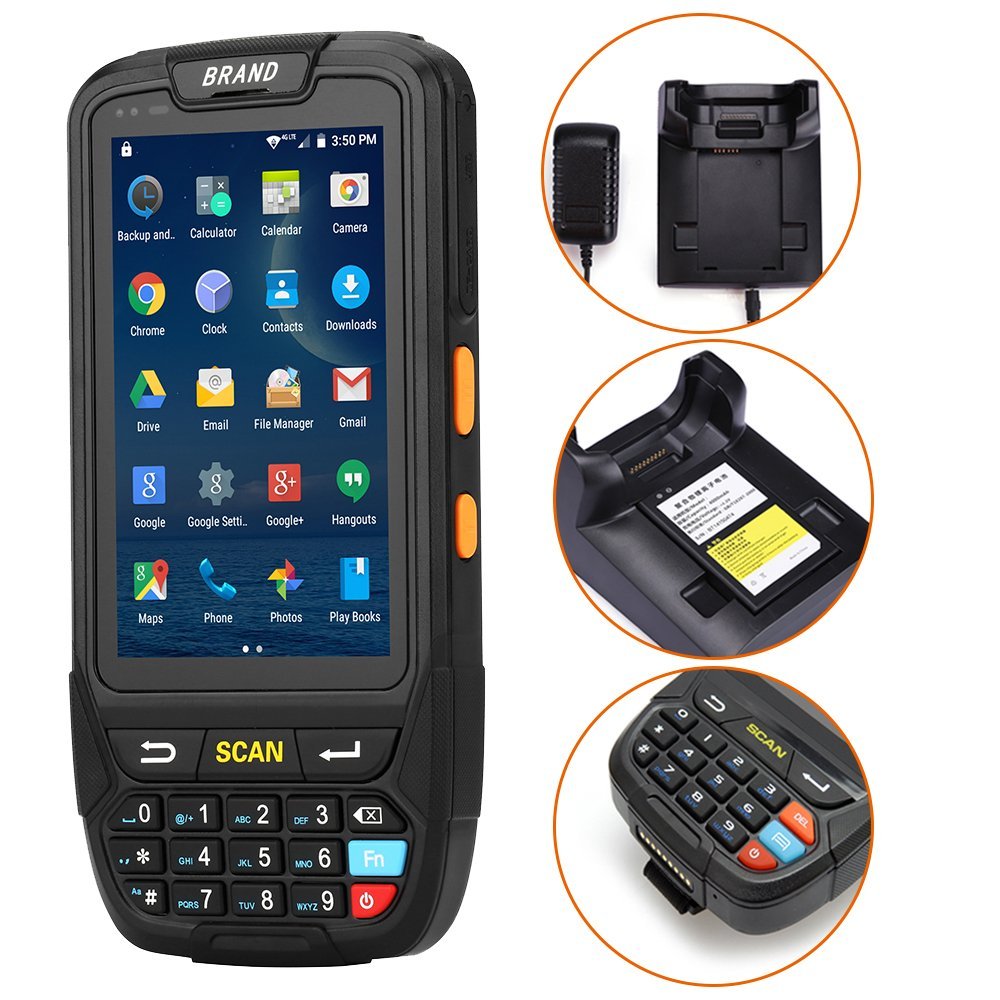

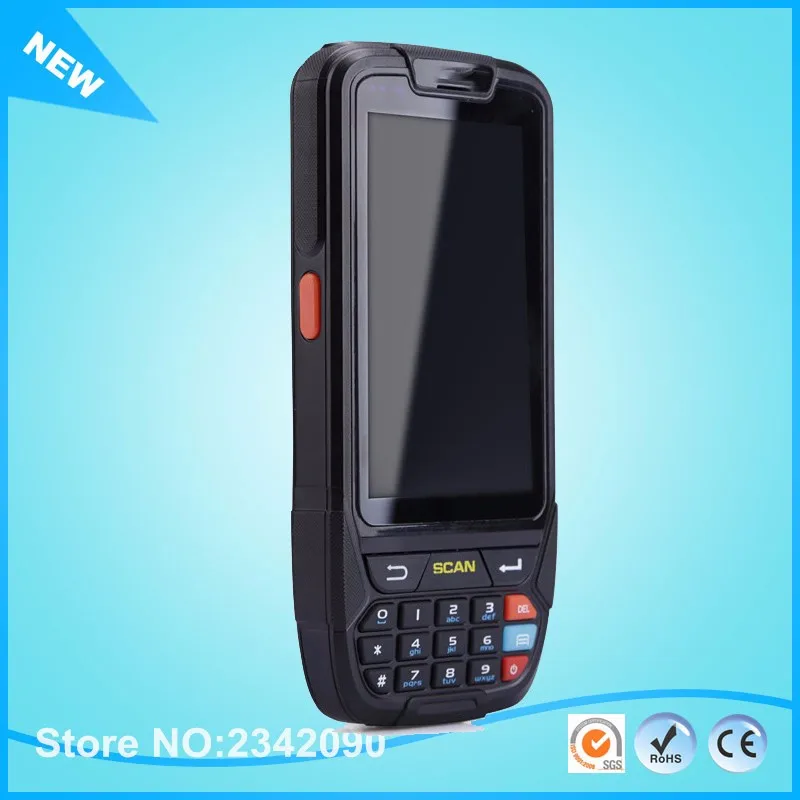

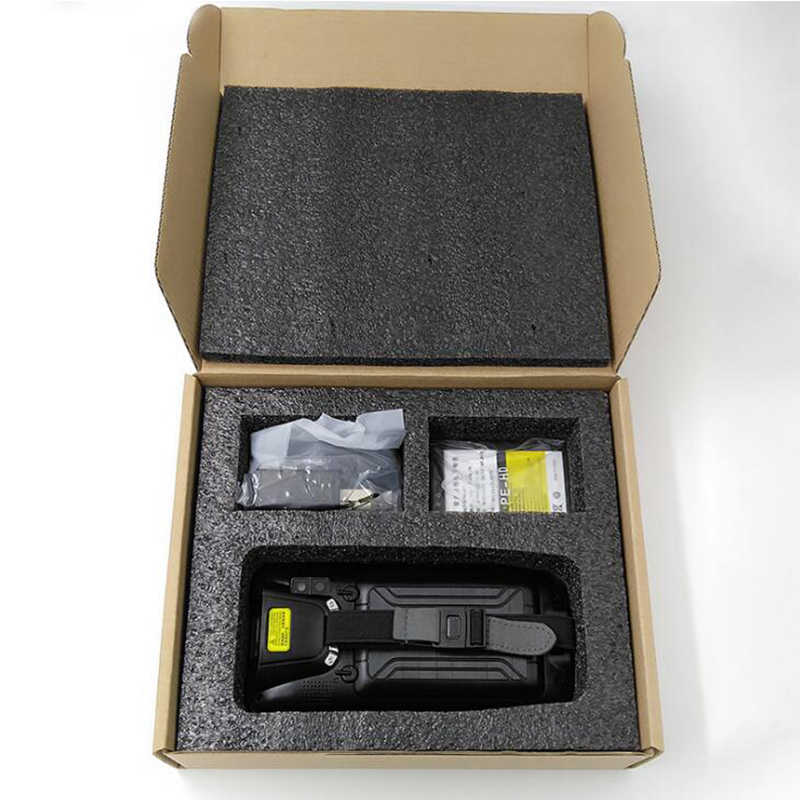

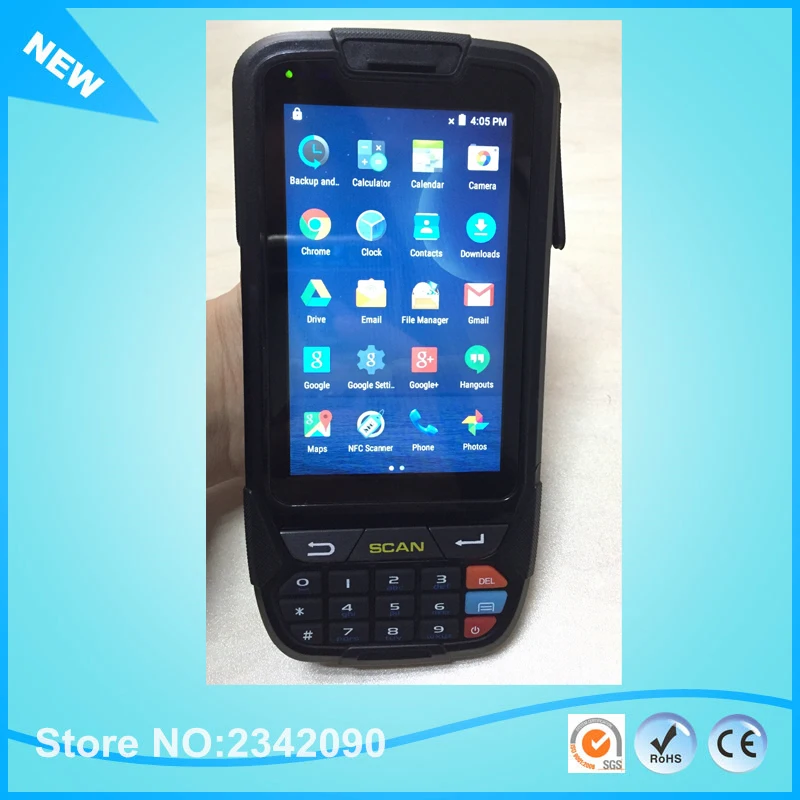

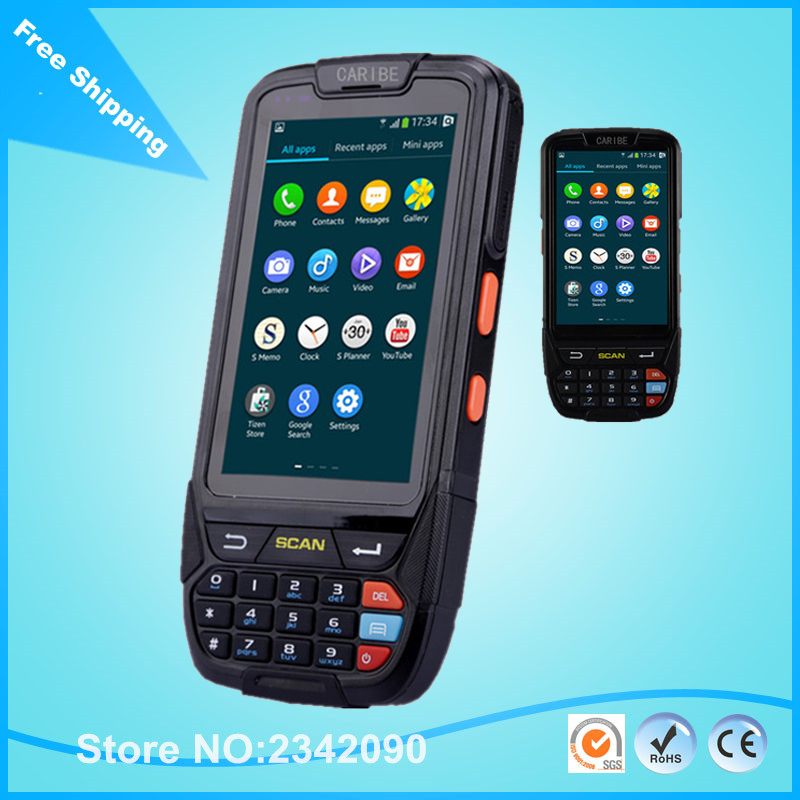

Prodect Picture
DHL Free Shipping Portable 4G Android PDA QR 1D 2D Mobile Data Collector POS Terminal With NFC Charger Cradle Wifi Bluetooth GPS
Application
DHL Free Shipping Portable 4G Android PDA QR 1D 2D Mobile Data Collector POS Terminal With NFC Charger Cradle Wifi Bluetooth GPS
Our After-Sale Service Assurance
Free Shipping Portable Android PDA 1D 2D Mobile Data Collector Terminal With Charging 4'' Screen 16G ROM/Wifi/Bluetooth/NFC Reader
Thank you for the interest about our products,we will handle the service after sale as following:
1).We offer 1 year warranty,any terminals with quality issue(Exclude human factors) can get repaired or replacement from us during this period.
2).For the product assemblement and repairment,we will send the video for your reference.If necessary,we will send technical staff to train client’s repairer for free.
3).We will provide technical assistance for the whole life.In case clients would like to extend 1 year warranty period in their market.
Our Product Certifications (Quality Assurance)
Free Shipping Portable Android PDA 1D 2D Mobile Data Collector Terminal With Charging 4'' Screen 16G ROM/Wifi/Bluetooth/NFC Reader
Our Workshop
Free Shipping Portable Android PDA 1D 2D Mobile Data Collector Terminal With Charging 4'' Screen 16G ROM/Wifi/Bluetooth/NFC Reader
