DC12V 3L 5L 10L Mini Vacuum Air Pump Aquarium Air Pump 2pcs/Lot For
Tube Ozone Generator + Free Shipping
Specification:
| Model | Air Flow (L/min) |
Voltage | Power (W) | Pressure(Kpa) | Size (mm) |
Cable Length (mm) |
Net Weight (g) |
Flow Channel Style |
| M300 | 3 | DC12V | 2.5 | 14 | 88*53*35.7 | 37 | 115 | Single Output |
| M500 | 5 | DC12V | 2.8 | 18 | 93.9*55.7*34.3 | 37 | 185 | Single Output |
| M800 | 10 | DC12V | 4 | 23 | 114.6*63*54.2 | 37 | 275 | Single Output |
How air pump match tube ozone generator?
For DC12V unit,
3L match 0.1-1g tube ozone generator
5L match 1-2g tube ozone generator
10L match 2-10g tube
Please note there is no strict regulation on how to match, just approximately matched is ok. If air flow is too strong for the tube ozone generator, ozone concentration will be decreased. if too weak, the ozone output speed will be lowered.
General Application:
Our air pumps are widely used in Medical Equipment, Food Spa,Electric tools, massage apparatus and crafts gifts, etc.
Attention:
In order to avoid water flowing backwards, the air pump should be put 20CM above the water surface or install the check-valve on the outlet pipe.
Feature:
>Product surface is made of Environmental friendly ABS.
>Steady air outputs with low noise
>Very low vibration
>Low-power consumption, Continuous operation and long life.
>Non-oil lubricating design to produce purer compressed air.
>Noise Level: 40db. When work continuously, the noise level will be below 40db.

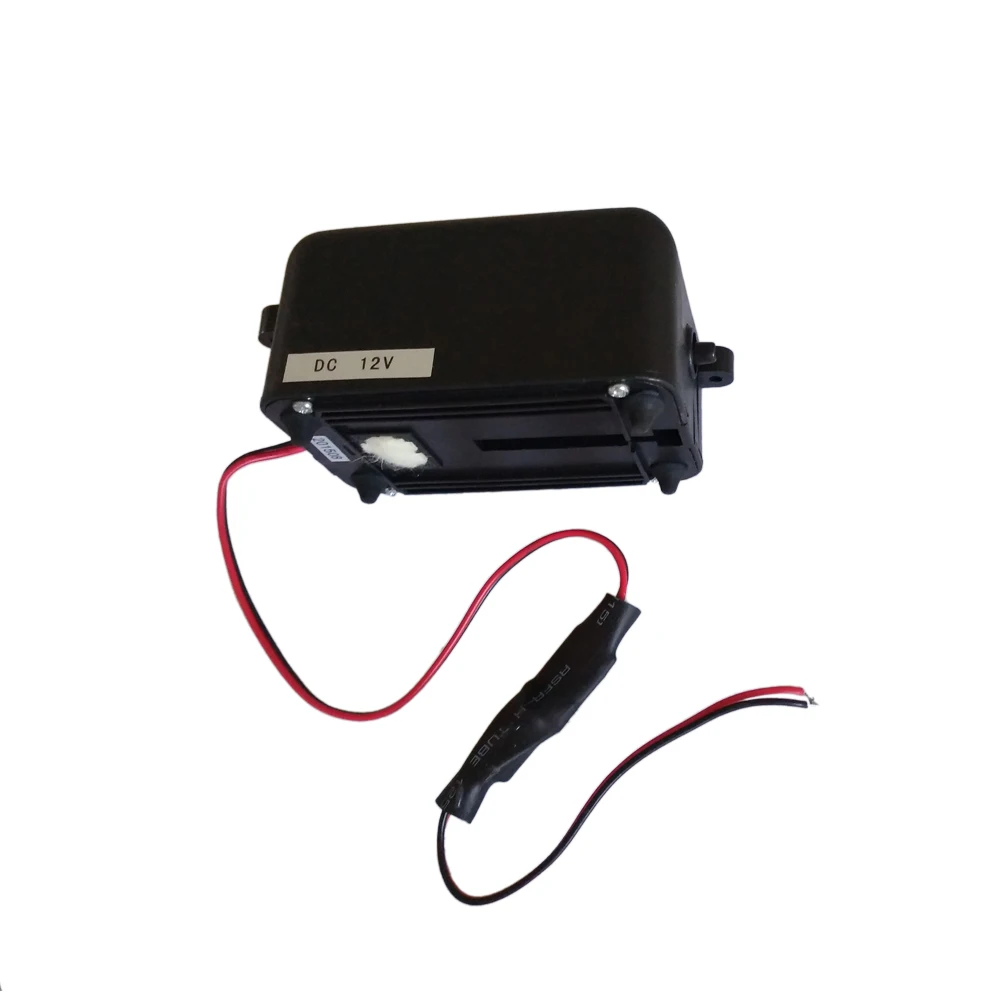

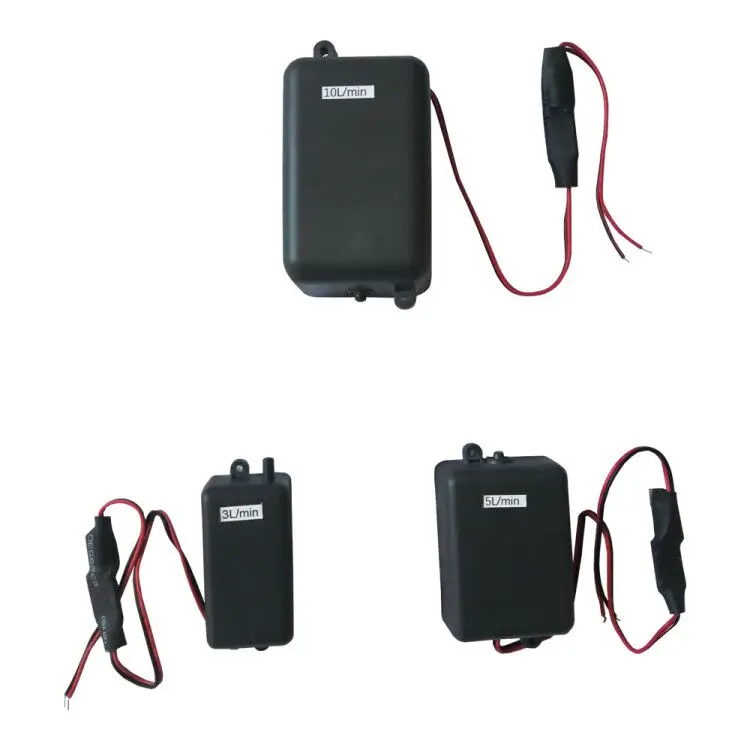

Photo: 8L air pump:

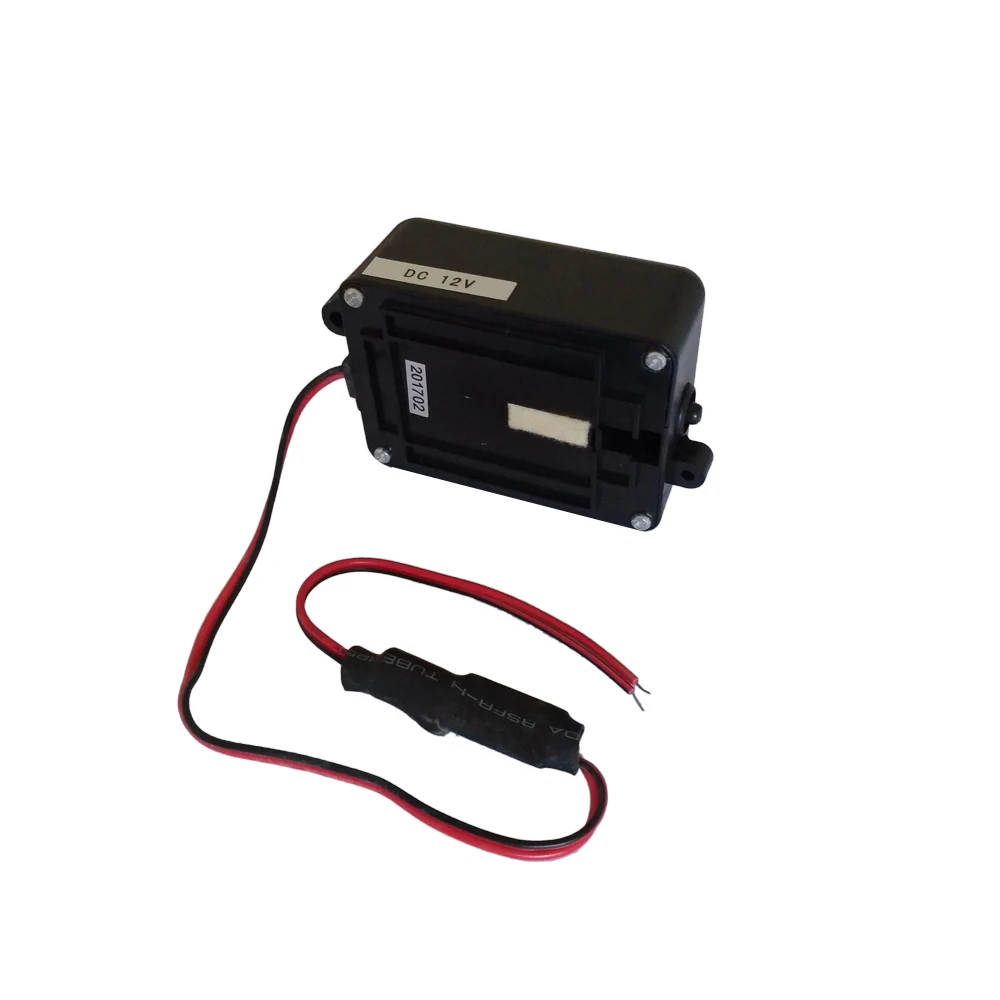

5L air pump:

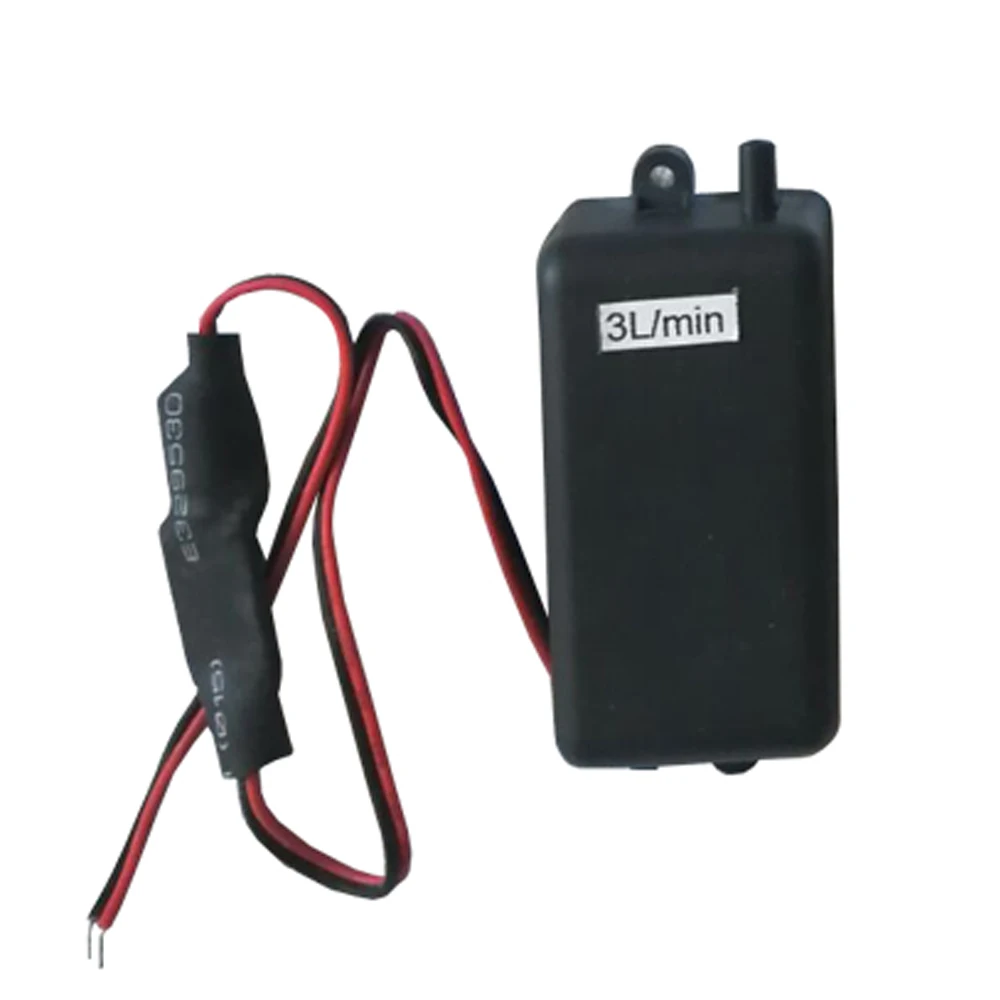

3L Air pump:

Dimension:

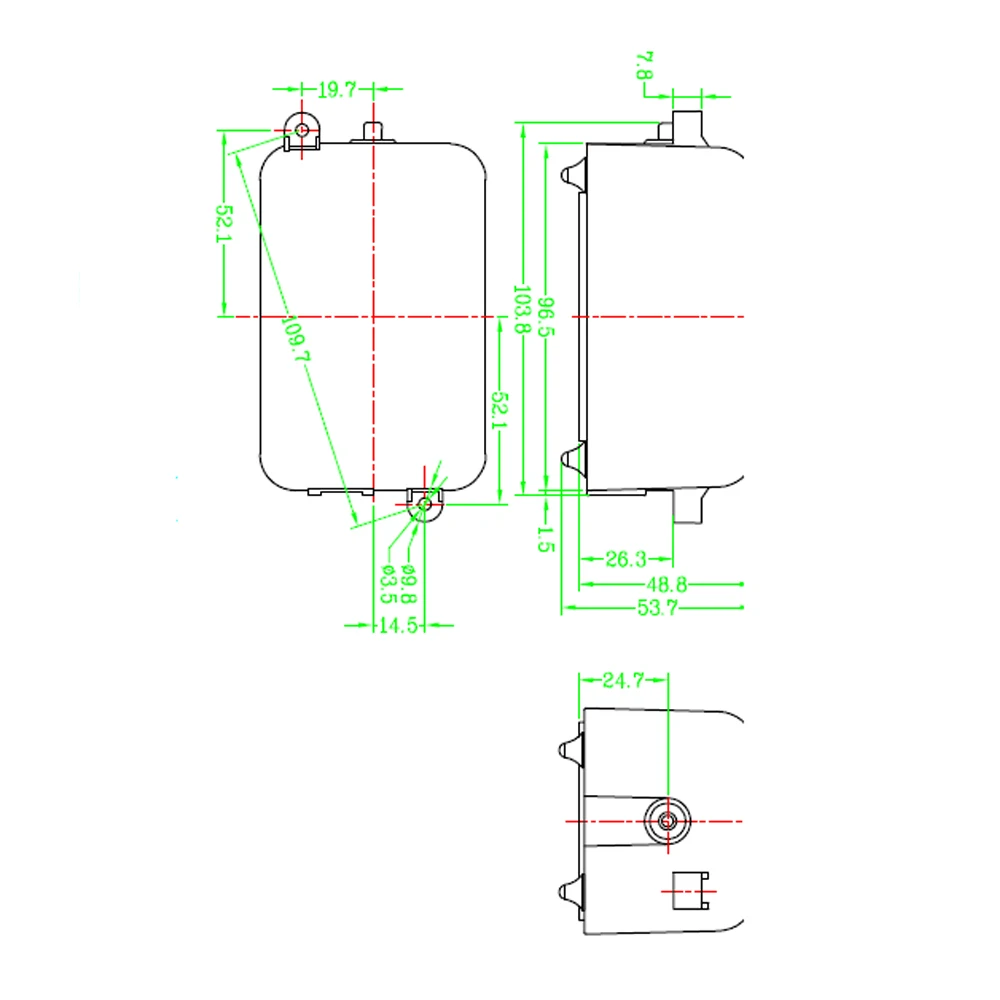

8L

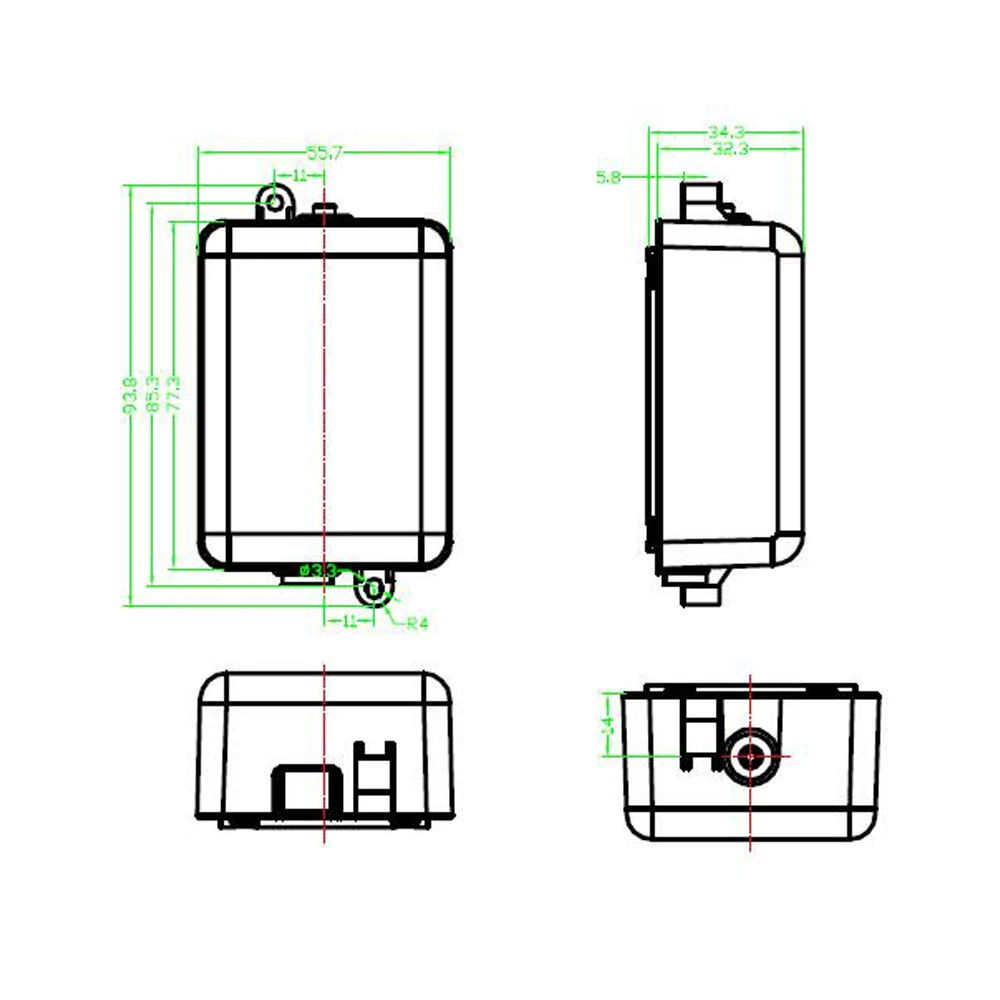

5L:

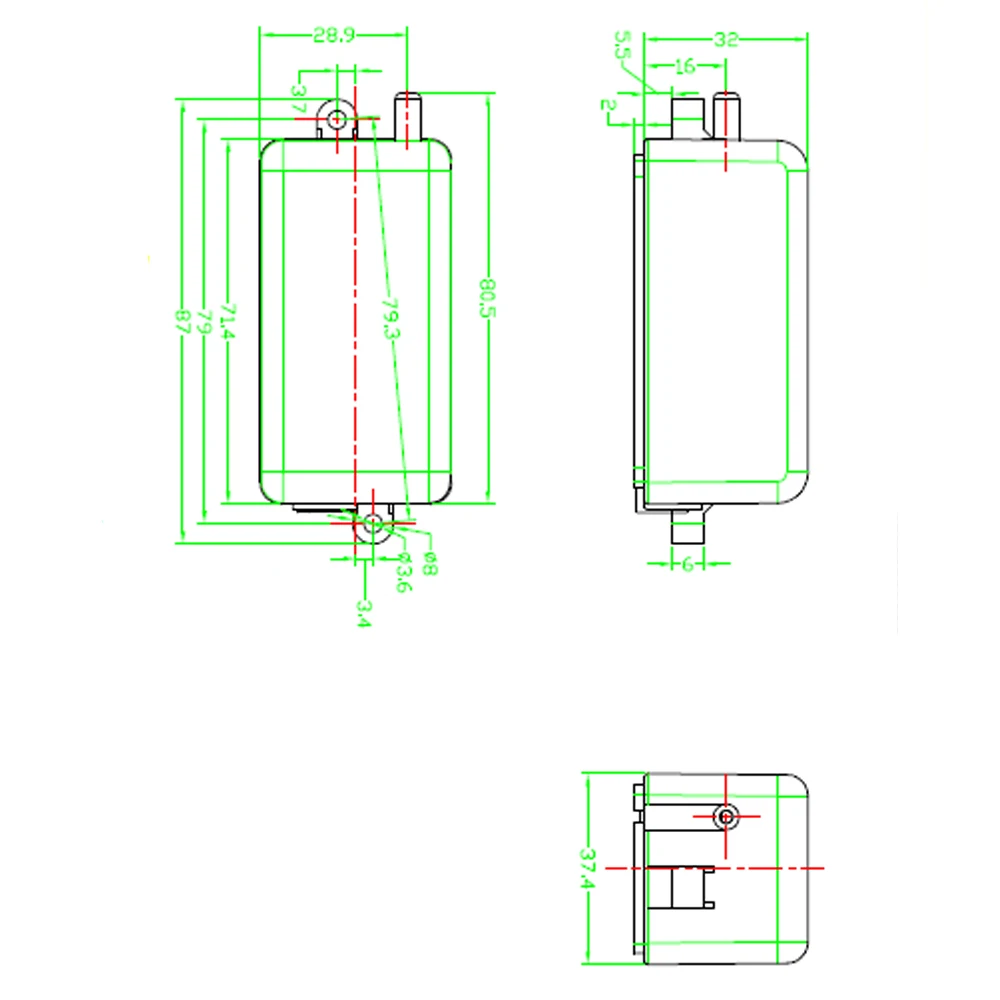

3L:

Function:
1. Increase surface area
2. Improve circulation
After Sales Service:
1. We are responsible for shipping damages, and any product not working if installed properly. we can compensate it with payment back or send you new one / ones. But the prerequisite is that you raise up the problem within 7days after consignment.
2. We are not responsible for any import duties. However, in order to alleviate your import tax burden, you can ask us to declare lower value on the shipping invoice.
Communicate with us to get more information.
