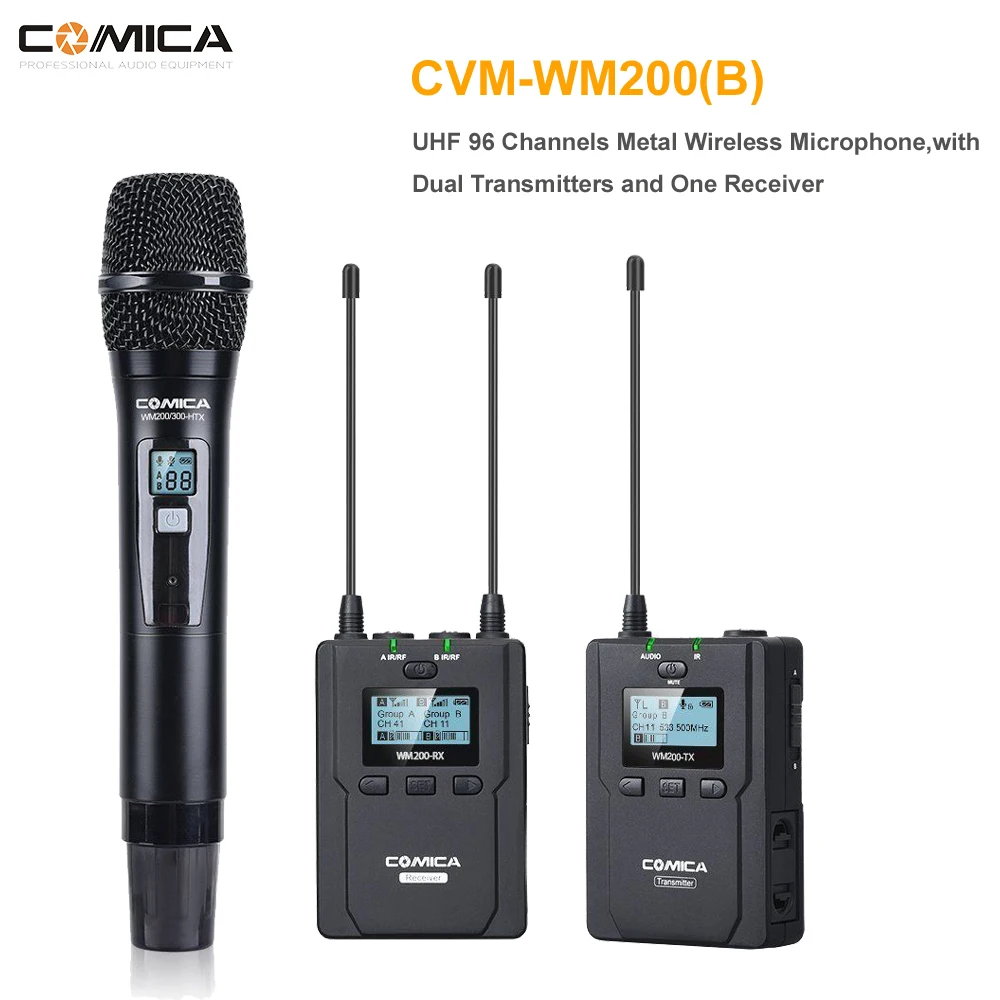

Description:

WM200 is an all-metal wireless microphone with dual-transmitter triggered by one receiver, with two AA batteries, it utilizing UHF wireless FM technology and LED high-resolution lattice screen: 96 channels in total, 16-level adjustable volume, and integrated into LCF, Auto-scanning, Auto IR Channel-match, stereo / mono switchable audio mode, RF signal strength adjustment, MIC/LINE IN input dual selection, power monitoring at receiver end, sound pickup dynamic display, backlight adjustment and other functions, at the same time with strong shielding anti-noise performance, it’s a high-quality microphone to broadcasting level.

Main Features:

. Dual Transmitters Triggered by One Receiver, A/B Double Group Options;

. 96 Channels, Used for Multiple Devices Working Together;

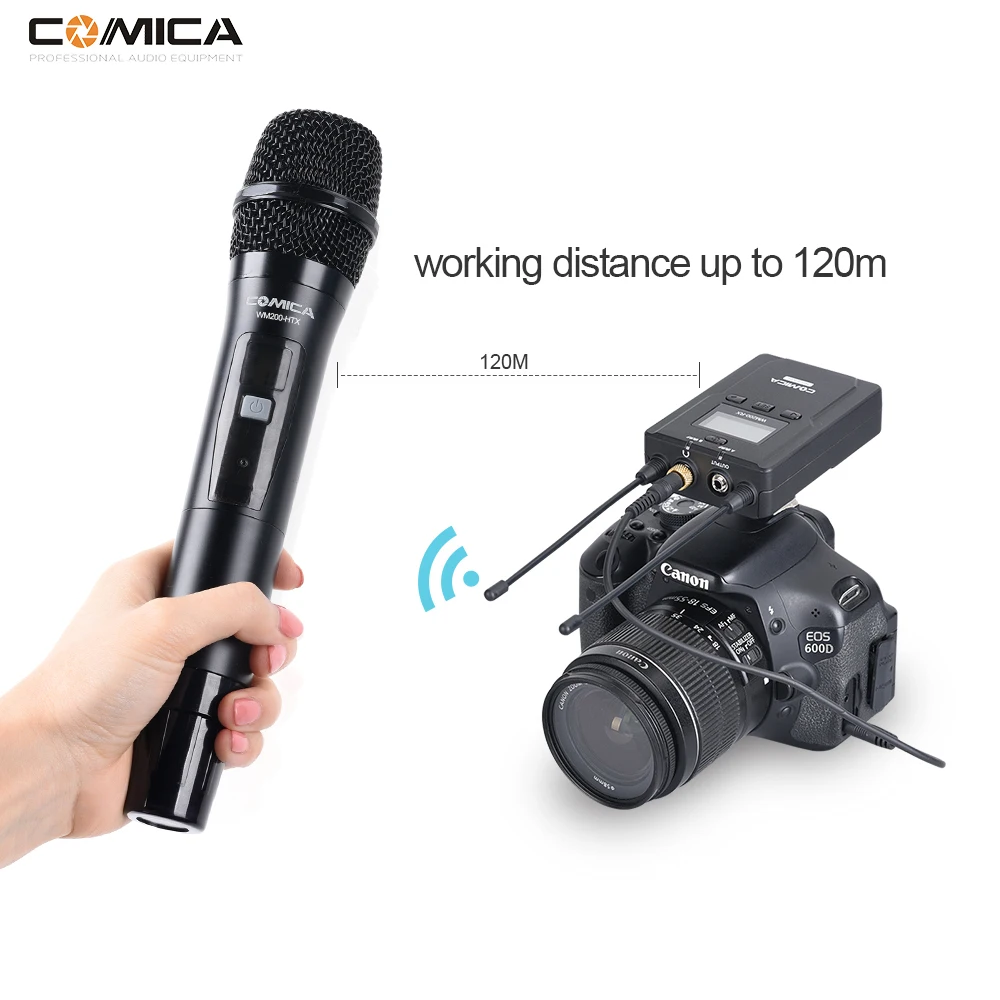

. Working Distance is Up to 120m (in open area, up to 80m in Barrier Area);

. LCF Low Cut Filtering Mode;

. Auto-scanning for Quick Channel Selection;

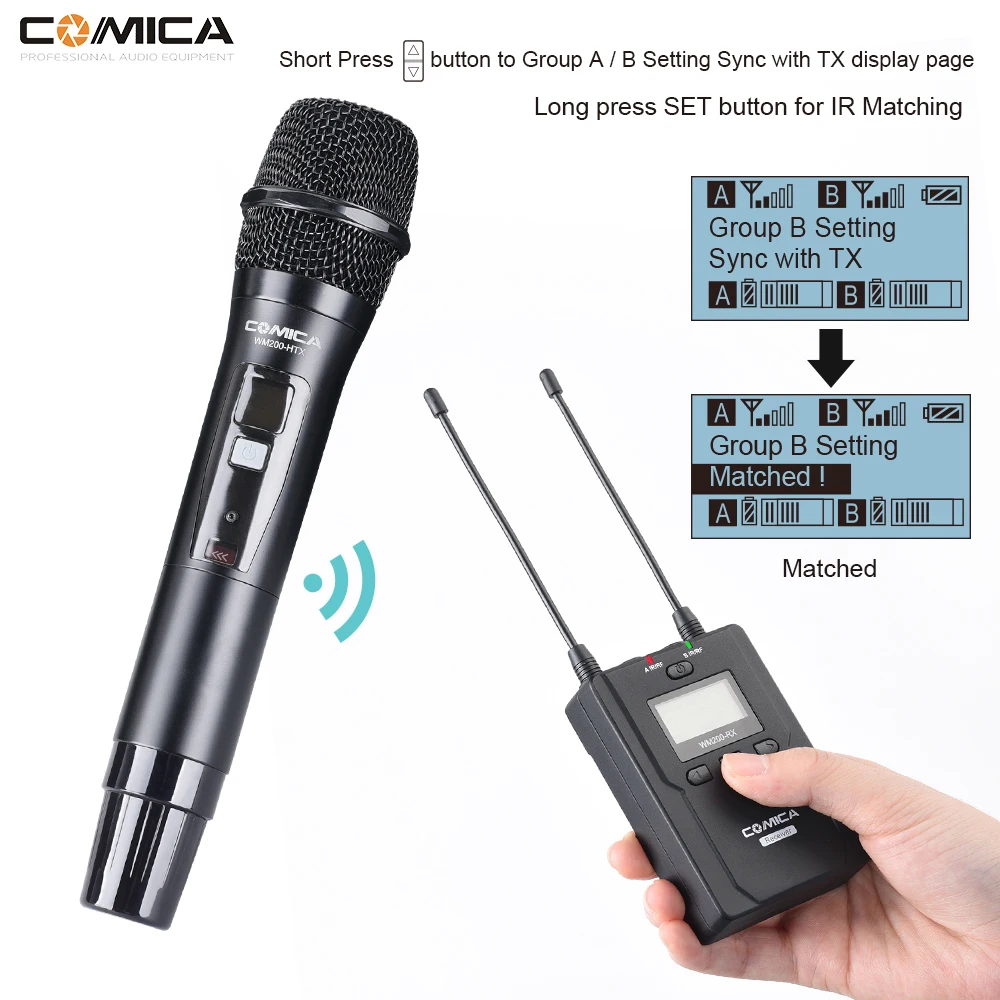

. Manual or Auto IR Sync;

. Adjustable RF Signal Strength;

. Audio Dynamic Display Bar;

. 16 Levels Volume Adjustment;

. Transmitter Power Monitor;

. Mono/Stereo Switchable Output Modes;

. Low-consumption, Super-long Standby Time;

. Lattice LCD Display, High Resolution;

. Full Metal Manufacturing, Excellent Shielding;

Specification

Transmitter TX

Channels	96
Group A Wireless Frequency	520.000MHz ~ 548.500MHz
Group B Wireless Frequency	550.000MHz ~ 578.500MHz
Signal / Noise	>65dB
Antenna	1/4 Wavelength Wire Antenna
Transmitting Power	10dbm/15dbm
Stray Radiation	< -60dBc
Sound Delay	<20ms
Audio Distortion	<0.5%
Battery	Two AA Batteries
Dimension	84 x 63.5 x 23mm
Operating Temperature	0℃ ~ 50℃
Storage Temperature	-20℃ ~ 60℃

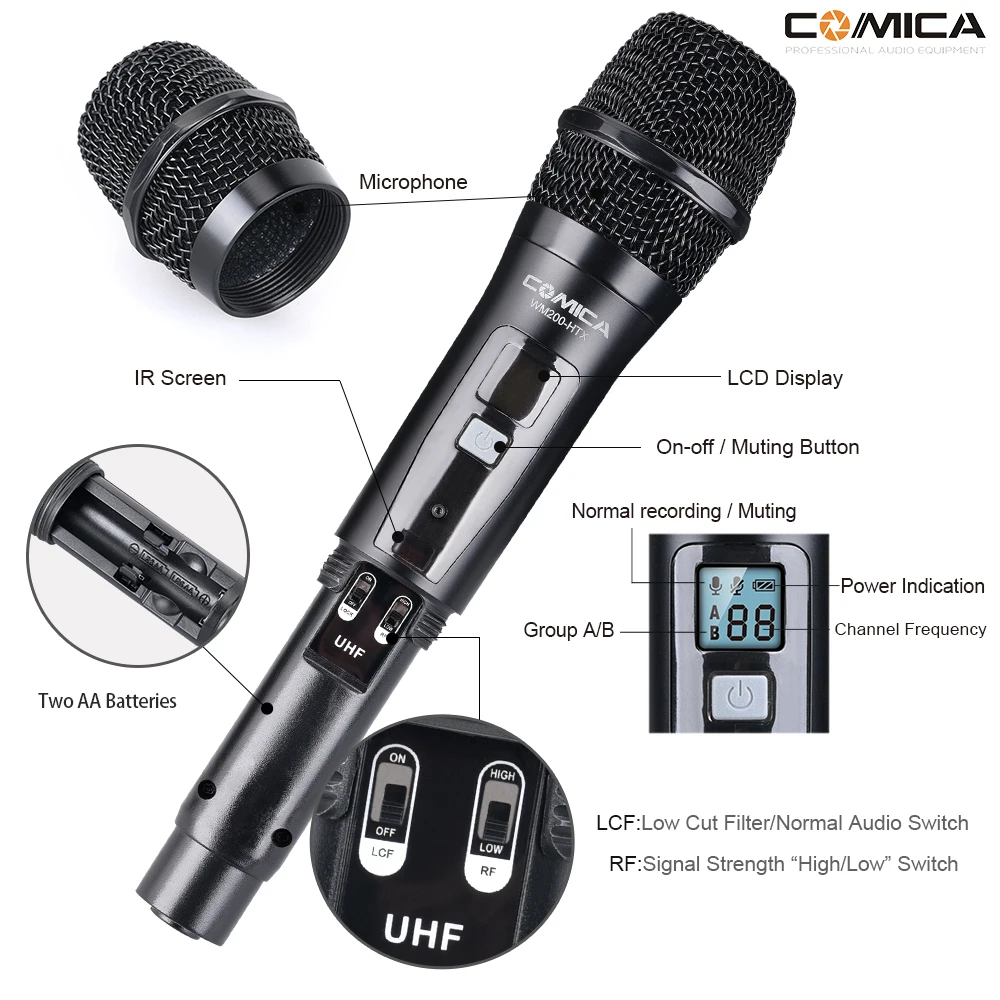

Transmitter HTX

Channels	96
Group A Wireless Frequency	520.000MHz ~ 548.500MHz
Group B Wireless Frequency	550.000MHz ~ 578.500MHz
Signal / Noise	>65dB
Antenna	PCB Antenna
Transmitting Power	10dbm/15dbm
Stray Radiation	< -60dBc
Sound Delay	<20ms
Audio Distortion	<0.5%
Battery	AA Batteries x 2pcs
Dimension	Φ53.5(MAX) x 253mm
Operating Temperature	0℃ ~ 50℃
Storage Temperature	-20℃ ~ 60℃

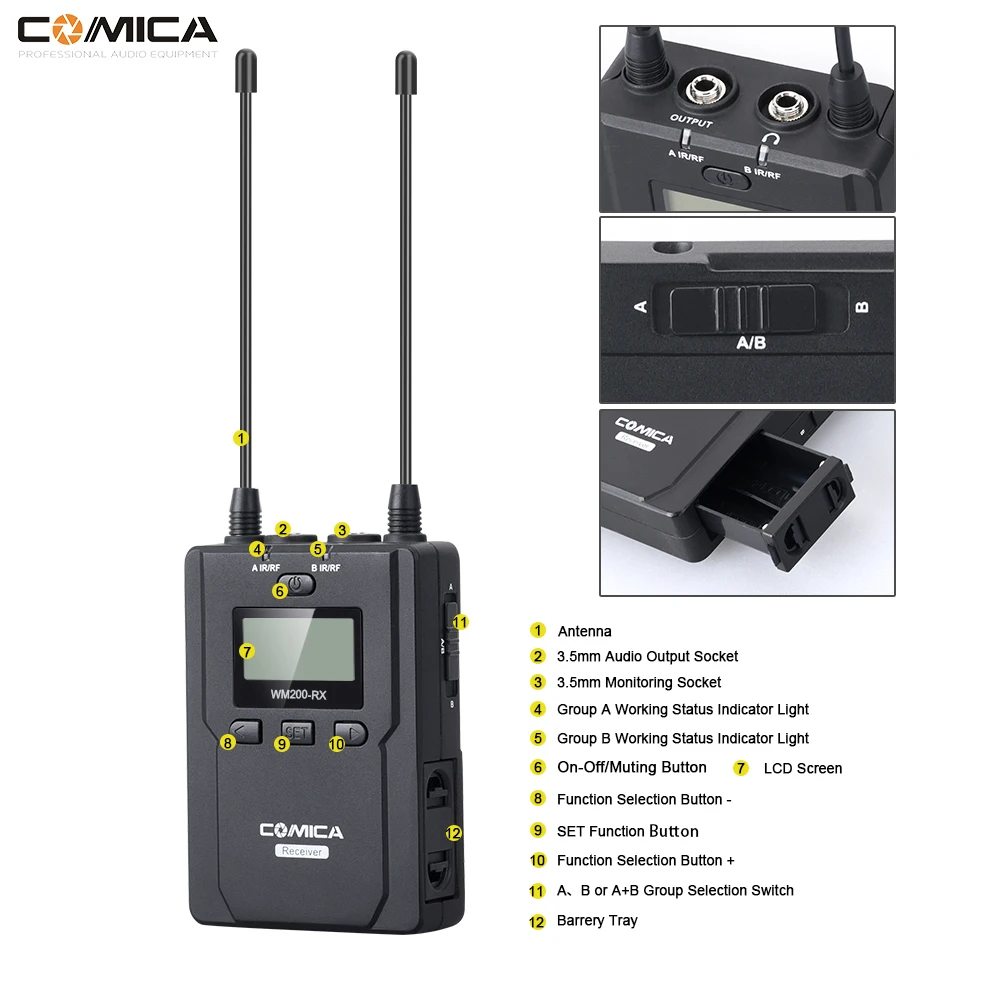

Receiver RX

Channels	96
Group A Wireless Frequency	520.000MHz ~ 548.500MHz
Group B Wireless Frequency	550.000MHz ~ 578.500MHz
Signal / Noise	>65dB
Antenna	1/4 Wavelength Wire Antenna
Receiving Power	-95dBm
Stray Radiation	< -60dBc
Sound Delay	<20ms
Audio Distortion	<0.5%
Battery	Two AA Batteries
Dimension	84 x 63.5 x 23mm
Operating Temperature	0℃ ~ 50℃
Storage Temperature	-20℃ ~ 60℃

Polar Pattern

Notice :

. When using auto IR sync, please stay within one meter, otherwise the signal may be too weak and the sync will not be successful;

. In the case of stereo/mono mode switch, please preset the mode before using to avoid the transient interference caused by switching during usage;

. The antenna will affect the working distance. Please protect the antenna and avoid any man-made damage;

. The working distance will be affected by the surrounding environment. Please try to keep the environment open without interference during usage, and close the WIFI of the device itself.

. When using this product in a short distance, it is recommended to set RF strength at ‘LOW’ to reduce the power consumption.

. For smart phone shooting, customers must separately purchase a TRS-TRRS audio converting cable;

(It does not support the original recording system of some android systems, the third-party APP is recommended to be used in this case);

. Please keep this product in dry environment;

. Do not expose the device in rain or humid environment, otherwise there will be a danger of short circuit;

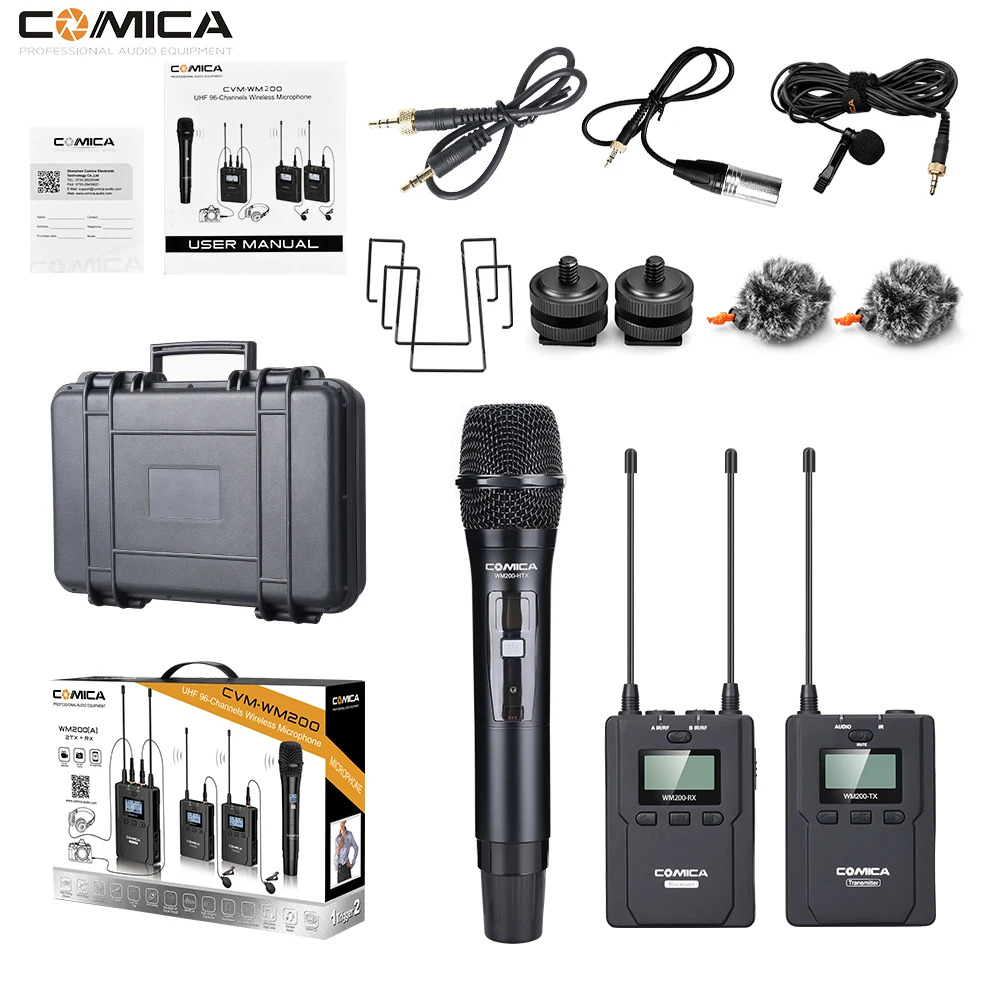

Package Contents

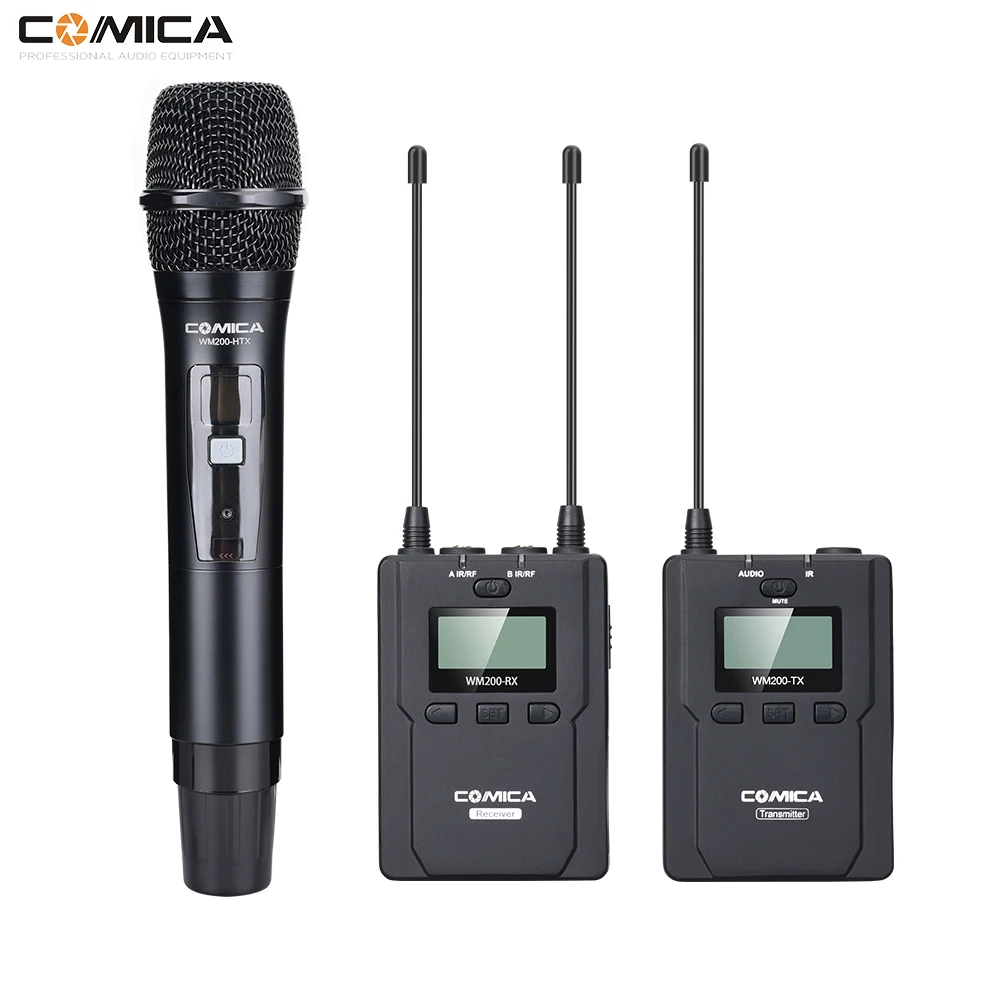

WM200B –1 HTX + 1RX + 1TX Kit Package Included:
1 x Transmitter (WM200-HTX)
1 x Receiver (WM200-RX)
1 x Lavalier Transmitter (WM200-TX)
1 x 3.5mm Mic Audio Input Cable
1 x 3.5mm-3.5mm Audio Output Cable
1 x 3.5mm-XLR Audio Output Cable

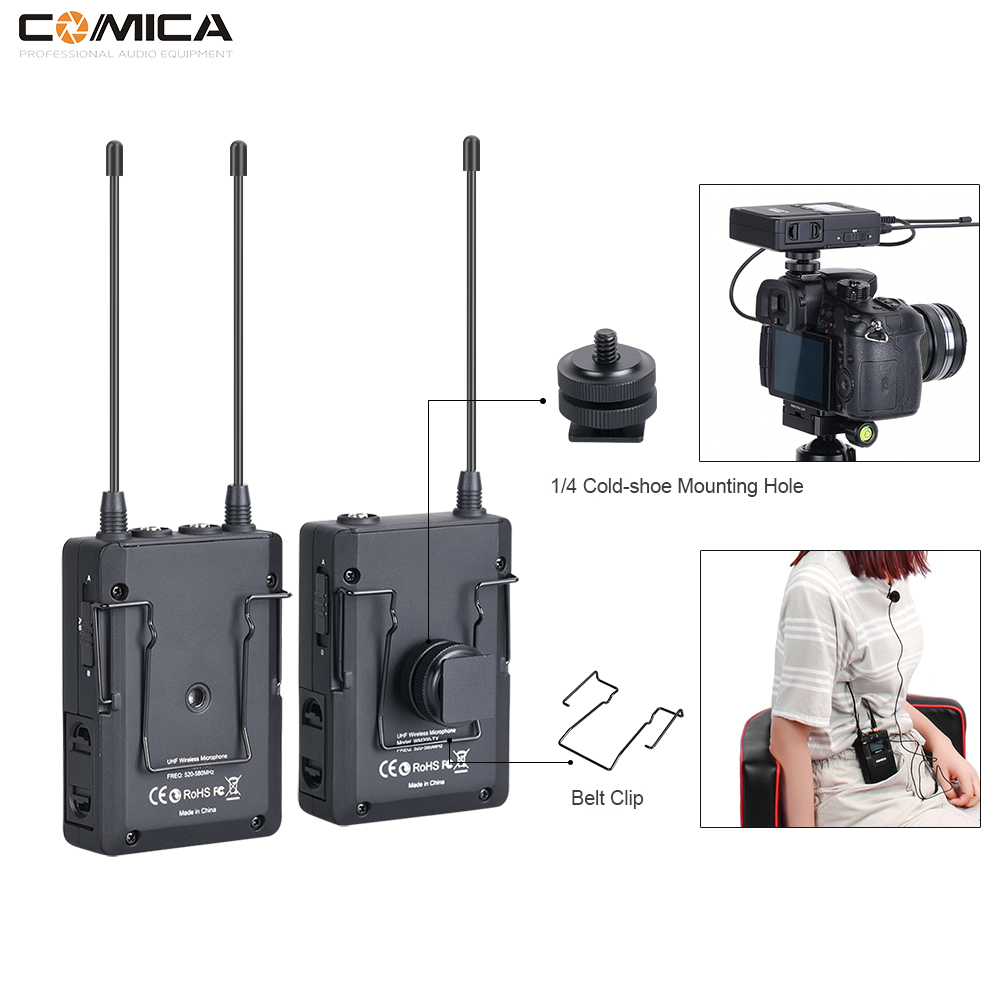

2 x Belt Clip
2 x Camera Cold-shoe Mount
1 x Wind Muff
1 x Portable Box
1 x User Manual
1 x Warranty Card

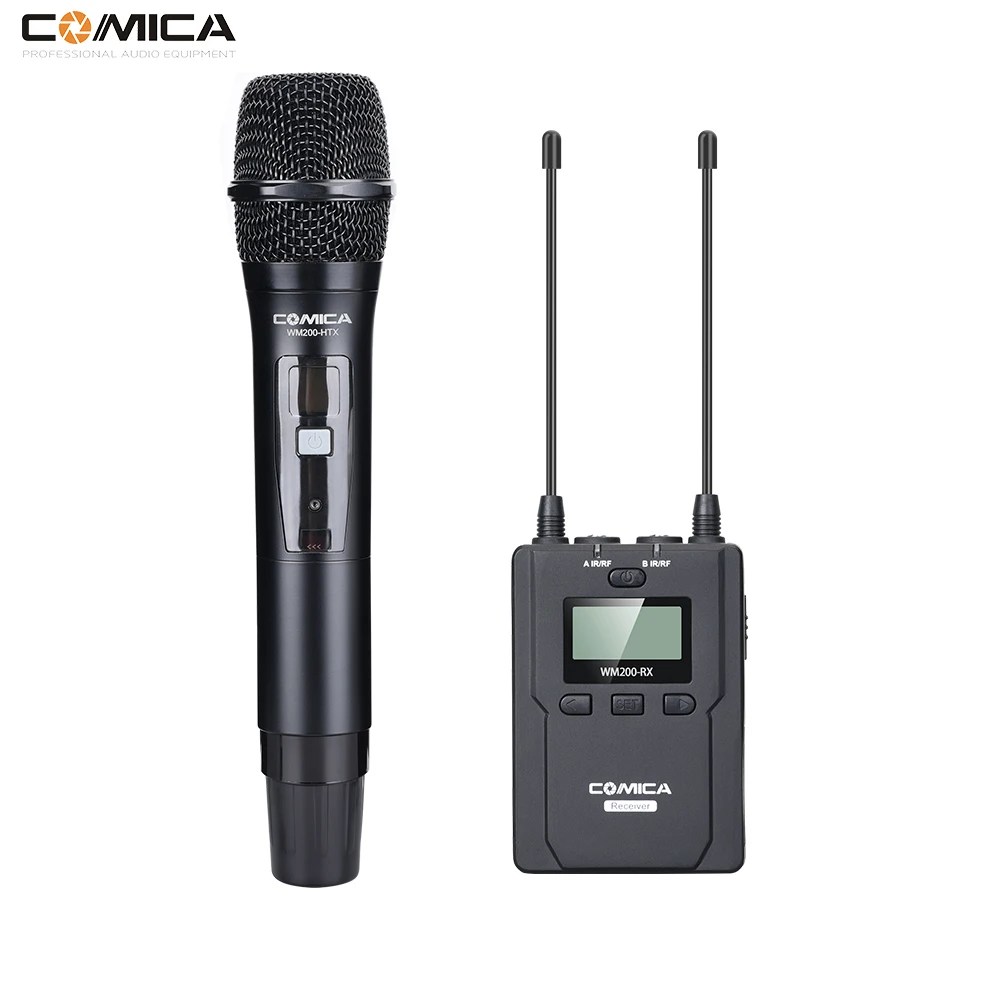

WM200D — 1HTX + 1RX Kit Package Included:
1 x Transmitter (WM200-HTX)
1 x Receiver (WM200-RX)
1 x 3.5mm Mic Audio Input Cable
1 x 3.5mm-3.5mm Audio Output Cable
1 x 3.5mm-XLR Audio Output Cable
1 x Belt Clip
1 x Camera Cold-shoe Mount
1 x Wind Muff
1 x Portable Box
1 x User Manual
1 x Warranty Card

WM200HTX–1HTX Included:

1 x Transmitter (WM200-HTX)

NOTE: Battery is not included
