CCTV Micro Bullet Sony IMX323 Senor 2.0MP 1080P Mini Bullet AHD/TVI/CVI/CVBS Camera UTC 4 IN 1 Covert Security Use With Bracket
![]()







Latest HD 1080P 4 in 1 camera, compatible with TVI, CVI, AHD, and Analog DVR.
TVI / CVI / AHD / 960H – simple & easy!
Features:
> 1/3 Nextchip 2441H +Sony 323
> 1920×1080@30fps High Definition
> 4 in 1 video outputs switchable – TVI / CVI / AHD / CVBS
> : AE, AWB, BLC, DNR. (support UTC)
> 3.7mm lens,
> DC12V
Specification:
| Model No. | B3194IN1CM |
| Image Device | Nextchip 2441H +Sony 323 |
| Effective Pixels | 1920(H) x 1080(V) |
| TV System | PAL/NTSC (OSD) |
| Day/Night | External (default)/Auto/Color/B&W (OSD) |
| S/N Ratio | ≥72dB |
| Min. Illumination | 0.01Lux, 0Lux with IR on |
| BLC | AUTO |
| Electronic Shutter | AUTO/ 1/50(1/60)-1/50,000sec |
| AWB | AUTO |
| OSD | UTC |
| Video Out | TVI / CVI / AHD / CVBS switchable * 1080P@30fps AHD(default) |
| Lens | MP 3.7mm pinhole lens |
| LED Quantity | / |
| IR Distance | / |
| Water Proof Rating | IP55 |
| Power | DC12V 100mA |
| Operation Temp. | Temp. -10°C to 50°C RH 85% Max |
| Dimension | / |
| Weight | 56g |
Default Package List:

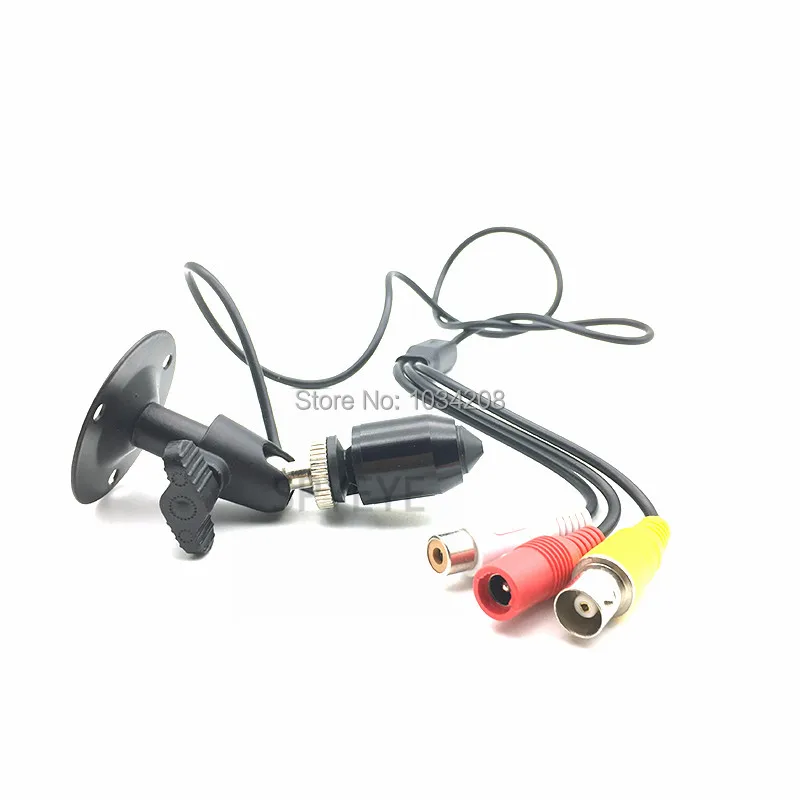

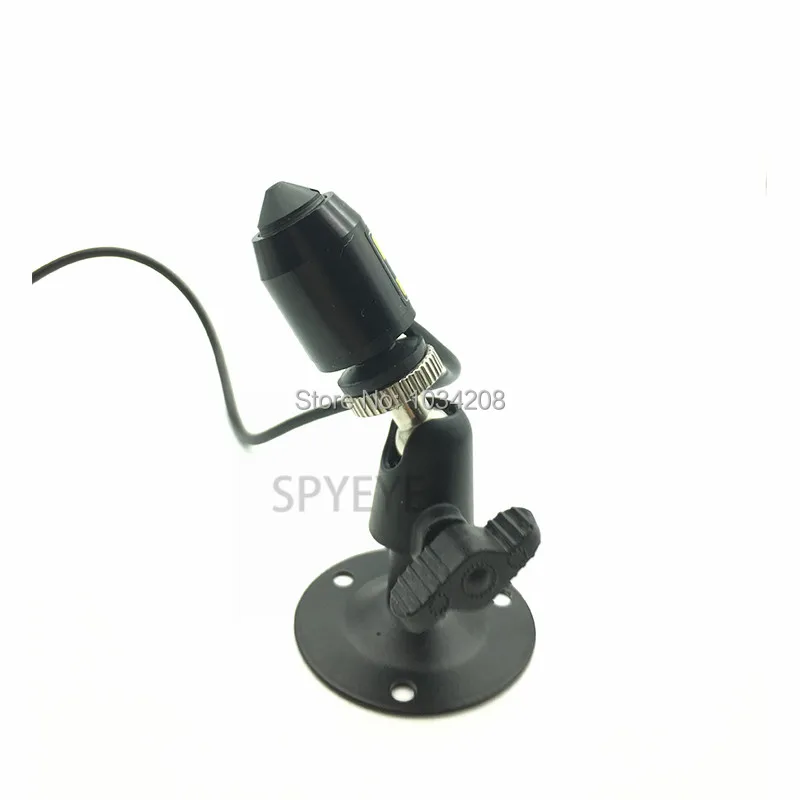

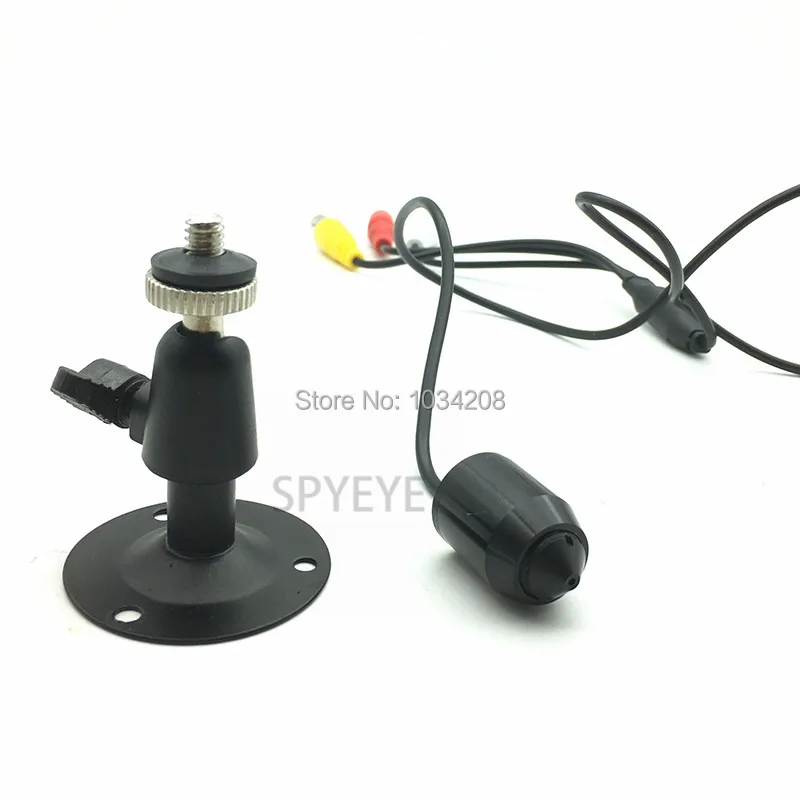

1x Bracket
1x manual

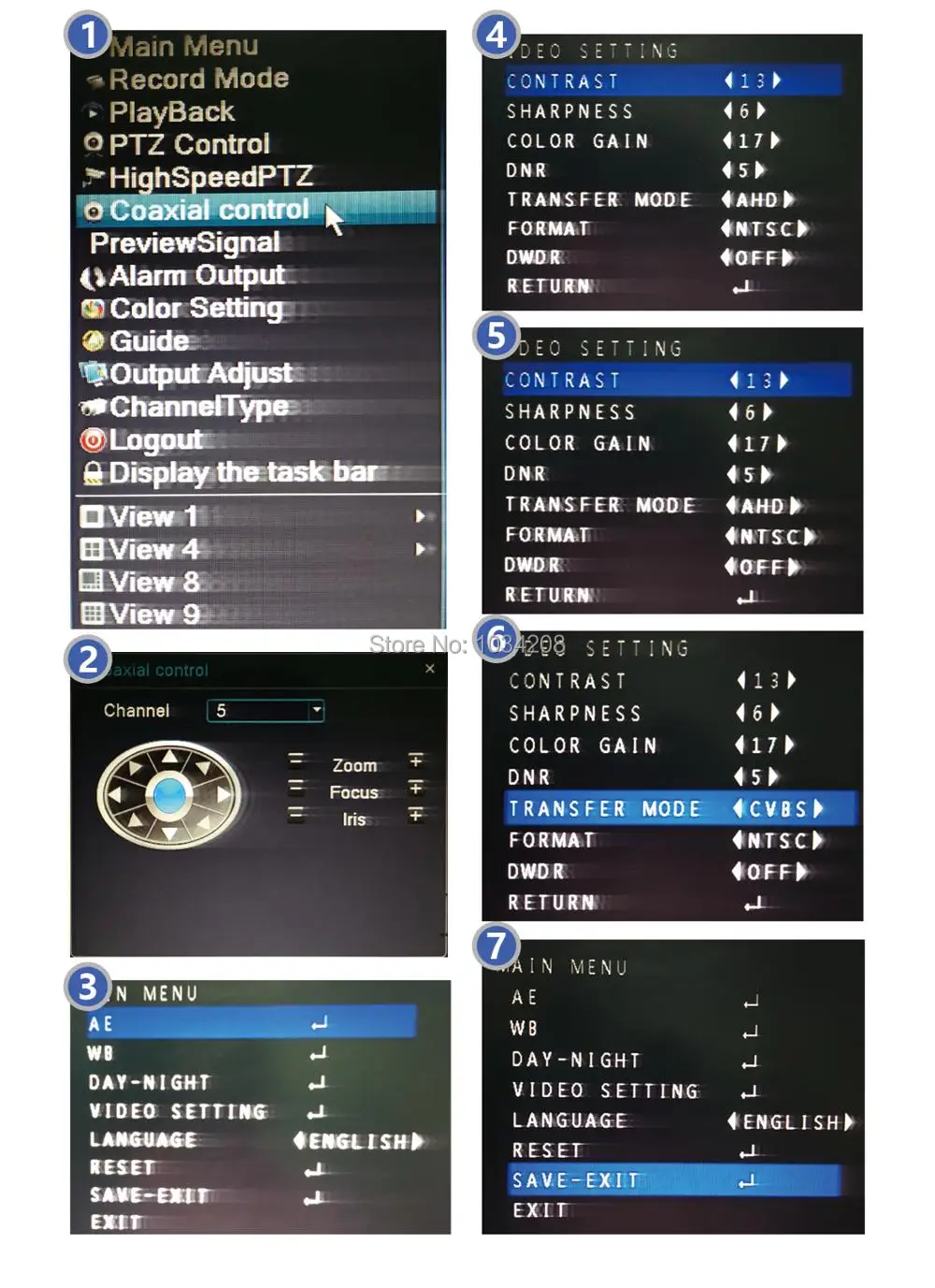

1x 4 in 1 camera AHD Default ( if you want to CVI/TVI/CVBS video output default ,pls remark when you place the orders !we will change the setting )or buyer can change the setting by UTC through AHD DVR

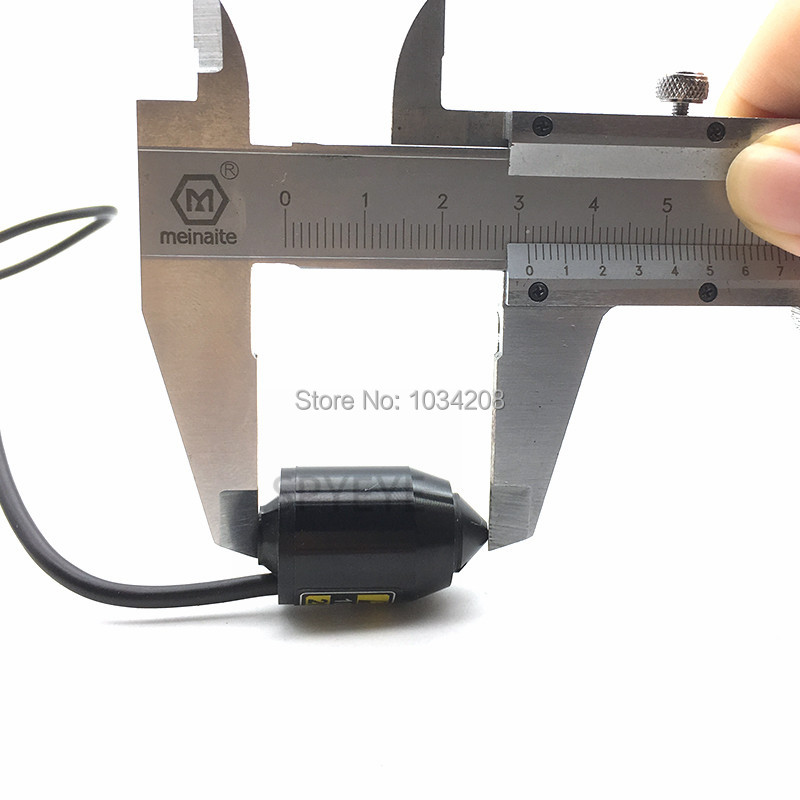

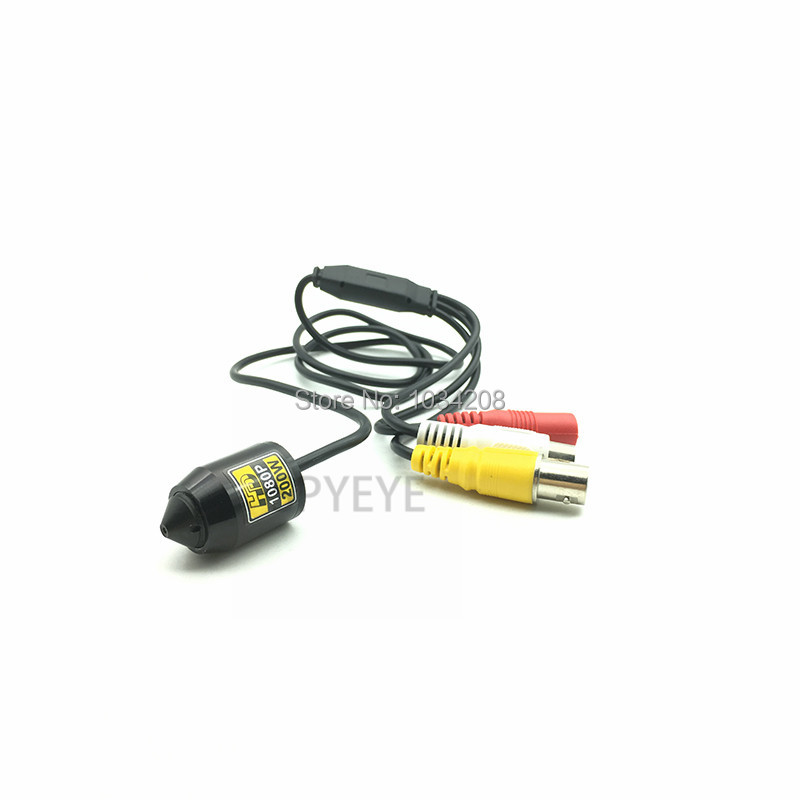

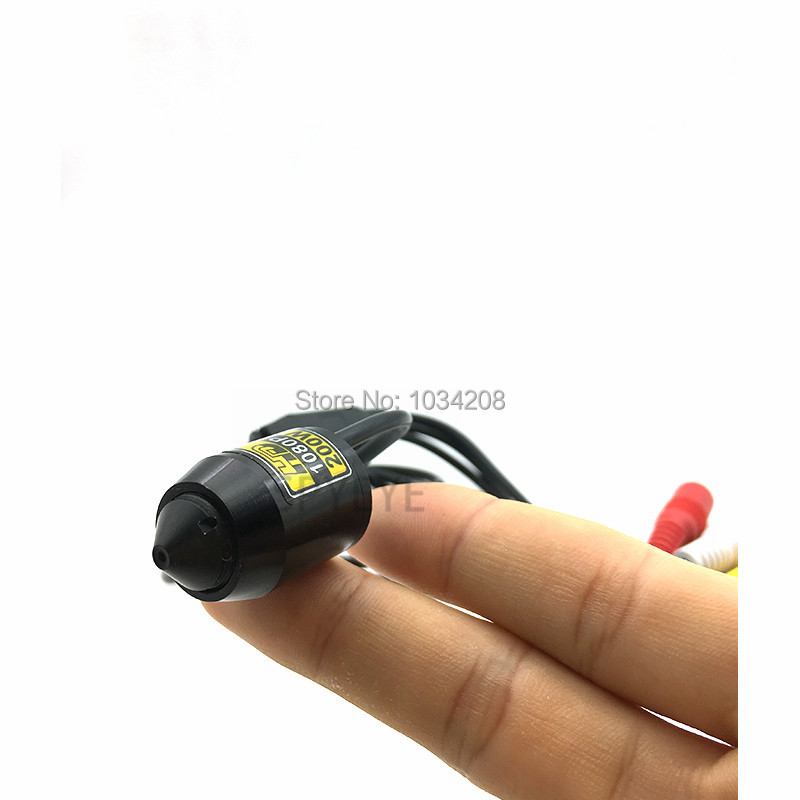

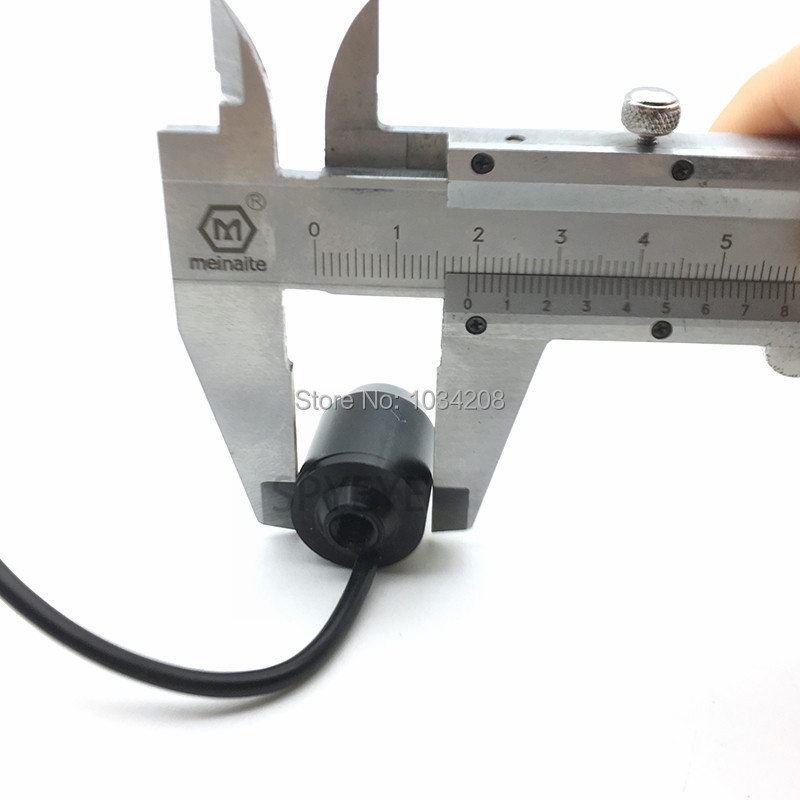

Pictures below:



Note: If the buyer want other size lens please ‘Leave Message to Seller’ to notify us when bidding.Please use 12V 1A or 12V 2A power supply, packaging does not include the power supply.
Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !
we will replyed you within 24hours!!!
Below Lens,some of them can be replaced for different angle view &distance requirement ! pls talk with us whether it is available for the camera !the angle view beased on 1/3 senor
