CCDCAM 3.5inch Touch Screen IP Camera /Analog Camera CCTV Tester With Video Record, WIFI 12V 1A Output 8GB SD cards

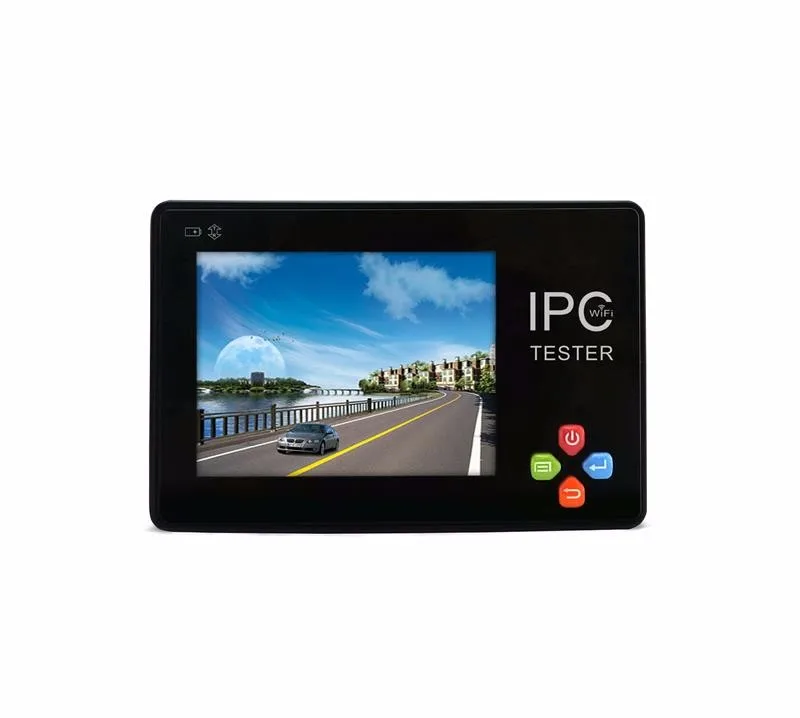

The 3.5 inch touch screen IP camera monitor is designed for maintenance and installation of IP cameras, analog cameras, as well as testing 4K H.264 /4k H.265 camera by mainstream, The 480×320 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. The combination of touch screen and key buttons make the IP camera tester very user- friendly.

The tester is also a great tool for Ethernet network testing. It can test PoE power voltage, PING and IP address searching. You can use the blue cable tracer to locate individual connected cables from a bundle of cables. Test LAN cable for proper connection termination. Other functions include providing testing IP and analog at the same time, DC 12V 1A power output and much more. Its portability, user-friendly design and many other functions make the IP tester an essential tool for all installers or technicians.

Features

² New .3.5 inch touch screen cctv tester ,480*320 resolution

² 4 K H.264 & H .265 display image by mainstream

² IP and analog testing at the same time

² Screen capture, long press the key “enter”, can capture screen interface and save it in any time

² Screen management, change function’s icons order, create new directory.

² Themes: Lite and normal model can select, change the icons and desktop background, change sliding effect etc

² Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

² Rapid video, auto scan the IP camera address, by one key to view the image.

² Screen lock : password lock and pattern lock are optional

² Office, quick office app (support excel, word, ppt format) doc. Editable

² Rapid IP scan , auto scan whole network or other network device’s IP address

² Traffic monitoring of the tester “LAN port”, display network port or WIFI connection real-time upload and download speeds and other network parameters.

² Drop-down menu: IP setting, WLAN switch, CVBS IN functions etc screen lock, password lock screen or pattern lock

² IP discovery, no need to know the first two digits of camera’s IP address, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address

² Rapid ONVIF, search camera quickly, auto log in and display image from the camera, activate Hikvision camera.

² Hik test tool app is designed for activating and debugging Hikvision camera, can auto-identify unactivated hikvision camera, also can display image from the Hikvision camera.

² DH test tool app is design for Dahua Camera test, and modify IP, user name and password parameters etc

² ONVIF camera test, support 4K.
It is used unique hardware decoding, display image from the 4K camera via mainstream.
You can select sub-stream to test higher resolution camera

² ONVIF IP camera video testing.

² Compatible with H.265/H.264/MPEG4/MJPEG IP cameras, such as Dahua, HIKVISION, and ACTI Customized service is available.

² Built in Wi-Fi, can receive image from wireless camera, as well as ONVIF and customized IP cameras.

² Analog camera image display, auto adapt and display the video format of NTSC/PAL

Support more than 30 protocols, such as PELCO-P,PELCO-D,SAMSUNG etc

² Video image digital zoom to view the image in greater detail.

² Snapshot function allows you to save the current image as a JPG file in the SD card.

² Built in enhanced image generator, send the color, pure blue and black image, test monitor transmission channel and debug display device, observe whether there are light spots or black spots on the monitor

² LCD screen brightness/contrast/color Saturation adjustable

² Ping test, PING is the most conventional network debugging tools, it is used for testing if the connected IP camera or other network equipment’s Ethernet port is working normally and the IP address is correct.

² In digital IP surveillance applications, if the IP camera’s IP address is not known, the device cannot be used. An IP address scan can quickly search for the connected IP camera or other network device’s IP address.

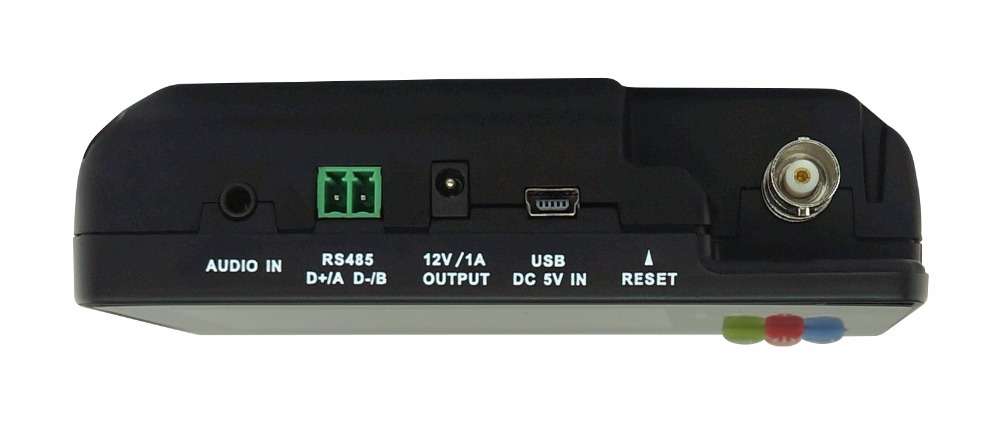

² Support RS485, rate 600 ～115200bps adjustable

² PTZ protocol analysis, control protocol command displays to check RS485 transmission

whether is normal, easy to find the fault device

² PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and

sets and the preset position

² Audio input, test and output the audio signal

3.7V Lithium Ion Polymer Battery, Working time lasts 8 hours, after charging for 3 ~4 hours

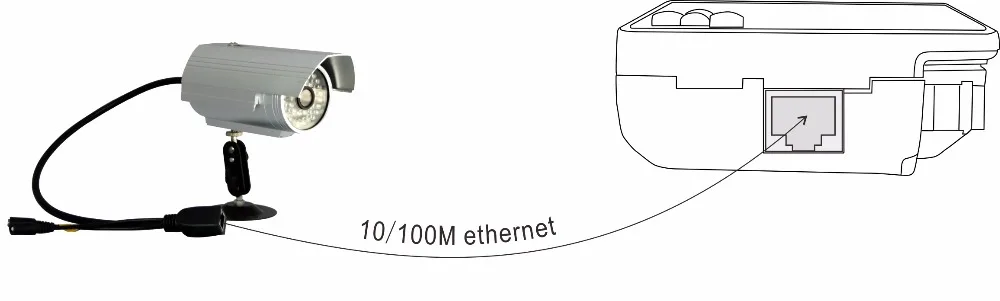

IP camera connection

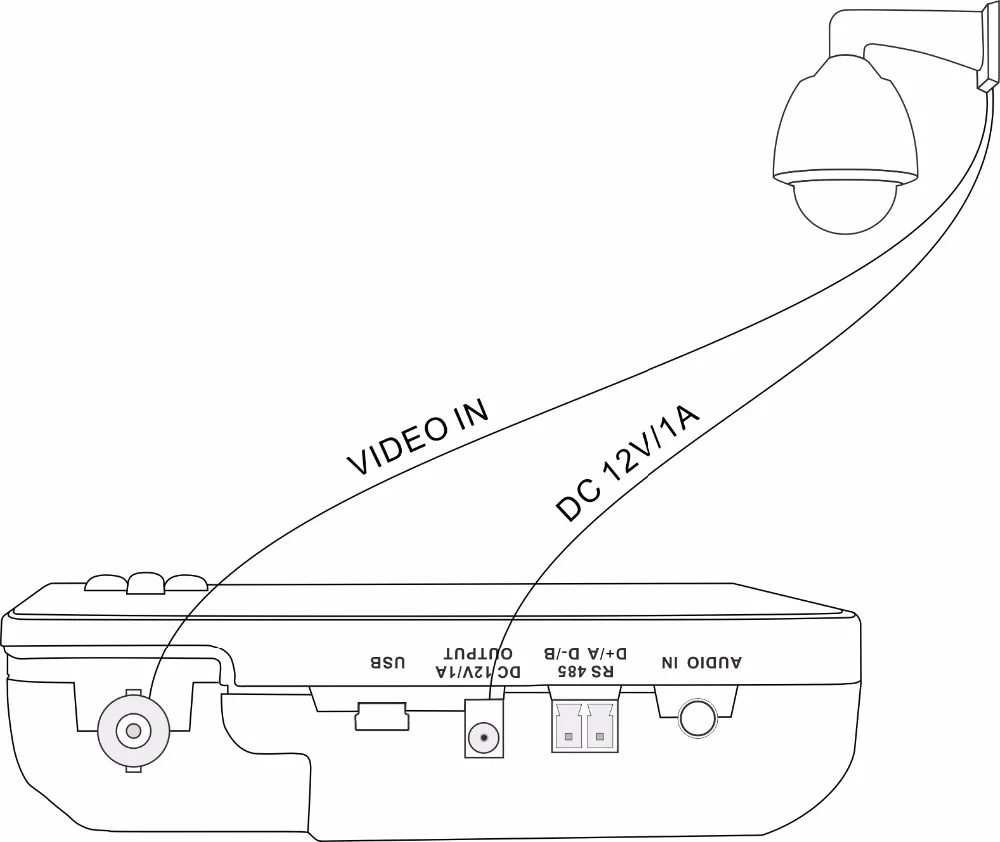

Analog camera connection

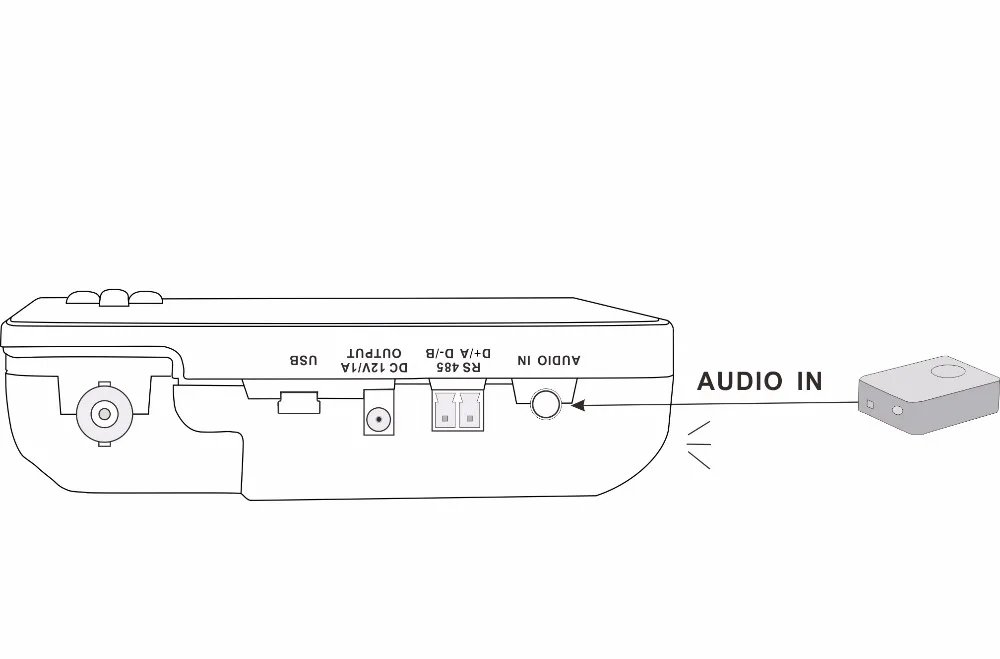

Audio test

DC12V 1A power output

General Specifications
