Card Reader For Mifare S50/s70 Super Speed USB 13.56m Hz Proximity

Smart IC Card Reader Contactless Access Control Card Reader

Product Description

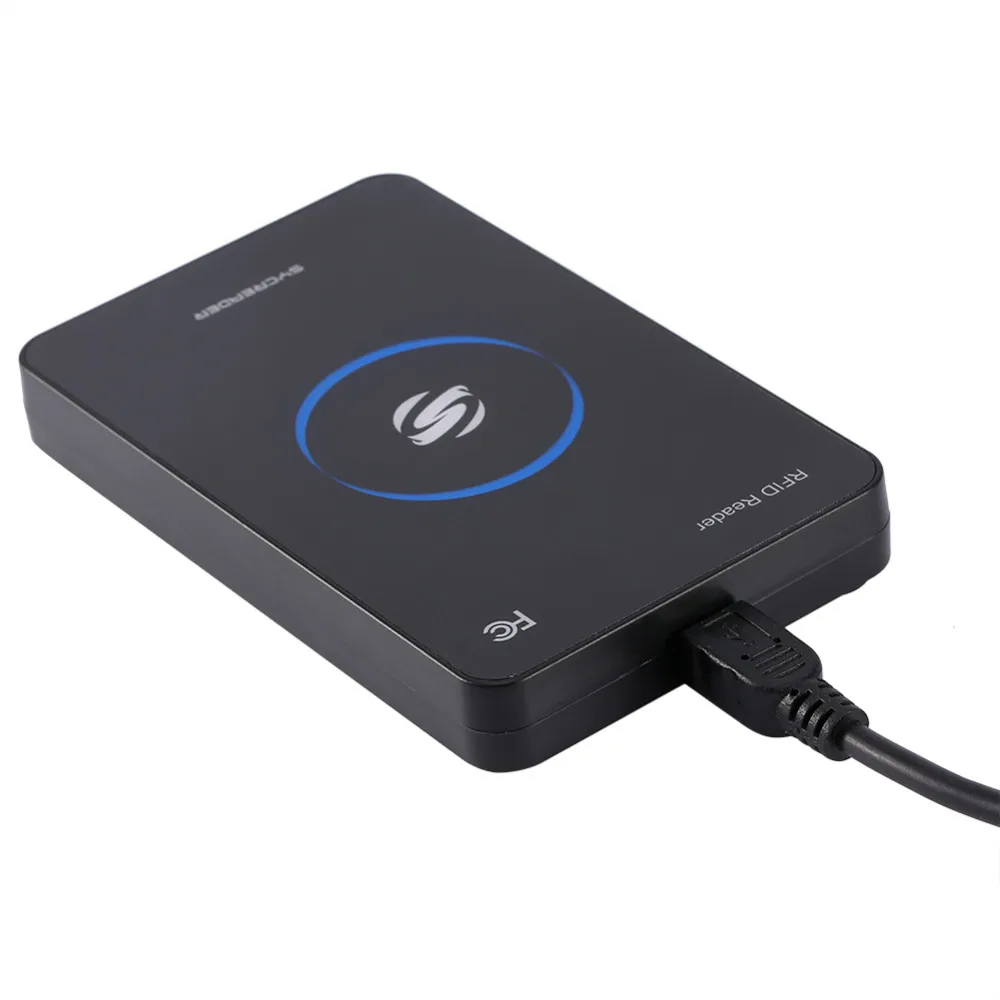

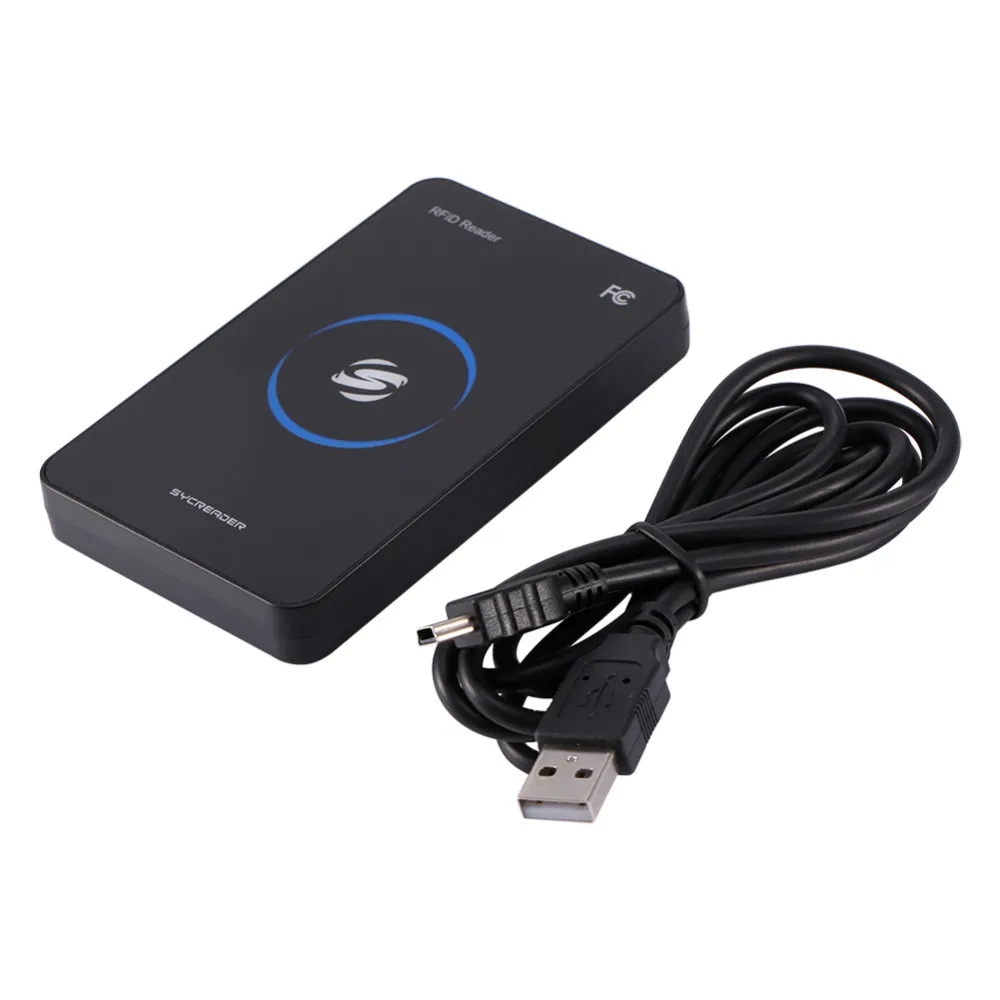

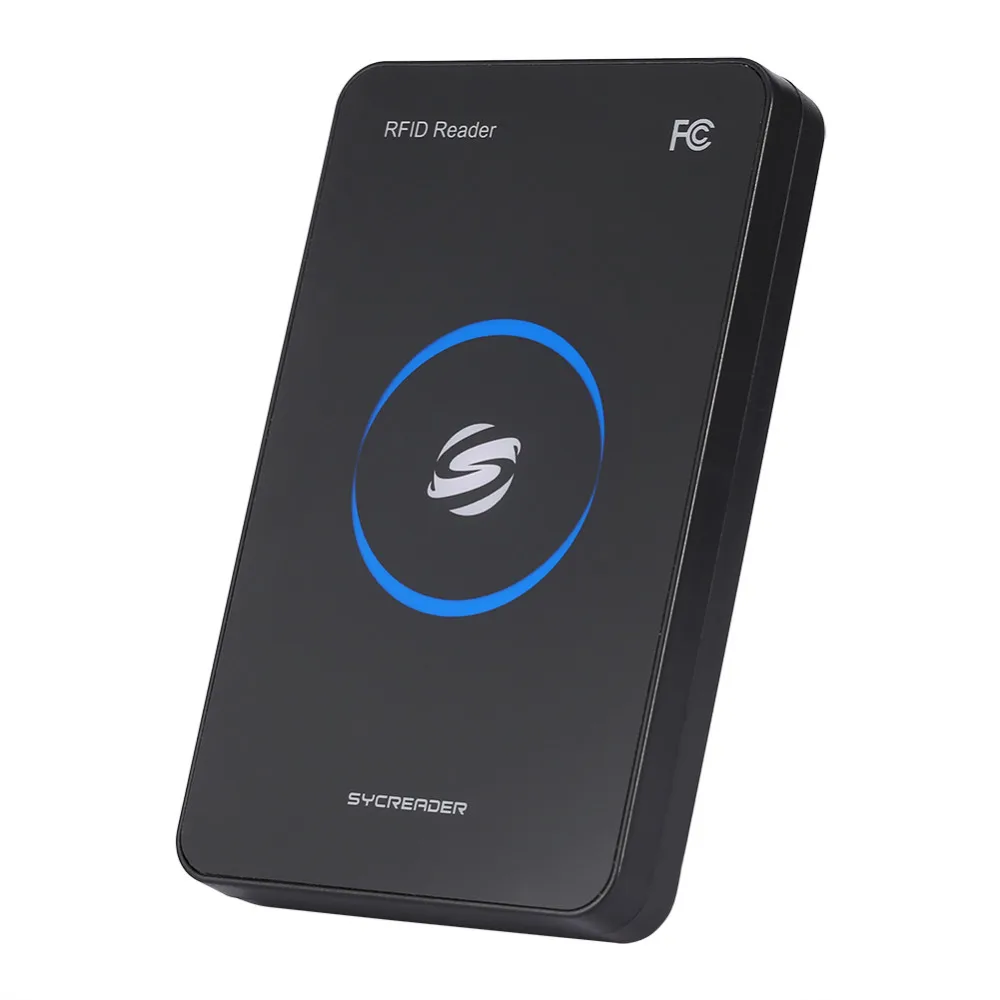

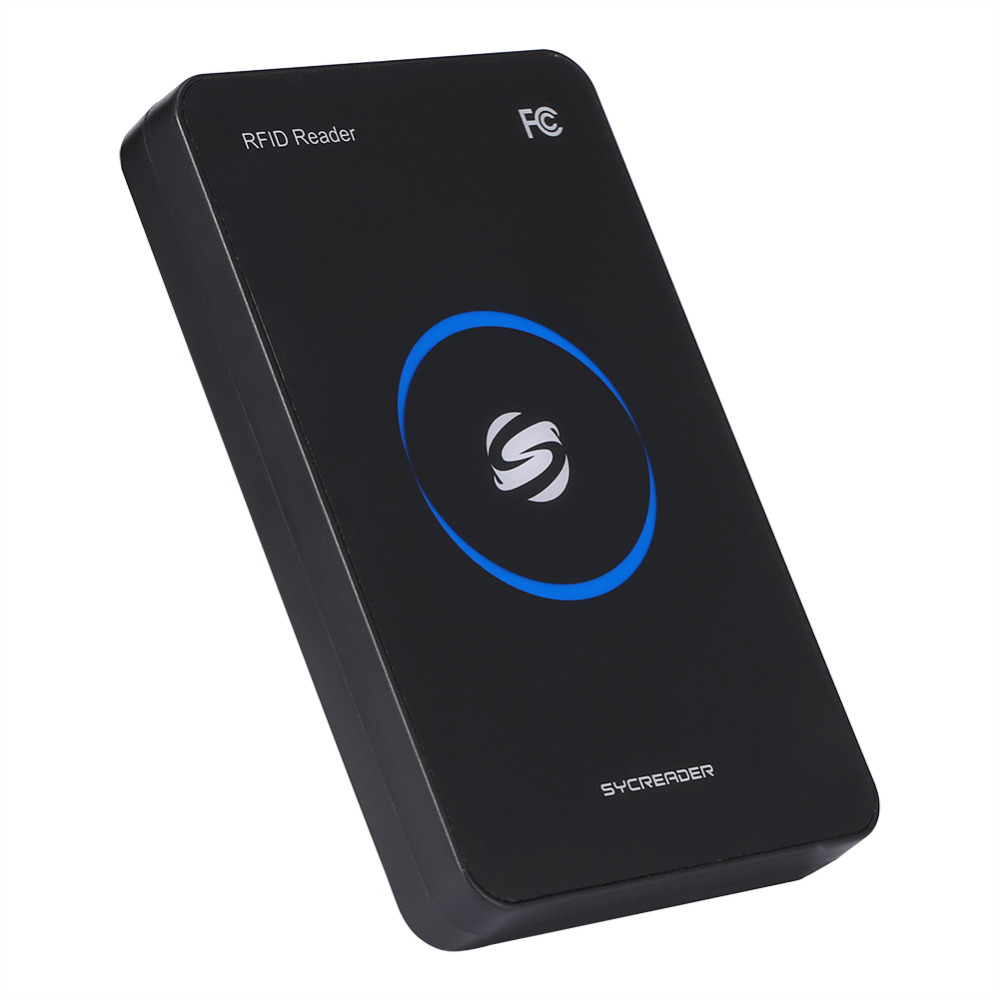

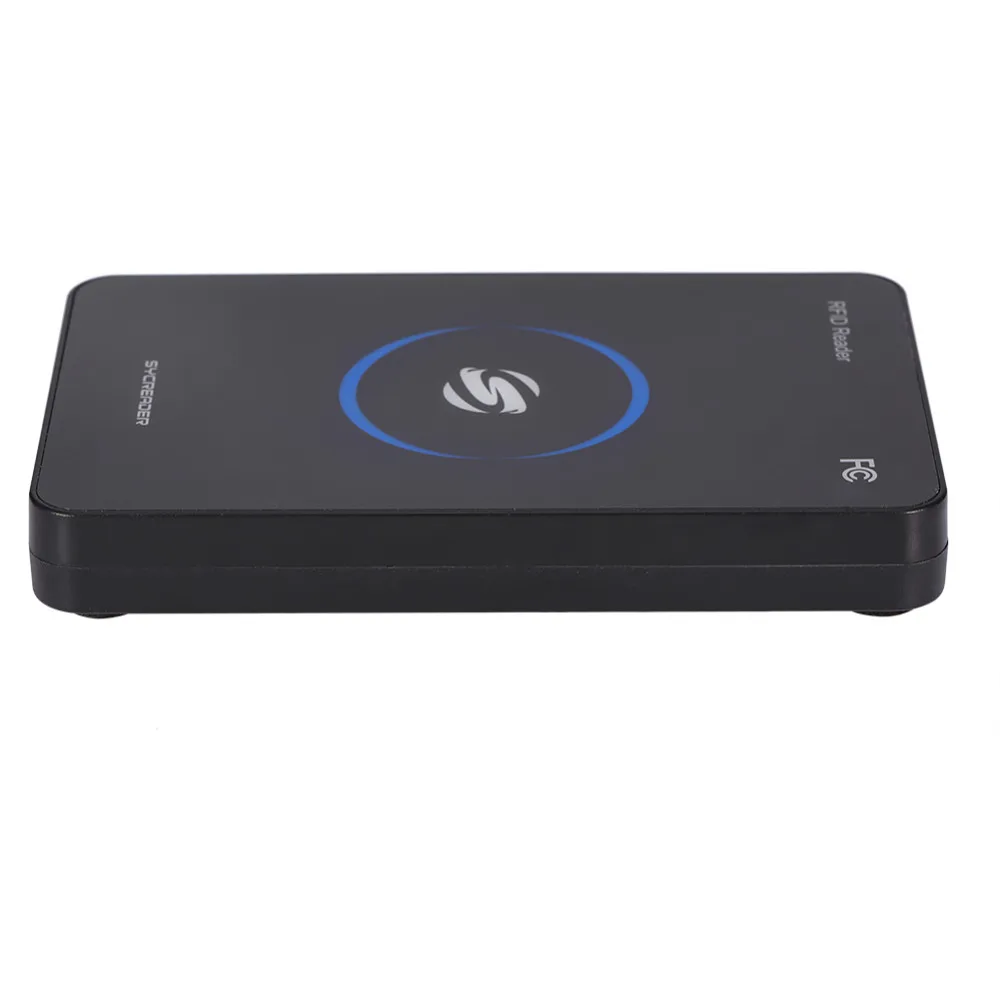

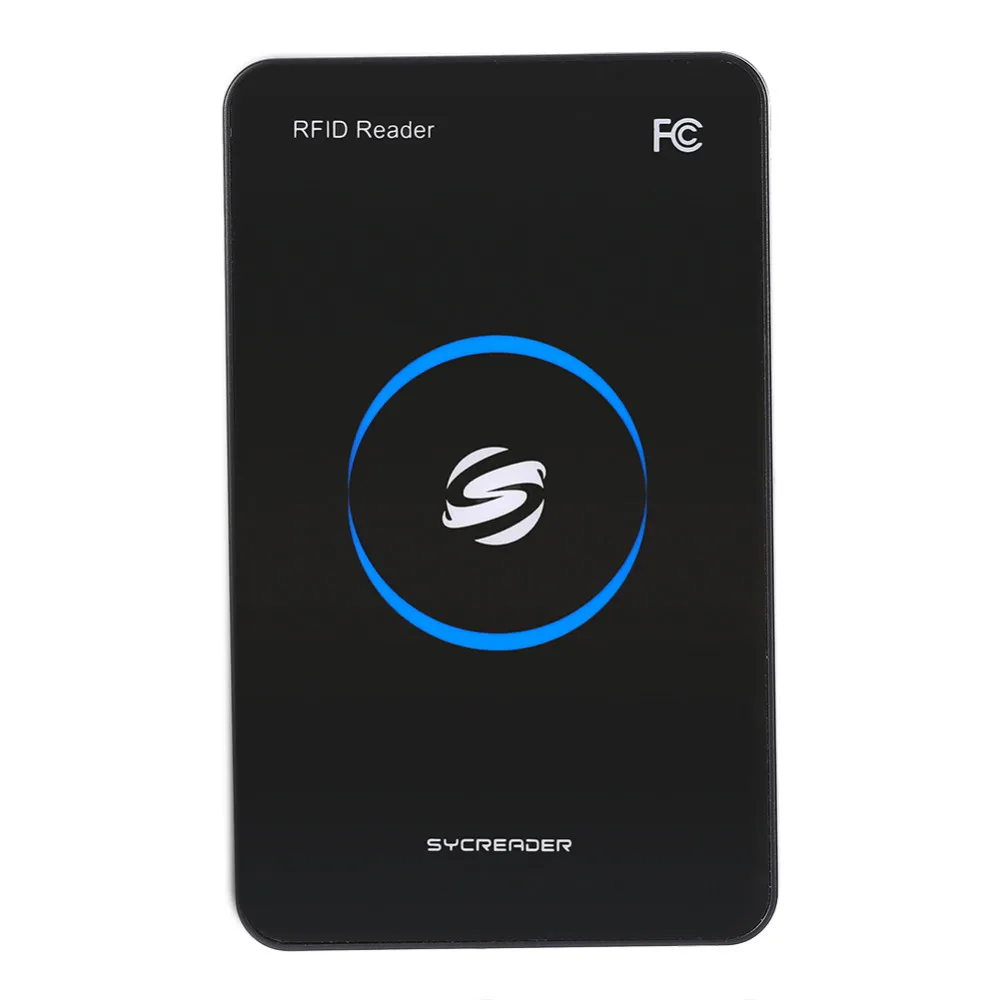

R80C is an ISO 14443A protocol and contact reader with acrylic panel, lower price and without driver, reader distance up to 80mm, Widely used for RFID Radio Frequency Identification system and project, Such as Automated parking management system, Personal identification, Access controller, Production Access control, etc

Basic parameters

Item	Parameters	Item	Parameters
Name	IC Reader	Reader Time	<0.5s
Dimension	105mm×65mm×15mm	Power Supply	+5V DC
Support Cards	for Mifare one S50,S70	Consumed Current	100mA
Frequency	13.56MHz	Operating Distance	0~80mm
N.W.	100G	Interface	USB
Status Indication	2PC LED (Red means standby, Green means reader success)	Service Temperature	-10degree ~ +70degree
Operating System	Windows XP\7\Linux\Android	Store Temperature	-20degree ~ +85degree
Other	Buzzer

Instructions for use

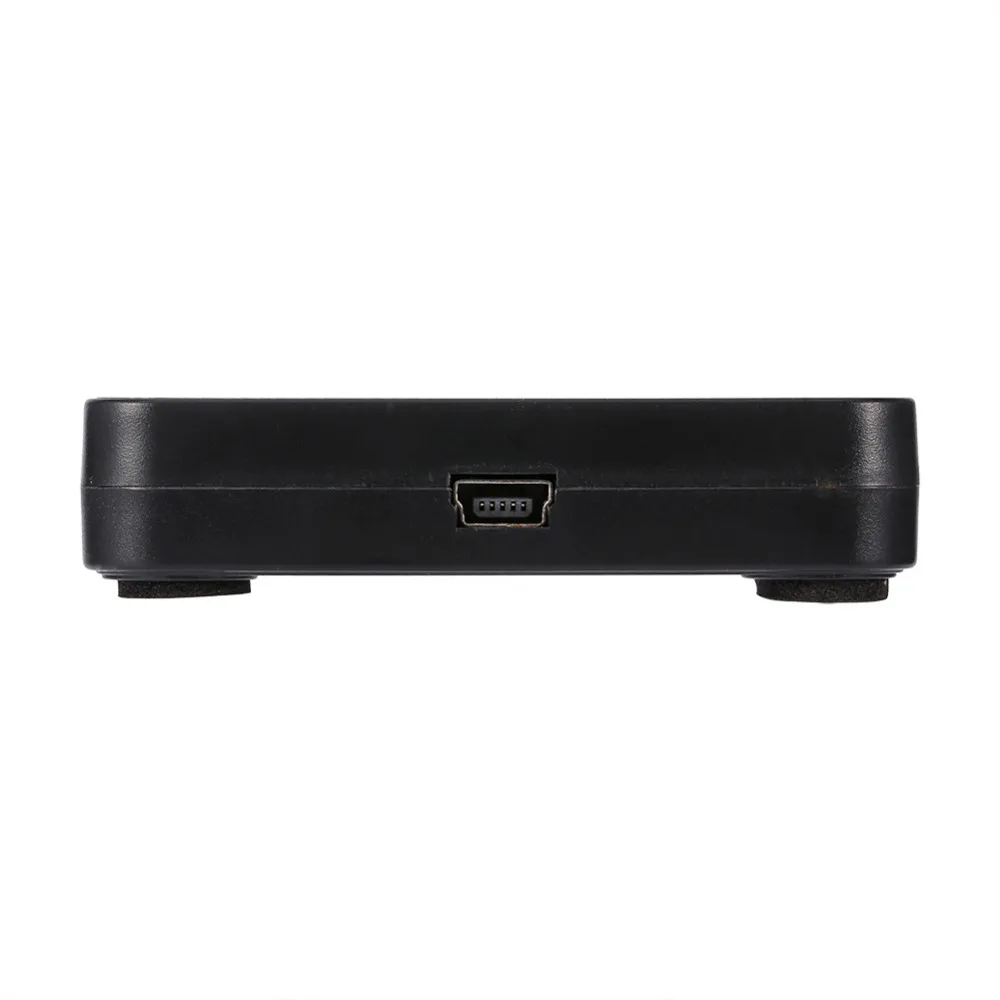

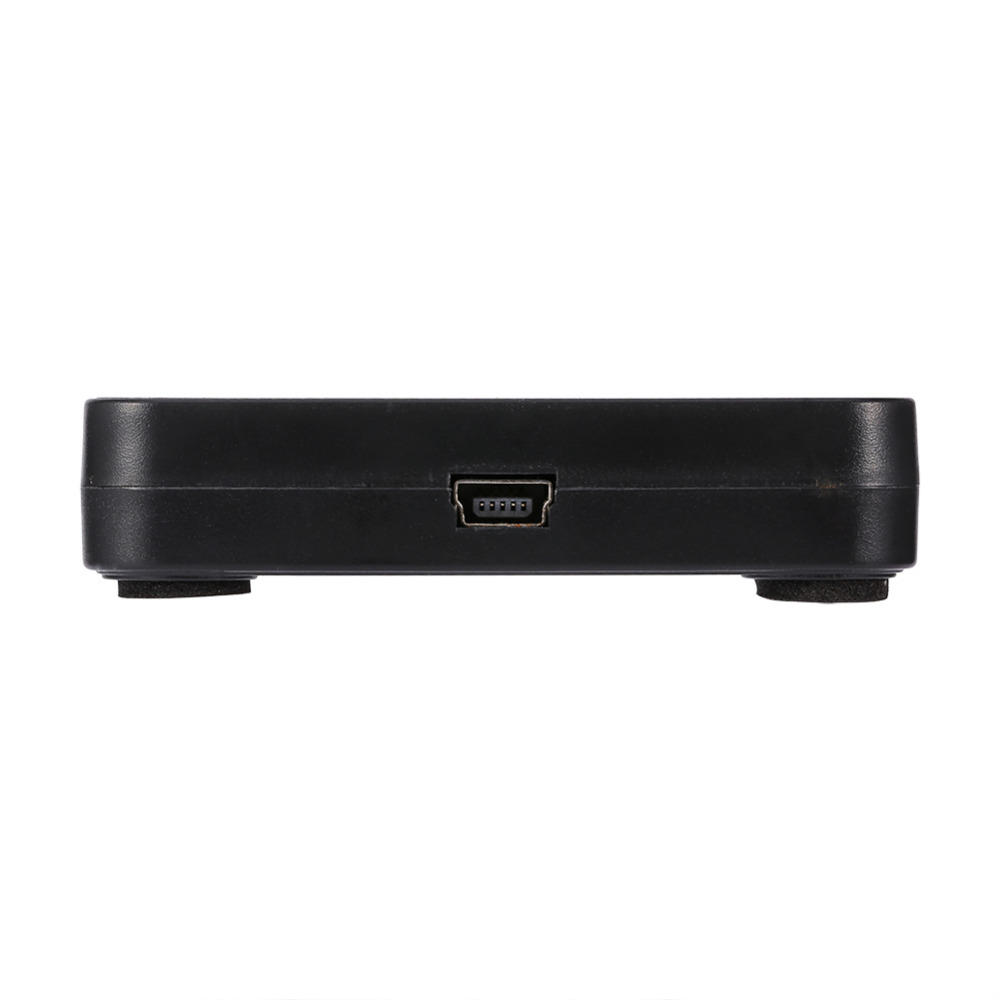

1. Reader connect the computer through USB directly.

2. Open Notepad or a word document.

3. The mouse in Notepad or WORD document clicking.

4. put card on the top of reader.

5. Notepad or word documents will output of the IC card number.

6. When Reading one card, LED lights turns red into the Blue.

Method of connect the PC

Reader connect the computer, and open the “Device manager” of PC. If the options menu has appear “Human Input Device”, that means the RFID reader connection is successful.

Precautions

There are many factors that will affect the reading distance.Such as different environment,different cards etc.

Mouse to avoid transferring data errors when reader work.
