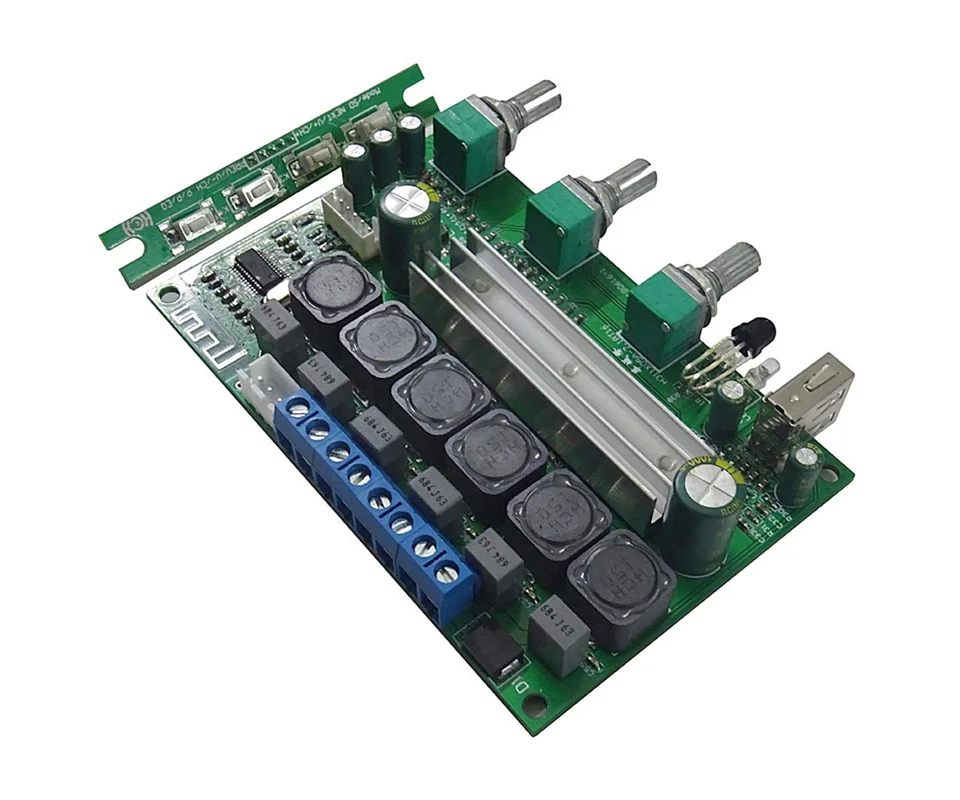

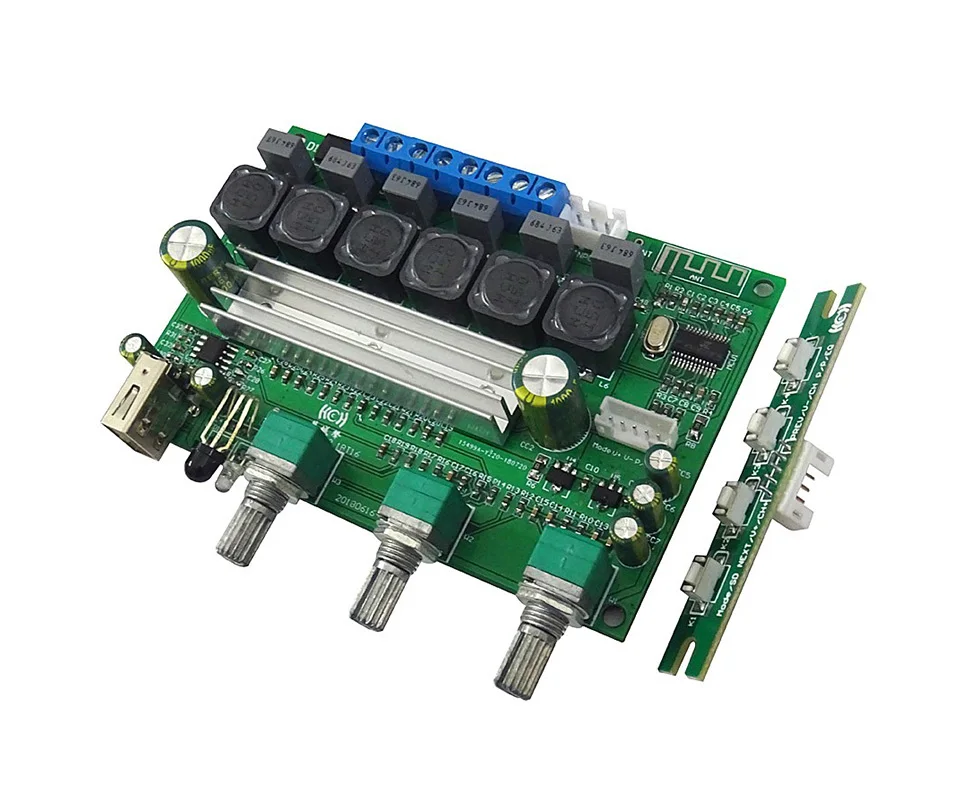

Aiyima TPA3116 Bluetooth 4.2 Subwoofer Amplifier Board 2X50W+100W HIFI 2.1 Digital Audio Amplifier Support Aux Lossless U Disk

100% of buyers enjoyed this product!
30
View cart→
Product Description
Shipping & Payment
Product Details


2018 new Bluetooth 4.2 with U disk playback lossless format support AUX (default) remote control high power high fidelity 2.1 three channel subwoofer HIFI power amplifier board
Features:
1. Volume tuning control:
The total volume is set on the switch board or remote control. The high frequency only adjusts the high frequency input of 2.0, the low frequency adjusts all the low frequency input, and the low frequency volume only controls the volume of the subwoofer!
2. Switch button board:

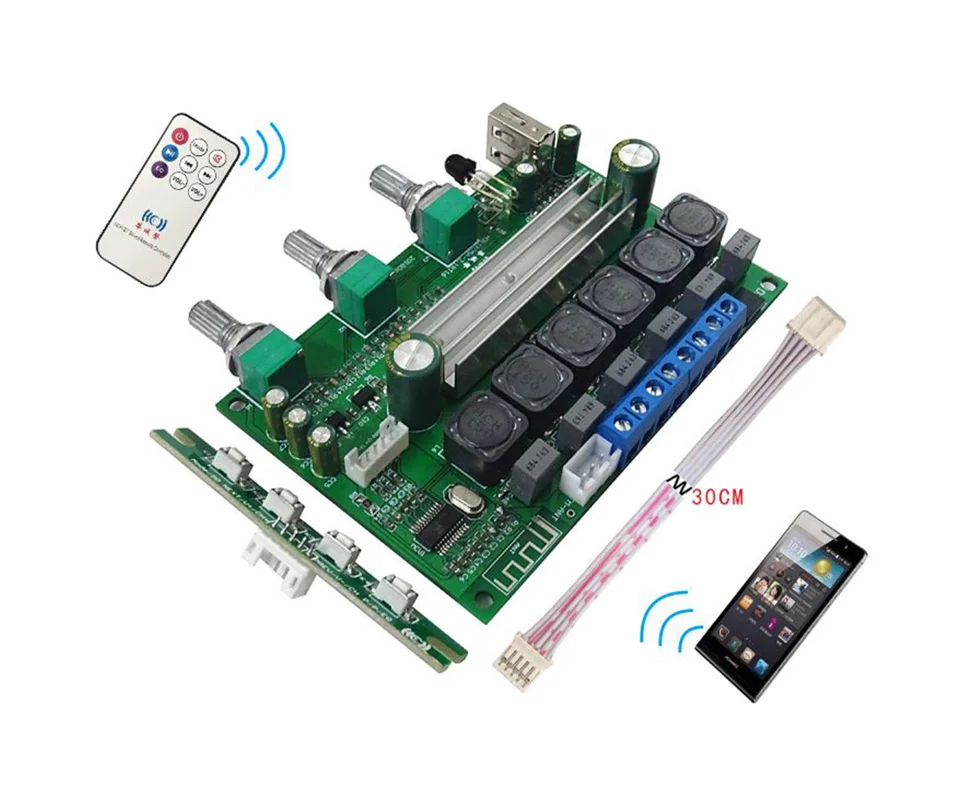

The switch control board is designed separately from the power amplifier board, so that different products can be arranged in different positions. The remote control receiver can be connected separately by the connection of 2.54-3P, and the remote control receiver can be taken out at will!
3. Audio input control:
The default is AUX audio input. Plug in the USB flash drive will automatically switch to local playback. Bluetooth needs to be selected by pressing Mode on the remote control or switch button!
4. Power output audio:
2.0 is all output, 3116D2 is full gain, output power is large, please connect 4-6.5 inch main speaker, so as to avoid the speaker power is too small will burn, subwoofer is 120Hz60W real power output, low frequency speaker please use 6.5 inch – 8 inches is better, the speaker is too small to be able to withstand the output power and break the sound, the speaker is too big because the power is not enough to muffle!
5.2.1 High and low frequency compensation of the audio amplifier:
In order not to appear high and low frequency and vocal in the playback interrupt layer, design 2.0 for full-range output, 20-20KHz, high and medium bass have output, to listen to the good 2.0 please connect full-range speakers or high and low frequency speakers, subwoofer output only 120Hz The low frequency of the center, if the 2.0 speaker is too small or the speaker sensitivity is too high, it may cause the low and medium frequency to connect to the fault!

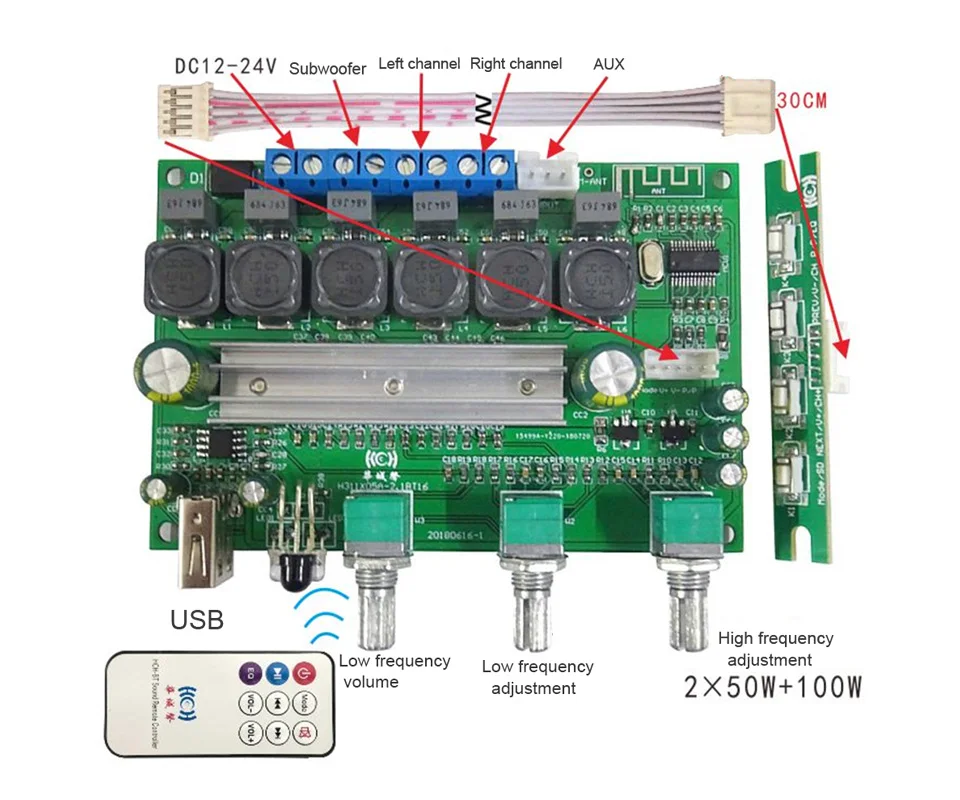

Product parameter:

Amplifier chip: TPA3116

Output channel: 2.1 three-channel output
Supply voltage: DC12-24V 5A
Output power: 2X50W+100W
Tuning control: high and low volume adjustment
Volume control: remote control + button control total volume

Package included:
1PC 4.2 Bluetooth Subwoofer Board +1PC Remote Control
