Product description:
1. Support lossless format decoding such as APE, FLAC, WAV, 320K high sound quality MP3
2. Decoder board 3 blue backlit LED lights flashing and colorful when playing, increasing the music atmosphere. (The evening’s effect is even better)
3, clock display function, play MP3 or radio, press the CLOCK button to display the time, listen to the song to see the time is correct.
4, support for multiple folders, long press on the remote control on the next or next show FO1, F02 represents the folder number.
5, support a variety of EQ music mode (each press EQ button for an effect)
6. Power-off memory: After the power is turned on, the track before the power off, the size of the sound, and the frequency of the FM radio station are restored.

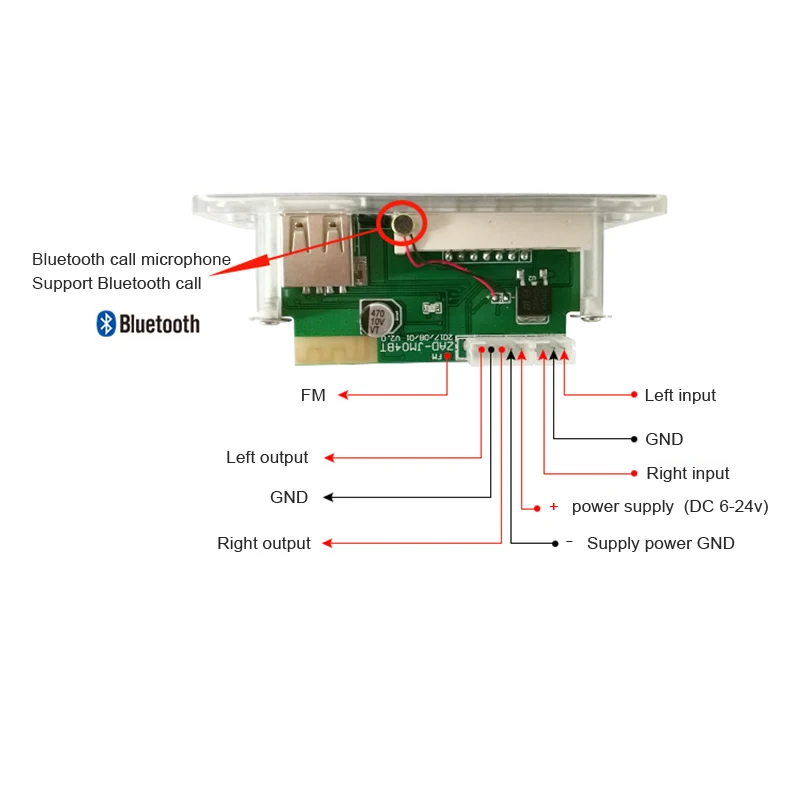

7, 2CH audio output (decoder board without amplifier, just audio output, then the amplifier should be connected to the speaker)
8, easy to read mobile TF card or U disk playback (WMA and other formats do not support).
9, FM radio function, no FM signal, automatic squelch. AUX External Input Function Controls the AUX input volume.
10, DC7V-12V wide power supply. Current recommended 1000 mA

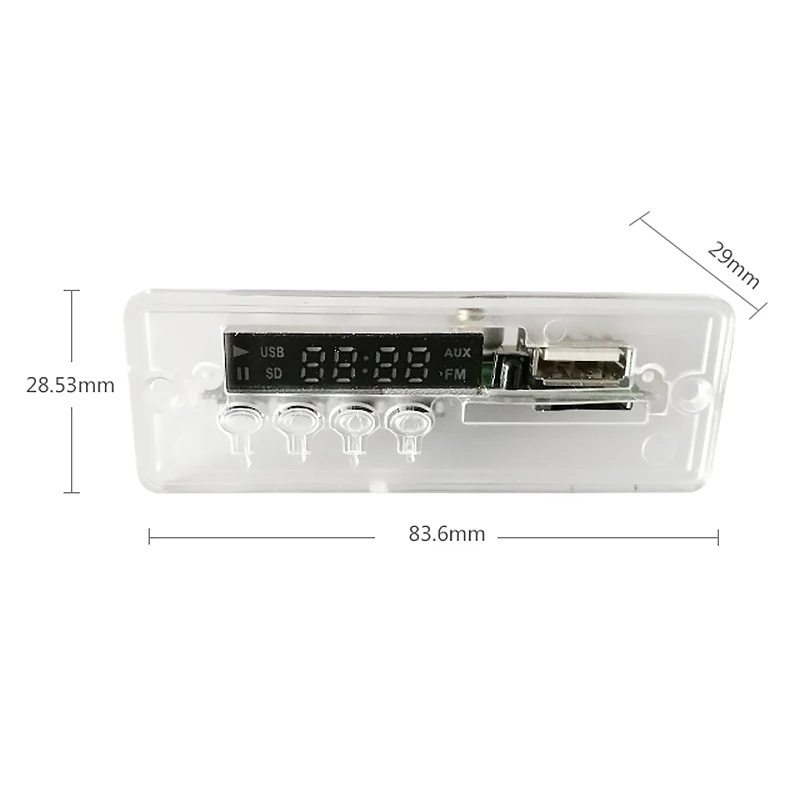

11, the panel size: 82*28*30MM
12, installation hole distance: 75MM
Note:
The product without amplifier function, output can not be directly connected to the horn.
The product only supports FAT32 format storage devices.
MP3 playback operation:
Insert the U disk or SD card of MP3 songs into the boot state, the machine will automatically recognize and play

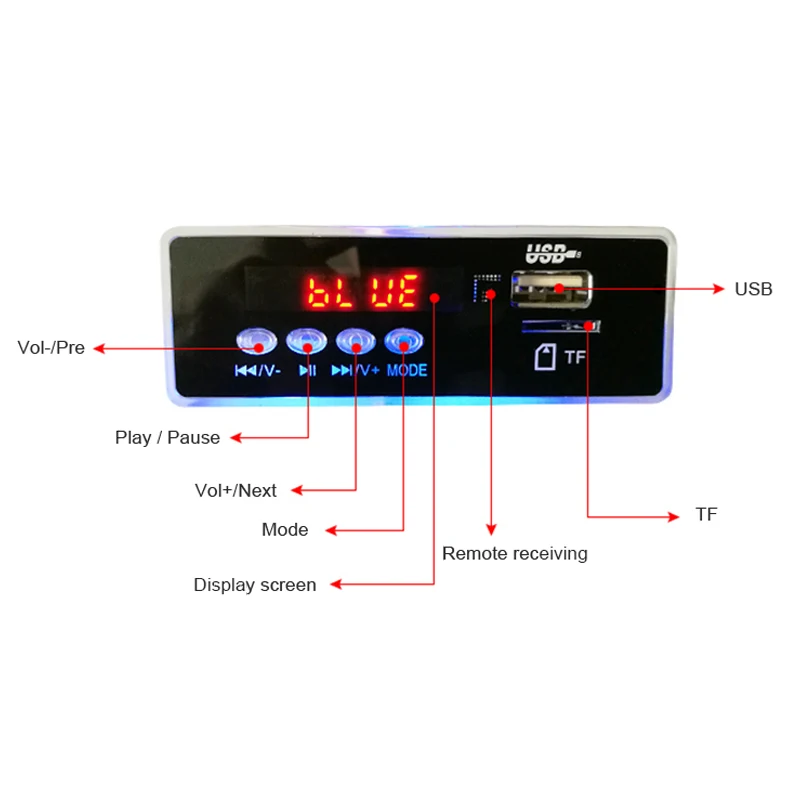

The key functions when playing MP3 are as follows:
“Previous song” short press to play the previous song, long press the volume minus;
“Next song” short press to play the next song, long press volume plus;
“MODE” machine mode selection: In order of FM, AUX, MP3 cycle;
“Play/pause” presses the song being played for the first time, press again to restore it
FM operation instructions:
Use the “MODE” key to switch the machine to FM state (default is FM state when there is no U disk/SD):
In the FM state, the key functions are as follows:
“Last song” searches for radio stations from high to low, and long presses down the volume.
“Next tune” short press to search for radio from low to high, long press volume increase;
“MODE” machine mode selection: In order AUX, MP3, FM cycle;
“Play/pause” short press to jump to the next stored station, press and hold for 3 seconds to perform automatic search and store the station
AUX function operation:
Press the “MODE” button on the panel to switch the machine to the “AUX” state. At this time, all the other function keys are invalid and only the “MODE” key is valid.
The sound source is input by the MINI USB interface, and the volume is controlled by an external sound source device.

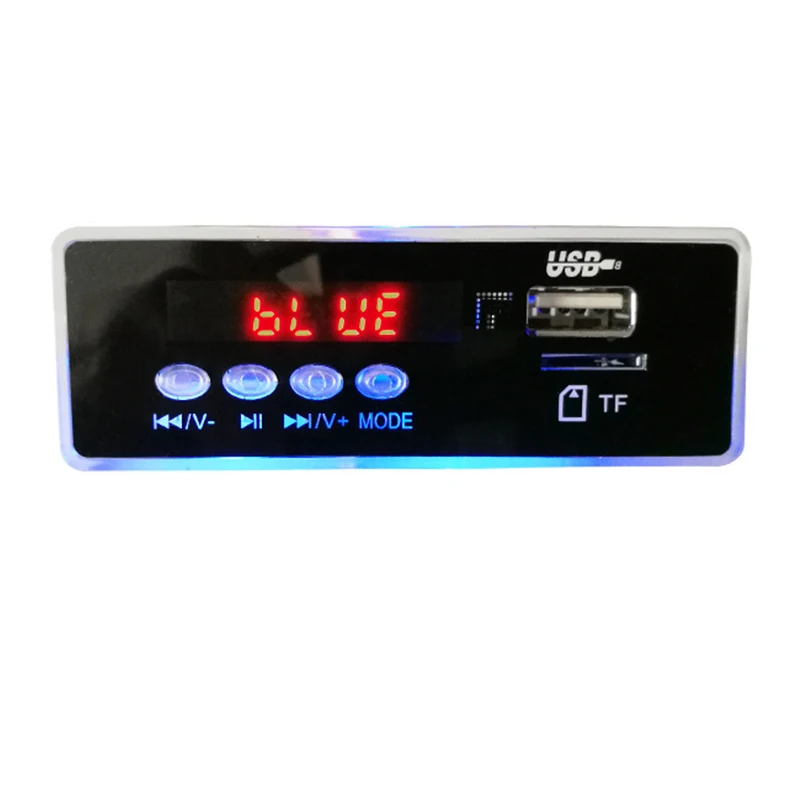

LED screen display part:
MP3 status: shows whether the currently playing song is from U disk or SD card, and shows the progress of the playing time;
When adjusting the volume: display the volume and other lines;
AUX status: shows the current working status;
In FM status: Displays the current listening station frequency
Package included:
1PCS x Decoder board
1PCS x remote control
1PCS x 2P cable
1PCS x 3P cable
