Please tell me which box do you need in the order Messages
If the buyer does not specify which box is you need, the default is shipping Surface mounted box
если покупатель не уточняется, что коробка, нужно, по умолчанию установлен флажок судоходства поверхности
Пожалуйста, сообщите мне ваш способ установки в порядке сообщений

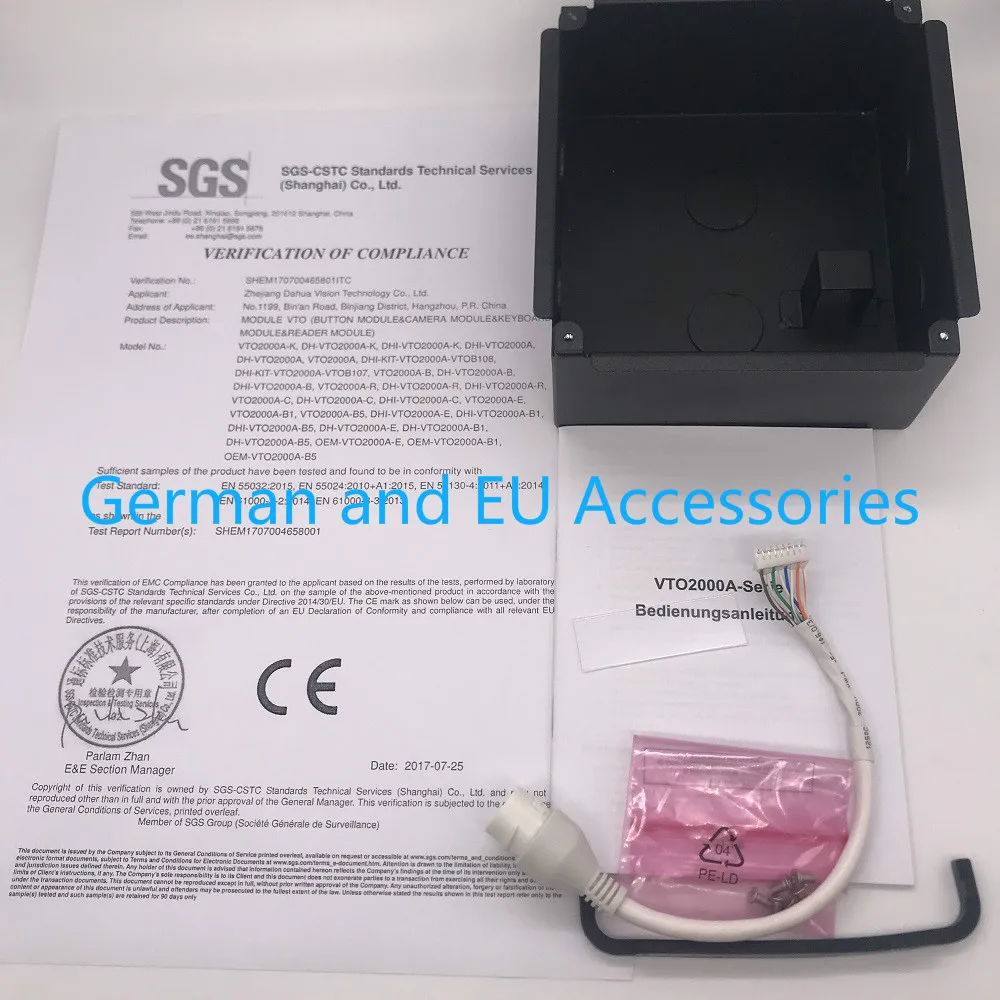

Surface mounted box:

Flush mounted box:

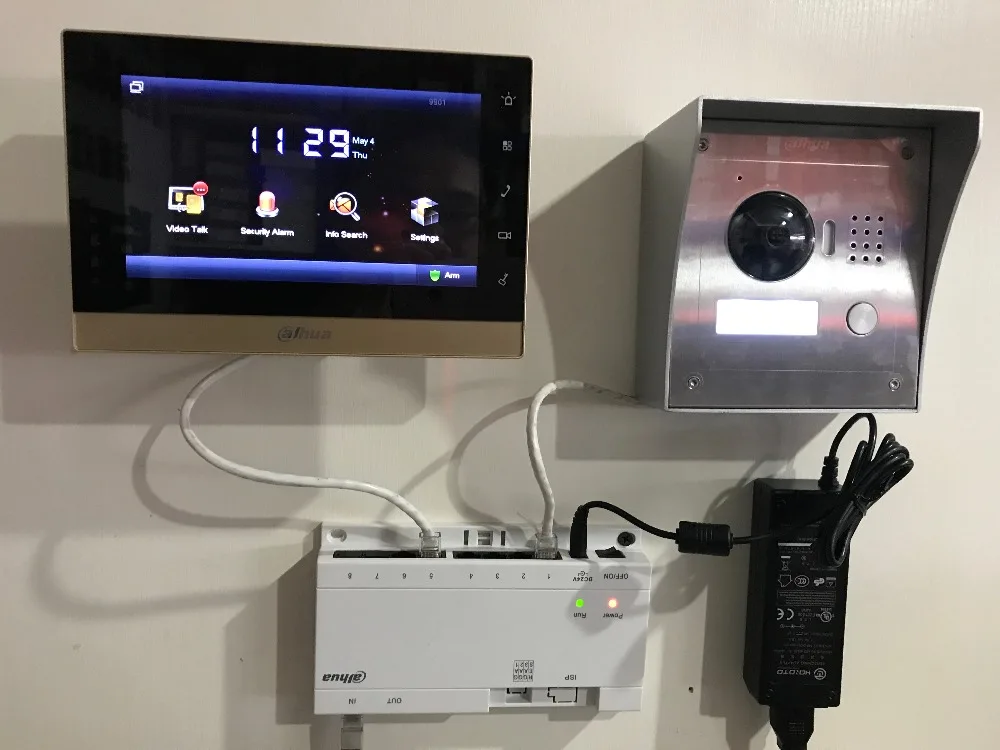

How To Add A VTH1550CH To A VTO2000A
1.Into the indoor monitor project settings,password:888888;
2.Into Products info ,Room No :9901;
3.Into Net set to view the IP address:192.168.1.109;
4.Must open“Enable Status”,This is the key, you don’t need SIP.

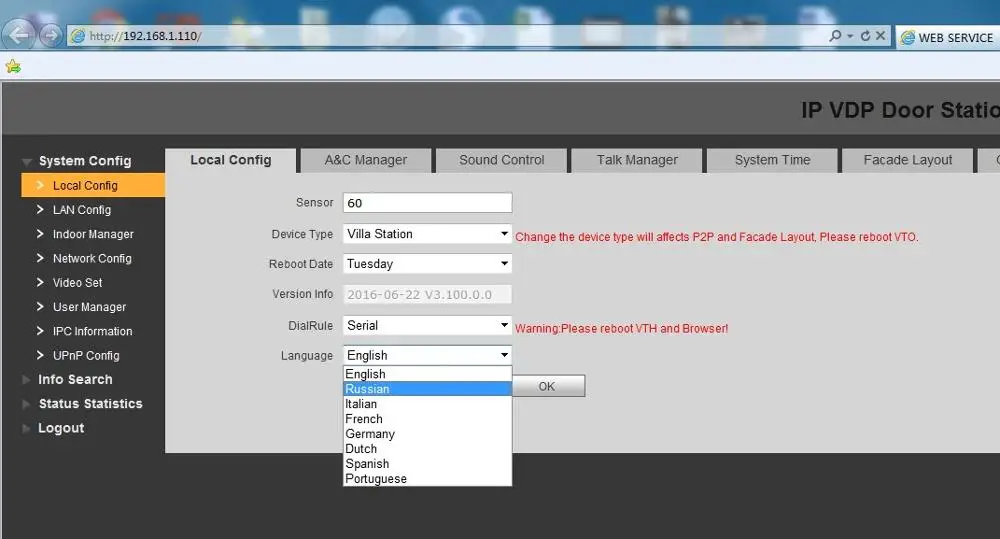

5.Now into the VTO(192.168.1.110), user name :admin, password : admin;Add indoor manager info;

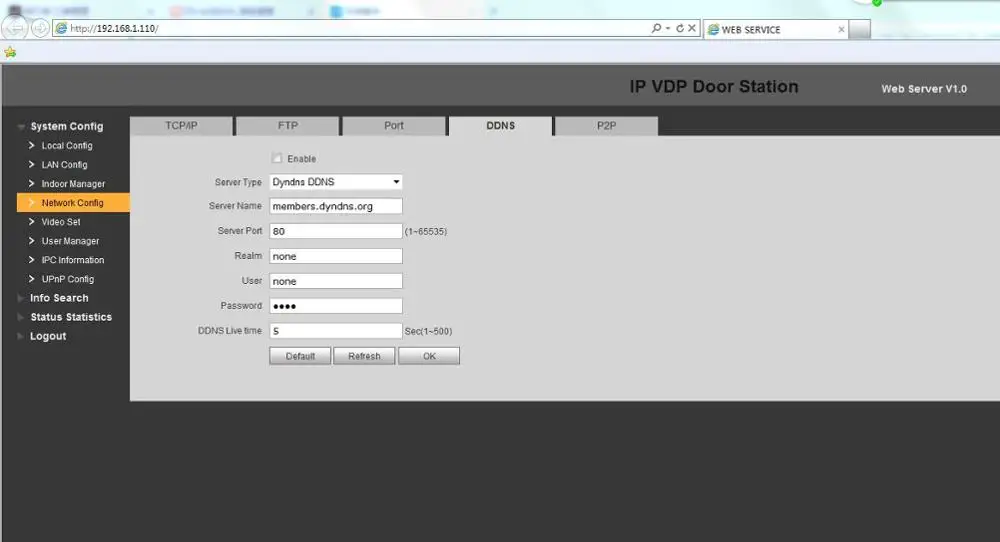

6.If you want to use P2P, you should fill in the correct gateway and DNS.![]()
7.When there is no X icon, you are success.![]()

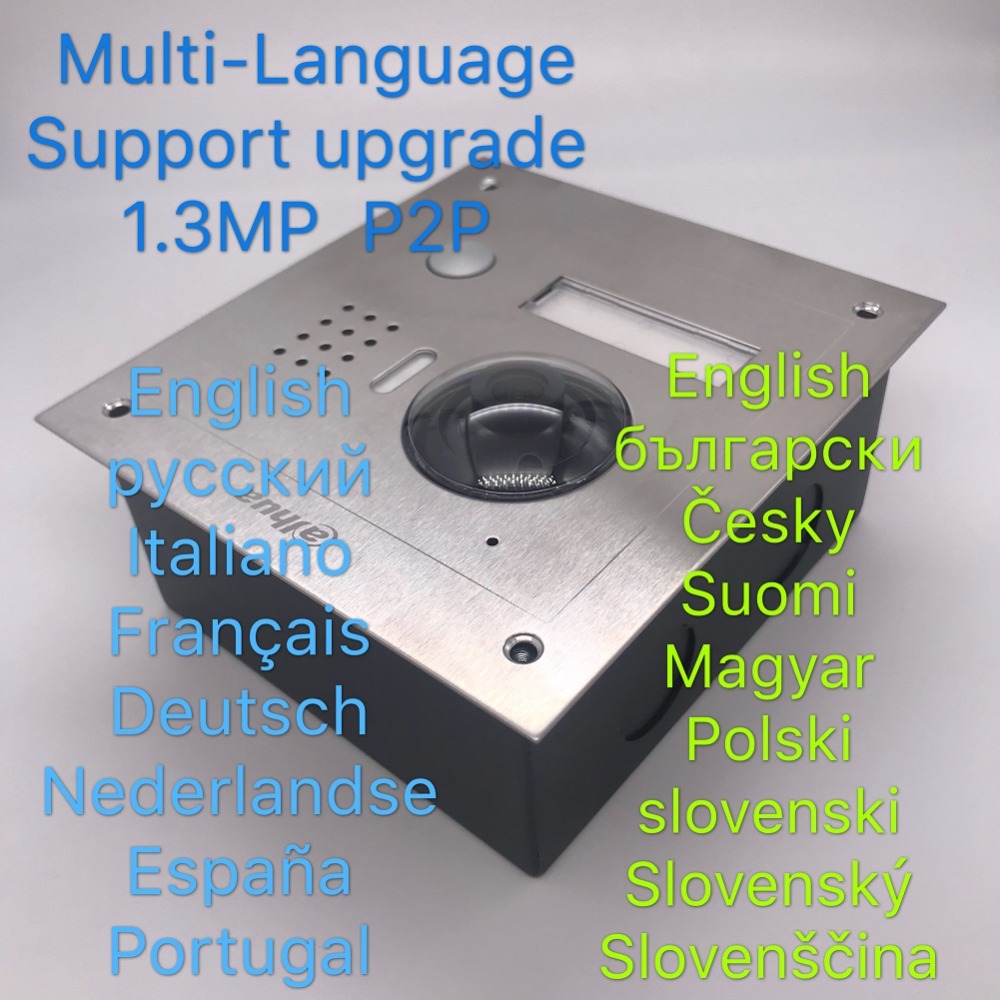

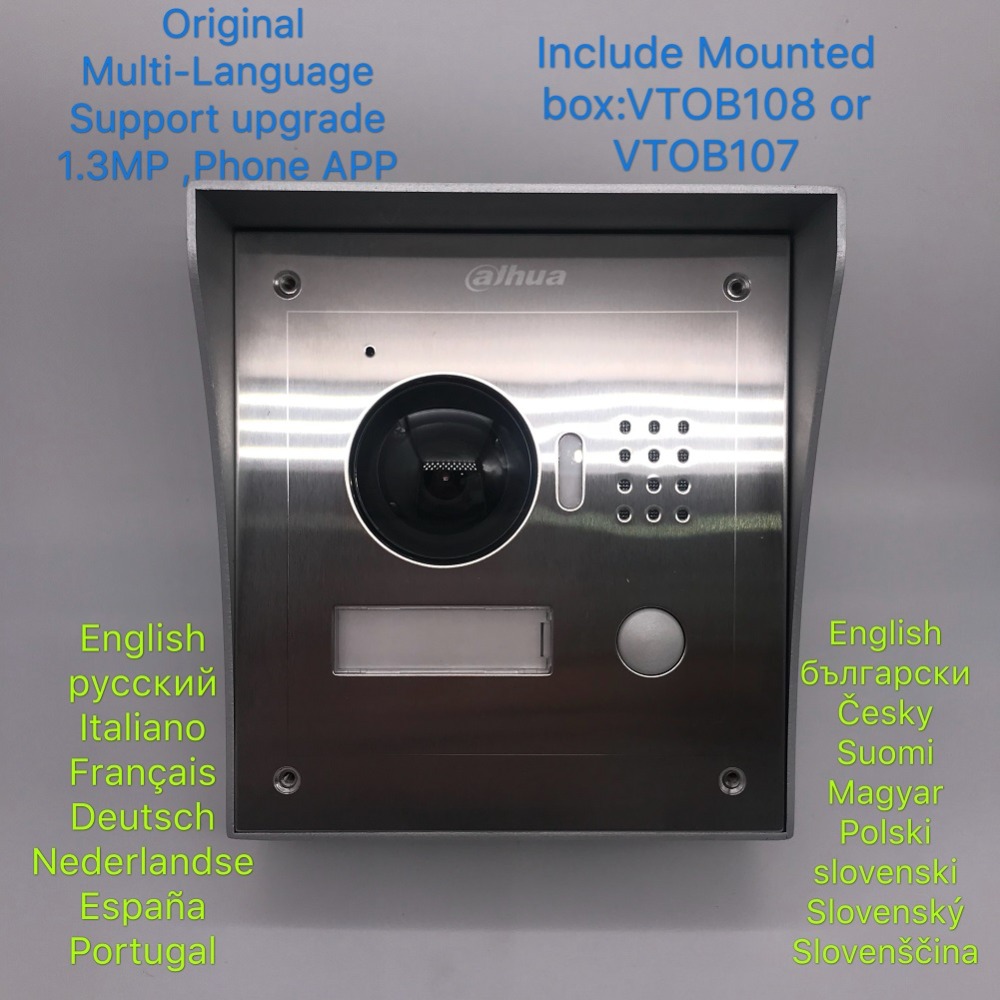

> HD CMOS camera
> Stainless steel panel, IP54,IK07
> Night vision &Voice indication
> Video & Audio messaging
> Remote intercom with mobile APP
> Surface mounted & Flush mounted
|
Technical Specification |
|
|
Model |
VTO2000A |
|
System |
|
|
Main Processor |
Embedded Micro Processor |
|
Operation System |
Embedded LINUX OS |
|
Video |
|
|
Video Compression |
H.264 |
|
Image Sensor |
1/4” 1MP CMOS |
|
Lens |
2.8mm |
|
Angle of View |
D:85° H:75° |
|
Day/Night |
Color Image |
|
Audio |
|
|
Audio Compression |
G.711 |
|
Audio Input |
Omnidirectional Mic |
|
Audio Output |
Built-in Speaker |
|
Bidirectional Talk |
Support Dual-way Bidirectional talk |
|
Operation Mode |
|
|
Keypad |
Single Mechanical Button |
|
Interface |
|
|
Door Control |
2(1 relay out for main lock, 1 extended by access control module) |
|
Alarm In |
2(1ch unlock button, 1ch feedback) |
|
RS485 |
1 |
|
Network |
|
|
Ethernet |
10M/100Mbps Self-adaptive |
|
Network Protocol |
TCP/IP |
|
Ethernet |
10M/100Mbps Self-adaptive |
|
Network Protocol |
TCP/IP |
|
General |
|
|
Ingress Protection |
IP54, IK07 |
|
Tamper Switch |
1 |
|
Installation |
Surface & Flush |
|
Material |
Stainless Steel |
|
Power |
DC 12V/ supply directly by VTNS1060A |
|
Power Consumption |
Standby ≤1W, Work ≤10W |
|
Working Temperature |
﹣40°C~+60°C |
|
Relative Humidity |
10%~90%RH |
|
Dimensions |
129.9mm×32.2mm×140mm |
|
Weight |
0.8Kg |
