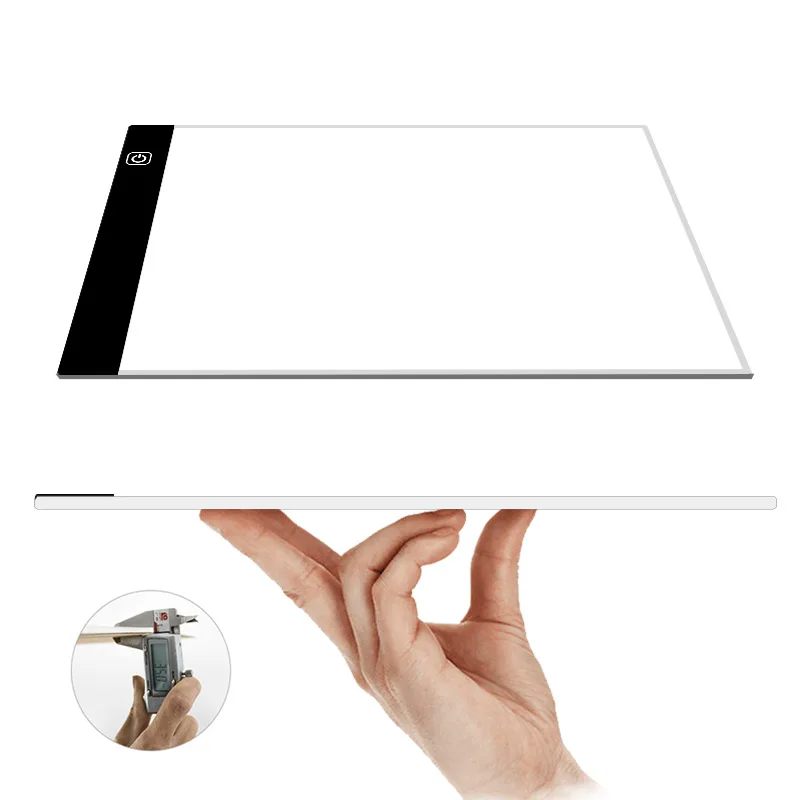

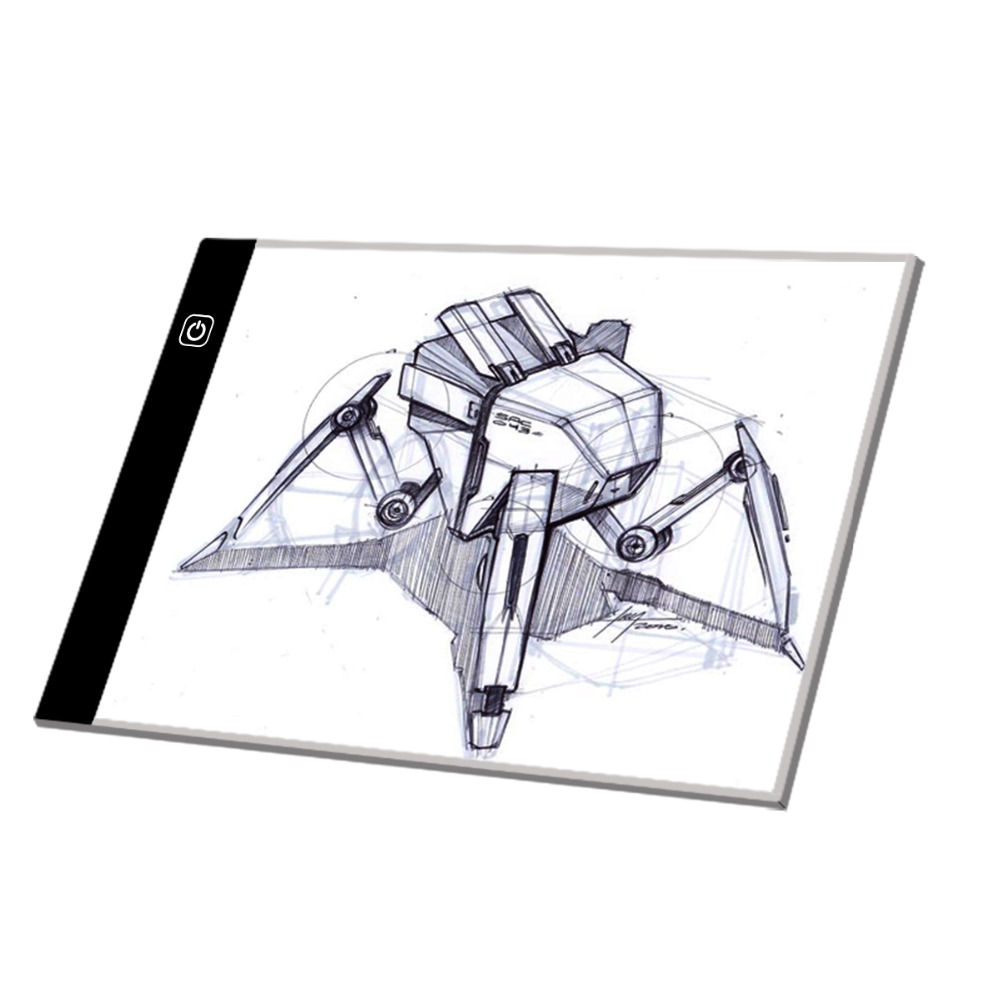

A4 super thin intelligent touch screen switch 3 level brightness adjustable LED tracing comic sketching light pad
produce mode support : ODM / OEM

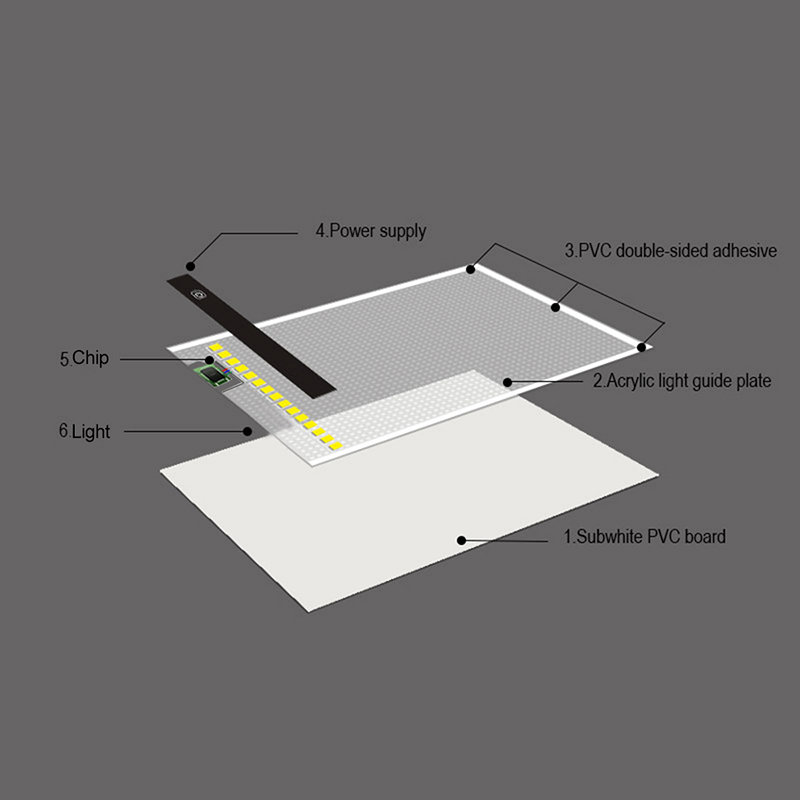

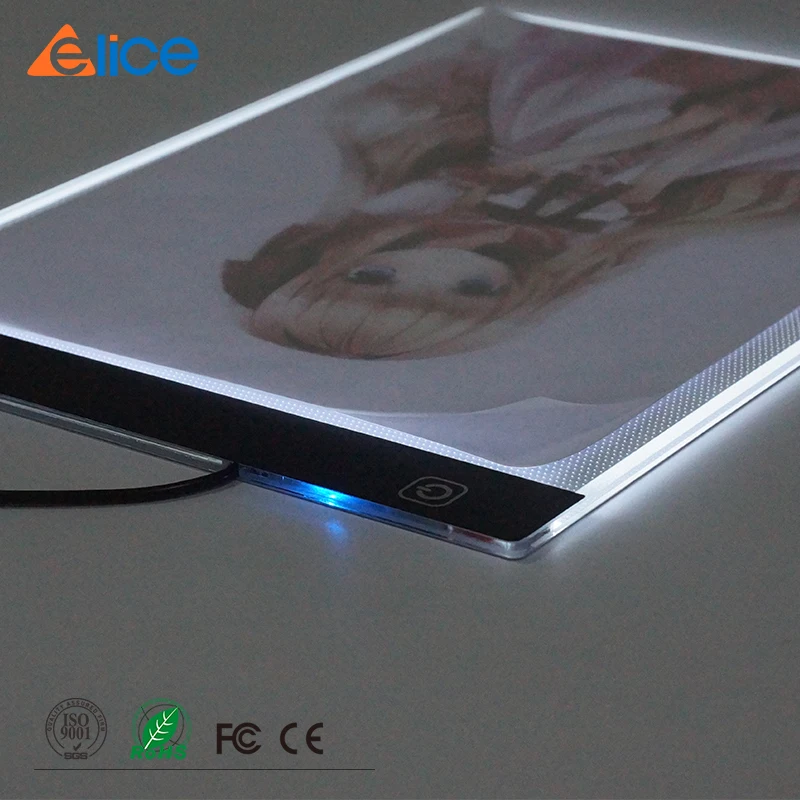

The LED crystal light pad is formed by using a high-expansion light bar to pass the light to the right
side of the acrylic plate on the left side of the power supply side to form a light pad effect. Since the
acrylic plate has a laser micro hole.
Coupled with the PVC reflector on the bottom, the light pad has a very uniform illumination effect
and the intensity of the light is 10000-20000 LUX.

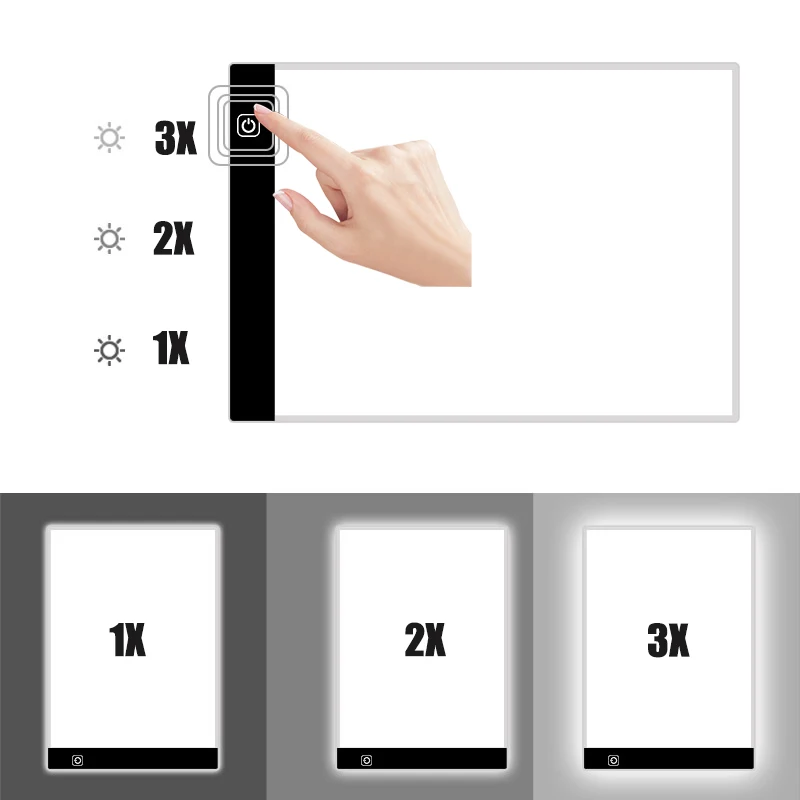

The switch of the product is touch-type, and the switch mode is divided into three types of chips and
three levels of no-level dimming. The power adapters are available in many different types. The input
port is Micro-USB.

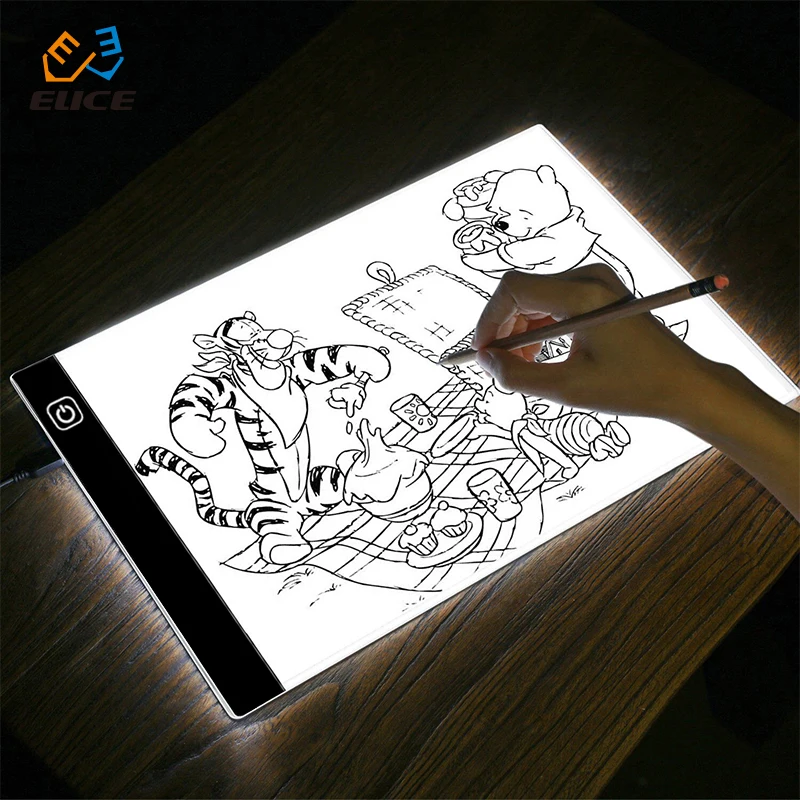

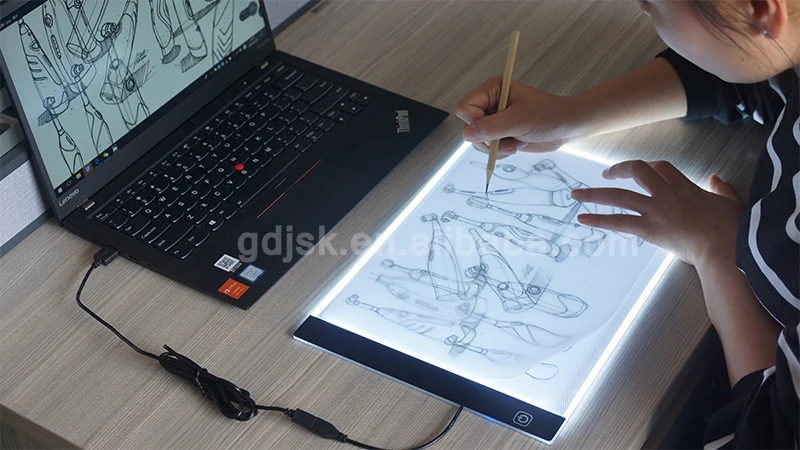

Product use: Children tracking copy animation case

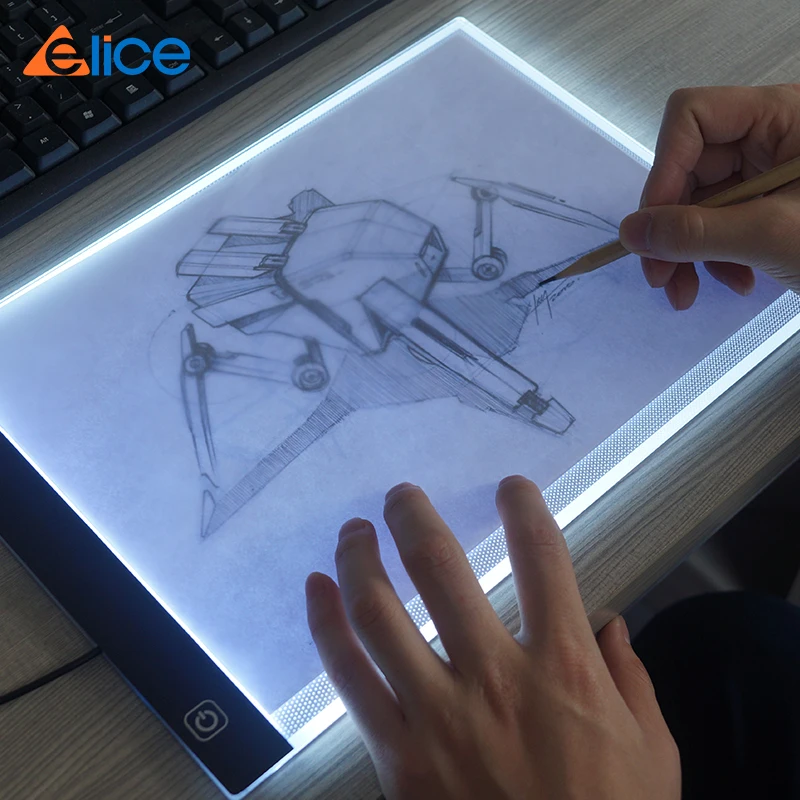

College students design students to do homework
Architecture design
Tattoo, depicting design
| Product name : | LED tracing light pad |
| light source : | NO.2835 |
| Power consumption : | 1.98W |
| Lamp beads : | 18 beads, 0.11W/ 1 beads |
| import Power voltage : | DC 5V – 0.5A |
| Power interface : | Micro- USB |
| Lighting type : | guide light |
| Touch switch : | YES |

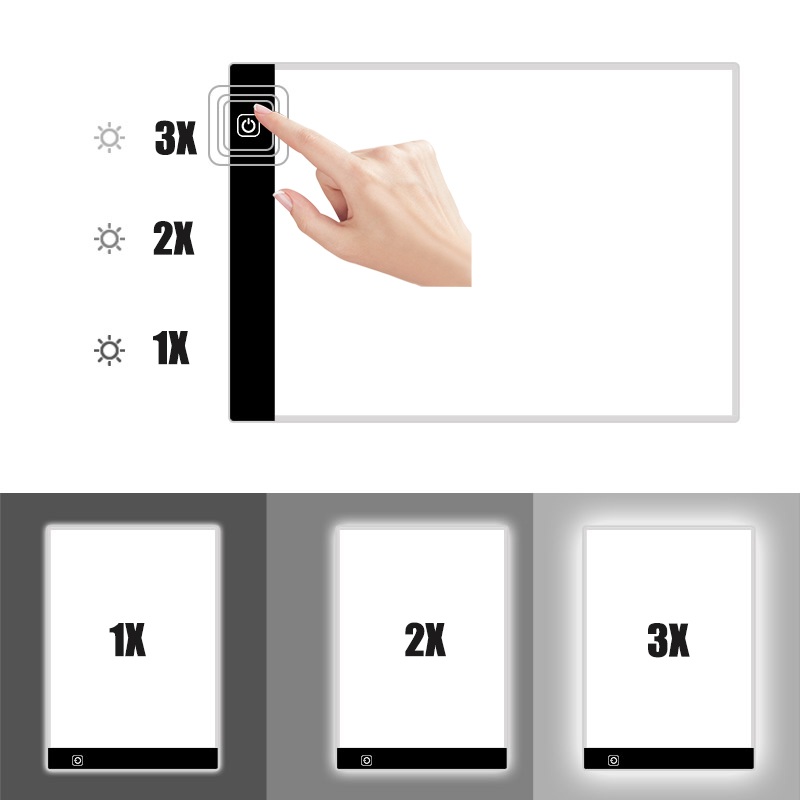

| Adjust way : | 3 level brightness adjuatalbe |
| Scale ruler : | NO |

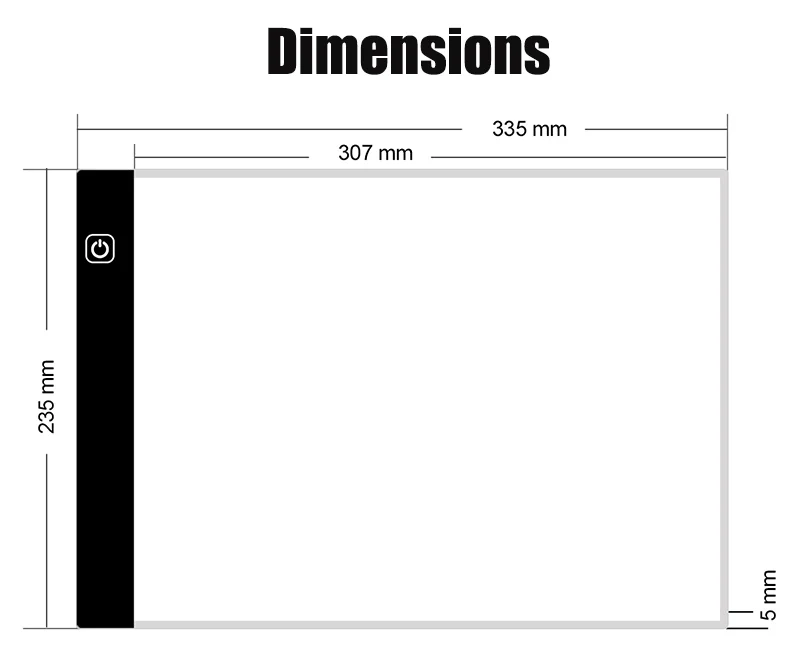

| Lighting area : | 31*23.5cm |
| certification : | CE /FC /ROHS /ISO 9001 |

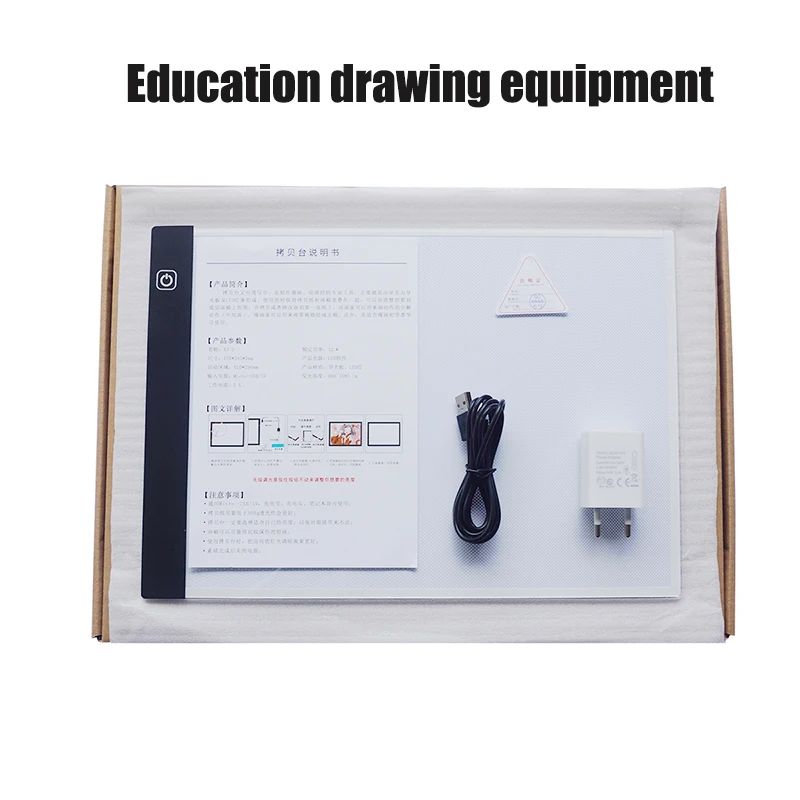

| Accessories : | light pad*1 USB line *1 Adapter plug *1 |
| Switch Type : | Intelligent touch screen switch |
| Adjustable Brightness : | Low / Middle / High |
