| Server | Cloudlink P2P transmission, Adaptive Network |
| Network | WiFi 802.11 b/g/n or directly connected to a wired network |
| Audio | G.711 A compression mode |
| Talk | 3Dvoice speech engine technology, Full duplex talk |
| Video format | H.264 |
| Record mode | Manual Recording, Alarm Recording, Scheduled Recording |
| External Memory | Micro SD card up to 128GB |
| Camera | 1.0 megapixels |
| Camera Lens | 2.5mm, 130 degree wide-angle |
| Night vision | IR CUT no color deviation, B/W night vision within 5meters |
| Frame rate | 25 Frame HD (1280*720), SD (640*480), LD(320*240) |
| Alarm | Motion detection, PIR detection, Tamper alarm |
| Push | Push message to smart phone, Send pic to settings mail |
| Data interface | TCP/IP, UDP, SMTP, DHCP, UPnP, ONVIF connect NVR |

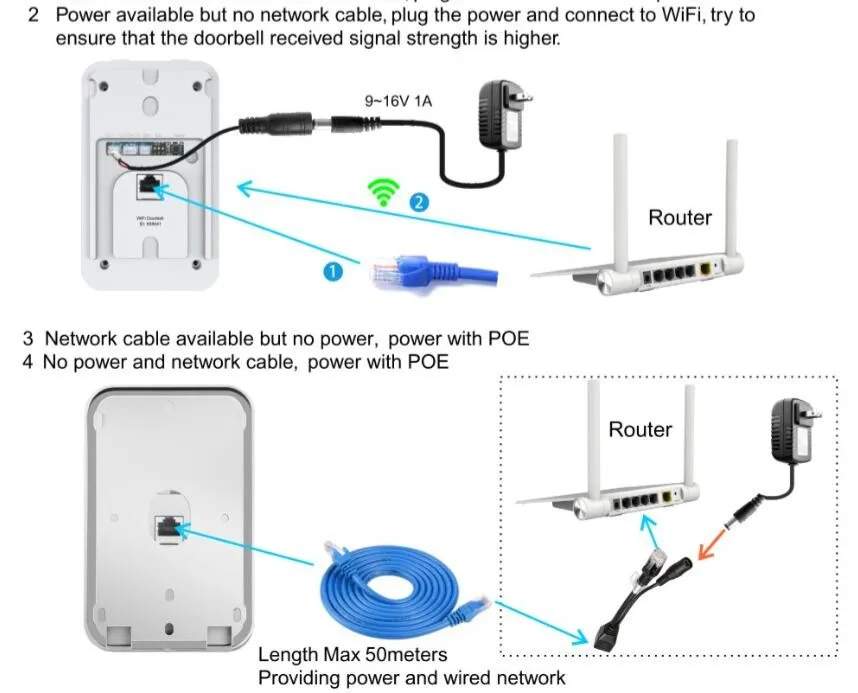

| Power adapter | DC9~16V 1A or POE power by connect POE injector |
| Waterproof level | IP44 |
| Temp/humidity | -20~55 °C 10-95% RH |
| Weight | G.W.: 750g |










1 Q Doorbell cannot connect to WiFi
A 1 Confirm WiFi password is correct 2 Doesn’t support 5G WiFi
2 Q When adding a device, APP don’t prompts have new device
A Please check doorbell and smart phone whether within same LAN, manual to add if it’s not same LAN.
3 Q Prompts wrong password for the smart doorbell
A Click on correct into to correct password, Press ‘Reset”button of doorbell 5s, if forgot password to add the doorbell to APP
4 Q Doorbell show offline
A Confirm connects network cable or WiFi successful
5 Q MicroSD card can’t recording and covering?
A 1 Check MicroSD card or has damaged
2 please check search the time of video files, system time of doorbell
6 Q The difference between user ID and doorbell ID
A User ID is registered generated, Doorbell ID is its own identification number
7 Q The difference between user password and doorbell password
A User password is registered setting, Doorbell password is APP connect the doorbell to setting
8 Q The difference between edit and modify management password
A Editing means input wrong or other users changed the newest password, Modify in setting, means reset a new password

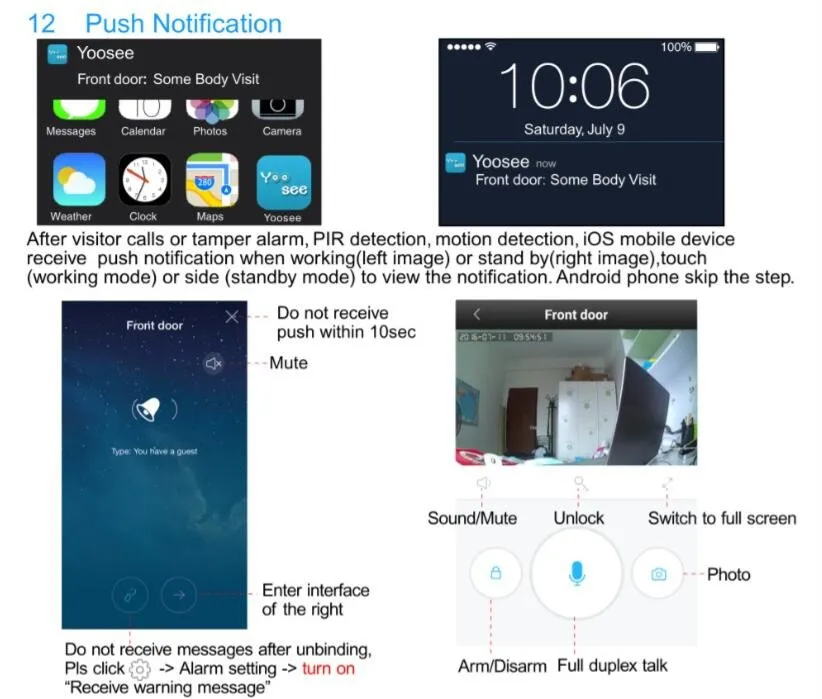

9 Q After visitor calls, Android only shock without ringing?
A No. Touch “More…” to selects system settings call and alarm rings
10 Q Can’t receive visitor calls
A 1 User ID is not in the alarm account
2 Make sure Android APP in the background and connects WiFi or 3G/4G
3 Push messages to iOS, touch it will enter above interface
4 Receive alarm must be enable.
11 Q How to delete the others alarm push account?
A Setting->Alarm setting-> In front of alarm push account have delete icon to deleted, then phone can’t receive push messages
12 Q Push email password is the email password?
A No. Input App Password. For example gmail mailbox, An App password is a 16-digit passcode that gives an app or device permission to access your Google Account. If you use 2-Step-Verification and are seeing a “password incorrect” error when trying to access your Google Account, an App password may solve the problem.
Note: If you have iOS 8.3 on your iPhone, you will no longer have to use App passwords to use 2-Step Verification.
How to generate an App password
1 Visit your App passwords page. You may be asked to sign in to your Gmail Account.
2 At the bottom, click Select app and choose the app you’re using.
3 Click Select device and choose the device you’re using.
4 Select Generate.
5 Follow the instructions to enter the App password.
Note: You may not be able to create an App password for less secure apps. Learn more about allowing less secure apps. Pls check your mail help input App password.
