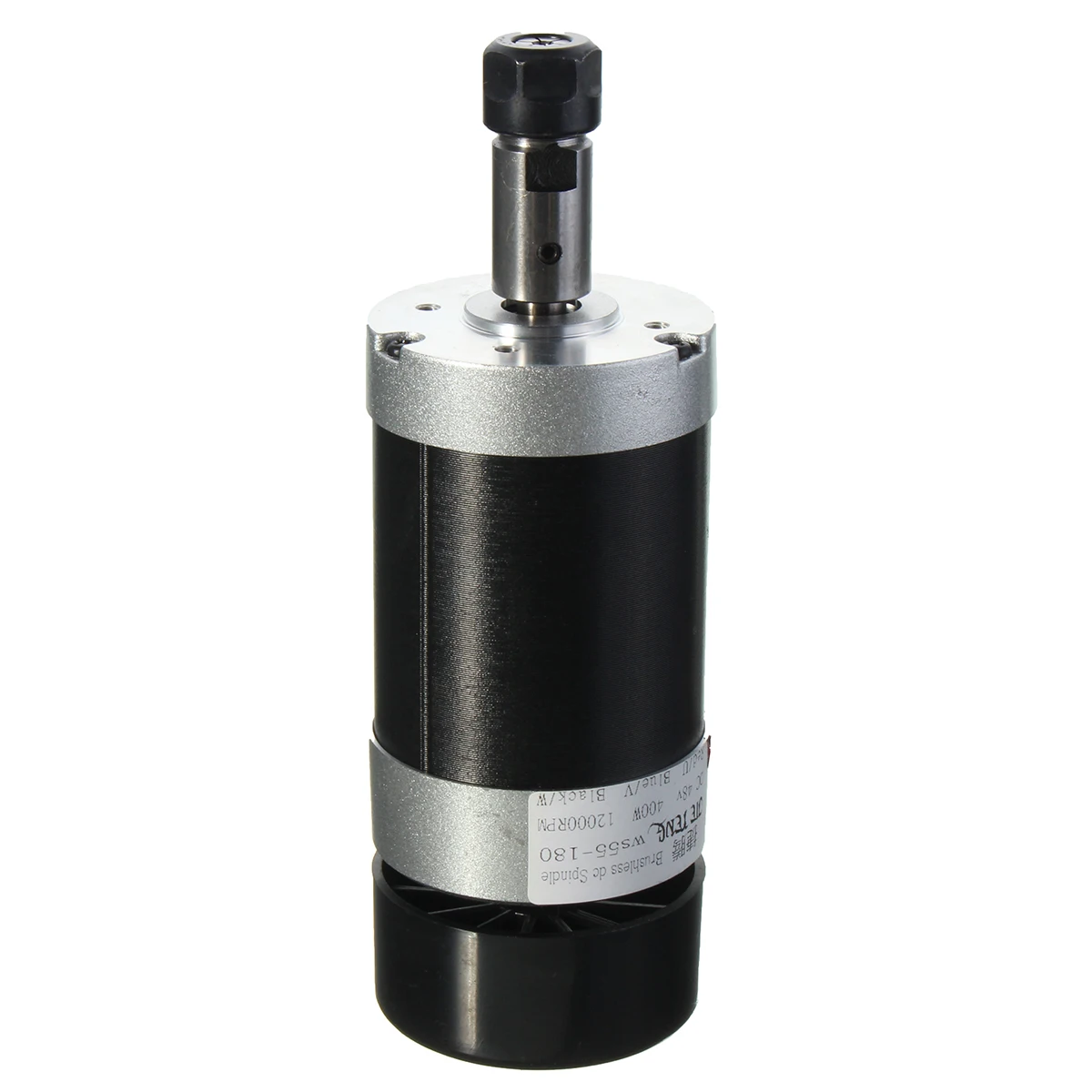

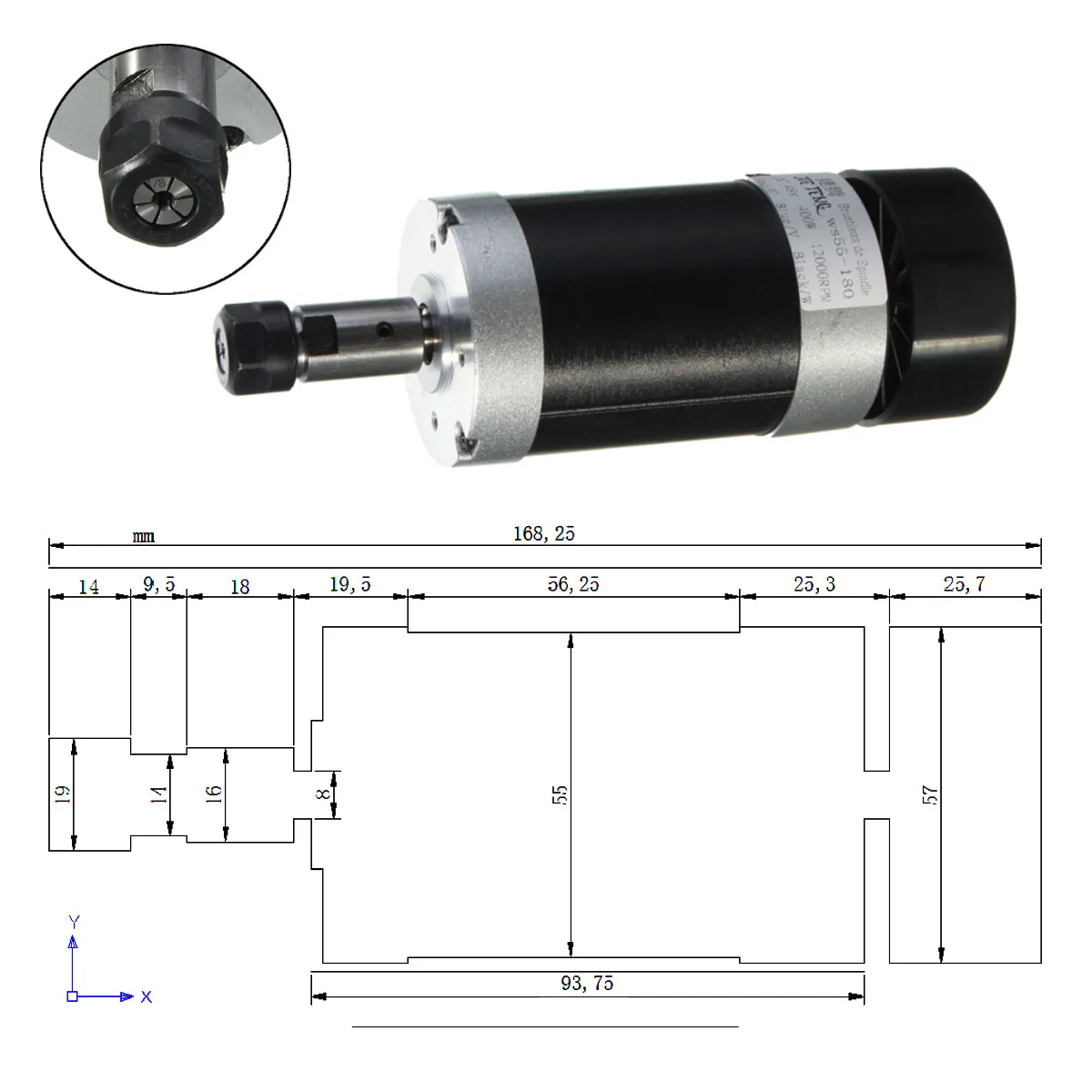

Brushless motor parameters:
Color: Black&Silver
1. Working voltage: 48 V DC
2. Power: 400 W
3. Speed: 12000 r/min
4. Distance: 0.45 (N.m)
5. Insulation resistance: > 2 ohms
6. Insulation dielectric strength: 400 V
7. Diameter: 55 mm
8. Axis collet Length: 43mm
9. Diameter of Axis collect holder:16mm
10. Repeat accuracy: 0.01-0.03mm
11. ER11 collect: 3.175mm
12. Spindle net weight: 1.1 KG

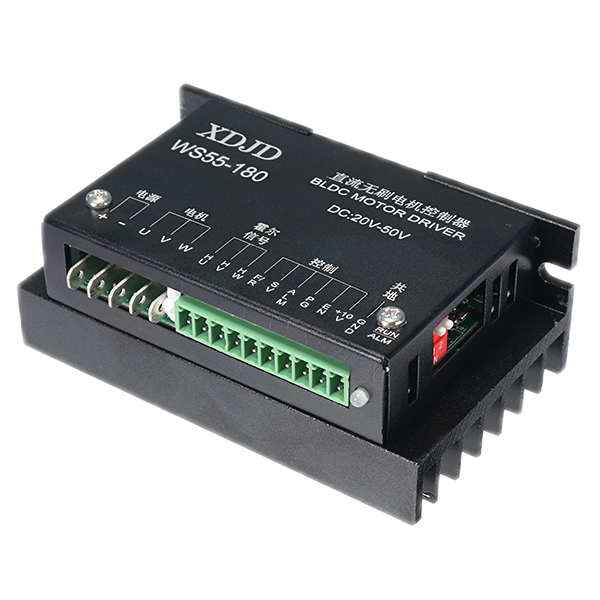

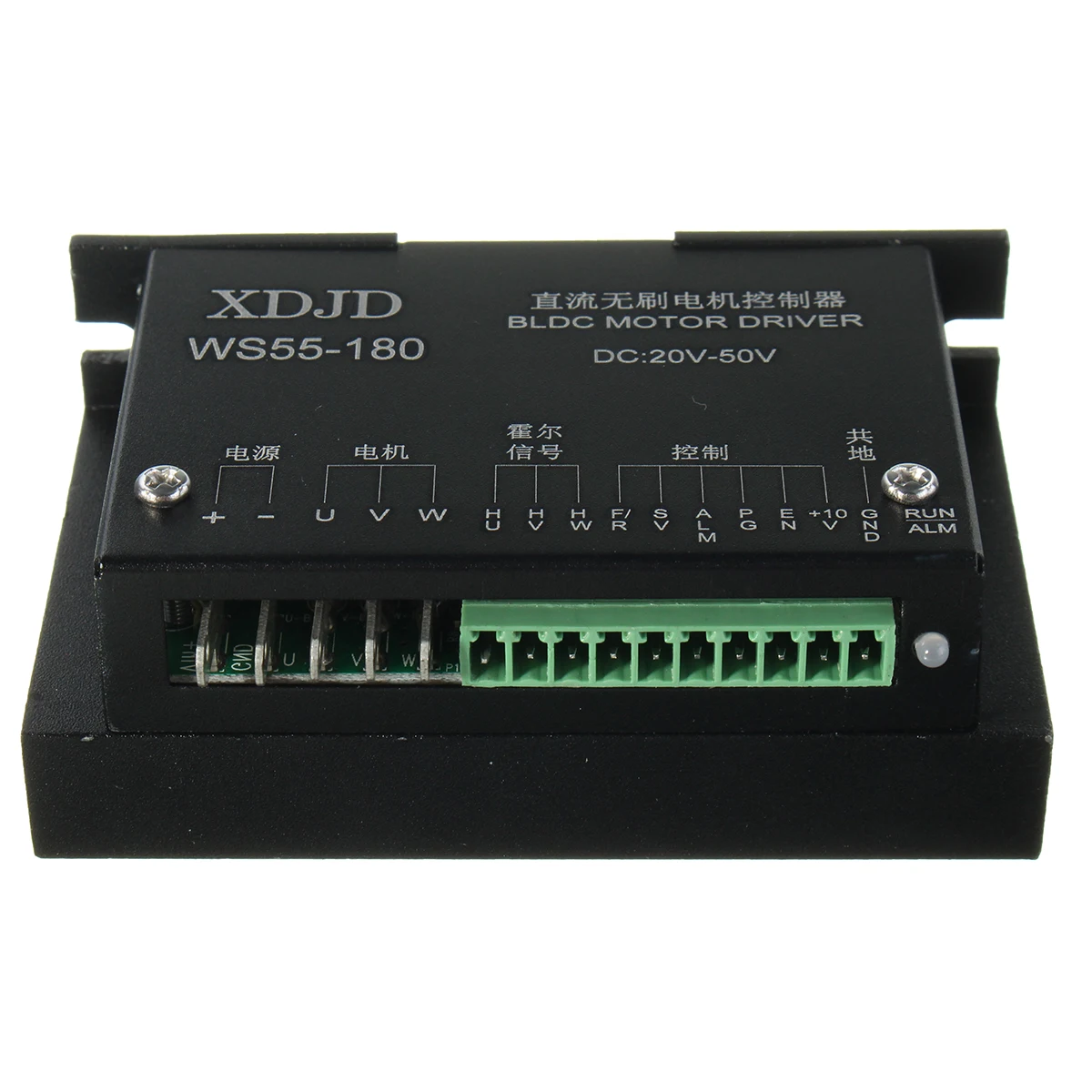

Brushless DC speed driver controller parameters:
Model: WS55-180
Color: Black
1. Rated voltage: 20-50VDC
2. Rated current: 8A
3. Limited current: 10A
4. Maximum speed:Over 20000RPM

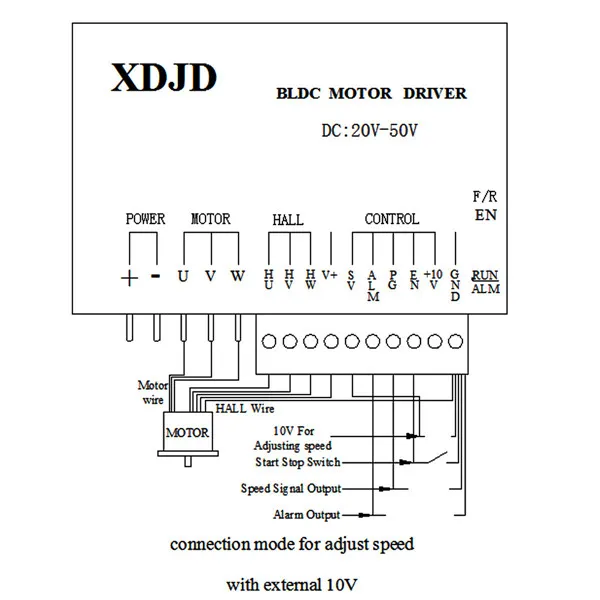

5. Speed control: 1.Regulation resistance, 2.External voltage:10VDC
6. Alarm output: AL signal:This port and the ground have a 5V alarm output output

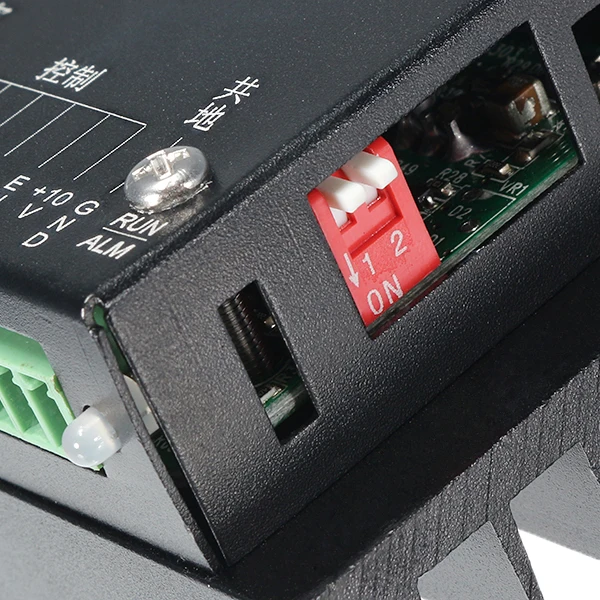

7. Power light: Green LED(The led is on once power on)
8. Operation condition light: Red LED(The led flash one times continuas When the device is suspended)
9. Insulation resistance:>100MΩ at normal temperature and pressure
10. Insulation strength: 0.5KV, 1 minute at normal temperature and pressure
11. Storage temperature:-20℃～ +65℃
12. Storage humidity:0~95%RH
13. Working temperature:0-45℃
14. Working humidity:< 80%,No frost, frost free
15. Working Vibrating: 5.9m/S² MAX
16. Dimension: 96x68x36mm
17. Weight: Approx. 195g

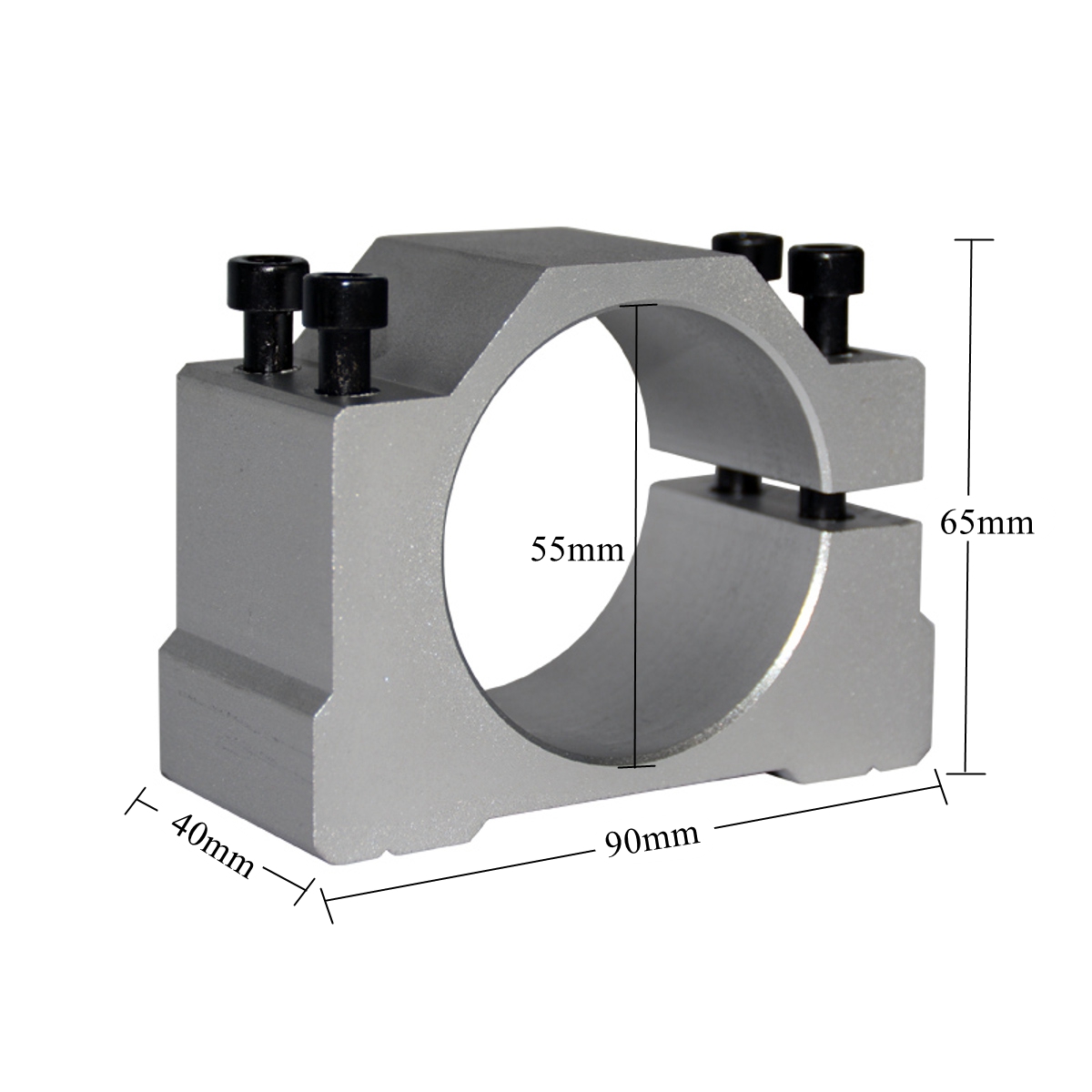

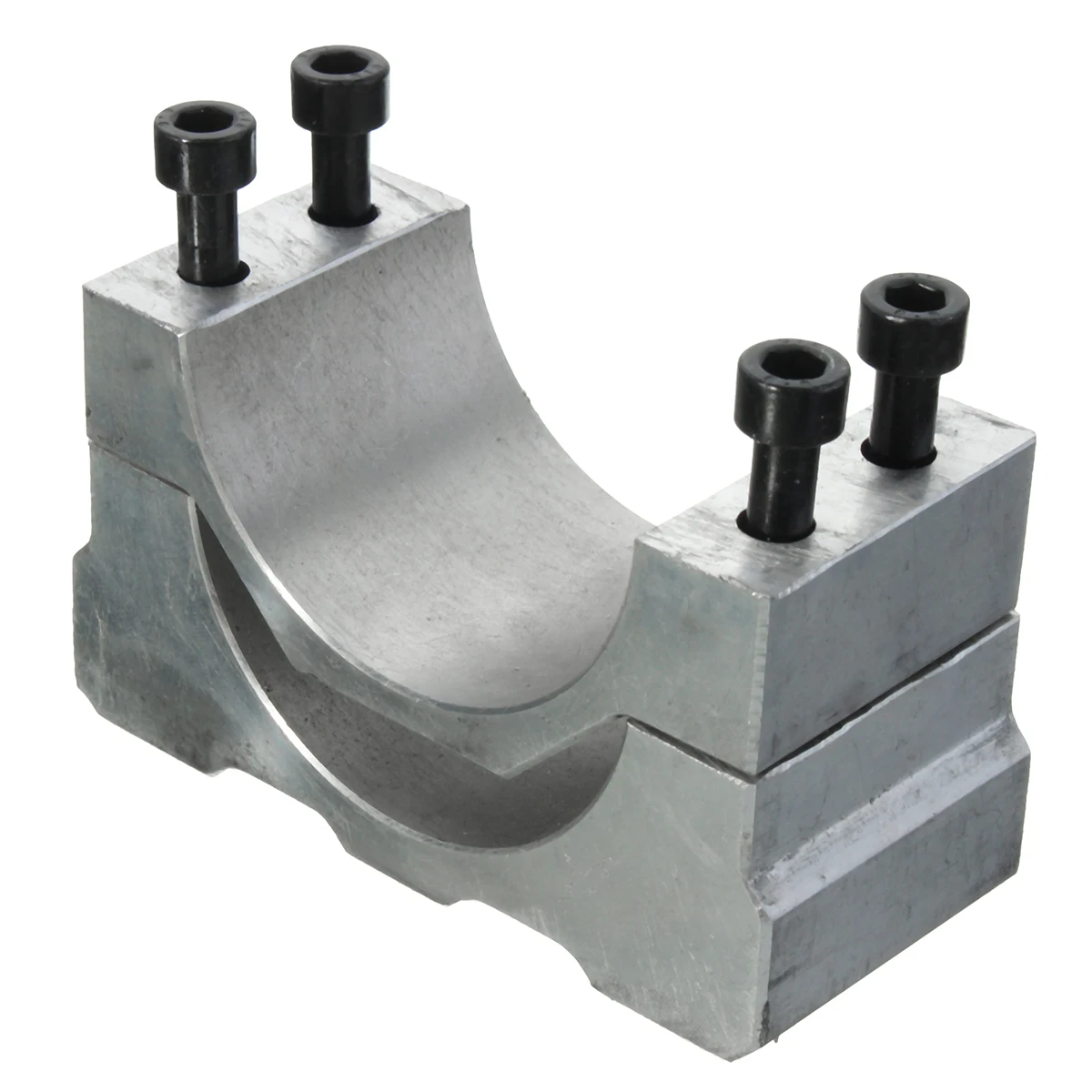

Spindle fixture:
1. Material: Cast aluminum
2. Color: Silver
3. Bore diameter:55mm
4. Total Size:90x40x65mm
5. Higher precision, low deformation rate, smooth inner wall

Main Features:
Brushless motor
1, brushless, low interference, in addition to the brushless motor brush, the most immediate change is no brush spark generated when the motor running, thus greatly reduce the electric spark interference of remote radio equipment.
2, low noise, smooth operation, brushless motor without brush, less friction force during operation, smooth operation, low noise will be many.
3, long life and low maintenance costs, less brush, brushless motor wear is mainly on the bearing, from the mechanical point of view, brushless motor is almost a free maintenance of the motor

Speed driver controller
Speed/Current alike non-closed loop technology, smooth rotation
Pure hardware design, high-speed, high noise immunity
F/R(forward / reverse control) Rotation, soft shift function
Over current, short circuit protection (red LED indicator)
The drive is compatible with a motor with a Hall sensor and a motor without a Hall sensor.

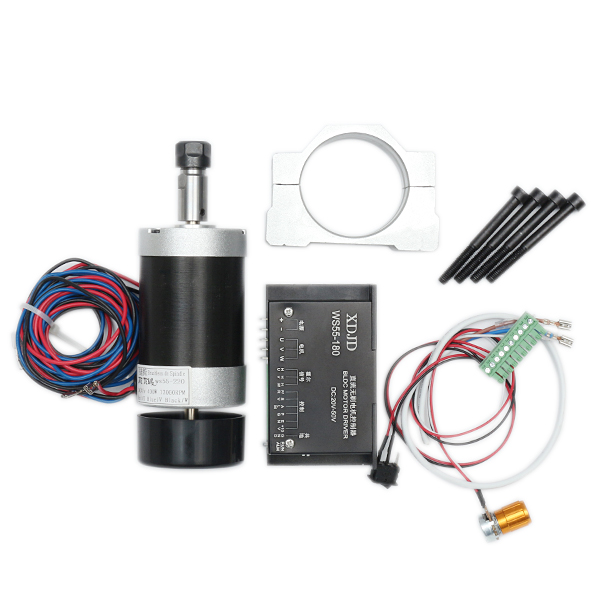

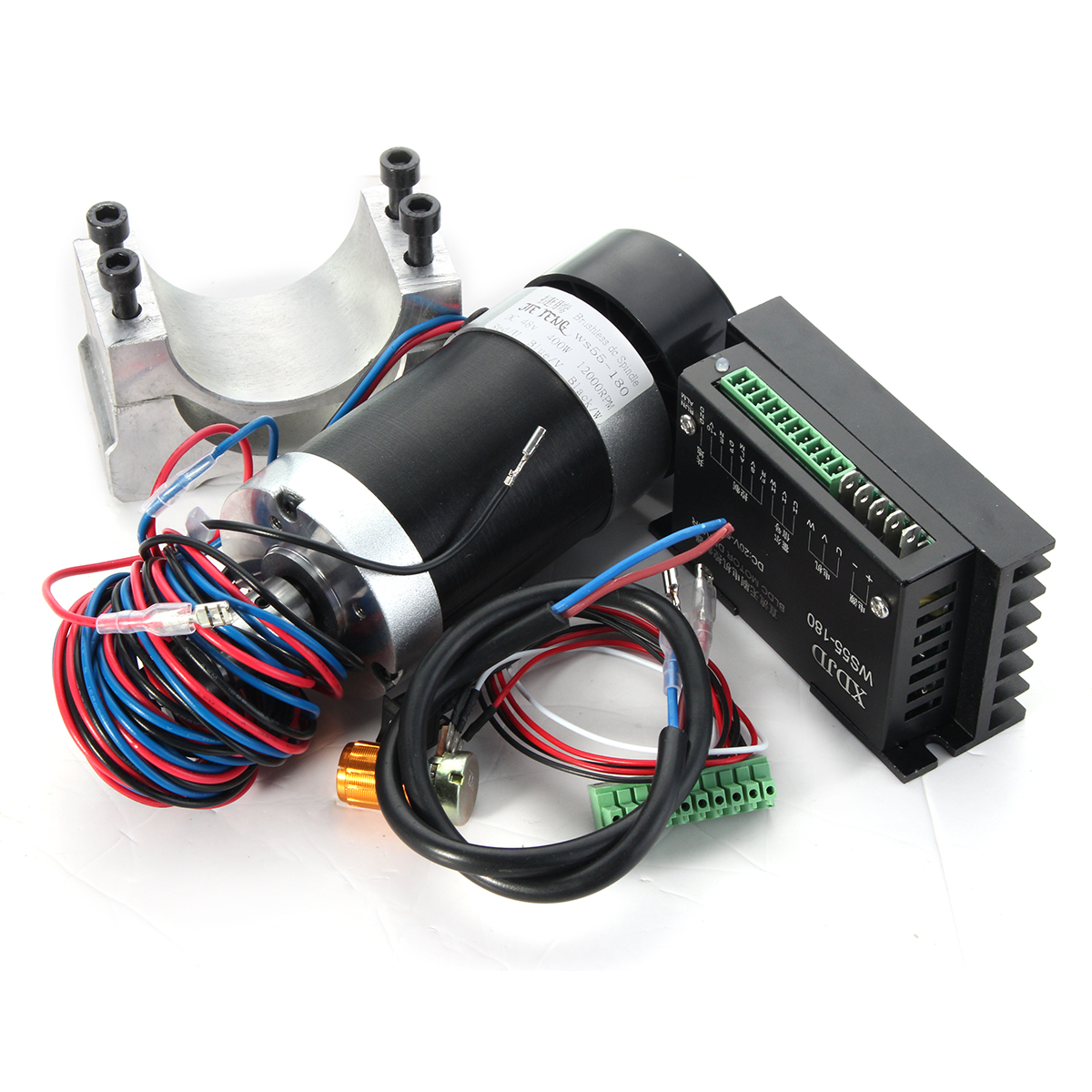

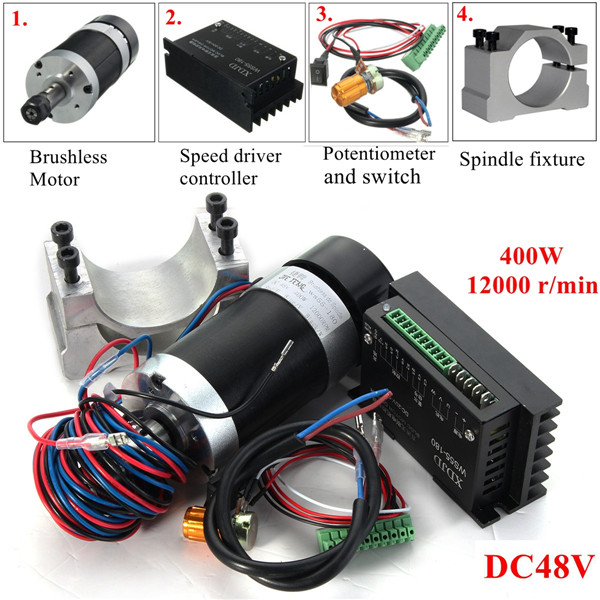

Packaged included:
1 x Spindle motor with with ER11 3.175 collet

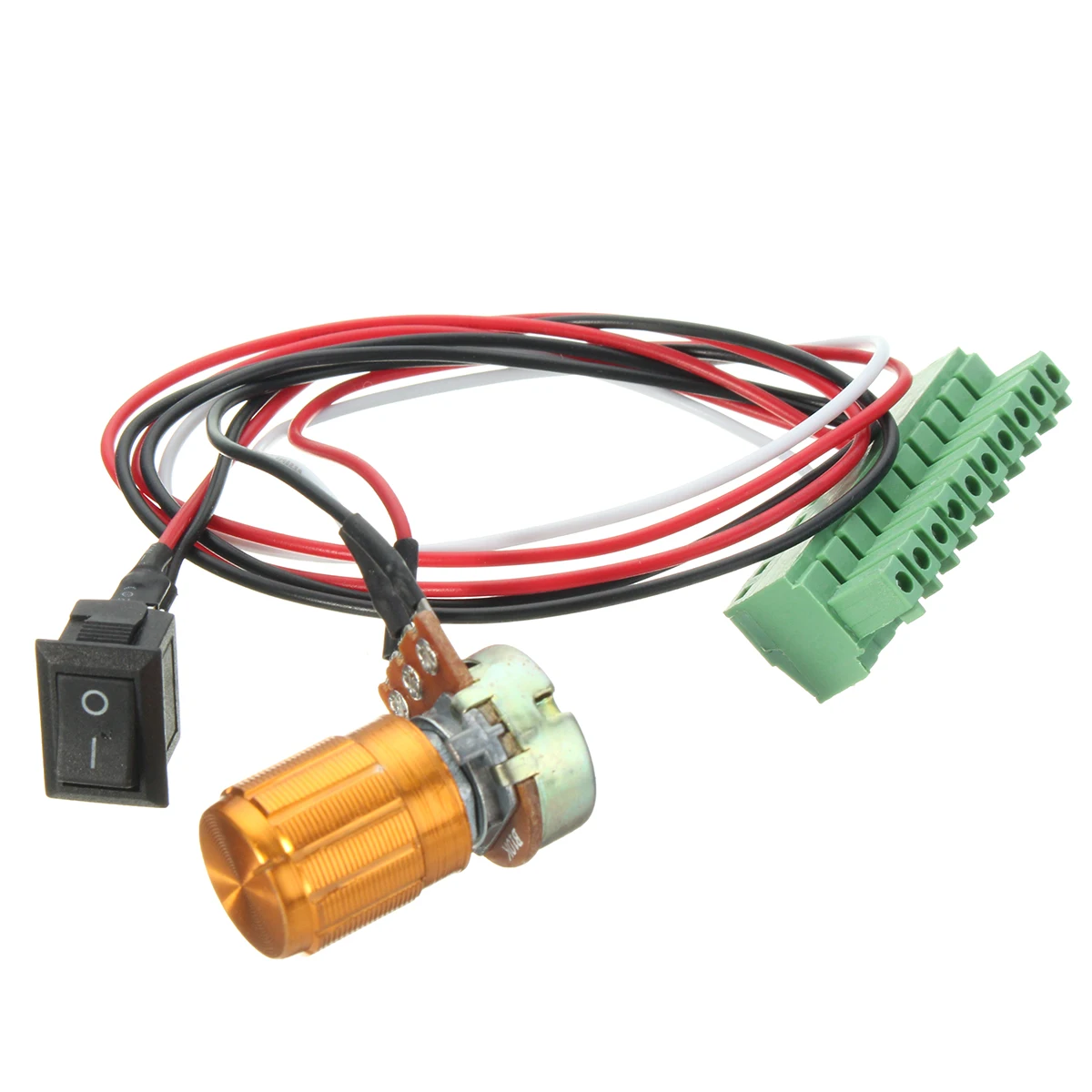

1 x WS55-180 Speed driver controller(With potentiometer and switch)
1 x Spindle fixture(Includes 4 fixing screws)
1 x English manual
