Product upgrade:

ADD POE detection function

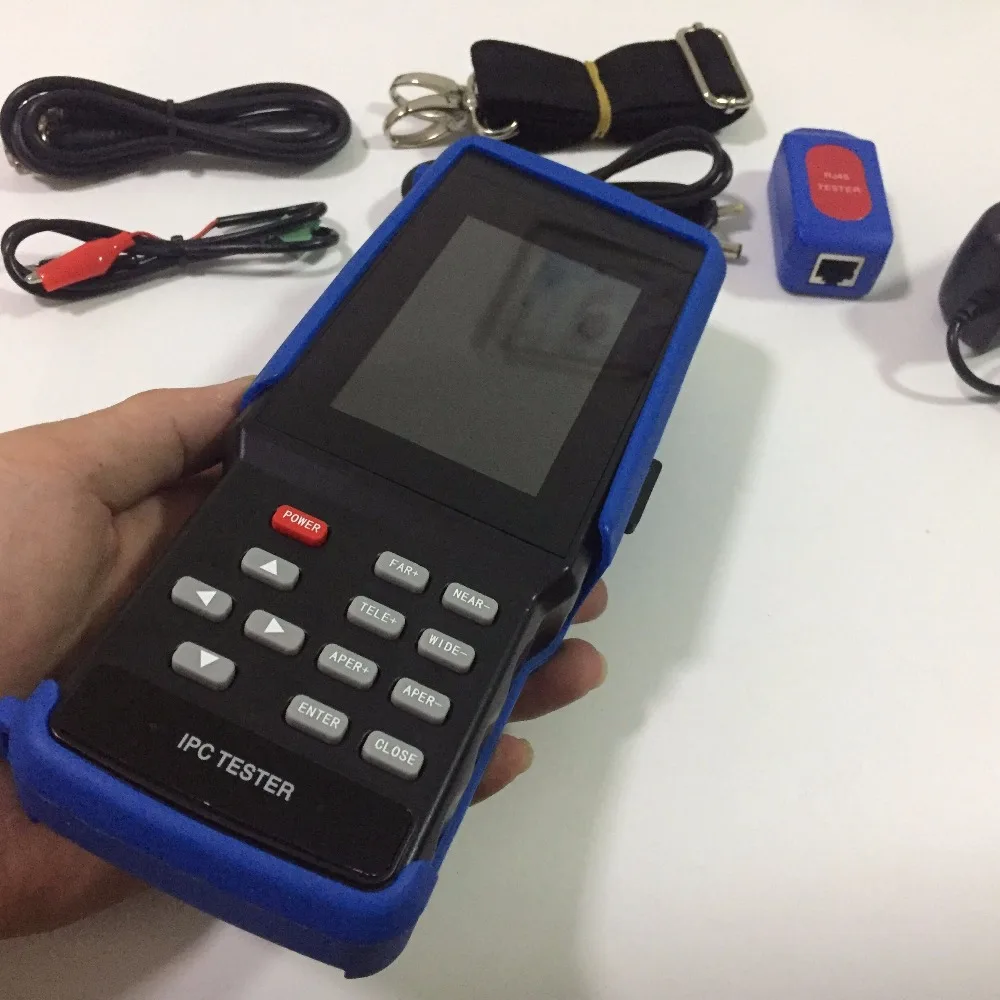

IPC9300S is the instrument security company launched the first dual-use hand-held, horizontal and vertical, network video monitor tester. The instrument use 800 × 480 4.3-inch HD IPS screen with full viewing angle which shows high-definition image quality. It contains high-capacity battery providing more lasting life. 12V / 2A DC output better for high-power infrared dot matrix camera provides temporary power. One press to detect to camera ip no matter what network segment the camera ip is. Many quickly tools greatly improves the efficiency of security engineering.

Features:

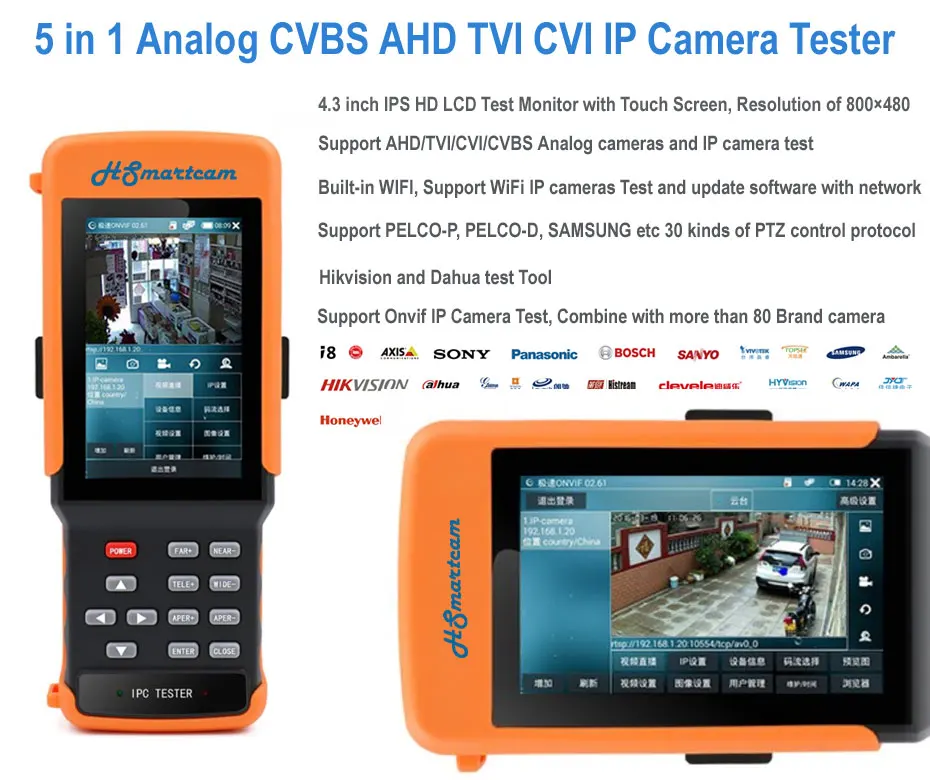

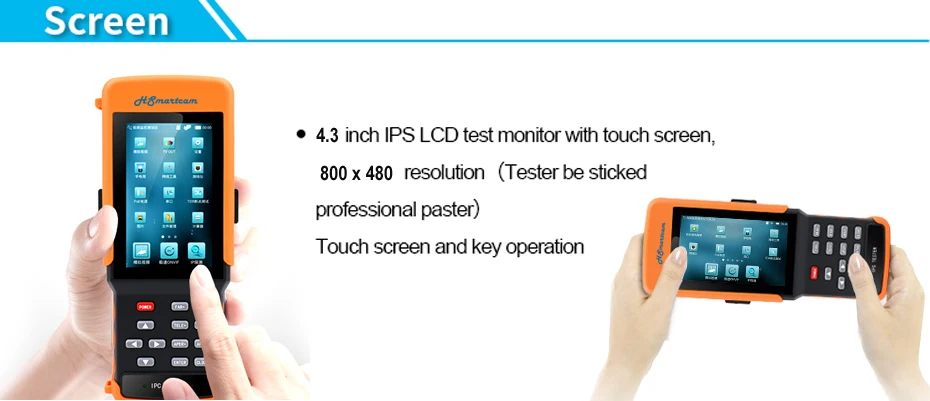

4.3 inches full view IPS HD screen resolution of 800 × 480
Horizontal and vertical screen makes image clearer and more intuitive. (exclusive)
Capacitive touch or buttons with virtual mouse, multiple optional operation (exclusive)

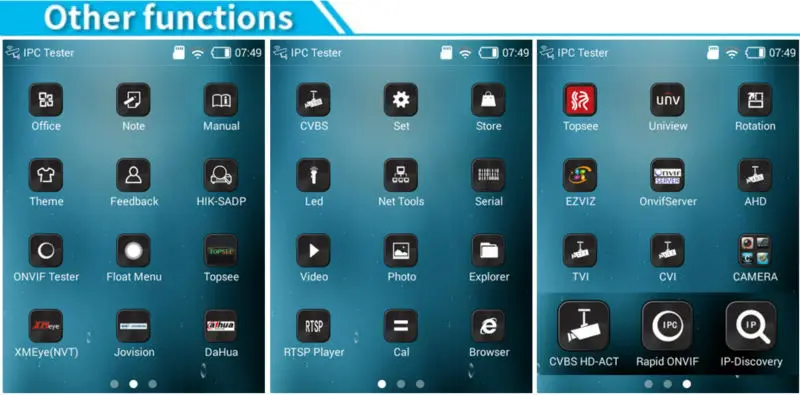

The new main interface design, operation easier and more efficient

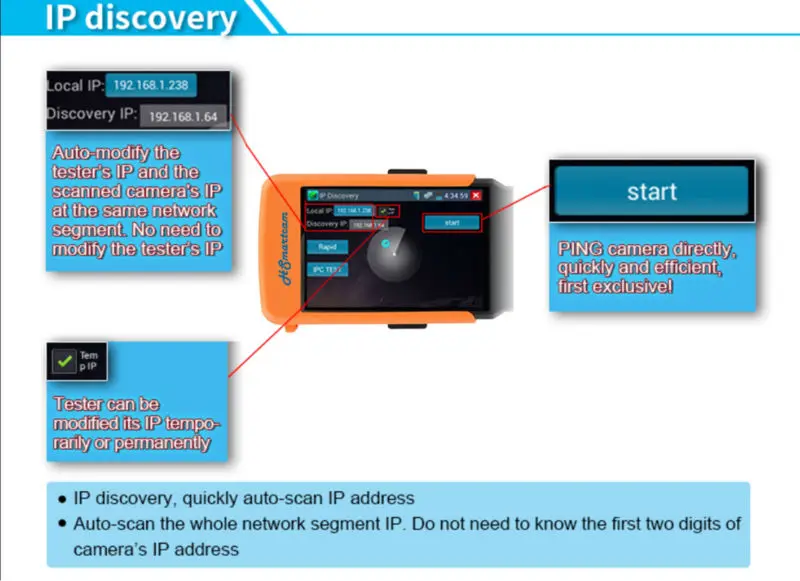

IP detection speed version is faster and more accurate. the whole network segment IP can be blinded test,and identification camera startup is completed

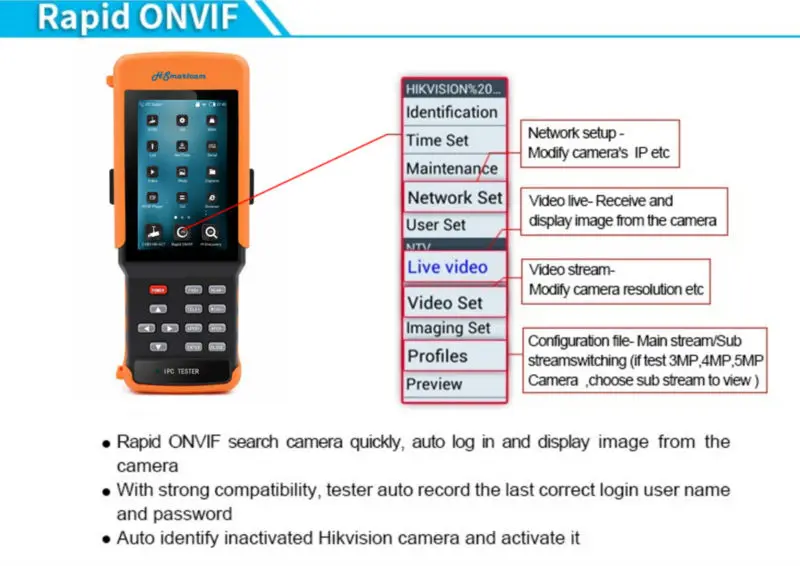

Speed ONVIF cameras can be modified IP, image parameters, stream, resolution and so on.
ONVIF server can be used as a network ONVIF camera to be used, it can be used to test the video recorder. (exclusive)
Support batch activate Hikvision cameras, batch modify IP and modify the channel name (exclusive)
Support 400W high-definition network camera image

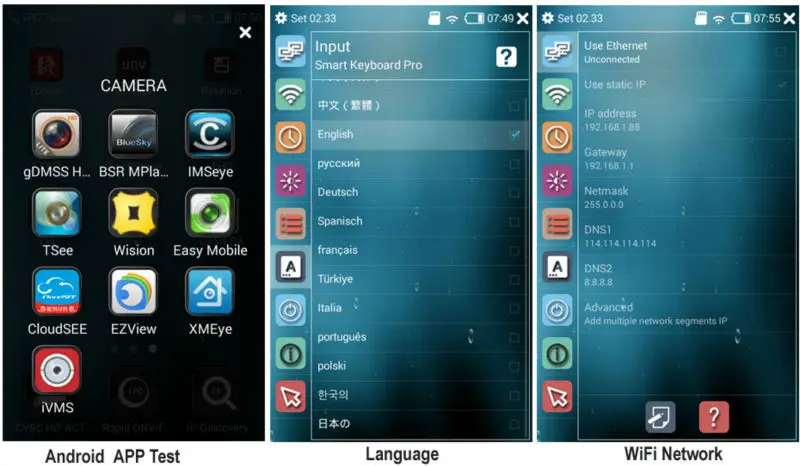

Portable Runtime IPC manufacturers phone or tablet mobile client software

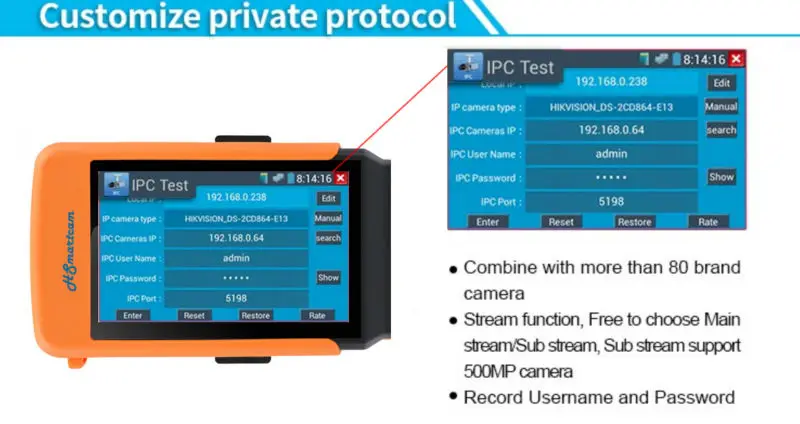

Supports proprietary protocol customized camera
The built-in wireless WIFI function, can test the wireless network cameras can be update software with network
All video can take pictures, video playback
Support network PTZ control, gesture control pan

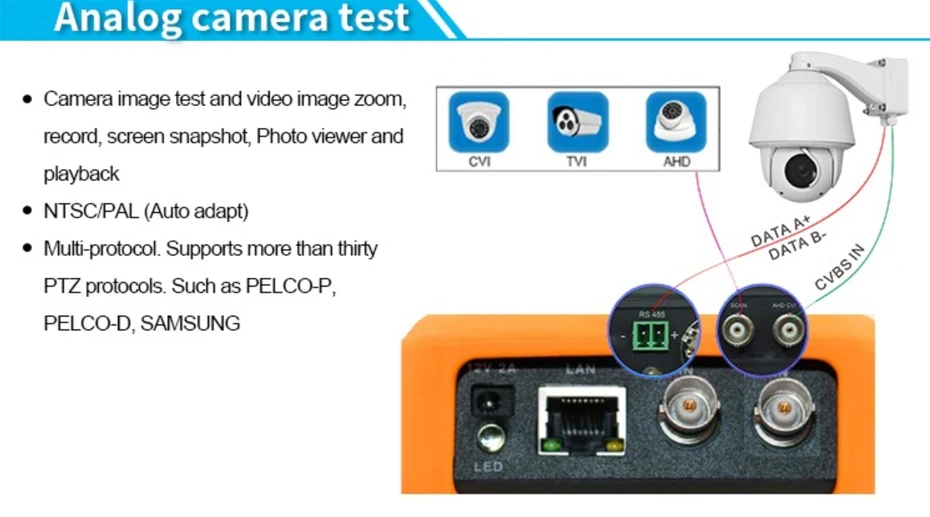

CVBS analog video image display, PTZ control, image scaling, photographs, video playback
12V 2A high current DC power output
The high-capacity polymer lithium battery, working time up to 9 hours

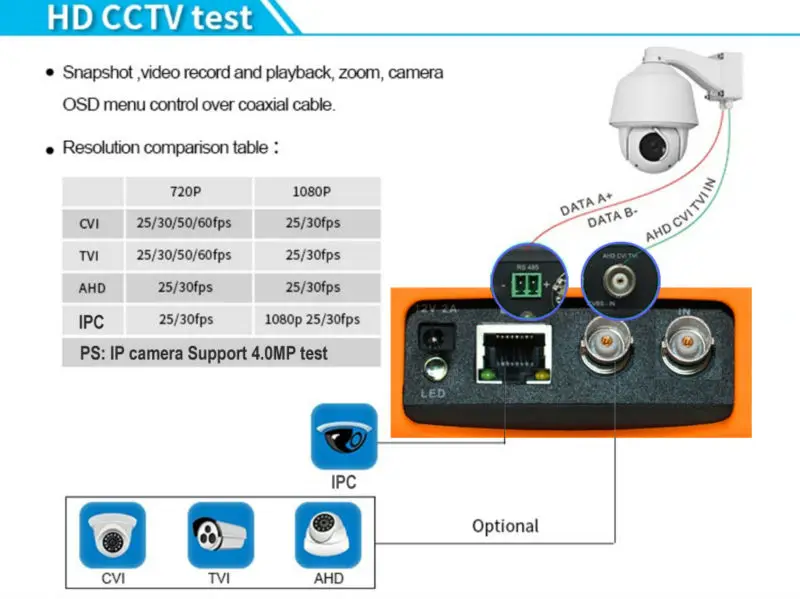

AHD image testing, support 720P@25 720P@50 720P@30 720P@60 1080P@25 1080P@30 frame and support Coaxitron call camera menu
TVI image testing, support 720P@25 720P@50 720P@30 720P@60 1080P@25 1080P@30 frame and support Coaxitron call camera menu
CVI image testing, support 720P@25 720P@50 720P@30 720P@60 1080P@25 1080P@30 frame and support Coaxitron call camera menu

Technical Data Summary Table

product model	IPC HD video monitor tester
touch screen	4.3-inch G + G structure capacitance screen
LCD screen	4.3-inch resolution of 800 × 480 IPS fully view
Ethernet port	10 / 100M adaptive
WIFI	Built-in wireless WIFI, speed 150M

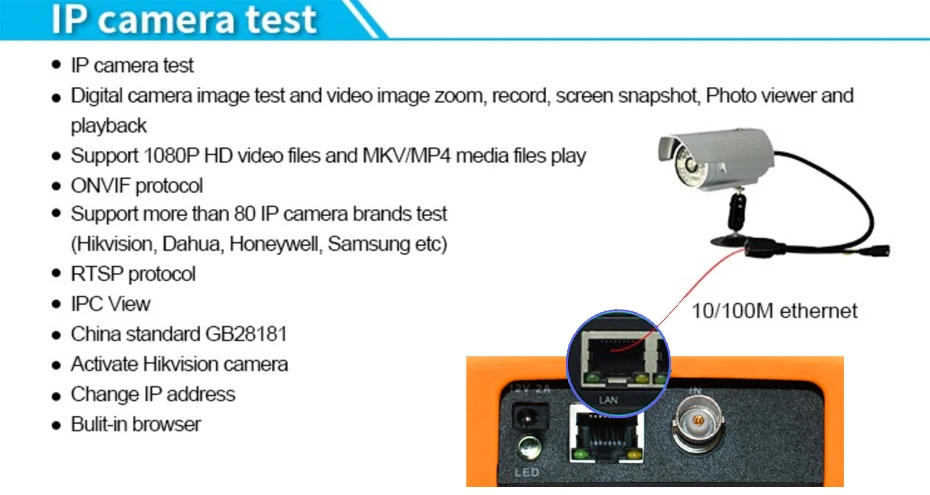

IP Monitor Test	ONVIF camera images real-time play， support maximum 1080P H264 / MJPEG / MPEG4 format, support for modify IP and other parameters, support ONVIF PTZ control
CVBS analog monitor test	1 channel CVBS analog input , support PAL / NTSC standard adaptive
Video image enlarge	Real-time enlarge mobile HD video image , maximum to 5 times
Camera, video playback	Supprot video and photo All video image. Support H264 coding storage
PTZ control	Supports Pelco-D / P, Samsung, Panasonic and other 40 multiple protocols

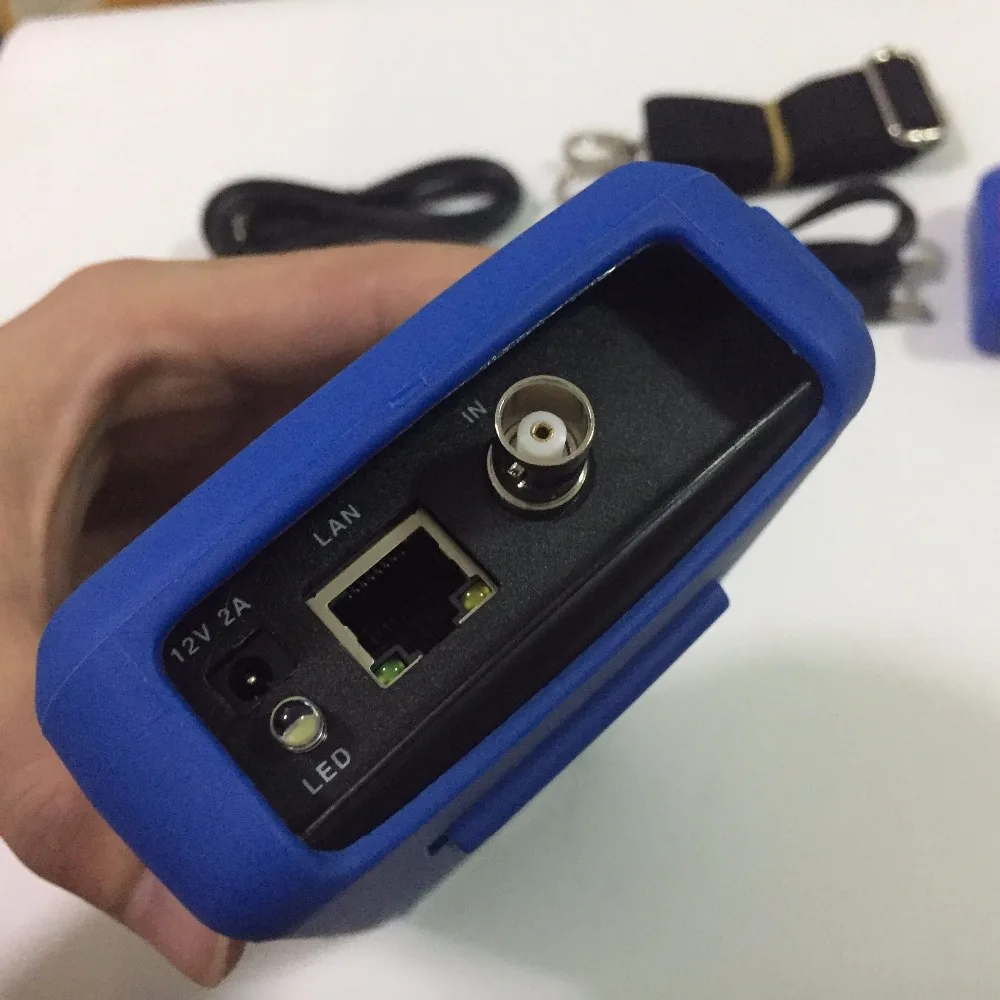

DC 12V power output	12V DC output , the maximum current 2A, temporary power supply for the camera
PoE power output	48V PoE standard output , to provide power for the PoE cameras(optional)

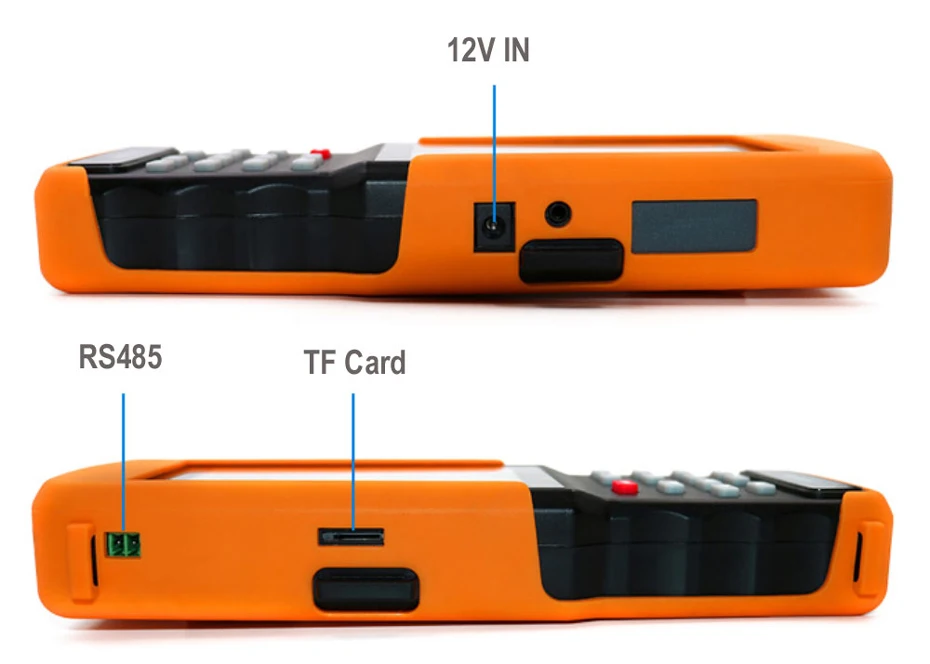

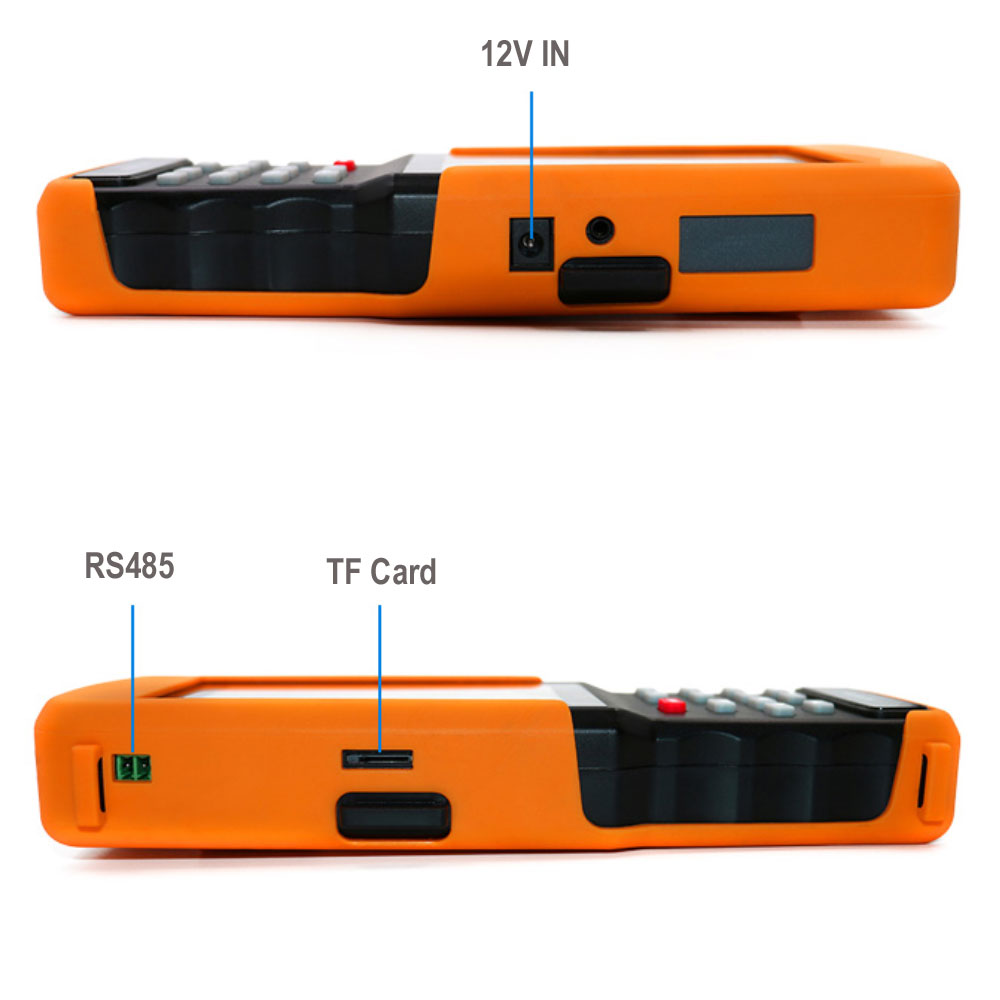

RS485 serial tools	Send or Recive any data or hex data
PSE voltage test	display PoE power supply device voltage and circuit conditions
Charger	DC 12V / 2A
Battery	Built-in 7.4V lithium polymer battery , capacity 3000mAh, can provide power for 8-10 hours
Language	Chinese Simplified , Chinese Traditional, English
Internal SD storage	8G
Operating temperature	-10℃–+50℃
Working humidity	30%–90%

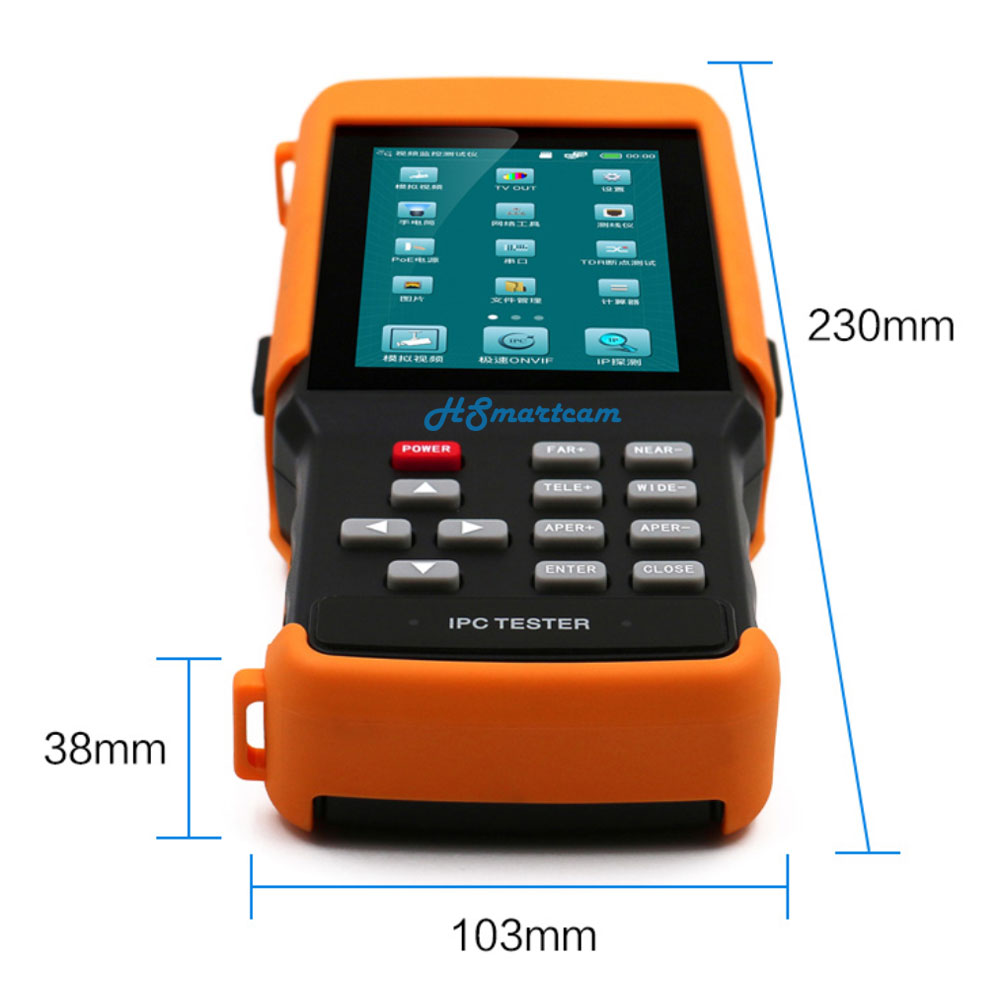

size	23cm×14cm×4.5cm
Weight	0.9kg

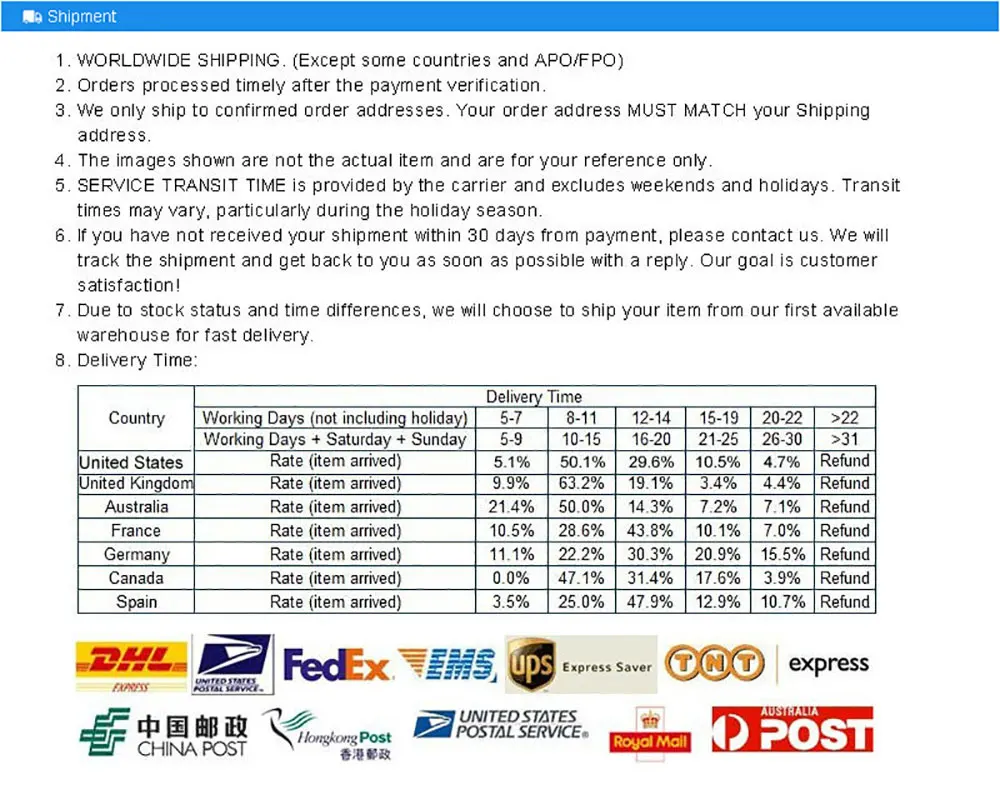

SHIPPING AND DELIVERY

We are proud to offer international shipping services that currently operate in over 200 countries and islands worldwide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.

How do you ship packages?

Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.

Do you ship worldwide?

Yes. We provide free shipping to over 200 countries around the world. However, there are some locations we are unable to ship to. If you happen to be located in one of those countries we will contact you.

What about customs?

We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive in your country.

Do you provide tracking information?

Yes, you will receive an email once your order ships that contain your tracking information. If you haven’t received tracking info within 5 days, please contact us.

My tracking says “no information available at the moment”.

For some shipping companies, it takes 2-5 business days for the tracking information to update on the system. If your order was placed more than 5 business days ago and there is still no information on your tracking number, please contact us.

Will my items be sent in one package?

For logistical reasons, items in the same purchase will sometimes be sent in separate packages, even if you've specified combined shipping.

If you have any other questions, please contact us and we will do our best to help you out.

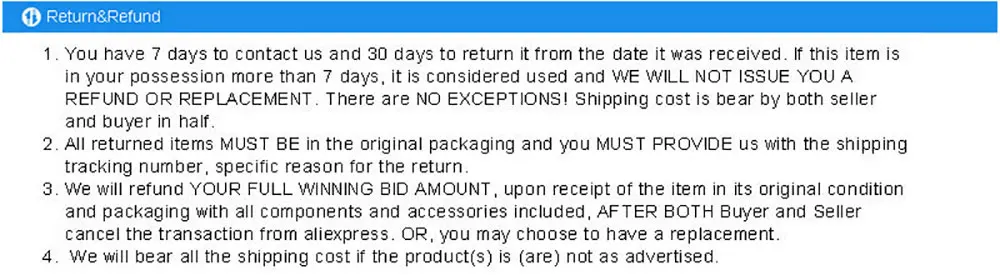

REFUNDS & RETURNS POLICY
