Package includes:
1 x Laser engraver
1 x USB disk
1 x Screw driver
4 x Screws
4 x Screw caps
1 x Power cord
1 x USB cable
2 x Wooden board
1 x Manual
Note:
1.The product is a laser carving machine for home use, a tool machine, can not be compared with laser carving machine for industrial use.
2.Do not use the laser head to point at human or livestock,do not use laser to point at people’s eyes.
3.Laser has power.skin exposure to laser is strictly prohibited.
4.The caving machine should not be stopped while working，it will cause a damage.
5.This product not suitable for kids under age of 14.
6.Software only support Windows.
7.Do not fall or make any collision to the product.
8.The shell with laser cutting technology,sharp edge,please pick up and down gently to prevent scratches.
9.Metal, glass, crystal and transparent or translucent stuff are can not be engraved.
10.The color of the item may vary slightly due to photography and different PC monitor, and the size might be slightly errored due to manual measurement. Your kindly understanding would be appreciated.
11.You might need to temporarily shut down the antivirus software before downloading the software. Otherwise some files in the software would be mistaken for virus and deleted by antivirus software.
12.Please according to the user manual to operate the machine. After 20 minutes of working, it need to take a break, can not work continuously for a long time.
Usage:
Operation instruction video: //drive.google.com/drive/folders/0B1YOCyE7igQgRWh2OUNOWEhEbWM
Software download: //drive.google.com/file/d/1V3FMLE5Qec3kU-UlsgyVv_f_ozqvArYl/view
Step 1.Insert the USB disk
Step 2: Install the “driver.exe”
Step 3: Must Copy the “English zip” to Computer desktop and then unzip it.
Step 4: Connect the engraver to computer
Step 5: Open the “scarve-en.exe” which is unzip from the “English zip”
Laser Reverse Solution:
-Left & Right Reverse:

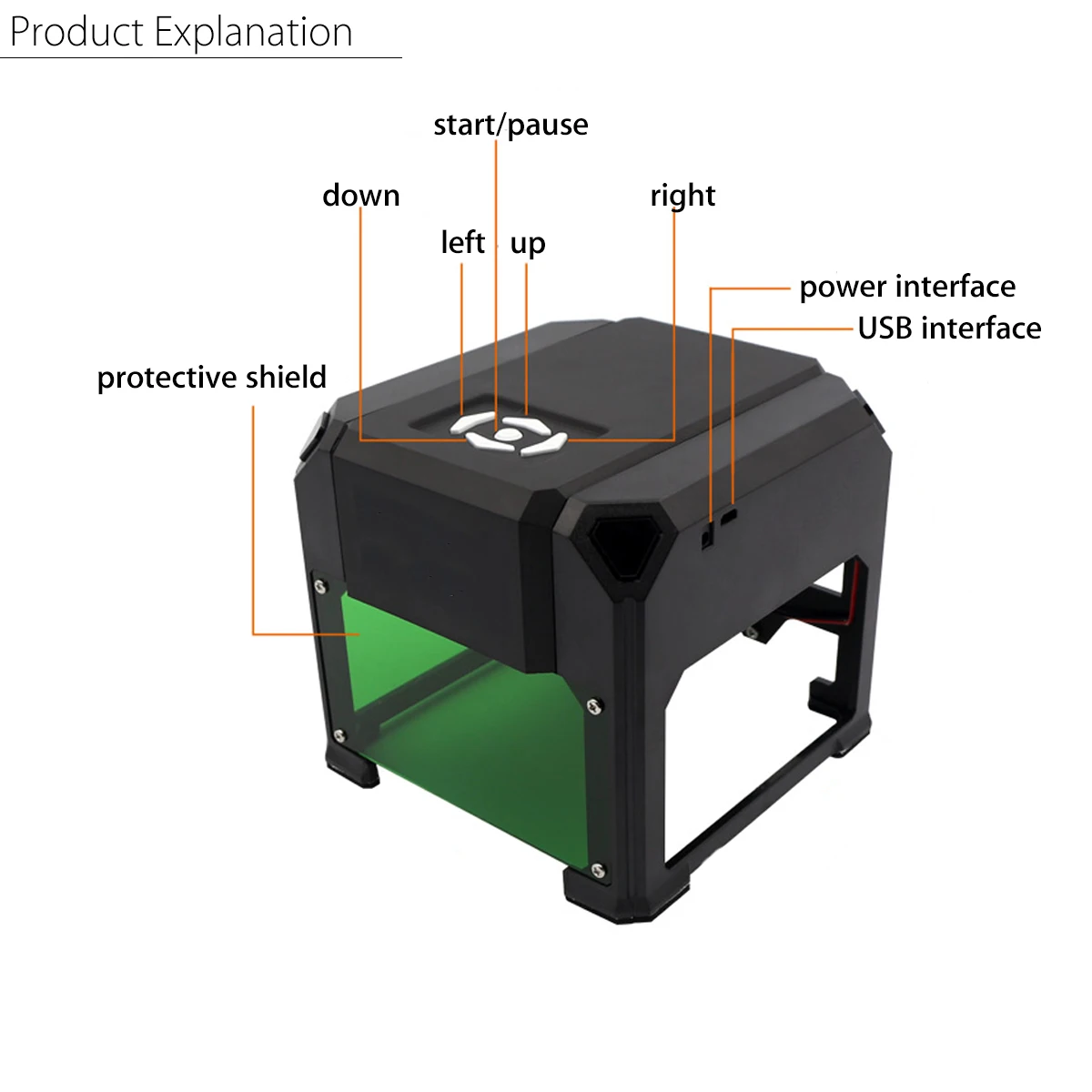

Hold the LEFT and UP keys at the same time for 5-10 seconds, until the laser flash once then release.
-Up & Down Reverse:
Hold the RIGHT and UP keys at the same time for 5-10 seconds, until the laser flash once then release.
Specifications:

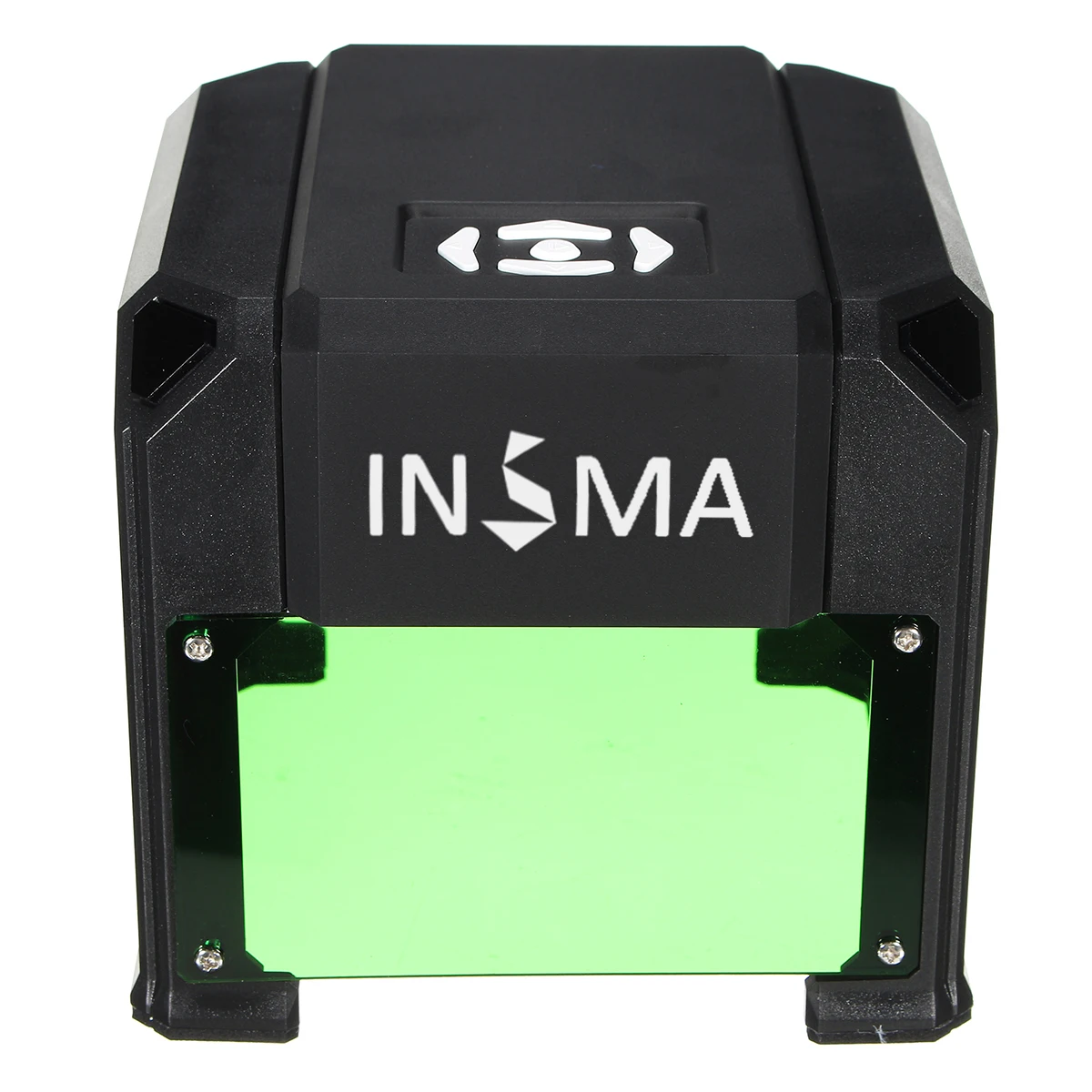

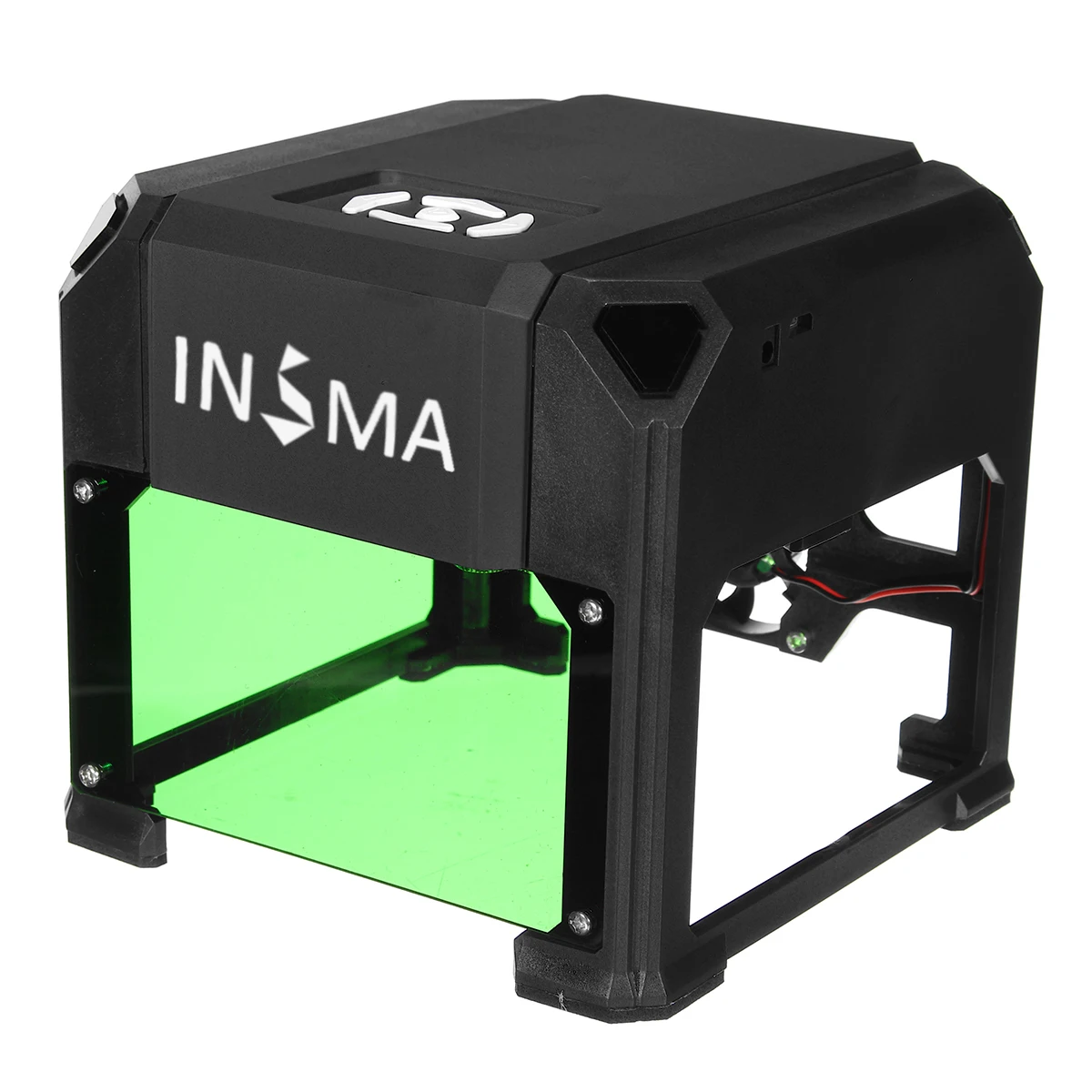

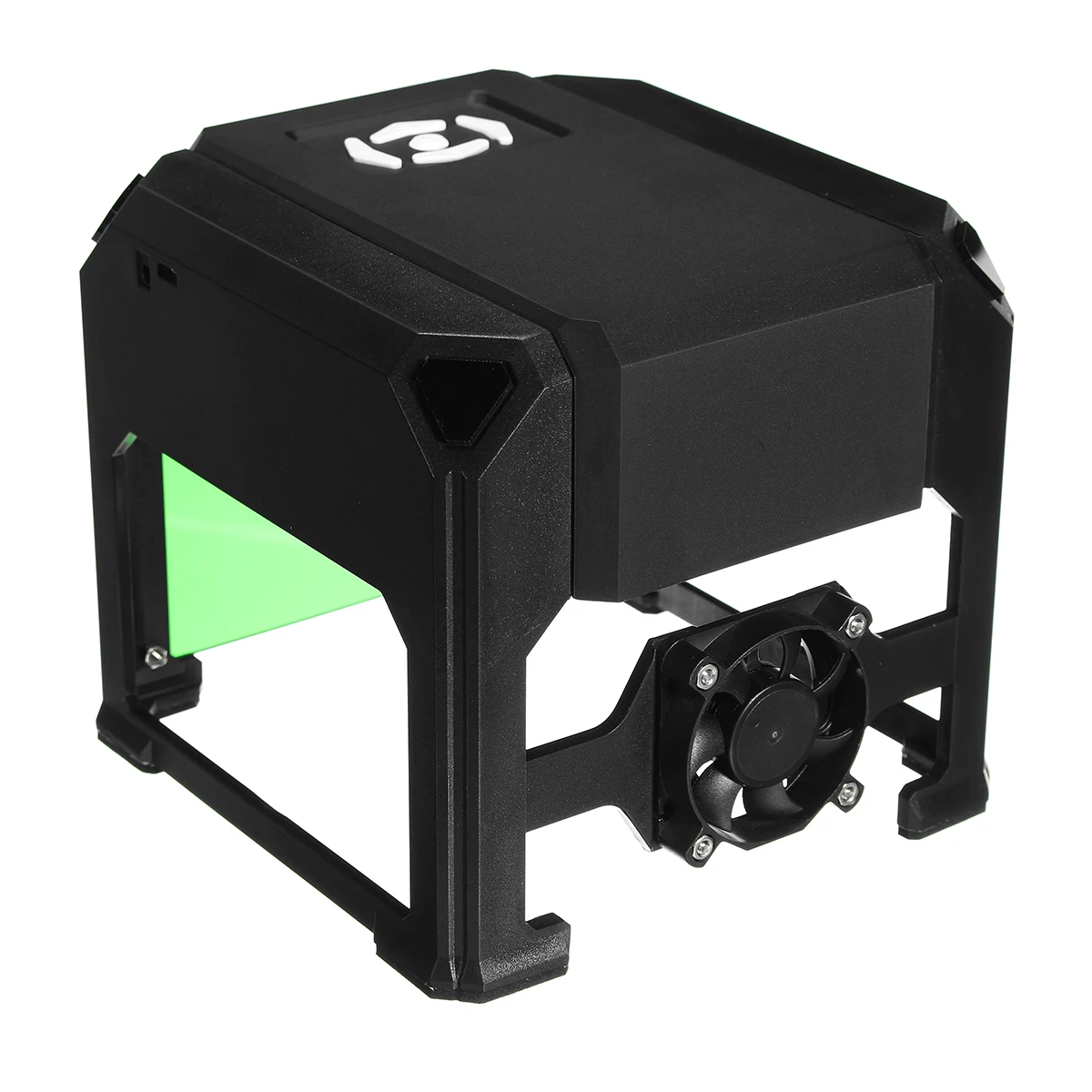

Name: Laser Engraver
Model：K3
Material: ABS(Acrylonitrile Butadiene Styrene plastic)
Color: Black
Size: 15.2×16.6×14.3cm (6″x6.5″x5.6″)
Power cord’s length: 113cm(44.5″)
USB cable’s length: 11cm(43.7″)
Plug type: US Plug
Voltage: AC 110-220V
Laser power: 2000mW
Carving area: 80x80mm(3.1″x3.1″)
Carving depth: 1mm
Applicable range: Plane surface
Supporting systems: Windows XP/7/8/10
Supporting image format: JPEG/ JPG/ PNG/ BMP

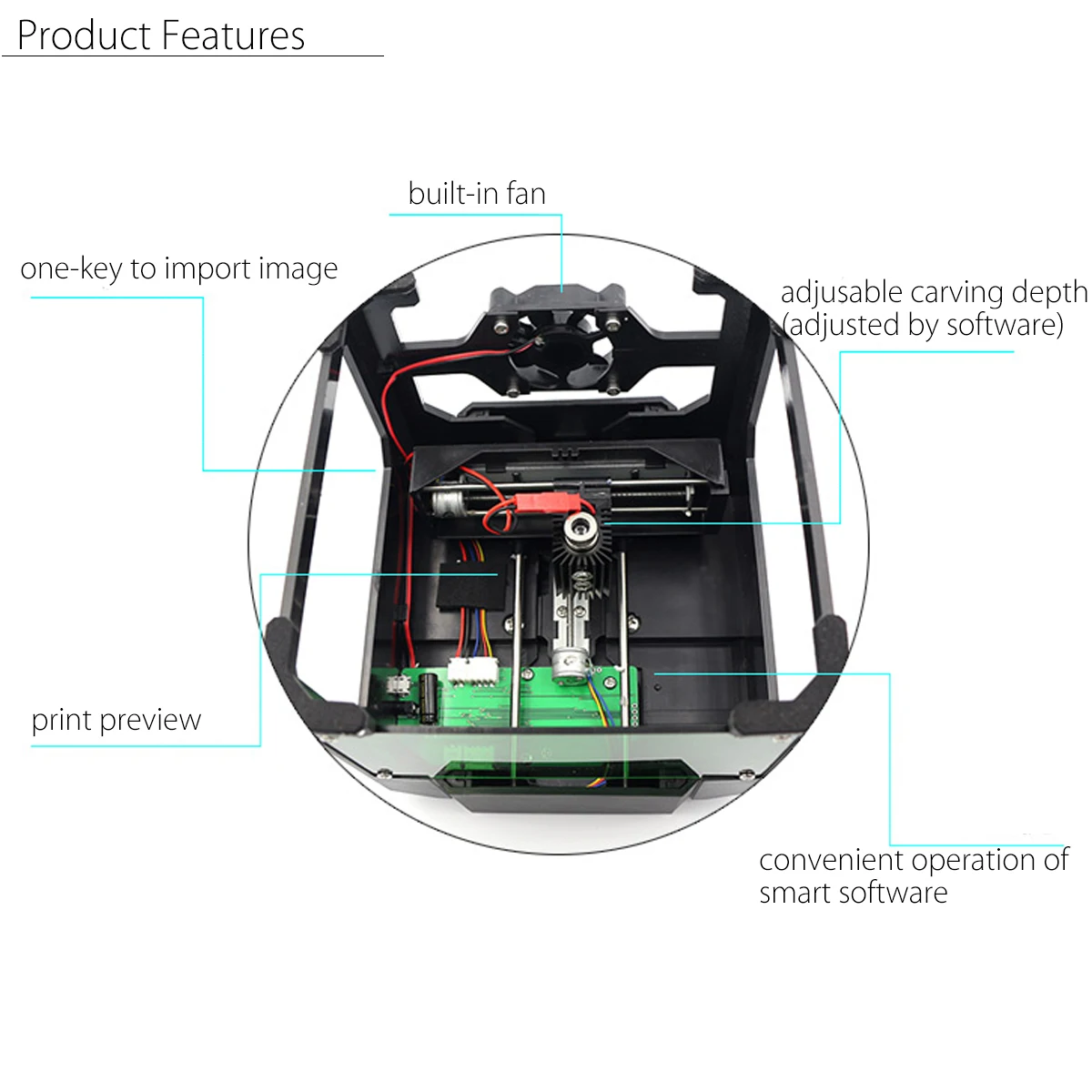

Features: a laser carving machine for home use,used for carving wood, plastic, leather, etc.
