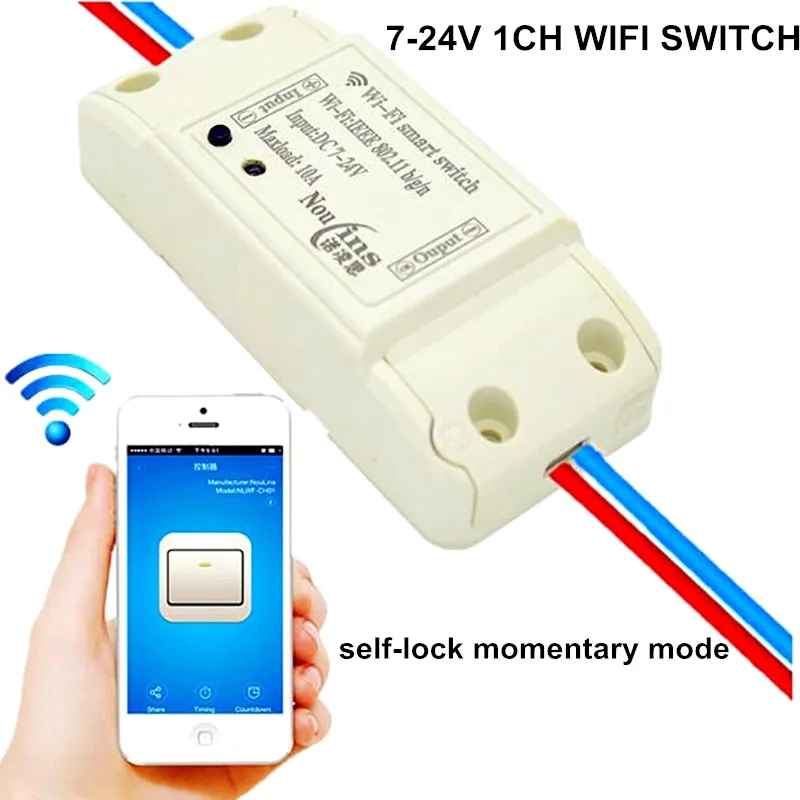

1CH 7V 9V 12V 24V DC WiFi Switch Relay Domotica Module Controlled by Phone On Android and IOS for Light Garage Door

Introduction:

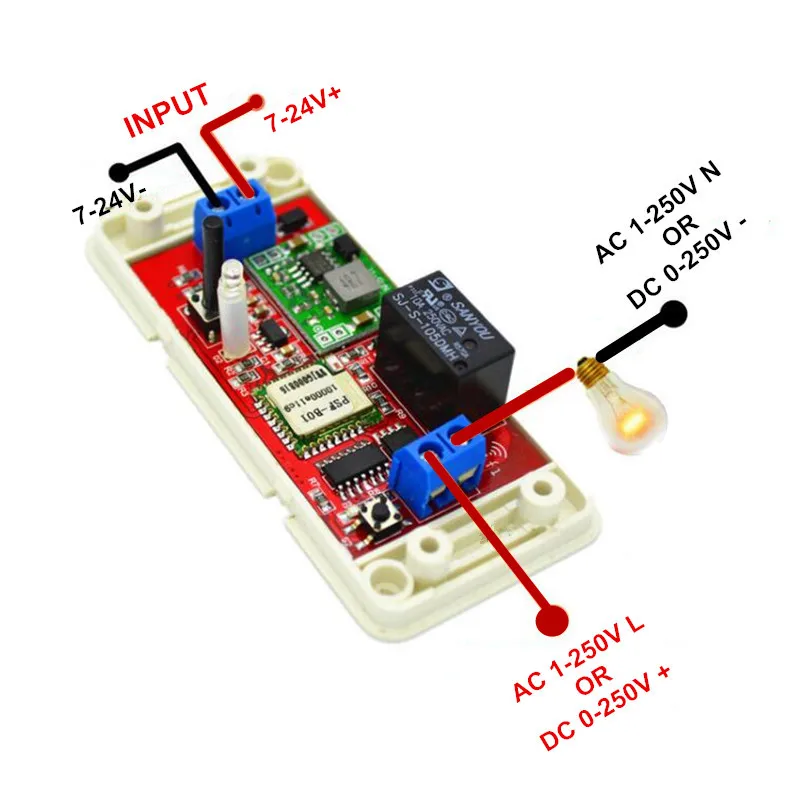

1 Input voltage: DC7-24V The output has no voltage!!!

2 Maximum load: 10A

3 Working temperature: 0-60 centigrade

4 Controlled method: Smartphone APP + Manual Control

5 Transmission way: WIFI

6 Transmission Distance: As far as your phone be connected with internet

7 Channels: 1 Way

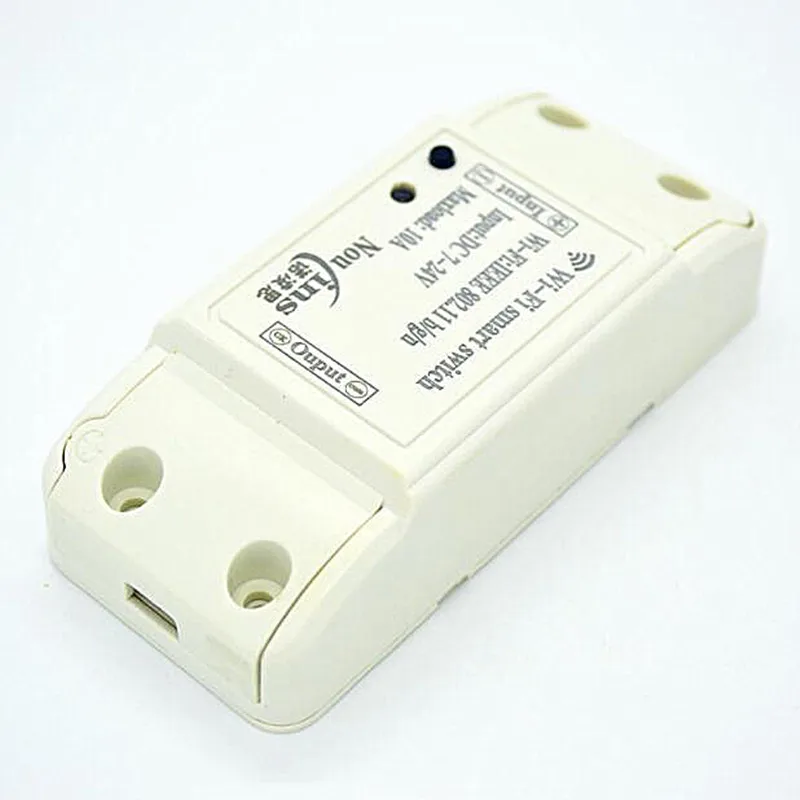

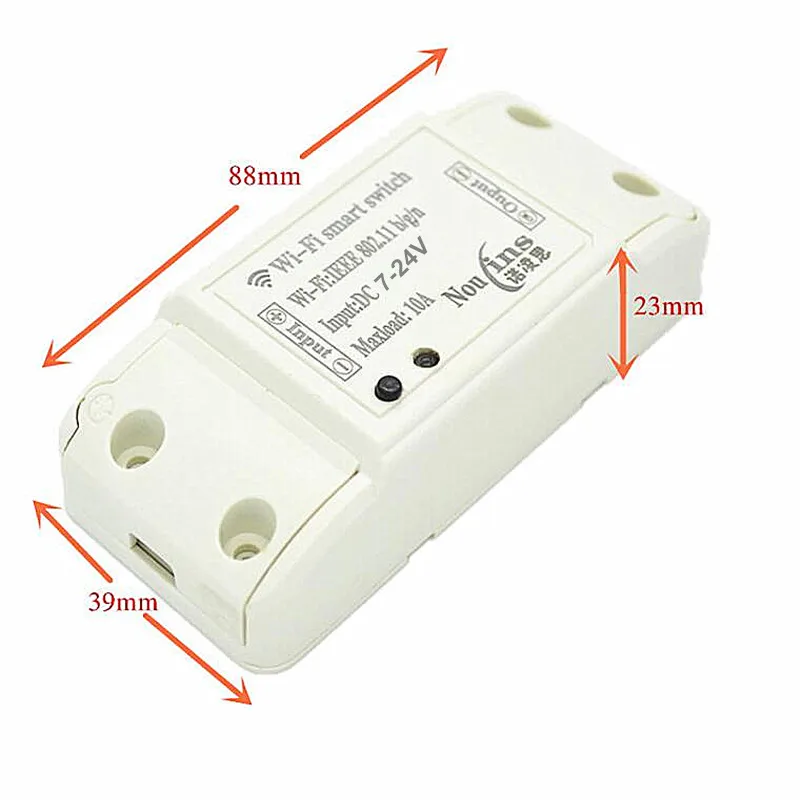

8 Size:88*39*23mm

9 Working mode: Momentary, Self-lock

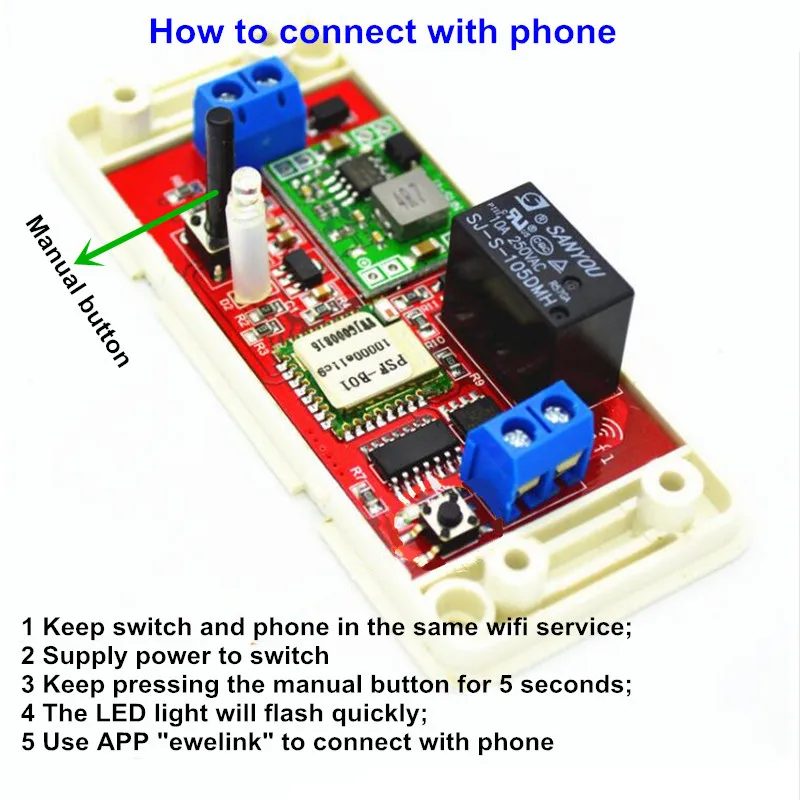

How to connect phone with switch?

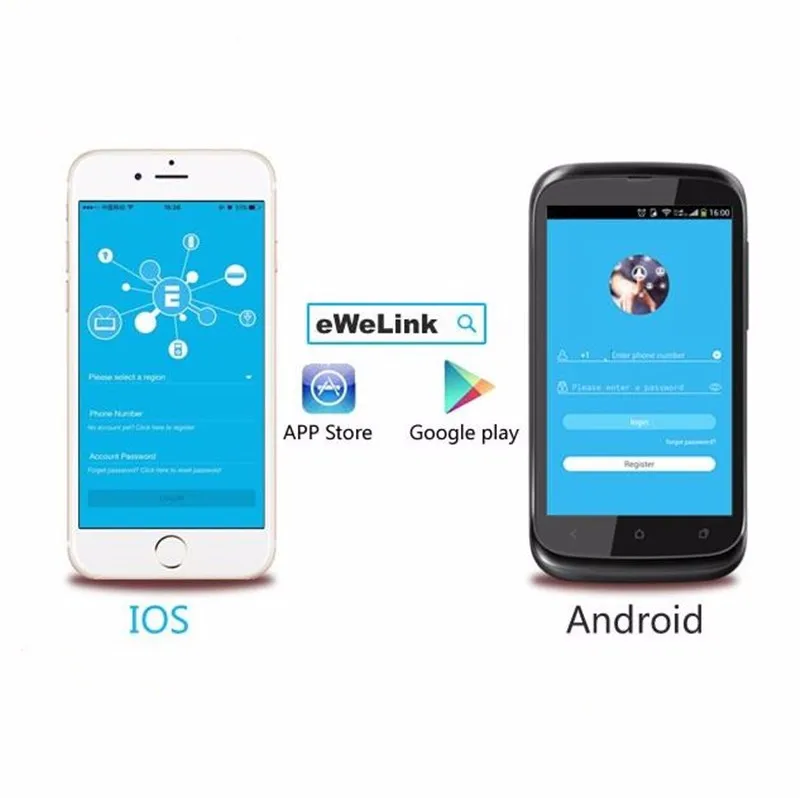

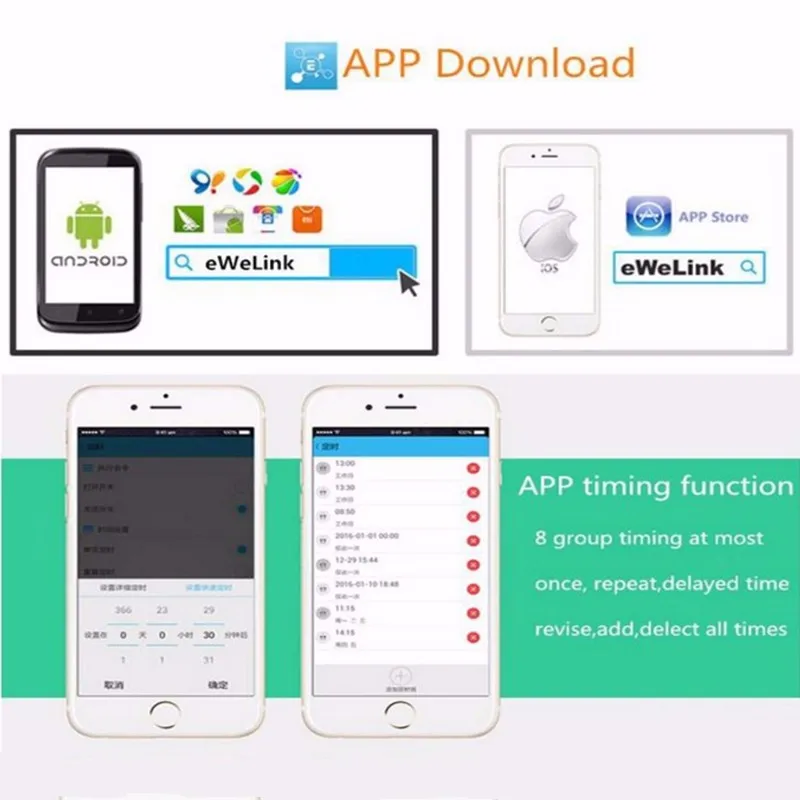

1 Download and install the software of “eWeLink” from APP store or Google play store.

2 Follow “eWeLink” instructions to register an account on it.

3 Log in your account of “eWeLink”.

4 Keep pressing manual button for 5 seconds until you see the LED light flash quickly, then release it. Now add device on mobile phone by eWeLink APP according its introduction.

5 Now you can use your phone to control the switch under 2G/3G/4G signal.

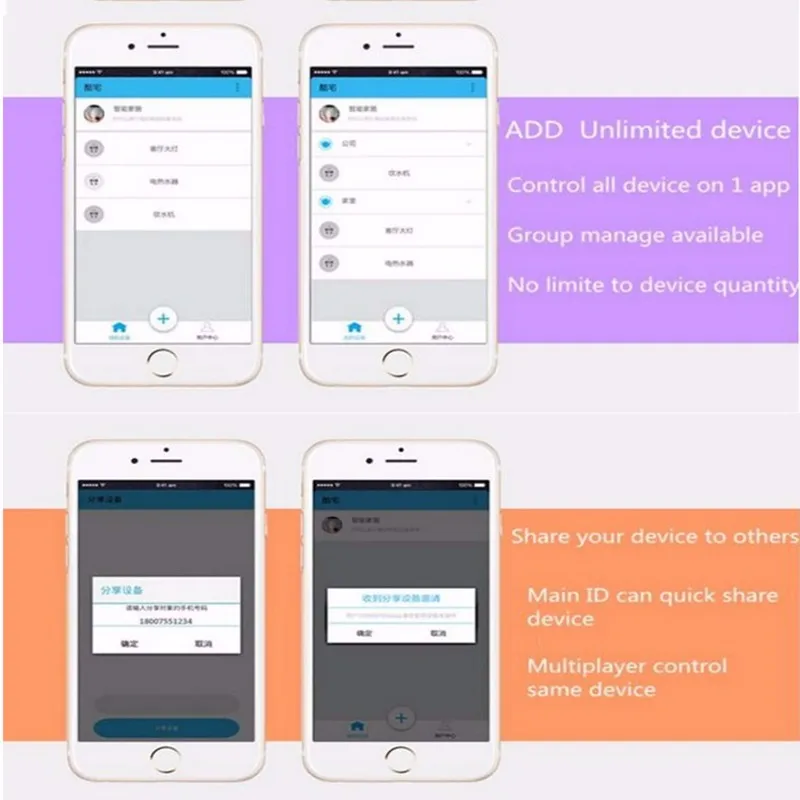

6 You can name your own device and control it only by yourself.

7 You can also share your device with your family or friends.

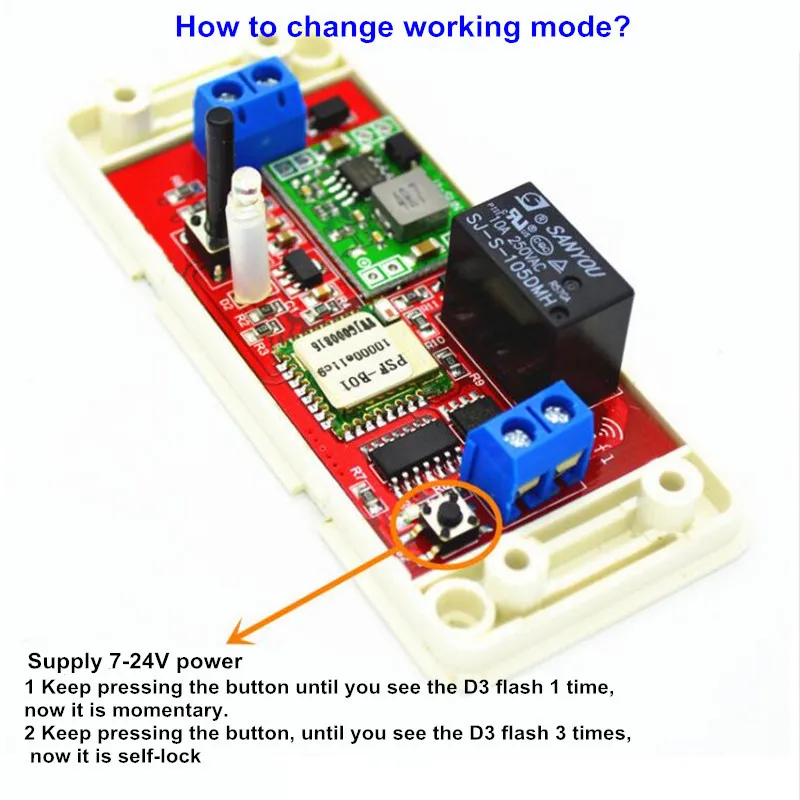

How to set working mode?

Supply DC 5V power to the relay.

1: Keep pressing mode button until you see D3 flash 1 time, release button, now it is momentary.

2: Keep pressing mode button until you see D3 flash 3 times, release button, now it is self-lock. (7-24V DC WIFI SWITCH)

What is the difference between working mode?

1 Self-lock: Press remote button A , receiver CH1 ON. press button A again, then receiver CH1 OFF

2 Mometary: Press remote button A , receiver CH1 ON, 1 second later, the receiver CH1 OFF
