Free Shipping Universal Dimable LED Backlight Lamps Update kit For LCD Monitor 2 LED Strips (support 15″ to 22″)

20Sets/Lot

Attention:

We Do not provide technical support .You must know how to use it.If not, Think twice about your order.Thanks!

CCFL screen or CCFL LCD Monitor is worse than LED, about light.
All of us hope our monitors can be higher light.Now, we have this good news.LED sets can update for LCD. and the light can be dimable as before.

LED strip: L/W/H:485mm*4mm*3mm

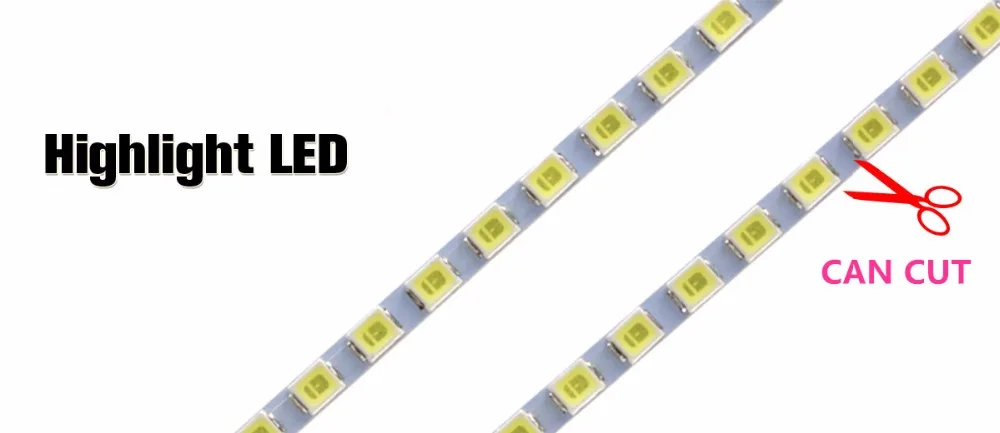

Can be cut by every 3 lamps as a group
Support 15” to 22”:15”,17”,19”,19”wide,20”,22”wide

LED inverter board: L/W:7cm*2cm
Dimable, same function as before
input:10-30V

Sets including:LED board*1, LED strips*2,Cable*1

The LED Backlight Advantage:
High Brightness LED backlight up to 700 nits.
Improved Dynamic Contrast Ratio up to 1000:1.
Improved Color Gamut for more Lifelike Images.
Longer lifespan, typically lasting over 100,000 hours
High shock/Vibration resistant.
Low Heat Generation.

Environmental Benefits.

LED Backlight Lifespan:
As they are a solid state semiconductor device, LED has a longer lifespan typically lasting over 100,000 hours.
Being solid state devices, the LED will perform exactly as when they were manufactured as opposed to the CCFL which loses light output continuously over their life up to 50%.

This kit is a direct replacement for Laptop screens that were originally equipped with a single CCFL backlight lamps. By upgrading to this high brightness LED backlight, the luminance of white could reach as high as 700 nits and the luminance contrast ratio could reach as high as 1000:1. Now, you can experience life like images.

Can be cut by every 3 lamps as a group
Support 15” to 22”:15”,17”,19”,19”wide,20”,22”wide

LED Driver board/Inverter-Mini size,adjustable function

10-30V INPUT

7CM*2CM SIZE

Definition:

1.VIN 2.VIN 3.ON/OFF 4.ADJ 5.GND 6.GND

How to replace the CCFL into LED.

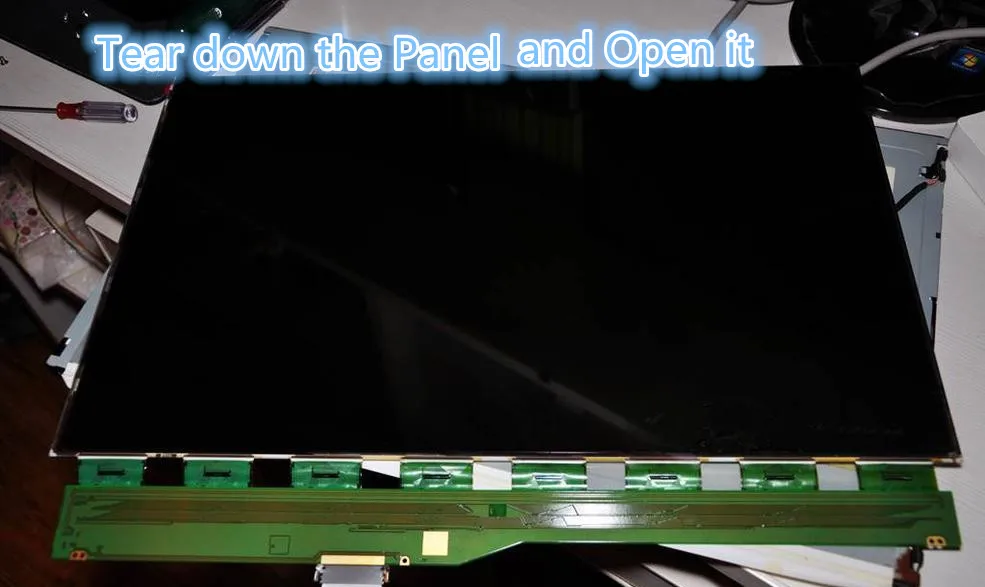

1.Open the screen

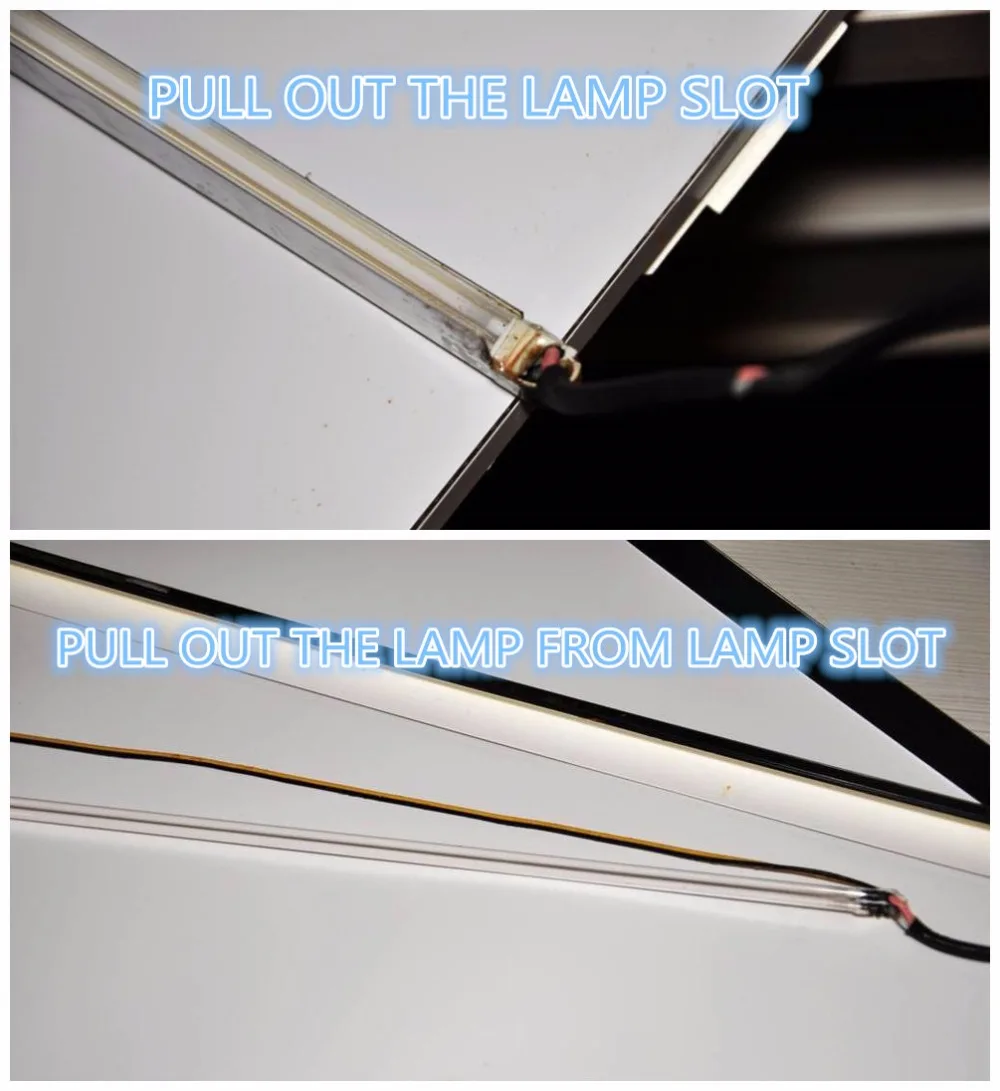

2.Pull out the CCFL LAMP SLOT

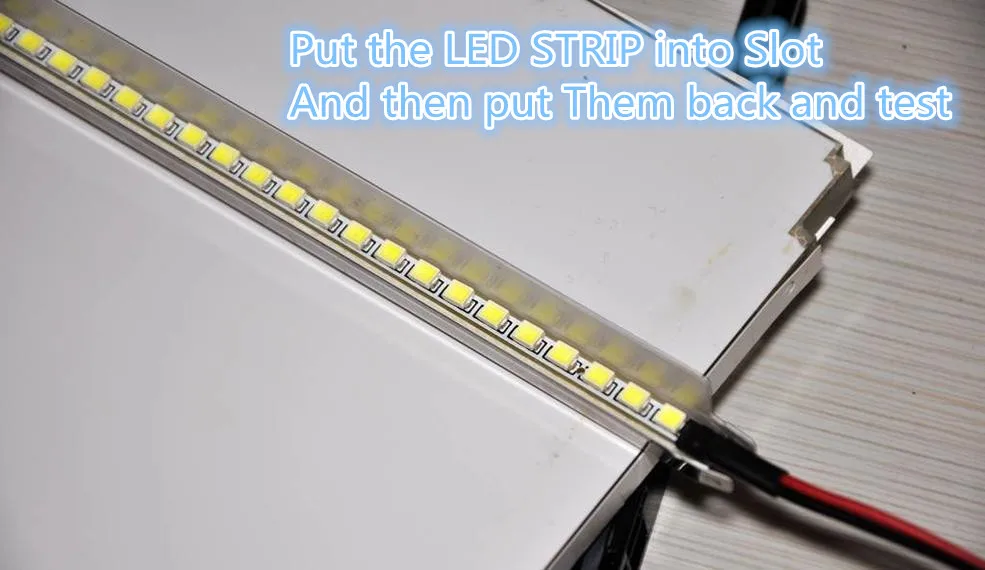

3.Insert LED STRIPS into the slot,And put them back into the screen.

Then we need to connect the wires to make it works.

How to Connect the Kit.

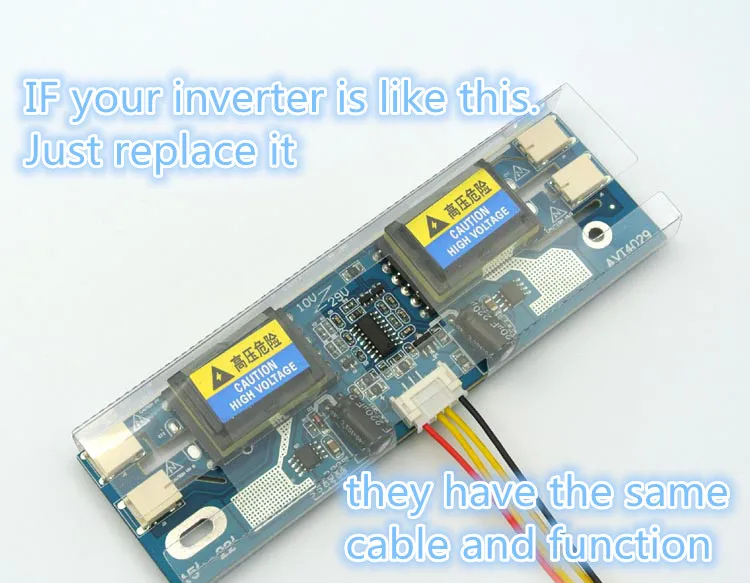

1. If inverter in your monitor is Like this,Just replace it. they have the SAME cable and functions.

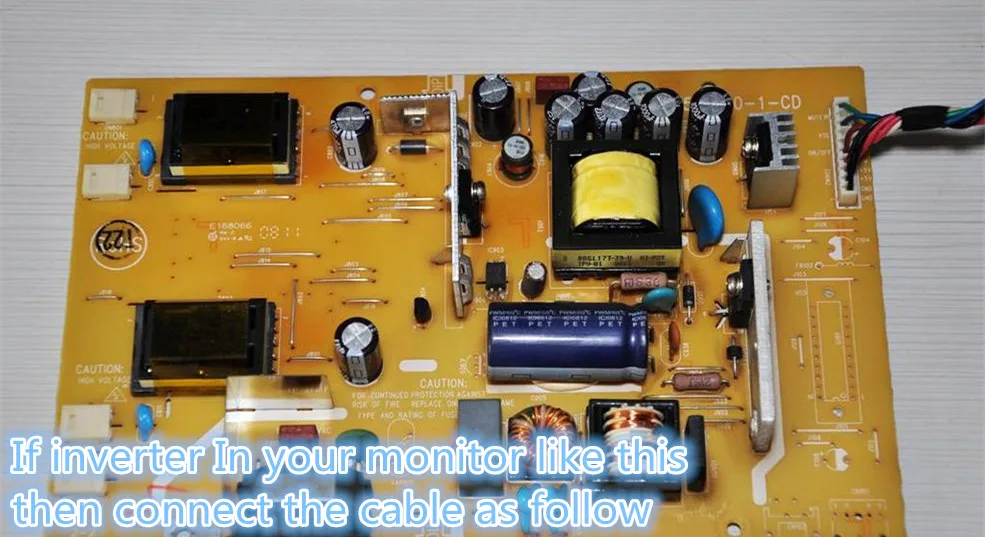

2.if your inverter is together with the Power supply Unit.

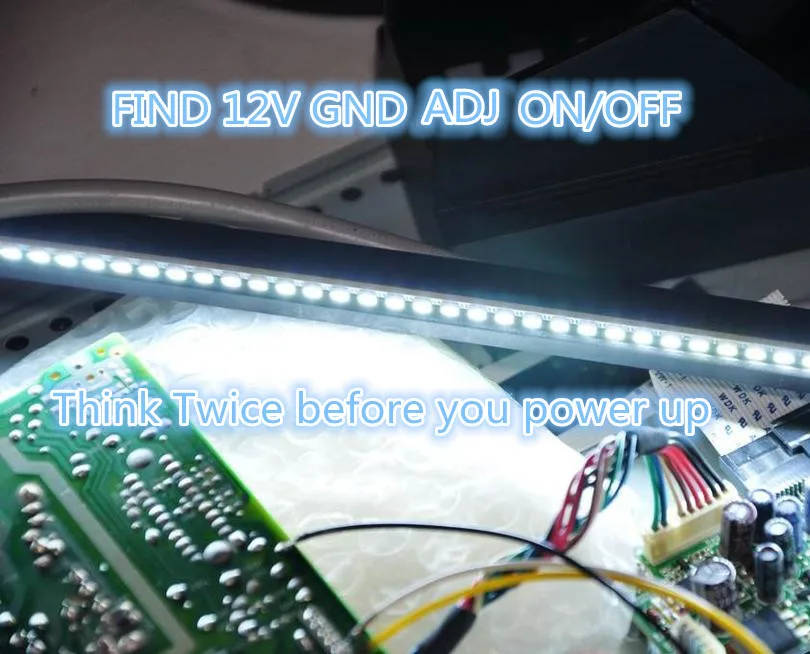

Check carefully to find the right connect Point.(12V GND ADJ ON/OFF)

After Connection,we can power on and test.

(check twice the connection before you power up,otherwise it may burnt your board)

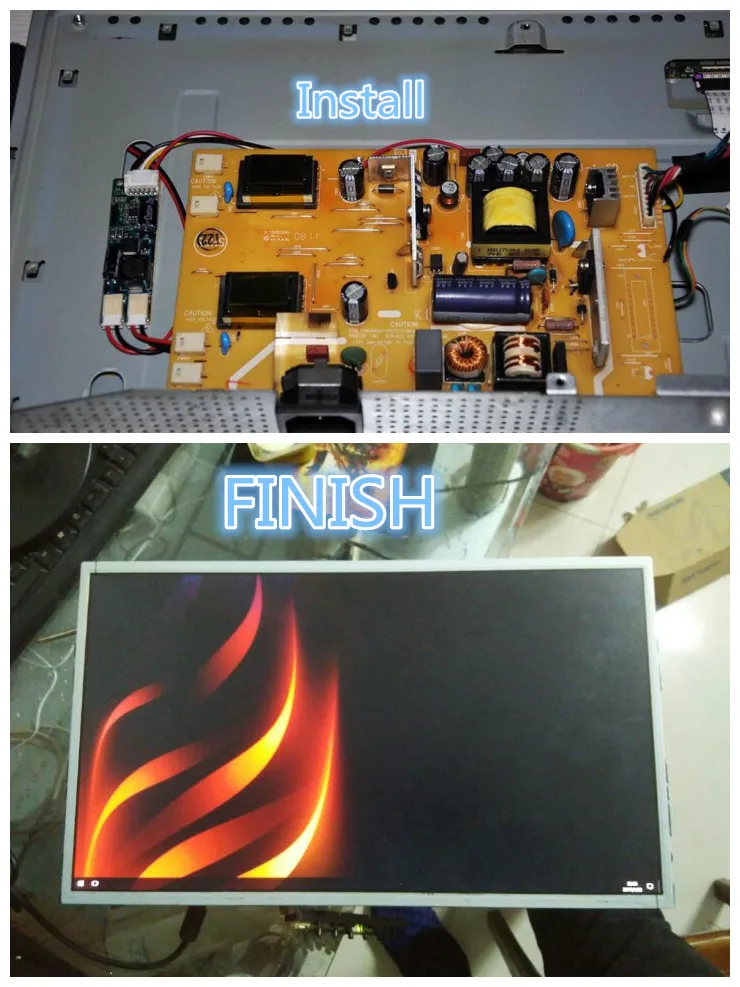

Last Step:Install
