- analog:8*1080N;4*1080P;(AHD Camera+TVI Camera+CVI Camera+960H/D1 at same time)
- hybrid:4*1080N(analog)+4*960P(network);2*1080P(analog)+2*1080P(network) ;(AHD Camera+TVI Camera+CVI Camera+960H/D1+IP Camera at same time)
- Network only:16*1080P;9*1080P;16*960P;4*5M
A:
- 1080N AHD-NH Coaxial DVR is new format AHD DVR;
- Resolution is 960px*1080px;
- Support 2 million pixels(1080P),1.3 million pixels(960P), 1 million(720P) pixels AHD/TVI/CVI Camera; Analog Camera(960H) and IP Cmera(2mp/3mp/5mp).
Q: What is XVI function?
A: XVI also known as AXVI (Full name is Advanced XM Video Interface), it is a coaxial transmission video format newest developed by XM. Products with XVI are superior to competitors not only because of its compatibility with AHD,TVI protocols, but also its unique feature.

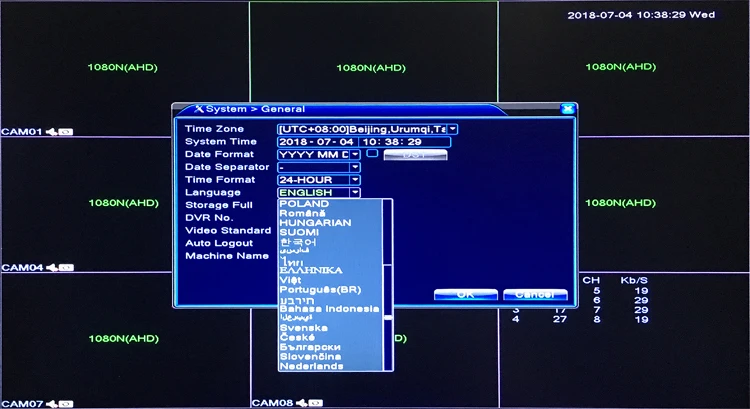

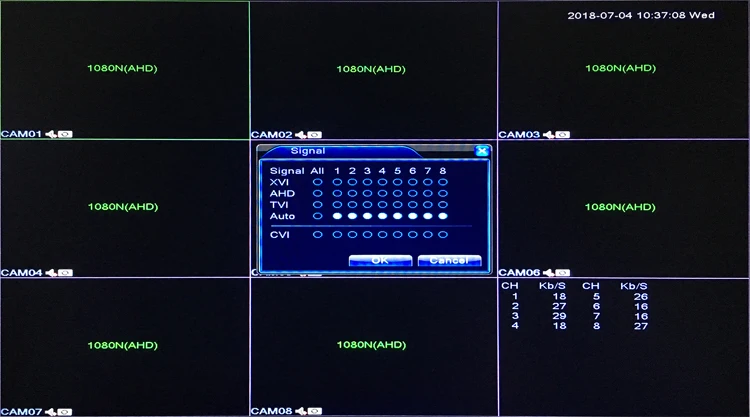

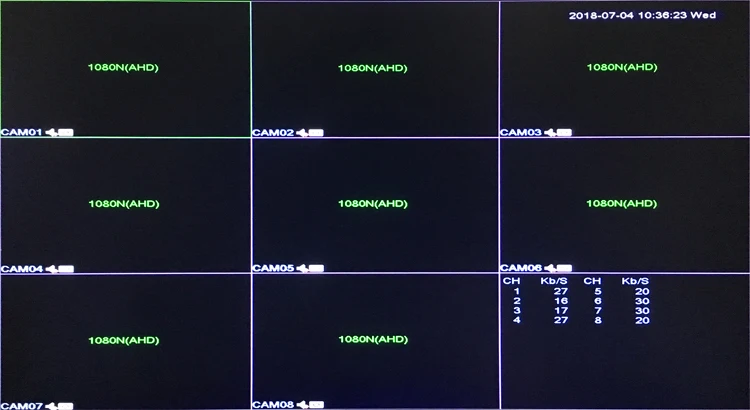

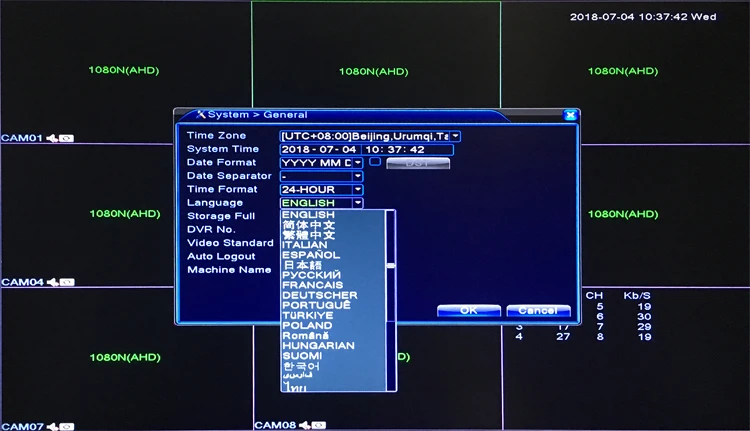

8CH 6-in-1 DVR Screenshots:
Feature:
- Support VGA, HDMI full HD output simultaneously;
- Support ONVIF; access third party;
- Support AHD, TVI CVI HD video input;
- Support web, CMS, center platform management software MYEYE, provide SDK development;
- Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
- Support various mobile monitoring (iPhone, Android);
- Remote Access, With DNS (ARSP),easy to monitor remotely
| Model | 6008T-LM(D) | |
| System | Main processor | Hi3520D V300 |
| Interface | Preview | 1/4/8/9 |
| Video | Codec | H.264 |
| Monitor quality | VGA,HDMI:HD | |
| Encode abilit | 8*1080N | |
| Decode ability | 4*1080N | |
| Onvif | support | |

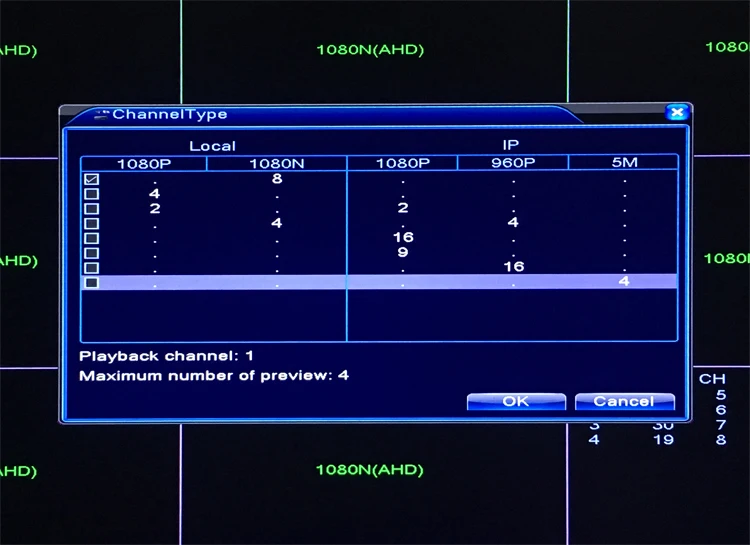

| Multi-mode input |
analog:8*1080N;4*1080P;
hybrid:4*1080N(analog)+4*960P(network);2*1080P(analog)+2*1080P(network)
Network only:16*1080P;9*1080P;16*960P;4*5M;
|
|
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) | |
| Audio | Audio compression | G.711A |
| Intercom | support | |
| Record & playback | Record mode | manual>alarm>motion detection>timing |
| Local Playback | 4ch(local input mode) | |
| Search mode | Search by time, calendar, event, channel | |
| Storage & backup | Video storage | HDD, network |
| Backup mode | Network, USBhard disk, USB burner, SATA burner | |

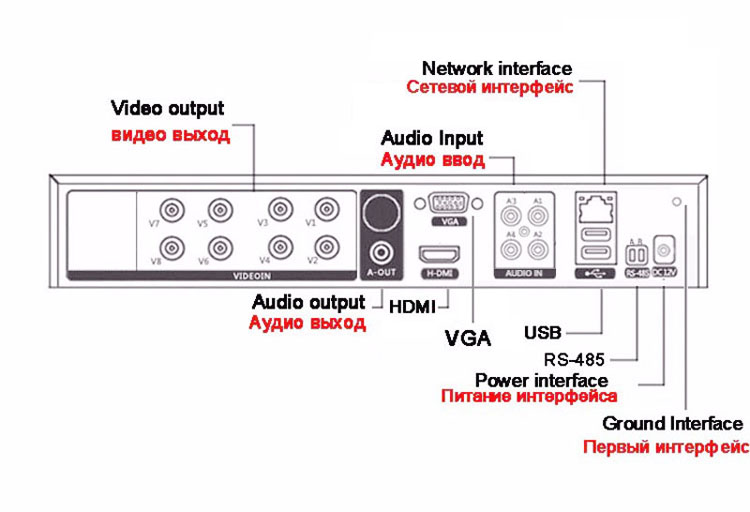

| External Interface | Video input | 8ch BNC |
| Video output | 1ch VGA, 1ch HDMI | |
| Loop Vout | N/A | |
| Audio I/O | 4(Can be extended to 8ch)/1 | |
| Alarm I/O | 0(Can be extended to 4ch)/0(Can be extended to 1ch) | |
| Network interface | RJ45 10M/100M self-adaption | |
| PTZ control | 1*RS485, Support kinds of PTZ protocols | |
| USB | 2* USB 2.0 ports | |
| HDD | 1*SATA ports (Max 6TB/per) | |
| Wireless | 3G, WIFI (extend via USB) | |
| General | Power supply | 12V/2A |
| Power Consumption | <15W (without HDD) | |
| Working environment | Temperature:0degree-+55degree,Humidity:10%-90%,Atm:86kpa-106kpa | |
| Dimension(motherboard) | 200mm*78mm | |
| Weight (motherboard) | 196g |

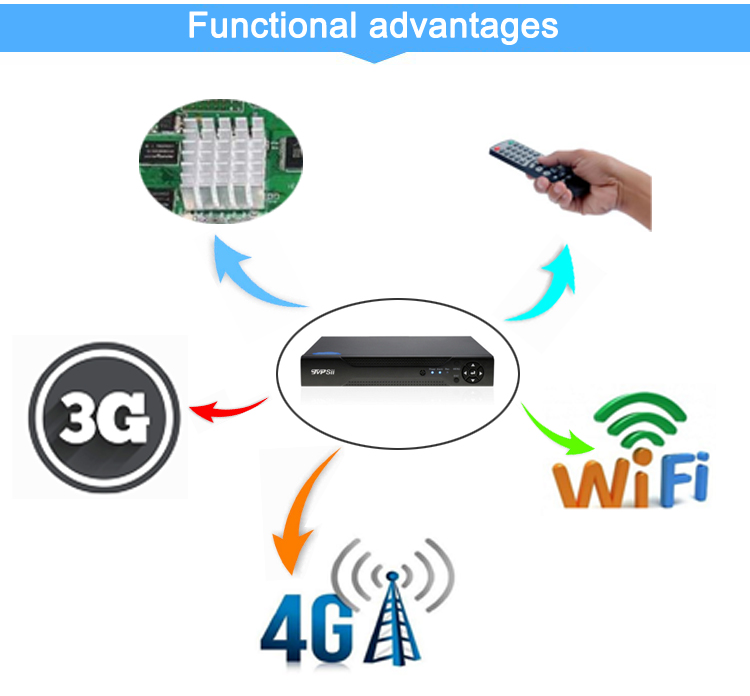

Our Surveillance Video Recorder have heat sink，remote control,3G（4G） function,WIFI function and so on, quality assurance.
-
1.Russian Federation: 7-22 days By RETS-Express
-
2.Brazil: 15-30 days E-Packet
-
3.East Asia (Japan and Korea): 7-15 days EMS or E-Packet
-
4.Southeast Asia: 7-15 days E-packet or Singapore Post
-
5.Central Asia and South Asia: 7-20days China post
-
6.West Asia (Israel): E-Packet; Netherlands Post; Swiss Post, about 7-15 days
-
7.United States and Canada: 7-15 days E-Packet
-
8.Europe: E-Packet; Netherlands Post; Swiss Post, about 7-15 days
-
9.Oceania (Australia and New Zealand): 7-15 days E-Packet
-
10.DHL (America and Europe):3-10days;SPSR(Russian Federation):7-18days
Friendly Reminder:
-
we only spent two days (48 hours) for sent parcel , have tracking number and tracking number information,Thanks!
-
if you choose DHL for sent goods, please make sure that your address is not in remote areas for DHL,because it will produce huge transportation costs for remote areas, this also need pay by buyer,Thanks!
Notice:

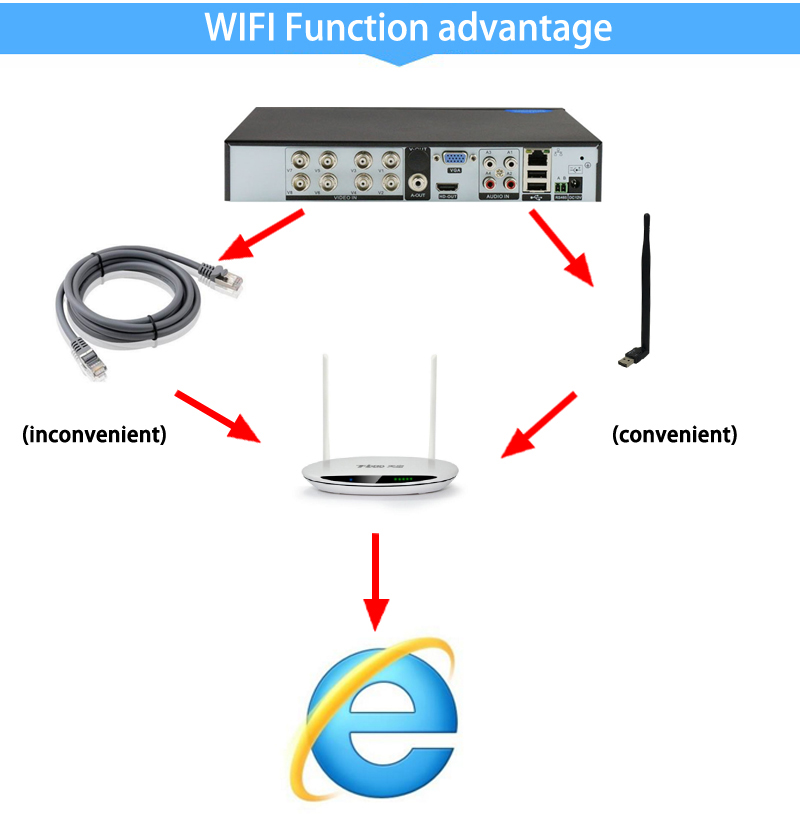

If you want to use WIFI function , please click the following button to buy USB WIFI Antenna Module,Thanks!
NOTICE：
Q: it always cause problems in trade between countries, for example , bad weather for delay, custom problem , post worker broken it, and so on
