Product Show

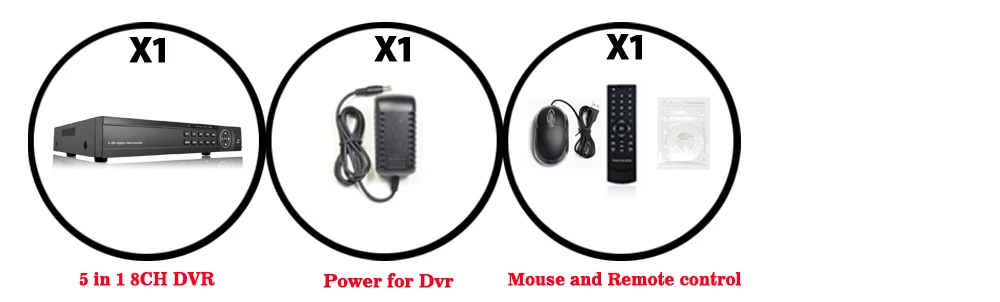

Items included
- 1 X 8CH AHD 1080P DVR NVR HVR 5 in 1 Digital Video Recorder
- 1 X USB Mouse for DVR
- 1 X Power adapter for DVR
- 1 X Software CD for DVR
- 1 X Remote Control for DVR
- no Hard Disk Included!!!!
Overview

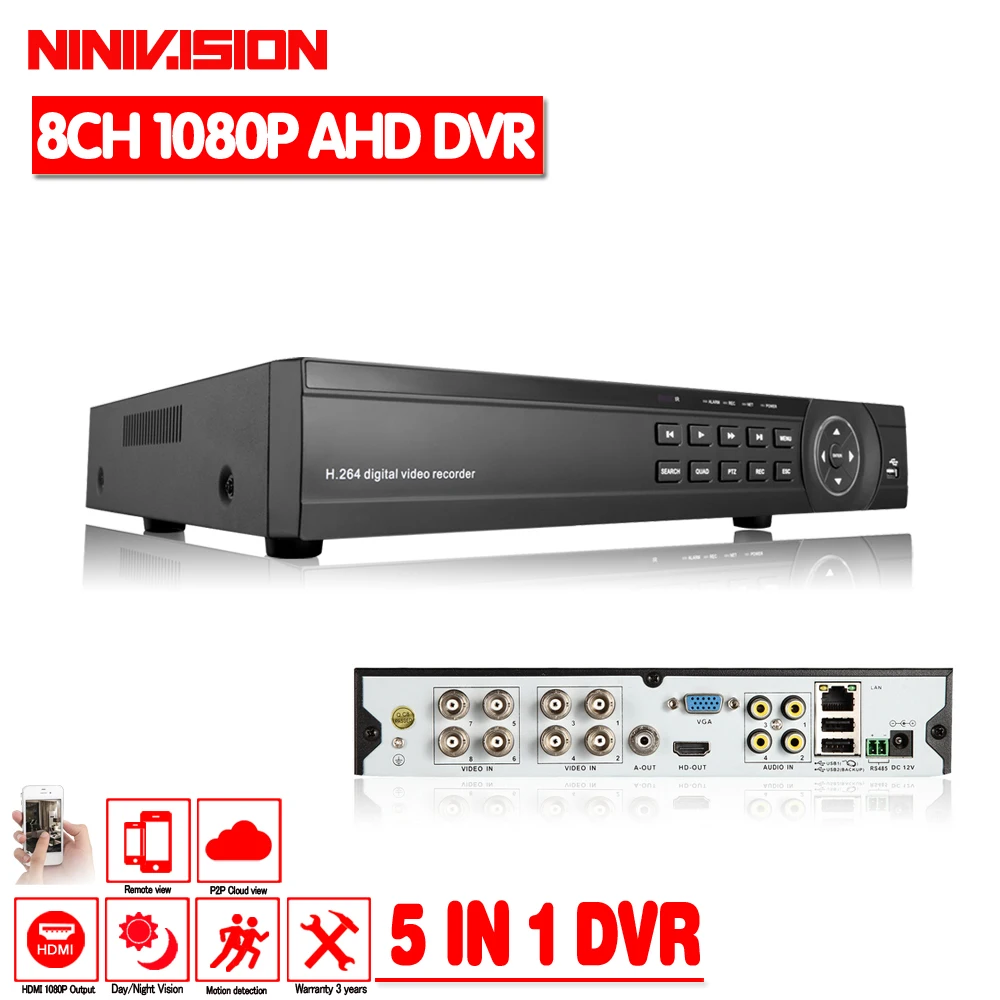

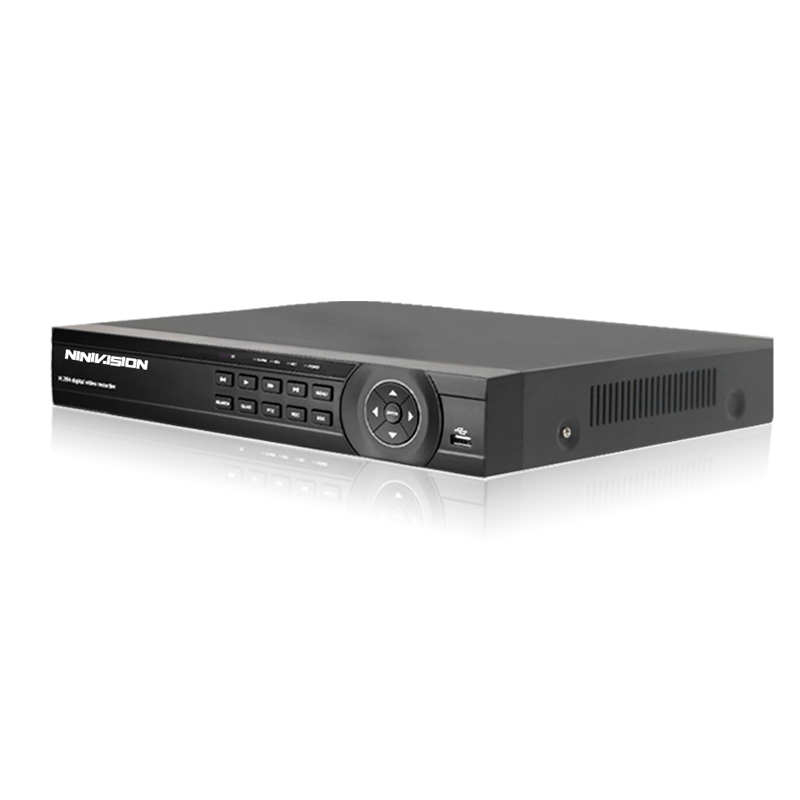

- 8CH AHD 1080P Hybrid DVR Recorder
- Strong Network Server;
- With P2P Cloud Function;
- support USB ,Mouse,backup;
- Support Android,iphone,ipad,pc,cms view;
- Support VGA output&HDMI output(1080P);
- Record Resolution: AHD 1080P (1920*1080);
- With H.264 High efficiency Video Compression;
- Auto White Balance,Auto Gain control,back light comp;
- HDD Interface:SATA,Support between 250GB and 6TB;
- Multi-language menus option up to 28 kinds of language.
Product Specifications
System
Main processor: Embedded processor
Operating system: Embedded Linux
Video&Audio
Video Fortmat :PAL or NTSC
Video compression:H.264
Encode capacity:8*AHD 1080P
Decode capacity:8*AHD 1080P /4*AHD 1080P
Analog input:8*AHD 1080P
Digital input:8*1080P(Network)
Hybrid input:4*AHD 1080P(analog)+4*1080P(Network)
Audio Input:4 RCA Input
Audio Output:1 RCA Output
Audio compression:G.711A
Recording
Compression Format: H.264
Recording Resolution: NTSC: AHD 1080(1920 x 1080) PAL: AHD 1080P(1920 x 1080)
Recording Modes: Manual/Motion/Schedule
Hard drive: Internal SATA hard drive required for recording,support up to 6TB
Network
LAN Connection: YES
Network Interface: RJ45

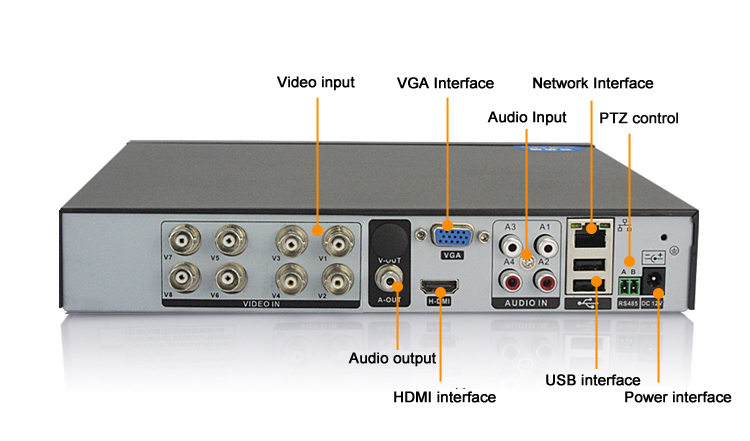

Interface
Video input : 8ch BNC
Video output :1ch VGA, 1ch HDMI
Audio input :4ch RCA
Audio output :1ch RCA
Network interface :RJ45 10M/100M
PTZ control :1*RS485, Support multiple PTZ protocols
USB :2* USB 2.0
HDD :1*SATA port (Max 4TB/per)
Wireless :3G, WIFI (extension via USB)
General
Power Supply : DC 12V
Back up method : External storage via USB
Temperature：-20℃+50℃
Humidity ：-10%-90%
USB Mouse：included
Remote Control : YES
Dimension：255mm(length)*235mm(width)* 45mm(height)
Weight：2.0KG
DVR Language
Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on
AHD 1080P High Definition Display
High-Definition interface output,Suport for online playback,Mobile remote,Multi-window display
with 1080P Resolution.The angle will be more larger,and the image will be more clearer

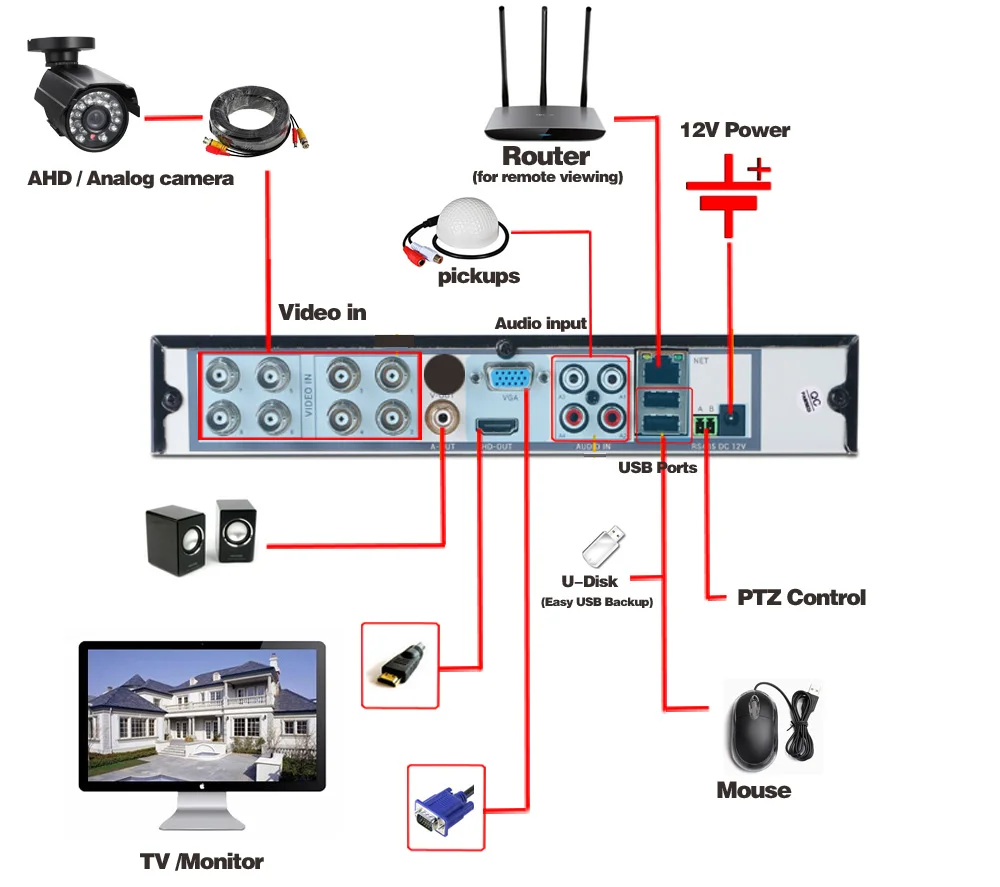

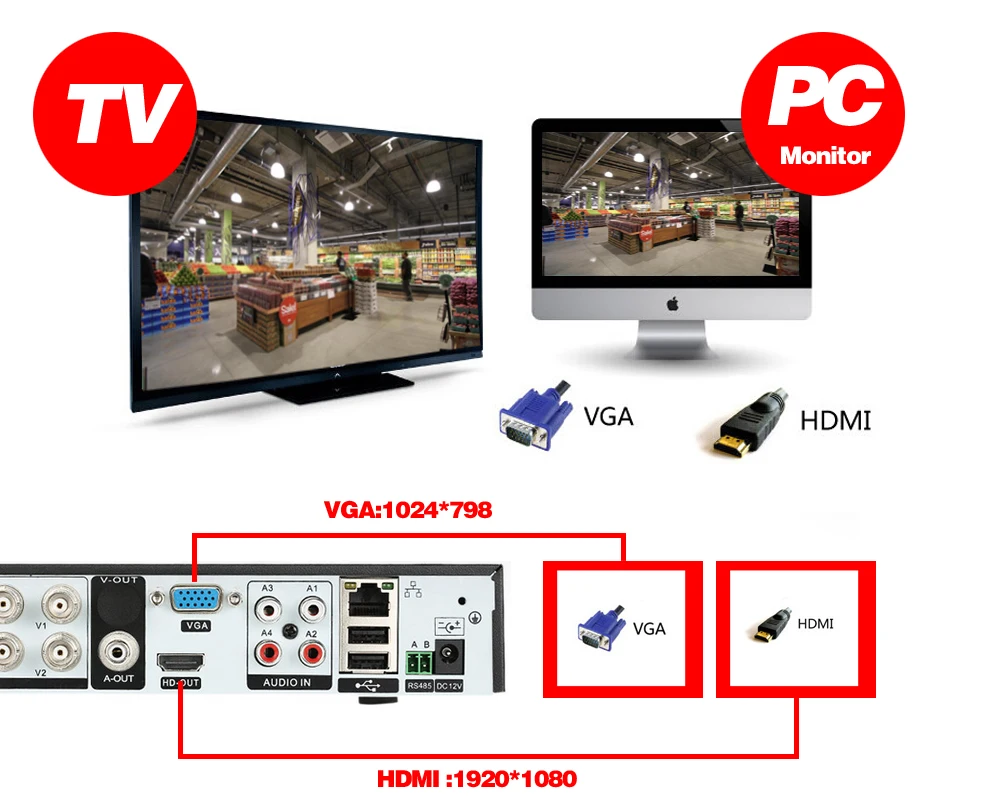

Multiple viewing options
View on HDMI Monitor
Easily display video through the HDMI port of your computer monitor to take full advantage of the security system’s
clarity. (HD Cable Not Included)
View on TV or PC Monitor
For added convenience, the DVR also comes with VGA and BNC connections for standard resolution viewing options.
VGA or BNC to RCA cable is not included.

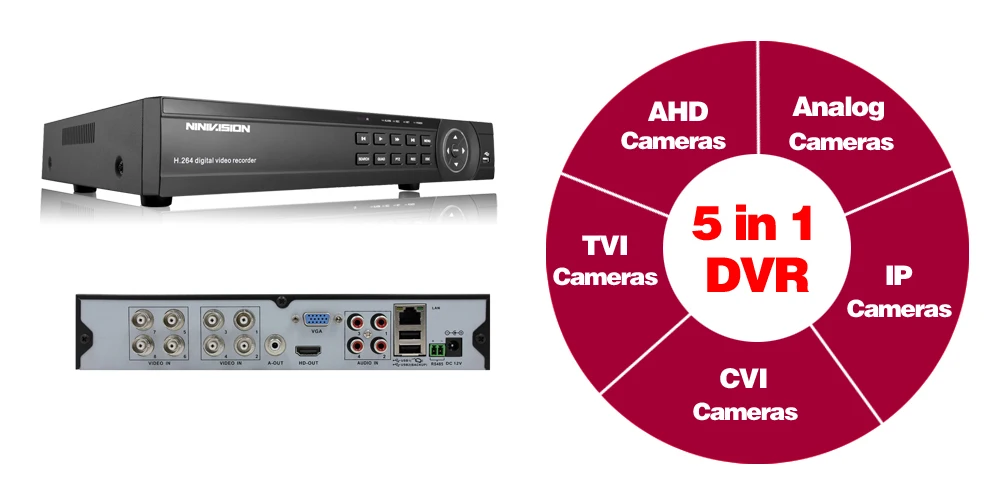

AHD DVR NVR HVR 5 IN 1
AHD DVR Compatibilty Support:Analog Camera / AHD Camera / TVI Camera / CVI Camera / IP Camera.
You can freely enjoy five connection modes with this one multi-function digital video recorder.AHD(Analog High Definition)is new advanced technology on home security with 5 recordering modes.for your option:Analog / Network / TVI / CVI / AHD+Network. You can get HD quality video in each mode.

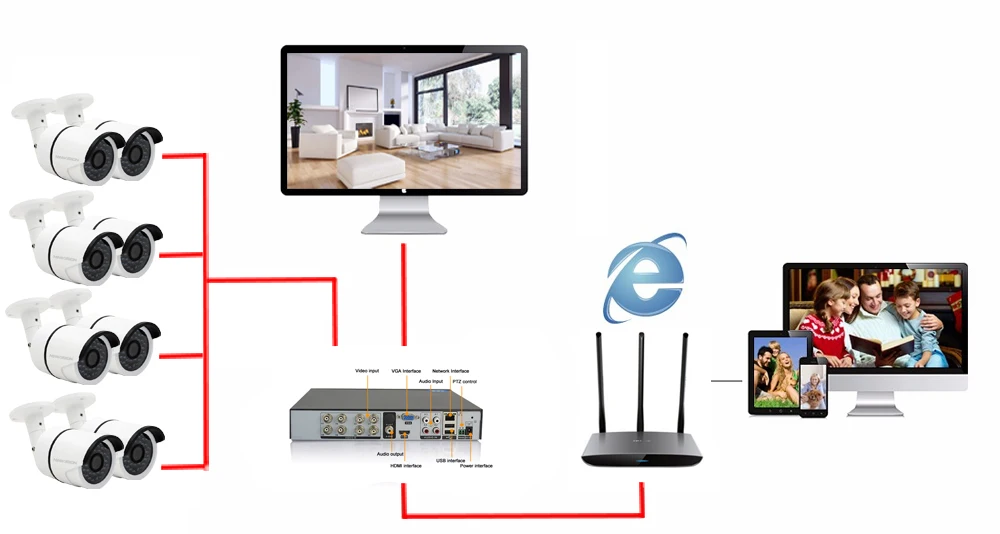

Remote viewing anywhere,anytime
View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy！！！

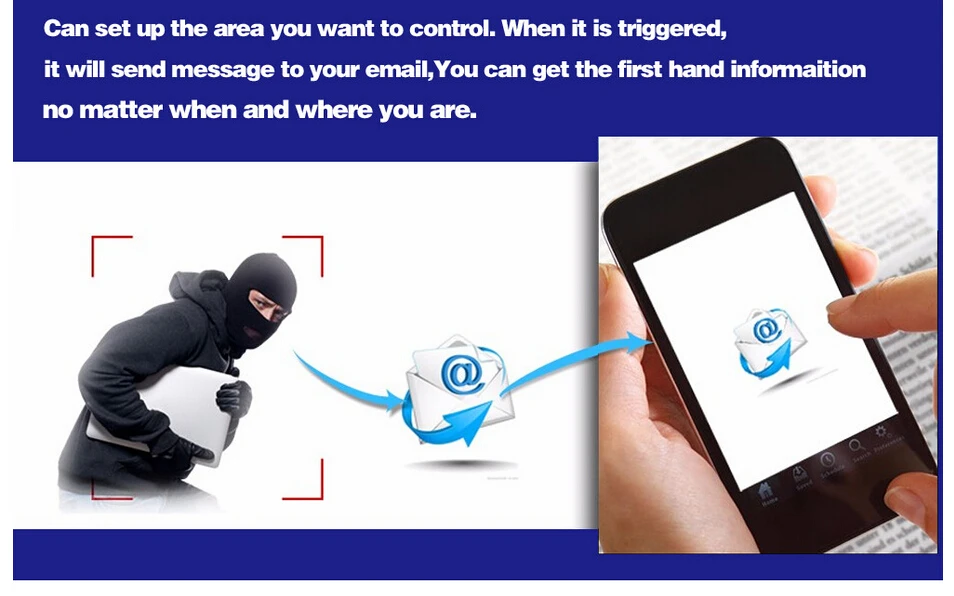

Instant email alert
Motion Detection Recording
Plug and play ,Easy to use
The cctv security system is plug and play ,easy to set up,Making lift more easier.Remote viewing anywhere anytime.
You can install it by yourself
You can install it in there place
